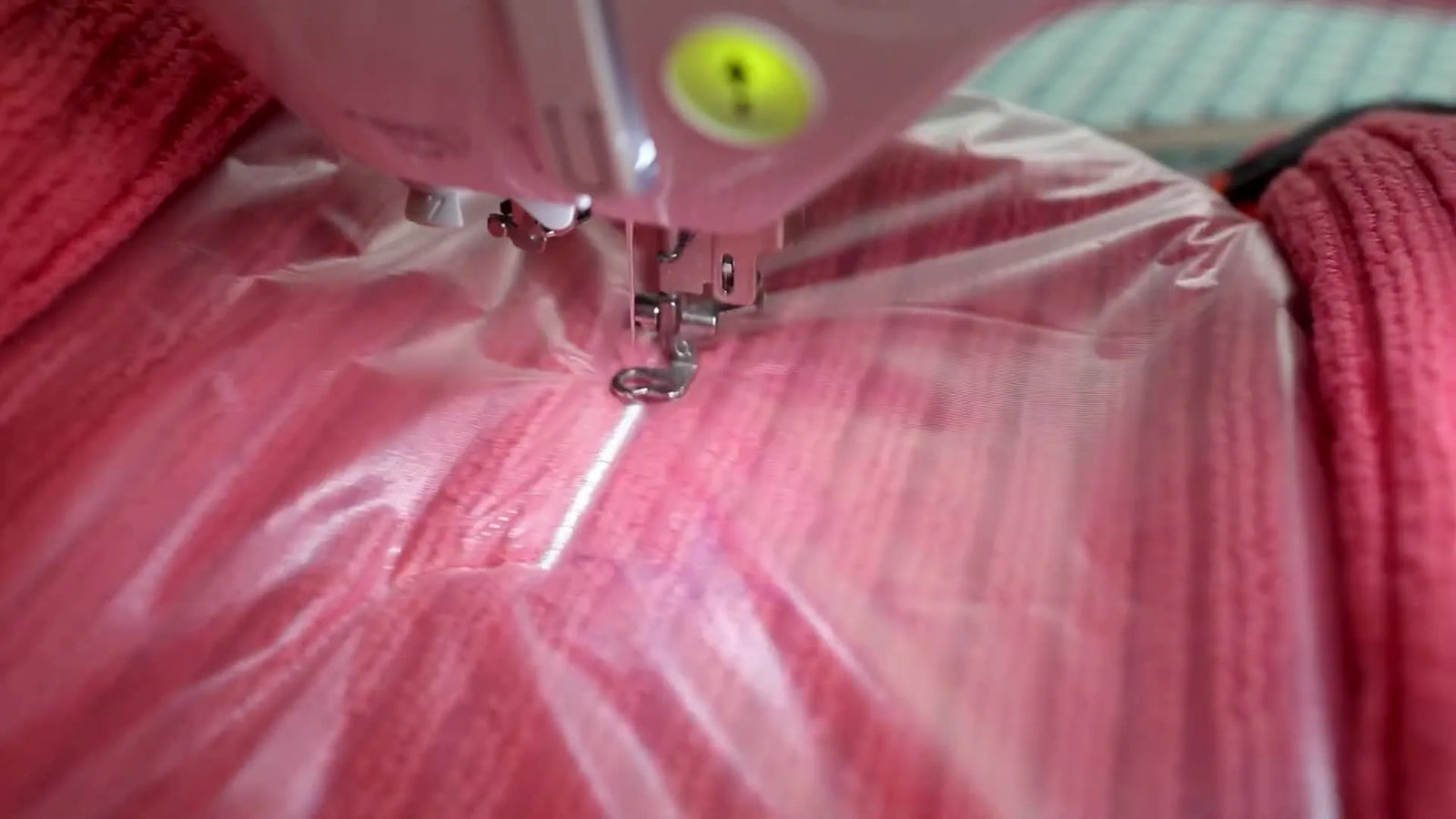

Monogramming a Thick Bath Mat on the Brother PE800: The Floating Method That Saves Your Hoop (and Your Sanity)

If you’ve ever looked at a thick bath mat and thought, “There’s no way that is fitting in my machine,” you’re not being dramatic—you’re being a realist. Heavy, towel-like pile fights against hoop tension, drags heavily on the embroidery arm, and loves to swallow satin stitches whole.

The good news: The video demonstrates that you can monogram a thick IKEA-style bath mat on a Brother PE800 by using a controlled “float” setup. Floating means you hoop only the stabilizer, not the mat itself, and secure the item on top.

Below, I have rebuilt the video’s method into a shop-standard workflow. I’ve added the “sensory checkpoints”—the sounds and feelings—that keep this from turning into a sticky, crooked, thread-breaking mess.

Don’t Panic: The Brother PE800 *Can* Handle a Bath Mat—If You Respect Bulk and Drag

The project involves a towel-like bath mat (intentionally chosen without a rubber backing) and a single monogram design of 7,462 stitches taking roughly 15 minutes. For a thick item, this is a safe stitch load.

However, you must accept two physical realities before hitting "Start":

1. Friction is your enemy: A bath mat is essentially a heavy towel. It will try to lift, creep, and torque your needle penetrations.
2. The hoop is not a clamp: For thick pile, forcing the inner and outer rings together often creates "hoop burn" (permanent crushing of fibers) or causes the outer ring to pop off mid-stitch.

This is why the video leans on the floating embroidery hoop technique: hoop the stabilizer tight as a drum skin, then "float" the mat on top using temporary adhesive and pins.

The “Hidden Prep” That Makes the Stitch-Out Look Expensive (Not Homemade)

This is where experienced embroiderers quietly win. The video executes three specific prep moves that prevent 80% of common disasters.

1) Pre-wash and dry the cotton mat

The mat is cotton. The video explicitly advises pre-washing and drying. If you skip this, the first time you wash the finished item, the mat will shrink, but your polyester/rayon thread won't. The result? A puckered, distorted monogram.

2) Match the Needle to the Texture

The video uses Madeira rayon thread and an Organ ballpoint 80/12 needle.

• Rayon: Chosen for its high sheen, which contrasts beautifully against the matte cotton pile.
• Ballpoint Needle: This is critical. A sharp needle can cut through the loops of a towel, damaging the fabric base. A ballpoint needle slides between the fibers.

My Expert Tip: If you don't have an 80/12 Ballpoint, a 75/11 Universal is your next safest bet. Avoid heavy-duty "Jeans" needles; they are too aggressive for this weave.

3) Avoid Rubber Backing

The video intentionally selects a mat without a rubberized non-slip backing. Rubber creates intense friction on the needle, heats up, and can gum up the thread. If you must embroider a rubber-backed mat, you will need a titanium needle and slower speeds, but for beginners, stick to pure cotton.

Prep Checklist (Pre-Flight):

• Shrinkage Check: Has the mat been washed and dried?
• Material Check: Is the back free of rubber/latex coating?
• Consumables: Do you have fibrous wash-away stabilizer, water-soluble topper (like Solvy), spray adhesive, painter's tape, and an air-soluble pen?
• Hardware: Is a fresh 80/12 needle installed? (Never risk an expensive mat with an old burred needle).


Marking the Center on a Thick Bath Mat: The Crosshair Method That Prevents “Off-by-1-Inch” Regret

The video finds the center by folding the mat and marking midpoints on the edges with an air-soluble pen, then drawing a large crosshair with a ruler.

Why this matters: Thick pile hides ink. A small dot will vanish the moment you smooth the pile. You need a bold crosshair capable of being seen through the texture.

Visual Anchor: Make your lines thick enough that you can still see them from 2 feet away. You will need this visibility during the floating process.

Hooping Only Wash-Away Stabilizer in a 5x7 Hoop: Your “Foundation Layer” for Floating

The video uses a standard 5x7 hoop and hoops only a single layer of wash-away stabilizer (fibrous type).

The Sensory Test: When you tighten the hoop screw, tap the stabilizer. It should sound like a drum. If it sags even slightly, re-hoop. This layer handles all the structural tension.

Once hooped, draw a crosshair directly on the stabilizer that matches the hoop's plastic grid markings. This gives you two sets of crosshairs: one on the mat, one on the stabilizer. Aligning these two is the secret to perfect placement.

Note on Terminology: Mastering the art of hooping for embroidery machine technique means knowing when not to hoop the fabric.

A Clean Spray-Adhesive Setup: Painter’s Tape + Paper Bag “Spray Booth” to Avoid Hoop Gunk

Temporary spray adhesive (like KK100 or 505) is vital for floating, but it is the enemy of your machine's mechanics.

The video uses a smart containment method:

1. Tape the Rim: Cover the hoop's plastic rim with painter’s tape.
2. The Box Method: Place the hoop inside a cardboard box or paper bag to catch overspray.

Why? If spray adhesive gets on the outer hoop connectors, it collects lint, turns into black sludge, and inevitably jams your attachment mechanism.

Warning: Never spray adhesive near your embroidery machine. The mist is invisible, but it will coat your machine's belts and sensors, leading to expensive repairs. Always spray in a separate zone.

The Pin-Pivot Alignment Trick: Lock the Center Before You Smooth Anything

The most common rookie mistake in floating is smoothing the fabric down and accidentally pushing the center off-target by half an inch.

The video demonstrates the Pin-Pivot Method:

1. Insert a straight pin vertically through the exact center of the bath mat's crosshair.
2. Drive that same pin down through the center of the hooped stabilizer's crosshair.
3. The Anchor: Hold the pin upright. It is now your axis.
4. Smooth the fabric down onto the sticky stabilizer around the pin.

This guarantees your center point is mathematically locked before the adhesive takes hold.

Bulk Control on the Brother PE800: Roll, Clamp, Then Lower Tension to 2.0

Once adhered, the excess mat behaves like a heavy anchor. The video rolls the sides tightly and secures them with photography spring clamps.

The Friction Factor: Thick pile creates massive drag on the thread. The thread has to travel through the thick fabric, creating friction. The video recommends lowering the upper tension to 2.0 (Standard is usually around 4.0).

Expert Context: While 2.0 worked perfectly in the video, every machine is unique.

• Test: Pull a few inches of thread through the needle. It should pull smoothly with very little resistance—like pulling dental floss.
• Result: A lower tension protects the thread from shredding and prevents the bobbin thread from being pulled up to the top.


Setup Checklist (Right Before You Press Start):

• Adhesion: Is the mat stuck firmly? (Lift the hoop; the mat shouldn't peel off).
• Clearance: Move the hoop carriage by hand (or use the "Trace" function). Does the rolled-up mat hit the needle bar or the machine body?
• Tension: Is the dial set to 2.0 (or your machine's sweet spot for thick threads)?
• Gravity Check: Ensure the heavy mat is supported so it doesn't drag the hoop down.


The Towel “Sandwich” That Stops Sinking Stitches: Topper Film + Curved Safety Pins

The video adds a layer of water-soluble topper film (like Solvy) over the embroidery area.

The Physics of "Sinking": Without a topper, satin stitches will sink deep into the loops of the terry cloth, looking jagged and disappearing entirely. The film acts like a snowshoe, keeping the stitches sitting proudly on top of the pile.

The video secures this "sandwich" with curved safety pins. Curved pins are superior to straight pins because they don't distort the fabric when inserting. Place them outside the stitch area but close enough to hold the layers tight.

Warning: Collision Hazard. Double-check your pin placement. If the needle strikes a metal safety pin, it can shatter, sending metal shards towards your eyes. Always scan the "Trace" area twice to ensure clearance.

Stitching the Monogram on the Brother PE800: Reposition the Needle Start Point, Then Trim the Tail Early

The video shows positioning the needle to the center of the design and starting the stitch-out.

The "Tail" Trap: Standard advice: Stop after 5-10 stitches. Why? On deep pile fabric, the starting thread tail can get caught by the foot and whipped into a "bird’s nest" knot underneath. Stop the machine, trim that tail flush, and then resume.

Auditory Check: Listen to your machine.

• A rhythmic thump-thump-thump is normal for heavy fabric.
• A sharp click or a grinding noise means the needle is hitting something hard (a pin?) or the mat is dragging the arm.




Operation Checklist (During Stitch-out):

• Watch the Topper: Is the film tearing away too early? (Pause and tape a patch if needed).
• Listen to Drag: Is the rolled fabric rubbing against the machine neck?
• Speed Limit: Do not run at max speed. For thick mats, cap your speed at 400-600 SPM (Stitches Per Minute) to reduce needle deflection.

Cleanup That Looks Professional: Remove Pins/Clamps, Trim Jumps, Cut Stabilizer, Then Wash

One crucial detail in the video’s workflow is the order of operations:

1. Remove Metal: Take off clamps and safety pins immediately.
2. Trim Jumps: Cut your jump stitches before washing. (Wet jump stitches inevitably tangle and are harder to cut later).
3. Rough Cut: Scissors-trim the excess stabilizer from the back.
4. Wash: Finally, wash the item to dissolve the topper and the fibrous stabilizer.

This sequence prevents "stabilizer goo" from drying into hard lumps.

Stabilizer Decision Tree for Thick Towels and Bath Mats (So You Don’t Guess)

Not all thick items need the exact same recipe. Use this logic to decide:

1. Is the pile deep enough to swallow a stitch?

• YES: You MUST use a Water-Soluble Topper on top.
• NO: You can skip the topper.

2. Will the back of the embroidery be visible?

• YES (Towels/Scarves): Use fibrous Wash-Away stabilizer (like the video) so the back is clean after laundry.
• NO (Framed Art/lined bags): You can use Tear-Away or Cut-Away for more stability (though wash-away is still softer).

3. Can you hoop it without crushing the fibers?

• YES: Hoop traditionally.
• NO: Use the Float Method (Hoop stabilizer only + Adhesive spray).

Comment-Driven Pro Tips: What Viewers Asked (and What I’d Do in a Real Shop)

Q: Can I use this on a combo machine like the Brother SE600? A: Absolutely. The physics are identical. The only difference is your maximum hoop size (4x4 vs 5x7). The floating technique is even more valuable on smaller machines because small hoops are harder to latch over thick uneven fabric.

Q: Sharp vs. Ballpoint Needles? A: A viewer worryingly noted that sharp needles cut the topper. While true, the bigger risk is cutting the towel loops. Stick to the Ballpoint 80/12. If your topper is shredding, double up the layer of film rather than changing the needle.

Q: "I want to do this, but hooping takes me 20 minutes." A: This is the most common frustration. The floating method is safe, but slow due to the taping, spraying, and pinning. If you start doing this frequently, look at the upgrade path below.

The Upgrade Path When You’re Done Fighting Thick Items: Level Up Your Hooping

The method shown is perfect for the occasional gift. But if you begin selling sets of bath mats, or if you simply get tired of the "spray-pin-pray" cycle, your bottleneck is the hoop itself.

Traditional plastic hoops rely on friction. When fabric is too thick, the friction fails. This is where magnetic embroidery hoops change the game.

• The Diagnosis: If you have "hoop burn" (shiny crushed rings on your towels) or wrist pain from tightening screws, your tool is the problem.
• The Solution (Home User): Search for a magnetic hoop for brother pe800 or a brother 5x7 magnetic hoop. These use powerful magnets to sandwich the thick fabric without forcing it into a ring, eliminating hoop burn instantly and removing the need for sticky spray in many cases.
• The Solution (Production): If you are doing 50 mats for a hotel, a single-needle machine will burn out. This is the trigger to look at multi-needle machines (like SEWTECH models) paired with an embroidery hooping station to standardize placement across batches.

Warning (Magnetic Safety): Magnetic hoops use industrial-strength neodymium magnets. They are strong enough to pinch fingers severely. Do not use if you have a pacemaker, and keep them away from computerized cards and hard drives.

Quick Troubleshooting: Symptoms → Likely Cause → Fix (Based on the Video)

The Takeaway: This Is How You Make a $6 Bath Mat Look Like Boutique Home Decor

The difference between "Homemade" and "Handcrafted" is often just bulk control. By preshrinking your mat, using a visible crosshair, floating on a drum-tight stabilizer, and managing the machine tension, you remove the variables that cause failure.

Once you master this "Floating with Topper" technique, you unlock the ability to embroider almost anything thick—from quilted tote bags to plush robes. And remember: if the struggle with the plastic hoop ever sucks the joy out of the hobby, magnetic frames are waiting to make the process effortless.

FAQ

• Q: How can a Brother PE800 embroider a thick bath mat without the Brother 5x7 hoop popping open or leaving hoop burn?
  A: Use the float method: hoop only wash-away stabilizer “drum-tight,” then stick and pin the bath mat on top instead of forcing the mat into the hoop.
  • Hoop: Tighten the hooped fibrous wash-away stabilizer until it taps like a drum.
  • Secure: Use temporary spray adhesive (sprayed away from the machine) and pins to hold the bath mat flat on the stabilizer.
  • Control bulk: Roll excess mat and clamp it so the weight cannot tug the hoop.
  • Success check: The bath mat stays bonded when the hoop is lifted, and the hoop latch feels fully seated (no creeping or flexing).
  • If it still fails: Reduce bulk more (tighter roll/clamp), and re-hoop stabilizer tighter—saggy stabilizer makes floating unreliable.
• Q: What supplies are required to float-embroider a thick bath mat on a Brother PE800 without adhesive gunk on the hoop?
  A: Use a controlled spray setup: painter’s tape on the hoop rim plus a “spray booth” (box/paper bag) to contain overspray.
  • Mask: Cover the hoop’s plastic rim with painter’s tape before spraying.
  • Contain: Place the hooped stabilizer inside a cardboard box or paper bag, then spray adhesive into that enclosure.
  • Separate: Spray in a different zone from the Brother PE800 to avoid invisible mist coating belts/sensors.
  • Success check: The hoop connectors and rim stay clean (no sticky film that grabs lint), but the stabilizer surface feels tacky enough to hold the mat.
  • If it still fails: If the hoop starts collecting lint/sludge, stop and clean the hoop before continuing—sticky buildup can cause attachment problems.
• Q: How do I align a thick bath mat monogram accurately on a Brother PE800 when the pile hides markings?
  A: Use a bold crosshair on the mat and stabilizer, then lock alignment with the Pin-Pivot method before smoothing.
  • Mark: Fold to find center, then draw a large, dark crosshair with a ruler so it remains visible through the pile.
  • Match: Draw a matching crosshair on the hooped stabilizer aligned to the hoop grid.
  • Anchor: Push one straight pin through the exact center of the mat crosshair and into the stabilizer crosshair, then smooth outward around the pin.
  • Success check: After smoothing, both crosshairs still intersect at the same point, and the design traces centered over that intersection.
  • If it still fails: If the center shifts during smoothing, peel back immediately and re-stick using the pin as the axis—don’t “drag-correct” after it grabs.
• Q: What upper tension should a Brother PE800 use for embroidering a thick bath mat to prevent thread shredding?
  A: Lower Brother PE800 upper tension as a safe starting point (the example used 2.0) to reduce drag-related shredding on thick pile.
  • Set: Dial upper tension down (try 2.0–2.5 as a starting range) and stitch a small test if possible.
  • Check: Pull a few inches of thread through the needle; it should pull smoothly with very little resistance.
  • Slow down: Cap speed around 400–600 SPM to reduce needle deflection and friction.
  • Success check: Thread runs without fraying and the stitch-out does not pull bobbin thread up to the top.
  • If it still fails: Re-check bulk drag (support the mat so it doesn’t hang) and confirm a fresh needle—old/burred needles shred thread fast.
• Q: Why do satin stitches sink into a thick bath mat on a Brother PE800, and how do I prevent the “sinking” look?
  A: Add a water-soluble topper film over the pile so stitches sit on top instead of disappearing into loops.
  • Cover: Lay water-soluble topper film (like Solvy-type film) over the embroidery area.
  • Pin safely: Use curved safety pins outside the stitch field to hold the topper and fabric stable.
  • Monitor: Pause if the topper tears early and patch/tape a piece as needed.
  • Success check: Satin columns look full and readable on top of the pile, not jagged or “buried.”
  • If it still fails: Add another layer of topper film rather than switching to an aggressive needle choice that can damage towel loops.
• Q: How can Brother PE800 users avoid bird’s nests at the start of embroidery on thick bath mats?
  A: Stop early and trim the starting thread tail flush after the first 5–10 stitches so the tail can’t get whipped into a knot underneath.
  • Start: Begin the design, then pause after 5–10 stitches.
  • Trim: Cut the top thread tail close to the fabric surface.
  • Resume: Continue stitching while watching for dragging fabric and topper movement.
  • Success check: The underside stays clean (no growing thread wad) and the machine sound stays rhythmic rather than strained.
  • If it still fails: Re-check that the heavy mat is supported (gravity drag can trigger nesting) and confirm the mat isn’t rubbing the machine neck.
• Q: What safety checks should be done before stitching a thick bath mat on a Brother PE800 with pins and clamps?
  A: Prevent needle collisions: scan the trace area twice and verify rolled bulk, pins, and clamps stay outside the needle path.
  • Trace: Use the Brother PE800 trace function (or manually move the carriage) to confirm clearance around the full design boundary.
  • Reposition: Move curved safety pins farther out if there is any chance of contact.
  • Listen: Stop immediately if a sharp click/grind replaces the normal heavy-fabric “thump.”
  • Success check: The needle path clears all metal and the hoop carriage moves freely without hitting the rolled mat.
  • If it still fails: Remove metal fast, re-secure bulk farther away, and re-trace—never “hope it misses” a pin.
• Q: When should Brother PE800 users upgrade from floating with spray/pins to a magnetic hoop or a multi-needle embroidery machine for thick bath mats?
  A: Upgrade when hoop friction and setup time become the bottleneck: magnetic hoops reduce hoop burn and repetitive setup, while multi-needle machines fit high-volume runs.
  • Level 1 (technique): Keep floating with drum-tight hooped stabilizer, topper, and bulk control for occasional gifts.
  • Level 2 (tool): Move to a magnetic hoop when hoop burn, hoop popping, or wrist pain from tightening becomes frequent, and when “spray-pin” prep is slowing every job.
  • Level 3 (production): Consider a multi-needle machine when batch orders (for example, hotel quantities) make single-needle cycle time and thread changes the limiting factor.
  • Success check: Setup time drops and placement becomes repeatable without crushing fibers or relying heavily on adhesive.
  • If it still fails: If using a magnetic hoop, follow magnetic safety strictly—strong magnets can pinch fingers severely and should not be used by anyone with a pacemaker.
