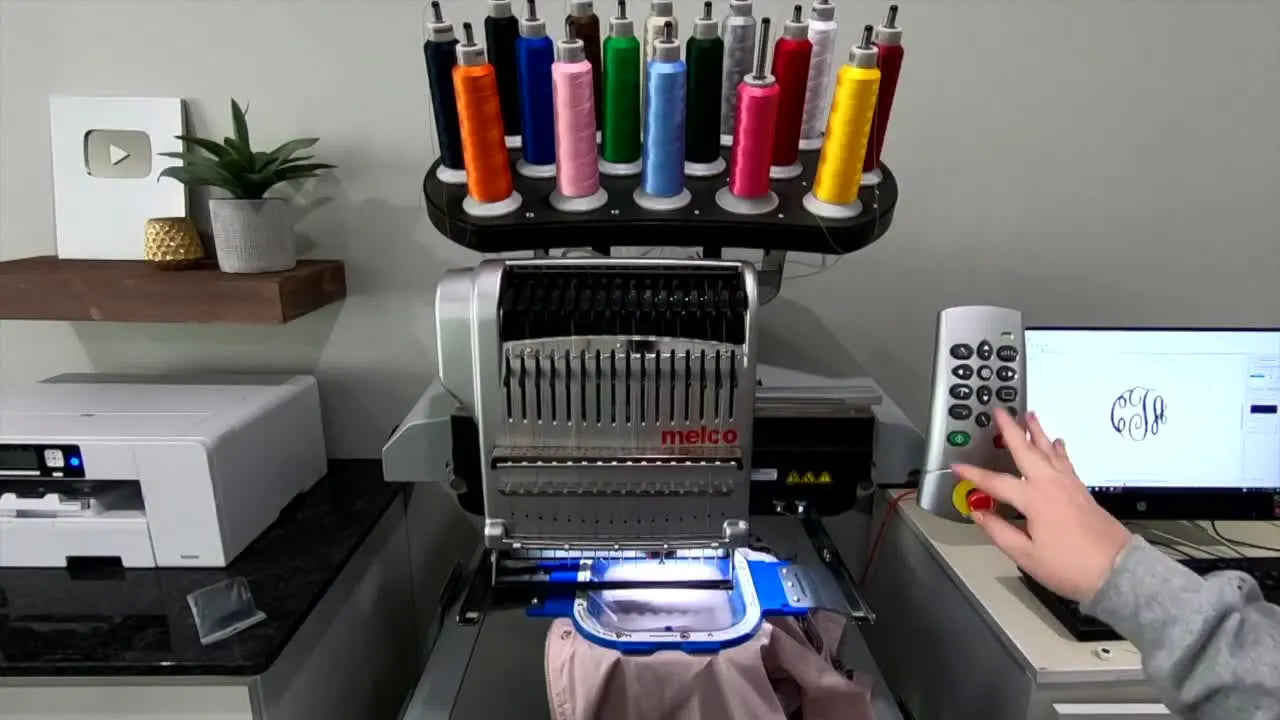

Monogramming a Slippery Raincoat on a Melco EMT16X: The Magnetic Hoop Method That Prevents Puckers and Hoop Burn

Embroidering on a raincoat is widely considered one of the “final bosses” of machine embroidery. You are not just fighting fabric; you are fighting physics. You are dealing with a surface designed to repel water (and stabilizers), low friction that causes hoop slippage, and a material that loves to pucker the second a needle penetrates it.

However, after spending 20 years on the shop floor, I can tell you this: Raincoats are only scary until you understand the variables. The workflow shown in the video is not just a “tutorial”—it is a production-grade protocol. It works because it respects the material’s limitations.

This guide rebuilds that process with the "old hand" details—the sensory checks, the safety buffers, and the "why"—that separate a ruined garment from a professional finish.

Don’t Panic: A Raincoat Monogram Is Totally Doable—If You Respect Slippery Nylon Behavior

Raincoats (usually nylon/poly blends) behave differently than porous fabrics like cotton or fleece. They don’t “grab” the stabilizer. If you treat a raincoat like a sweatshirt, you will get "puckering"—where the fabric bunches around the stitches—or "shifting," where the outline and the fill don't line up.

If you’ve ever had a monogram look perfect for the first 500 stitches and then suddenly turn into a distorted mess, that isn't your machine "acting up." It is the fabric sliding microscopically under the foot.

The Mental Model: Embed this sentence in your mind: Your goal is absolute sandwich stability, not drum-tight fabric tension.

On a raincoat, if you hoop the fabric too tightly (distorting the weave), it will snap back to its original shape the moment you unhoop it, destroying your design. We use the stabilizer and the hoop's grip to hold the fabric neutral, not stretched.

The Design Shop Pro Settings That Make Satin Behave on a Raincoat (Density 100, Zigzag Underlay, Pull Comp 170)

Digitizing for outerwear is 90% of the battle. In the video, Crystal uses Design Shop Pro to set up a 3.0-inch single-letter monogram using the “Fancy Monogram” font. Note that she stitches this as a satin stitch, not a fill (tatami).

Here are the specific parameters used, with an explanation of why they matters:

• Density: 100 (Melco Points) / Standard equivalents typically approx 0.40mm spacing.
  • Why: This provides solid coverage without perforating the raincoat so many times that it cuts a hole in the fabric (the "cookie cutter" effect).
• Stitch Type: Satin
  • Why: Satins sit on top of the fabric beautifully.
• Underlay: Zigzag
  • Why: This is crucial. The zigzag acts as a foundation. It grabs the stabilizer below and the fabric above, locking them together before the visible top stitching begins.
• Pull Compensation: 170
  • Why: This is an aggressive setting. Outerwear pulls inward significantly as stitches form. This setting tells the machine to stitch wider than the on-screen design looks, compensating for that inevitable shrinkage.

The "Sherpa" Variation: Crystal notes that if you were stitching on Sherpa (fluffy texture), you would switch to a Double Zigzag Underlay. This lifts the stitches higher to prevent them from getting lost in the fur.

Workflow Tip: If you are running a melco emt16x embroidery machine or similar industrial equipment, save this file specifically as "Raincoat_Master." Do not rely on your memory for these settings next season.

The 400 SPM Rule on Raincoats: Slow the Melco EMT16X Down Before You Ever Hoop

On the control screen, Crystal performs two critical manual overrides:

1. She lowers the speed to 400 stitches per minute (SPM).
2. She selects black thread to match the design.

The "Speed Kills" Reality Check: Modern machines can run at 1000+ SPM. Beginners often think "faster is better." On slippery nylon, speed creates heat (friction) and needle deflection.

• Friction: Can melt the coating on waterproof jackets.
• Deflection: At high speeds, the needle can hit the slick surface and skid slightly before penetrating, causing crooked lines.

The Beginner’s Speed Sweet Spot:

• 400-600 SPM: The "Safe Zone" for raincoats, windbreakers, and puffy jackets.
• 600-800 SPM: Expert zone (only if using heavy stabilization).

Warning: Physical Safety Hazard. When working with jackets, sleeves and hoods can easily swing into the moving pantograph or needle bar. Keep your hands clear and ensure the garment doesn't snag on the table edges.

When comparing melco embroidery machines, remember that control features like precise speed limiting are often more valuable than raw top speed when dealing with technical fabrics.

The “Hidden” Prep Pros Do: Stabilizers, Tools, and a Clean Hooping Plan (Before You Touch the Jacket)

Do not bring the jacket to the machine yet. Setup happens on the table.

The Consumables List:

• Cutaway Stabilizer (2.5oz - 3.0oz recommended): Why? Tearaway is forbidden here. A raincoat will stretch over time; tearaway will eventually break down, leaving your embroidery unsupported and saggy. Cutaway stays forever.
• Water-Soluble Topper (Solvy): Why? This prevents the stitches from sinking into the fabric texture and keeps the edges of the satin column razor-sharp.
• 75/11 Sharp Needle (Hidden Consumable): While not explicitly dwelt on, using a fresh Sharp point (not ballpoint) is critical for penetrating tightly woven nylon cleanly.
• 13.5 cm x 13.5 cm (5.5") Magnetic Hoop: The tool of choice for this job.

The "Third Hand" Solution: Trying to hold a slippery jacket, a sheet of stabilizer, and a hoop straight is a juggling act. This is where a magnetic hooping station becomes a game-changer. It holds the bottom hoop in place, allowing you to use both hands to smooth the jacket.

Prep Checklist (Pre-Flight)

• File Check: Design loaded? Pull compensation increased?
• Needle Check: Is the needle straight and sharp? (Run your fingernail down the tip; if it catches, change it).
• Hardware Check: Speed reduced to 400 SPM.
• Stabilizer: Cutaway piece cut 2 inches larger than the hoop on all sides.
• Top Layer: Water-soluble topper ready (do not tape yet).
• ToolCheck: Scissors, tweezers, and a straight pin within reach.


The 6-Inch Placement Trick: Mark Center from the Neckline Seam So It Looks “Store-Bought”

Placement mistakes ruin more jackets than bad stitching. Crystal uses a failsafe method:

1. Locate the shoulder/neck seam (a fixed anchor point).
2. Measure exactly 6 inches down.
3. Mark the center with a straight pin.

Sensory Concept: "The Natural Fall" Do not pull the jacket flat on the table before measuring basically. Let it lay naturally. If you stretch the fabric while measuring 6 inches, it will shrink back to 5.5 inches when you let go.

Magnetic Hooping a Raincoat Without Wrinkles: Let the Hoop Clamp—Don’t “Drum Tight” the Fabric

This is the pivotal moment. Crystal slides the bottom magnetic frame and cutaway stabilizer inside the jacket. She aligns the pin with the visual center marks on the hoop, then drops the top frame.

The "Hoop Burn" Problem: Traditional screw-tightened hoops require you to shove an inner ring into an outer ring. On delicate nylon, this friction creates a permanent shiny ring known as "hoop burn."

The Magnetic Solution: magnetic embroidery hoops clamp straight down. There is no friction, no burn, and significantly less hand strain.

The Tactile Technique:

1. Drop & Snap: Let the magnets clamp the fabric.
2. The Gentle Tug: Once clamped, look for ripples. Gently—very gently—pull the fabric edge away from the center.
3. The Tap Test: Tap the fabric inside the hoop. It should NOT sound like a high-pitched snare drum. It should sound like a dull thud. If it rings like a drum, you have stretched it too much.

Tools for the Trade: If you find yourself doing production runs of 50+ jackets, the fatigue of manual hooping adds up. Tools like the MaggieFrame or similar magnetic systems are standard industry upgrades. Whether you are using a home machine or a commercial beast, compatibility is key—always check your machine's arm width.

Warning: Magnetic Pinch Hazard. These hoops use industrial-grade neodymium magnets. They can snap together with over 30lbs of force. Keep fingers clear of the contact zone. Pacemaker Warning: Keep these magnets at least 6 inches away from implanted medical devices.

Loading the Hoop on the Melco Pantograph: Clear the Needle Area, Use the Laser, Then Trace Like You Mean It

Crystal snaps the hoop onto the machine, but she doesn't press start. She performs the "Clearance Ritual."

1. Bunching: She grabs the excess jacket material (sleeves, back panel) and bunches it firmly away from the needle bar. A stray sleeve under the hoop guarantees a ruined jacket.
2. Laser Alignment: She aligns the needle to her center pin.
3. The Trace: She runs the design boundary trace.

Why Trace? Tracing isn't just about position; it's about collision. You are verifying that the needle bar won't slam into the hard plastic edge of the magnetic hoop. When researching hooping for embroidery machine best practices, you will find that "Always Trace" is rule #1 for hardframes.

The “Last 30 Seconds” Before Stitching: Remove the Pin, Add Solvy on Top, Then Start

Crucial Step: Remove the marking pin before you place the topper. If you stitch over a metal pin, you will shatter your needle and possibly damage the rotary hook.

Crystal lays the water-soluble topper loosely over the area. She does not tape it. Friction and the first few stitches will hold it.

Why the Topper is Mandatory: Even though raincoats are smooth, the needle leaves relatively large holes in nylon. The topper acts as a suspension bridge, ensuring the thread stays on the surface rather than diving into the needle penetrations.

Stitching the Monogram: What “Good” Looks While the Machine Is Running

As the Melco begins stitching at 400 SPM, use your senses to monitor quality:

• Sight: Watch the topper. It should be perforated cleanly, not dragged into the throat plate.
• Sound: Listen for a rhythmic, soft thump-thump. A harsh clack-clack usually indicates a needle strike or tension that is too tight.
• Touch: (Safely) check the hoop. It should not be vibrating violently.

The Production Scale-Up: If you are doing one jacket, you can babysit the machine. If you are doing 50, you need tools that allow you to walk away. This is where commercial equipment shines. Shops often search for mighty hoop 5.5 or compatible alternatives because the reliable hold allows operators to prep the next garment while the first one stitches. If you are using a Melco system, ensuring you have the right brackets (often found by searching mighty hoop melco or similar) is essential for safety.

Finishing Like a Pro: Tear Away the Topper, Trim Jump Stitches, and Don’t Overwork the Surface

The stitching is done. Now, finishing.

1. Unhoop: Pull the magnetic frames apart.
2. Tear the Solvy: Grip the embroidery with your thumb to support the stitches and tear the topper away rapidly.
3. Trim: Use fine-point snips (curved are best) to clip jump stitches closest to the fabric.
4. Residue: If small bits of topper remain, do NOT pick at them with your nails (you'll snag the satin). Use a spray bottle of water or a damp cloth to dissolve them instantly.
5. Backside: Trim the cutaway stabilizer. Leave about 1/2 inch of stabilizer around the design. Do not cut flush to the stitches—you need that margin for long-term support.


Troubleshooting the Two Problems That Actually Happen on Raincoats (Slippage + Wrinkles)

Even with the best prep, things happen. Use this diagnostic table to fix issues fast.

Stabilizer Decision Tree for Raincoats, Windbreakers, and Other Slick Outerwear

Stop guessing. Follow this logic path for slick fabrics.

START: Is the fabric stretchy? (Pull test: Does it stretch more than 1 inch?)

• YES (Performance gear/Softshell):
  • Bottom: Heavy Cutaway (3.0 oz).
  • Top: Solvy.
  • Action: Do not stretch in hoop.
• NO (Standard Raincoat/Windbreaker):
  • Bottom: Standard Cutaway (2.5 oz).
  • Top: Solvy.
  • Action: Magnetic clamping preferred.
• COMPLEX (Puffy Jacket/Sherpa):
  • Bottom: Cutaway + Adhesive Spray (to prevent shifting insulation).
  • Top: Solvy (Heavy weight).
  • Action: Double Zigzag underlay settings.


The Upgrade Path That Pays Off: Faster Hooping, Cleaner Results, and Real Shop Efficiency

The method Crystal demonstrates is perfect for learning. However, as you move from "I made one for my friend" to "I have an order for 20 company jackets," your bottlenecks will change.

Level 1: The Consumable Upgrade Start using pre-cut stabilizer sheets. Cutting fro rolls slows you down.

Level 2: The Tool Upgrade (The Hoop) If you are struggling with hoop burn or sore wrists, upgrading to Magnetic Hoops (like MaggieFrame or Mighty Hoop) is the single highest ROI investment for outerwear. They are faster, safer for the garment, and hold slick fabric better than any screw hoop.

Level 3: The Machine Upgrade (The Scale) If you are finding that your single-needle machine takes too long to change colors or lacks the power to punch through thick seams, this is the trigger to look at Multi-Needle Machines (like SEWTECH’s commercial lineup). These machines allow you to queue up colors, run at sustained speeds, and handle larger tubular hoops easier than flatbed machines.

Setup Checklist (Right Before You Press Start)

• Design: Loaded, centered, Black thread selected.
• Speed: Limited to 400 SPM.
• Hoop: Magnetic frame snapped securely; fabric is smooth but not drum-tight.
• Clearance: Excess jacket bunched away from the needle bar.
• Alignment: Laser aligned to mark; Trace completed successfully.
• Safety: Center PIN removed.
• Topper: Solvy sheet placed covering the design area.


Operation Checklist (During & After Stitching)

• Auditory Check: Listen for smooth stitching sounds (no harsh clicking).
• Visual Check: Watch for fabric drift or "flagging" (fabric bouncing up and down).
• Unload: Pull hoop gently; do not distort the garment.
• Clean: Tear Solvy, trim jumps, trim backing (leave 0.5" margin).
• Inspect: Check back of embroidery for "birdnesting" (tangles).


A Few Placement Ideas (Straight from the Video) That Sell Well

Embroidery is about perceived value. While the left chest is standard, check out these high-value placements mentioned in the video:

• The Hood: Great for visibility when the hood is down.
• The Cuff: Subtle, premium branding.
• The Yoke (Back Neck): High visibility area.

Raincoats are technical garments, and they demand technical respect. By slowing your machine, using the right "sandwich" of stabilizers, and utilizing the gentle grip of magnetic hoops, you turn a nightmare job into a profitable niche.

FAQ

• Q: Which stabilizer stack should a raincoat embroidery job use to prevent puckering on nylon/poly rain jackets?
  A: Use a cutaway stabilizer on the bottom and a water-soluble topper on top; avoid tearaway for raincoats.
  • Cut: Choose 2.5–3.0 oz cutaway and cut it at least 2 inches larger than the hoop on all sides.
  • Add: Place a Solvy-style water-soluble topper over the design area right before stitching (do not tape if it lays flat).
  • Avoid: Skip tearaway because raincoat fabric can stretch over time and lose support.
  • Success check: The satin columns stay sharp on the surface and the fabric does not draw up like a drawstring after unhooping.
  • If it still fails: Upgrade to a heavier cutaway (3.0 oz) and re-hoop with the fabric held neutral (not stretched).
• Q: How should a magnetic embroidery hoop be tensioned on a slippery nylon raincoat to avoid hoop slippage and wrinkles?
  A: Let the magnetic hoop clamp the raincoat flat and neutral—do not “drum-tight” the fabric.
  • Clamp: Drop the top frame straight down and let the magnets snap closed; do not force or drag the fabric.
  • Smooth: Gently tug the fabric edge outward only after clamping to remove ripples without stretching the center.
  • Test: Do the “tap test” inside the hoop to confirm neutral tension.
  • Success check: The fabric tap sounds like a dull thud (not a high-pitched snare drum) and the surface looks ripple-free.
  • If it still fails: Re-hoop and confirm the stabilizer is captured fully under the hoop and the hoop is seated evenly all around.
• Q: What machine speed should a Melco EMT16X embroidery machine run for monograms on raincoats to reduce shifting, heat, and needle deflection?
  A: Set the Melco EMT16X to 400 SPM as a safe starting point for slippery raincoat nylon.
  • Override: Lower speed before hooping so the first stitches are controlled.
  • Monitor: Watch for fabric drift during the first satin segments and stop early if the outline starts walking.
  • Stay safe: Keep sleeves/hood bunched away from the needle area so nothing swings into the pantograph.
  • Success check: Stitching sounds like a smooth, rhythmic thump-thump (not harsh clacking) and the design edges stay aligned.
  • If it still fails: Slow down further within the raincoat-safe range (often 400–600 SPM) and confirm the stabilizer + hoop grip are not allowing micro-slips.
• Q: What digitizing settings in Design Shop Pro help satin monograms stitch cleanly on raincoats without gaps or distortion?
  A: Use a satin stitch with Density 100, Zigzag underlay, and Pull Compensation 170 for raincoat monograms.
  • Set: Choose satin (not tatami fill) for a clean, raised look on slick outerwear.
  • Build: Enable zigzag underlay to lock fabric + stabilizer together before top stitches.
  • Compensate: Apply Pull Compensation 170 to counter inward pull on outerwear.
  • Success check: The satin columns cover evenly with no fabric showing between outline and fill edges.
  • If it still fails: Re-check for fabric shifting in the hoop and keep speed limited (400 SPM); gaps are often movement, not thread tension.
• Q: How do you prevent needle strikes and collisions when mounting a magnetic hoop on a Melco pantograph for a raincoat jacket?
  A: Always clear excess garment material, align with the laser, and run a full boundary trace before stitching.
  • Bunch: Gather sleeves/back panel firmly away from the needle bar and hoop travel path.
  • Align: Use the laser to confirm center placement before committing.
  • Trace: Run the design boundary trace to verify the needle bar will not hit the magnetic hoop edge.
  • Success check: The trace completes without any near-misses and the garment stays fully outside the moving frame path.
  • If it still fails: Reposition the hoop or reduce design size/placement area so the traced boundary stays safely inside the hoop’s clearance.
• Q: What safety steps are required when using neodymium magnetic embroidery hoops on jackets to avoid pinch injuries and device interference?
  A: Treat magnetic hoops as pinch hazards and keep them away from implanted medical devices.
  • Protect: Keep fingers out of the contact zone when closing; magnets can snap together with high force.
  • Control: Separate frames deliberately—do not let them slam together on the table.
  • Distance: Keep magnets at least 6 inches away from pacemakers or similar implanted devices.
  • Success check: The hoop closes in a controlled way with no finger contact near the magnet landing areas.
  • If it still fails: Use a hooping station to hold the bottom frame steady so hands stay clear during alignment and closure.
• Q: What is the fastest, lowest-risk upgrade path if raincoat embroidery keeps failing with puckering, shifting, or slow jacket throughput?
  A: Follow a three-level fix: improve consumables first, then upgrade to magnetic hoops, then consider a multi-needle machine for volume.
  • Level 1 (Technique/consumables): Use pre-cut cutaway sheets, add Solvy topper, and keep the fabric neutral in the hoop (not stretched).
  • Level 2 (Tool): Switch to magnetic hoops to reduce hoop burn, improve grip on slick nylon, and speed up hooping with less wrist strain.
  • Level 3 (Capacity): Move to a multi-needle machine when color changes and thicker seams become the bottleneck for jacket orders.
  • Success check: Operators can prep the next jacket while the current one stitches without quality drifting (no puckering, no outline gaps).
  • If it still fails: Standardize a “Raincoat” preset file (same digitizing + speed limits) and repeat trace + clearance checks on every garment.
