Merrow MG-3U / MG-3UV Velcro Patch Backing: The Clean, Fast Way to Sew Hook-and-Loop Without Bunching or Feed Dog Marks

The "crunch."

If you operate a Merrow MG-3U or MG-3UV, you know the sound. You approach the start point of a Velcro-backed patch, ready to create that signature overlocked edge, and—crunch. The patch stalls. The needle keeps firing into the same spot, creating a dense, hard knot affectionately known in the industry as a "bird’s nest." The feed dogs carve tracks into your fabric, and your profit margin on that patch just evaporated.

This isn't a ghost in the machine. It is a physics problem involving friction, pressure, and feed geometry.

As someone who has trained operators on industrial finishing equipment for two decades, I can tell you: the Merrow MG-3UV is a racehorse. It wants to run fast. But when you introduce Velcro (which is thick, stiff, and uneven), you have to treat it like off-roading. This guide reconstructs the workflow from the video, adding the tactile "feel," safety margins, and shop-floor protocols necessary to turn a frustration into a standard operating procedure.

Don’t Panic at the Start Point: What “Bunching” on a Merrow MG-3UV Really Means

When the border gets thicker in one spot—specifically the start/overlap point—it creates a defect that looks swollen and amateurish. In the video, you see the patch hang up at the "thumb" (the metal appendage on the presser foot) and then jump forward.

The Physics of the Failure: The Merrow MG-3UV uses a feed dog system to grab the bottom of the material and push it backward. Velcro hooks create massive drag against the presser foot thumb. When Drag > Grip, the patch stops moving, but the needle keeps stitching. That is "bunching."

The Emotional Reframe: The machine is not broken. It is doing exactly what physics dictates. Your job is to alter the equation so Grip > Drag.

If you rely on a standard happy embroidery machine for the primary stitching, remember: the embroidery machine creates the structure, but the Merrow creates the finish. If your embroidery is warped, the Merrow struggle is ten times harder. We will address upstream embroidery quality later, but first, let's fix the finishing mechanics.

The “Hidden” Prep Before You Spray 3M Super 77 (This Is Where Most Shops Lose Time)

The video demonstrates bonding laser-cut Velcro discs to the back of a polyester patch using 3M Super 77 adhesive. This is the industry standard because it is fast and creates a permanent bond. However, spray adhesive is the silent killer of sewing machines if managed poorly.

The "Clean Room" Protocol

A sticky needle is a broken needle. Before you spray, ensure you have the "Hidden Consumables" ready:

1. 3M Super 77 (or similar high-tack spray).
2. Silicone Needle Lubricant: To prevent the needle from dragging through the glue layer later.
3. Scrap Cardboard: To catch overspray.

Execution with Safety

The video warns about alignment, but here is the sensory cue:

• The Tack Test: Spray the Velcro, wait 10–15 seconds. Touch it lightly with a knuckle. It should feel tacky (like post-it notes), not wet/slimy. If it's wet, it will bleed through the fabric and gum up your Merrow loopers.

Warning: Aerosol Safety & Machine Hygiene. Never spray adhesive in the same room as your running machines. Airborne glue particles are drawn into cooling fans and belts, creating a "black gunk" that seizes motors. Spray in a box, in a ventilated area, then bring the patch to the machine.

Prep Checklist (Do Not Skip)

• Surface Check: Patch back is free of loose stabilizer fuzz (fuzz prevents bonding).
• Orientation Watch: Ensure the "Hook" side (scratchy) vs. "Loop" side (soft) is correct per the work order.
• Zone Defense: Spray zone is at least 10 feet away from the sewing zone.
• Consumable Prep: You have a scrap piece of the exact same fabric/Velcro sandwich for testing feed height.
• Visual Scan: Clear the table to the left of the Merrow head to allow unrestricted patch rotation.

Bonding Velcro Backing to an Embroidered Patch: The Fast Alignment Habit That Prevents Rework

In the video, the operator presses the Velcro disc onto the patch. This looks simple, but human fingers are imprecise. If the Velcro hangs off the edge by even 1mm, it will catch on the Merrow cutter blades, dulling them instantly.

The "Coin Stack" Technique: Do not look at the top. Look at the edge profile.

1. Place the patch face down on a hard surface.
2. Hover the Velcro disc over it.
3. Align the edges visually so they form a perfect cylinder (like a stack of two coins).
4. The Center Press: Press your thumb firmly in the center first, then spiral outward.

Why Center-Out? If you press edge-to-edge, you trap air bubbles. An air bubble creates a "soft spot." When the Merrow presser foot hits that soft spot, pressure drops, the patch slips, and you get—you guessed it—bunching.

Merrowing the Edge on a Merrow MG-3UV: Feed It Like You Mean It (So the Cut + Overlock Stays Consistent)

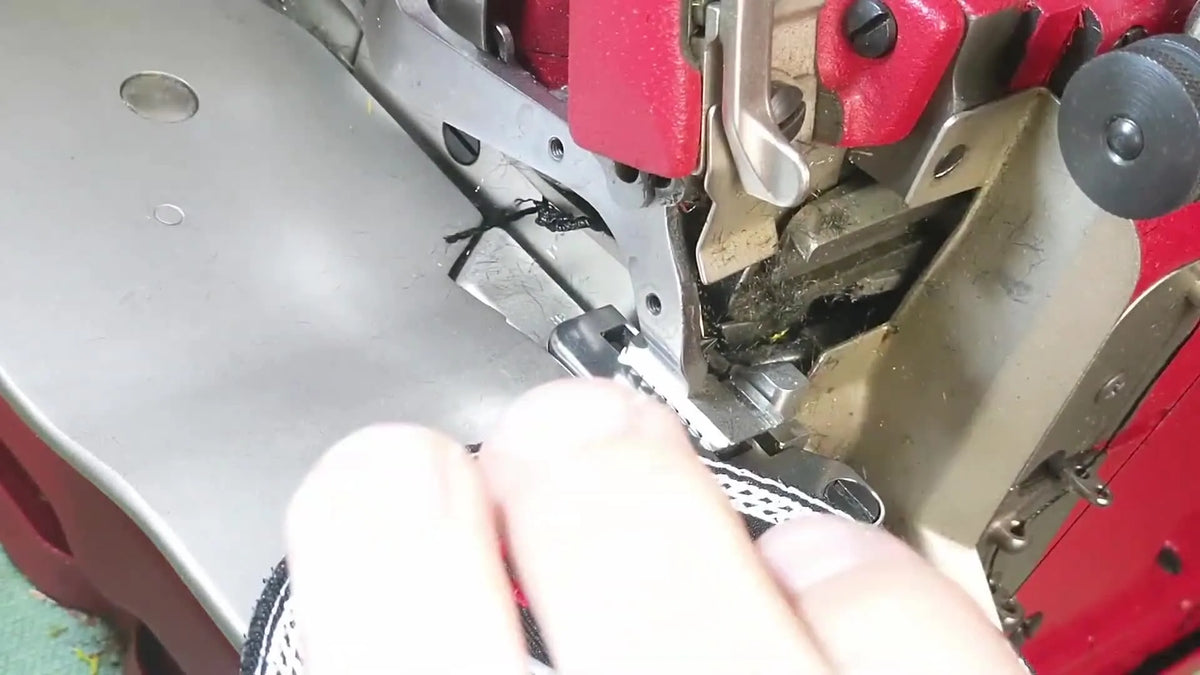

The video shows the patch being fed into the machine. The Merrow MG-3UV cuts the excess fabric and wraps the edge simultaneously.

The Sensory Anchors of a Good Run

• Sound: Listen for a rhythmic thump-thump-thump. A high-pitched whine suggests the patch is stalling.
• Sight: Watch the waste strip (the fabric being cut off). It should flow out like a consistent ribbon. If it shreds or chunks, your feed is jerky.
• Touch: You are not pushing the patch; you are guiding its rotation. Imagine the pressure required to slide a computer mouse—light, directional control.

Thread Strategy

The comments discuss thread types. The industry standard for that thick, lustrous edge is Merrow Floss (rayon or polyester).

• Pro Tip: If you are experiencing frequent breaks with floss, check your thread path. Floss is heavier than standard embroidery thread. Ensure it is not whipping against the cone stand.

The Start-Point “Bunching” Fix: Adjusting Merrow MG-3UV Feed Dog Height Without Guesswork

This is the core technical intervention. The feed dogs are the metal teeth that rise up from the needle plate to grab the fabric.

The Diagnosis: If the patch bunches at the start, your feed dogs are likely too low (slipping) or too high (jamming the thick Velcro against the foot).

The "Paper Shim" Adjustment Method

Don't guess. Use this micro-adjustment workflow:

1. Safety First: Turn the machine OFF.
2. Position: Rotate the hand wheel until the feed dogs are at their absolute highest peak of travel.
3. Loosen: Use a screwdriver to loosen the side lock screw (as shown in the video). Do not remove it—just crack it loose so the mechanism slides with resistance.
4. The Tactile Set:
   • Place your Velcro/Patch sandwich under the presser foot.
   • Adjust the feed dog height so the teeth penetrate the Velcro backing solidly but don't lift the presser foot so high that the tension disc opens prematurely.
   • The "Credit Card" Feel: When you pull the fabric manually (with foot raised), you should feel a distinct "zip" texture from the teeth grabbing. If it slides smooth, it's too low. If it snags hard, it's too high.
5. Lock: Tighten the screw while holding the feed dog assembly firm with your finger (shown in the video) to prevent it from wandering.

The Sweet Spot: The video creator advises: "Just above enough where it should give you a bit more resistance." Mechanically, this means the teeth should rise approximately 1.0mm to 1.2mm above the needle plate at the apex for Velcro work (standard fabric is usually lower, ~0.8mm).

Warning: The Finger Trap. When adjusting feed dogs manually, your fingers are millimeters away from the cutter blades. Ensure the machine is unplugged or the motor clutch is disengaged. Never test feed movement under power immediately after adjustment—hand-crank the first cycle.

Setup Checklist (The "Dry Run")

• Feed dog screw is torqued down tight (vibration loosens loose screws instantly).
• Hand-crank one full rotation: verify the feed dogs don't strike the throat plate.
• Hand-crank with fabric: verify the fabric moves forward perceptibly with each cycle.
• Test piece run: Does it pass the "Thumb" of the foot without stalling?

Stop Chewing Up Delicate Material: Presser Foot Pressure on a Merrow MG-3U That Leaves No Teeth Marks

If feed height is the accelerator, presser foot pressure is the traction control. Too much pressure forces the Velcro into the feed dog teeth, leaving permanent damage marks (track marks) on the backing or the patch face.

The Pressure Calibration Protocol

The adjustment knob is on top of the machine head.

• Clockwise: Increases Pressure (More Grip, More Marks).
• Counter-Clockwise: Decreases Pressure (Less Grip, Less Marks).


The Optimization Loop:

1. Start with the knob overly loose (patch will slip/stall).
2. Run a scrap patch.
3. Turn the knob clockwise one half-turn at a time.
4. Retest only until the slipping stops.
5. Stop exactly there. Any extra pressure is wasted energy and potential damage.

Thread Path Hygiene

A viewer noted thread path issues. On high-speed Merrow machines, vibration can pop threads out of open eyelets.

• Fix: Use a tiny piece of tape or a specialized "pigtail" guide if your thread is jumpy. This is common when running stiff metallic or thick floss threads.

A Simple Decision Tree: Patch Fabric + Backing Choice at the Embroidery Stage

The battle for a perfect Merrow edge is often won or lost at the embroidery machine. If your patch comes off the hoop warped, domed, or cupped, the Merrow machine cannot flatten it.

Use this decision logic to minimize distortion before the finishing stage:

Decision Tree: The Foundation of Flatness

1. Is your patch base fabric stable (e.g., Twill/Felt)?
   • YES: Use a standard tear-away backing.
   • NO (e.g., Spandex, Thin Poly): You MUST use a Cutaway stabilizer + a Fusible Interlining.
     • Why? If the fabric stretches during embroidery, it will contract later, curling the patch. A curled patch will not feed straight in the Merrow.
2. Is the design high-density (15,000+ stitches)?
   • YES: Double your stabilizer layer. High density creates "pull," shrinking the patch diameter.
   • NO: Single layer is sufficient.
3. Are you stitching a border guideline?
   • YES: Ensure the running stitch border is at least 3mm from the edge to allow the Merrow cutter room to work without hitting the thread.

Scaling Patch Orders Without Burning Your Wrists: Where Tool Upgrades Actually Matter

As a Chief Education Officer, I see many businesses fail not because of quality, but because of Operator Fatigue. Manually fighting Velcro patches, hooping difficult materials, and wrestling with clamps causes Carpal Tunnel Syndrome faster than you think.

When your volume increases (e.g., 50+ patches a week), you must upgrade your tooling to preserve your body and your profit margins.

The "Pain Trigger" Upgrade Path

Trigger 1: "My fingers hurt from tightening screws all day."

• Solution Level: Upgrade to a magnetic embroidery hoop.
• The Logic: Magnetic hoops eliminate the "unscrew-hoop-screw" cycle. You simply lay the fabric and snap the magnets. For patch production, this speed difference is massive.

Trigger 2: "I have hoop burn (rings) on my patch fabric."

• Solution Level: Switch to magnetic embroidery hoops.
• The Logic: Traditional hoops rely on friction and distortion to hold fabric. Magnetic hoops rely on vertical clamping force. This leaves almost zero "hoop burn," meaning less ironing/steaming time before you apply the Velcro.

Trigger 3: "I can't get the patch centered consistently."

• Solution Level: Invest in a hooping station for machine embroidery.
• The Logic: Eyeballing is for amateurs. A station provides a geometric grid. If every patch is centered perfectly, you don't have to trim uneven margins before the Merrow step.

Trigger 4: "Production is too slow with a single-needle machine."

• Solution Level: Move to a Multi-Needle setup (like SEWTECH platforms) equipped with a magnetic embroidery frame.
• The Logic: A multi-needle machine stitches the patch while you prep the Velcro. The magnetic frame allows for 5-second reloading. This is how you clear the bottleneck to feed the Merrow beast.

Warning: Magnetic Safety. Keep powerful magnetic hoops for embroidery machines away from pacemakers and sensitive electronics. The clamping force is significant—watch your fingers to avoid pinch blisters.

Troubleshooting Map (Symptoms → Likely Cause → Fix)

Keep this chart near your machine. It solves 90% of panic moments.

The Finish That Makes It Sellable: Clean Edges, No Fuzz, No Drama

The video concludes with a lighter test—singeing loose threads.

The "Blue Flame" Technique: Do not use the yellow part of a lighter flame (it leaves soot). Use the blue base.

1. Trim the thread tail to 2mm.
2. Pass the flame quickly (0.5 seconds).
3. Tap the molten bead with a finger to flatten it against the edge.

Operation Checklist (End-of-Run QC)

• Start/Stop Intersection: Is it flat, or is there a "bump"? (Bump = Feed stall).
• Backing Integrity: Are there deep tooth marks in the Velcro?
• Adhesion: Pull the Velcro edge. Does it lift? (If yes, glue failed).
• Cut Line: Is the inner fabric showing through the floss? (If yes, "crowding" adjustment needed).

One Last Reality Check: MG-3U vs MG-3UV Compatibility

A common question in the comments (and from my students): "Can I do this on my regular MG-3U?"

The answer is a conditional yes, but with a cost. The "V" in MG-3UV stands for Velcro. It has hardened parts and specific geometry for this abrasive material. To convert a standard MG-3U, you must change the needle plate, feed eccentric, and needles.

The Business Takeaway: If you are serious about patches, dedicated equipment matters. Just as you upgrade to magnetic embroidery hoops to solve hooping pain, ensure your finishing machine is spec'd for the job. Don't force a standard machine to eat Velcro all day—it will starve your profits in maintenance costs.

Master the feed dogs, respect the glue, and listen to the thump-thump. That is the sound of a perfect patch business running smoothly.

FAQ

• Q: How do I stop start-point bunching and “bird’s nest” knots on a Merrow MG-3UV when Merrowing Velcro-backed patches?
  A: Raise and set Merrow MG-3UV feed dog height using a controlled hand-wheel adjustment, not guesswork.
  • Power off and rotate the hand wheel until the feed dogs reach the highest point of travel.
  • Loosen the side lock screw slightly (do not remove), then slide-adjust feed dog height to a firmer “grab” on the Velcro/patch sandwich.
  • Tighten the lock screw while holding the assembly to prevent it drifting out of position.
  • Success check: the patch clears the presser foot “thumb” without stalling, and the stitch sound stays rhythmic (no high-pitched whine).
  • If it still fails, reduce drag by confirming the Velcro bond is flat (no glue bubble) and recalibrate presser foot pressure.
• Q: What “hidden consumables” should be ready before spraying 3M Super 77 for Velcro-backed patches on a Merrow MG-3UV workflow?
  A: Set up a small “clean room” kit so adhesive does not contaminate needles, loopers, fans, or belts.
  • Prepare 3M Super 77 (or similar high-tack spray), silicone needle lubricant, and scrap cardboard to catch overspray.
  • Wait 10–15 seconds after spraying and do a tack test with a knuckle (tacky like a post-it note, not wet/slimy).
  • Spray away from running machines in a ventilated area, then bring the patch to the Merrow station.
  • Success check: the needle does not feel sticky/draggy and the patch edge feeds without sudden stalls.
  • If it still fails, inspect for adhesive bleed-through or overspray buildup and re-do bonding with better dwell time and shielding.
• Q: How do I align a laser-cut Velcro disc on an embroidered patch so a Merrow MG-3UV cutter does not catch the overhang?
  A: Align by the edge profile (not the top surface) and press center-out to avoid bubbles and overhang.
  • Place the patch face down on a hard surface and hover the Velcro disc above it.
  • Match the edges so the profile looks like a perfect “coin stack” cylinder all around.
  • Press firmly in the center first, then spiral outward to the edges.
  • Success check: no Velcro edge overhang is visible from the side, and the bonded surface feels uniformly firm (no soft bubble spots).
  • If it still fails, remake the sandwich and verify the patch back is free of stabilizer fuzz that can prevent a flat bond.
• Q: How do I set Merrow MG-3U / MG-3UV presser foot pressure to prevent feed stalls without leaving track marks on Velcro-backed patches?
  A: Start too loose, then increase presser foot pressure in small steps only until slipping stops.
  • Turn the top pressure knob counter-clockwise to start overly loose, then run a scrap test piece.
  • Turn the knob clockwise in half-turn increments and retest after each change.
  • Stop immediately when the patch feeds consistently; extra pressure only increases tooth marks and distortion.
  • Success check: the patch advances smoothly while showing minimal or no permanent “teeth” tracks.
  • If it still fails, re-check feed dog height (too low slips, too high can jam) and confirm there is no glue bubble causing a pressure drop.
• Q: What are the fastest ways to diagnose Merrow MG-3UV feeding problems by sound, waste strip behavior, and hand feel during patch rotation?
  A: Use three on-machine cues—sound, waste ribbon, and guiding feel—to catch stalls before they become knots.
  • Listen for a steady thump-thump-thump; a high-pitched whine often means the patch is stalling.
  • Watch the cut-off waste: it should exit as a consistent ribbon, not shredding chunks.
  • Guide rotation lightly (like moving a computer mouse), rather than pushing hard into the cutter.
  • Success check: the border thickness looks even and the waste strip stays uniform through the start/overlap area.
  • If it still fails, slow the rotation slightly at the overlap and verify the patch is flat (no doming/curling from embroidery).
• Q: What is the safest way to adjust Merrow MG-3UV feed dogs without risking fingers near the cutter blades?
  A: Unplug or fully disengage power and do the first cycle by hand-wheel only—never “test under power” right after adjustment.
  • Turn the machine off before loosening any feed dog lock screw or placing fingers near moving parts.
  • Hand-crank one full rotation after tightening to ensure nothing strikes the throat plate.
  • Hand-crank again with a fabric/Velcro sandwich to confirm visible feed movement each cycle.
  • Success check: the machine turns smoothly by hand with no scraping, and the patch advances perceptibly without sudden jumps.
  • If it still fails, stop immediately and re-check that the lock screw is tight and the feed dogs are not set so high that they jam the stack.
• Q: When patch production keeps causing wrist fatigue, hoop burn, or inconsistent centering, what is the practical upgrade path from technique to magnetic hoops to a multi-needle setup?
  A: Fix technique first, then upgrade tooling if volume or rework proves the bottleneck.
  • Level 1 (technique): stabilize embroidery so patches come off flat (warped/cupped patches make Merrow feeding far harder) and standardize prep/bonding checks.
  • Level 2 (tooling): use magnetic embroidery hoops/frames to reduce screw-tightening fatigue and minimize hoop burn so patches need less post-processing.
  • Level 3 (capacity): move to a multi-needle system so stitching runs while prep continues, reducing the bottleneck before the Merrow finishing step.
  • Success check: fewer rejected patches at the start/overlap, less time spent re-hooping/re-centering, and smoother feed on the Merrow without “fighting” the material.
  • If it still fails, add a hooping station for consistent centering and revisit the patch material/stabilizer choices so the patch stays flat through finishing.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops/frames in a patch workflow?
  A: Treat magnetic hoops as high-clamp tools: protect fingers and keep magnets away from pacemakers and sensitive electronics.
  • Keep magnetic hoops away from pacemakers and devices that can be affected by strong magnetic fields.
  • Place fabric first, then lower the magnetic ring carefully to avoid pinch injuries.
  • Store hoops so magnets do not snap together unexpectedly on the workbench.
  • Success check: hoop loading stays fast and repeatable without pinched fingers or sudden “snap” collisions on the table.
  • If it still fails, slow the loading motion and reorganize the hooping area so hands never hover between mating magnet surfaces.
