Merge, Resize, and Re-Order Like a Pro: Embrilliance Essentials Tricks for a 5x7 ITH Mug Rug That Actually Stitches Clean

Mastering Embrilliance: How to Merge, Resize, and Customize ITH Mug Rugs (Without the Panic)

If you’ve ever stared at Embrilliance Essentials thinking, “I know this should be simple… why does it feel like one wrong click will delete my entire project?”—take a deep breath. You are in the right place.

This project is the perfect "confidence protocol" for beginners. It teaches the exact software moves that unlock real customization: removing unwanted elements, merging new designs, resizing to precise safety margins, and reordering the stitch sequence so your In-The-Hoop (ITH) construction doesn't fall apart.

Calm the Panic: Understanding Object-Based Editing

Merging in Embrilliance is simply placing multiple embroidery objects into one working file so they stitch as a single job. Unlike graphic design, embroidery stitches have physical properties: density, pull compensation, and underlay.

The Golden Rule: You are editing stitch objects, not photographs. When you resize a design, you change how thread builds up on the fabric. If you shrink a design too much without recalculating stitches, you get a bulletproof patch; stretch it too far, and you see the fabric through the gaps.

If your main struggle is actually physical—specifically learning hooping for embroidery machine correctly—keep reading. The software setup is the blueprint, but a poor hoop job will ruin even the best digitized file.

Phrase 1: The "Clean House" Prep Protocol

Before you touch the software, you must eliminate "friction variables." Beginners often fail not because they can't click a mouse, but because they lose files or guess formats.

Becky’s Hard-Won Advice:

1. Format First: Know your machine’s native language (e.g., .PES for Brother/Baby Lock, .JEF for Janome).
2. The One-Folder Rule: Stop saving to "Downloads." Create a strict directory: Documents > Embroidery > [Project Name].
3. Hidden Consumables check: Do you have 75/11 needles (standard for quilting cotton) and curved applique scissors? You will need them.

Prep Checklist (Do before opening software)

• Hoop Selection: Decide your target hoop (e.g., 5x7).
• Unit Consistency: Set both your machine and software to Inches (or Metric) and stick to it. Mixing them causes "invisible design" errors.
• Visualize: If you can't see thumbnails, use a file viewer or simply organize by folder names you understand.
• Supplies: Fresh needle installed? Bobbin wound?


Phase 2: Import & The "Hoop Check"

Becky navigates to her folder and uses the Drag-and-Drop method to bring the base Mug Rug file into the workspace.

Why Drag-and-Drop? It prevents you from accidentally opening a file meant for a different hoop size. If you are using a standard brother 5x7 hoop, the design should fit comfortably within the on-screen brackets.

• Visual Anchor: Look at the hoop boundary on your screen. There should be at least a 1/4 inch (6mm) buffer between the design and the edge. If it touches the line, you are in the "Danger Zone" for needle deflection.


Phase 3: The Surgical Delete

The goal is to remove the center motif so we can add our own.

1. Expand the Tree: In the Objects Panel (usually on the right), click the + or arrow to see the individual steps.
2. Identify the Motif: Click the names until the center design is highlighted on the canvas.
3. The Action: Press Delete on your keyboard.

Warning: Never delete the parent folder unless you want to wipe the whole slate. Only select the specific step (object) you want to remove. If you hit delete and "nothing happens," you likely selected a Group, not the Object. Click the small + again to dig deeper.

Phase 4: Merge & The "Red Line" Alarm

Becky drags a Sashiko crosshatch block into the workspace. It turns RED.

What the Red Means: This is your software’s safety alarm. It means "This design is physically too large for the selected hoop." The machine will refuse to stitch this file.

Selection Strategy: Always merge a background fill that is larger than your target area and shrink it down, rather than stretching a small one. Shrinking increases density slightly (good for coverage), while stretching leaves gaps.

At this stage, efficiency matters. If you plan to make 50 of these for a craft fair, you need to minimize friction. Terms like hooping stations often come up here—these define the physical workflow of aligning fabrics quickly, which pairs with the software workflow we are building now.

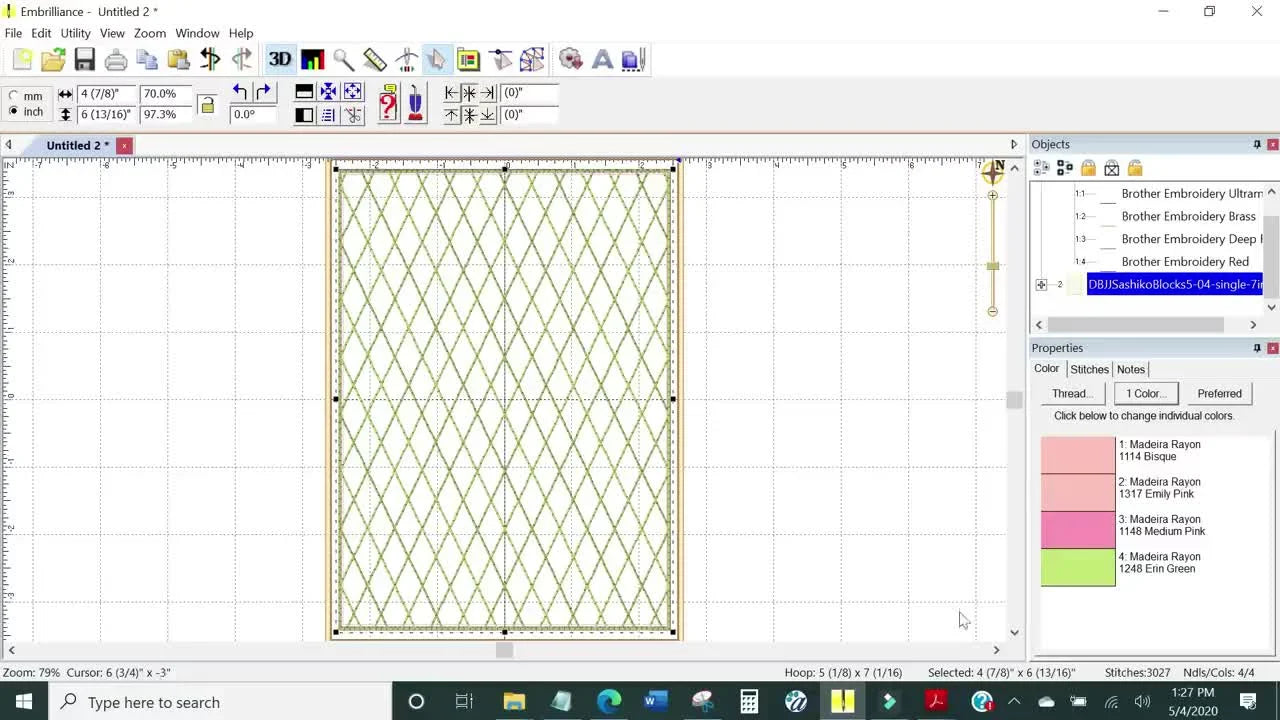

Phase 5: Precision Resizing (The Math That Matters)

To fix the red warning, we need to fit the background inside the mug rug placement lines.

The Action:

1. Select the Sashiko block in the Objects panel.
2. Unlock the Padlock icon in the properties bar. This is crucial. It allows you to change width and height independently.
3. Input Values:
   • Width: 4.90"
   • Height: 6.81"
4. Press Enter.

Success Metric: The design turns from red back to normal logic colors (black/blue), and it sits inside the mug rug border.

Phase 6: Customization & The Stabilization Test

Becky selects the "A" tool, chooses "Designs by Juju Kelsey" font, types "B", and rotates it 90 degrees.

The Sensory Anchor: A 3-inch satin stitch letter puts tremendous stress on your fabric. As the needle penetrates thousands of times, it pulls the fabric inward.

• If your stabilization is weak: The fabric will pucker (the "bacon effect").
• If your hoop is loose: The outline will drift off-center.
• The Fix: The fabric must be "drum-tight." When you tap it, it should make a dull thud.

For repetitive tasks like this, many users experience wrist fatigue from tightening screw-hoops perfectly every time. This is where magnetic embroidery hoops become a game-changer. They snap the fabric tight instantly without the "screw-and-tug" battle, ensuring that consistent tension required for large satin letters.

Phase 7: The "Envelope" Logic (Critical Step)

In ITH projects, sequence is everything.

The final step of a mug rug is usually a "single run" stitch that seals the back envelope fabrics to the front. If you stitch your decorative letter after this step, you will sew the envelope shut, and you won't be able to turn it right-side out.

The Fix:

1. Click and Drag the Background Fill object up so it sits after the tack-down stroke but before the final "Envelope" step.
2. Click and Drag the Lettering object to stitch after the background fill.

Visual Check: The very last item in your list should be the "Seam" or "Envelope Back" step.

Setup Checklist (Pre-Export)

• No Red Lines: All objects fit within the hoop.
• Center Clear: The deleted motif is definitely gone.
• Sequence Logic: Background -> Letter -> Envelope Seam.
• Simulator Run: Watch the virtual stitch-out. Does the Letter appear before the final seam?


Phase 8: Export & the USB Trap

Becky saves the file as a .PES.

The USB Trap: Beginners often click "Save" without looking at where.

• Rule: Always verify the drive letter (e.g., E: USB Drive).
• Hygiene: Keep your USB stick clean. Don't use a 64GB drive full of photos; use a small (4GB-16GB) drive dedicated to embroidery to prevent machine lag.

If you are setting up a professional workflow, consistency here is key. Just like a physical hoopmaster hooping station standardizes your garment placement, a standardized "Save" protocol ensures you never load the wrong version of a file.

Phase 9: The Stitch-Out (Listening to Your Machine)

During the stitch-out, there are moments where the machine will jump over the area where the letter will go.

Sensory Diagnostics:

• Sound: A healthy machine makes a rhythmic chug-chug-chug.
• The "Slow Down": If the machine slows down automatically during long jumps or trims, do not panic. It is managing the pantograph momentum.
• The "Bad" Sound: A sharp CLACK or a grinding noise means STOP immediately. It usually means the needle has hit the hoop or a bird's nest (tangle) is forming.


Materials & Troubleshooting: The Decision Tree

Even perfect software work fails if the physics are wrong. Use this decision tree:

Scenario: Stitches are sinking into the fabric (disappearing).

• Likely Cause: Fabric creates a "nap" (like Terry cloth) or is too soft.
• Fix: Use a Water Soluble Topping (Solvy) to hold stitches up.

Scenario: The square background looks like an hourglass (pinched in middle).

• Likely Cause: "Pull Compensation" or loose hooping.
• Fix:
  1. Use a sturdy Cutaway Stabilizer (not Tearaway) for ITH projects.
  2. Switch to a Magnetic Hoop for stronger, even grip.

Scenario: "Hoop Burn" (shiny ring marks) on the fabric.

• Likely Cause: You over-tightened a standard hoop on delicate velvet/plush.
• Fix: Steam it out, or prevent it entirely by using magnetic embroidery hoops for brother machines, which hold flatly rather than pinching inside a ring.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. Do not place them near pacemakers, mechanical watches, or credit cards. Pinch hazard: Keep fingers clear when snapping the top frame onto the base!

The Upgrade Path: From Hobby to Production

If you successfully finished this Mug Rug, you've conquered the basics. But as you move from making one item to making twenty, your bottleneck will shift.

1. The Hooping Bottleneck: If your wrists hurt or you get hoop burn, upgrading to SEWTECH Magnetic Hoops is the most logical Step 1. It’s a tool that pays for itself in saved time and fabric.
2. The Color Change Bottleneck: If you hate changing threads manually for every color block (Background -> Letter -> Border), this is the "Trigger Criteria" for upgrading to a multi-needle machine. Standardizing your software workflow now (as you did in this tutorial) makes that transition seamless later.

Final Operation Checklist

• Bobbin Check: Is there enough thread for the dense background fill?
• Needle Check: Is the needle sharp? (Burred needles shred thread).
• Speed Control: For dense ITH projects, reduce speed to 600 SPM (Stitches Per Minute). Speed kills quality on dense fills.
• Observation: Watch the first 100 stitches. If the fabric ripples, stop and re-hoop.

Mastering the merge is just the beginning. Happy stitching!

FAQ

• Q: In Embrilliance Essentials, why does a merged embroidery design turn RED after merging, and how do I fix the “design too large for hoop” warning?
  A: The red color is Embrilliance’s size alarm—resize the merged object so it fits inside the selected hoop boundary.
  • Select the merged object in the Objects panel, then resize it until it is fully inside the hoop brackets.
  • Prefer shrinking a larger background fill down rather than stretching a small fill up (stretching often leaves gaps).
  • Keep a safety buffer of at least 1/4 inch (6 mm) between the design and the hoop edge to avoid needle deflection.
  • Success check: The design returns to normal colors (not red) and sits clearly inside the hoop outline with visible margin.
  • If it still fails: Reconfirm the correct hoop size is selected and re-import the correct base file for that hoop.
• Q: In Embrilliance Essentials Objects Panel, how do I delete only the center motif without deleting the entire ITH mug rug file?
  A: Delete the specific stitch object (step), not the parent group/folder.
  • Expand the Objects Panel using the small “+”/arrow until individual steps are visible.
  • Click items until the center motif highlights on the canvas, then press Delete.
  • Avoid selecting the parent folder/group—deleting that can wipe the whole structure.
  • Success check: The center motif is gone on the canvas, but the mug rug placement/border steps remain in the object list.
  • If it still fails: Expand one level deeper—“nothing happened” often means a Group was selected instead of the actual object.
• Q: For ITH mug rugs in Embrilliance Essentials, how do I reorder stitch sequence so the envelope seam stitches LAST and the project can still turn right-side-out?
  A: Move decorative elements before the final envelope/seam step so the envelope is not sewn shut too early.
  • Drag the Background Fill to stitch after the tack-down step but before the final “Envelope/Seam” step.
  • Drag the Lettering to stitch after the background fill (and still before the final seam).
  • Run the simulator to confirm the stitch order before exporting.
  • Success check: The last item in the Objects list is the “Seam/Envelope Back” step, and the simulator shows the letter stitching before that seam.
  • If it still fails: Recheck the object list—ITH failures are usually one object sitting after the final seam by mistake.
• Q: When hooping fabric for a large satin stitch letter (about 3 inches), how tight should embroidery hoop tension be to prevent puckering and drifting?
  A: Hoop “drum-tight” to resist pull from dense satin stitches.
  • Tighten and smooth the fabric until it is evenly tensioned across the hoop with no slack.
  • Tap the hooped fabric to confirm tension before stitching.
  • Pair strong hooping with adequate stabilization (weak stabilization can cause the “bacon effect” puckering).
  • Success check: The fabric feels drum-tight and makes a dull thud when tapped, and the stitched outline stays centered without wandering.
  • If it still fails: Re-hoop and upgrade stabilization (cutaway is often more stable than tearaway for ITH-style stress).
• Q: In ITH mug rug stitch-outs, what causes the square background fill to pinch into an hourglass shape, and what is the fastest fix?
  A: The hourglass look is commonly caused by fabric pull plus weak hooping—use stronger stabilization and more even grip.
  • Switch to a sturdy cutaway stabilizer for ITH construction instead of tearaway.
  • Re-hoop for firm, even tension across the entire area.
  • Consider a magnetic hoop to increase even hold and reduce side-to-side distortion.
  • Success check: The fill stitch-out keeps straight edges instead of narrowing in the middle.
  • If it still fails: Slow down and re-run after confirming the design fits with margin; excessive pull can worsen when stitching near hoop edges.
• Q: During embroidery stitch-out, what does a sharp CLACK or grinding noise usually mean, and what should an operator do immediately?
  A: Stop immediately—sharp clacks/grinding often indicate the needle hit the hoop or a bird’s nest is forming.
  • Press stop as soon as the sound happens and inspect the needle area and hoop clearance.
  • Check for thread tangles (nesting) around the bobbin/needle plate area before restarting.
  • Confirm the design has safe margin from the hoop edge to reduce deflection risk.
  • Success check: After clearing the issue, the machine returns to a steady rhythmic sound without clacking during the first stitches.
  • If it still fails: Replace a possibly bent/burred needle and re-hoop; persistent impact sounds should not be “pushed through.”
• Q: What are the safety risks of industrial-strength magnetic embroidery hoops, and how can operators use magnetic hoops safely?
  A: Magnetic hoops can pinch fingers and can affect sensitive items—handle slowly and keep magnets away from medical devices and magnet-sensitive valuables.
  • Keep fingers clear when snapping the top frame onto the base to avoid pinch injury.
  • Keep magnetic hoops away from pacemakers, mechanical watches, and credit cards.
  • Place hoops carefully on a stable surface when opening/closing to prevent sudden snap-back.
  • Success check: The frame closes without finger contact, and the hoop seats evenly without sudden slamming.
  • If it still fails: Slow the closing motion and reposition fabric—rushing the snap is the most common cause of pinches and mis-seating.
• Q: For repetitive ITH mug rug production, when should a user switch from standard screw hoops to magnetic embroidery hoops or upgrade to a multi-needle machine?
  A: Use a step-up approach: optimize technique first, then upgrade hooping for consistency, then upgrade machines if thread changes become the bottleneck.
  • Level 1 (Technique): Standardize prep (needle/bobbin ready, correct hoop size, consistent units) and keep a 1/4 inch (6 mm) safety buffer in the hoop.
  • Level 2 (Tool): If wrist fatigue, inconsistent tension, or hoop burn keeps happening, magnetic hoops often improve repeatability and reduce re-hooping time.
  • Level 3 (Capacity): If frequent manual color changes are the main slowdown across many pieces, a multi-needle workflow may be the next logical step.
  • Success check: Cycle time drops without new defects (less puckering, fewer re-hoops, fewer interruptions for thread changes).
  • If it still fails: Identify the true bottleneck—hooping consistency, stabilization choice, or stitch sequence errors can mimic “machine limitations.”
