Merge Fonts in SewWhat-Pro Without the Headaches: Clean Lettering, Better Spacing, and a PES File Your Brother/Baby Lock Will Actually Stitch

You’re not alone if adding a name to a purchased embroidery file feels “simple”… right up until the letters stitch crooked, crowd each other, or land off-center on the sweatshirt you can’t replace.

Embroidery is a game of millimeters. One wrong click in the software often translates to a disastrous, unpickable mess on physical fabric. This SewWhat-Pro workflow (demonstrated on a split anchor 5x7 design) is one of those critical "bridge skills." It connects digital design to physical reality, saving you real money in the hoop—because clean layout decisions in the file are what make your stitch-out look professional.

Calm the Panic First: What “Merging Fonts in SewWhat-Pro” Really Changes (and What It Doesn’t)

Merging letters into an existing design in SewWhat-Pro is a layout operation: you’re combining separate embroidery files (your base design + individual letter files) into one cohesive stitch file.

Think of it like arranging furniture in a room before you bolt it to the floor.

What it does do:

• Spatial Control: Lets you place lettering exactly where you want on the design grid relative to the anchor.
• Group Logic: Lets you align and space letters as a cohesive unit, rather than guessing with multiple hooping sessions.
• Workflow Efficiency: Lets you save one combined file (in this tutorial, PES) so your machine stitches it as a single, uninterrupted design.

What it doesn’t do:

• It doesn’t fix the DNA: It cannot magically fix poor digitizing in a font file (density, underlay, pull compensation). If a font is inherently “touchy” or too dense, it will still pucker on the machine regardless of how perfectly you placed it on screen. You’ll still need smart stabilization and realistic sizing.

If you’re building names for gifts, team gear, or Etsy-style personalization, mastering this is the difference between “hobby results” and “paid results.”

The “Hidden Prep” Before You Click Open: Folder Hygiene and a Quick Reality Check

Before you touch SewWhat-Pro, do three quick things that experienced commercial shops do automatically. This is your "Pre-Flight" routine to prevent crashes.

1) Put the base design and the font in predictable folders. You’re going to open one file and merge others. If you are hunting through your "Downloads" folder for every single letter 'B', 'R', 'O', 'O', 'K', you will lose focus, mis-click, and waste valuable production time.

2) Decide the final hoop size now. The base design shown is “Split Anchor 5x7,” displayed at 4.87" wide x 7.00" high in the simulator view.

• Reality Check: Does your machine actually have a 5x7 (130x180mm) stitching field? Or is it a 4x4 limit? Check your machine manual now. If your physical hoop is smaller than the design, no amount of software magic will make it fit.

3) Know your machine format. This tutorial saves as PES for Brother/Baby Lock. If you run a Janome (JEF) or a generic industrial machine (DST), know this before you start.

Prep Checklist (do this before editing):

• File Access: Confirm you know exactly where your purchased font files are stored (unzipped).
• Hoop Math: Confirm the design size (4.87" x 7.00") physically fits inside your target hoop's internal safety margins.
• Format Check: Confirm the target machine format you’ll save to (PES is used here).
• Safety Copy: Keep a “working copy” mindset: Plan to Save As a new name (e.g., Anchor_Brook_5x7.pes) so you never overwrite your original purchased master file.


Open the Split Anchor 5x7 Design in SewWhat-Pro and Lock in Your Starting Point

In the workflow, the instructor starts by loading the "stage" where the action happens:

• Click the Open folder icon on the toolbar.
• Navigate to your design folder.
• Select “Split Anchor 5x7.”

Once loaded, you should see the split anchor on the grid workspace.

A practical note from production: If you offer this design to customers, never edit the original file directly. Always open it, then immediately Save As with the customer's name. This prevents "version drift," where your original anchor slowly gets accidentally resized or shifted over months of use, eventually becoming unrecognizable.

Merge the First Letter via File > Merge (Ctrl+M) So You Control Placement, Not the Software

Now you’ll add lettering by merging a font file into the workspace. This method gives you total control:

• Go to File > Merge (or use the shortcut Ctrl+M).
• Navigate to the folder that contains your specific font.
• Choose the first letter of the name (the video uses “B”).
• Place that first letter approximately where it belongs in the split section.

This “first letter sets the position” habit is not optional if you want speed. SewWhat-Pro is smart; once the first letter is placed, it will try to place subsequent letters adjacent to it. If you skip this, you’ll be dragging every letter from the center of the screen.

Pro tip: The "Float" Factor

If you’re planning to stitch this on a stretchy sweatshirt or jersey knit: Don't place letters right up against the edge of the split bar.

• The Physics: In real fabric, stitches pull the fabric in. This is called "Pull Compensation."
• The Result: If you visually touch the lines on screen, the letters might overlap the bars on fabric.
• The Fix: Generally, leaving a little visual "breathing room" (about 2-3mm on screen) looks more expensive and accounts for the fabric bunching slightly.


Turn On Alphabet Mode in SewWhat-Pro: The Fastest Way to Build Names Like “BROOK”

Manually merging files 5 times for a 5-letter name is tedious. The instructor uses a specific toolbar icon to speed up lettering:

• Click the icon that looks like a white folder with icons (Toggle info-icon view).
• Make sure the Alphabet Mode checkbox is ticked.

With Alphabet Mode on, letters from that folder appear as easy-to-click thumbnails in a right-side panel.

Why this matters for your business: In embroidery, speed is profit. Clicking thumbnails is 5x faster and significantly less error-prone than repeatedly navigating through Windows Explorer dialog boxes.

Add the Remaining Letters (R, O, O, K) and Let SewWhat-Pro Auto-Place Them

With Alphabet Mode open, the video adds letters by clicking them in sequence:

• Click R, then O, O, and K.

SewWhat-Pro places each new letter adjacent to the previous one, building the word on the canvas.

Watch out: “Auto-placed” doesn’t mean “ready to stitch”

Auto placement is a convenience, not a guarantee. You still need to align, space, and center. This is especially true with fonts that have uneven heights (like scripts) or quirky kerning. Never trust the software's default placement as the final output.

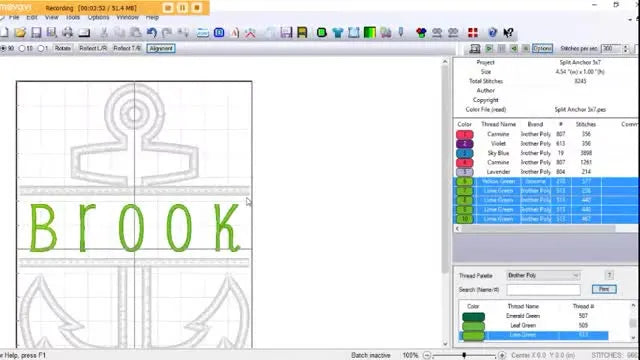

Select Only the Letters (Not the Anchor) Using the Thread Palette + CTRL

This is one of the most valuable moves in the whole tutorial for preserving your sanity:

• Close the icon panel to clear your view.
• Hold down the CTRL key on your keyboard.
• In the thread palette on the right side, click the separate thread color blocks that correspond to each letter.

This selects all text elements together as a group without accidentally selecting the anchor design.

The frustration it solves: If you’ve ever tried to drag-select a name on the canvas and accidentally grabbed the anchor background, shifting it 2mm to the left, you know the pain. This method creates a clean "mask" around just the text.

Align Bottom in the Alignment Tool: The Fix for “My Letters Aren’t the Same Height”

Now open the Alignment tool:

• Click the Alignment button on the toolbar.
• Choose Align Bottom.

The instructor calls out a real-world issue: even if you choose a “1 inch” font size, individual letters usually vary digitally (e.g., an 'O' might be 0.95" while a 'B' is 1.1").

Why Align Bottom? Human vision relies on a "baseline." If the bottoms of the letters aren't perfectly aligned, the text will look "wavy" or drunk to the naked eye. Aligning by "Center" often fails because some letters carry visual weight differently. Bottom alignment forces that crisp, professional baseline.

Warning: Safety First. Keep fingers clear of needles and moving parts when you test-stitch your edited file. Layout changes can shift stitch paths unexpectedly. A surprise needle strike on a clamp—because the design moved outside the safe zone—can shatter a needle, sending metal shards flying toward your eyes. Always wear glasses when observing a stitch-out.

Use “Adjust Spacing (%)” Carefully—20% Can Be a Big Swing

Still in the Alignment dialog, the video adjusts spacing:

• Enter 20 in Adjust Spacing (%).
• Click OK.

In the tutorial, 20% produces a noticeable change (the letters spread out significantly). That’s not “wrong”—it’s just a reminder that percentage spacing is global and can move fast.

Sensory Check:

• Too Tight: The letters touch. On the machine, this creates a "bulletproof vest" effect where the embroidery becomes stiff and uncomfortable.
• Too Loose: The letters feel like isolated islands and lose readability.

If you don’t like the result:

• Click the Undo arrow immediately.
• Try a smaller increment (e.g., 5-10%).


A practical spacing rule (The "Squint Test")

On dense satin-stitch fonts, lean toward slightly wider spacing. Fabric "pull" tends to draw letters closer together during stitching. Your best spacing is the one that looks slightly too wide on screen but perfect on the finished, relaxed fabric.

Center the Text Block on the Grid: Don’t Trust Your Eyes Without Markers

After spacing, the instructor manually centers the word:

• Click and drag the selected text block.
• Use the grid lines and the design’s center markers (the crosshairs) to visually center the text within the split section.

This is the moment where you prevent the most painful outcome: a perfectly stitched name that is perfectly off-center.

Visual Anchor: Look at the negative space. The white space to the left of the 'B' should look equal to the white space to the right of the 'K'.

Save As a PES File for Brother/Baby Lock So Your Machine Reads It Cleanly

To finish the digital side:

• Go to File > Save As.
• Name the file (Use a clear convention like SplitAnchor_Brook_Jersey.pes).
• Choose Brother/Baby Lock Professional (.pes) or your machine's format from the file type dropdown.

The video then closes and reopens the saved file to confirm it’s now one combined design. This verification step is crucial—corruption happens during saving, not editing.

The Setup You Don’t See on Screen: Turning a Clean PES Layout into a Clean Stitch-Out

SewWhat-Pro gets you a clean file. Your physical machine setup is what makes it look expensive on fabric. A perfect digital file will still look terrible if the physical mechanics fail.

Here’s what experienced operators check before they commit a personalized name to a real garment:

1. Vital Stabilization: Stabilizer choice matches fabric behavior. Sweatshirts and towels move differently. If the fabric shifts 1mm, your outline will not match your fill.

2. The Hooping Struggle: This is the #1 failure point for beginners. If the fabric is hooped "drum tight" but distorted (stretched), the text will pucker when you unhoop it. If it's too loose, the registration will slip.

3. The Tooling Solution: If you’re doing personalization on Brother or Baby Lock machines and you want faster, cleaner hooping with less fabric marking, professional shops realize that standard plastic hoops are often the bottleneck. They leave "hoop burn" (shiny rings) that are hard to remove. This is why many shops move to magnetic embroidery hoops for brother machines. Because they hold thicker garments firmly without forcing one ring inside another, they clamp consistently and reduce re-hooping time when you’re running multiple names.

Setup Checklist (before you press Start):

• Physical Fit: Confirm the combined design actually fits your hoop and your garment’s safe stitch area.
• Visual Straightness: Confirm the lettering baseline looks straight after the "Align Bottom" step.
• Balance: Confirm spacing still looks balanced when you zoom out (Look at the whole image, not just pixels).
• Format: Confirm you saved the correct machine format (PES in this tutorial).
• Bobbin Check: Do you have enough bobbin thread? Running out in the middle of a name is a nightmare to fix invisibly.
• Slow Start: Run a quick simulator preview or stitch the first few stitches at slow speed (e.g., 400 SPM) to ensure placement.

A Simple Decision Tree: Fabric Type → Stabilizer Strategy (So Your Text Doesn’t Pucker)

Because this tutorial is software-based, stabilizer isn’t shown—but it’s the primary reason beautiful lettering files stitch ugly.

Use this decision tree as a starting point for safe results:

1) What are you stitching on?

• Stable woven (canvas, denim, non-stretch tote):
  • Strategy: Medium-weight Tear-away is usually sufficient.
  • Sensory Check: Fabric should feel crisp in the hoop.
• Stretch knit (sweatshirt, tee, performance fabric):
  • Strategy: Cut-away backing is non-negotiable here. You need permanent support.
  • Add-on: Consider a light water-soluble topper if the fabric is textured (like a pique polo) to keep letters sitting on top.
  • Sensory Check: Use temporary spray adhesive (like Odif 505) to bond the fabric to the stabilizer so they move as one layer.
• High pile / loops (towel, fleece, sherpa):
  • Strategy: Tear-away or Cut-away backing PLUS a water-soluble Topper (e.g., Solvy).
  • Why: Without a topper, the stitches will sink into the loops and disappear.

2) Is the lettering small or satin-heavy?

• Yes: Lean toward more stable support (Cut-away) and slower machine speed (Reduce simply to 400-600 stitches per minute).
• No: You may get away with lighter support.

Hidden Consumables: Don't forget your temporary spray adhesive (to prevent shifting) and new needles (use a Ballpoint 75/11 for knits, Sharp 75/11 for wovens).

Troubleshooting: The Two Most Common Lettering Problems (and the Fast Fix)

When things look wrong, don't panic. Use this structured approach to identify the cause.

The Upgrade Path That Actually Makes Sense: When Tools Save More Than They Cost

If you only personalize one sweatshirt a year, the standard workflow above is enough. Patience is free.

But if you’re doing repeat personalization (kids’ sweatshirts, team bags, towel sets), your bottleneck is rarely the SewWhat-Pro software—it’s the physical "hooping tax" on your time and body.

Here’s a practical framework for when to upgrade your gear:

1. Level 1: Speed & Safety (The Magnetic Upgrade)

• Trigger: You dread hooping because it hurts your wrists, or you are ruining garments with hoop burn marks.
• Solution: Consider a magnetic embroidery hoop. These use powerful magnets to clamp fabric instantly without the friction of inner/outer rings. This is vital for delicates or thick seams that traditional hoops can't grip.
• Specific Need: If you are constantly running 5x7 personalization jobs on a single-needle machine, a brother magnetic hoop 5x7 size solution is often the "sweet spot" for names and split designs.

Warning: Magnetic Hazard. Magnetic frames use industrial-strength magnets. Keep them away from pacemakers and implanted medical devices. Keep fingers clear when the magnets snap together to avoid severe blood blisters or pinches.

2. Level 2: Consistency (The Station)

• Trigger: You are getting orders for 10 shirts, and you are terrified the names won't be at the exact same height on all of them.
• Solution: A magnetic hooping station provides a fixed grid and clamps to ensure every single shirt is hooped at the exact same coordinates. This eliminates the "crooked name" re-do costs.

3. Level 3: Production Scale (The Machine)

• Trigger: You are turning down orders because your single-needle machine takes too long to change thread colors or finish a job.
• Solution: Stepping up to a multi-needle platform (like a productivity-focused SEWTECH setup) is the pivot point where personalization becomes a reliable business instead of a late-night scramble.

Operation Checklist: The “One-Minute Final Pass” Before You Stitch

Right before you press the green button on your machine, run this mental audit. If you can check these off, your success rate will skyrocket.

• Selection Verify: Is the word selected and centered using grid markers? (Don't guess).
• Baseline Verify: Did you use Align Bottom even if the font looked okay? (Eyes lie, tools don't).
• Gap Check: Does the spacing look balanced at normal zoom?
• Format Lock: Is the file saved as Brother/Baby Lock Professional (.pes) or your specific format?
• File Integrity: Reopen the saved file once (as shown in the video) to confirm it’s truly one merged design.
• Physical Alignment: If stitching on a garment, have you done a physical trace or "placement check" on the actual item using the machine's laser or needle drop function?

If you master this SewWhat-Pro lettering workflow and pair it with the right physical stabilization, you’ll stop “fighting the font” and start producing names that look intentional—clean baseline, clean spacing, and a file your machine handles with ease.

FAQ

• Q: In SewWhat-Pro, how do I merge a purchased embroidery font into a “Split Anchor 5x7” design without dragging every letter from the center?
  A: Merge the first letter with File > Merge (Ctrl+M) and place it roughly where it belongs, then use Alphabet Mode to click the remaining letters so SewWhat-Pro auto-places them next to the first.
  • Do: Open the base “Split Anchor 5x7” file first, then immediately Save As a working copy before merging text.
  • Do: Use File > Merge (Ctrl+M) for the first letter and position it near the split area.
  • Do: Turn on the folder thumbnail panel and tick Alphabet Mode, then click the remaining letters in order.
  • Success check: New letters appear adjacent to the previous letter (not stacked in the center of the workspace).
  • If it still fails: Re-check that the font files are unzipped and stored in a predictable folder so SewWhat-Pro can load the letter set correctly.
• Q: In SewWhat-Pro, how do I fix “letters are not the same height” after merging a name like “BROOK” into a split design?
  A: Select only the letters and use the Alignment Tool → Align Bottom to force a clean baseline.
  • Do: Hold CTRL and click each letter’s thread color block in the thread palette to select text only (not the anchor).
  • Do: Click Alignment on the toolbar and choose Align Bottom.
  • Do: Re-position the word using the grid and center markers after alignment.
  • Success check: The bottoms of the letters form a straight, crisp baseline (no “wavy/drunk” look when you zoom out).
  • If it still fails: Verify the anchor artwork is not selected; repeat selection using the thread palette blocks instead of drag-selecting on the canvas.
• Q: In SewWhat-Pro, why does “Adjust Spacing (%) = 20” make merged lettering look wrong, and what spacing method is safer?
  A: 20% is a global spacing swing and can be too aggressive; undo and re-apply a smaller % or nudge letters manually.
  • Do: Apply Adjust Spacing (%) in small steps (often 5–10%) and evaluate after each change.
  • Do: Hit Undo immediately if the word spreads too far or looks broken apart.
  • Do: Use arrow-key nudges for specific problem gaps (manual kerning) when only one pair of letters looks off.
  • Success check: Spacing looks balanced when squinting or zoomed out, with no letters touching and no “isolated islands.”
  • If it still fails: Re-check that the text block is still selected as a group (via CTRL + thread palette) before applying spacing changes.
• Q: On a Brother/Baby Lock embroidery machine, how do I prevent a name from stitching off-center even if the text looks centered in SewWhat-Pro?
  A: Centering on-screen is not the same as centering on a garment; confirm physical placement and control hooping drift before stitching.
  • Do: Center the text in SewWhat-Pro using grid lines and center crosshairs, then zoom out to verify overall balance.
  • Do: Mark the garment placement (chalk or water-soluble pen) and match the hoop center to those marks before clamping.
  • Do: Start slowly (for example, 400 SPM as a safe starting point) for the first stitches to confirm placement.
  • Success check: The first stitches land exactly where the physical placement marks indicate, and the left/right “white space” looks equal on the actual garment.
  • If it still fails: Re-hoop using more controlled physical alignment (a hooping station can help with repeatability when running multiples).
• Q: For embroidery lettering on stretch knit sweatshirts, what stabilizer setup is the safest starting point to stop puckering and wavy text?
  A: Use cut-away backing as the baseline support for stretch knits, and prevent shifting so fabric and stabilizer move as one.
  • Do: Choose cut-away stabilizer for sweatshirts/knits (a safe starting point for permanent support).
  • Do: Add a light water-soluble topper if the surface is textured and letters tend to sink.
  • Do: Use temporary spray adhesive to bond fabric to stabilizer before hooping so layers don’t creep.
  • Success check: After stitching and unhooping, the lettering baseline stays straight and the fabric does not ripple around satin columns.
  • If it still fails: Reduce speed and re-check hooping technique—often the fabric was stretched during hooping rather than held neutral.
• Q: What needle and bobbin checks should be done before stitching a personalized name file saved from SewWhat-Pro as PES?
  A: Treat personalization as “one chance” work—confirm needle choice and bobbin supply before pressing Start.
  • Do: Install a fresh needle matched to fabric (ballpoint for knits, sharp for wovens as a safe starting point).
  • Do: Confirm there is enough bobbin thread to finish the full name—running out mid-name is hard to hide cleanly.
  • Do: Reopen the saved PES once to confirm the file saved correctly as one merged design before committing a garment.
  • Success check: The first run stitches smoothly without thread fraying, and the job completes without a bobbin run-out stop.
  • If it still fails: Slow the first section and inspect for shredding or skipped stitches, then revisit stabilization and hooping neutrality.
• Q: What safety precautions should be followed when test-stitching a merged SewWhat-Pro lettering file to avoid needle strikes and injuries?
  A: Keep hands clear and wear eye protection—layout changes can push stitches outside the safe zone and cause a needle strike.
  • Do: Keep fingers away from needles, clamps, and moving parts during the first test run.
  • Do: Run a slow start and watch the first stitches to confirm the design stays inside the hoop’s safe stitch area.
  • Do: Stop immediately if the needle path approaches clamps or the hoop edge.
  • Success check: The needle runs without hitting metal/plastic hardware, and there are no abnormal clicking/impact sounds.
  • If it still fails: Re-check design fit against the hoop’s internal safety margins and re-center the combined design before stitching again.
• Q: What safety rules apply when using magnetic embroidery hoops for garment personalization to reduce hoop burn and re-hooping time?
  A: Magnetic hoops can speed hooping and reduce marks, but the magnets can pinch fingers and must be kept away from pacemakers.
  • Do: Keep magnetic hoops away from pacemakers and implanted medical devices.
  • Do: Keep fingertips out of the closing gap—let magnets “snap” together under control to avoid blood blisters.
  • Do: Clamp thick garments evenly so the hold is consistent without forcing inner/outer rings.
  • Success check: Fabric is held firmly with minimal ring marking, and the hoop closes without trapping fabric folds or pinching skin.
  • If it still fails: Move to a more controlled clamping routine (often a station helps) and confirm the garment thickness is within what the magnetic frame can hold consistently.
