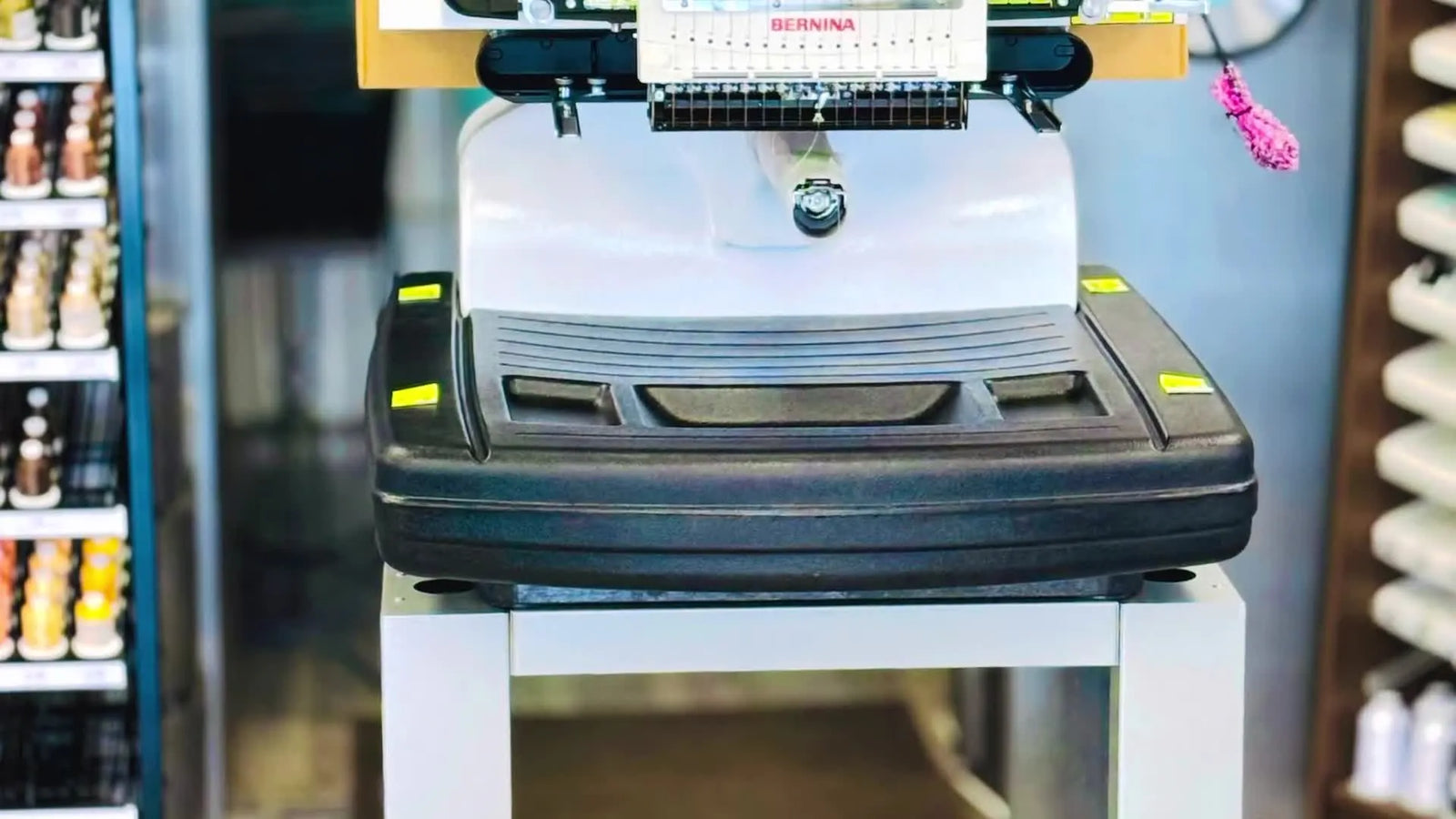

Melco Stand Assembly for Bernina E16 & Brother PR: Build It Square, Lock It Down, and Stop the “Wobble Panic”

If you have ever opened a heavy box of industrial equipment pieces and felt a spike of adrenaline mixed with anxiety—"If I build this wrong, my $15,000 investment is going to crash to the floor"—you are not being dramatic. You are being a professional. A multi-needle embroidery head is heavy, top-loaded, and unforgiving of gravity.

The good news: this Melco/Bernina stand is straightforward to assemble. The better news: this guide treats the assembly not as a furniture project, but as the foundation of your stitch quality. We are going to follow the exact assembly flow used by technicians for the Bernina E16 and Melco platforms, with specific configuration notes for those adapting this robust stand for Brother PR-style machines.

I have also added the "shop-floor secrets"—the sensory checks and physical habits—that prevent stripped screws, misaligned holes, and that sinking feeling when the final shelf refuses to fit.

The Calm-Down Check: Why Rigidity Equals Resolution

A stand is not just a table; it is part of your machine’s suspension system. In my 20 years of diagnostics, I have seen stitch registration issues (where the outline doesn't match the fill) that were blamed on the digitizer, but were actually caused by a wobbly table. When a heavy pantograph moves at 1000 stitches per minute (SPM), momentum transfer is violent. If the cart flexes, rolls, or vibrates, that energy goes back into the needle bar.

This Melco stand arrives with the casters (wheels) already attached to the side panels. The build is mostly a rhythm of "align holes, start screws, tighten later." The only critical "do not mess this up" moments are specific orientation checks we will cover below.

If you are running high-speed melco embroidery machines, treat the stand assembly like a safety protocol, not a DIY chore. Build it square, and your satin stitches will be sharper.

The "Hidden" Prep Pros Do First: Inventory & Sensory Check

The novice grabs a screwdriver and starts turning. The expert clears the floor. Kevin’s first move in the reference guide is the one that prevents frustration: lay everything out to create a "mental map" of the assembly.

The "Hidden Consumables" List

Before you start, grab these items that aren’t in the box:

• A "Real" 4mm Allen Key: The kit comes with one, but a T-handle hex key gives you better torque control and saves your wrists.
• Shop Towel/Rag: Some metal parts ship with a light oil coating to prevent rust. Wipe them down now so you don't get grease on your first garment.
• A Block of Wood (4x4 or similar): Critical for the machine locator step later.

Inventory List

From the box, verify you have:

• 2 Side Panels (Casters already attached). check that wheels spin freely and locks engage with a firm click.
• 1 Small Shelf.
• 1 Large Shelf (This is the Bottom Shelf—physics dictates the wider base goes low).
• 1 Back Brace/Panel.
• Hardware Bag A: 14 Screws + 18 Washers (Main assembly).
• Hardware Bag B: 4 Screws + 4 Washers (Machine locators/stoppers).




Prep Checklist: The "Pre-Flight" Inspection

• Clearance Zone: Clear a 6x6 foot flat floor area. Assemble on carpet to protect the finish, or use the cardboard box flattened out.
• Hardware Count: Separated the 14 main screws from the 4 locator screws? (Mixing these up is a common error).
• Tool Readiness: Do you have the 4 mm Allen wrench?
• Shelf ID: Visually confirm the Large Shelf (Bottom) vs the Small Shelf (Top/Middle).
• Workflow Decision: Are you configuring for Bernina E16 (storage mode) or Brother PR-style (flat top mode)? Decide now to avoid rebuilding.

Warning: Mechanical Safety
Metal edges on stamped steel stands can be sharp. Keep fingers clear of sliding channels. When aligning holes, never insert your finger to "feel" for the hole alignment. If the heavy steel panel shifts, it acts like a guillotine. Use the Allen wrench to probe for alignment instead.

Don't Flip It Twice: Side Panel Orientation

This is the first real "gotcha" moment. If you get this wrong, you won't realize it until the very end when the back brace doesn't fit, and you will have to disassemble the entire unit.

The Rule: The Back Side of each panel is identified by the threaded screw holes meant for the back brace.

The Tactile Check: Run your hand along the vertical edge of the side panel. The front edge is usually smooth or has shelf holes. The rear edge will have specific mounting points for the large back panel.

Action Steps:

1. Stand one side panel upright.
2. Locate the brace holes.
3. Stand the second panel up. Ensure its brace holes are facing the same direction.
4. Visualise the machine sitting there: The operator stands at the front; the solid brace goes at the back.


The Bottom Shelf Trap: Large Shelf Logistics

Kevin’s cue is simple and mathematically reliable: The Bottom Shelf (Large) has screw holes on the front edge, but NO screw holes on the back edge.

Why? Because the back of this shelf is supported by the back brace we install later.

Assembly Sequence:

1. Select the Large Shelf.
2. Identify the Front Edge (look for the holes).
3. Align those front holes with the front holes on the side panels.
4. The "Finger-Tight" Rule: Insert screws with washers. Turn them by hand until you feel the threads bite. Do not crank them down with the wrench yet. You need the frame to "jiggle" slightly to get the next pieces in.




Expert Tip on Threading:
If a screw feels gritty or stops halfway in, STOP. Do not force it. Back it out. Check for paint inside the threads (common in powder-coated stands). clear the instruction with the screw tip, then try again. Forcing a cross-threaded screw into a steel frame is a permanent failure.

The Stability Moment: Attaching the Back Brace

This component provides the "shear strength" that stops the stand from twisting during high-speed embroidery.

The Pivot Move: Once the bottom shelf is loosely attached, tip the entire stand forward so the front face is resting on the floor (on cardboard/carpet) and the legs are sticking slightly up. Gravity is now your assistant, not your enemy.

Action Steps:

1. Place the back brace over the legs.
2. Visual Check: Ensure the Vent Cutout is positioned toward the bottom of the stand. (this allows airflow and cable routing).
3. Align the holes with the specific back-edge holes we identified in Step 1.
4. Insert screws and washers. Finger tight only.




Configuration: Bernina E16 vs. Brother PR Stand Setup

This is where you customize the tool to your body and your machine. The stand offers two mounting positions for the second (small) shelf.

If you are coming from a brother pr workflow, you might be used to a specific table height. Here is how to choose the ergonomic sweet spot for you.

Decision Tree: Shelf Height Configuration

Note on Expansion: Kevin notes you can order a second shelf to utilize both positions if you want maximum storage.

Setup Checklist (The "Wiggle" Test)

• Shelf Orientation: Is the bottom shelf front-facing?
• Back Brace: Is the vent cutout at the bottom?
• Screw State: Are all screws inserted but still loose enough that the frame can shift 1-2mm?
• Level: If the stand is upright, does it look visually square?


The Alignment Trick: The "Star Pattern" Tightening

Now that all parts are connected, we lock it down.

Why we wait: Metal frames have manufacturing tolerances. If you tighten the bottom left corner 100% first, the top right corner hole might be offset by 2mm, making it impossible to insert the screw.

The Protocol:

1. Stand the unit upright on its wheels.
2. Go around the unit. Tighten each screw about 50%.
3. Do a final pass. Tighten to 100%.
4. Sensory Anchor: You want the screw tight enough that the washer flattens and you feel a solid "stop." Do not use power drills; hand torque is sufficient to avoid stripping.

Wheel Locks: The Foundation of Precision

Kevin highlights the caster locks. In a production environment, a rolling stand is a disaster.

The Rule:

• Operating: Locked.
• Maintenance (Oil/Cleaning): Unlocked.
• Hooping: Locked. (You do not want the target moving while you are loading a garment).


The Critical Safety Step: Machine Locators

This is the "Insurance Policy." A multi-needle machine can weigh 70-100 lbs. Vibration can cause it to "walk" across a smooth metal surface. Using locators is non-negotiable.

The Procedure:

1. The Dangerous Part: You need to access the threaded holes on the bottom of your machine base.
2. Prop the machine up on secure wood blocks. Do not tilt it precariously.
3. Screw the 4 round stoppers (Locators) into the machine base using the 4 screws/washers from Bag B.
4. The Docking: Lift the machine (two-person lift recommended). Lower it onto the stand so the stoppers drop into the corresponding holes on the stand top.

Success Metric: You should be able to try to slide the machine left or right, and it should hit a hard mechanical stop immediately.

Troubleshooting: When the Metal Fights Back

If things aren't lining up, don't panic. It’s usually one of two things.

The "After-Market" Upgrade Path: Scaling Your Workflow

Congratulations. You have a stable mechanical foundation. The machine is rigid. But a stable machine is only 50% of the battle. The other 50% is you and your workflow.

If you are assembling this stand, you are likely upgrading your capacity. This is the perfect time to audit your hooping process. The bottlenecks that kill profit usually happen before the start button is pressed.

1. Diagnosing "Hoop Burn" and Wrist Fatigue

If you are moving to a professional stand, you are likely doing more volume.

• Trigger: You finish a run of 50 polo shirts, but spend hours steaming out the ring marks left by standard plastic hoops. Or, your wrists ache from forcing the inner ring into the outer ring on thick hoodies.
• The Upgrade: This is where Magnetic Hoops (Magnetic Frames) become essential. Unlike friction hoops, they hold fabric with vertical magnetic force. This eliminates "hoop burn" and reduces the physical strain on your wrists to zero.
• When to switch: If you do more than 10 garments a week, or any vintage/delicate fabrics, a magnetic frame system pays for itself in saved labor.

Warning: Magnetic Safety
Professional magnetic hoops use N52 industrial magnets. They are incredibly strong.
1. Pinch Hazard: They snap together instantly. Keep fingers clear.
2. Medical: Keep at least 6 inches away from pacemakers.
3. Tech: Do not rest them on your laptop or phone.

2. The Cap Driver Dilemma

Caps are notoriously difficult because the "flagging" (bouncing) of the cap breaks needles.

• Trigger: Broken needles or registration loss on the center seam of a cap.
• The Tool: Look for specialized melco hat hoop drivers or high-tension cap frames designed for your specific machine model. Stability at the drive point prevents the cap from flagging.

3. Large Format Strategy

• Trigger: You want to do full jacket backs.
• The Context: Standard hoops often fail to hold tension across a 12-inch span.
• The Options: When researching melco xl hoop or similar giant frames, consider using "Table Top" extended tables (which this stand supports) to support the weight of the heavy garment (jacket/blanket) so the hoop doesn't bear the full load.

4. ROI on Equipment

When professionals discuss melco embroidery machine price or the cost of a Sewtech multi-needle equivalent, they aren't just buying a motor. They are buying the throughput.

• Equation: A stable stand + Magnetic Hooping System + Proper Consumables (Stabilizer) = 30% faster production time.


Operation Checklist: Ready to Stitch

• Lock Check: All 4 caster wheels locked?
• Locator Check: Machine feet dropped securely into stand holes?
• Shake Test: Give the stand a firm shake. Does the machine move with the stand (good) or slide on the stand (bad)?
• Cable Management: Are power and data cables routed through the back brace vent (not pinched between the machine and wall)?
• First Run: Start with a test design at 600-700 SPM. If it sounds smooth and rhythmic (a steady "thump-thump-thump"), increase speed. If you hear metallic rattling, re-check your shelf screws.

Your ecosystem is now ready. The machine is secure, the physics are on your side, and you have the knowledge to upgrade your workflow when production demands it. Happy stitching.

FAQ

• Q: What tools and “hidden consumables” should be prepared before assembling a Bernina E16 / Melco stand to avoid stripped screws and oily stains?
  A: Prepare a real 4 mm Allen key, a shop towel, and a wood block before opening Hardware Bag A or B.
  • Use a T-handle 4 mm hex key for controlled torque (the included key works, but is harder on wrists).
  • Wipe metal parts with a shop towel if light shipping oil is present to keep garments clean later.
  • Set aside a 4x4-style wood block for the machine-locator step so the machine base can be safely accessed.
  • Success check: All parts are laid out, screws are separated (14 main vs 4 locator), and hands stay clean when handling shelves.
  • If it still fails… Recount Hardware Bag A/B and stop if any shelf gets installed before confirming large vs small shelf.
• Q: How can Bernina E16 and Melco stand side panels be oriented correctly so the back brace holes align the first time?
  A: Identify the rear of each side panel by the threaded holes intended for the back brace, and make both panels face the same way.
  • Stand both side panels upright and locate the specific back-brace mounting points on each panel.
  • Ensure the brace holes on both panels face the same direction (that direction becomes the back of the stand).
  • Visualize the operator at the front and the solid back brace at the rear before installing shelves.
  • Success check: When the back brace is offered up later, its holes naturally line up without forcing or “bending” parts.
  • If it still fails… Disassemble and flip the side panels; reversed panels are the most common reason brace holes don’t match.
• Q: How do you identify and install the Large Bottom Shelf on a Bernina E16 / Melco stand without getting stuck later?
  A: Install the Large Shelf as the bottom shelf with its screw holes on the front edge and no screw holes on the back edge, and keep screws finger-tight.
  • Select the wider shelf and confirm the front edge has screw holes while the back edge has none.
  • Align the shelf’s front holes to the front holes on the side panels, then start screws with washers by hand.
  • Leave all shelf screws finger-tight so the frame can “wiggle” slightly for the next parts.
  • Success check: The frame can shift 1–2 mm by hand, and the next component holes line up without prying.
  • If it still fails… Back out any gritty/stopping screw, clear paint from threads using the screw tip, and retry—do not force cross-threading.
• Q: What is the correct way to install the Bernina E16 / Melco stand back brace, including the vent cutout direction?
  A: Install the back brace with the vent cutout positioned toward the bottom of the stand, and tighten only after all screws are started.
  • Tip the stand forward so the front face rests on cardboard/carpet; let gravity help alignment.
  • Place the back brace over the legs and confirm the vent cutout is at the bottom for airflow/cable routing.
  • Start all brace screws with washers finger-tight before tightening any corner.
  • Success check: The brace sits flat with no gap, and all screws start by hand without fighting the holes.
  • If it still fails… Recheck side panel orientation; brace-hole mismatch usually means the side panels are reversed.
• Q: How should Bernina E16 / Melco stand shelf height be configured differently for a Brother PR-style flat-base machine?
  A: Use the lower hole position for a Brother PR-style machine to create a flush, flat top surface.
  • Choose the lower mounting holes when a flat “table-like” top is needed to prevent the machine from sitting in a “well.”
  • Choose the top hole position for Bernina E16/Melco if storage space under the machine is desired.
  • Decide the configuration before tightening hardware to avoid rebuilding.
  • Success check: The machine base sits as intended (flush for Brother PR-style), and loading height feels comfortable without shoulder strain.
  • If it still fails… Loosen hardware, reposition the small shelf to the alternate holes, then re-tighten using the star-pattern method.
• Q: How do you tighten a Bernina E16 / Melco stand so the frame stays square and holes do not drift out of alignment?
  A: Tighten all screws in a “star pattern” after everything is installed, going 50% tight first and 100% tight second.
  • Stand the unit upright on its wheels only after all parts are connected and all screws are started.
  • Make one full pass tightening each screw about halfway, moving around the stand instead of finishing one corner first.
  • Make a second full pass to final hand-tight torque; avoid power drills to reduce stripping risk.
  • Success check: Washers flatten and each screw reaches a solid stop, and the stand does not twist when pushed.
  • If it still fails… Loosen all shelving screws, let the stand settle on a flatter surface, then repeat the 50%/100% passes.
• Q: How do Bernina E16 and Melco multi-needle machines get secured to the stand to prevent the machine from sliding during high-speed embroidery?
  A: Install the four machine locators (stoppers) using the Bag B screws and dock them into the stand’s top holes—do not operate without locators.
  • Prop the machine safely on wood blocks to access the threaded holes on the bottom of the machine base (do not tilt precariously).
  • Attach the four round stoppers with the 4 screws/washers from Bag B.
  • Two-person lift the machine and lower it so the stoppers drop into the matching holes on the stand top.
  • Success check: Pushing the machine left/right hits a hard mechanical stop immediately (no sliding).
  • If it still fails… Stop operation and recheck that Bag B hardware was used and all four locators are installed.
• Q: If hoop burn and wrist fatigue increase with garment volume, what is the safe upgrade path from technique changes to Magnetic Hoops and then to a SEWTECH multi-needle machine?
  A: Start by auditing hooping workflow, upgrade to Magnetic Hoops when hoop burn/strain becomes repetitive, and consider a SEWTECH multi-needle machine when throughput becomes the constraint.
  • Diagnose the trigger: ring marks to steam out after runs (hoop burn) or wrist pain from forcing thick garments into friction hoops.
  • Apply Level 1 (technique): Reduce re-hooping and standardize loading steps so operator effort stays consistent.
  • Apply Level 2 (tool): Switch to Magnetic Hoops to hold fabric with vertical magnetic force and reduce hoop burn and physical strain.
  • Apply Level 3 (capacity): If demand keeps rising, evaluate a SEWTECH multi-needle workflow for throughput rather than just speed.
  • Success check: Less post-processing (fewer hoop marks), faster loading, and more consistent garment handling during runs.
  • If it still fails… Follow magnetic safety basics: keep fingers clear of snap zones, keep magnets away from pacemakers, and do not rest magnetic hoops on phones/laptops.
