Mastering Madeira Color Chart: How to Choose and Use Embroidery Threads Like a Pro

1. Introduction to Madeira Color Charts

Madeira color charts are your backstage pass to flawless machine embroidery. With real thread windings, weight-specific markings, and care/needle guidance, they help you pick colors that stitch the way you imagined. In this guide, you’ll learn how to access charts (physical and digital), read the symbols that indicate weight availability, understand specs like Oeko‑Tex and density, and apply them to real projects. Mastering color cards means tighter matching, cleaner coverage, and professional results across rayon, polyester, and specialty threads when using an embroidery machine to make patches.

Table of Contents

• 1. Introduction to Madeira Color Charts
• 2. Accessing and Understanding Madeira Color Charts
• 3. Practical Guide to Using Madeira Color Cards
• 4. Color Matching and Conversion Strategies
• 5. Advanced Color Theory for Embroidery
• 6. Purchasing and Digital Resources
• 7. Troubleshooting Common Thread Issues
• 8. Conclusion: Elevate Your Embroidery Mastery
• 9. FAQ: Madeira Color Charts Explained

2. Accessing and Understanding Madeira Color Charts

2.1 Types of Madeira Thread Lines and Formats

Madeira organizes its portfolio by fiber and application, each with a dedicated color card that uses actual thread windings for true-to-life viewing.

• Classic Rayon (100% eco-friendly viscose rayon)
  • Palette: 387 solid colors, 19 ombré, 6 multi, 10 astro.
  • Weights and put-ups (examples):
    • #40: 5,500-yard cones or 1,100-yard spools
    • #60: 1,640-yard spools
    • #30: 714-yard spools
    • #12: 2,200-yard cones
  • Known for high tensile strength, soft hand, and glossy luster.
• Polyneon (100% polyester)
  • Engineered for durability and smooth running at high speeds; resistant to chlorine bleach—ideal for uniforms, commercial linens, and hard-wearing garments.
  • Weight system includes #40 (standard), #60 and #75 (fine detail), plus a flame-retardant variant (FR). Color cards also provide Pantone references.
• Metallic and technical threads
  • CR Metallic: 68% polyester, 32% metallised polyester; soft hand with high-tech color coating; needle guidance per weight is listed on card backs.
  • FS Supertwist Metallic: twisted construction designed for commercial speeds; cards show broad effect and color ranges (including opal/crystal).
  • Fire Fighter: 100% Aramid (Nomex fibers), flame-resistant for safety-critical applications; has its own color card with application cautions and needle guidance.

Color chart formats and access:

• Physical color cards: contain actual thread windings for maximum accuracy and include indices, care symbols, needle recommendations, and weight availability keys. Pricing varies by vendor (Madeira USA mentions a nominal $5 fee; another distributor lists a Classic Rayon card at $6.95).
• Digital downloads: quick to access and share; useful for planning. Note that screens and printers can shift appearance, so confirm final choices against physical windings whenever color accuracy matters.

Tip: Madeira’s large cards include a legend and columns/index to help you locate color numbers quickly, plus Pantone information on Rayon and Polyneon cards.

2.2 Technical Specifications and Selection Guidelines

Certifications and safety:

• Oeko‑Tex Standard 100 appears across Madeira lines, indicating they’re tested free from harmful substances—appropriate for sensitive applications like babywear and uniforms.

Needle recommendations and stitch density (examples from Madeira guidance):

• Classic Rayon #40: average digitizing density ≈ 4.0; needles #65/9 or #75/11.
• Classic Rayon #60: average density ≈ 3.5; typically #65/9 or #70/10 (Madeira charts also show #60/8–#65/9 ranges).
• Classic Rayon #30: average density ≈ 5.0; typically #75/11 or #80/12.
• Classic Rayon #12: average density ≈ 8.0; typically #100/16.
• Polyneon #40: charts list #60/8–#75/11; #60 often pairs with #60/8–#65/9; #75 indicates very fine detail (card legend shows availability).
• Metallic CR #40: #65/9–#75/11; CR #20: #80/12–#90/14.
• Fire Fighter #40: #75/11–#80/12.

Coverage and detail by weight:

• Use #30 for bolder fills and faster coverage on large areas.
• Use #40 as the dependable, all-purpose standard for most designs.
• Use #60 and #75 for fine text and intricate detail (e.g., small lettering).
• Use #12 for heavy outlines, decorative edging, and textured effects.

Care and durability considerations:

• Polyneon’s chlorine bleach resistance makes it ideal for heavily laundered items (uniforms, sportswear, hospitality).
• Rayon delivers a luxurious sheen and soft hand; follow the card’s laundering/care symbols to maintain luster.
• Metallic and flame-resistant threads include cautions and specific care/needle notes on their cards—review before production.

3. Practical Guide to Using Madeira Color Cards

3.1 Interpreting Weight Availability and Symbols

Madeira’s color cards use a simple, color-keyed dot or symbol system to show which shades exist in additional weights:

• Starting point: Every shade on the core #40 card is available in #40.
• Dots/symbols next to a shade indicate added availability (e.g., #60, #75, #30, #12, or FR on Polyneon). The legend printed on each page identifies which dot equals which weight or special line.
• Use the card’s index and column references to locate color numbers fast.
• For specialty lines:
  • Metallic (CR and FS Supertwist): check back-of-card for needle sizes and any cautions; heavier metallics typically require larger needles due to friction.
  • Fire Fighter (100% Aramid): follow its dedicated needle guidance (#75/11–#80/12) and care specifics for safety-critical garments.

Pro tip: Both Rayon and Polyneon cards include Pantone references. For brand work, use the Pantone mapping on the card as a starting point, then confirm with a physical stitch test under consistent lighting.

3.2 Fabric Setup and Tension Optimization

Accurate color depends on stable fabric—tension affects how sheen, density, and blends read to the eye.

• Why tension matters:
  • Over-tightened or unevenly hooped fabric can cause puckering and distortion, making colors appear darker/lighter than intended and muddying blends.
  • Even, repeatable hooping produces consistent coverage so your chosen swatch looks the same in the stitch-out.
• magnetic embroidery hoops (like Sewtalent) for garment embroidery:
  • Deliver even hooping pressure across the garment and adapt to various thicknesses, helping reduce hoop burn and puckering.
  • Speed up repeatable hooping while improving placement consistency with built-in reference lines.
  • Notes:
    • Sewtalent focuses on garment hooping (not suitable for caps).
    • Benefits include smoother set-up, more stable fabric during stitching, and more faithful color appearance versus traditional screw-adjusted hoops.
• Traditional hoops vs. magnetic:
  • Traditional hoops rely on manual screw adjustments that can create uneven tension, especially on bulky or uneven areas (zippers, seams), increasing risk of puckering.
  • Magnetic hooping provides fast, repeatable pressure that helps preserve the design’s intended sheen and coverage.
• Quick setup checklist for color accuracy:
  • Match stabilizer to fabric and design density.
  • Hoop flat with even tension; avoid stretching knits.
  • Use the needle recommended on the card for the thread/weight you selected.
  • Test-stitch your color sequence on the same fabric/stabilizer combo.
  • Evaluate under a consistent, full-spectrum light source; avoid judging color under warm incandescent or cool fluorescent-only lighting.

Call to action: If you’re building a color-accurate garment workflow, consider switching to a magnetic hooping workflow with Sewtalent for smoother tension control and consistent, repeatable results on apparel.

4. Color Matching and Conversion Strategies

4.1 Madeira's Numerical Coding System

Numbers—not names—are your anchor in machine embroidery digitizing when selecting Madeira shades. That’s by design. Official charts and distributor sheets repeatedly note that descriptive names are for reference only; when ordering, use the color number. This avoids mix‑ups and keeps reorders consistent across projects and dye lots.

How Madeira organizes numbers:

• Polyneon ranges cluster by family. For example:
• 1668–1705: earth/green-leaning tones
• 1798–1969: broader greens
• 1568–1795: browns and naturals

This “neighbor logic” makes it easy to move lighter/darker or warmer/cooler within a family when building a palette.

Where the card helps you decide:

• Real thread windings show sheen and actual hue, so you see how a shade will stitch—not just how it prints on paper or a screen.
• Multi, ombré, and Astro comparisons are visible on the card:
• Multicolors display distinct, more “blocky” color sections—what you see on the winding mirrors how they stitch out.
• Astro lines show subtler blends and smoother transitions than multicolor.
• Ombrés show graded tonal progressions within the same family.
• Weight keys/dots (explained on each card’s legend) indicate availability across #30, #40, #60, #75 (and FR for Polyneon where listed), so you can pick the same hue for fills, fine text, or micro‑details.

Fast workflow:

• Start with the design’s “home” hue family (e.g., Polyneon blues or Classic Rayon reds).
• Use card columns and index to find the base number quickly.
• Step to adjacent numbers for lighter/darker or warmer/cooler options.
• Lock your choice by its number, then confirm the weight via the legend before you order.

4.2 Cross-Brand Conversion Techniques

Pantone, Isacord, Sulky, Robison‑Anton—conversions are common, but they’re never one‑to‑one. Treat every mapping as a starting point, then verify with physical thread and a test stitch.

What’s available:

• Pantone integration:
• Madeira’s Rayon and Polyneon cards list Pantone references, and Madeira provides online lookups. This is especially helpful for brand work where PMS numbers are specified.
• Cross‑brand examples (as documented in conversion resources):
• Madeira 0180 (Pink) → Isacord 2223
• Madeira 1921 (Dusty Rose) → Isacord 2155; Sulky 1108
• Madeira 1972 (Cherry Pink) → Sulky 1219
• Madeira 1066 → Robison‑Anton 2264 (Maize)
• Madeira 1070 → Robison‑Anton 2332 (Penny)
• Madeira 1075 → Robison‑Anton 2522 (Bridgeport Blue)

Best practices and limits:

• Physical beats digital. Screen renderings vary; printed charts shift; lighting changes everything. Use the real thread windings on Madeira’s cards to finalize.
• Confirm under consistent, full‑spectrum light. The same thread will look different under warm incandescent versus cool fluorescent/LED; evaluate in a neutral light environment.
• Metallics behave differently. Their reflective coatings can alter perceived color across light sources—expect more variance and plan extra test stitches.

Pro tip for corporate colors:

• Use Madeira’s Pantone mapping on Polyneon or Rayon cards to pull 2–3 candidates. Then test‑stitch on the actual fabric/stabilizer and approve under the lighting where the logo will live (office, stadium, retail floor, outdoors).

5. Advanced Color Theory for Embroidery

5.1 Blending and Shading Principles

Embroidery can’t “mix” colors like paint—you layer and place thread to make the eye do the blending. Here’s how to make it look seamless. - Build gradients with analogous colors - Choose hues that sit next to each other on the wheel (e.g., yellow→yellow‑orange→orange). Madeira’s cards are arranged by families, making it easy to step through adjacent numbers for smooth progressions. - Control light and shadow with stitch density - Lower density appears lighter (more fabric shows through); higher density reads darker/richer. Build intensity by layering multiple light‑density passes rather than one heavy pass. - Keep stitch direction consistent in blends - For layered fills, run the same stitch direction so subsequent layers nest “between the lines.” Changing direction mid‑blend can make layers stack rather than interleave, breaking the gradient. - Use warm/cool temperature shifts for depth - Warm hues (reds/oranges/yellows) advance; cool hues (blues/greens) recede. A slightly warmer midtone against a cooler shadow pushes forms forward in florals, animals, and illustrative fills. - Mind value contrast, not just hue - Distinct values (light/mid/dark) prevent muddy areas. When values are too similar, edges disappear—even if the hues differ. - Let thread character work for you - Classic Rayon’s glossy luster enhances subtle shading and realism. - Polyneon’s durable shine suits high‑wear items where blends must survive laundering. - Metallics add sparkle but can exaggerate contrast and highlight stitch direction—place them intentionally. Quick recipe for a velvet‑smooth gradient: 1) Pick 3–5 adjacent numbers from the same family on the color card (light to dark). 2) Digitize fills with slightly reduced densities; layer from light to dark. 3) Keep stitch direction consistent across layers. 4) Test‑stitch and adjust densities until the steps disappear to the eye.

5.2 Corporate Logo Matching Workflow

Locking down brand color is part science, part craft. Use this checklist to move from PMS to production with confidence. 1) Gather specs - Collect brand Pantone numbers and usage notes (coated vs. uncoated). Madeira’s teams recommend coated guides for better alignment with thread sheen. 2) Pre‑select candidates from Madeira resources and embroidery designs online - Use Rayon/Polyneon cards with Pantone references or Madeira’s online tool to pull 2–3 Madeira numbers per PMS. 3) Choose the right thread line for the job - Polyneon (100% polyester) for uniforms and frequent laundering; Classic Rayon for luxurious sheen; Metallic/technical threads for special effects or safety requirements. 4) Test on the real substrate - Hoop the actual garment fabric with the correct stabilizer. Stitch all candidates with the specified density/needle from the card (e.g., #65/9–#75/11 ranges shown per line/weight). 5) Verify under multiple light sources - Evaluate side‑by‑side under neutral, full‑spectrum light. Then spot‑check where it will live (office LEDs, retail, daylight). Metamerism is real—approve under the environment that matters. 6) Document and lock - Record the final Madeira number(s), weight(s), and needle(s). Keep a stitched swatch with the job ticket for repeat orders. 7) Special note on metallic logos - Expect greater visual shifts under different lighting due to reflectivity. Use the metallic card’s guidance (construction and needle ranges) and plan extra test stitches before client approval. 8) Final cross‑check - If the design originated in another brand’s thread, consult conversion charts for nearest Madeira equivalents—and still verify with a physical stitch‑out before production.

6. Purchasing and Digital Resources

6.1 Where to Buy Threads and Cards

Buying options and formats: - Thread types and put‑ups - Classic Rayon: common put‑ups include #40 on 1,100‑yard spools or 5,500‑yard cones; #60, #30, and #12 are available in their own standard put‑ups (as listed on the Rayon card). - Polyneon: typical #40 on 1,000‑meter spools or 5,000‑meter cones; #60 and #75 for fine detail; FR variant as indicated on the card. - Metallics: CR Metallic (#40, #20) and FS Supertwist (effect threads) show weights, care notes, and needle sizes on their color cards. - Underthreads and bobbins: options like Burmilon (fine, lint‑free) and bobbin solutions in black/white are available in large‑capacity cones. - Technical and specialty: Fire Fighter (100% aramid) and conductive HC 40 expand application coverage. - Color cards - Physical color cards feature real thread windings and comprehensive legends (weights, needle guidance, care symbols, indices). Madeira USA notes a nominal fee—“just five dollars a piece”—for cards. - Digital/printable charts are available from select distributors for planning; confirm final choices against physical windings. Where to source: - Authorized distributors and embroidery shops such as Madeira USA (trade‑focused portals often require login for pricing and availability). - Resellers provide downloadable charts and stock Madeira’s major lines (Rayon, Polyneon, Metallic, etc.). Buying tips: - Cones for high‑use basics (black/white/brand primaries); spools for accents and occasional colors. - Keep fixed positions for core colors on multi‑needle machines to reduce setup time. - For critical color jobs, always purchase the physical color card for the relevant line (Rayon, Polyneon, Metallic, etc.) and keep it at the machine with a daylight lamp for quick checks.

6.2 Interactive Color Visualization Tools

Helpful tools (and how to use them well): - Pantone matching - Madeira offers web/mobile Pantone matching so you can input a PMS value and view Madeira candidates. Treat results as guidance, then confirm with the physical card and a test stitch. - Thread converters - Online converters (e.g., Sulky’s tool) and cross‑brand charts provide nearest equivalents between Madeira and other brands like Isacord or Robison‑Anton. These algorithms give approximations—final selection needs a real swatch. Why screens can mislead: - Monitors and printers vary widely; ambient lighting shifts perception; threads’ sheen and twist introduce 3D effects that RGB/HEX can’t capture. That’s why manufacturers and distributors emphasize physical verification. A reliable hybrid workflow: 1) Use a digital tool to shortlist candidates by Pantone or cross‑brand code. 2) Pull the candidates on the Madeira color card (real windings). 3) Test‑stitch on the actual fabric and stabilizer. 4) Approve under consistent, neutral lighting—then re‑check under the garment’s real‑world lighting. What’s next: - More platforms now include side‑by‑side comparisons, background/fabric simulations, and even lighting previews. Emerging AR previews can help visualize palettes on garments before you stitch, but they’re still supplemental to in‑hand thread and test samples. Call to action: - Download a planning chart to sketch your palette—but finalize with a physical Madeira color card and a stitched sample. Your eyes—and your clients—will thank you.

7. Troubleshooting Common Thread Issues

Color problems often start as mechanical problems. Before you blame the palette, stabilize the process. Use this step‑by‑step playbook to stop breakage, bleeding, and color‑sequence surprises—and tie fixes back to the needle and density guidance printed on your Madeira color cards.

7.1 Color change glitches (auto‑merge, sorting)

• Symptom
• Your design was digitized with multiple intentional returns to the same color (for layering or effects), but the machine/software collapses them into fewer color changes.
• Why it happens
• Auto “join same consecutive colors” logic optimizes production but can destroy layer order.
• Fix
• In Embird: Options > uncheck “Join Same Consecutive Colors,” then refresh by switching Manager/Editor.

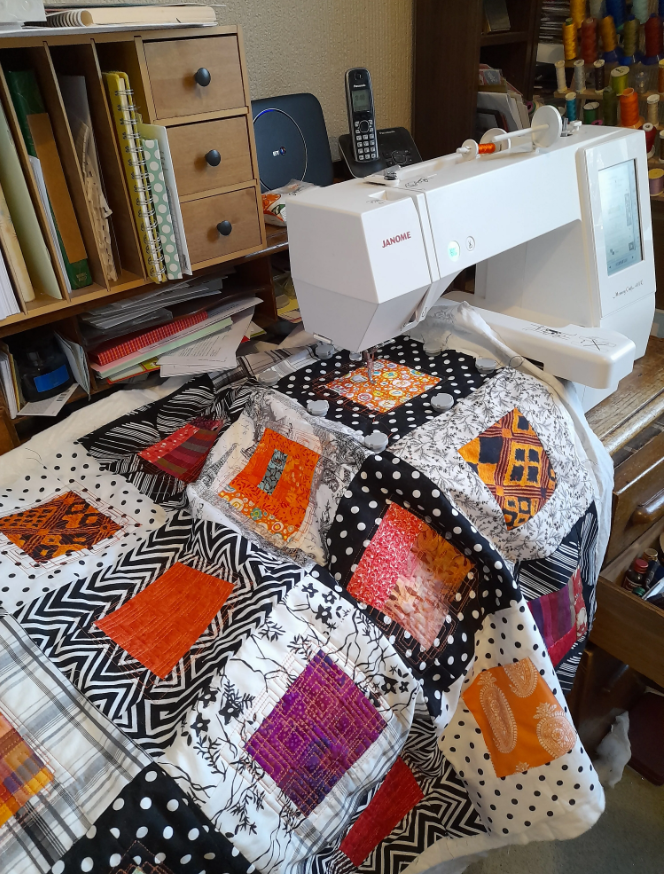

• On machines with similar features (e.g., Janome MC12000), disable the color‑merge function in settings.
• Pro move
• Lock sequence at the digitizing stage and clearly label repeat‑use colors by step, not just by shade.

7.2 Thread breakage: a fast, reliable protocol

• Start with the usual suspects; change one thing at a time:

1. Replace the needle
2. Use the needle sizes printed on your Madeira card for the thread/weight:
3. Classic Rayon #40: #65/9–#75/11
4. Classic Rayon #60: #65/9–#70/10
5. Classic Rayon #30: #75/11–#80/12
6. Classic Rayon #12: #100/16
7. Polyneon: #60/8–#75/11 (fine weights #60/#75 pair with smaller needles)
8. Metallic CR #40: #65/9–#75/11; CR #20: #80/12–#90/14
9. Fire Fighter #40: #75/11–#80/12
10. Burrs are invisible; a fresh, correct needle often fixes sudden breakage.
11. Rethread completely
12. Pull the thread out; rethread through every guide, disk, and the take‑up lever. A single missed guide creates friction and snaps.
13. Clean the thread path
14. Brush lint from tension disks, guides, and bobbin area. Run unwaxed dental floss through the upper path to dislodge micro‑debris.
15. Manage the spool
16. Correct orientation and the right spool cap prevent snags. Ensure smooth release.
17. Balance tensions
18. Match upper/lower tension so stitches lock midway in the fabric. If you recently changed weight (#40 → #60), re‑balance and use the card’s needle guidance.
19. Check the design itself
20. Extremely small stitch pitch, abrupt direction changes, or too‑high density will shred thread. Use Madeira’s density guidance as a compass:
21. Rayon #60 ≈ 3.5 (lighter), #40 ≈ 4.0 (standard), #30 ≈ 5.0 (heavier fills), #12 ≈ 8.0 (decorative/edge).

7.3 Color bleeding prevention (before it happens)

• Pre‑wash fabrics
• Remove excess garment dye that can transfer into stitches.
• Choose colorfast thread for high‑launder items
• Polyneon (100% polyester) is designed for frequent washing and is chlorine‑bleach resistant (follow card symbols: max. temp/time guidance).
• Care matters
• Don’t leave damp embroidered pieces stacked. Rinse thoroughly before tumble‑drying, per Polyneon care notes.
• Judge color accurately
• Approve matches under full‑spectrum, neutral light. Screens and office fluorescents skew perception; Madeira recommends daylight‑like lighting.

7.4 Tension, bobbins, and stitch quality

• Bobbin health
• Use the correct bobbin type; wind evenly. Uneven bobbin tension shows up as inconsistent color intensity and thread show‑through.
• Upper/lower parity
• Loops on top: top tension too loose or threading error. Bobbin poking on top: top too tight or bobbin too loose.
• Short stitches and micro‑detail
• If you move to #60 or #75 for tiny text, reduce density per the card and shrink stitch length modestly—don’t over‑pack stitches.
• Metallics and technical threads
• Metallic (CR, FS Supertwist) benefits from larger eyes and gentle densities; follow the back‑of‑card cautions. Aramid (Fire Fighter) uses its own needle/care specs.

7.5 Maintenance checklist (weekly quick sweep)

• Clean: tension disks, presser foot, needle bar, and bobbin race.
• Lubricate: as the machine manufacturer specifies.
• Inspect: needles (swap routinely), thread guides for burrs, and thread cones for snags.
• Verify: hooping stability, stabilizer pairing, and that the needle size matches the thread weight shown on your Madeira card.
• Diagnose smart: turn the handwheel slowly over the trouble area to pinpoint where failure starts (entry/exit points, dense layers, direction changes).

7.6 Final color‑confidence checks

• Physical beats digital
• Use Madeira color cards with real windings to confirm hue and sheen; cards include dot keys for weight availability (#60/#75/#30/#12 or FR on Polyneon).
• Light it right
• Evaluate stitches under a consistent, daylight‑balanced lamp before approving. This prevents mistaking lighting shifts for bleeding or mismatch.
• Test on the real substrate
• Hoop the actual fabric/stabilizer combo, stitch your shortlist, and sign off under the lighting where the piece will live.
• If persistent issues occur, seek embroidery machine repair near me

8. Conclusion: Elevate Your Embroidery Mastery

Color mastery starts with the physical Madeira card and best embroidery machines—real thread windings, clear needle guidance, and weight availability you can trust. Use weights with intent (#30 for bold coverage, #40 for all‑purpose, #60/#75 for micro‑detail), and let color theory do the heavy lifting for blends and depth. Validate under full‑spectrum light, then test‑stitch on real fabric. With that workflow, Madeira’s expansive palette turns from guesswork into repeatable, professional results.

9. FAQ: Madeira Color Charts Explained

9.1 Q: Can I trust digital color charts?

A: Use them only for planning. Screens and printers vary widely. Finalize with Madeira’s physical color cards (real thread windings) and approve under full‑spectrum light on stitched samples.

9.2 Q: How often are new colors added?

A: Recently, Classic Rayon added 44 new shades. Polyneon has also expanded, with a notable recent addition of 72 colors mentioned in Madeira’s webinar. Check current cards and Madeira resources for the latest updates.

9.3 Q: Why do thread weights matter?

A: Weight controls coverage and clarity. As Madeira’s cards indicate: #30 delivers bolder fills; #40 is the all‑purpose standard; #60 and #75 excel at small lettering and intricate detail. Choose the needle sizes shown on the card for each weight to reduce breakage and keep stitches clean.
