Master the Basics: Colour Change, Combining and Colour Sort

Introduction to Color Management in mySewnet

If you have ever loaded a design, fallen in love with the artwork, and then watched in frustration as your machine demanded you change the thread color again and again for the exact same shade, you already understand why color management is an operational necessity, not just an artistic choice.

In this "White Paper" grade workflow, we are moving beyond basic button-clicking. We will treat machine embroidery as an engineering discipline where software preparation dictates physical production efficiency. You will learn how to:

• Pinpoint Elements: Identify exactly which stitched element belongs to each color block in the Design Panel using visual cues.
• Unify Visuals: Change thread colors so repeated elements match (e.g., ensuring flourishes match the specific red of the bows).
• Solve the "Sort Failure": Fix the classic frustration where clicking "Color Sort" appears to do nothing.
• Optimize Sequence: Use the mandatory order—Combine All first, then Color Sort—to drastically reduce a design from 22 interruptions down to 5.

This guide is beginner-friendly, but it teaches a "Master Class" production habit. Reducing stops means fewer trims, fewer knotting risks, and a faster path to the finished product.

How to Identify and Change Specific Thread Colors

Step 1 — Identify which object belongs to each color block

Before you alter any parameters, you must visually confirm you are editing the correct segment. In complex designs, "Color Block #3" could be a leaf, a stem, or a hidden underlay. Guesswork here leads to ruined stitch-outs.

1. Focus on the Design Panel on the right side of your screen.
2. Hover your cursor over a specific color block.
3. Observe the main hoop/canvas area: the corresponding design element will temporarily highlight blue.

Why this matters: When a design utilizes repeated elements (like multiple bells, separate bows, and detached flourishes), it is incredibly easy to assign a color change to the wrong block. You often won't realize the mistake until you are 20 minutes into stitching and the wrong color is applied to the wrong area.

Checkpoint: When you hover over the first color block, you must visually confirm the related element (e.g., the top flourish) glows blue.

Expected outcome: You possess the confidence to map "Color Block #X" to "Top Right Flourish Segment" without hesitation.

Step 2 — Change thread color (Method 1: select block + Change Color button)

Use this method when you are building a new color palette from scratch and need to browse options.

1. Select: Click the color number (e.g., #1) in the Design Panel. You will see a distinct blue outline/box indicating it is active.
2. Action: Click the Change Color button (represented by a beaker icon) located at the bottom of the Design Panel.
3. Refine: In the Color Selection dialog:
   • Verify Brand: Confirm the thread brand is set to your preferred standard (e.g., Robison-Anton Rayon 40). Consistent brand selection ensures the software's density calculations match your thread weight.
   • Expand Options: If needed, enable Show all thread ranges to view other manufacturers.
   • Select: Choose the target red—here, 2623 Pro Red—and click OK.

Checkpoint: The selected flourish on the screen must instantly shift from the original color (gold/yellow) to your chosen red.

Expected outcome: The design preview now accurately reflects your intended color, minimizing the cognitive load of imagining what the final product will look like.

Step 3 — Change thread color (Method 2: double-click + Find Thread code)

Use this method for speed and precision when you already possess the physical thread spool and know its code. This is the "Production Method."

1. Engage: Double left-click directly on the color block in the Design Panel.
2. Input: In the dialog box, type the thread code directly into the Find Thread field (example: 2623).
3. Confirm: Verify the software has highlighted the correct thread, then click OK.

Pro tip from production digitizing habits: If you run a business, standardize a set of "House Colors" (e.g., one specific red, one navy, one black). Memorizing these codes (like 2623 for Red) drastically speeds up your workflow and eliminates the "which red did I use last time?" confusion.

Checkpoint: After typing the four-digit code, the software should auto-scroll and highlight the exact thread match.

Expected outcome: You can rapidly apply the same red code across multiple independent elements (top flourish, bottom flourish, side bows) ensuring perfect color continuity.

Warning: Mechanical Safety. Even though we are discussing software, remember that efficiency modifications change how the machine behaves. Fewer stops mean longer continuous run times. Always keep small curved scissors, tweezers, and a lint brush near the machine. Never place your hands near the needle bar while the machine is running, even if you are just reaching for a thread tail.

The Problem: Unoptimized Designs with Excessive Stops

The design used in this lesson is constructed from multiple copied and pasted elements (bells mixed with flourishes). Visually, it appears to be a cohesive image. However, the Design Panel reveals the ugly truth: 22 color changes.

From an engineering perspective, here is the friction:

• Fragmentation: Each copied element is treated by the software as a separate "island."
• Inefficiency: The machine will switch to Red, stitch one bow, stop, cut, switch to Gold, stitch a bell, stop, cut, and ask for Red again for the next bow.

The Cost of Inefficiency: If you are stitching a single towel for a hobby project, 22 stops is an annoyance. If you are producing 50 polos for a client, 22 stops is a profit-killer.

• Calculation: If a thread change takes 45 seconds (operator time + machine trim/tie-in), 17 unnecessary stops = ~12 minutes of wasted time per garment.

The Optimization Pathway: Efficiency requires a holistic approach. Optimizing the file is Step 1. Step 2 is optimizing your physical workflow. Once your files are fast, your bottleneck shifts to hooping. This is where tools like a hooping station for machine embroidery become critical investments. If your machine is waiting for you to hoop the next shirt, you are losing money. A proper station ensures consistent placement and keeps the machine fed.

Step-by-Step: Using Combine All to Merge Layers

Why Combine All comes before Color Sort

Think of your design layers like decks of cards on a table. If you have five separate decks (groups), sorting one deck doesn't organize the others. Color Sort can only intelligently group identical colors across the whole design if the design is treated as one single entity.

If the design remains separated into multiple groups, Color Sort will analyze each group individually and find nothing to minimize, resulting in the "Color Sort did nothing" frustration.

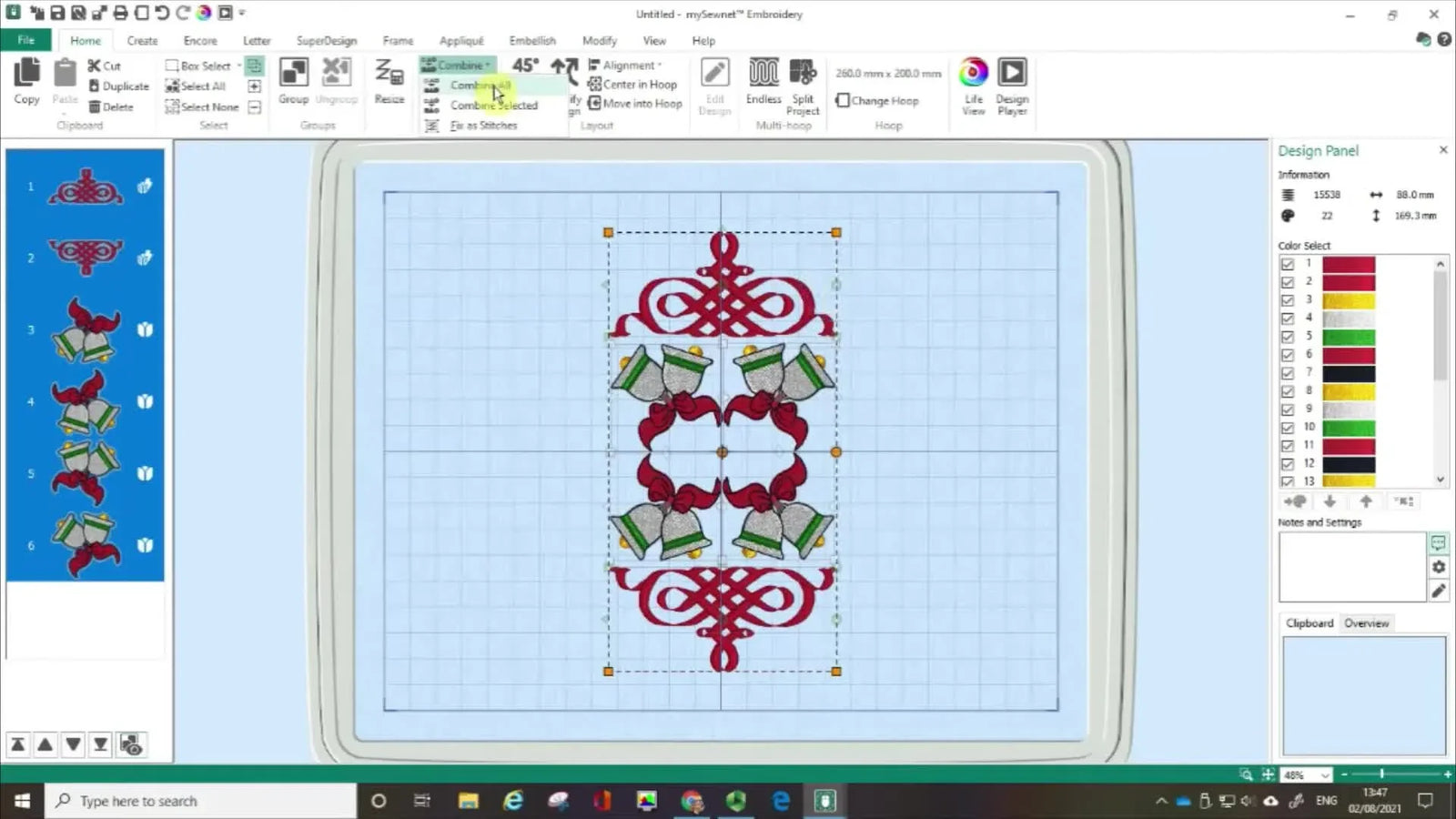

Step 4 — Combine the design (Combine All)

1. Navigate: Go to the Home tab in the top navigation bar.
2. Locate: Find the Combine dropdown menu.
3. Execute: Choose Combine All.
4. Verify: Look strictly at the FilmStrip on the left side of the screen.

Checkpoint: The FilmStrip must change from a list of multiple items/groups to showing a single combined design object. If you still see a list of folders or groups, you have not successfully combined them.

Expected outcome: The design is now a singular data entity, unlocking the ability for the algorithmic sorter to scan the entire image.

Watch out (The "Point of No Return"): Combining is a destructive edit in terms of structure.

• Too Early: You lose the ability to easily move, resize, or delete individual components (like moving just one bell).
• Just Right: Do this only after you are 100% happy with the layout.

This is why Karina’s Golden Rule is non-negotiable: Do your combining and color sorting as the very last step.

Comment-based fix: “I combined, but Color Sort still didn’t merge colors.”

If you follow the steps but the colors remain fragmented, perform this diagnostic:

1. Selection Check: Did you click "Combine All," or did you just highlight all items? highlighting is not combining.
2. Object Verification: Does the FilmStrip show exactly one item?
3. Retry: With the single object selected, click Color Sort again.

Note: Always save a "Work-in-Progress" (.vp4/.emb) file before you combine. This is your safety net.

The Magic of Color Sort: Reducing 22 Stops to 5

Step 5 — Color Sort (after combining)

1. Prerequisite: Ensure the design is combined (see Step 4).
2. Action: On the Home tab, click Color Sort.
3. Symptom of Success: Watch the Design Panel. The long list of repeated colors should collapse.

In this lesson's example, the Design Panel drops from 22 interruptions down to 5 distinct color blocks.

Checkpoint: Visually confirm the number of color blocks in the Design Panel has decreased significantly.

Expected outcome: Your machine will now stitch all "Red" elements in one continuous pass (planning the path to minimize jumps), then stop for the next color.

What Color Sort is really doing (and what it is not)

It is vital to understand the software's logic:

• It IS: Re-sequencing the stitch order to group identical RGB/Thread Code values.
• It is NOT: Choosing the thread for you.

The colors on the screen are a digital map. The reality is determined by what spool you place on the needle bar. If the software says "Blue" but you load "Green," the machine will stitch Green.

Mastering this distinction is key to using mySewnet embroidery software effectively. It provides the roadmap; you drive the car.

Karina's Golden Rule: When to Finalize Your Design

The “editable until the end” workflow

Adopting a professional mindset means protecting your flexibility. Follow this sequence for every project:

1. Creative Phase: Layout, resizing, rotation, and combining different design files.
2. Color Correction: Identify mismatched shades (e.g., ensuring all reds are Code 2623).
3. The Lock: Once satisfied, Combine All.
4. The Optimization: Run Color Sort.
5. The Export: Save your machine-format file (PES, DST, VP3, etc.).

Prep (Hidden consumables & prep checks)

You have optimized the software; now you must optimize the physical environment. A "clean" file cannot save you from a "dirty" machine setup.

Hidden Consumables Strategy:

• Needles: A fresh needle is the cheapest insurance policy. For standard rayon thread, a 75/11 Embroidery Needle is the sweet spot.
• Adhesives: Temporary spray adhesive (like KK100) or a glue stick for fixing appliqué.
• Stabilizer: The foundation of your stitch. (See Decision Tree below).

The Hooping Bottleneck: When you reduce color stops, the machine finishes faster. This exposes your hooping speed as the new weakness.

• The Problem: Traditional screw-tension hoops are slow, cause hand fatigue (Carpal Tunnel risk), and leave "hoop burn" (shiny rings) on sensitive fabrics/velvet.
• The Solution (Home User): Upgrade to magnetic embroidery hoops. They snap on instantly, hold fabric firmly without crushing the fibers, and eliminate the "screw-tightening" struggle.
• The Solution (Business User): For multi-needle machines, industrial magnetic hoops for embroidery machines (like the MaggieFrame) are standard because they allow operators to hoop heavy items (Carhartt jackets, bags) that are impossible with plastic hoops.

Decision Tree — Stabilizer choice (fabric → backing)

Correct stabilization is not optional. It is physics.

1. Is your fabric stretchy (T-shirts, hoodies, knits)?
   • YES: You MUST use Cut-Away stabilizer. Knits stretch; stitches do not. Cut-Away provides a permanent skeleton.
   • NO: Go to Step 2.
2. Is the fabric a stable woven (Denim, Canvas, Twill)?
   • YES: Tear-Away is usually sufficient. It supports the needle penetration but can be removed for a clean back.
   • NO: Go to Step 3.
3. Is the fabric unstable/sheer or high-pile (Terry cloth towel, fleece)?
   • High Pile: Use Water Soluble Topping (Solvy) on top to prevent stitches from sinking, AND stabilizer on the bottom.
   • Sheer: Use No-Show Mesh (Poly-mesh) to prevent the stabilizer from showing through the front.

Warning: Magnetic Safety. Magnetic hoops use powerful neodymium magnets. They can pinch fingers severely (blood blister risk). Keep them at least 12 inches away from pacemakers, insulin pumps, and credit cards. Do not let two magnets snap together without a barrier between them.

Prep Checklist (Do this BEFORE export)

• Visual Audit: specific elements (bows vs. flourishes) match in color on screen.
• Safety Save: A copy of the editable file is saved before the Combine All step.
• Thread Inventory: You physically possess the thread colors needed. (Do not trust the screen; trust the drawer).
• Bobbin Check: Bobbin tension is correct (Drop test: holding the thread, the bobbin case should barely slide down when you wiggle your hand).
• Maintenance: Lint brush used under the needle plate.

Setup (turn your optimized file into a predictable stitch-out)

1. Transfer: Load the sorted file (VP3/PES/DST) to the machine.
2. Sequence Check: Verify the machine screen shows 5 color stops. If it shows 22, you exported the wrong version.
3. Staging: Line up your 5 thread spools in order on the rack. This visual cue prevents loading the wrong color during a rush.
4. Placement: Use a placement tool or grid. If you are doing volume production, a hoopmaster system ensures every logo lands in the exact same spot on every shirt, removing the "eyeballing" error.

Setup Checklist (Before pressing Start)

• Stop Count: Machine display confirms reduced stop count (e.g., 5).
• Needle Clearance: The hoop area is clear of walls/objects.
• First Thread: Color #1 is threaded through the needle eye.
• Presser Foot: Foot is down (if manual).
• Speed: Limit machine speed to 600-800 SPM (Stitches Per Minute) for the first run to observe quality, rather than maxing out at 1000+.

Operation (stitching with fewer stops—what to watch)

Now that the machine is running efficiently, your role changes from "Manual Thread Changer" to "Quality Control Analyst."

What to monitor during the first run:

• Jump Stitches: Since we combined layers, the machine may create longer jump stitches between the now-grouped elements. Ensure your machine trims them, or be prepared to trim them manually.
• Registration: Watch closely when the machine moves from a bell to a flourish. Does the outline match perfectly? A sorted file is faster, but if the fabric shifts in the hoop, the alignment will be off. This is where the superior grip of embroidery color sort logic meets the physical grip of a good hoop.

Operation Checklist (In-flight monitoring)

• Listen: A rhythmic "thump-thump" is good. A sharp "clack" or grinding noise requires an immediate Stop.
• Tension: Check the back of the first finished letter/object. You should see 1/3 bobbin thread (white) in the center. If you see top thread loops on the back, top tension is too loose.
• Movement: The hoop should move freely. If the fabric "flags" (bounces up and down with the needle), your hooping is too loose.
• Thread Path: Watch the thread cone. Ensure it is unspooling smoothly without snagging.

Troubleshooting

Symptom: Color Sort does nothing

Likely Cause: The design elements are still grouped separately or locked. The Fix: Select everything, choose Combine All, verify the FilmStrip shows one object, then hit Color Sort.

Symptom: Machine stops but doesn't cut thread (Drag lines)

Likely Cause: The software settings for "Trim Command" might be off, or the jump stitch is too short to trigger a trim. The Fix: In software, check "Split Design" or "Trim Commands" before export. Physically, keep your snips handy to trim these "travel lines" before the next color sews over them.

Symptom: The thread color on screen doesn't match my spool

Likely Cause: Thread charts are digital approximations. The Fix: Trust your eyes and the physical spool code. The screen is just a placeholder map.

Results

By implementing this workflow, you have transitioned from a reactive operator to a proactive engineer.

• Before: 22 stops, high risk of error, operator fatigue, slow production.
• After: 5 stops, logical flow, cleaner back-of-embroidery, and significant time savings.

You have mastered the ability to Identify via highlighting, Unify via color codes, and Optimize via the Combine/Sort sequence.

As your efficiency improves, remember: Time saved in software should be reinvested in better physical prep. Upgrading to magnetic hoops or a dedicated hooping station is the natural next step to keeping up with your newly optimized files.## FAQ

• Q: Why does mySewnet Embroidery Software “Color Sort” do nothing after clicking Home > Color Sort?
  A: In mySewnet Embroidery Software, Color Sort usually does nothing when the design is still separated into multiple groups, so run Home > Combine > Combine All first, then run Color Sort.
  • Do: Click Home > Combine > Combine All (not just selecting/highlighting objects).
  • Verify: Look at the FilmStrip and confirm it shows one single design object, not multiple items/folders.
  • Do: With that single object selected, click Home > Color Sort again.
  • Success check: The Design Panel collapses from many repeated colors into a much shorter list (for example, 22 stops dropping to about 5).
  • If it still fails: Save a WIP file, re-check that the FilmStrip truly shows one object, then retry Color Sort with the combined object selected.
• Q: How can mySewnet Embroidery Software identify which stitched element belongs to a specific color block in the Design Panel?
  A: Use the hover-highlight feature in mySewnet Embroidery Software to confirm the correct object before changing any thread color.
  • Do: Hover the cursor over a color block in the Design Panel.
  • Do: Watch the hoop/canvas preview for the matching element to highlight blue.
  • Do: Only change color after confirming the correct element (especially in designs with repeated bows/flourishes).
  • Success check: The exact intended element (not a different copy) glows blue when hovering that color block.
  • If it still fails: Zoom in and hover neighboring blocks one-by-one until the correct small segment highlights blue.
• Q: What is the fastest way to apply an exact thread shade in mySewnet Embroidery Software when the physical spool code is known (example: Robison-Anton 2623)?
  A: In mySewnet Embroidery Software, double-click the color block and use Find Thread to enter the exact thread code for speed and consistency.
  • Do: Double-click the target color block in the Design Panel.
  • Do: Type the known code into Find Thread (example: 2623) and confirm the highlighted match.
  • Do: Repeat the same code across all repeated elements that must match.
  • Success check: After entering the code, the software auto-scrolls and highlights the exact thread match, and the preview updates immediately.
  • If it still fails: Confirm the thread brand/range selection in the color dialog matches the chart you are using, because ranges affect what codes are available.
• Q: Why does the thread color on the mySewnet Embroidery Software screen not match the real embroidery thread spool color?
  A: This is common—mySewnet Embroidery Software thread charts are digital approximations, so rely on the physical spool code and your eyes for the final decision.
  • Do: Treat on-screen colors as a planning map, not a guaranteed real-world match.
  • Do: Load thread based on the spool code you intend to use (not only the on-screen name/color).
  • Do: Stage spools in stitch order before running to prevent accidental swaps under pressure.
  • Success check: The stitched sample matches the physical spool color you chose, even if the screen preview looks slightly different.
  • If it still fails: Stitch a small test on the same fabric and stabilizer combo, because material and lighting often change how color reads.
• Q: What needle size and pre-run maintenance checks are a safe starting point before stitching a mySewnet-sorted design with fewer stops?
  A: A safe starting point from the workflow is a fresh 75/11 embroidery needle plus basic lint cleaning and bobbin checks before pressing Start (always confirm with the machine manual).
  • Do: Install a fresh needle (example given: 75/11 Embroidery Needle for standard rayon).
  • Do: Brush lint from under the needle plate and around the stitch area before the first run.
  • Do: Check bobbin tension using the described drop test: the bobbin case should barely slide down when you wiggle your hand.
  • Success check: The first stitched object shows about 1/3 bobbin thread visible on the back center (not big top-thread loops).
  • If it still fails: Stop and correct tension/cleaning before continuing, because a “clean” file cannot compensate for a “dirty” setup.
• Q: How can embroidery operators confirm correct tension, hoop stability, and sound cues during the first run after mySewnet Combine All + Color Sort?
  A: Monitor the first run like a quality-control check: watch the back of the stitch, listen for abnormal noises, and confirm the fabric is not flagging.
  • Do: Inspect the back of the first finished letter/object for proper balance (about 1/3 bobbin thread in the center).
  • Do: Watch for fabric “flagging” (bouncing with the needle), which indicates hooping is too loose.
  • Do: Listen for a steady rhythmic “thump-thump”; stop immediately for sharp “clack” or grinding noises.
  • Success check: The hoop moves freely without fabric bounce, and the stitch formation looks balanced on the back.
  • If it still fails: Reduce speed to the suggested 600–800 SPM for the first run and re-check hooping tightness and thread path for snags.
• Q: What safety rules should be followed around the needle bar when running a multi-stop embroidery job faster after mySewnet Color Sort reduces color changes?
  A: Treat longer continuous run times as higher risk: keep tools ready, but keep hands away from moving needle-bar parts at all times.
  • Do: Keep small curved scissors, tweezers, and a lint brush next to the machine before starting.
  • Do: Never place hands near the needle bar while the machine is running, even to grab a thread tail.
  • Do: Stop the machine fully before trimming, clearing thread, or reaching into the sewing field.
  • Success check: All trimming/clearing actions happen only when the machine is fully stopped and the needle area is safe to access.
  • If it still fails: If the workflow feels rushed due to fewer stops, slow the machine down and build a pause-and-check habit between objects/colors.
• Q: When excessive thread-change stops still slow production after mySewnet Combine All + Color Sort, what is the staged upgrade path from technique to tools to capacity?
  A: Use a staged approach: optimize the file first, then remove hooping bottlenecks with better tools, and only then consider higher-capacity equipment if demand justifies it.
  • Do: Level 1 (Technique): Confirm the correct sequence is used—Combine All first, then Color Sort—and verify the reduced stop count on the machine screen.
  • Do: Level 2 (Tooling): If hooping becomes the bottleneck, consider faster, consistent hooping tools (and magnetic hoops where appropriate) to reduce hoop time and placement variation.
  • Do: Level 3 (Capacity): If the machine is consistently waiting on throughput needs (volume orders, tight deadlines), evaluate moving to a multi-needle production setup.
  • Success check: The machine displays the reduced stop count (example: 5 instead of 22) and the operator’s next limiting factor becomes hooping/handling, not thread changes.
  • If it still fails: Time the process (thread-change time + hooping time) to identify whether the true bottleneck is file prep, hooping consistency, or overall machine capacity.
