Martyn the Monkey ITH Ears & Tail on a Brother Machine: Clean Appliqué, Zero Puckers, and Stress-Free Turning

If you’ve ever pulled an ITH (In-The-Hoop) piece out of the machine and thought, “Why does this look slightly… wavy?”—you’re not alone. Soft toys are unforgiving physics lessons: tiny puckers in the hoop become visible deformities when stuffed, and a sloppily trimmed appliqué turns into unsightly "whiskers" peeking out from the satin stitch.

In this Martyn the Monkey installment, we’re manufacturing ears and a tail entirely in-the-hoop on a Brother embroidery machine. We will use soft mesh stabilizer, batting, and layered fabrics. However, I’m going to layer the "why" over the "how." I will break down the tactile feedback you need to feel for, the sounds you need to listen for, and the specific "sweet spot" settings that prevent the common ITH heartbreak: shifting layers, thread breaks mid-tackdown, and seams that won’t turn cleanly.

Martyn the Monkey ITH Parts: What You’re Actually Building (and Why It’s Fiddly)

To understand the engineering challenge, look at the stack you are asking your needle to penetrate. You are producing two different component types:

• Ears (The Appliqué Stack): Placement line → Batting (soft/thick) → Fabric A (Base) → Fabric B (Appliqué) → Satin Stitch (High Density) → Backing Fabric → Final Seal.
• Tail (The Tube Stack): Stabilizer → Fabric A → Fabric B → Long Perimeter Stitch.

The “fiddly” part isn’t the stitching—it’s controlling distortion. Soft mesh stabilizer is excellent for plush toys because it leaves the animal soft, but it is less rigid than tear-away. Once you add batting, you create a "squishy" surface. As the presser foot comes down, it pushes a wave of fabric ahead of it.

The Golden Rule: The goal is zero puckering. A pucker in the hoop means the ear will be twisted when turned right-side out.

The Hidden Prep That Makes ITH Ears Behave: Soft Mesh Stabilizer, Batting Cuts, and Pressing Discipline

Top-tier embroidery isn't about what happens when the machine is running; it's about what happens on the cutting mat. We don't "eyeball" dimensions in precision manufacturing.

Exact Cut Dimensions (Project Standard)

• Batting (Ears): 5" x 3" (Low-loft preferred relative to hoop clearance)
• Fabric A (Outer Ear): 5" x 3"
• Fabric B (Inner Ear): 4" x 2"
• Tail Fabrics: Two pieces, 6" x 8" (for 6x10 hoop context)
• Seam Allowance: 1/4" (Critical for smooth curves)
• Opening: 1/2" minimum for turning

Expert Insight - Grain Line: If you cut your cottons with inconsistent grain direction, one ear may stretch while the other stays rigid. Try to cut both ear pieces with the grain running vertically (parallel to the ear height).

The "Hidden Consumables" List

Most tutorials skip this, but have these ready before you start to avoid panic:

• New Needle: Size 75/11 Ballpoint (if using knit/plush) or Sharp (if using cotton). A dull needle pushes fabric rather than piercing it.
• Spray Adhesive (Optional): ODIF 505 or similar for temporary tacking.
• Curved Scissors: Essential for appliqué.
• "The Purple Thing" (or Stiletto): To save your fingers.

Prep Checklist (Complete BEFORE Machine Startup):

• Soft mesh stabilizer cut to hoop size + 2 inches extra on all sides.
• Fabrics pressed with steam (remove all moisture and wrinkles).
• Bobbin wound with 60wt or 90wt bobbin thread (white is standard for ITH).
• Machine cleaned: Remove needle plate and brush out lint from the bobbin case.
• Sharp embroidery scissors placed on the right side of the machine.


Locking Down Soft Mesh Stabilizer in a Standard Hoop Without Warping It

This is the single most common failure point. If your stabilizer is loose, your outline won't match your satin stitch.

The standard video method involves loosening the screw, inserting the inner hoop, and tightening. However, here is the Sensory Calibration for a perfect hoop:

1. The Sound: When you tap the hooped stabilizer with your fingernail, it should make a dull, rhythmic thump-thump sound, like a taut drum. If it sounds floppy or flat, it's too loose.
2. The Feel: Run your fingers over the mesh. It should feel smooth and resistant, but the grid of the mesh should not look distorted or "pulled open."

The Tension Paradox: Standard hoops rely on friction. If you pull the stabilizer after tightening the screw to remove wrinkles, you risk "hoop burn" (friction marks) or distorting the weave.

If you struggle with hand strength or find the stabilizer slipping during the project, this is where professional tools like hooping for embroidery machine efficiency become relevant. Many production shops switch to magnetic frames because they clamp straight down, eliminating the "pull and drag" of traditional friction hoops and preventing hoop burn entirely.

Warning: Never leave pins inside the stitch field. If the embroidery foot strikes a pin, it can shatter the needle, potentially sending metal shards toward your eyes or damaging the machine's timing hook.

The “No-Pucker” Batting Tackdown: Using the Purple Thing Without Fighting the Needle

Once your placement line is stitched, place your batting.

The Physics of Bulk: Batting introduces "lift." As the needle penetrates, it pushes the batting down. When the needle retracts, the batting springs back. This trampoline effect causes skipped stitches.

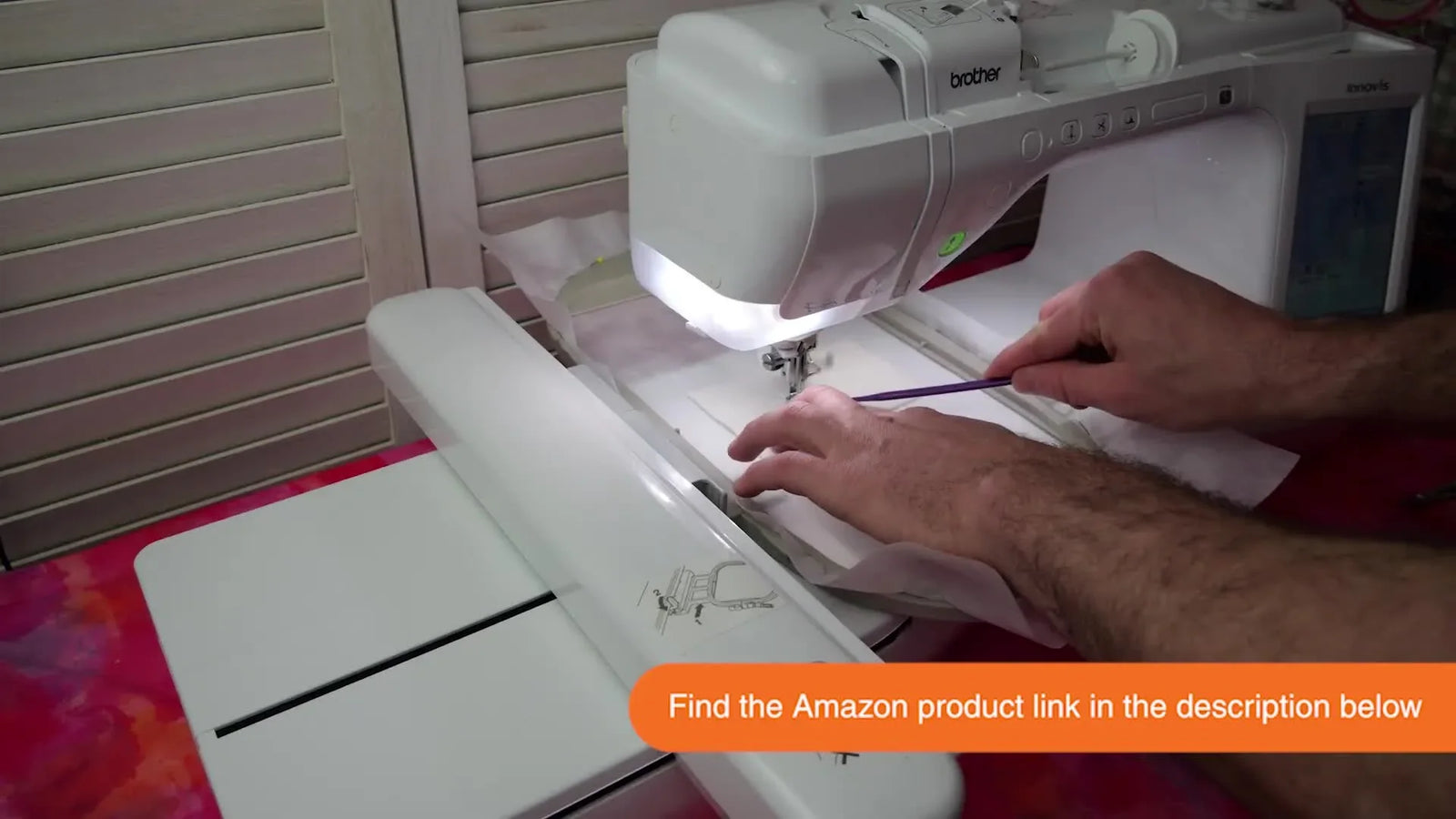

The Fix: Use a stiletto tool (like the "Purple Thing") to apply gentle downward pressure just in front of the foot. You aren't forcing it; you are stabilizing the "trampoline" so the needle enters a flat surface.

Speed Recommendation: For tacking down lofted batting, reduce your machine speed.

• Expert Sweet Spot: 400 - 600 SPM (Stitches Per Minute).
• Going 1000 SPM here invites the foot to catch the batting and drag it.


Appliqué Trimming That Doesn’t Nick Stabilizer: Curved Scissors, Angle Control, and Patience

The difference between a clean ear and a messy one is the trim. You need to trim the batting extremely close to the stitch line so it doesn't bulk up inside the satin stitch later.

The Tactile Technique:

1. Lift: Pull the excess batting up and away from the stabilizer with your non-dominant hand.
2. Angle: Hold your curved scissors so the blade creates a slight "V" groove against the stitches.
3. Slide: Don't chop. Slide the scissors. You should feel the metal blade riding against the thread wall.

If you cut the soft mesh stabilizer, the ear will blow out when you stuff it.

• Tip: If you accidentally nick the stabilizer, apply a small patch of water-soluble stabilizer (WSS) or a scrap of mesh over the hole immediately before the next step.


Outer Ear Fabric A on the Brother Hoop: Placement Accuracy and Corner Control

Now you place Fabric A (the outer ear skin) over the batting.

Why Corners Fail: Corners are high-stress areas. The machine changes X/Y direction rapidly, creating drag. If you just lay the fabric down, it will shift.

• Solution: Use a light mist of temporary spray adhesive on the back of Fabric A, OR use the "tape hinge" method (tape one side down to act as a hinge, ensuring perfect placement).

If you find yourself constantly re-hooping because placement shifted, consider looking into hooping stations. These systems hold the hoop and stabilizer in a fixed position while you align your fabrics, acting as a "third hand" for precision placement.

Thread Break Mid-Run on a Brother Embroidery Machine: Recover Without Losing Alignment

Thread breaks happen. It is usually a physics problem, not a ghost in the machine.

Instant Diagnostics (The Setup):

1. Check the Path: Is the thread caught on the spool cap? (A common issue on horizontal spool pins).
2. Check the Needle: Is it sticky from spray adhesive?
3. Check Tension: Pull the thread through the needle eye (manual pull). It should feel like pulling dental floss through tight teeth—firm resistance, but smooth. If it jerks, check the tension discs.

Recovery Protocol:

1. Do NOT unhoop.
2. Rethread.
3. Back up the design by 10-15 stitches (or use the "stitch +/-" key on your screen).
4. Overlap the new stitches with the old ones to lock them in.


Inner Ear Fabric B Appliqué: Trim Close Enough for Satin Stitch to Actually Cover

Now you are placing Fabric B (inner ear) and running the satin stitch.

The "Density" Danger: Satin stitches exert massive "pull compensation." They pull the fabric inward, trying to shrink your ear. If your stabilizer is loose, the ear will curl.

• Action: Ensure your hooping is still "drum tight."
• Trimming: You must trim Fabric B flush with the tackdown line. Any "whiskers" left here will poke through the satin stitch.

Upgrade Insight: This step requires high precision. Beginners often struggle because standard hoops slip slightly under the intense vibration of satin stitching. This is a primary reason professionals invest in magnetic embroidery hoops. The magnetic force maintains constant perimeter pressure, preventing the "micro-slippage" that causes registration errors in dense satin borders.

Speed Limit:

• Satin Stitch: 600 SPM Max.
• Slowing down reduces the vibration and allows the thread to lay flatter and more reflectively (shinier).


The Backing Fabric C “Wrong Side Up” Rule: The One Flip That Saves Your Ears

This is the "Mental Check" moment. You are about to seal the ear. You must place the Backing Fabric Wrong Side Up (Right Side facing the project).

Why? You are stitching inside out. When you turn it, the Right Sides will face out.

The "Sandwich" Check: Look at your hoop.

• Bottom: Stabilizer
• Middle: Completed Ear Front
• Top: Backing Fabric (Wrong Side Up)
• Result: You should see the "ugly" side of the fabric facing you.


Cutting, Seam Allowance, and Curve Clipping: Clean Turns Without Blown Seams

Once the final outline is stitched, remove the project from the hoop.

The Cut: Use a rotary cutter for straight edges, but switch to sharp shears for curves.

• Seam Allowance: Maintain a strict 1/4 inch (6mm). Too much bulk creates lumpy ears. Too little weakens the seam.

The Physics of Curves: Fabric on a convex curve (like the top of an ear) is compressed when turned inside out. If you don't relieve that pressure, it puckers.

• The Clip: Make small V-notches along the curve, being careful not to cut the stitch.
• Alternative: Use Pinking Shears. The zig-zag cut automatically reduces bulk and distributes tension.

Warning: Rotary cutters are razor blades without guards. Always close the safety latch immediately after every cut. Never leave an open cutter on your table.

Turning the Ears: Point Turner Technique for Crisp Edges (Without Tearing the Opening)

Turning is where you verify your stitch quality.

Sensory Feedback: When pushing the curves out with a point turner (or chopstick), feel for the seam. If you push too hard, you will hear a pop—that is a stitch breaking.

• Technique: "Roll" the seam between your thumb and index finger. This manipulation forces the seam allowance to hug the fold, creating a crisp edge.


Tail Fabric Prep for a 6x10 Hoop: Straight Cuts, Pressed Layers, and No-Slip Ruler Control

The tail is a long tube. Long tubes amplify errors. If your fabric is cut crooked, the tail will twist (corkscrew) when stuffed.

Tool Up: Use a quilting ruler and apply downward pressure.

• Pro Tip: Put "Grippy dots" or sandpaper dots on the back of your ruler to prevent it from sliding on slippery minky or cotton.

For those producing high volumes of uniform parts, consistent placement is key. Utilizing a system like a hoop master embroidery hooping station ensures that every tail is hooped at the exact same coordinate, effectively standardizing your production line and reducing material waste.

Tail Stitching in the Hoop: Fabric A Right Side Up, Fabric B Wrong Side Up, Then Single + Triple Stitch

Hooping logic repeats here, but with a larger area. Use a 6x10 hoop (or similar large hoop).

The Sequence:

1. Fabric A (Right Side Up).
2. Fabric B (Right Side Down).
3. Stitch Perimeter.

The Friction Factor: Because the tail is long, the fabric has more surface area to shift.

• Action: Pin the layers together outside the stitch zone, or use tape.
• Upgrade: If you own a Brother machine, specialized magnetic hoop for brother accessories are available that are rectangular and perfect for long items like tails, gripping the entire length evenly without the need for adhesive sprays.


Tail Cutting, 1/4" Seam Allowance, and Curve Discipline: Don’t Trim Your Own Stitching

Setup Checklist (Before Stitching the Tail):

• Bobbin thread level checked (running out mid-tail is a nightmare).
• Top thread path clear.
• Speed reduced to 600 SPM (long straight lines can pull if too fast).
• Fabric colors confirmed (ensure A and B are paired correctly).

The Trimming Trap: It is tempting to trim the tail very close to make it easy to turn. Don't. A tail undergoes high stress when stuffed. If the seam allowance is less than 1/4 inch, the stuffing will burst the seams.

Turning the Long Tail Without Rage: Rolling, “Birthing,” and Using a Point Tool Safely

Turning a thin tube is frustrating.

The "straw" Technique: Insert a smooth dowel or plastic straw into the closed end of the tail (still inside out). Use a chopstick to push the fabric back over the straw. This prevents the fabric from bunching up on itself.

Warning - Magnet Safety: If you upgrade to magnetic hoops, be aware they use high-power Neodymium magnets. They can pinch fingers severely and must be kept away from pacemakers, credit cards, and computerized machine screens.

If you find your wrists aching after turning a dozen tails, this is a sign of repetitive strain. In professional shops, reducing strain is money. Switching to magnetic hoops for embroidery machines reduces the physical force needed to hoop, saving your hands for the dexterity-heavy work of turning and stuffing.

Final Pressing: The Difference Between “Handmade” and “Shop-Ready”

Never skip the final press. Steam relaxes the fibers that were tensioned during stitching.

• The Look: A pressed tail looks professional. An unpressed tail looks like a sausage.
• Storage: Store your finished ITH parts flat until assembly.

Operation Checklist (Quality Control):

• Inspect Satin Stitch: Are there any gaps or visible stabilizer?
• Seam Test: Pull gently on the curved seams. Do you see threads? (If yes, reinforce with a sewing machine).
• Shape Check: Lay the two ears on top of each other. Are they identical?
• Residue: Remove any visible tear-away or water-soluble stabilizer bits.

A Stabilizer-and-Fabric Decision Tree for ITH

Don't guess. Use logic.

1. Is the fabric stretchy? (Minky, Fleece, Knit)

• YES: Use Poly Mesh (Cutaway) + Water Soluble Topper (to keep stitches from sinking).
• NO: Go to step 2.

2. Is the fabric prone to fraying? (Loose Cotton, Linen)

• YES: Use Fusible Interfacing on the back of the fabric BEFORE hooping + Tearaway/Cutaway.
• NO: Go to step 3.

3. Is the project ITH (3D Object)?

• YES: Use Soft Mesh (Cutaway). It leaves the toy soft.
• NO: Standard Tearaway is acceptable for flat items.

The Upgrade Path: When Should You Invest?

As your skills grow, your tools should evolve. Here is how to determine if you need to upgrade, based on your pain points.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

FAQ

• Q: What prep checklist should be completed on a Brother embroidery machine before stitching ITH ears and a tail with soft mesh stabilizer?
  A: Do the prep work before pressing Start—most ITH failures come from skipped prep, not bad stitching.
  • Change the needle to a new 75/11 Ballpoint (knit/plush) or Sharp (cotton).
  • Cut soft mesh stabilizer to hoop size + 2" extra on all sides, and steam-press all fabrics dry and flat.
  • Wind the bobbin with 60wt or 90wt bobbin thread, and clean lint from the bobbin area (remove needle plate and brush out).
  • Stage tools (curved scissors, stiletto/“Purple Thing”) and optional temporary spray adhesive.
  • Success check: Fabrics feel fully smooth (no ripples), bobbin area is lint-free, and the needle is visibly new/sharp.
  • If it still fails… slow down for bulky steps and re-check hooping tightness (drum-sound test).
• Q: How do you hoop soft mesh stabilizer on a Brother embroidery machine standard hoop without warping the mesh or causing hoop burn?
  A: Hoop the soft mesh stabilizer drum-tight without dragging or over-pulling after tightening.
  • Tighten the hoop normally, then avoid pulling the stabilizer to “fix” wrinkles after the screw is tight.
  • Tap the hooped stabilizer with a fingernail to judge tension before stitching.
  • Feel the mesh surface and visually check that the grid is not distorted or “pulled open.”
  • Success check: The stabilizer makes a dull, rhythmic “thump-thump” like a taut drum and the mesh grid looks undistorted.
  • If it still fails… stop and re-hoop; slipping stabilizer will cause outline/satin mis-registration.
• Q: How can you prevent puckering when tacking down lofted batting for ITH ears on a Brother embroidery machine?
  A: Reduce speed and control the “trampoline” effect by stabilizing the batting right in front of the presser foot.
  • Place batting on the placement line, then hold it flat with a stiletto/“Purple Thing” just ahead of the foot (not under the needle).
  • Reduce machine speed to 400–600 SPM for batting tackdown.
  • Keep hands clear of the needle path and let the tool do the holding, not your fingertips.
  • Success check: The tackdown line forms smoothly with no ripples and no skipped stitches across the batting.
  • If it still fails… check for excessive bulk/clearance issues and confirm the hooping is still drum-tight.
• Q: How do you trim ITH appliqué (batting and fabric) without cutting soft mesh stabilizer and causing an ear seam to blow out after turning?
  A: Use curved scissors and a controlled angle so the blades ride the stitch wall instead of diving into the stabilizer.
  • Lift the excess batting/fabric up and away from the stabilizer with the non-dominant hand.
  • Angle curved scissors to create a slight “V” groove along the stitches and slide—do not chop.
  • If a stabilizer nick happens, patch the hole immediately with a small piece of water-soluble stabilizer or mesh before continuing.
  • Success check: The trim line is flush to the tackdown/satin boundary with no “whiskers,” and the stabilizer underneath is intact.
  • If it still fails… slow down and trim in smaller passes rather than trying to remove everything in one cut.
• Q: What is the safest way to recover from a thread break mid-run on a Brother embroidery machine during ITH stitching without losing alignment?
  A: Keep the project hooped, rethread, then back up 10–15 stitches to overlap and lock the repair.
  • Do not unhoop the fabric—alignment depends on the hoop staying put.
  • Check common causes: thread snag on spool cap, needle gummed by spray adhesive, or tension disc issues (manual pull should feel firm and smooth).
  • Rethread completely, then use stitch-back (or stitch +/-) to return 10–15 stitches and restart.
  • Success check: The restart overlaps the previous stitches cleanly with no gap or “jump” in the line.
  • If it still fails… change to a new needle and re-check the entire thread path for snags.
• Q: How do you fix “birds nest” thread tangles under the hoop on a Brother embroidery machine during ITH work?
  A: Rethread with the presser foot UP—most birds nests come from top thread not seated in tension.
  • Stop immediately and cut away the tangle carefully to avoid bending the needle.
  • Lift the presser foot, then rethread the top thread from spool to needle (foot up opens the tension discs).
  • Check that the bobbin area is clean and the bobbin thread is feeding normally.
  • Success check: The next stitches form flat on top, and the underside shows normal bobbin lines—not a rope-like wad.
  • If it still fails… remove the needle plate and clean lint again, then rethread once more slowly and deliberately.
• Q: What safety rules prevent needle break injuries and machine damage on a Brother embroidery machine when making ITH ears and tails?
  A: Keep all pins out of the stitch field and treat rotary cutters like unguarded blades—most “sudden accidents” are avoidable.
  • Never leave pins where the embroidery foot can strike them; pin only outside the stitch zone or use tape/spray alternatives.
  • Stop the machine before reaching near the needle area to adjust layers; use a stiletto tool instead of fingers close to the needle.
  • Close the rotary cutter safety latch immediately after every cut and never leave an open cutter on the table.
  • Success check: The machine runs without needle strikes, and no pins are ever inside the embroidery path.
  • If it still fails… re-evaluate the securing method (tape hinge or light adhesive) so pins are not needed near the stitch area.
• Q: When do ITH registration errors and hoop marks justify upgrading from a Brother standard hoop to magnetic hoops or a multi-needle SEWTECH embroidery machine?
  A: Upgrade based on the pain point: fix technique first, then choose magnetic hoops for holding power/hoop burn, and choose a multi-needle machine for throughput.
  • Level 1 (technique): Re-hoop using the drum-sound check, slow satin stitch to 600 SPM max, and trim appliqué flush to prevent “whiskers.”
  • Level 2 (tool): Move to magnetic hoops when dense satin causes micro-slippage or when friction hoops leave hoop burn on velvet/minky.
  • Level 3 (production): Move to a multi-needle SEWTECH machine when thread-change time becomes the main bottleneck.
  • Success check: After the change, outlines line up with satin borders consistently and hoop marks stop appearing on delicate pile fabrics.
  • If it still fails… standardize placement with a hooping station to reduce human alignment drift.
