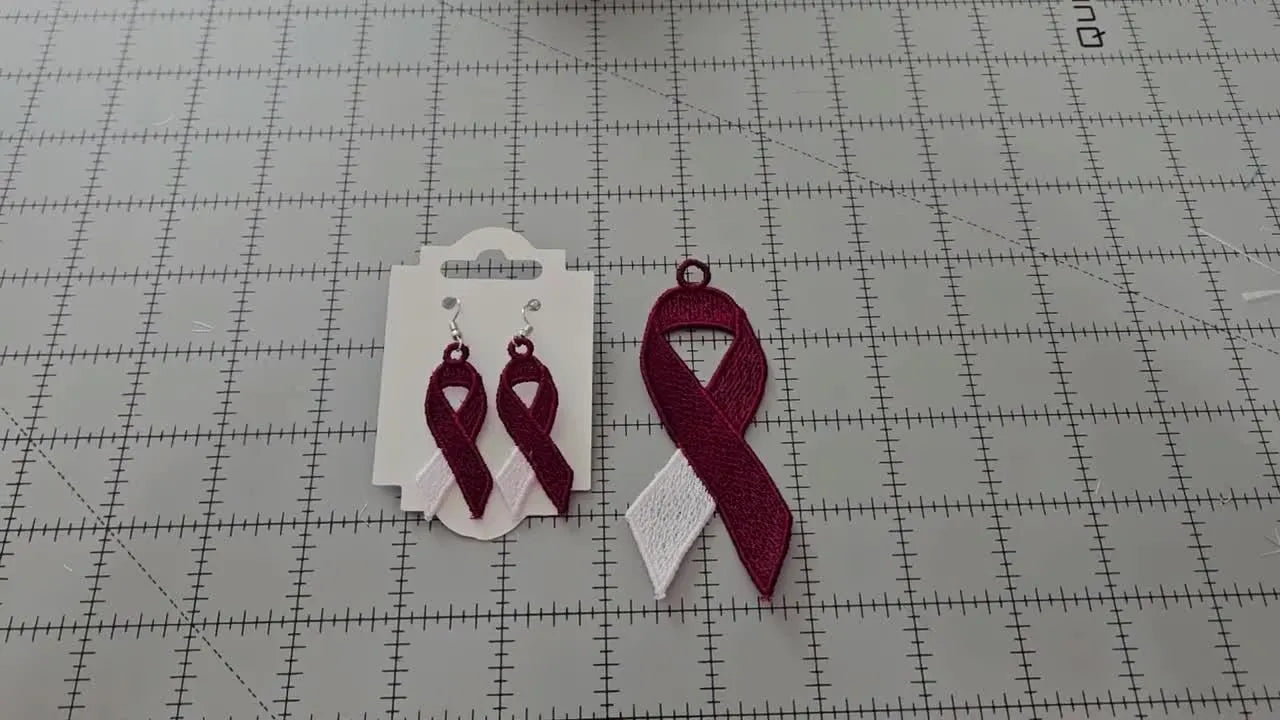

Maroon & White Free-Standing Lace Awareness Ribbons on the Baby Lock Alliance: Clean Stitching, Zero Stabilizer Waste, and a Finish You’ll Be Proud to Gift

Mastering Free-Standing Lace: The Ultimate Guide to the Head & Neck Cancer Ribbon on the Baby Lock Alliance

Free-standing lace (FSL) induces a specific kind of anxiety in machine embroiderers. Unlike standard embroidery, where you have a sturdy piece of denim or cotton to act as a safety net, FSL relies entirely on physics, tension, and a piece of dissolving stabilizer. If your geometry is off, or if you "cheap out" on support, the whole piece collapses into a magnificent, crunchy mess.

But when done correctly, FSL is magic. It creates jewelry, ornaments, and patches that feel like high-end retail products.

This guide is your blueprint for creating a Head & Neck Cancer awareness ribbon (Maroon/White). We are using the Baby Lock Alliance for this demonstration, but the physics apply to any machine. We will move beyond basic instructions into "experience-based calibration"—the sounds, feelings, and numbers you need to hit for a perfect result.

1. Digital Prep: The "Sanity Check" Before You Stitch

The design is deceptive. It looks simple—a maroon body with a single white tail. However, FSL files are digitized with heavy underlay to create a structural grid.

Before you touch a hoop, look at your screen. On the baby lock alliance embroidery machine, the preview shows you the stitch order. You are looking for Color Breaks.

• The Trap: Users often auto-pilot the color change, swapping the Maroon and White threads at the wrong time.
• The Fix: Confirm that the first sewing block is the White tail, and the second block encompasses the entire Maroon body.


The Hidden Consumables List (Don't Start Without These)

Most tutorials skip the small stuff. Gather these now to avoid mid-project panic:

• Needles: Organ 75/11 Sharp (Ballpoints can push different layers of stabilizer apart; Sharps confirm the lock).
• Curved Snips: Essential for trimming threads flush against the lace.
• Tweezers: For grabbing tails inside the hoop.
• Matching Bobbin Thread: Maroon (Critical for FSL).

2. The Foundation: Why "Two Layers" is Non-Negotiable

Regina, the original tech on this project, reiterates a rule I have lived by for 20 years: Use two layers of Water-Soluble Stabilizer (WSS).

Here is the "Why": WSS is not just holding the design; it is the fabric. As the needle penetrates, a single layer of WSS gets perforated (like a stamp sheet) and begins to stretch. If it stretches even 1mm, your outline won't match your fill, and the lace falls apart. Two layers create a "plywood effect"—cross-grain strength that resists shear force.

The "Frankenstein Join" (Saving Money Safely)

Quality WSS (like Vilene or Badgemaster) is expensive. You will accumulate scraps. Can you use them? Yes, but only with this specific engineering method.

How to join scraps without ruining the lace:

1. The Overlap: Do not butt the edges. Overlap them by 5-10mm.
2. The Weld: On a standard sewing machine, select the Widest Zigzag (5-7mm) and the Longest Stitch Length (4-5mm).
3. The Action: Stitch down the center of the overlap.
4. The Sensory Check: Rub your finger over the join. It should feel flat and unified, not bulky. If it feels like a ridge, it will deflect your embroidery needle.






Warning: Mechanical Hazard. Keep fingers, snips, and tweezers clearly outside the red light zone (needle path). If you need to trim a thread tail mid-design, press STOP and wait for the "Start/Stop" button to turn red. Do not reach into a moving machine—FSL designs jump quickly between sections.

Prep Checklist: The "Go/No-Go" Flight Check

• Foundation: Two layers of fabric-type WSS (not thin plastic film) are hooped drum-tight.
• Needle: A fresh 75/11 Sharp needle is installed (burrs on old needles shred WSS).
• Bobbin: Maroon bobbin thread is wound and loaded.
• Tension Check: Pull the top thread. It should feel like flossing your teeth—firm resistance, not loose.
• Clearance: Verify the hoop arms won't hit the wall or other machines.

3. The Bobbin Strategy: The "360-Degree" Product

In standard embroidery, the back is the "ugly side." In FSL, the back is the B-side of the record—it needs to look just as good.

Regina trims the tails from the alignment stitches and swaps to a bobbin that matches the Maroon top thread.

The Rule: If you use white bobbin thread, you will see white "pokies" on the edges of your maroon ribbon. It makes the final product look like a mistake. Matching the bobbin ensures that even if your tension is slightly imperfect, the error is invisible.

4. The Stitch Out: Operations & Sensory Monitoring

The stitch sequence is:

1. White Section (The Tail).
2. Maroon Section (The Loop and Second Tail).

Speed Control: The Rookie Mistake

The Baby Lock Alliance can run at 1000 stitches per minute (SPM). Do not do this for FSL.

• The Sweet Spot: Set your machine to 600 - 700 SPM.
• The Physics: FSL relies on thread building upon thread. High speeds cause "flagging" (stabilizer bouncing), which ruins the precision of the grid. Slow down to ensure the structural underlay lands exactly where digitizer intended.


Handling the "Jump"

Between the three parts of the ribbon (Loop, Tail 1, Tail 2), the machine will jump.

• Visual Cue: Watch for the long travel thread.
• Action: As soon as the machine ties off and moves, hit STOP. Trim that long jump thread closely before the machine stitches the next section. If you wait, the new stitches will bury that jump thread, trapping it forever.


5. Decision Tree: Stabilizer Strategy

Stop wasting money. Use this logic flow to decide how to prep your hoop.

Q1: Is this for a Customer/Sale, or a Personal Test?

• Customer/Sale: Use a fresh, single sheet of heavy WSS (folded to make 2 layers). Do not use joined scraps. The risk of a visible seam isn't worth the refund.
• Personal/Charity: Go to Q2.

Q2: Do you have scraps larger than 5x5 inches?

• Yes: Use the "Frankenstein Join" method (Zigzag weld).
• No: Do not tape small bits together. The adhesive gums up the needle. bin them.

Q3: Is the Stabilizer "Film" (shiny, looks like plastic wrap) or "Fabric" (looks like dryer sheet)?

• Fabric: 2 Layers. Perfect for FSL.
• Film: 3-4 Layers. Film tears easily. Avoid for heavy FSL if possible.


The "Sniper" Technique

Regina spots a loose thread mid-run. This is the difference between a pro and an amateur. The Fix: If a thread creates a "loop" on top of the lace, stop the machine. Use your curved snips to clip it flush. The Risk: If you leave it, the satin column will stitch over it context, creating a lumpy, contrasting blemish that acts like a visual scar.

6. Finishing: The Hydro-Forming Phase

Once the embroidery is done, you are holding a stiff, plasticky object. The magic happens in the water.

The Washing Protocol

1. Trim: Cut away excess stabilizer, leaving about 1/4 inch around the edge.
2. Soak: Submerge in warm water (not boiling).
3. The Tactile Test: Rub the lace gently between your thumb and finger. It should feel slippery (slime is good—that’s dissolved stabilizer).
4. The Halt: Do not rinse it until it is "squeaky clean." You want to leave some dissolved stabilizer in the fibers. This starch acts as a permanent stiffener when dry.
5. Dry: Lay flat on a towel. Shape the ribbon loops with your fingers while wet.


7. Troubleshooting: A Guide to "What Went Wrong?"

8. The "Productivity" Pivot: Scaling from 1 to 100

If you are making one ribbon, a standard plastic hoop is fine. But if you are making 50 for a fundraising event, you will hit a wall: Hooping Fatigue.

Hooping WSS is harder than fabric because it is slippery. To get "drum tight" tension, you often have to over-tighten screws, which hurts your wrists and damages the hoop screws over time.

This is the point where you evaluate your toolkit.

Scenario A: "I hate hooping stabilizer; it always slips." This is a physics problem. Friction hooping (inner ring inside outer ring) struggles with slick surfaces like WSS.

• The Upgrade: magnetic embroidery hoops. These use vertical magnetic force rather than friction. They clamp the WSS flat instantly without the "tug and screw" war. This eliminates the "shifting" that causes FSL to unravel.

Scenario B: "I need to make 100 ribbons this weekend." Efficiency is your new metric. If you spend 2 minutes hooping and 5 minutes stitching, 30% of your production time is wasted.

• The Upgrade: A magnetic hooping station. This tooling ensures every piece of stabilizer is centered exactly the same way every time. While big shops might look for a hoop master embroidery hooping station, smaller studios often find that dedicated magnetic frames for their specific machine offer better ROI.

Scenario C: "I have a Baby Lock/Brother machine."

• The Upgrade: Look specifically for magnetic hoops for babylock embroidery machines. Compatibility matters—ensure the hoop arms fit your carriage width ("S" vs "L" mount).

Warning: Magnetic Safety Field. These are not refrigerator magnets. They are industrial neodymium magnets. Users with pacemakers should maintain a safe distance (consult your doctor). Pinch Hazard: When snapping the hoop shut, keep fingers clear. The magnets snap with enough force to bruise blood blisters instantly.

Operation Checklist (Post-Run Quality Control)

• Structural Integrity: Pull the lace gently. Does it hold shape?
• Visual Cleanliness: No "hairy" thread tails trapped under the satin stitch.
• Bobbin Match: The back is maroon (except for the white tail section).
• Washing: Stabilizer residue is rinsed enough to not be sticky, but left enough to be stiff.

Final Thought: The "Old Hand" Perspective

FSL is less about "art" and more about "engineering." If you respect the structure—2 layers of stabilizer, matching bobbins, sensible speeds—the machine will do the work for you.

If you find yourself fighting the machine, stop. Check your prep. Usually, the problem isn't the file; it's that the stabilizer slipped 1mm, or the needle was dull. Reset the physics, and the art will follow. Happy stitching.

FAQ

• Q: On a Baby Lock Alliance embroidery machine, how can the stitch-out order be confirmed to avoid swapping the White tail and Maroon body in a free-standing lace ribbon design?
  A: Use the on-screen preview to verify the first sewing block is the White tail and the second block is the full Maroon body before threading any needles.
  • Open the design preview and locate the color breaks/blocks in sequence.
  • Confirm “Block 1 = White tail” and “Block 2 = Maroon loop + tail sections” before pressing start.
  • Pause and re-check the preview whenever the machine prompts a color change.
  • Success check: The ribbon starts stitching only the White tail area first, not the Maroon outline/grid.
  • If it still fails: Stop and restart from the beginning after re-threading to match the verified block order (do not guess mid-run).
• Q: For free-standing lace on a Baby Lock Alliance embroidery machine, why are two layers of water-soluble stabilizer non-negotiable, and what is the correct hooping standard?
  A: Hoop two layers of fabric-type water-soluble stabilizer drum-tight, because the stabilizer is the “fabric” and a single layer can stretch and collapse the lace.
  • Stack two layers (or fold one heavy sheet to make two layers) before hooping.
  • Hoop as tight as possible without slack so the stabilizer cannot shift during stitching.
  • Use a fresh Organ 75/11 Sharp needle to reduce shredding and perforation damage.
  • Success check: The hooped stabilizer sounds/feels like a drum skin and does not ripple when lightly tapped.
  • If it still fails: Slow the machine to 600–700 SPM and re-hoop; stabilizer shift of even a small amount can open gaps and weaken the structure.
• Q: When making a maroon-and-white free-standing lace ribbon on a Baby Lock Alliance, how can matching bobbin thread prevent “white pokies” and what tension symptom should be watched?
  A: Wind and use a Maroon matching bobbin for the Maroon section so tension imperfections do not show as white dots on the edges.
  • Swap to a bobbin that matches the Maroon top thread before the Maroon body stitches.
  • Watch for white bobbin thread pulling to the top, which indicates top tension may be too tight or bobbin tension too loose.
  • Clean lint from the bobbin area if tension suddenly changes (lint can affect tension).
  • Success check: The Maroon edges look solid with no white specks showing on the front.
  • If it still fails: Loosen the top tension slightly and re-test; if inconsistent, clean the bobbin case and try again.
• Q: On a Baby Lock Alliance embroidery machine, what stitch speed should be used for free-standing lace to reduce stabilizer flagging and distortion?
  A: Run free-standing lace at 600–700 stitches per minute (SPM) instead of high-speed settings to keep the stabilizer from bouncing and the grid precise.
  • Set the machine speed to 600–700 SPM before starting the lace.
  • Watch for stabilizer “flagging” (bouncing) during dense underlay—slow down if movement is visible.
  • Keep monitoring the stitch formation during the first minutes; FSL depends on accurate thread-on-thread stacking.
  • Success check: The stabilizer stays flat with minimal bounce and stitch columns land cleanly without wobbly edges.
  • If it still fails: Re-hoop tighter with two layers of WSS; speed control cannot compensate for a slipping foundation.
• Q: During a Baby Lock Alliance free-standing lace ribbon stitch-out, how should long jump threads between ribbon parts be handled to avoid permanent trapped threads?
  A: Stop immediately after a tie-off and trim the long travel (jump) thread closely before the next section starts stitching.
  • Watch for the long travel thread when the machine moves between loop and tails.
  • Press STOP as soon as the machine ties off and begins the move.
  • Trim the jump thread close with curved snips before restarting.
  • Success check: No long threads get stitched over, and each ribbon segment starts clean without embedded “whiskers.”
  • If it still fails: Stop sooner—waiting even a few stitches can bury the jump thread permanently under satin columns.
• Q: What needle-path safety steps should be followed on a Baby Lock Alliance embroidery machine when trimming threads during free-standing lace?
  A: Keep hands and tools out of the needle path, and only trim after pressing STOP and waiting until the Start/Stop button indicates it is safe to reach in.
  • Press STOP before reaching inside the hoop area for any trimming or thread removal.
  • Wait until the machine is fully stopped and the Start/Stop button status indicates a safe state to approach.
  • Use tweezers/curved snips deliberately—never “chase” a thread tail while the needle is moving.
  • Success check: No trimming is attempted while the needle bar is moving, and hands never enter the active stitch zone.
  • If it still fails: Treat all mid-run trimming as a full stop task—do not try to save seconds during fast section changes.
• Q: For free-standing lace production runs (for example 50–100 ribbons), when should a magnetic embroidery hoop be considered instead of a standard hoop, and what is the practical decision path?
  A: Consider a magnetic embroidery hoop when water-soluble stabilizer repeatedly slips or hooping becomes the bottleneck; start with technique fixes, then upgrade tooling, then scale machines if volume demands it.
  • Level 1 (Technique): Re-hoop two layers of WSS drum-tight and slow to 600–700 SPM to reduce shifting.
  • Level 2 (Tooling): Switch to a magnetic embroidery hoop to clamp slick WSS flat without screw-tightening fatigue and stabilizer creep.
  • Level 3 (Capacity): If weekend-scale output is the goal, evaluate higher-throughput equipment after hooping time is no longer the limiting factor.
  • Success check: Stabilizer no longer shifts mid-sew, and hooping time drops without wrist strain or over-tightened screws.
  • If it still fails: Verify the magnetic hoop is the correct fit for the machine mount/arm clearance, and re-check for collisions before running at production pace.
