Manual vs Auto Digitizing the Burger King Logo in Wilcom: The Quality Gap That Decides Whether Clients Come Back

The Truth About Manual vs. Auto-Digitizing: A Field Guide to Professional Embroidery Results

If you have ever stood in front of your machine, staring at a client’s logo, and thought, “I can just auto-digitize this in 30 seconds… surely it will be fine,” you are standing on the precipice of a very common mistake.

The allure is understandable. In Wilcom EmbroideryStudio, you have two paths:

• Method 1 (The Engineer’s Way): Manually tracing shapes with Input A, controlling the "flow" of the thread like water, and using Complex Fill for large areas.
• Method 2 (The Gambler’s Way): Selecting the bitmap and hitting Auto-Digitize / Instant Embroidery to convert it instantly.

What this guide—based on a deep dive into Wilcom workflows—will show you is that digitizing is not drawing. It is structural engineering using soft materials. A circle on a screen is just pixels; a circle on a polo shirt is a physical battle between thread tension, fabric elasticity, and needle penetration.

Don’t Panic: “Manual vs Auto” Isn’t About Speed—It’s About Survival

Auto-digitizing feels seductive because it removes the "fear of the blank canvas." But speed is a vanity metric. The only metric that matters is: Does the machine run smoothly without breaking thread, and does the client pay the invoice?

In practical application, the manually digitized file looks intentional. The stitch angles hug the curves of the design. The auto-digitized version often looks "pixelated" in thread form—jagged edges, illogical stitch directions, and jump stitches that require tedious trimming.

The Professional Mindset Shift:

• Manual Digitizing is for Production: It allows you to control the "Push and Pull" physics.
• Auto Digitizing is for Prototyping: Quick mockups to see size and color, or for "good enough" internal projects.

If you are running a business, relying on Auto-Digitize is risky. It creates "Fragile Files"—designs that might sew okay on denim but will shred a performance knit.

The “Hidden” Prep Phase: Engineering Starts Before the First Node

The video demonstration begins by importing the Burger King bitmap and—crucially—scaling it before digitizing. This sounds trivial, but it is the source of 50% of amateur errors.

The Physics of Scaling: If you digitize a logo at 10cm wide and then shrink it to 5cm on your machine, your density doubles. You effectively create a bulletproof vest that will snap needles. Always import, scale to the final dimensions (e.g., 3.5 inches for a left chest), and then build your stitches.

What to do:

1. Insert the bitmap.
2. Scale it to the exact millimeter size you intend to sew.
3. Lock the image so you don't accidentally move it.


Prep Checklist: The Pilot’s Pre-Flight

Before you place a single node, verify these points to avoid tearing your hair out later.

• Scale Verification: Is the artwork scaled to the exact final output size? (Measure it: use the 'M' key in Wilcom).
• Fabric Strategy: Know your substrate. Is it Piqué Knit? (Needs underlay). Is it Twill? (Can handle more density).
• Object Planning: Identify which parts are "Columns" (Borders/Text) and which are "Fills" (Large backgrounds).
• Small Detail Audit: Identify text smaller than 5mm. These will likely need to be simplified or replaced with running stitches.
• The "3-Click" Test: If you can't trace the main shape in your head, you aren't ready to click the mouse. Visualize the path first.

Warning (Legal): Digitizing copyrighted logos (like the one in the example) for commercial sale creates significant legal risk. Always ensure you have written permission from the rights holder before digitizing trademarked material.

Manual Digitizing with Input A: The "Left-Right" Rhythm

In the demonstration, the creator uses Input A to trace the blue crescent. This tool is the bread and butter of Wilcom. It allows you to define a column of satin stitches with precise width control.

The Sensory Technique: Digitizing requires a rhythm. You are telling the software where the curve is hard and where it is soft.

• Left Click: Creates a Corner Point (Sharp, geometric). Think: "Stop."
• Right Click: Creates a Curve Point (Flowing, organic). Think: "Go."

The "Sausage" Problem: Beginners often create "lumpy" curves by using too many nodes.

• Bad Practice: Click-click-click-click every 2mm. Result: Faceted, ugly curves.
• Good Practice: Use the minimum number of nodes possible. Let the software do the math. A gentle curve only needs three points: Start, Middle (Curve), End.

Checkpoints:

• Watch the "Wireframe" line. Is it smooth?
• Hit 'T' to view TrueView / 3D mode. Do the satin stitches flow like water around the bend, or do they look like chopped wood?


Lettering: Why "Auto-Trace" is the Enemy of Legibility

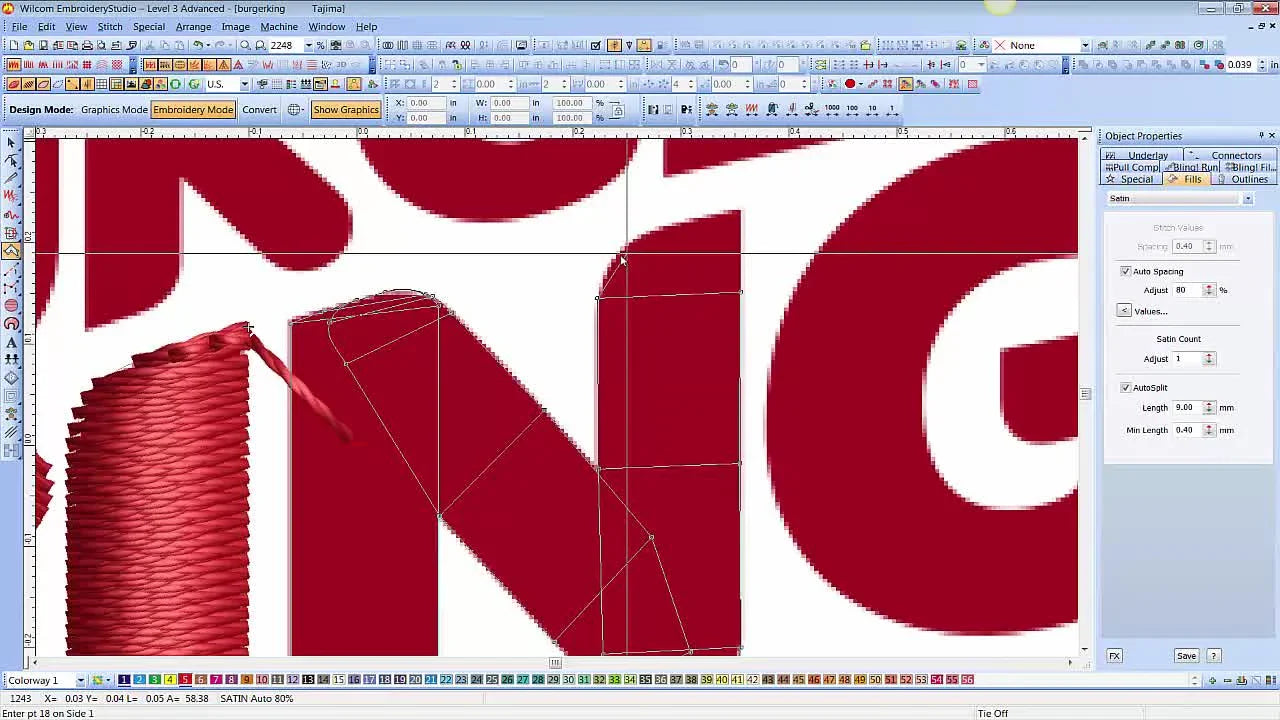

The video manually traces the "BURGER KING" text. Why not just use a font? Because logos often use custom typography that doesn't match standard fonts. And why not auto-digitize?

The Physics of Thread vs. Pixels: Pixels are square and sit next to each other. Thread is round and pulls tight.

• Inside Corners: Thread creates bulk. Auto-digitizers often stuff these corners, creating a knot. Manual digitizing opens them up.
• Thin Columns: A 1mm wide column on screen will sew out at 0.8mm because of tension. Auto-digitize sees 1mm and gives you 1mm. Manual digitizers know to "cheat" it wider.


The Sensory Check: When you sew out auto-digitized text, run your finger over it. Does it feel like a series of hard bumps (knots)? Professional text should feel satiny and smooth, with distinct separation between letters.

Pull Compensation: The Secret Sauce of Professional Digitizers

The creator mentions, “You can decrease pull compensation if needed.” This is the single most important setting for clarity.

The Science: As the needle penetrates and the take-up lever pulls the thread tight, it squeezes the fabric.

• Pull: The column gets narrower (in the direction of the stitch).
• Push: The column gets longer (perpendicular to the stitch).

Pull Compensation essentially "over-digitizes" the width to compensate for this shrinkage.

• Standard Rule: 0.17mm - 0.20mm is a safe "Sweet Spot" for standard poly threads on stable fabric.
• The Exception: If you are sewing on soft knits or fleece, you might need 0.35mm or more.

If your text looks "swollen" or the holes in the letter 'A' or 'e' are closing up, your Pull Comp is too high. If your outlines are not touching the fill, your Pull Comp is too low.

Complex Fill: Handling the "Big Yellow Bun"

For large areas, satin stitches are dangerous. A satin stitch longer than 7mm-9mm (depending on the machine) is prone to snagging and loosening. We switch to Complex Fill (Tatami).

What the creator does:

1. Selects Complex Fill.
2. Defines the shape.
3. Defines the Stitch Angle.

Pro Tip - Stitch Angles: Never set a fill angle at 90 degrees (vertical) or 0 degrees (horizontal) if you can help it.

• Vertical stitches sink into the "valleys" of corduroy or pique fabric.
• Horizontal stitches fight the feed dogs and gravity.
• The Fix: Use 45 degrees or 60 degrees for the smoothest coverage.


Warning (Physical Safety): When watching a test sew-out, keep your hands clear of the needle bar area. Industrial machines move at 800-1000 stitches per minute (SPM). A trim cycle can activate instantly. Do not attempt to snip a loose thread while the machine is running.

Auto-Digitize: The "Rental Car" of Embroidery

The video demonstrates the Auto-Digitize feature. It works. The logo appears. It is fast.

But here is the reality check: Auto-digitize lacks intent. It sees color, not structure.

1. Segment Order: It might sew the top of the bun, then the text, then the bottom of the bun, causing unnecessary travel runs.
2. Lock Ties: It often places lock stitches in the middle of a design, creating visible lumps.
3. Trims: It loves to cut the thread. A manual digitizer will "path" the design to keep the needle down, increasing efficiency.

Use Auto-Digitize When:

• You need a stitch count estimate for a quote.
• You are making a rough patch for a personal workbench.
• The image is extremely high contrast and simple.


The Side-by-Side: The "Magnifying Glass" Test

Zooming in on the comparison reveals the truth.

• Manual (Left): Stitches turn corners gracefully. Edges are crisp.
• Auto (Right): "Stair-stepped" edges. Random stitch angles in the fill.


This difference is why you can charge premium prices. Customers pay for the clean look of the manual file, even if they don't know the technical terms. They just know "it looks sharper."

Operation Reality: Software is Theory, The Machine is Reality

You can have the perfect Wilcom file, but if your physical setup is flawed, the embroidery will fail. This is where most beginners blame the digitizer when they should be blaming their hoop.

Fluid Mechanics of Fabric: Fabric wants to move. The needle pushes it; the thread pulls it. If your hooping is loose, you get "puckering" (bubbles around the design) or "registration errors" (white gaps between borders).

The Decision Tree: Fabric vs. Stabilizer Use this logic flow to stabilize your base before hitting start.

1. Is the fabric stretchy (T-shirt, Polo, Beanie)?
   • YES: Use Cutaway Stabilizer. (Tearaway will eventually distort and ruin the design).
   • NO: Proceed.
2. Is the fabric unstable/textured (Towel, Fleece)?
   • YES: Use Water Soluble Topping (Solvy) on top to keep stitches from sinking, AND Cutaway on bottom.
   • NO: Proceed.
3. Is the fabric standard woven (Denim, Twill, Canvas)?
   • YES: Tearaway Stabilizer is usually sufficient.

The Hidden Consumables

Don't start without these:

• 75/11 Ballpoint Needles: For knits (prevents cutting holes).
• 75/11 Sharp Needles: For wovens.
• Bobbin Thread: Ensure the weight matches your machine (usually 60wt).
• Temporary Spray Adhesive (505): Essential for floating fabric or keeping backing secure.

Setup Checklist: The "Thump" Test

• Bobbin Check: Is the bobbin area clean of lint? (A dust bunny can wreck tension).
• Needle Check: Is the needle fresh? Run your fingernail down the tip. If it catches, throw it away.
• Hooping Tension: Tap the fabric in the hoop. It should sound like a drum—a dull "thump." If it ripples, re-hoop.
• Trace: Always run a "Trace" or "Contour Check" on the machine to ensure the needle won't hit the hoop frame.

The Hooping Bottleneck: Where Profit Dies

We talk about software speed, but the physical act of hooping is where time is lost.

• The Problem: Standard hoops require force. You have to unscrew, insert the inner ring, align the fabric, press down (hoping you don't shift the fabric), and tighten. It causes Hoop Burn (permanent ring marks on delicate fabric) and wrist fatigue.

The Hardware Solution: If you find yourself dreading the hooping process, or if you are ruining shirts with hoop burn, this is a trigger point to upgrade your tools.

Many professionals switch to a magnetic embroidery hoop.

• Why? They use magnets to clamp the fabric instantly without forcing an inner ring into an outer ring.
• The Result: Zero hoop burn, faster loading, and less strain on your hands.
• Production Speed: If you combine magnetic hoops with a hooping station for embroidery, you can ensure every left-chest logo is in the exact same spot on every shirt, removing the guesswork.

Warning (Magnet Safety): Magnetic hoops are incredibly strong to ensure fabric hold. pinch hazard: Keep fingers clear of the mating surfaces. Medical Device Warning: Keep these strong magnets away from pacemakers, insulin pumps, and other implanted medical devices, as well as sensitive electronics.

Moving from "Hobby" to "Production"

If you are just learning, standard machine embroidery hoops and manual hooping are a rite of passage. They teach you how fabric moves.

However, as you move from "I'm trying to make one shirt" to "I have an order for 20," the bottleneck shifts.

1. Digitizing: Manual digitizing (as learned here) prevents thread breaks.
2. Hooping: Magnetic frames speed up loading.
3. The Machine: Eventually, the limitation is the single needle.

When you are ready to scale, look for equipment that supports your workflow efficiency, such as hooping for embroidery machine aids and multi-needle systems (like the robust, high-value models from SEWTECH), which allow you to queue colors without manual thread changes.

Operation Checklist: The Final "Go/No-Go"

• File Loaded: Is it the "Manual" version, not the "Auto" prototype?
• Stabilizer: Is it correct for the fabric (Cutaway for knits)?
• Hoop Check: Are the arms of the hoop locked securely into the machine pantograph? (Listen for the distinct click).
• Clearance: Is the garment hanging freely? Ensure the back of the shirt isn't tucked under the needle (sewing the shirt to itself is a classic rookie mistake).
• Speed: Start slow (400-600 SPM). Once the design proves stable, ramp up to 800+ SPM.

Summary

The video proves a timeless truth in embroidery: Automation is a tool, not a replacement for skill.

Use Auto-Digitize to learn. Analyze what it does wrong. Then, use Manual tools (Input A, Complex Fill) to do it right. Combine that digital discipline with the right physical tools—correct stabilizers and efficient hooping systems—and you will produce embroidery that looks expensive, lasts forever, and builds your reputation.

FAQ

• Q: In Wilcom EmbroideryStudio Auto-Digitize / Instant Embroidery, why does an auto-digitized logo sew with jagged edges and random stitch angles compared to a manual Input A + Complex Fill file?
  A: Auto-digitize follows bitmap color blocks, not stitch structure, so it often creates “stair-stepped” edges and illogical travel paths—use it for quick prototypes, not production.
  • Rebuild key borders with Wilcom Input A so stitch direction “flows” around curves.
  • Use Complex Fill (Tatami) for large areas instead of long satins to avoid snagging and looseness.
  • Plan the sew order to reduce unnecessary trims and mid-design lock ties.
  • Success check: Zoom in and confirm corners turn smoothly and fills have consistent angles (no “pixelated thread” look).
  • If it still fails: Sew a slow test run (400–600 SPM) and inspect for trims/lock stitches creating visible lumps, then re-path the objects.
• Q: In Wilcom EmbroideryStudio, why does scaling a design after digitizing cause overly dense stitches and needle/thread breaks?
  A: Scaling down after digitizing effectively increases stitch density (often dramatically), which can behave like a “bulletproof vest” and cause breakage—scale the bitmap to final size before digitizing.
  • Insert the bitmap first and set the exact final sewing size (for example, left-chest sizing) before placing any stitches.
  • Lock the image so it cannot shift while tracing.
  • Measure the artwork size in software (the blog notes using the “M” key in Wilcom) to confirm accuracy.
  • Success check: After scaling-before-digitizing, the sew-out runs smoothly without repeated thread breaks and the fabric does not feel over-stiff.
  • If it still fails: Re-check that the file loaded on the machine is not a shrunken version of a larger, previously digitized design.
• Q: In Wilcom EmbroideryStudio satin columns for small lettering, how should pull compensation be adjusted when letters look swollen or when outlines don’t meet fills?
  A: Use pull compensation to counter stitch-width shrinkage; swollen letters usually mean pull compensation is too high, while gaps between outline and fill often mean it is too low.
  • Start from the blog’s safe range for stable fabric: 0.17–0.20 mm, then adjust based on sew-out.
  • Increase pull compensation on softer knits/fleece when columns are collapsing (the blog notes 0.35 mm or more may be needed).
  • Decrease pull compensation when inner holes (like in “A” or “e”) are closing or text feels bumpy from crowding.
  • Success check: Letter edges look crisp, counters stay open, and the text surface feels satiny/smooth when you run a finger across it.
  • If it still fails: Simplify text under about 5 mm height (often switching to running stitches) and re-test.
• Q: For machine embroidery on stretchy polo or T-shirt knit, what stabilizer combination prevents puckering and registration gaps according to the fabric decision tree?
  A: For stretchy knits, use cutaway stabilizer as the baseline to control distortion; add topping only when the surface texture needs it.
  • Choose Cutaway on the bottom for polo/T-shirt/beanie type stretch fabrics (tearaway can distort over time).
  • Add water-soluble topping on top for textured/lofty surfaces (towel/fleece) to prevent stitches sinking.
  • Secure backing/fabric with temporary spray adhesive (505) when floating or when the backing wants to shift.
  • Success check: After sewing, there are no “bubbles” (puckering) around the design and borders meet without white gaps.
  • If it still fails: Re-check hooping tension (drum-tight “thump” test) and confirm the garment is not being pulled or trapped under the needle area.
• Q: What is the correct hooping tension “thump test” standard for machine embroidery hoops, and what symptoms indicate loose hooping?
  A: The hooped fabric should sound like a dull drum “thump” when tapped; ripples or softness usually lead to puckering and registration errors.
  • Tap the fabric after hooping and re-hoop if it ripples or feels spongy.
  • Run the machine’s Trace/Contour Check to confirm the needle path clears the hoop frame.
  • Ensure the hoop arms are fully locked into the machine pantograph (listen for the distinct click).
  • Success check: The trace runs without striking the frame, and the sew-out shows clean alignment with no shifting gaps.
  • If it still fails: Check that the garment is hanging freely (not caught under the needle area) and verify stabilizer choice matches the fabric.
• Q: What pre-flight consumables and checks prevent tension problems and thread nests in machine embroidery (bobbin area lint, needle type, bobbin weight, spray adhesive)?
  A: Most “mystery” sew failures come from basic consumables—clean the bobbin area, use the correct needle type, and secure backing before blaming the digitizing.
  • Clean lint from the bobbin area because buildup can destabilize tension.
  • Replace damaged needles immediately; the blog suggests checking the tip by running a fingernail down it and discarding if it catches.
  • Match bobbin thread weight to the machine (the blog notes it is usually 60 wt).
  • Use temporary spray adhesive (505) to prevent backing/fabric shifting when floating.
  • Success check: Stitching runs without sudden snarls under the fabric, and the machine maintains steady stitching without repeated stops.
  • If it still fails: Slow the machine to 400–600 SPM for a controlled test and re-check hooping tightness and stabilizer selection.
• Q: What are the key safety rules when running an industrial multi-needle embroidery machine at 800–1000 SPM, especially during trim cycles?
  A: Keep hands completely clear of the needle bar area during sewing and trims—trim cycles can trigger instantly at high speed.
  • Keep fingers away from the needle/trim area during test sew-outs; do not try to snip threads while the machine is running.
  • Start new designs slower (400–600 SPM) and only increase speed after the design proves stable.
  • Confirm clearance so the garment is not tucked under the needle (to avoid sewing the shirt to itself).
  • Success check: The design runs through trims without operator intervention and without near-miss contact with moving parts.
  • If it still fails: Stop the machine fully before touching threads, then re-run trace/contour check to rule out clearance issues.
