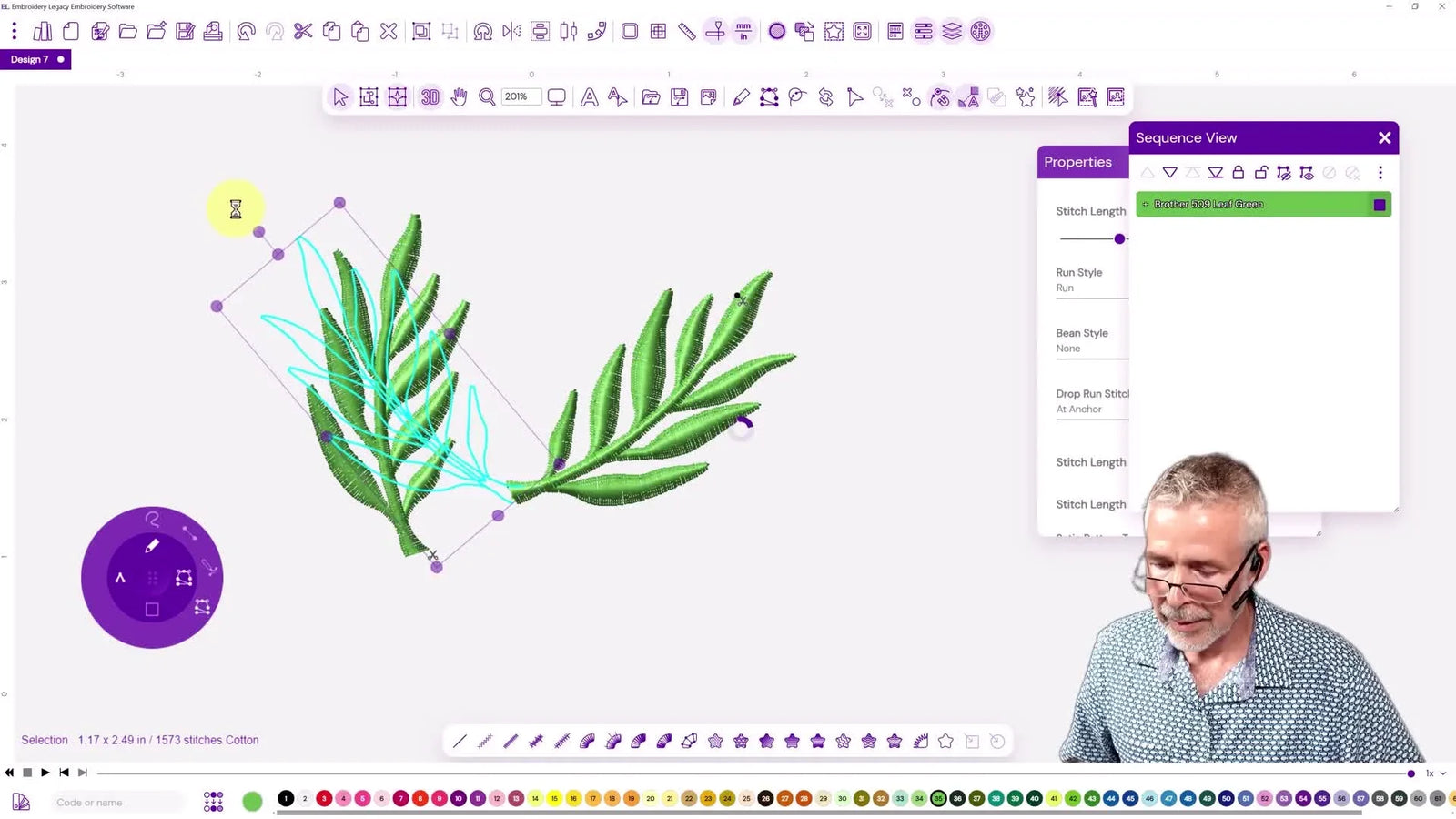

Manual Satin + Run vs Imported SVG in Hatch/Wilcom: The Laurel Wreath Workflow That Actually Saves Trims (and Your Sanity)

Mastering the Laurel Wreath: A 20-Year Pro’s Guide to Digitizing Speed & Precision

When your design looks “simple,” your machine should sound like a hum—not a hiccup.

If you’ve ever imported an SVG into Hatch Embroidery or Wilcom expecting a quick win, only to hear your machine stopping, trimming, and jumping every three seconds, you know the frustration. You wanted efficiency; you got a bird’s nest of thread tails and a cleanup job that took longer than the stitching itself.

I have spent two decades on the production floor, and I can tell you: The software isn’t the problem. The "Auto-Convert" promise is.

This guide rebuilds the classic "Laurel Wreath styling challenge." We will compare Manual Digitizing (Classic Satin + Run) against Vector/SVG Import. More importantly, I will teach you the specific logical flow and safety parameters required to turn a messy vector into a single-color, no-trim, professional-grade production file.

Don’t Panic—“Slow Digitizing” Usually Isn’t You, It’s the Workflow (Hatch Embroidery / Wilcom Digitizer)

The frustration most beginners feel isn't a lack of talent; it is a cognitive mismatch between Graphic Art and Stitch Mechanics.

In our industry, we have a saying: “Vectors draw outlines; Digitizers build paths.”

In the video analysis, the instructor proves a point that dictates profit margins in professional shops: For organic shapes like leaves, manual digitizing is dramatically faster. Why? Because you build the sewing logic (start points, end points, and travel runs) as you click. When you import a vector, you get the shape, but you inherit zero logic. You spend more time "un-breaking" the file than you would have spent building it.

If you are running a business, this math is brutal. An extra 5 trims per shirt, repeated over 50 shirts, is not just wasted time—it is 250 extra chances for a thread break or a "bird's nest" loop to form under the throat plate.

The “Hidden” Prep Pros Do First: Fabric Recipe (Cotton), Artwork Size (2.5"), and a Clean Backdrop

Before you drop a single node, you must stabilize your digital environment. A common rookie mistake is zooming in to 800% immediately. Stop. Set your stage first.

Step 1: Establish Scale & Visibility

1. Load your workspace.
2. Import Artwork: Bring in your laurel leaf image.
3. Hard Size Check: Resize the artwork height to 2.5 inches (approx 63mm). This is the "Sweet Spot" for satin stitches.
   • Why? If leaves are too small (<2mm wide), needles will struggle to penetrate. If too large (>7mm wide), satins become loose and snag.
4. Dim the Lights: Reduce artwork opacity (dim it down) so you can clearly see the contrast between your red/blue vectors and the background.

Step 2: Set the "Cotton Recipe" (The Safety Net)

The video mentions the "Cotton" fabric setting. Let’s decode what that actually means in numbers, so you aren't guessing.

• Auto Split: Off (for a satin look).
• Density: 0.40mm to 0.45mm.
  • Sensory Check: If you see the fabric peeking through the stitches, tighten to 0.38mm. If the embroidery feels like a bulletproof vest, loosen to 0.45mm.
• Underlay: Edge Run + Center Run (or Zigzag).
  • The "Why": Cotton moves. The underlay creates a "foundation rail" that grips the stabilizer before the satin stitch covers it. Without this, your leaves will be skinny and distorted.


Prep Checklist (Pre-Flight Safety)

• Physical: Workspace is clear; mouse hand causes no wrist strain.
• Software: Fabric Recipe set to Cotton (Density ~0.40mm).
• Visual: Backdrop imported, resized to 2.5" height, opacity reduced.
• Navigation: You can pan smoothly with the Space Bar and zoom is set to 1:1 (press '1') to check size, then 6:1 for working.
• Mental: Sequence View is visible (on the right) to track the "story" of your stitches.

The Fast Lane: Manual Classic Satin (Hotkey 2) + Run Travel (Hotkey 1) for a No-Trim Leaf Chain

This is the core technique. We are not drawing shapes; we are laying down a continuous thread path.

The strategy is to digitize the leaves from bottom to top as a single connected chain.

• Tool A: Classic Satin (Hotkey 2) – The Leaf Body.
• Tool B: Run Stitch (Hotkey 1) – The Hidden Travel.


The "Rhythm" of Manual Digitizing

New digitizers often freeze, creating too many nodes. Learn this rhythm:

• Left Click: Square node (Sharp corner/Straight line).
• Right Click: Circle node (Smooth curve).

The Workflow:

1. Select Classic Satin (2). Start at the bottom of a leaf. Click: Left (tip), Right (side), Right (side), Left (base).
2. Press Enter. The leaf generates.
3. Immediate Switch: Without moving your mouse far, switch to Run Stitch (1).
4. Travel: Click a path up the center of the stem to the start of the next leaf. Press Enter.
5. Repeat.

Sensory Success Metric: Watch the connector lines on screen. You should see dotted lines (jumps) disappear and be replaced by solid lines (stitches). When running the machine, you should hear a continuous thump-thump-thump rhythm, not the clack-whirrr-clack of trimmers engaging.

Warning: The "Click Trap"
Rapid clicking can lead to "mouse drift." If you misplace a point, do not just keep going hoping to fix it later. Stop. Press Backspace to delete the last node. Bad geometry in = Bad embroidery out.

Expert Insight: Why "Pathing" Beats "Drawing"

Imported vectors have Shape Logic (Closed loops). Manual digitizing has Thread Logic (Continuous flow). When you digitize manually, you are effectively telling the machine: "Sew this leaf, then walk the thread under the fabric to the next leaf, then sew that one." This creates a file with zero trims.

For high-volume production, this is critical. A design with 20 trims might shake the hoop 20 times. This vibration causes fabric to slip. This is where proper hooping for embroidery machine technique becomes vital—a tight, drum-like hoop combined with a low-vibration file ensures perfect registration.

The SVG Reality Check: Import Vector, Unfill, Match Color, Resize to 2.5", Then Brace for Cleanup

Now, let's look at the "Short Cut" that often becomes the "Long Road."

When you import an SVG (Scalable Vector Graphic), the software sees geometry, not thread.

1. Import Vector.
2. Unfill: Remove the solid color so you only see outlines.
3. Force Size: Lock aspect ratio and force height to 2.5 inches.


The "Knife" Trap: Slicing the Outline

An SVG is usually one continuous outline. To make it embroider correctly (leaf by leaf), you must cut it apart using the Knife/Slicing Tool.

• The Risk: Slicing creates "Node Junk." Where you had one smooth curve, you now have two overlapping endpoints and often a jagged artifact.
• The Fix: You must zoom in to 600% + and delete double nodes.


Pro Tip: If two nodes are stacked on top of each other, the machine will stitch in place, creating a "micro-knot." This feels like a hard pebble in the embroidery. Delete the duplicate node.

Node Cleanup That Doesn’t Waste Hours: Delete Double Points, Smooth Curves, Remove Stray Artifacts

After slicing, your sequence view is a mess of random objects. Now you must pay the "Node Debt."

The "Less is More" Rule

Beginners think more nodes = more precision. Experts know: Fewer nodes = Smoother satin.

• Jagged Edge Symptom: If your satin stitch looks ragged or "saw-toothed," you likely have too many nodes close together.
• The Fix: Select the object and use the "Smooth Curves" tool, or manually delete every other node until the shape relaxes.

If you are running a shop, every minute spent cleaning nodes is a minute the machine isn't running. This workflow inefficiency often compounds with physical bottlenecks. Many shops search for hooping stations to speed up the physical side, not realizing their digital files are the root cause of the slowdown.

The Time Sink Nobody Warns You About: Resequencing

Vectors do not know "Bottom to Top." They know "Created First / Created Last." When you convert an SVG, the machine might sew the top left leaf, then the bottom right leaf, jumping across the design 10 times.

The Fix: You must manually drag-and-drop objects in the Sequence View panel until they mimic the logic of a plant growing: Stem $\rightarrow$ Branch $\rightarrow$ Leaf.

Setup Checklist (The Vector Rescue Plan)

• Separation: All vector segments key sliced into distinct shapes.
• Hygiene: No "stray artifacts" (tiny 1mm specks) left in the Sequence View.
• Geometry: Double points deleted; curves smoothed.
• Flow: Sequence View order matches the physical sewing path (Bottom-to-Top).

The “Digitize After” Save: Adding Run Travels Without Destroying Your Sequence Order

You cleaned the vector. You fixed the order. But wait—the machine still trims between every leaf! You need to add the travel runs retroactively.

The Feature: Right-Click an object $\rightarrow$ Digitize After. This allows you to insert a Run Stitch (Hotkey 1) immediately after the selected object, connecting it to the next one.

Why this is non-negotiable: Trims are dangerous. Every trim involves a mechanical blade firing, the tension discs releasing, and the wiper engaging.

• Risk: Thread tails pulling out.
• Risk: Bird nests on the restart.
• Efficiency: A trim takes ~7 seconds. A travel stitch takes 0.5 seconds.

If you are scaling up, minimizing trims is step one. Step two is mechanical efficiency. Using a machine embroidery hooping station allows you to frame the next garment while the current one runs (continuously), creating a seamless production loop.

The Scary Spot: Fixing the Messy Center Join (The "Weld" Trick)

The Laurel Wreath has a fatal flaw: The bottom center where the two branches meet.

• The Symptom: If you just butt two satin stitches together, they push against each other, creating a gap or a bulge. It looks cheap.
• The Desire: A smooth, continuous "U" shape at the bottom.


The Solution: Weld $\rightarrow$ Smooth $\rightarrow$ Convert

This is a Level 300 technique simplified:

1. Select the two bottom stem objects.
2. Convert to Artwork (strip the stitches off).
3. Weld: Use the Weld tool to merge them into one shape.
4. Smooth: Delete the sharp nodes at the join. Make it a fluid curve.
5. Convert to Satin: Turn it back into stitches.

Now, instead of two crashing trains, you have one continuous railway track.

Success Metrics (Sensory Check)

• Visual: The center join has no visible "line" or divot.
• Tactile: Run your finger over the join; it should feel smooth, not bumpy.


Operation Checklist (Final Export)

• Color: All objects set to one color (unless using specific stops).
• Continuity: Travel stitches connect all islands (Sequence View shows no forced trims).
• Center: The bottom wreath join is Welded and smoothed.
• Start/End: The design starts and ends at the optimal position (usually center or bottom).
• Format: Saved as native .EMB / .JDX first, then exported to machine format (.DST/.PES).

The Upgrade Path: When Better Digitizing Forces Better Production Tools

You have now optimized your file. It runs fast, clean, and without stops. Suddenly, your bottleneck isn't the file—it's you. When the machine finishes a design in 4 minutes, but it takes you 5 minutes to hoop the next shirt, you have a "Handling Problem."

Here is the commercial reality of embroidery: You get paid for needle-down time, not hoop-up time.

Decision Tree: When should you upgrade your gear?

Scenario A: The Hobbyist / Gifter

• Volume: 1-5 items/week.
• Pain: Hoop burn (shiny rings) on delicate cottons.
• Solution: Stabilizer & Taping. Use a "float" technique with sticky stabilizer to avoid crushing the fabric in a standard hoop.

Scenario B: The Side Hustle

• Volume: 20-50 items/week.
• Pain: Wrist fatigue and alignment anxiety. "Is it straight?"
• Solution: magnetic embroidery hoop.
  • Why: You simply place the fabric and snap the magnets. No screwing, no pulling. It creates a "Sandwich" that holds tight without crushing fibers. It is faster and dramatically reduces hoop burn.

Scenario C: The Production Shop

• Volume: 100+ items/week.
• Pain: You can't keep up with the machine.
• Solution: Multi-Needle Platform (e.g., SEWTECH) + hoop master embroidery hooping station.
  • Why: A station guarantees placement is identical on every shirt. A multi-needle machine stitches faster (1000+ SPM) and handles trims automatically if you missed one.

Safety Warning: Magnetic Hoops
These are not fridge magnets. They are industrial-strength neodymium magnets.
* Pinch Hazard: They can snap together with crushing force. Keep fingers clear of the contact zone.
* Health: Keep them away from pacemakers, insulin pumps, and magnetic storage media.

Quick Troubleshooting Map: Symptoms → Fixes

The Result That Matters

The image below shows the difference. On the left: A "Auto-Digitized" mess with jump stitches. On the right: A manual, welded, continuous path.

The "Manual" file runs in 3 minutes with zero trims. The "Auto" file runs in 5 minutes with 12 trims. Over 100 shirts, the Manual file saves you 3.3 hours of production time.

The Lesson: Speed doesn't come from clicking faster. It comes from thinking like a thread. Master the Manual Satin and the Run Stitch, and you master the machine.

Keep stitching, keep learning.

FAQ

• Q: In Hatch Embroidery or Wilcom Digitizer, why does an imported SVG laurel wreath design cause constant trims and jumps during stitching?
  A: Imported SVG files bring shape geometry but no sewing path logic, so the software creates many separate objects that trigger trims and jump stitches.
  • Convert workflow: Import the SVG, unfill to outlines, force the design height to 2.5 inches, then plan a bottom-to-top sewing flow.
  • Clean workflow: Slice leaf-by-leaf only where needed, then delete double points and remove stray tiny artifacts before resequencing.
  • Add flow: Use “Digitize After” to insert run-stitch travel connections between leaves to avoid forced trims.
  • Success check: On-screen connectors show mostly solid stitch paths (not dotted jumps), and the machine sounds like a steady run—not repeated trimmer “clack” cycles.
  • If it still fails: Re-check Sequence View order (stem → branch → leaf) and look for leftover micro objects that force trims.
• Q: In Hatch Embroidery or Wilcom Digitizer, what are the safest starting “Cotton” satin settings for a 2.5-inch laurel wreath leaf chain?
  A: Use a cotton-style satin setup with Auto Split OFF, density around 0.40–0.45 mm, and underlay enabled to prevent skinny, unstable leaves.
  • Set size: Force artwork/design height to 2.5 inches (about 63 mm) before digitizing.
  • Set density: Start at 0.40 mm; tighten toward 0.38 mm if fabric shows through, loosen toward 0.45 mm if it feels overly stiff.
  • Set underlay: Enable Edge Run + Center Run (or Zigzag) to build a stable foundation on cotton.
  • Success check: Satin coverage looks even (no fabric peeking) and the leaf edges look supported rather than collapsing inward.
  • If it still fails: Re-check leaf widths—very narrow satins struggle, and very wide satins may become loose and snag.
• Q: In Hatch Embroidery or Wilcom Digitizer, how can manual digitizing (Classic Satin + Run Stitch) eliminate trims on a laurel wreath leaf chain?
  A: Build one continuous thread path by chaining leaves bottom-to-top with Classic Satin (leaf bodies) and Run Stitch (hidden travel) between leaves.
  • Digitize leaf: Select Classic Satin (hotkey 2), place nodes with a left-click/right-click rhythm, then press Enter to generate the satin.
  • Connect next leaf: Switch immediately to Run Stitch (hotkey 1), travel up the stem to the next start point, then press Enter.
  • Correct mistakes fast: Hit Backspace to delete the last node instead of “hoping to fix it later.”
  • Success check: Dotted jump connectors disappear on screen, and the machine runs with a continuous “thump-thump” cadence instead of frequent trim engagements.
  • If it still fails: Look for any isolated “islands” not connected by run travels and connect them before export.
• Q: In Hatch Embroidery or Wilcom Digitizer, how do double nodes after SVG slicing cause micro-knots, and how can double points be removed?
  A: Double nodes stacked together can make the machine stitch in place, creating a hard micro-knot, so deleting duplicate points is mandatory after slicing.
  • Inspect: Zoom in very close (often 600%+) right after Knife/Slicing operations.
  • Delete: Remove one of any stacked/overlapping endpoints and eliminate jagged artifacts created by slicing.
  • Smooth: Reduce node clutter—fewer nodes usually produce smoother satin edges.
  • Success check: The stitched edge looks smooth (not saw-toothed), and the embroidery surface does not have a “hard pebble” feel at the slice points.
  • If it still fails: Run a final scan in Sequence View for tiny stray objects (1 mm specks) that may still stitch and create bumps.
• Q: In Hatch Embroidery or Wilcom Digitizer, how can the laurel wreath bottom center join be fixed so the two satin stems do not create a gap or bulge?
  A: Use a Weld-based join so the bottom becomes one continuous, smoothed shape before converting back to satin stitches.
  • Select: Choose the two bottom stem objects that meet at the center.
  • Rebuild: Convert to Artwork, Weld them into one shape, then smooth the join by removing sharp nodes.
  • Reconvert: Convert the welded artwork back into satin so the stitch flow is continuous.
  • Success check: Visually there is no obvious “divot line” at the center, and tactually the join feels smooth rather than bumpy.
  • If it still fails: Confirm the two stems are truly merged (not just overlapped) before converting back to stitches.
• Q: During machine embroidery, what is the fastest way to troubleshoot bird nesting when the machine sounds like grinding and thread piles up under the throat plate?
  A: Re-thread the upper thread path with the presser foot UP and confirm correct bobbin seating, because bird nesting is often a top-thread tension/path issue.
  • Re-thread: Raise presser foot, completely re-thread the upper path, and ensure the thread is seated correctly.
  • Check bobbin: Remove and reseat the bobbin so it sits correctly in the case.
  • Pause early: Stop as soon as the grinding sound starts to prevent a larger jam under the throat plate.
  • Success check: The machine resumes with a clean, steady stitch formation and no expanding thread mass under the needle plate area.
  • If it still fails: Inspect for thread tails being pulled after trims and reduce unnecessary trims by adding travel stitches in the file.
• Q: What safety rules should be followed when using industrial-strength magnetic embroidery hoops to reduce hoop burn and speed up hooping?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from medical implants and magnetic-sensitive items.
  • Protect fingers: Keep fingertips out of the magnet contact zone and let the magnets “snap” together only when aligned.
  • Control the snap: Place fabric first, then bring the magnet down deliberately—do not let it slam from a distance.
  • Avoid risk items: Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media.
  • Success check: The fabric is held firmly with minimal crushing, and hooping feels fast without painful snapping incidents.
  • If it still fails: Slow down the placement sequence—most pinches happen when rushing alignment rather than from lack of strength.
