Manual Digitizing in Hatch 3 Without the Headaches: From PNG Artwork to Clean Stitches (and a Better Stitch-Out)

Manual digitizing is where good embroidery starts—because you’re not “auto-tracing,” you’re making engineering decisions a machine can actually sew. If you’ve ever watched a design stitch out and thought, “Why is it bulletproof-stiff? Why is there a gap? Why did my needle just break?”—this is the exact workflow that prevents those headaches.

In this guide, we’ll manually digitize a simple PNG (an egg beater/mixer) in Hatch Embroidery. We will scale it strictly to a 150×150 hoop environment, digitize fine wire details as run stitches (to save your needles), build satin columns with engineered angles, create negative space, reduce density, and finish by virtually test-driving the file.

Calm the Panic: Your Hatch Embroidery “Manual Digitizing” File Is Not Broken—It’s Just Missing a Few Key Moves

If you’re new to Hatch, or migrating from other software, the first scary moment is usually when something doesn’t happen—you press Enter, the screen blinks, and nothing changes. That’s normal. Manual digitizing is object-based logic: Hatch only behaves when the object is properly created, properly closed, and properly exited.

A quick mindset shift that saves hours of frustration: a digital file is not an embroidery design until threads lock on fabric. The software preview is a prediction, not a guarantee. The screen doesn't show thread tension, fabric pull, or gravity. You are the pilot; the software is just the navigation system.

The “Hidden” Prep Before You Click Anything: Insert Artwork, Dim It, and Lock the Hoop Reality

Embroidery is a physical medium constrained by your hardware. Start by bringing in the reference image and defining those constraints immediately.

Step-by-Step Prep:

1. Insert: Click Insert Artwork and load the PNG version of the mixer.
2. Dim: Use Dim Artwork. You need to see your vector lines clearly against the background. If the background is too bright, you'll miss node placements.
3. Scale to Reality: Decide your target hoop first. In this case, the goal is a 150 mm × 150 mm hoop.
4. Apply Safety Margins: The artwork is scaled to 148 mm wide.

Why that 2mm margin saves your sanity: If you scale a design to exactly 150mm for a 150mm hoop, you are asking for trouble. One slight shift in fabric stabilization, and your needle hits the plastic frame. That sound—a loud, sickening crr-crack—usually means a broken needle, a ruined hoop, or knocked-out timing.

Furthermore, scaling affects stitch physics. If you shrink a design too aggressively, details become too small to digitize cleanly. If you plan to stitch this on a real garment later, remember the hoop is a production constraint. That’s where choosing the right embroidery machine hoops becomes a quality decision, not just a size decision. If the hoop doesn't grip firmly, the margin won't matter because the fabric will slip.

Prep Checklist (Complete this before placing a single node):

• Hoop Constraint: Confirmed target hoop size (150×150 mm) and scaled artwork with a safety buffer (148 mm width).
• Visibility: Dimmed artwork so logic lines are visible.
• Micro-Check: Zoomed in to 600% to scan for details smaller than 1mm (these cannot be satin stitched).
• Stitch Order Strategy: Planned the route: Background → Foreground, Center → Out.
• Consumables Check: Do you have your stabilizer, temporary spray adhesive (like 505), and a fresh needle (75/11) ready?

Digitize Fine Wire Details the Smart Way: Measure First, Then Choose Run Stitch (Not Satin)

The wire beaters look thick enough on screen, but your eyes lie. The video demonstrates the most critical discipline in digitizing: measure first, stitch second.

1. Press M for the Measure tool.
2. Click across the wire width. The reading is 0.62 mm.

The Expert Rule: Standard satin stitches need to be at least 1.0 mm to 1.2 mm wide to sew cleanly without sinking into the fabric or piling up. A 0.62 mm satin column is essentially a thread knot waiting to happen. It creates "bird nesting" under the throat plate.

The Solution: Digitize the wire as a single run stitch (or triple run) down the center.

Action Steps:

• Select Digitize Open Shape.
• Left-click for straight points (corners/ends).
• Right-click for curve points (the loops).
• Use the minimum number of nodes necessary. Fewer nodes = smoother curves.
• Press Enter to finish.




Warning: Mechanical Safety Risk.
Never force a satin stitch on lines narrower than 0.8mm unless you are using 60wt (thin) thread. Using standard 40wt thread on tiny satins causes the needle to hammer the same spot repeatedly, which can cut the fabric fibers or deflect the needle, leading to burrs that shred thread later.

Build Satin Columns with Digitize Blocks: Control Width and Angle with Point Pairs

Next, we digitize the shaft. For this, we use Digitize Blocks, a tool designed for varying widths.

The "Railroad" Concept: Imagine laying down a railroad track. You need to place ties on both sides of the rails.

• Select Fill -> Satin.
• Place a pair of points at the top (Point A Left, Point B Right).
• Place a pair of points at the bottom (Point C Left, Point D Right).
• Press Enter.

Why Point Pairs Matter: These pairs define the Stitch Angle. The needle jumps from Point A to Point B. If your pairs are mismatched (e.g., one is higher than the other), the satin stitches will be diagonal. Diagonal stitches push fabric differently than horizontal ones. For a vertical shaft, keep your pairs perfectly horizontal to ensure crisp edges.

The travel-stitch trick that prevents bulk

Right after the satin shaft, the instructor presses Spacebar to switch back to Run stitch. He draws a manual travel path underneath where the mixer body will go later.

Why do this? Auto-branching is great, but manual traveling allows you to "hide" the jump stitch under a future fill. This eliminates a trim. Fewer trims = faster production and fewer loose tails to hand-trim later.

Clone the Beater Assembly Fast: Right-Click Drag to Duplicate Without Breaking Flow

Consistency is key. You don't want one beater loop to look slightly different from the other.

• Select the entire beater assembly (Run stitches + Satin shaft).
• Hold the Right Mouse Button and drag the object to the side.
• Release to "Clone".

This ensures both parts are mathematically identical.

Digitize the Mixer Body as a Tatami Fill: Closed Shape First, Then Cut the Handle Hole

Now for the main body. A satin stitch is too long for this wide shape (snag hazard), so we settle on a Tatami Fill.

Action Steps:

1. Choose Digitize Closed Shape.
2. Set properties to Fill → Tatami.
3. Trace the perimeter. Remember: Left-click for sharp corners, Right-click for smooth curves.
4. Overlap the beaters slightly (about 1-2mm) to prevent gaps.
5. Press Enter to close the shape.

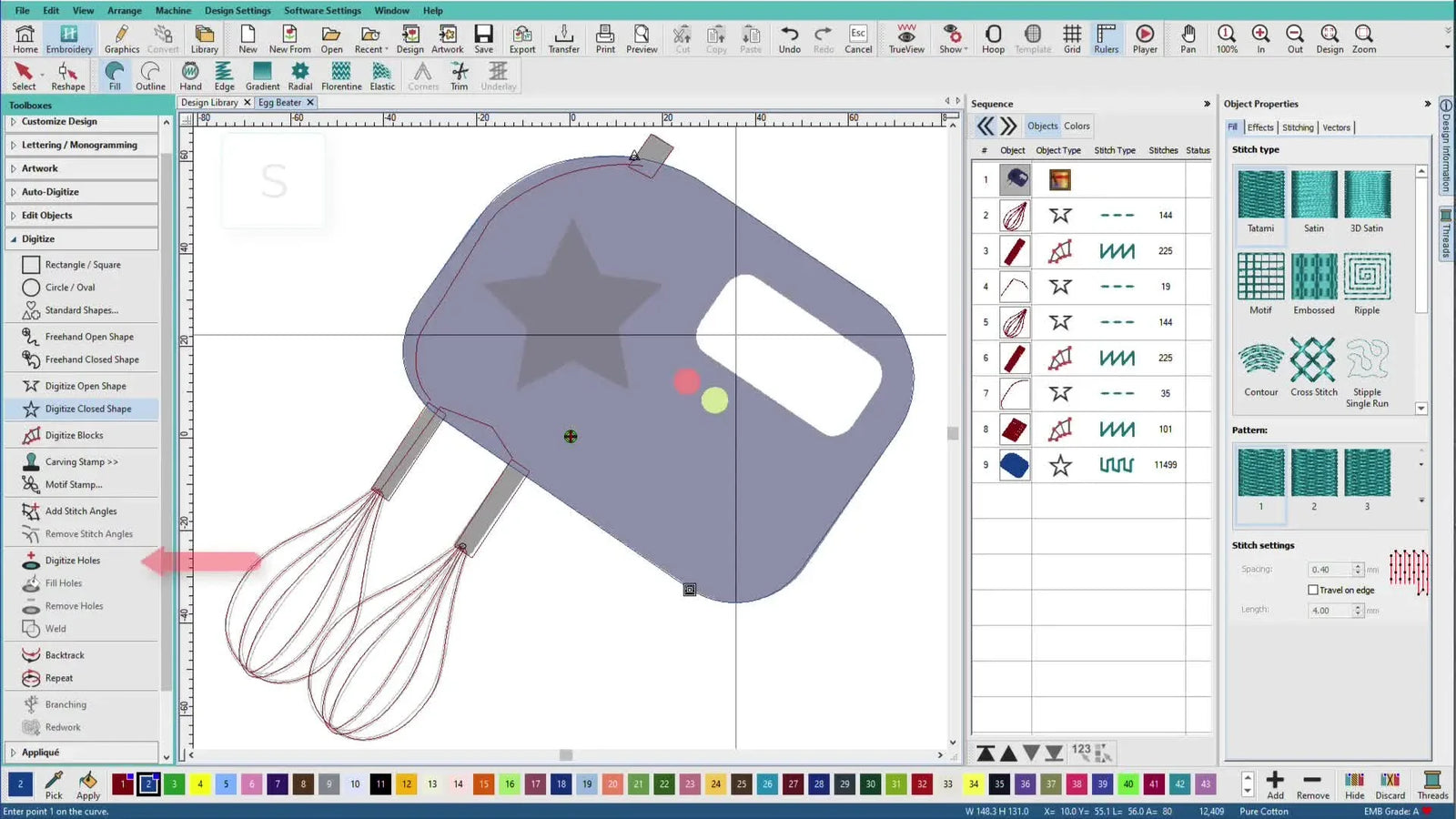

The “Holes” moment: Why people rage-quit

The handle needs to be negative space (fabric showing through). This is the most common failure point for beginners in Hatch.

The Secret Syntax:

1. Select the Mixer Body object you just created.
2. Select the Digitize Holes tool.
3. Trace the visual shape of the handle inside the body.
4. Press Enter ONCE: This closes the shape of the hole. (Nothing happens yet).
5. Press Enter AGAIN: This tells Hatch, "I am done adding holes, please calculate."

Sensory Cues: You won't see the hole appear until that second Enter key press. If you don't hear that definitive clack-clack of two key presses, the software is still waiting for a second hole.

Pro tip: If you digitized a hole, pressed Enter, and “it won’t happen,” look at the status bar at the bottom left. If it says "Enter point on boundary," it’s still waiting for you. Press Enter to escape and execute.

Keep Density Under Control: Remove Overlaps with a Real Overlap Value (1.00 mm)

In the video, a star object is placed on top of the mixer body. If you stitch a Tatami Star on top of a Tatami Body, you get "Bulletproof Patch Syndrome." The patch becomes stiff, the needle struggles to penetrate, and thread breaks occur.

However, you cannot just cut a perfect hold behind the star. Fabric shrinks. If you cut a perfect hole, the mixer body will pull away, leaving a white gap around the star.

The Safe Formula:

1. Select the top object (the star).
2. Go to Edit Objects → Remove Overlaps.
3. Crucial Step: Check your settings. You need an overlap amount of 1.00 mm.

This instructs Hatch to cut a hole in the background layer smaller than the star, creating a safety overlap. This binds the two layers together so they move as one unit.

Expert Note: Do NOT remove overlaps for small text or run stitches. Only remove overlaps when large fills stack on large fills.

Fix Bleed-Through Before It Happens: Rotate Stitch Angles So Layers Don’t Fight Each Other

If the Mixer Body stitches run at 45 degrees, and the Star stitches also run at 45 degrees, the Star will sink into the grooves of the Body. It will look like it disappeared into the texture.

The Fix:

• Select the Mixer Body.
• Click Reshape.
• Grab the angle bar (the line passing through the object).
• Rotate it so it is perpendicular (or at least 45 degrees distinct) from the Star's angle.

Sensory Analogy: Think of it like laying plywood over floor joists. You don't run the plywood parallel to the joists; it will fall through. You run it across them for support.

The stripe through the fill: Managing "Closest Join"

If you see a faint ugly line running through your smooth fill, it's usually the machine traveling to the exit point.

• Fix: Use Reshape to move the entry and exit points (the green diamond and red cross).
• Place the Entry where the previous object ended.
• Place the Exit closer to where the next object begins.
• This forces the travel path to the edge, hiding the line.

Stitch Player Is Your Quality Gate: Watch Pathing, Underlay, and “Wall” Behavior Around Holes

Never export to the machine without a simulation. Run Stitch Player.

What to watch for (The "Cinema" of Embroidery):

1. Speed Up: Watch the flow.
2. The "Wall" Effect: Notice how the fill creates the handle hole. The machine will stitch up one side, travel, and stitch up the other. Does that join look seamless?
3. Underlay: Do you see the scaffolding stitches (Edge Run/Tatami) going down first? Without underlay, the top stitches have no foundation.


Operation Checklist (The Virtual Flight Check):

• Logic Check: Background stitches first, foreground details last.
• Trim Hygiene: Are there jump stitches across open spaces? If yes, insert manual travel runs.
• Hole Verification: Did the handle hole actually cut?
• Angle Contrast: Do layered fills have opposing stitch angles?
• Start/Stop: Are exit points positioned to minimize jump distance to the next object?

Setup Reality Check: Your Digitizing Choices Must Match Hooping and Stabilizer (or the Stitch-Out Will Humble You)

You have a perfect file. Now you have to put it on a T-shirt. This is where excellent digitizing is ruined by poor mechanics. In the real world, your 150x150 hoop is a violent environment. The machine pushes and pulls the fabric thousands of times.

If you are a hobbyist doing one towel, you can struggle with manuals knobs. But if you are doing production runs (50+ shirts), inconsistent tension leads to hoop burn—those permanent ring marks that ruin delicate polyester. Many professionals mitigate this workflow bottleneck by upgrading to hooping stations.

Decision Tree: The Fabric-Stabilizer-Hoop Matrix

Use this logic flow to determine your setup before you load the machine.

1. Is your fabric unstable (T-shirt, Hoodie, Knit)?
   • Yes: You MUST use Cutaway Stabilizer. Tearaway will result in a distorted design.
   • Action: Do not stretch the fabric in the hoop. It should be "drum tight" but neutral.
   • Next Step: Go to Step 3.
2. Is your fabric stable (Denim, Canvas, Twill)?
   • Yes: Tearaway Stabilizer is acceptable.
   • Next Step: Go to Step 3.
3. Is the item difficult to hoop (Buttons, Zippers, thick seams) OR delicate (Velvet, Performance Wear)?
   • Yes: Standard plastic hoops are risky here. You risk "popping" the hoop or crushing the pile.
   • Solution: Use magnetic embroidery hoops. These use magnetic force to hold fabric without friction burn, and they self-adjust to different thicknesses automatically.
4. Are you doing volume (10+ items)?
   • Yes: Eye-balling alignment will kill your profit margin.
   • Solution: Use a machine embroidery hooping station to guarantee every logo is in the exact same spot on every shirt.

Warning: Magnetic Pinch Hazard.
High-quality magnetic hoops use industrial-grade magnets. They snap together with immense force. Keep fingers clear of the edges. Do not use magnetic hoops if you have a pacemaker, as the magnetic field is strong enough to interfere with medical devices.

The “Why” Behind the Video’s Best Moves: Sequencing, Density, and Pull Compensation (Without Overcomplicating It)

The instructor’s choices follow the physics of fiber.

Sequencing (Center Out / Large to Small): Fabric moves. As you add stitches, you push a "wave" of fabric in front of the needle. If you stitch the outline first and the fill later, the fill will push the fabric past the outline, creating gaps. By stitching the large fills first (Center Out), you push the fabric out towards the hoop edges where it is secure.

Pull Compensation: The commenter asking about pull comp is tackling the #1 issue in embroidery.

• The Physics: Stitches shorten when they tighten. A 10mm column might sew out as 9.5mm.
• The Fix: You need to "Over-digitize." Make columns wider and overlapping.
• The Rule: The stretchier the fabric, the more Pull Comp you need (roughly 0.2mm to 0.4mm).

Comment-Driven Fixes: Crosshair Lines, Shortcuts, and When to Ask Support

Real users faced these issues in the comments. Here are the fixes:

“My Hatch 3 doesn’t show the cross-guiding line.”

• Diagnosis: This is a View setting. Press D (Display) or check your "Show Grid/Guides" toggle. Only submit a ticket if the shortcut creates no change.

“Can I change shortcuts in Hatch 3?”

• Reality: Unlike Photoshop, embroidery software often has hard-coded hotkeys. If you can't remap it in "User Interface Settings," don't force it. Learn the native key. Muscle memory beats customization here.

“I digitized a hole, pressed Enter, and it won’t happen!”

• Recall: You likely pressed Enter once. The software is waiting for a second hole. Press Enter again.

The Upgrade Path That Actually Makes Sense: When Better Hooping Tools Beat More Software Tweaks

Once you master this manual digitizing workflow, software is rarely your bottleneck. The bottleneck becomes setup time.

If you are spending 5 minutes struggling to hoop a shirt straight, and only 5 minutes stitching, your efficiency is 50%.

• For home users tired of wrist pain and ring marks, learning hooping for embroidery machine using modern magnetic frames is a massive quality-of-life upgrade.
• For growing shops, a hoop master embroidery hooping station or similar fixture eliminates the "is it straight?" guessing game.

And finally, if you are perfecting these files but your single-needle machine takes 45 minutes to change threads: no amount of digitizing skill will fix that speed limit. That is the distinct signal—when your orders exceed your daylight hours—to look at multi-needle solutions like SEWTECH multi-needle embroidery machines, which leverage these clean files for true production speed.

Final Setup Checklist (Pre-Production):

• Hoop Safety: Margin checked? 150mm hoop selected for 148mm design?
• Stabilizer Match: Cutaway for knits, Tearaway for wovens.
• Tooling: Magnetic hoop used for thick/delicate items?
• Speed Control: Start your first test run at 600-700 SPM (Stitches Per Minute). Don't run at 1000 SPM until you verify the pathing.
• The Sound Check: Listen to the machine. A rhythmic thrum is good. A harsh clack means tension is off, or the needle is dull.

Follow the object workflow—Line, Block, Fill, Hole—and trust the logic. The machine will do the rest.

FAQ

• Q: In Hatch Embroidery manual digitizing, why does pressing Enter finish a shape but nothing changes on screen?
  A: This is common—Hatch is waiting for the object to be properly closed/exited, so “nothing happens” usually means the command is not fully completed yet.
  • Finish the object cleanly: place the last node, then press Enter to close/complete the current digitizing tool.
  • For Hole digitizing specifically: press Enter once to close the hole boundary, then press Enter again to tell Hatch to calculate and apply the hole.
  • Check the status bar: if it says you are still “entering points,” Hatch is still waiting for input.
  • Success check: the object boundary finalizes (no more active node-placing cursor), and the hole/shape visibly updates in the filled object.
  • If it still fails: press Enter to escape the tool, reselect the object, and re-run the correct digitizing tool (Closed Shape vs Holes) on the intended object.
• Q: In Hatch Embroidery, how do you safely scale a design for a 150 mm × 150 mm hoop without risking a needle strike on the hoop?
  A: Do not scale to the full hoop size—use a safety margin (for a 150×150 hoop, scale artwork to about 148 mm wide).
  • Set the target hoop size first (150 mm × 150 mm) before placing nodes.
  • Scale the artwork to 148 mm width to keep a buffer from the hoop edge.
  • Zoom in and scan tiny details before digitizing so scaling does not force impossible stitch widths.
  • Success check: the design sits visibly inside the hoop boundary with clearance, not touching the edge anywhere.
  • If it still fails: reduce the artwork size slightly more and re-check stabilization/hoop grip, because fabric shift can erase small margins.
• Q: In Hatch Embroidery, should 0.62 mm “wire” details be digitized as satin stitches or run stitches to prevent thread breaks and bird nesting?
  A: Use run stitch (single or triple run), because standard satin needs roughly 1.0–1.2 mm width to sew cleanly.
  • Measure first: press M (Measure) and confirm the line width (example shown: 0.62 mm).
  • Digitize as Digitize Open Shape using a run stitch (single or triple run) down the center.
  • Use fewer nodes for smoother curves: left-click for corners, right-click for curves, then press Enter to finish.
  • Success check: the stitch-out looks like a clean wire line without bulky buildup, and the machine sound stays smooth (no harsh hammering in one spot).
  • If it still fails: slow the first test run (the blog suggests starting around 600–700 SPM) and confirm needle condition and stabilization before increasing speed.
• Q: In Hatch Embroidery Digitize Blocks (Satin), why do satin columns stitch diagonally on a vertical shaft, and how do you correct stitch angle?
  A: Satin columns go diagonal when point pairs are mismatched—place point pairs level to control stitch angle.
  • Choose Fill → Satin and use Digitize Blocks.
  • Place paired points like “railroad ties” (Left/Right at the top, then Left/Right at the bottom) with each pair aligned horizontally.
  • Press Enter to finish, then visually confirm the stitch direction matches the shaft.
  • Success check: satin edges look crisp and the stitches run in the intended direction (not skewed).
  • If it still fails: re-digitize the block with cleaner paired points, and avoid over-noding which can distort the column geometry.
• Q: In Hatch Embroidery, how do you create a handle cutout (negative space) inside a tatami fill using Digitize Holes when the hole will not appear?
  A: The hole appears only after completing the “two-Enter” sequence in Digitize Holes.
  • Select the filled object (example: the mixer body tatami).
  • Click Digitize Holes, trace the handle shape inside the object.
  • Press Enter once to close the hole boundary, then press Enter again to execute/calculate the hole.
  • Success check: the handle area becomes true negative space (fabric showing through) in the object preview and in Stitch Player.
  • If it still fails: look at the bottom-left status message—if Hatch still prompts for boundary points, exit with Enter, then restart Digitize Holes on the correct object.
• Q: In Hatch Embroidery, how do you prevent “bulletproof patch” stiffness when stacking a tatami star on top of a tatami body?
  A: Use Remove Overlaps with a real overlap amount—set the overlap to 1.00 mm to reduce density without creating a gap.
  • Select the top object (example: the star).
  • Go to Edit Objects → Remove Overlaps.
  • Set/check overlap amount = 1.00 mm so the background cutout is slightly smaller than the top shape.
  • Success check: the stitched area stays flexible (not overly stiff), and there is no visible “white halo” gap around the star edge.
  • If it still fails: do not apply Remove Overlaps to small text or run stitches; instead, reassess sequencing and angle contrast for the layered fills.
• Q: What safety precautions are required when using industrial magnetic embroidery hoops to prevent pinch injuries and medical device interference?
  A: Treat magnetic hoops as a pinch hazard and avoid them entirely if the operator has a pacemaker.
  • Keep fingers clear of hoop edges—the magnets can snap together with strong force.
  • Close the hoop deliberately and slowly, controlling the top frame as it seats.
  • Do not use magnetic hoops around pacemakers or similar medical devices (magnetic fields may interfere).
  • Success check: the hoop closes without finger contact at the edges, and fabric is clamped evenly without forced squeezing.
  • If it still fails: switch to a standard hoop for that operator or task, and use a hooping aid/fixture to reduce handling risk.
• Q: If hoop burn and slow setup time keep happening on T-shirts in production runs, what is the best upgrade path: technique changes, magnetic hoops, or a multi-needle embroidery machine?
  A: Start with setup fundamentals, then upgrade hooping tools for repeatability, and only then consider multi-needle capacity when the single-needle speed limit becomes the bottleneck.
  • Level 1 (technique): match stabilizer to fabric (cutaway for knits), avoid stretching fabric in the hoop, and start test runs slower (about 600–700 SPM) until the stitch path is verified.
  • Level 2 (tooling): use magnetic hoops for difficult or delicate items (thick seams, zippers, performance wear) to reduce hoop burn risk and speed up consistent clamping.
  • Level 2 (repeatability): add a hooping station when volume makes “eye-balling alignment” too slow or inconsistent.
  • Level 3 (capacity): move to a multi-needle machine when thread-change time and throughput—not digitizing—limits daily output.
  • Success check: fewer rejected garments from hoop marks, faster consistent alignment, and smoother runs with fewer trims/jumps.
  • If it still fails: run Stitch Player to confirm trims/jump paths and hole behavior, then re-check hoop grip and stabilizer choice before changing machine speed.
