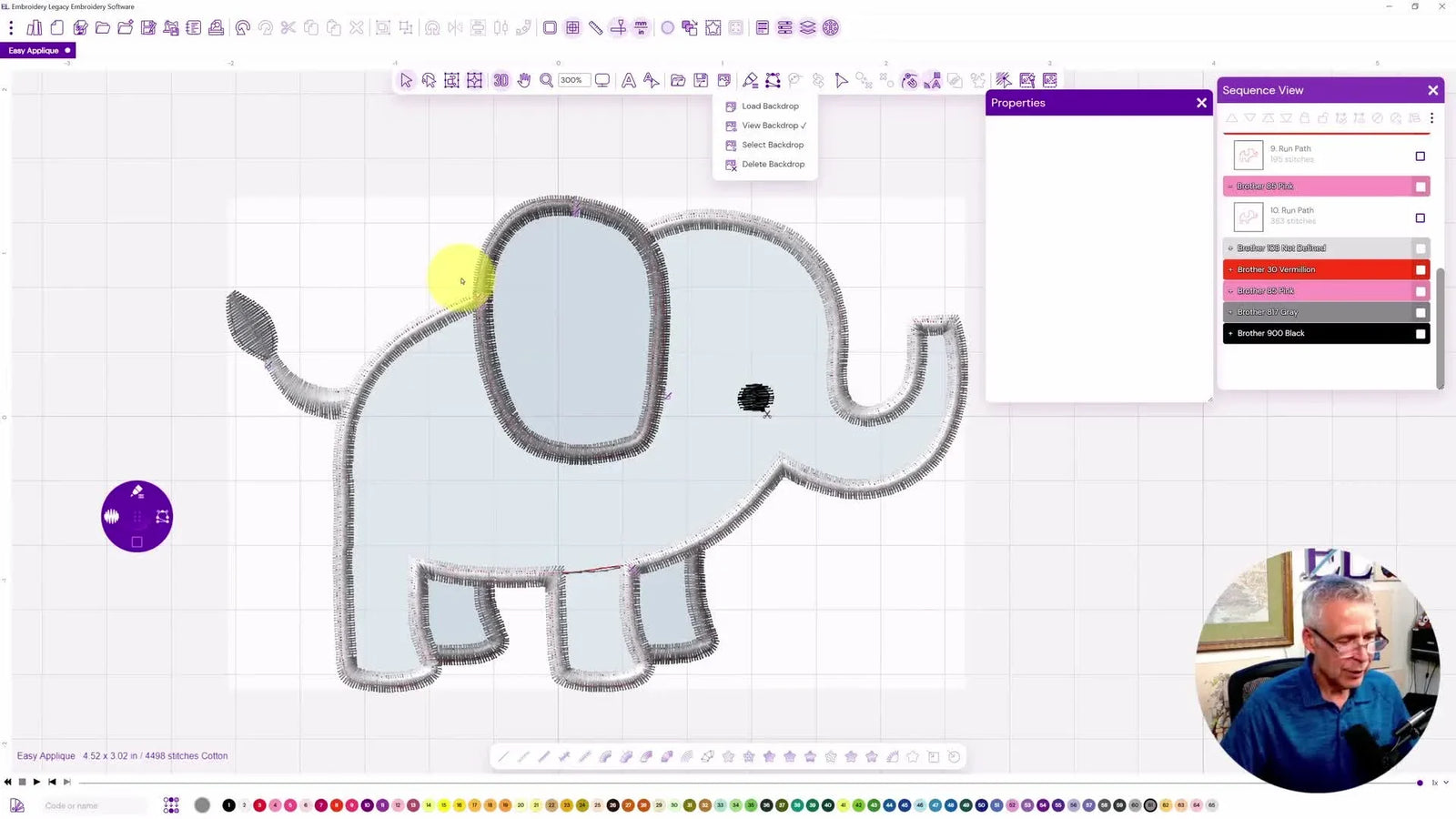

Manual Appliqué Digitizing in EL Digitizer: The Clean, Fast Elephant Workflow (and a Better Stitch-Out on Tajima)

If you’ve ever watched an auto-appliqué tool “almost” do what you want—then spent longer fixing the jumbled nodes than it would’ve taken to digitize manually—this elephant project will feel like a breath of fresh air.

Embroidery is an experience science. It’s about the physics of pull, the texture of fabric, and the logic of layering. The video you just watched demonstrates a full manual appliqué workflow in EL Digitizer: planning layers, digitizing satin borders, adding placement lines, and stitching it out on a Tajima using a magnetic hoop.

I’m going to rebuild that exact process for you. But I’m going to add the "why" and the "safety margins" that raw tutorials often skip, ensuring you can replicate this tomorrow on a logo, a mascot, or a custom patch without breaking a needle.

Calm the Panic: Manual Appliqué in EL Digitizer Is Faster When Your Shapes Are Open

The instructor’s key decision here is strategic: the elephant’s appliqué pieces (legs, body, ear) are open shapes. Manual control avoids the "auto tool → cleanup → more cleanup" distress loop.

The Cognitive Shift: Auto-appliqué tools shine on closed, predictable shapes (like a circle badge). When shapes are open or need to overlap logically (like a leg tucking behind a body), manual digitizing wins because you dictate the stitch logic before the software generates a single node.

Pro Tip on Visuals: don’t obsess over matching on-screen thread colors to your final fabric immediately. The machine only cares about Stop Commands (Color Changes). Use high-contrast colors (e.g., bright neon on a dark background) while digitizing so you can physically see where your lines connect.

The “Game Plan” That Prevents Rework: Sequencing Legs → Body → Ear (3 Appliqués)

Before placing a single point, the video locks in the stitch order. This is the architectural blueprint:

1. Legs first (background layer).
2. Body second (middle layer).
3. Ear last (foreground layer).

Why this matters: Appliqué is a controlled layering problem. If you digitize the ear first and then cover it with the body, you create "stitch bulk"—a hard lump under the fabric that creates a visible ridge and can deflect your needle.

Video Design Facts (Your Baseline):

• Design size: 4.5" wide × 3" high.
• Stitch count: ~498 stitches (extremely efficient).


The “Hidden” Prep Pros Do First: Artwork Visibility, Tools, and a No-Surprises Test Mindset

Most failures happen before the software is even open. Here is the prep routine to ensure success.

Prep Checklist: The "No-Fail" Protocol

• Artwork Scale: Confirm your artwork size matches the intended output (4.5" × 3" here). Scaling after digitizing alters density and stitch length—dangerous territory.
• Visual Opacity: Reduce artwork opacity (dim the background image) so your stitch nodes stand out.
• Layer Strategy: Decide your order (Legs → Body → Ear).
• Tool Readiness: Have Duckbill Appliqué Scissors ready. attempting to trim appliqué with standard straight scissors is a recipe for cutting your base fabric.
• Consumable Check: Ensure you have temporary spray adhesive or a glue stick if your fabric is slippery, and sharp needles (Organ 75/11 is a standard starting point).

A comment theme on the video is "fascinating and informative," but the real win is repeatability. If you build a consistent prep routine, you can re-digitize older designs with professional confidence.

Steel Stitch Borders at 2.5 mm: Clean Satin Edges Without Fighting the Software

For the legs, the video uses Steel stitch (a fixed-width satin).

The Magic Number: 2.5 mm The video sets the Stitch width to 2.5 mm.

• Expert Calibration: For beginners, 2.5 mm is a safe lower limit. Anything narrower than 2.0 mm risks not covering the raw fabric edge if your trimming isn't perfect. If you are using fluffy fabric (like terry cloth), bump this to 3.5 mm or 4.0 mm to prevent the stitches from sinking.

Technique:

• Left-click for straight points (hard corners).
• Right-click for curves (soft flow).
• Node Hygiene: Don’t place a node every millimeter. Place points only where the curvature changes. Fewer points = smoother curves and easier editing.


The Inset “Truth Serum”: Why 100% vs 95% Changes Whether Your Border Looks Sharp or Sloppy

The video makes two specific inset moves. This controls where the stitch sits relative to your vector line.

1. Leg Steel Stitch: Inset = 100%. The stitch sits centered exactly on the line.
2. Body Object: Inset = 95%. This pulls the stitch slightly inward.

The Physics of Inset (Pull Compensation): Fabric is fluid. As you stitch, it pulls.

• 100% Inset: Good for lines that need to match up perfectly with the artwork.
• 95% Inset (Choking): This forces the stitching to bite slightly "harder" into the appliqué fabric. It’s your insurance policy against the fabric fraying or shifting slightly after you trim it.


Placement Lines That Don’t Waste Time: A Single Run That’s “Accurate Enough”

The video switches color and zooms to 600% to create placement lines inside the leg area.

The Function: This line tells you exactly where to lay your fabric. It does not need to be pretty; it needs to be visible. The instructor digitizes a single run stitch inside the border.

Contextual Note: When discussed in the context of hooping for embroidery machine setups, precise placement lines are the only way to ensure your fabric lands straight, regardless of whether you are using a standard hoop or a magnetic system.

Tack-Down That Holds Like It Means It: Double Run for Security

After placement, the video creates tack-down stitches by:

1. Digitizing a run path over the placement line.
2. Changing object property to Run Style: Double Run.

Why Double Run? A single run might snap if the fabric is pulled during trimming. A double run provides a "physical wall" that holds the fabric tension like a drum skin, allowing you to trim close without the fabric slipping out.

Warning: Mechanical Safety
Keep fingers and tools clear during the trimming phase. Appliqué scissors are sharp, and trimming close to a needle bar area is a puncture risk. Always stop the machine fully and, if possible, move the pantograph/hoop forward (using the "Frame Forward" button) before bringing your hands into the zone.

Sequence View “Save”: Drag Placement + Tack-Down to the Top So They Sew First

The video uses the Sequence View panel to reorder objects. This is critical.

• The Action: Drag Placement and Tack-down to the very top.
• The Check: If the satin border sews before the tack-down, you have failed the appliqué process.

Visual Check: In Sequence View, ensure the order is: Run (Placement) -> Stop -> Run (Tack-down) -> Stop -> Satin Border.

Classic Satin for the Body: Point/Counterpoint Without Losing Your Place

For the elephant body, the video switches to Classic Satin. The instructor uses panning shortcuts to move around the artwork.

Settings:

• Inset = 95% (Again, ensuring the border grabs the fabric edge).


Overlap Without Bulk: Carve the Ear So Fabrics Meet, Not Stack

The ear section demonstrates a "Master Level" concept: Carving.

The Problem: If you stack the Ear appliqué fabric on top of the Body appliqué fabric, you get two layers of material plus stabilizer. This creates a "bulletproof" stiff area. The Fix: The instructor digitizes the ear border but logically ends the body layer so they don't overlap excessively.

Sensory Signal: If your machine makes a loud, straining thump-thump sound when sewing over an overlap, you have too much bulk. Carving stitches prevents this acoustic warning sign.

The “Zero Stitches” Moment: Fixing the Wrong Object Type in Properties

The video highlights a common panic moment:

• Symptom: The outline object shows zero stitches.
• Diagnosis: It was treated as a satin path without width.
• Cure: Change properties from Satin to Run.

Setup That Prevents Thread Pull-Outs: Travel Runs Instead of Extra Trims

The instructor travels between leg objects using a Run stitch rather than letting the machine trim.

The "Low-Friction" Philosophy: Trims take time (slow chugging sound) and introduce a risk of the thread pulling out of the needle eye. By using "Travel Runs"—running stitches that will later be covered by the body appliqué—you keep the machine running smoothly.

If you are operating a tajima embroidery machine or any commercial unit, optimizing out unnecessary trims can save 30-60 seconds per garment.

Setup Checklist: The Pre-Flight Audit

• Border Width: Steel stitches confirmed at 2.5 mm (or wider for fluffy fabrics).
• Inset Logic: Legs at 100%, Body/Grabbing layers at 95%.
• Object Type: Placement lines are set to Run (not Satin).
• Tack-Down: Set to Double Run for security.
• Sequence: Placement → Tack-down → Borders.
• Pathing: Travel runs are placed under future layers to minimize trims.

Decision Tree: Fabric → Stabilizer → Hooping Choice

Use this logic flow to determine your physical setup.

1. What is the Base Fabric?

• Stiff (Denim/Canvas): Tearaway stabilizer is often sufficient.
• Stretchy (T-Shirt/Knit): Must use Cutaway stabilizer to prevent distortion.
• High Pile (Fleece): Use a water-soluble topping (Solvy) to keep stitches from sinking.

2. What is the Hoop Strategy?

• Standard Hooping: Good for one-offs. Watch out for "Hoop Burn" (shiny rings left on fabric).
• Production/Bulk: If you struggle with repetitive strain or hoop burn, searching for a magnetic embroidery hoop is the logical next step. These clamp fabric instantly without the "unscrew-push-pull-screw" friction of traditional rings.
• Consistent Placement: If doing 50+ shirts, look into a magnetic hooping station. This ensures every logo lands in the exact same spot on the chest, every time.

The Stitch-Out Reality Check: White Stabilizer + Blue Felt in a Magnetic Hoop

The video transitions to the physical world:

• White stabilizer hooped in a magnetic frame.
• Blue felt placed over the placement line.


If you look closely, you might see a competitor's frame (Mighty Hoop). In the industry, magnetic frames are the gold standard for avoiding "Hoop Burn." Whether you use a tajima embroidery hoop with screws or a magnetic upgrade, the goal is drum-tight tension.

The Sound of Success: Tap the hooped stabilizer with your finger. It should sound like a drum. If it sounds like paper fluttering, re-hoop.

Warning: Magnetic Hazard
Commercial-grade magnetic hoops are extremely powerful. They can pinch fingers severely. Never place them near pacemakers or sensitive electronics. Handle them with the respect you would give a power tool.

Operation Checkpoints: What You Should See at Each Stop

Appliqué is active participation. Do not walk away for coffee.

1. Stop 1 (Placement): You see a clear outline. Action: Spray placement adhesive lightly on the back of your appliqué fabric, stick it down inside the lines. Smoothing it flat is critical.
2. Stop 2 (Tack-down): The machine does the double run. Action: Stop. Remove hoop (or slide pantograph out). Trim fabric continuously, keeping scissors flat against the stabilizer.
3. Stop 3 (Finish): The Satin Border covers the raw edge. Visual Check: No raw fabric "whiskers" should be poking out.


Troubleshooting the Top Issues

If things go wrong, start here.

The Upgrade Moment: When Better Hooping Pays You Back

Manual digitizing saves stitches, but physical workflow saves your body and your profit margin.

If you are spending more time wrestling with hoops than the machine spends stitching, you have a bottleneck.

• Level 1 Fix: Better stabilizer and spray adhesive.
• Level 2 Fix: Magnetic Hoops. If you encounter terms like mighty hoop magnetic while researching, know that brands like SEWTECH offer high-compatibility magnetic solutions for both home and industrial machines that solve the "Hoop Burn" and "Wrist Pain" problems instantly.

When your production scales up, and you find yourself doing 50 elephants instead of 1, that is the moment to look at multi-needle machines (like the SEWTECH architecture) that allow you to set up the next garment while the current one runs.

FAQ

• Q: In EL Digitizer manual appliqué, how do I stop the “zero stitches” problem when the outline object shows 0 stitches on screen?
  A: Change the object property to a stitch type that can generate stitches (usually Run for placement lines, or Steel/Classic Satin for borders).
  • Open Object Properties and confirm the outline is not set to Satin without an assigned width.
  • Set placement/positioning lines to Run, and satin borders to Steel stitch or Classic Satin with a defined width.
  • Recalculate/refresh the object so the stitch count updates.
  • Success check: The object immediately displays a non-zero stitch count and shows visible stitches in preview.
  • If it still fails: Delete and redraw that outline with the correct tool (Run vs Satin) before continuing.
• Q: In EL Digitizer manual appliqué, what stitch order should Sequence View show so the appliqué fabric is not sewn down incorrectly?
  A: The correct order is Run (Placement) → Stop → Run (Tack-down) → Stop → Satin Border for each appliqué piece.
  • Drag the Placement and Tack-down objects to the very top in Sequence View.
  • Confirm the satin/steel border is not positioned before the tack-down.
  • Repeat the same logic for Legs first, then Body, then Ear if the design is layered.
  • Success check: The machine sews the placement line first, stops for fabric placement, then tack-down, stops for trimming, then finishes with the satin border.
  • If it still fails: Re-check for hidden objects in Sequence View that are sewing earlier than expected.
• Q: In EL Digitizer manual appliqué, what is a safe starting satin/Steel stitch border width for clean edges, and when should the width be increased for terry cloth or fleece?
  A: A safe starting point is 2.5 mm border width, and high-pile fabrics often need 3.5–4.0 mm to prevent edge show-through.
  • Set Steel stitch (fixed-width satin) to 2.5 mm for standard felt/cotton-type appliqué.
  • Increase width when using fluffy/high-pile fabric so stitches don’t sink and expose raw edges.
  • Trim carefully, but avoid “over-trimming” to the point the fabric edge retreats under the border.
  • Success check: No raw fabric “whiskers” are visible outside the satin border after stitching.
  • If it still fails: Increase border width slightly or adjust inset (choking) so the border bites the fabric edge more securely.
• Q: In EL Digitizer manual appliqué, why does changing inset from 100% to 95% affect whether the satin border looks sharp, and what inset values are used for legs vs body in this workflow?
  A: Use Inset = 100% when you want the stitch centered on the line (legs), and Inset = 95% when you want the border to pull inward and “grab” the fabric edge (body).
  • Apply 100% inset for the leg Steel stitch border when alignment to the drawn line is critical.
  • Apply 95% inset for the body (and other “grabbing” borders) to reduce fray risk and compensate for fabric pull.
  • Keep changes consistent across similar pieces so edges match visually.
  • Success check: The satin border sits cleanly over the appliqué edge without gaps or fuzzy edge exposure.
  • If it still fails: Choke more (for example, move inset further inward) and verify trimming accuracy and fabric stability.
• Q: In manual appliqué, how do I prevent appliqué fabric from pulling out during trimming, and what tack-down setting is used in this workflow?
  A: Use a Double Run tack-down so the fabric is held firmly before trimming.
  • Digitize the tack-down directly over the placement line path.
  • Change object property to Run Style: Double Run for a stronger hold.
  • Stop the machine fully before trimming, and keep scissors flat against the stabilizer while trimming.
  • Success check: The fabric stays drum-tight inside the tack-down line and does not lift or shift while trimming.
  • If it still fails: Leave a small trimming margin (about 1 mm) and confirm adhesive was applied lightly and evenly.
• Q: When stitch-outs get a thick, hard ridge and the embroidery machine makes a loud “thump-thump” sound at overlaps, how do I reduce bulk in layered appliqué?
  A: Avoid stacking appliqué layers by “carving” so fabrics meet instead of overlapping heavily.
  • Plan the layer order (Legs → Body → Ear) before digitizing to control what sits on top.
  • Edit the underlying layer boundary so the next appliqué piece does not build a multi-layer lump in the same spot.
  • Keep borders clean and avoid unnecessary overlaps where the needle must punch through extra thickness.
  • Success check: The stitch-out feels flatter by hand and the machine runs smoothly without the strain-thump sound at the overlap area.
  • If it still fails: Re-check the sequence and redesign the overlap region so only one appliqué fabric layer is under the border at a time.
• Q: When hooping stabilizer for appliqué with a magnetic embroidery hoop, how do I judge correct hoop tension and what magnetic safety rules must be followed?
  A: Hoop for drum-tight tension and handle magnetic hoops like a power tool because finger pinches are a real hazard.
  • Tap the hooped stabilizer; aim for a drum-like sound (not a paper-flutter sound).
  • Re-hoop if the stabilizer feels slack or can be pushed into a wave with a light finger press.
  • Keep fingers clear when closing the magnetic frame; magnets can clamp suddenly and hard.
  • Success check: The stabilizer is tight and stable, and the hoop closes securely without shifting the layers.
  • If it still fails: Switch stabilizer type based on fabric behavior and re-check that the hooping surface is flat and fully seated.
  • Safety note: Keep strong magnetic hoops away from pacemakers and sensitive electronics.
