Make Your BERNINA 790 PRO Feel “Smarter”: Set Up the Stitchout App, Catch Thread Breaks Fast, and Prep Colors Like a Pro

The BERNINA 790 PRO is a marvel of Swiss engineering, but let’s be honest: if you are spending hours staring at it while it stitching, you are working for the machine, not the other way around.

The Stitchout App is marketed as a convenience feature—a way to monitor your embroidery from another room. But as someone who has managed production floors and taught thousands of students, I view it differently. It is a psychological tether cutter. It allows you to leave the room to press fabric, invoice a client, or simply drink a coffee without the nagging "phantom thread break" anxiety.

However, technology only works if the physical setup is flawless. An app cannot fix bad tension, and WiFi cannot un-pucker a poorly hooped t-shirt. Below is a "Zero-Friction" guide to setting up the app, calibrated with the safety margins and physical realities of a working embroidery studio.

The Calm-Down Check: What the BERNINA Stitchout App Can (and Can’t) Do on a BERNINA 790 PRO

Before we dive into settings, let's recalibrate your expectations. The Stitchout App connects your smartphone to the 790 PRO via your local WiFi network. It acts as a passive monitor, not an active controller.

What it does (The Reliability Layer):

• Visual Confirmation: Shows you the thread color sequence before you commit.
• Time Management: Displays the percentage complete and minutes remaining so you can multitask.
• Alert System: Notifies you physically (vibration/sound on phone) when the machine stops for a color change, thread break, or completion.

What it does NOT do (The Safety Boundary):

• It does not allow you to move the hoop or needle remotely (a critical safety lockout).
• It does not work with every older 7-Series machine without the specific WiFi hardware update.
• It does not compensate for physical errors like hoop burn or shifting fabric.

If your goal is freedom of movement, this app is the key. If your goal is better stitch quality, that still depends on your hands, your stabilizer, and your hoop choice.

The “Hidden” Prep Before WiFi: What to Have Ready So Pairing Doesn’t Turn Into a 30-Minute Spiral

Most connection failures happen because the user is rushing. We are going to slow down to speed up. Before you touch a single button on the screen, execute this "Pre-Flight" check.

Prep Checklist (Do this OR expect failure)

• Network Intelligence: You must know your exact WiFi SSID (Network Name) and Password. Note: The machine operates best on standard 2.4GHz networks; 5GHz can sometimes be invisible to embroidery machine operating systems.
• The Hardware Handshake: Your smartphone must be connected to the exact same network you intend to put the machine on. Not "Guest," not "5G," and definitely not cellular data.
• Physical Readiness: Have your hoop and fabric ready. We want to test the connection with a real stitchout, not a simulation.
• Clean Slate: Ensure the machine is updated to the latest firmware.

Expert Tip: If you have spotty WiFi in your sewing room, don't blame the machine. Embroidery machines have smaller antennas than iPads. If your phone has 1 bar of signal, the machine might have none. Install a WiFi extender before attempting this setup.

Name It Like You Mean It: Renaming the BERNINA 790 PRO So You Don’t Pair to the Wrong Machine

In a classroom or studio environment, seeing five devices named "B790PRO" is a nightmare. Even in a home studio, giving your machine a unique identity prevents digital confusion.

Step-by-Step Execution

1. Access Settings: Tap the gear icon (Settings) on your machine screen.
2. Locate ID: Find the machine ID/Name field.
3. Rename: Use the stylus to type a distinct name. In our example, we use “myB790PRO”, but I recommend something distinct like "Studio-Main" or "Blue-Room".
4. Reboot: Restart the machine. This forces the network card to broadcast the new identity.

Why this matters: When the app scans for the machine later, you need 100% certainty you are connecting to your active machine, not a ghost signal from a previous session.

Get the WiFi Screen Right on the BERNINA 790 PRO: The One Detail That Breaks Most Connections

This is the critical junction. If the machine isn't firmly shook hands with your router, the app is useless.

The Connection Sequence

1. Open WiFi Tab: In the settings menu, select the WiFi icon.
2. Activate: Toggle the WiFi switch to ON.
3. Scan & Select: Wait for the list to populate. Select your specific network (e.g., “MyNetwork”).
4. Credentials: Enter your password carefully. Sensory Check: Ensure you hear the confirmation beep on the keys.
5. Verification: Look for the Check Mark next to the network name and the signal strength bars (e.g., 98%).

Warning: Electronic Safety. Never rely on the app to stop the machine in an emergency. If you hear the "thump-thump" sound of a needle hitting the needle plate or the "grinding" of a bird's nest, you must physically be near the machine to hit the stop button. The app has a latency (delay) of 1-3 seconds.

Setup Checklist (The "Green Light" Audit)

• Machine WiFi is ON.
• Network name has a green Check Mark.
• Signal strength is above 50%.
• Phone is on the same network.

Pair the Stitchout App to “myB790PRO” Without Guessing: What You Should See on Your Phone

Now that the infrastructure is solid, the pairing should be instant.

The Pairing Protocol

1. Launch: Open the BERNINA Stitchout App on your device.
2. Scan: The app will automatically search the local network.
3. Identify: You should see “myB790PRO” (or your custom name) appear.
4. Connect: Tap the name.


Visual Anchor: You will see a "Connecting..." animation followed by the main dashboard. If it spins forever, 99% of the time your phone switched back to cellular data or a different WiFi network. Check your phone settings first.

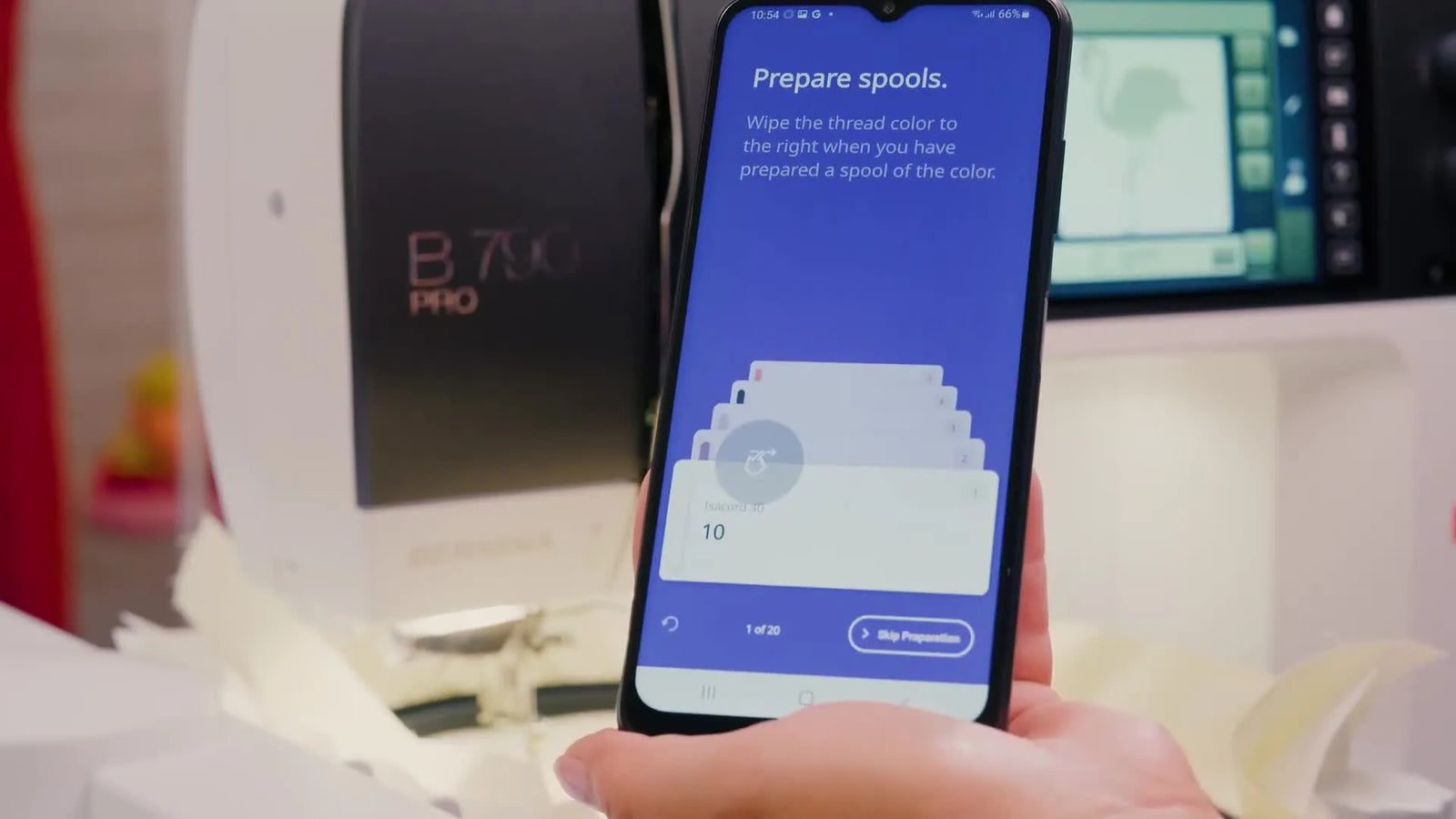

Use the Stitchout App’s Color List Like a Threading Plan (Not Just a Pretty Screen)

Most beginners ignore this screen, but pros use it to stage their workflow. The Color List is your roadmap.

In the interface, you will see a sequence: Pink (2762 stitches) -> Grey -> Black. Instead of just looking at it, use this data:

1. Time Estimation: The pink section will take roughly 25 minutes. That is 25 minutes of "safe time" to do other work.
2. Staging: While the pink stitches, line up the Grey and Black spools next to the machine.

The Workflow Bottleneck: If you are running production, your slowdown isn't usually the machine; it's the time spent hooping and changing threads. If you find yourself constantly fighting to get the next hoop ready before the machine finishes, your physical workspace needs an upgrade. This is where an embroidery hooping station becomes vital—it holds your hoop and stabilizer in a fixed position, allowing you to use both hands to smooth the fabric, ensuring your next load is ready the second the app pings you.

Start the Stitchout and Monitor Progress on Your Phone: What the App Shows While the Needle Is Moving

You press the green button on the machine. The needle starts moving. Now, walk away.

On your phone screen, you will see:

• The Design: A visual representation (e.g., the flamingo).
• The Ring: A circular progress bar filling up.
• The Maths: Percentage complete and ETA.






The Psychological Shift: The first time you trust the app, you will feel nervous. That is normal. Listen to the machine from the other room. A happy embroidery machine has a rhythmic, sewing-machine hum. A problem sounds like a loud clunk or a change in pitch.

If you are constantly getting "Hoop limits" or "Check Fabric" errors, the issue is likely physical. Traditional screw-tightened hoops can be difficult to secure evenly, leading to fabric slippage that triggers sensors. Many serious hobbyists and pros switch to magnetic embroidery hoops because the magnets self-align the fabric tension without the need for brute force twisting of screws.

Don’t Miss Color Changes: Using Stitchout Notifications to Keep Your Rhythm (and Your Sanity)

Embroidery is a game of "Stop and Go." The efficiency is lost in the "Stop" times.

When the machine finishes the Pink color, your phone will buzz. The "1-Minute Rule": In a professional shop, if a machine sits idle for more than 1 minute, you are losing money (or free time).

• Old Way: Check machine every 10 minutes -> realise it stopped 9 minutes ago -> frustration.
• App Way: Phone buzzes -> finish your sip of coffee -> walk to machine -> change thread -> hit start.

If you are using a single-needle machine, these stops are frequent. If you find the constant cap-snapping and re-threading is hurting your fingers or slowing you down, you might look for faster hooping solutions. A bernina snap hoop can sometimes assist with faster fabric release, but ultimately, minimizing downtime is about being alerted immediately.

When the App Says “Upper Thread Is Broken or Empty”: Fix It Fast Without Creating a Bigger Problem

This is the notification no one wants, but the one you need most. Alert: “Upper thread is broken or empty.”

The Diagnosis Protocol

When you get this alert, don't just re-thread. That’s how you get 10 breaks in a row.

1. Check the Path: Is the thread caught on the spool pin? Did it twist around the guide?
2. Check the Needle: A bent needle (even slightly) shreds thread. Run your fingernail down the needle shaft; if you feel a snag, replace it.
3. Tactile Tension Check: Pull the thread through the needle eye. It should feel like pulling dental floss through teeth—firm resistance, but smooth. If it's loose, you have no tension. If it snaps, it's too tight (or caught).

Hidden Consumable: Keep a bottle of interactions spray (like silicone spray for thread) or a "sewer's aid" liquid. A drop on the spool can reduce friction for difficult metallic or rayon threads.

The Decision Tree I Use for Clean Stitchouts: Fabric + Stabilizer + Hooping Tension (So the App Isn’t Babysitting a Mess)

The app reports the news; it doesn't make the news. To ensure the news is good, you need to make the right physical decisions before you hit start.

The Fabric-Physics Decision Tree

Use this logic to avoid 90% of disasters:

• Scenario A: Stable Cotton / Linen (No Stretch)
  • Action: Use Tear-away or Cut-away stabilizer. Hoop with "Drum Skin" tension.
  • Result: Low risk of distortion.
• Scenario B: Knits / Polos / T-Shirts (Stretchy)
  • Action: Must use Cut-away stabilizer (Mesh). Do NOT stretch fabric in the hoop; lay it flat. Use a topping (water-soluble) to keep stitches on top.
  • Result: Prevents the design from turning into a ball of wrinkles.
• Scenario C: Thick Jackets / Towels / Delicate Velvets
  • Action: Standard hoops will leave "hoop burn" (crushed pile) that may never come out.
  • Solution: This is the specific use case for the bernina magnetic embroidery hoop. The magnets hold the floating fabric securely without crushing the fibers like a vice-grip inner ring does.

Warning: Magnetic Safety.
If you upgrade to commercial-grade magnetic hoops, be aware they use powerful Neodymium magnets.
1. Pinch Hazard: They snap together with force. Keep fingers clear.
2. Medical Devices: Keep them away from pacemakers.
3. Electronics: Keep them away from credit cards and screens.

“App Not Connecting to Machine” Isn’t a Mystery: The Two Checks That Solve Most Pairing Failures

If the app refuses to talk to the machine, don't panic. It is rarely the machine's main board.

Troubleshooting Hierarchy:

1. The "Same Network" Rule: Is your phone on "Home-Guest" and your machine on "Home-Main"? They must match.
2. The "Privacy" Toggle: On iPhones, ensure "Local Network Access" is enabled for the Stitchout App in your phone's main settings.
3. The Reboot: Turn the machine off, wait 10 seconds, and turn it on. This clears the network cache.

The Hoop Reality Check: Large Oval Hoop Today, Jumbo Hoop Limits Tomorrow (and Why It Matters for Planning)

The tutorial shows the Large Oval Hoop selected. This is the workhorse of the BERNINA ecosystem.

However, be aware of the physics of the 7 Series (including the 790 PRO). While it can physically accept the massive Jumbo Hoop, it cannot stitch the full field width because the needle head is too wide relative to the frame arm.

• The Trap: You plan a massive design on your PC software.
• The Reality: The machine greys out the edges of the field.

The Fix: Always verify your design fits the stitchable area, not just the physical hoop size. Understanding the exact dimensions of machine embroidery hoops and their stitchable limits on your specific model prevents the heartbreak of resizing a design at the last minute.

Run the Stitchout Like a Production Operator: What to Do While the App Watches the Machine

The app buys you time. How you spend it determines your efficiency.

Operation Checklist (The Pro Routine)

• Pre-Cut: Cut your stabilizer for the next project while the current one runs.
• Pre-Thread: Line up the next 3 colors in order.
• Un-Hoop: If you have a second hoop, hoop the next garment now.
• Listen: Keep one ear open for the sound of the machine.

If you are running a business, you will eventually hit a ceiling where a single-needle machine (even a pro one like the 790) is too slow because of the constant thread changes. This is the moment to evaluate your ROI. Detailed operators often start determining the break-even point for a multi-needle machine (like SEWTECH high-speed models) which handles 12-15 colors without a single stop. But until then, speed up your single-needle workflow by using magnetic embroidery hoops to slash your re-hooping time by 50%.

The Finish-Line Standard: What to Check When the App Says “Congratulations”

The screen says “Congratulations! Your embroidery design is completed.”

Do not just rip it out of the hoop yet.

The QA (Quality Assurance) Protocol

1. Thread Trims: Check for any long jump stitches the machine missed.
2. Registration: Did the black outline land exactly on the pink body? (If not, your loose hooping caused the fabric to slip).
3. Puckering: Look around the edges. Is the fabric pulling?
4. Backing: Flip it over. Is the bobbin tension balanced (should be 1/3 white in the center)?

The Upgrade Path That Actually Makes Sense: App for Awareness, Hoops for Speed, and Machines for Volume

The Stitchout App is a fantastic tool for mental peace. It allows you to step away without fear. But it is just one part of the ecosystem.

To truly master embroidery, you must address the physical constraints:

1. The Constraint of Grip: If you struggle with thick items or hoop burn, searching for bernina magnetic hoop options is the logical step to protect your materials.
2. The Constraint of Size: Ensure you have the right bernina magnetic hoop sizes for your projects—too big, and you waste stabilizer; too small, and you risk hitting the frame.
3. The Constraint of Time: When the app is buzzing every 2 minutes for a thread change, and you have 50 shirts to do, that is the clear signal to upgrade to a Multi-Needle machine.

Use the app to stay connected, but use the right tools to stay profitable. Happy stitching.

FAQ

• Q: Why does the BERNINA Stitchout App keep spinning on “Connecting…” when pairing with a BERNINA 790 PRO?
  A: In most cases, the phone and the BERNINA 790 PRO are not truly on the same WiFi network (or the phone switched back to cellular).
  • Confirm the phone is connected to the exact same WiFi SSID as the BERNINA 790 PRO (not “Guest,” not “5G,” not cellular).
  • Open BERNINA 790 PRO Settings → WiFi, verify WiFi is ON, and verify the correct network shows a check mark and usable signal.
  • Reboot the BERNINA 790 PRO (power off, wait 10 seconds, power on) to clear the network cache.
  • On iPhone, enable Stitchout App “Local Network Access” in iOS Settings.
  • Success check: the app shows the named machine (for example, the custom machine name) and loads the main dashboard instead of spinning.
  • If it still fails: improve WiFi coverage in the sewing room (a WiFi extender often helps) and try again.
• Q: What WiFi settings on a BERNINA 790 PRO most commonly prevent the BERNINA Stitchout App from connecting?
  A: The most common blocker is using a network the machine cannot “see” reliably (often 5GHz) or entering the password incorrectly.
  • Use a standard 2.4GHz WiFi network when possible, because 5GHz may be invisible to some embroidery machine operating systems.
  • Enter the WiFi password slowly on the BERNINA 790 PRO and listen for the key beep confirmation as you type.
  • Verify the WiFi screen shows a check mark next to the chosen SSID and signal strength above 50%.
  • Success check: the BERNINA 790 PRO shows the selected network with a check mark and stable signal bars, and the Stitchout App discovers the machine quickly.
  • If it still fails: move the router/extender closer or improve signal strength before troubleshooting the app further.
• Q: How do you rename a BERNINA 790 PRO so the BERNINA Stitchout App does not pair to the wrong machine in a studio?
  A: Rename the machine in the BERNINA 790 PRO settings and reboot so the new name broadcasts correctly.
  • Open the gear icon (Settings) on the BERNINA 790 PRO screen.
  • Find the machine ID/Name field and type a unique name (for example, “Studio-Main”).
  • Restart the BERNINA 790 PRO to force the network card to broadcast the new identity.
  • Success check: the Stitchout App scan list shows the new custom name, not multiple identical default names.
  • If it still fails: reboot both the phone and the machine and re-scan on the same WiFi network.
• Q: What should be checked first when the BERNINA Stitchout App alerts “Upper thread is broken or empty” on a BERNINA 790 PRO?
  A: Do not just re-thread—first find the cause in the thread path, needle condition, and “feel” of tension to avoid repeated breaks.
  • Inspect the upper thread path for snags: check the spool pin and guides for a wrap or catch point.
  • Replace the needle if it is bent or has a snag (even a slight defect can shred thread).
  • Do a tactile tension check: pull thread through the needle eye; it should feel firm but smooth, not loose and not snapping.
  • Consider adding a drop of thread lubricant (such as sewer’s aid) on the spool for difficult threads; this may reduce friction (follow product directions and machine guidance).
  • Success check: after fixing the cause, the machine stitches several minutes without another “Upper thread is broken or empty” alert.
  • If it still fails: re-check for a hidden snag point along the path and swap to a fresh needle again before changing other settings.
• Q: What is the safest way to respond if a BERNINA 790 PRO makes a “thump-thump” or loud grinding sound while using the BERNINA Stitchout App?
  A: Treat unusual impact or grinding sounds as an immediate stop situation—go to the machine and stop it physically, not through the app.
  • Walk to the BERNINA 790 PRO and press the physical stop button immediately.
  • Check for needle contact with the needle plate or a bird’s nest (thread jam) before restarting.
  • Resume only after the sound returns to a steady, rhythmic sewing-machine hum.
  • Success check: the machine runs with a consistent hum and no sudden pitch changes or clunks.
  • If it still fails: do not continue “testing” with repeated starts—inspect the setup (threading, needle, hooping) before running again.
• Q: What stabilizer and hooping method should be used on knit T-shirts to prevent puckering on a BERNINA 790 PRO stitchout (even if the BERNINA Stitchout App is working)?
  A: Use cut-away stabilizer (mesh), avoid stretching the knit in the hoop, and add a topping—this prevents most puckering and distortion.
  • Choose cut-away stabilizer (mesh) for knits/polos/T-shirts; avoid tear-away as a primary stabilizer for stretch fabric.
  • Hoop without stretching: lay the shirt flat and smooth it, rather than pulling it tight like a drum.
  • Add a water-soluble topping to keep stitches sitting cleanly on the surface.
  • Success check: after stitching, the design edge area stays flat instead of rippling, and the fabric around the design is not pulling inward.
  • If it still fails: reassess hooping tension and fabric slippage—uneven tightening on traditional hoops can let fabric shift.
• Q: How can hoop burn be avoided on thick jackets, towels, or delicate velvet when embroidering on a BERNINA 790 PRO, and what is the magnetic hoop safety rule?
  A: If standard hoops crush fibers and leave hoop burn, a magnetic hoop is often the practical solution—but handle strong magnets with strict safety habits.
  • Identify the risk fabrics (thick pile towels, jackets, delicate velvets) where a vice-grip style inner ring can permanently crush the surface.
  • Use a magnetic hoop to hold fabric securely without the same crushing pressure pattern as a standard screw-tightened hoop.
  • Follow magnetic safety: keep fingers clear to avoid pinches, keep magnets away from pacemakers, and keep magnets away from credit cards and sensitive electronics.
  • Success check: the fabric surface shows minimal to no crushed ring after unhooping, while the stitchout remains stable (no shifting).
  • If it still fails: reduce handling pressure, adjust how the fabric is supported during hooping, and confirm the fabric is not being forced or distorted.
