Make the Distortion Tool Behave: Zigzag, Wave, Twirl, Pinch & Spherize Effects That Actually Stitch Out Clean

Master the Distortion Tool: From "One-Click Wonder" to Production-Ready Embroidery

When you first discover a Distortion Tool inside your digitizing software, it feels like stumbling upon a "free creativity button." You click Twirl, and suddenly a boring circle becomes a hypnotic galaxy. You click Pinch, and flat text pops out like 3D foam.

But then, the "Experience Gap" hits. You send that beautiful file to your machine, and reality pushes back. The screen showed a masterpiece, but the machine delivers a nightmare: sound-barrier-breaking vibration, thread breaks every 30 seconds, and a design that looks like a bullet hole rather than a sphere because the density ate the fabric alive.

As someone who has spent two decades listening to the rhythm of embroidery machines, I can tell you this: Software ignores physics; your machine cannot.

In this guide, I will walk you through the exact workflow for using Zigzag, Wave, Twirl, Pinch, and Spherize. But more importantly, I will overlay the "Physical Safety Rules" that keep your needles intact, your fabric flat, and your production profitable.

The "Why Is It Greyed Out?" Moment: Activating the Tool Without Frustration

The most common panic moment for a beginner isn’t a broken needle; it’s a button that won’t click. The Distortion Tool will remain stubbornly grey until you give it a specific target.

The Action Plan:

1. Select an Object First: Click on the specific fill pattern or text block you want to warp. The moment the "bounding box" appears around your object, the Distortion icon will light up.
2. Visual Clarity Hack: Before you click the tool, turn off your underlay visibility. Underlay is crucial for structure, but on-screen, it creates visual "noise" that makes it hard to see the subtle curves of a Wave or Spherize effect.


Prep Checklist: The "Pre-Flight" Safety Scan

Before you warp a single pixel, run this mental scan. Skipping this is why designs pucker.

• Object Selection: Confirm you have selected a Fill or Satin object, not a bitmap image.
• Needle Check: If you plan to use smooth distortions (Wave/Spherize) on satin stitches, ensure you have a fresh 75/11 needle. Burred needles will snag on the longer satin floats created by distortion.
• Fabric Strategy: If you are distorting a fill, you are changing the "pull compensation" physics. If using knit fabric, commit to Cutaway stabilizer now. Tear-away will not hold a distorted fill.
• Hidden Consumable: Have temporary spray adhesive ready. Distorted designs pull fabric from weird angles; floating the fabric isn't enough—you need the chemical bond.

Zigzag Distortion: Adding Rugged Texture (And Managing Friction)

Zigzag transforms smooth lines into a saw-tooth pattern. It’s excellent for creating fur textures, grass, or "electric" energy effects.

The Controls:

• Frequency: How many spikes appear per inch.
• Amplitude: How tall or sharp the spikes are.

The Physical Reality: On screen, high amplitude looks cool. On the machine, high amplitude creates "sharp corners." Every time the machine has to stitch a sharp corner, it slows down and accelerates.

• Sensory Anchor: Listen to your machine. If you hear a grinding, mechanical "growl" rather than a hum, your angles are too sharp. High-frequency Zigzag generates friction.


Pro Tip (The Stretch Factor): Zigzag fills act like an accordion. They want to expand and contract. If you stitch this on a stretchy performance tee without a solid hoop, the fabric will wave.

• Correction: Use a Mesh Cutaway stabilizer and ensure your hooping is "drum-tight" (taut, not stretched).

Wave Distortion: The "Liquid" Look for polished Finishes

Wave is the sophisticated cousin of Zigzag. It uses the same Frequency/Amplitude controls but rounds off the sharp edges.

When to Use It:

• Water effects.
• Softening the look of geometric logos.
• Creating "organic" backgrounds that don't look computer-generated.


Why It Runs Better: Because the needle path follows a curve rather than a jagged point, your machine can maintain momentum. You can often run Wave patterns at 700-800 SPM (Stitches Per Minute), whereas intense Zigzag patterns might require slowing down to 500-600 SPM to prevent thread shredding.

Twirl Distortion: The "Vortex" and the Hoop Burn Trap

Twirl acts exactly like a hurricane, spinning the stitch angles around a central point. While visually stunning, this is the most dangerous distortion for lightweight fabrics.

The Physics of the Twist: When stitches rotate, they pull the fabric toward the center from 360 degrees. This creates a "volcano" effect where the center bunches up.

The Hooping Crisis: To combat this central pull, novices often over-tighten their standard hoops, cranking the screw until their knuckles turn white.

• The Problem: This crushes the fabric fibers, leaving permanent "hoop burn" rings that won't iron out.
• The Commercial Solution: This is the classical trigger point for upgrading your tooling. If you are fighting fabric prone to bruising (like velvet or delicate polyester), magnetic embroidery hoops are the industry answer. They use vertical magnetic force to clamp the fabric without the friction-burn of inner/outer ring grinding.

Pinch Distortion: Creating the Faux 3D Bubble

Pinch makes flat objects look like they are bulging toward the viewer.

The Controls:

• Radius: How wide the bubble is.
• Scale: How "inflated" the bubble looks.


The Density Trap: When you "Pinch" a design, you aren't just moving stitches; you are often pushing them closer together in the center.

• Visual Check: Zoom in on the center of your pinched design. If the stitches look like a solid block of color, you have created a "bulletproof" zone.
• The Consequence: If the density is too high, the needle will struggle to penetrate, leading to "bird nesting" (thread tangles) underneath the bobbin.

Warning: Mechanical Safety Alert. Extreme Pinch distortion can create density hotspots where needle deflection occurs. A deflected needle can strike the throat plate and shatter, sending metal shards flying. Always wear protective eyewear when testing high-density distortions, and reduce your machine speed to 600 SPM max.

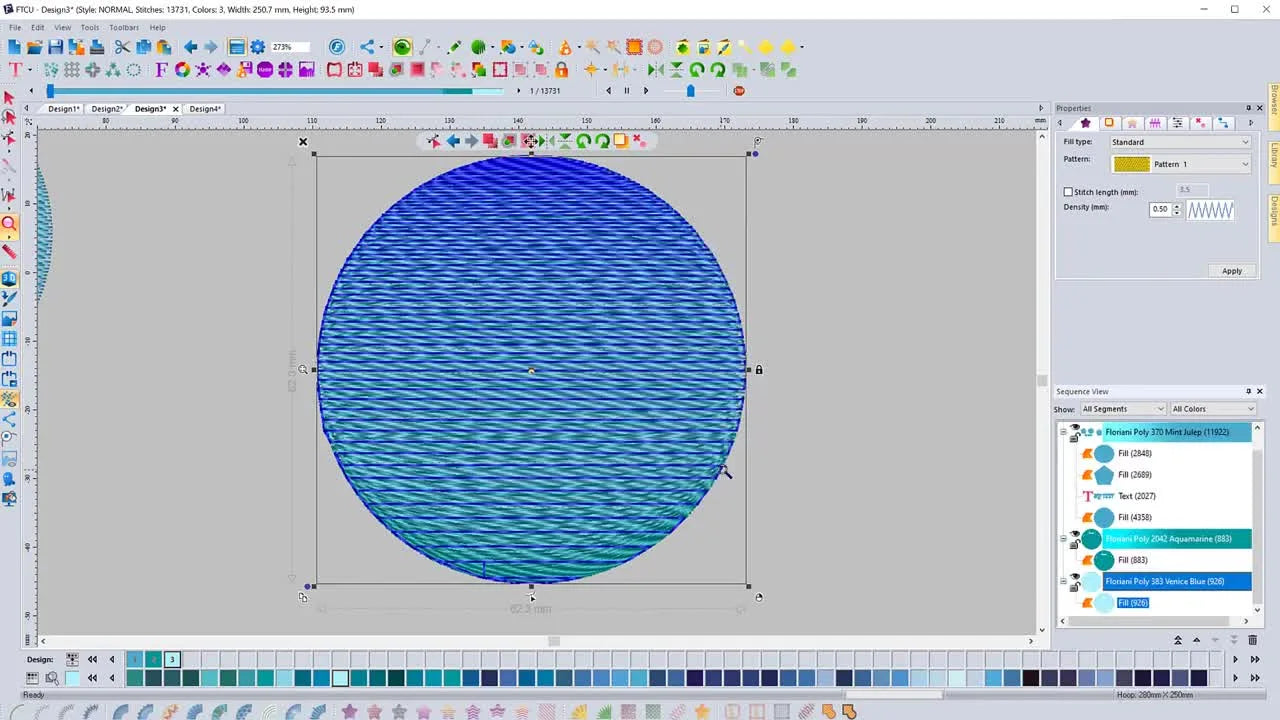

Spherize Distortion: The "Orb" Effect & Gradient Mastery

Spherize is unique because it often pushes the stitch orientation into a defined circular flow. It turns a flat circle into a ball.

The "Steal This Workflow" Strategy: Layered Color Blending

The tutorial highlights a brilliant technique for making designs look premium without adding cost: The 3D Gradient Sphere.

The Steps:

1. Create: Draw a perfect circle and convert to Fill Stitch.
2. Duplicate: Create three copies stacked on top of each other.
3. Color: Assign three different shades (Shadow, Mid-tone, Highlight).
4. Gradient: Apply gradient settings to each layer, fading them in opposite directions.
5. Distort: Apply Spherize to each layer individually.






Why Multi-Needle Machines Win Here: You can do this on a single-needle machine, but you will stop to change threads three times for one small element. If a design has ten spheres, that is 30 manual thread changes.

• The Upgrade Path: This is where the ROI (Return on Investment) of a machine like the SEWTECH multi-needle series becomes undeniable. You set the colors once, press start, and walk away. The machine handles the layering automatically, turning a 45-minute frustration into a 10-minute production run.

Distorting Text: The "Thread Thickness" Reality Check

You can distort live text—twisting names, waving slogans. But text has a physical limit that software doesn't warn you about: Thread is not infinite.

The 1.2mm Golden Rule: When you distort text, some parts get fatter, but others get pressed thin.

• Measurement: After distorting, use your software's ruler tool to measure the thinnest part of the satin column.
• The Red Zone: A standard 40wt embroidery thread needs a column width of at least 1.0mm - 1.2mm to form a clean satin stitch.
• The Fail State: The video shows a column squeezed down to 0.5mm. At this size, the needle perforations are so close they will cut the fabric like a postage stamp, and the thread will shred.


The Fix:

1. Bold is Better: Use bold, sans-serif fonts for distortion.
2. Scale Up: Make the text physically larger.
3. Refuse the Job: If a client wants 5mm tall text "Spherized," explain that it isn't physically possible in thread.

The Workflow Lock: Order of Operations

Here is the frustrating software quirk that makes grown men cry: Regeneration Reset. If you apply a perfect Twirl, and then decide to change the density from 0.40 to 0.45, the software "recalculates" the shape... and deletes your Twirl.

The Correct Sequence:

1. Shape Creation.
2. Stitch Settings (Density, Underlay, Pull Comp).
3. Distortion (Final Step).

Setup Checklist: Locking It In

• Finalize Density: Have you firmly decided on your stitch density? (Standard is usually 0.40mm - 0.45mm).
• Underlay Strategy: Is your Edge Run or Tatami underlay set?
• Color sequence: Is your gradient logic set?
• Apply Distortion: Apply the effect only after the above checks are done.

Warning: Magnetic Safety. We mentioned upgrading to magnetic frames for embroidery machine for better holding power earlier. Be aware that these magnets involve industrial strength. Keep them away from pacemakers, credit cards, and hard drives. Also, watch your fingers—they snap together with enough force to cause a painful blood blister (pinching hazard).

Troubleshooting: When The Machine Fights Back

Problem solving is 90% of embroidery. Here is your quick diagnostic table for distortion-based failures.

Symptom 1: Shredding Thread on Text

• The Look: Determine if the thread is fraying (fuzzy) or snapping clean.
• Likely Cause: The distortion squeezed a satin column below 1.0mm. The needle is hitting the same spot too often (heat buildup).
• Sensory Check: Touch the needle eye (carefully) after a break. Is it hot? That's friction.
• The Fix: Resize geometry to widen the column. Switch to a smaller needle (65/9) if the text must stay small.

Symptom 2: The "Pattern Reset"

• The Look: You load the file, but the distortion is gone.
• Likely Cause: You tweaked a setting (like density) after distorting.
• The Fix: In software, re-apply the distortion as the very last action before saving as .DST/.PES.

Symptom 3: Center Bunching / Pucker

• The Look: A volcano mound in the center of a Twirl/Pinch.
• Likely Cause: Poor stabilization or "Hoop Burn" from over-tightening.
• The Fix: Use spray adhesive to bond fabric to stabilizer. Consider a machine embroidery hooping station to ensure your backing and fabric are perfectly tensioned before the hoop goes on.

A Practical Decision Tree: Hoop & Stabilizer Strategy

When dealing with distorted designs, "guessing" is expensive. Use this logic flow:

1. Is the fabric stable? (Denim, Canvas, Twill)

• YES: Use standard Tear-away (2 layers) or Cutaway. Standard hoops differ little from magnetic here.
• NO (T-shirts, Knits, Spandex): You must use Fusible Mesh Cutaway.

2. Is the design Density High (Pinched/Twirled)?

• YES: This is a "High stress" stitch-out.
  • Hooping: Avoid traditional hoops that drag fabric. embroidery hoops magnetic are superior here because they clamp straight down, freezing the fabric grain in place without distortion.
  • Speed: Drop machine speed to 650 SPM.

3. Is this a Production Run (10+ items)?

• YES: Consistency is your enemy.
  • Tooling: A hoop master embroidery hooping station or similar jig system (like hoopmaster) ensures every logo lands in the exact same spot. When designs are distorted, even a 2mm alignment error looks obvious.

The Upgrade Path: When Good Tools Make You Better

As you move from hobby "experiments" to professional production, certain friction points will annoy you. This annoyance is usually the signal to upgrade.

• The Pain: "My wrist hurts from tightening hoop screws, and my fabric still slips on these dense 3D spheres."
• The Solution: This is the prime use case for magnetic embroidery hoop systems. They reduce physical strain and provide the "grip" needed for aggressive digitizing effects.
• The Pain: "I love these gradient spheres, but changing threads 15 times for one shirt makes me want to quit."
• The Solution: This is the universe telling you to look at a SEWTECH Multi-Needle Machine. The ability to queue up 10-15 colors and let the machine work while you handle other tasks is how you scale from a "crafter" to a "business owner."

Operation Checklist: The Final Stitch-Out

• Speed Limit: Verify machine is set to 600-700 SPM for the first run of any new distorted file.
• Watch the Bobbin: Dense fills consume bobbin thread faster. Check that you have a full bobbin before starting a large Spherize fill.
• Audit the Result: After the first run, rub your hand over the embroidery. Does it feel like stiff cardboard? If yes, reduce density in software and re-distort. It should remain pliable.

Distortion tools open a world of creativity, but they demand respect for the physical limitations of needle and thread. Respect the 1.2mm rule, stabilize heavily, and you'll turn those screen illusions into tactile reality.

FAQ

• Q: In Wilcom/Hatch-style digitizing software, why is the Distortion Tool greyed out and unclickable when editing an embroidery design?
  A: Select a stitch object (Fill or Satin) first—Distortion activates only when an editable object is targeted.
  • Click the exact Fill or Satin object until a bounding box appears around it
  • Turn off underlay visibility before distorting to reduce on-screen “noise” and see the curve clearly
  • Success check: the Distortion icon lights up immediately after the bounding box appears
  • If it still fails: confirm the selection is not a bitmap/image and not an uneditable imported stitch file
• Q: When using Twirl distortion on lightweight fabric, how can embroidery operators prevent hoop burn rings caused by overtightening a standard hoop?
  A: Stop cranking the hoop screw—use stronger stabilization and clamping that doesn’t grind fabric fibers.
  • Bond fabric to stabilizer with temporary spray adhesive to resist the 360° pull toward the center
  • Choose cutaway stabilizer on unstable fabrics instead of relying on hoop pressure alone
  • Consider switching from a screw hoop to a magnetic hoop to clamp vertically without friction burn
  • Success check: after unhooping, the fabric shows no permanent ring marks that won’t relax/press out
  • If it still fails: reduce the distortion intensity and run a slower first test stitch-out to verify fabric control
• Q: When Pinch distortion creates bird nesting (thread tangles) under an embroidery design, what is the fastest way to diagnose a density hotspot?
  A: Zoom into the pinched center—Pinch often compresses stitches into an over-dense “bulletproof” zone.
  • Inspect the pinched center at high zoom; look for stitches collapsing into a near-solid block
  • Rework the design to reduce the center density before re-applying the distortion
  • Reduce machine speed to 600 SPM max for the first test of any extreme Pinch area
  • Success check: the center stitches penetrate cleanly without a growing underside thread wad
  • If it still fails: check stabilization/adhesive holding and re-test with a less aggressive Pinch scale
• Q: What needle safety precautions should embroidery operators take when testing extreme Pinch distortion that may cause needle deflection and breakage?
  A: Treat extreme Pinch as a mechanical-risk test: slow down, protect eyes, and avoid density spikes.
  • Wear protective eyewear during test runs of high-density distorted files
  • Limit speed to 600 SPM max while proving the file
  • Reduce density hotspots in software before running production
  • Success check: the needle runs smoothly without striking the throat plate and without abnormal snapping sounds
  • If it still fails: stop immediately, revise the stitch density/geometry, and re-test at a controlled speed
• Q: How can embroidery operators stop shredded thread on distorted satin text when the satin column becomes too thin for 40wt embroidery thread?
  A: Keep the thinnest satin column at 1.0–1.2 mm after distortion, or the thread will shred from friction and perforation.
  • Measure the thinnest part of the distorted satin column with the software ruler tool
  • Switch to bold, sans-serif text and scale the text up before applying distortion
  • If the text must stay very small, try a smaller needle (65/9) as a controlled test
  • Success check: the thread no longer frays/snaps and the satin edges stay clean without “chewed” fabric
  • If it still fails: simplify the distortion on the text and avoid squeezing any columns toward 0.5 mm
• Q: In embroidery digitizing, why does the distortion effect disappear after changing density/underlay settings, and what is the correct order of operations to prevent a “pattern reset”?
  A: Apply distortion last—many programs regenerate stitches when density/underlay changes and can wipe the distortion.
  • Finalize stitch settings first (density, underlay, pull compensation, and color sequence)
  • Apply Twirl/Wave/Pinch/Spherize only as the final step
  • Save/export only after distortion is locked in
  • Success check: reopening the file or reloading the machine stitch file shows the distortion unchanged
  • If it still fails: re-apply distortion after any setting tweak and then re-save the final stitch file
• Q: What magnetic safety rules should embroidery operators follow when using industrial-strength magnetic embroidery hoops or magnetic frames?
  A: Use magnetic hoops carefully—strong magnets can affect medical devices and can pinch fingers hard.
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives
  • Handle magnets with controlled placement; do not let frames snap together unexpectedly
  • Keep fingertips out of the closing path to prevent painful pinching injuries
  • Success check: the hoop seats smoothly without sudden snapping and without finger pinch incidents
  • If it still fails: slow down the handling process and reposition using a safer grip before letting magnets close fully
