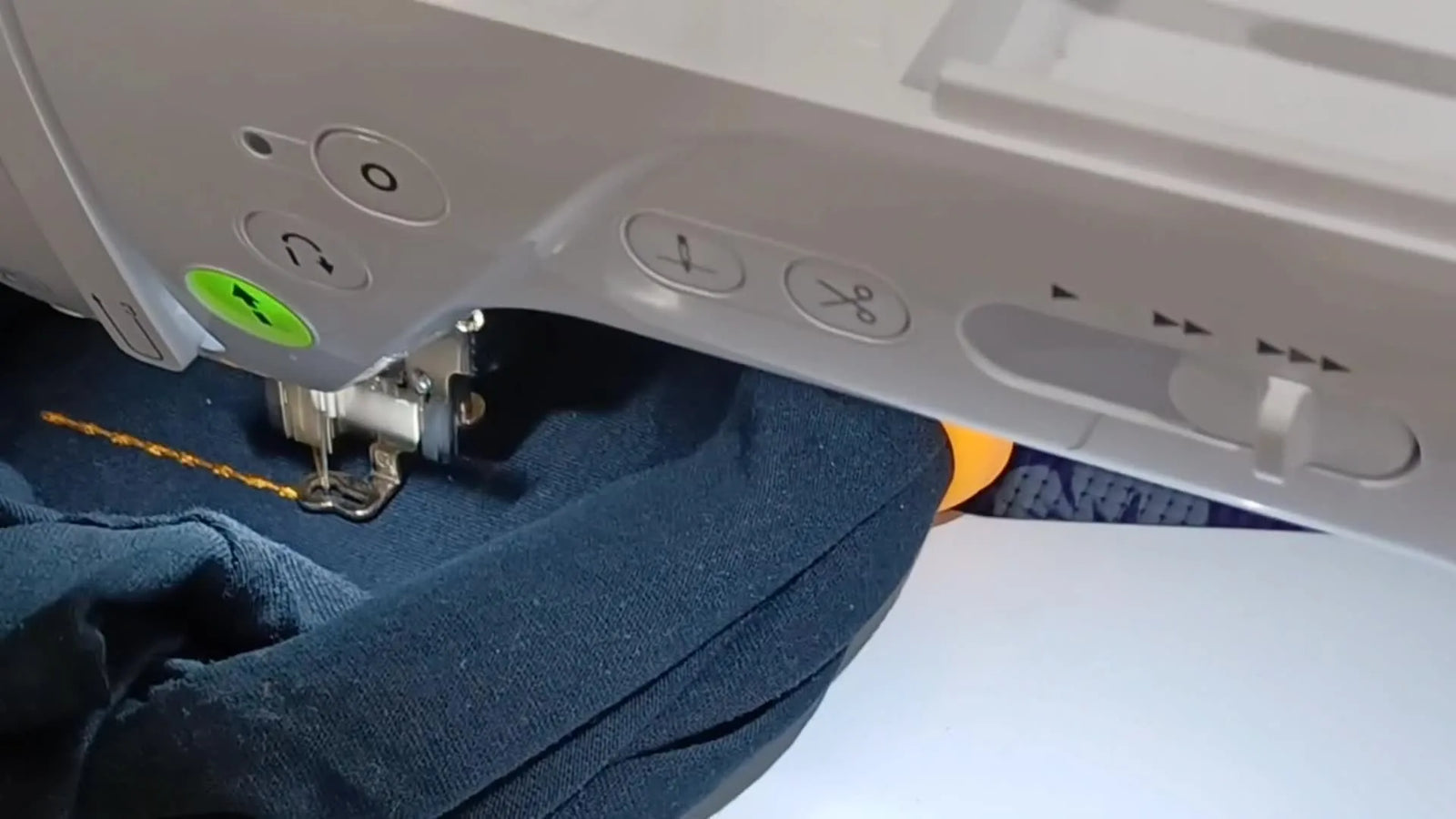

Make the Brother SE1900 5x12 Repositional Hoop Behave: Clean Alignment for Large Split Designs (Without Hoop Drama)

If you’ve ever stared at your Brother SE1900 and thought, “My design is wider than 5x7… now what?”—you’re not alone. The 5x12 multi-position (repositionable) hoop is one of the most practical ways to stitch larger designs on a single-needle machine, but it also introduces two things that make people nervous: alignment anxiety and clearance fear.

You are venturing into "split design" territory. This is where embroidery stops being just "push button, watch Netflix" and becomes a mechanical craft. You need to understand the physics of your hoop, the drag of your fabric, and the logic of your software.

In this post, I’m going to walk you through the exact workflow shown in the video—software split, floating a t-shirt, stitching the top half, physically re-mounting the hoop, then stitching the bottom half. But I’m going to add the "20-year veteran" details: the sounds you should listen for, the specific tension feelings you need in your fingertips, and the safety checks that prevent the classic disasters (like a shifted second half, a hoop that smacks the wall, or a clamp that gets traced right into the needle path).

Don’t Panic: The Brother SE1900 5x12 Multi-Position Hoop Is Simple Once You Respect the Slots

The first time you use a 5x12 multi-position hoop on a Brother SE1900, it feels bulky and a little unforgiving. That’s normal. The key mental shift is this:

Your machine has not magically grown. It is still stitching a 5x7 field (130mm x 180mm) at a time.

The 5x12 hoop gives you two mounting positions (top slots vs. bottom slots). Think of it like a train on a track. You stitch the first station (Top Slots), stop, and then move the entire train to the second station (Bottom Slots) to stitch the rest. The magic is that you do this without removing the fabric from the hoop.

That “without removing the fabric” part is the whole game. If you keep the fabric and stabilizer relationship absolutely rigid—like a frozen block of ice—alignment becomes repeatable. If your fabric is "mushy" or loose, your design will look like a broken zipper.

If you’re shopping or comparing options, remember that brother repositional hoop workflows are less about fancy software and more about consistent hoop mechanics. You are the engineer here; the hoop is just the chassis.

The “Hidden” Prep Pros Do First: Stabilizer, Center Marks, and Clearance Planning Before You Touch the Screen

Amateurs rush to the screen. Pros start with physics. Before you even open the file on the machine, perform three "Zero-Fail" checks. These save you from 90% of the frustration.

1. The Stabilizer Decision Tree (Physics over Preferences)

The video uses black cutaway stabilizer because it was available. But let's be precise: for a T-shirt (knit fabric), Cutaway is non-negotiable.

• Why? Knits stretch. If you look at a T-shirt under a microscope, it looks like a chain-link fence. If you use Tearaway, your needle perforates the paper, the "fence" collapses, and your design distorts. Cutaway acts as a permanent foundation.
• Recommendation: Use a Medium Weight Cutaway (2.5 oz). It needs to be strong enough to support the weight of the shirt hanging off the hoop.

2. Clearance Planning: The "Thump" Test

A 5x12 hoop travels significantly farther back than a standard 5x7 hoop.

• The Check: Push your embroidery unit carriage all the way back.
• The Fix: Pull your machine at least 6 to 8 inches away from the wall. If you don't, you will hear a rhythmic thump-thump as the hoop hits the wall. This ruins your motor alignment and shifts your design instantly.

3. Center Reference

The host uses a printout (template) to keep the design centered. This is mandatory, not optional. Mark your T-shirt with a water-soluble pen or tailor’s chalk crosshair. This visual anchor is your only truth when you are deep in the menu system later.

Warning: Physical Safety Hazard. Keep fingers, scissors, and loose tools away from the needle area while tracing or stitching. A single-needle machine can start moving unexpected lateral shifts once you confirm a screen prompt. Trimming a thread near a moving needle is the fastest way to put a hole in your finger or shatter a needle into your eyes.

Prep Checklist (Do this BEFORE software + hooping)

• Machine Clearance: Is there 8 inches of empty space behind the machine?
• Needle Check: Are you using a fresh Ball Point 75/11 needle? (Ballpoints slide between knit fibers; Sharps cut them).
• Stabilizer: Do you have a sheet of cutaway that is at least 14 inches long (to cover both hoop positions)?
• Consumables Search: Do you have temporary spray adhesive (like Odif 505) or clamps? (The video uses clamps, but spray is a huge help for beginners).
• Bobbin: Is your bobbin full? Running out in the middle of a joined design is a nightmare.


Embrilliance Essentials Setup: Pick the Jumbo Hoop 5" x 12" and Rotate 90° So the Split Makes Sense

In Embrilliance Essentials, the video shows a very specific setup sequence. You are translating your visual idea into data the machine understands.

1. Go to Preferences > Hoops > Multi-Position.
2. Select Jumbo Hoop 5" x 12" (130mm x 300mm).
3. Check Rotate 90 degrees so the workspace is horizontal.

Why the Rotation? This matters because the software is visualizing the hoop as overlapping stitch zones. You’re not getting one giant continuous stitch field; you’re getting two sections that overlap. The software needs to calculate the "split line" where no essential stitches will be cut in half.

If you’re new to this style of workflow, think of it as “two jobs that must meet cleanly in the middle.” That’s why multi hooping machine embroidery techniques live or die by consistent placement. The software handles the math, but you must handle the reality.

Saving the Split PES Files: “Top #1” and “Bottom #2” Are the Real Files You’ll Stitch

When you save the design to your USB drive, the software acts as your traffic controller.

• The file format stays PES (appropriate for the Brother single-needle workflow).
• Embrilliance automatically generates multiple files. Watch your folder for:
  • The original PES (The master file).
  • Top #1 (The first run).
  • Bottom #2 (The second run).

Crucial Advice: Verify the write order. Sometimes computers sort alphabetically. Ensure you know which file is which. If you stitch "Bottom #2" in the "Top #1" slot, you will ruin the shirt immediately.

Pro Tip: If you are building a repeatable workflow, treat those split files like a matched pair. Don’t rename one and forget the other; keep them together in a folder named specifically for that project (e.g., "Dad_Shirt_Split").

Floating a T-Shirt on the 5x12 Hoop: Hoop the Stabilizer, Not the Garment (and Clamp Like You Mean It)

The video uses a "Floating" method. This is standard industry practice for knits to prevent "Hoop Burn" (those shiny, crushed rings left by standard hoops).

The Floating Protocol

1. The Drum Skin: Hoop the cutaway stabilizer only. Tighten the screw. When you flick the stabilizer, it should sound like a drum—thwack, not thud. If it's loose, your design will pucker.
2. The Alignment: Lay the t-shirt over the hooped stabilizer. Match your chalk crosshairs to the hoop's center marks.
3. The Secure: Use silicone thread huggers as improvised clamps on the hoop edges.

Expert Nuance: The Tactile Check Floating works best when you control two forces:

• Stitch Tension: The thread pulling the fabric in.
• Gravity: The weight of the rest of the shirt hanging off the machine.

Your clamps aren’t just “holding fabric out of the way”—they are your anchor. Ensure the fabric is flat but not stretched. If you pull the knit fabric until the ribs separate, it will snap back after stitching, and your design will crinkle. Smooth it like you are petting a cat—gentle, directional pressure.

The "Hoop Burn" Reality Check A lot of people ask about the colorful clips in the comments; they are purely functional here. However, relying on makeshift clamps is often where beginners struggle. The clamps can pop off, or the fabric can slip under the clamp.

If you are struggling with slipping fabric or difficult hooping, this is a distinct "pain point" where tools matter. Many professionals eventually migrate to Magnetic Hoops. Why? Because a strong magnetic frame clamps the entire perimeter evenly without crushing the fibers, solving slipping and hoop burn simultaneously.

If you’re trying to improve your results with floating embroidery hoop methods, your goal is a smooth stitch zone without stretching the shirt out of shape.

Warning: Magnetic Safety. If you upgrade to Magnetic Hoops/Frames, keep magnets away from pacemakers, implanted medical devices, and insulin pumps. The pinch force is extremely high—avoid pinching fingers between magnetic rings. Store magnets away from phones, credit cards, and sensitive electronics.

Mounting the 5x12 Hoop on the Brother SE1900: Use the Top Two Slots for the First Stitch-Out

This is the mechanical “make or break” moment. You must engage the correct gear.

To stitch the first section (the “Top #1” file):

1. Slide the hoop onto the embroidery arm.
2. Engage the first two clips/slots (Top Slots) into the machine’s connectors.
3. The Audible Check: Push firmly until you hear a sharp CLICK. Wiggle the hoop gently. If it rattles, it's not seated.

The host emphasizes that it mounts similarly to the standard 5x7 hoop—just with more slot options. This is also where clearance matters most. The long hoop acts like a lever; any drag on the far end (from a heavy shirt bunching up) will torque the arm.

If you’re setting up a consistent station for brother se1900 hoops, allow the fabric to pool loosely on the table to the left. Do not let the shirt hang off the edge, creating drag.

The Fix That Prevents Misalignment: Trace, Nudge, Trace Again—Then Stitch Part 1

On the machine, the video shows this exact workflow for Part 1. Do not skip this.

1. Load Top #1.
2. Go to Edit.
3. Use Trace (the button with the box and arrows). Watch the needle move.
4. The Collision Test: Does the presser foot hit your silicone clamps? Does the needle come dangerously close to the plastic hoop edge?
5. The Micro-Adjustment: If needed, use the LCD arrows to nudge the design slightly (the host nudges it upward for better clearance).
6. Trace again.

This “trace, nudge, trace again” habit is what separates clean multi-position results from heartbreak.

About that surprise basting square

The host shows that the split file may include a light perimeter stitch (a box). In the video, she skips it.

• How: Press the +/- needle button to see stitch steps -> Select the thread spool + icon to jump forward.
• Why: If you stitched the basting box on just the top half, it might be visible or hard to remove later.

Start the Machine: The screen shows 1,736 stitches (~7 minutes).

• Speed Recommendation: If you are a beginner floating a knit, lower your speed. Go into settings and drop the Max Speed to 350 or 600 SPM. Speed causes vibration; vibration causes shifting. Slow and steady wins the race on split designs.

Setup Checklist (Right before you press Start)

• File Verification: Did you definitely load Top #1?
• Trace Test: Did the foot clear all clamps by at least 5mm?
• Design Position: Did you nudge? (If yes, remember exactly what you did—you might need to replicate it for Part 2).
• Needle Path: Is the shirt bulk secured so it won't flop under the needle?
• Basting: Did you skip the basting box if you didn't want it?


The “No-Remove” Reposition: Move to the Bottom Two Slots Without Disturbing Fabric or Stabilizer

After Part 1 finishes, the machine stops. Now, you perform the surgery.

The Golden Rule: Do not un-hoop the stabilizer. Do not loosen the screw. Do not breathe too hard on the shirt.

1. Unlock the hoop lever from the embroidery arm.
2. Gently slide the hoop off the arm.
3. Slide the hoop back on, but this time, engage the bottom two slots/clips.
4. Listen for the Click. Lock the lever.
5. Re-Evaluate: Did the shirt bunch up underneath? Smooth it gently from underneath the hoop.

This is where floating can get tricky: the garment wants to shift while you’re handling the hoop. Move slowly. Support the garment weight with your left hand while your right hand works the locking lever.

Scenario: If you find this step frustrating—if the shirt constantly slips or the clamps pop off during the move—this is a valid reason to consider a tool upgrade. Magnetic Hoops allow you to slap the stabilizer and fabric between two powerful magnets. There is no screw to tighten, and the grip is often more secure during repositioning. It removes the "human error" variable of uneven screw tightening.

Stitching Part 2 Without a Gap: Load Bottom #2, Match the Left Position, Trace Around Your Clamps

For the second half, precision is everything.

1. Load Bottom #2.
2. Go to Set, then Edit.
3. The Critical Match: You must match the horizontal position. If you moved Part 1 to the left by 0.50, you must move Part 2 to the left by 0.50. In the video, the host matches the position she used on Part 1.
4. Trace Again: In the video, the host notices some thread huggers are in the way of the bottom design path and moves them. This is why we trace. It is not a formality; it is a collision test.

The Reality of Knits: If the fabric isn't controlled, the second half can land slightly off because the knit relaxed or shifted between runs. This creates a visible "seam" or gap in the design.

• Solution: Ensure your clamps are holding the fabric taut (but not stretched) continuously from Top to Bottom.

If you’re doing hooping for embroidery machine work on knits, the best practice is to keep the shirt supported. Use books or a purpose-built embroidery table extension to keep the heavy shirt from hanging off the hoop during Part 2.

Why This Works (and Why It Sometimes Doesn’t): Hoop Physics, Knit Stretch, and “Micro-Shift” Between Sections

Let’s talk about the “why.” Understanding the failure points allows you to prevent them.

1. The Overlap Buffer

The multi-position hoop relies on overlapping stitch zones. The software calculates a "safe zone" where the design splits. If your physical realignment is off by 1mm, the overlap usually hides it. If you are off by 3mm, you get a gap.

2. The Drift factor

Knits move under stitch tension. As the needle pounds 1000 times into the top half, it pushes fibers around ("Push-Pull Compensation"). If your stabilizer is weak (Tearaway), the fabric shrinks during the first half. By the time you get to the second half, your target has moved. This is why we use Cutaway.

3. The Clamp/Magnet Variables

Those silicone thread huggers are doing a heroic job, but they are imperfect. If one clamp is tighter than the other, it creates diagonal drag.

• Pro Insight: This is why professionals love Magnetic Hoops. The magnetic force is distributed around the entire ring, eliminating "hot spots" of tension that cause twisting.

4. The Trace Safety Net

Trace protects your machine's aggressive mechanics from your human errors. A broken needle caused by hitting a clamp can throw off the machine's timing, requiring a $150 repair. Trace every time.

If you’re using a repositionable embroidery hoop setup regularly, build a ritual. Do not stitch until you have Traced.

Troubleshooting the Scary Stuff: Wall Hits, Mystery Boxes, Loose Fabric, and “Why Is Part 2 Off?”

Things go wrong. Here is your structured guide to fixing them quickly.

Pro Diagnosis: If Part 2 doesn't line up, 90% of the time it is because the fabric shifted inside the hoop, not because the machine made an error.

The Upgrade Path That Actually Makes Sense: When to Stick With the 5x12 Hoop vs. When to Go Magnetic or Multi-Needle

The video proves you can stitch larger designs on a single-needle Brother using a 5x12 multi-position hoop. The question is: Should you? This depends on your volume.

Level 1: The Hobbyist (Occasional Use)

Stick with the 5x12 Setup. If you only make one or two shirts a month, the workflow shown in the video is perfect. It costs you nothing but time and patience. Cost: $0.

Level 2: The Side Hustler (Weekly Orders)

Upgrade to Magnetic Hoops. If you make 5-10 shirts a week, your enemy is cramping hands and "Hoop Burn."

• The Problem: Standard hoops require force to screw tight, leave marks that need water removal, and are slow to clamp.
• The Solution: A Magnetic Hoop compatible with Brother SE1900. You slide the stabilizer and shirt in, letting the magnets snap shut. No screw tightening. No hoop burn. Faster floating.
• ROI: It saves you ~5 minutes per shirt in prep and finishing time.

If you’re comparing options for a hoop for brother embroidery machine, choose based on what slows you down most—loading speed or fabric control.

Level 3: The Production Shop (Daily Volume)

Upgrade to Multi-Needle (e.g., SEWTECH / Ricoma etc). If you have orders piling up, the single-needle machine is your bottleneck.

• The Problem: Stopping to change thread colors and re-hooping split designs takes longer than the actual stitching.
• The Solution: A Multi-Needle machine. It holds 10-15 colors at once and has huge hoops (8x12 or larger) that don't need splitting.
• ROI: You can run 50 shirts in the time it takes to do 10 on a single-needle.

The goal isn’t to buy tools for the sake of it. The goal is to verify: Is my tool blocking my next sale?

Finishing Like a Pro: Trim, Press, and Judgement

In the video, the host trims threads with small scissors and shows the finished shirt. Finishing is where a project looks homemade or professional.

1. The Jump Stitch Trim

Use curved embroidery scissors (Double Curved are best) to snip the jump threads close to the fabric. Do not yank them; pull gently and snip.

2. Remove Stabilizer

Trim the cutaway stabilizer on the back. Leave about 1/2 inch around the design. Do not cut too close—if you cut the stitches, the shirt is ruined. Round the corners of the stabilizer so they don't itch the wearer's skin.

3. The Final Press

Press/iron the shirt (from the back or with a pressing cloth) to relax wrinkles caused by floating and clamping. Steam helps the fibers bounce back.

4. Inspect the "Join"

Look closely at where Part 1 meets Part 2. Only you will see the microscopic flaw. If the customer can't see it from 3 feet away, it is perfect.

Operation Checklist (End-of-Run Quality Control)

• Completion: Did both files stitch completely?
• Trimming: Are front and back jump threads removed?
• Stability: Is the Cutaway stabilizer trimmed neatly (rounded corners)?
• Presentation: Is the hoop burn removed (steamed out)?
• Archive: Did you save your working files (Top/Bottom) in a dedicated folder for next time?

If you’ve been avoiding your repositional hoop because it felt intimidating, use this exact sequence once. The machine isn’t asking you to be perfect—it’s asking you to be mechanically consistent. Master the "Click," the "Drum Skin," and the "Trace," and you can stitch anything.

FAQ

• Q: What stabilizer should be used for floating a T-shirt in a Brother SE1900 5x12 multi-position hoop?
  A: Use cutaway stabilizer for a knit T-shirt; a medium weight cutaway (about 2.5 oz) is a safe starting point.
  • Hoop the cutaway stabilizer only and tighten until it is very firm.
  • Cut the stabilizer long enough to cover both hoop positions (about 14 inches was recommended).
  • Add temporary spray adhesive (often Odif 505) or use clamps to keep the shirt from drifting.
  • Success check: Flick the hooped stabilizer—listen for a “thwack” (drum-tight), not a dull “thud.”
  • If it still fails… If the design gaps or shifts between Top #1 and Bottom #2, re-check stabilizer strength and garment support to reduce stretch and gravity-drag.
• Q: How much clearance is needed behind a Brother SE1900 when using a 5x12 multi-position hoop to prevent the hoop from hitting the wall?
  A: Keep at least 6–8 inches of empty space behind the Brother SE1900 before running the 5x12 hoop.
  • Push the embroidery unit/carriage all the way back by hand before stitching.
  • Move the machine forward on the table until nothing can be struck during rear travel.
  • Stop immediately if any contact happens and reposition the machine before continuing.
  • Success check: During trace or stitching, there is no rhythmic “thump-thump” sound and the hoop clears the back area smoothly.
  • If it still fails… If contact keeps happening, re-run the trace test after every reposition and re-check the full travel path with the shirt bulk in place.
• Q: How can Brother SE1900 users confirm the 5x12 multi-position hoop is seated correctly in the top slots or bottom slots?
  A: Seat the hoop by engaging the correct slot pair and pushing until a sharp click is heard, then confirm the hoop does not rattle.
  • Slide the hoop onto the embroidery arm using the top two slots for Top #1, then the bottom two slots for Bottom #2.
  • Push firmly until the connectors click, then gently wiggle-test the frame.
  • Support the garment weight so it does not torque the hoop while locking it in.
  • Success check: A clear “CLICK” is heard and the hoop feels solid with no looseness or rattling.
  • If it still fails… If alignment is off or the hoop feels loose, remove and re-mount the hoop again without loosening the hoop screw or disturbing the hooped stabilizer.
• Q: How can Brother SE1900 users use “Trace” to prevent clamp collisions and needle strikes when stitching a 5x12 split design?
  A: Always trace the design path before stitching Top #1 and again before stitching Bottom #2, and re-trace after every nudge or clamp move.
  • Load the correct split file, enter Edit, and run Trace to watch the needle travel.
  • Move silicone clamps/thread huggers if the presser foot approaches them, then trace again.
  • Nudge the design on the LCD only as needed for clearance, then repeat the same nudge on the second file.
  • Success check: The traced outline clears clamps and hoop edges with visible space (aim for at least a few millimeters).
  • If it still fails… If the needle path still approaches hardware, stop and reposition clamps farther from the stitch field; do not stitch “hoping it will miss.”
• Q: How can Brother SE1900 users prevent a gap or overlap between Top #1 and Bottom #2 when using a 5x12 multi-position hoop on a T-shirt?
  A: Keep the fabric-to-stabilizer relationship rigid and replicate the same on-screen position for both files, especially the left/right value.
  • Do not un-hoop, loosen the screw, or disturb the stabilizer when switching from top slots to bottom slots.
  • Support the shirt weight during repositioning so the knit does not creep or relax.
  • Match the exact horizontal (left/right) position used on Top #1 when setting Bottom #2.
  • Success check: The join area looks continuous with no visible seam or offset when Part 2 begins stitching into the overlap zone.
  • If it still fails… If the second half lands off, the most common cause is fabric shift inside the hoop—improve fabric control (spray/clamps) and reduce drag from the hanging garment.
• Q: What should Brother SE1900 users do if the 5x12 hoop bangs into the wall during a stitch-out?
  A: Stop immediately, because repeated wall strikes can shift the design and may stress the machine’s mechanics.
  • Press stop as soon as the bang/thump is heard.
  • Move the Brother SE1900 forward to restore 6–8 inches of rear clearance.
  • Re-run Trace to confirm the full travel path is clear before restarting.
  • Success check: After repositioning, trace completes with no contact and no repeating “thump” sound.
  • If it still fails… If the hoop still contacts something, reassess the entire back-and-side travel area, including bulky shirt fabric pulling the hoop backward.
• Q: What safety rules should Brother SE1900 users follow when tracing or stitching split designs on a 5x12 multi-position hoop, and what extra safety applies to magnetic hoops?
  A: Keep hands and tools away from the needle area during prompts/trace, and treat magnetic hoops as high-pinch-force tools with medical-device precautions.
  • Remove scissors and loose tools from the needle zone before confirming any screen prompt, because lateral movement can start suddenly.
  • Keep fingers clear while tracing and while the machine is repositioning.
  • If using magnetic hoops, keep magnets away from pacemakers/implanted medical devices and avoid pinching fingers between magnetic rings.
  • Success check: Trace and stitching run without any need to “reach in” near the needle, and clamps/magnets are positioned before pressing Start.
  • If it still fails… If access feels cramped or risky, slow down, re-stage tools away from the needle area, and only resume when hands are fully clear.
