Make Text Hug a Shape in Brother PE-Design 10: The Leaf Typography Trick That Actually Stitches Clean

The Engineering of Aesthetics: Mastering Shaped Typography in PE-Design 10

A Masterclass on "Pouring" Text into Shapes Without Distorting the Physics of Stitching

If you have ever attempted to force lettering into a custom shape using the "Auto" features in embroidery software, you are likely familiar with the result: a digital file that looks acceptable on screen but behaves like a disaster under the needle. The stitches bunch up, the text becomes illegible, and the fabric puckers.

Embroidery is not graphic design; it is engineering with thread. Unlike pixels, stitches have physical mass and tension. When we manipulate text into complex shapes—like the "FALL" leaf design demonstrated by Sue—we must respect the limitations of the medium.

This white paper dissects Sue’s proven method for PE-Design 10. We will move beyond simple "how-to" steps and analyze the why, the physics, and the production protocols required to execute this technique professionally. Whether you are a hobbyist aiming for heirloom quality or a business owner looking to scale, this guide elevates your process from guesswork to precision.

1. The Cognitive Shift: Why "Auto-Fit" Fails in Embroidery

In vector graphics, stretching a letter 'A' is trivial. In embroidery, stretching that same letter alters the density and stitch angle. If you stretch a satin stitch column too wide, it becomes a loose loop that snags. Squeeze it too tight, and you create a "bulletproof" patch that breaks needles.

Sue’s methodology bypasses the software's automated text warping tools. Instead, she treats letters as moldable clay (closed shapes) rather than text characters. This allows us to manipulate the silhouette while maintaining control over the underlying stitch physics.

This approach is critical when working within the strict confines of a modest embroidery field, such as a brother embroidery hoop 4x4, where every millimeter of pull compensation counts.

2. Pre-Flight Protocol: The "Hidden" Step That Defines Success

Before drawing a single line, we must establish our constraints. Most failures occur not during digitizing, but during setup.

The "Clean Slate" Prep Checklist

• Target Hoop Verification: Set your workspace specifically to the 4x4 hoop (100mm x 100mm). Visualizing on a larger screen without boundaries leads to sizing errors.
• Grid Activation: Enable the grid (View tab). You need precise quantitative feedback on size.
• The "2.5-Inch Rule": For a standard 4x4 project, aim for a container shape width of roughly 2.5 inches. This leaves ample safety margin for the presser foot and hoop clips.
• Zoom Discipline: Commit to working at 200% zoom or higher. If you cannot see the individual nodes, you are guessing, not designing.
• Consumables Check: Ensure you have temporary spray adhesive (for positioning), a water-soluble marking pen (for alignment), and a fresh 75/11 embroidery needle.


3. Constructing the Container: The Visual Boundary

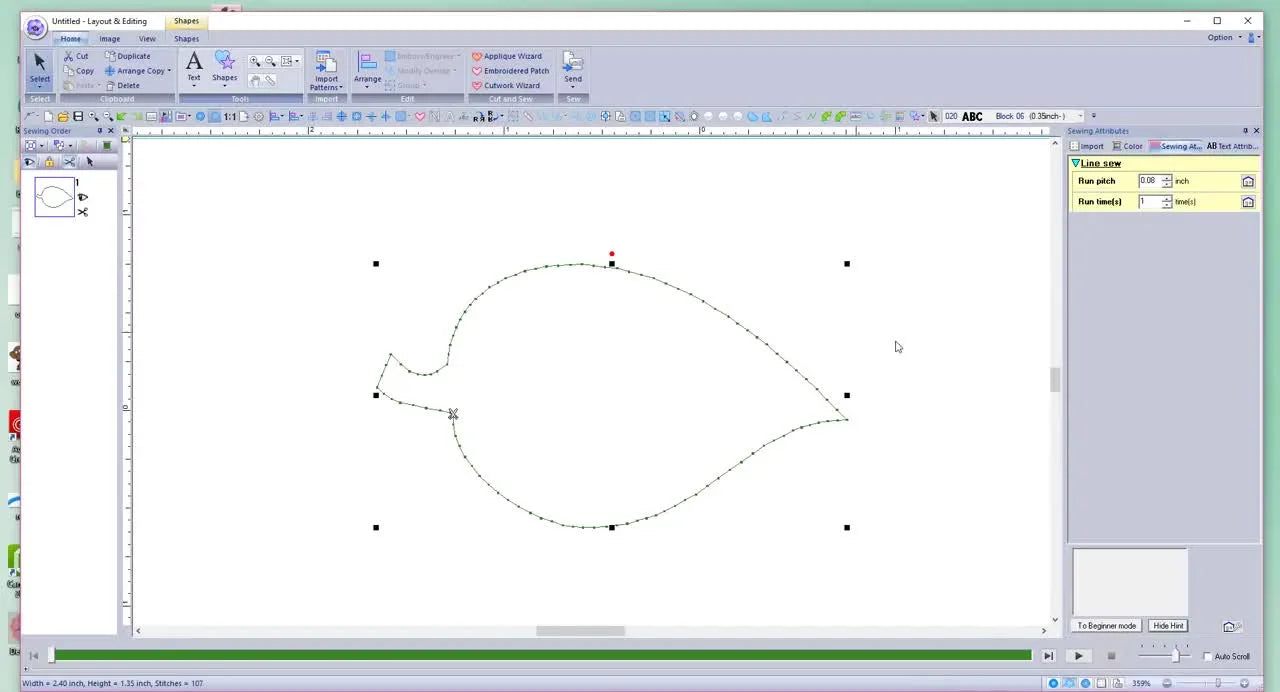

Sue begins by selecting a Leaf Shape from the Shapes menu. This serves as our "container"—the boundary our text will inhabit.

Key Technical Maneuver: She holds the Shift key while drawing. In digital design, this constrains proportions. In embroidery, it prevents accidental skewing that can make organic shapes look unnatural.

Once drawn, she resizes the leaf to approximately 2.5 inches wide. This dimension is not arbitrary; it allows for high legibility while keeping the stitch count manageable for lightweight fabrics like t-shirts or tea towels.

4. The Structural Foundation: Outline vs. Satin

Sue converts the leaf outline to a Running Stitch. This is a veteran decision based on material physics.

The Physics of the Border:

• Satin Borders: Create a heavy "frame" that pulls the fabric inward (the "drawstring effect"). On a dense text design, this leads to severe puckering.
• Running Stitch: Provides a visual boundary without adding tension or bulk. It allows the text to be the hero.

Warning (Mechanical Safety): If you later decide to change this running stitch to a heavy satin border, you must increase your pull compensation settings. A heavy border stitched around dense text can cause needle deflection—where the needle hits a previous stitch cluster and bends, potentially striking the needle plate and shattering.

5. The Template Strategy: Using Text as a Backdrop

Here is where the workflow diverges from standard practice. Sue types the word "FALL," but she does not intend to stitch these letters.

She uses the text tool strictly as a generic template. This solves the "blank page syndrome." By placing the standard text over the leaf shape, you get an immediate visual reference for spacing and balance.

The "Mental Shift" for PE-Design Users: Stop thinking of the Text Tool as the final output. Think of it as a sketching pencil. You will trace over these lines with superior objects that you can manipulate without breaking the software's logic.

6. Manual Digitizing: The Art of Trace and Fill

To create letters that can be warped without distortion, Sue uses the Closed Shape tool to manually trace the "F," "A," "L," and "L."

The Process:

1. Select Tool: Closed Shape.
2. Attribute Setup: Set the Region Sew Type to "Fill Stitch" and the Line Sew Type to "Not Sewn" (None).
3. Trace: Click around the perimeter of the template letters.

Why this is superior: When you digitize a shape manually, you own every node. The software treats it as a generic polygon, not a "letter." This frees you from the restrictive rules PE-Design places on Font objects, allowing for radical reshaping.

The "Negative Space" Protocol (The Letter A)

A common point of failure for beginners is the internal geometry of letters like A, O, R, and B. If you simply draw a white triangle on top of a red A, you create a "bulletproof" patch of double-thickness stitches.

The Correct Engineering Method:

1. Digitize the outer silhouette of the 'A'.
2. Digitize the inner triangle.
3. Select both objects.
4. Execute: Modify Overlap → Set Hole Sewing.

This tells the software: "Do not stitch here." It creates true negative space, reducing stitch count and preventing fabric stiffness.

7. Node Editing: Sculpting with Precision

This section represents the core skill of the digitizer. Sue enters Node Mode (Select Point) and drags the boundaries of the letters to meet the edges of the leaf.

Expert Technique: The Sensory Approach

• Visual: Look for smooth curves. A jagged line of nodes will result in a "stepped" or "sawtooth" edge when stitched.
• Tactile (Mental): Imagine the shape is made of rubber. Pull it gently. If you pull a node too far, the line becomes thin and weak.
• The "Rule of Threes": If a curve looks janky, delete nodes. You rarely need more than 3 points to define a smooth curve.

Critical Constraint: Ensure your letter shapes do not touch or overlap unless intended. In the physical stitch-out, "touching" on screen usually means "overlapping" on fabric due to thread spread (blooming). Leave at least a 1mm gap between letters.

8. The Physics of Density (What the Video Didn't Tell You)

While Sue focuses on shape, we must discuss Density. When you warp a letter, you inevitably widen some areas and narrow others.

• The Danger Zone: If you stretch a column to be 10mm wide, a standard satin stitch allows long, loose threads (snags). A fill stitch (tatami) is required.
• The Sweet Spot: For fill stitches in PE-Design, a standard density of 4.5 lines/mm (or 0.4mm spacing) is usually safe.
• Underlay is Non-Negotiable: Because shaped text is unstable, you must enable Underlay. Use a "Grid" or "Double Zigzag" underlay to bind the fabric to the stabilizer before the visible top stitches are laid down.


9. Production: The Bridge Between File and Fabric

You have digitized a perfect file. Now you must manufacture it. This is where 80% of embroidery errors occur.

The primary challenge with shaped typography is orientation. If the leaf is tilted 2 degrees off-center, the entire visual effect is ruined.

The Hooping Dilemma & Solutions

Standard friction hoops are notorious for "hoop creep"—the fabric shifts slightly as you tighten the screw. For geometric designs like this:

1. Level 1 (Basic): Use a "floating" technique. Hoop the stabilizer tightly (drum-skin tight), spray with adhesive, and float the garment on top.
2. Level 2 (Tooling Upgrade): If you struggle with alignment, magnetic embroidery hoops are transformative. These hoops clamp flat without the torque/twisting motion of a screw, keeping your verticals perfectly vertical.
3. Level 3 (Scale): For those producing these designs for a local team or Etsy shop, investing in an embroidery hooping station ensures that the leaf lands on the exact same spot on every shirt, every time.

Warning (Magnet Safety): High-quality magnetic hoops use industrial Neodymium magnets. They are incredibly strong. Pinch Hazard: Do not place fingers between the brackets. Medical Device Warning: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.

Operational Checklist (The Pilot's Pre-Check)

• Bobbin Check: Is your bobbin at least 50% full? Running out mid-letter creates a visible seam.
• Needle Freshness: Shaped fills put high stress on needles. Use a new 75/11.
• Sound Check: Listen to your machine. A rhythmic thump-thump is good. A sharp clack-clack usually means the needle is dull or hitting a knot.
• Speed Limit: Professionals run fast, but for density-variable designs, set your machine to 600 SPM (Stitches Per Minute). Speed kills accuracy on intricate curves.

Decision Tree: Fabric & Stabilizer Pairing

Correct stabilization is the only thing preventing your leaf from turning into a raisin.

The Commercial Logic: Scaling Up

Sue’s technique is perfectly suited for high-margin personalization (seasonal keywords, team names, monograms). However, "pouring" text into shapes takes time.

If you find yourself spending 20 minutes hooping and re-hooping to get alignment perfect, or if you are constantly changing thread colors for different seasons, your equipment may be the bottleneck.

• Hooping Efficiency: Using hoops for brother embroidery machines that utilize magnetic tech can cut hooping time by 40%, directly impacting your hourly wage.
• Machine Throughput: A single-needle machine requires a manual thread change for every color stop. If you are producing team gear, moving to a multi-needle platform (like the SEWTECH series) allows you to set up 6-10 colors at once and walk away.

Troubleshooting Guide: The "E.R." for Embroidery

When things go wrong, use this hierarchy of repair (cheapest fix first).

Conclusion

Shaped typography is a test of your embroidery IQ. It requires you to balance the artistic desire for a specific shape against the engineering reality of thread tension. By using Sue’s "trace and warp" method, manually controlling your negative space, and respecting the physics of your stabilizers, you can produce retail-quality work that lasts.

Master the node tool, trust the math of density, and remember: if you can't hoop it straight, you can't stitch it right.

FAQ

• Q: In PE-Design 10 shaped typography, why does PE-Design 10 Auto-Fit text into a shape stitch out bunched up and illegible?
  A: Avoid PE-Design 10 Auto-Fit for shaped typography and rebuild the letters as Closed Shapes so stitch density and angles stay controllable.
  • Type the word only as a visual template, then trace each letter with Closed Shape (Region Sew Type = Fill Stitch; Line Sew Type = None).
  • Enter Node Mode (Select Point) and reshape the traced letter objects to match the container edge instead of warping font objects.
  • Leave at least a 1 mm gap between letters to account for thread spread (blooming).
  • Success check: the preview shows smooth curves (not “stepped” edges) and letters do not touch when zoomed in at 200%+.
  • If it still fails… reduce extra nodes (“rule of threes”) and re-check that you edited shapes, not the original font objects.
• Q: In PE-Design 10, how do I create the hole (negative space) inside the letter “A” so the design does not turn into a bulletproof patch?
  A: Use PE-Design 10 Modify Overlap → Set Hole Sewing to create true negative space instead of stacking stitches.
  • Digitize the outer silhouette of the “A” as one closed shape.
  • Digitize the inner triangle as a second closed shape.
  • Select both objects and run Modify Overlap → Set Hole Sewing.
  • Success check: the inner triangle area shows as a real cutout (no fill stitches planned in that area) and the stitch count does not jump dramatically.
  • If it still fails… confirm the inner triangle is not just a different color object placed on top, and make sure both objects are selected before applying Hole Sewing.
• Q: For a PE-Design 10 shaped text project in a Brother 4x4 (100 mm x 100 mm) hoop, what setup rules prevent sizing and clipping problems?
  A: Lock the PE-Design 10 workspace to the 4x4 hoop and design inside a safe 2.5-inch-wide container so the presser foot and clips have margin.
  • Set the design page/hoop explicitly to 100 mm x 100 mm before drawing anything.
  • Turn on the grid and work at 200% zoom or higher for node-level control.
  • Size the container shape to about 2.5 inches wide to keep a safety margin.
  • Success check: the entire shape sits comfortably inside the hoop boundary with visible clearance, and no element is near the hoop edge.
  • If it still fails… resize the container first (not the finished stitches) and re-check that the hoop setting did not revert to a larger hoop.
• Q: When converting a leaf border in PE-Design 10, should the border be Running Stitch or Satin Stitch to avoid puckering around dense shaped text?
  A: Use a Running Stitch border as the default because a Satin border can pull inward and pucker when combined with dense text.
  • Convert the leaf outline to a Running Stitch to create a boundary without adding bulk.
  • Keep the text as the “heavy” element and the border as the “light” element.
  • Success check: the fabric stays flatter after stitching and the border does not look like it is cinching the design inward (no drawstring effect).
  • If it still fails… review stabilization first, and only consider a heavier border if pull compensation is adjusted and the fabric can handle added tension.
• Q: What needle and bobbin checks reduce visible seams and stitching instability on PE-Design 10 density-variable shaped fills?
  A: Start with a fresh 75/11 embroidery needle and a bobbin that is at least 50% full to avoid stress-related breaks and mid-letter bobbin run-outs.
  • Replace the needle before stitching dense shaped fills, especially if the design has many direction changes.
  • Confirm the bobbin is 50%+ full before starting so you do not create a seam mid-letter.
  • Listen for sound changes during run: a sharp clack-clack often means the needle is dull or hitting a knot.
  • Success check: the machine sound stays rhythmic (“thump-thump”) and no sudden line appears where bobbin thread ran out.
  • If it still fails… slow down (see speed guidance) and inspect for density buildup at corners in the digitizing.
• Q: How do I fix “white bobbin thread showing on top” during shaped typography embroidery (upper tension symptoms) without guessing?
  A: Re-thread the top thread first and clean the bobbin case tension spring area, because incorrect threading and lint are common causes.
  • Re-thread the upper path completely and floss the thread through the tension disks.
  • Inspect and clean the bobbin area; slide a business card under the bobbin case tension spring to remove lint.
  • Success check: the top surface shows clean top thread coverage without white bobbin specks between fill lines.
  • If it still fails… confirm the correct bobbin is installed and repeat threading slowly, then follow the machine manual’s tension procedure.
• Q: How do I prevent fabric shifting and design tilt (“hoop creep”) when stitching a PE-Design 10 leaf-shaped text design that must stay perfectly aligned?
  A: Stabilize first, then improve clamping/alignment—start with floating, then consider magnetic hoops, and scale with a hooping station if repetition is the real problem.
  • Level 1 (Technique): Hoop stabilizer drum-tight, spray adhesive, and float the garment for better orientation control.
  • Level 2 (Tool): Use magnetic embroidery hoops to clamp evenly without screw torque that can twist fabric.
  • Level 3 (Process): Use an embroidery hooping station when you need the same placement repeatedly for production.
  • Success check: the leaf stays square/consistent from first stitches to last, with no visible rotation compared to your placement marks.
  • If it still fails… add extra stabilizer support (including a floated layer under the hoop) and reduce machine speed to improve control.
• Q: What magnetic embroidery hoop safety rules prevent pinch injuries and medical-device interference when using strong neodymium hoop magnets?
  A: Treat magnetic embroidery hoops like industrial clamps: keep fingers out of the closing path and keep the magnets away from pacemakers or insulin pumps.
  • Keep fingers clear when lowering or snapping on magnetic brackets (pinch hazard is real and common).
  • Store and handle hoop magnets deliberately so they do not jump together unexpectedly.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: the hoop closes without finger contact and the fabric is clamped flat with even pressure all around.
  • If it still fails… stop and reposition slowly rather than forcing the magnets—misalignment is safer to fix before clamping than after.
