Master the Curved Satin Stitch: From "Jagged" to Jewel-Quality

A definitive guide to fixing stitch angles in BERNINA Embroidery Software DesignerPlus, optimized for both digital precision and physical production.

If you have ever zoomed in on a digitally created curved satin stitch and felt a pang of disappointment because it looked “jagged,” “serrated,” or “cheap,” let me validate that feeling right now: It is not your fault.

Embroidery is a physical art form that relies on light reflection (sheen) and fabric interaction. Auto-digitizing software, no matter how expensive, is essentially a calculator making a "best guess." When it calculates a curve, it often defaults to a mathematical average—usually a static 45-degree angle—that fights against the natural geometry of the shape.

In a recent demonstration, Clint Sealy utilized BERNINA Embroidery Software DesignerPlus to show a micro-skill that separates hobbyists from masters: manually controlling stitch angles.

This guide will deconstruct that lesson and overlay it with 20 years of production flloor experience. We will move beyond just "clicking buttons" and teach you the sensory cues, physical preparation, and tool upgrades specific to SEWTECH solutions that ensure your digital edits survive the physical stitch-out.

The 45° Trap: Why Auto-Digits Fail on Curves

To understand the solution, you must understand the physics of the failure.

When you convert artwork from the Art Canvas into embroidery using auto-digitizing, the software treats the shape as a flat block of color. It fills typical shell or scroll shapes with satin stitches running at a uniform 45-degree angle.

The Physical Consequence

In the digital world, a 45-degree angle looks fine. In the physical world, where a needle penetrates fabric 600 to 1,000 times per minute, a fixed angle on a curving border creates tension conflicts.

• The Saw-Tooth Effect: As the border curves, a fixed angle eventually becomes perpendicular to the edge. This creates a "stepped" or jagged look rather than a smooth line.
• The Flat Tire Effect: Satin thread shines because light bounces off the long filaments. If all stitches face the same way, the light calls reflection is static. The design looks flat and lifeless.

If you are digitizing for high-stakes projects—like client logos, heirlooms, or uniforms—you cannot rely on the "default setting." You must intervene.

The "Grayed Out" Panic: Activating Your Tools

A common friction point for beginners using DesignerPlus is finding the tools unresponsive. You know what you want to do, but the icons are gray.

In the Edit Toolbox, the Add Stitch Angles and Remove Stitch Angles tools only function when the software knows exactly which object you intend to manipulate.

The Micro-Step Protocol:

1. Identify: Look at your design.
2. Select: Click the specific object (e.g., the shell segment) using the Select Object tool.
3. Verify: Watch the left sidebar. The icons should transition from "ghosted" (gray) to "active" (colored/black).


Sensory Cues:

• Visual: The object handles (the little black squares around the shape) will appear.
• Tactile: You are now ready to "surgery" on the design.

Warning: The Selection Trap. When zoomed in tightly, it is easy to accidentally select the underlay or a background layer instead of the satin top-stitch. If the tools remain gray, do not force it. Zoom out (scroll wheel), verify your layer list, and re-select.

The Digital Twin Inspection: The Zoom-In Habit

Before you fix anything, you must learn to "read" the needle penetrations. Clint Sealy’s technique relies on zooming in until the design ceases to look like a picture and starts looking like a blueprint.

Zoom in until you can see the individual needle points (often represented as small holes or dots in the software).

What to look for:

• The Clash: Look at the edge of the shell. Do the stitches slice across the border at a sharp angle? This will stitch out as a "burr" or rough edge.
• The Flow: A high-quality satin stitch should flow like water through a pipe—following the bend.


This is your first "Go/No-Go" decision point. If the stitch angles fight the shape, no amount of stabilizer or expensive thread will save the look.

For users of bernina embroidery machines: Your machine is a precision instrument. It will execute exactly what the file commands. If the file commands a jagged line, the machine will stitch a jagged line perfectly. The machine cannot "fix" the file; you must do it here.

The "Ladder Rungs" Technique: Sculpting with Stitch Angles

This is the core competency. You are going to manually tell the software how to route the thread.

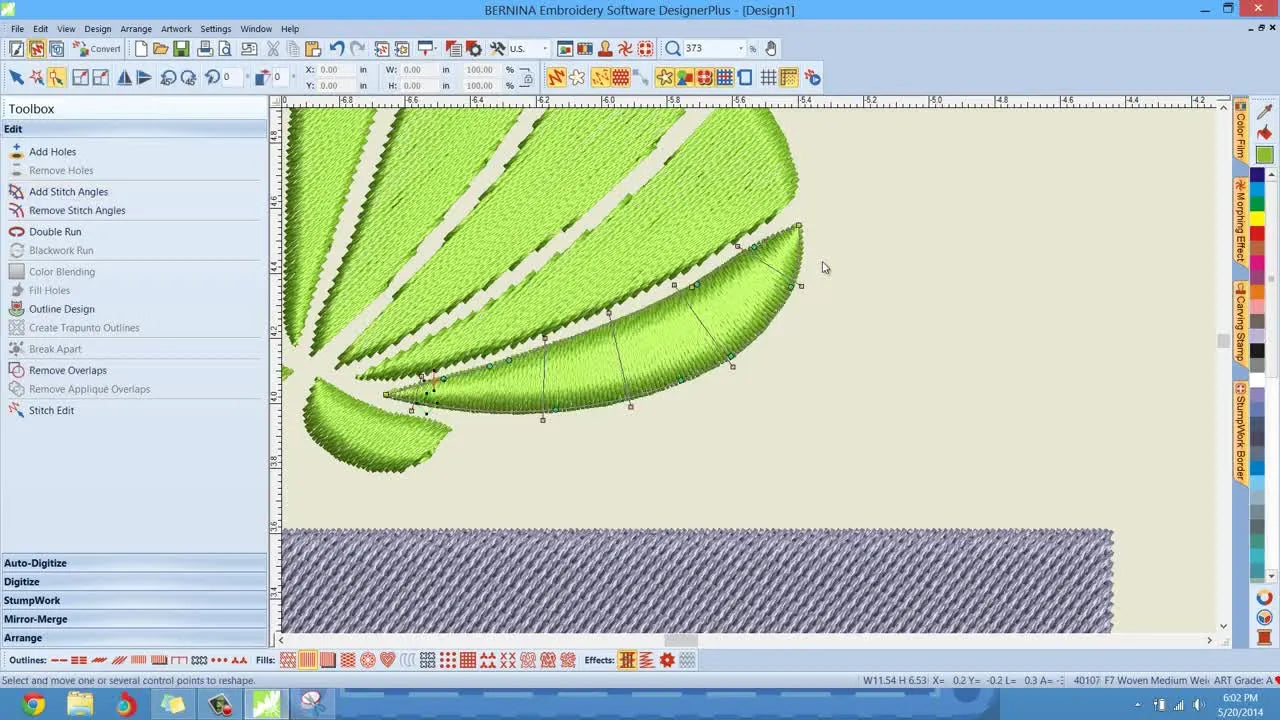

Clint selects the shell segment and clicks Add Stitch Angles. He then draws lines across the shape. The most effective mental model for this is drawing the rungs of a ladder.

Step-by-Step Execution

1. Activate: Click Add Stitch Angles.
2. Anchor: Click on one side of the satin column.
3. Bridge: Drag across to the other side and click again. This creates one "rung" (angle line).
4. Rotate: Move up the curve. Place the next line, but—and this is crucial—rotate it slightly to match the curve of the shape.




Experience-Based Calibration

• Don't Over-Steer: Beginners tend to make 90-degree turns instantly. This causes "bunching" where the thread piles up on the inside corner, potentially breaking needles.
• The Sweet Spot: Rotate your angles gradually, like steering a car on a highway, not a go-kart track.
• Density Check: Ensure your angle lines are not too close together. Spacing them out allows the software to calculate smooth transitions.

Success Metric: You should be able to visualize the thread flowing through these lines like water flowing down a slide.

The Render Moment: The "Enter" Key Payoff

Once your ladder rungs are placed, press Enter.

This is the moment of truth. The software recalculates thousands of stitches instantly.

The Visual Reward:

• 3D Pop: You will immediately see the texture change. The "flatness" disappears.
• Smooth Edges: Because the stitches now approach the border at a 90-degree angle (perpendicular), the edge creates a crisp, clean line.
• Luxury Factor: The design now looks intentional. This is the difference between "homemade" and "custom shop."


The Eraser: Using "Remove Stitch Angles" to Iterate

Fear of ruining the design often paralyzes new digitizers. You need to know that Undo is not your only safety net.

If you add angles and the result looks twisted or weird, simply select the object and click Remove Stitch Angles. The object will snap back to its default 45-degree state.

The Iterative Mindset: Pros do not get it right on the first click. We click, render, critique, reset, and click again. This tool allows you to experiment with flow without permanent consequences.

The Physical Reality: Prep, Stabilizer, and Hooping

You have perfected the digital file. Now comes the dangerous part: The Real World.

A perfectly digitized satin stitch can still fail if the physical setup is flawed. Satin stitches are dense; they exert significant pull force on the fabric. If your hooping is loose, the fabric will pucker (the "tunneling" effect), ruining your beautiful curves.

The Stabilizer Decision Tree

• Is the fabric stretchy? (T-shirts, dry-fit): You must use Cutaway stabilizer. Tearaway will eventually disintegrate under the satin density, leaving your stitches to distort in the wash.
• Is the fabric stable? (Denim, Canvas): You can use Tearaway, but ensure it is a high-quality, dense backing.
• Is there pile? (Towels, Velvet): You need a Water Soluble Topping (Solvy) to prevent the satin stitches from sinking into the loops.

The Hooping Variable

Traditional hoop rings rely on friction. You must tighten the screw and pull. This often leads to:

1. Hoop Burn: Permanent rings on sensitive fabrics like velvet or performance wear.
2. Wrist Strain: repetitive twisting of screws.
3. Inconsistent Tension: One side is tight, the other loose.

This is a specific scenario where a bernina magnetic embroidery hoop becomes a production asset. Magnetic frames (like those from SEWTECH or similar compatible brands) use downward clamping force rather than friction. This allows you to hold thick items or delicate items securely without "crushing" the fibers or distorting the grain.

Warning: Physical Safety
Magnetic Hazard: Magnetic hoops use industrial strength magnets (often N52 Neodymium). They create a pinch hazard.
* Keep fingers clear of the clamping zone.
* Do not place near pacemakers or sensitive electronics.
* Slide the magnets apart; do not try to pry them directly up.

Prep Checklist: The "Pre-Flight" Check

• Needle: Is it fresh? A burred needle will shred satin thread.
• Bobbin: Do you have enough thread? Running out mid-satin stitch creates a visible seam.
• Tension: Pull the top thread. It should feel like flossing your teeth—resistance, but smooth flow.
• Hoop: Tap the hooped fabric. It should sound like a drum (Thump-Thump), not a paper bag (Crinkle-Crinkle).

The Physics of Sheen: Why Angles Matter

Clint demonstrates the visual result, but why does it happen?

Embroidery thread is twisted. It reflects light directionally (anisotropy).

• Uniform Angles: Light reflects in one direction. From one angle, the design shines; from another, it looks dark.
• Curved Angles: As the stitches rotate, they catch the light from multiple angles simultaneously. The design "moves" visually as the wearer moves. This mimics the biological structure of a real shell or petal.

This is why upgrading your digitizing skills adds value to your final product without costing a penny in extra materials.

Production Setup: Saving Your Body and Your Time

Once your digital file is optimized, the bottleneck moves to your hands. If you are doing one shirt, it doesn't matter. If you are doing 50, efficiency is everything.

The Ergonomic Upgrade

If you find yourself dreading the hooping process, or if you are struggling with alignment, consider your hardware.

• A hooping station for embroidery ensures that every chest logo lands in the exact same spot on every shirt (e.g., 7 inches down from the shoulder seam).
• Using a bernina magnetic hoop speeds up the process by eliminating the "unscrew-loosen-push-tighten-screw" cycle. You simply lay the fabric, align, and snap the magnet.

Warning: Machine Safety
Needle Clearance: Always ensure your hoop size matches your design size in the machine settings. If you use a magnetic hoop, verify that the embroidery arm knows the safe zones. Hitting a hoop frame with a needle moving at 800 stitches per minute can shatter the needle and throw debris toward your eyes. Always wear safety glasses when testing new equipment.

Setup Checklist: Ready to Stitch

• Clearance: Check that the hoop arms do not hit the machine body or walls.
• Tail Management: Trim the thread tail to 2mm or hold it during the first few stitches to prevent it from being sucked down into the bobbin case (birdnesting).
• Speed: For wide satin stitches, reduce your machine speed. 600-700 SPM is the "Sweet Spot" for quality. 1000 SPM increases vibration and tension errors.

Troubleshooting: When Good Angles Go Bad

Even with perfect angles, things happen. Use this Low-Cost to High-Cost troubleshooting logic.

Pro Tip on Sizes: When looking for a solution to difficult fabrics, searching for specific bernina magnetic hoop sizes that match your most common projects (e.g., 5x7 for chest logos, 8x8 for quit blocks) can solve the "fabric float" issue where excess fabric bounces during stitching.

The Rhythm of Production

Clint moves quickly through the rest of the design. He enters a "Flow State": Select -> Add Angles -> Rotate -> Enter.

This is the goal. You want your software time to be efficient so you can get to the machine. But remember, the machine is only as fast as the operator.

Bottleneck Analysis:

• Does it take you 3 minutes to hoop a shirt?
• Do you spend 5 minutes fighting hoop burns with steam afterwards?

If yes, learning how to use magnetic embroidery hoop workflows can cut that time in half. You place the bottom magnet, lay the stabilizer and fabric, lay the top magnet, and go. No screwing, no fighting.

Criteria for Upgrade: The "Next Step" Decision

You have mastered the software. You have optimized your stabilizer. When do you upgrade your hardware?

Use this decision matrix to determine if you are ready for the next level of SEWTECH tools or Multi-needle machines:

1. The "Hobby" Tier:
   • Volume: 1-10 items/week.
   • Pain: Minimal.
   • Action: Stick with standard hoops. Focus on mastering the "Ladder Rungs" digitizing technique.
2. The "Prosumer" Tier:
   • Volume: 10-50 items/week.
   • Pain: Wrist fatigue, occasional hoop burn, alignment stress.
   • Action: Invest in a Hooping Station and Magnetic Hoops. If you are currently using a plastic bernina snap hoop, the magnetic upgrade will immediately reduce your physical strain and reject rate.
3. The "Commercial" Tier:
   • Volume: 50+ items/week.
   • Pain: Thread changes take longer than stitching; single-needle limits speed.
   • Action: It is time to look at Multi-Needle Machines (like SEWTECH industrial solutions). These allow you to set up 12-15 colors at once, eliminating the manual thread change downtime entirely.

Final Thoughts: Trust Your Eyes

The best quality control tool you own is your own vision.

When you finish pressing "Enter" on that final shell segment, the difference on screen is undeniable. It looks cleaner. It looks professional.

Embroidery is a mix of digital precision and physical brute force. By combining the subtle art of Stitch Angles in DesignerPlus with the robust stability of proper stabilizers and potentially upgrading to Magnetic Hoops, you close the gap between what you see on the screen and what you hold in your hand.

Go fix those angles. Your machine is waiting.

Disclaimer: Always refer to your specific machine manual for maintenance and safety procedures. Magnetic hoops are powerful tools; handle with care and keep away from children and medical devices.

FAQ

• Q: Why do curved satin stitches look jagged in BERNINA Embroidery Software DesignerPlus after auto-digitizing (the “45° stitch angle” problem)?
  A: Auto-digitizing often fills curved satin areas with a fixed 45° angle, which fights the curve and stitches out as a stepped edge.
  • Zoom in until individual needle points are visible, then look for stitches slicing across the border at harsh angles.
  • Select the satin object and use Add Stitch Angles to rotate angles gradually along the curve.
  • Press Enter to re-render and check the new stitch flow.
  • Success check: The satin edge looks crisp (stitches approach the border more cleanly) and the texture gains “3D pop” instead of a flat, serrated look.
  • If it still fails: Re-check that the correct satin top-stitch object (not underlay/background) is selected before adding angles.
• Q: Why are “Add Stitch Angles” and “Remove Stitch Angles” grayed out in BERNINA Embroidery Software DesignerPlus?
  A: The stitch-angle tools stay inactive until the correct embroidery object is explicitly selected—this is common and not a software fault.
  • Click Select Object, then click the exact satin segment you want to edit.
  • Verify the object handles (small black squares) appear around the shape.
  • Zoom out and re-select if you accidentally clicked underlay or another layer while zoomed in.
  • Success check: The stitch-angle icons change from gray (ghosted) to active (colored/black) after the correct object is selected.
  • If it still fails: Confirm you are in the proper editing mode/workspace for object editing and not just viewing.
• Q: How do I use the “Ladder Rungs” method with Add Stitch Angles in BERNINA DesignerPlus to make curved satin stitches look smooth and luxury-grade?
  A: Add stitch angle lines like ladder rungs and rotate them gradually through the curve, then re-render with Enter.
  • Activate Add Stitch Angles, then click/drag across the satin column to place one angle line.
  • Move along the curve and place the next line with a slight rotation (avoid sudden 90° changes).
  • Keep angle lines reasonably spaced so transitions stay smooth.
  • Success check: After pressing Enter, the design looks less flat, and the curve reads smooth instead of stepped or “saw-toothed.”
  • If it still fails: Use Remove Stitch Angles to reset and try again with more gradual rotation and fewer abrupt changes.
• Q: How do I reset a twisted or weird satin stitch after editing stitch angles in BERNINA Embroidery Software DesignerPlus?
  A: Use Remove Stitch Angles on the selected object to snap back to the default angle behavior, then re-edit more gently.
  • Select the same satin object you edited.
  • Click Remove Stitch Angles to clear the manual angle controls.
  • Re-apply Add Stitch Angles with gradual rotation and re-render using Enter.
  • Success check: The object returns to a predictable, uniform fill (your “clean baseline”) before you attempt a new angle strategy.
  • If it still fails: Zoom in to confirm you are editing the satin top-stitch object rather than an underlay or background element.
• Q: What stabilizer should I use to prevent tunneling and distortion on dense satin stitches (T-shirt vs denim vs towel pile)?
  A: Match stabilizer to fabric type first—dense satin pulls hard, so the wrong backing is a common reason curves pucker even with perfect digitizing.
  • Use Cutaway stabilizer for stretchy knits (T-shirts, performance/dry-fit) to resist long-term pull.
  • Use Tearaway for stable fabrics (denim/canvas), choosing a dense, good-quality backing.
  • Add water-soluble topping for pile fabrics (towels/velvet) to stop stitches sinking into loops.
  • Success check: After stitching, the satin column stays flat with minimal “tunneling” (no raised ridge or puckered channel along the edges).
  • If it still fails: Re-evaluate hooping tension—loose hooping can cause puckers even with the correct stabilizer.
• Q: How do I know if hooping tension is correct before stitching a wide satin stitch, and what causes hoop burn with traditional hoops?
  A: Hoop the fabric drum-tight without crushing fibers; traditional screw hoops can leave hoop burn and uneven tension—this is a common pain point.
  • Tighten and smooth the fabric evenly (avoid one side tight and the other loose).
  • Tap the hooped fabric to test tension before stitching.
  • Consider a magnetic embroidery frame if repeated hoop burn or inconsistent tension keeps ruining sensitive fabrics (generally, magnetic clamping reduces “ring” pressure marks).
  • Success check: The hoop sounds like a drum (“Thump-Thump”), not a paper bag (“Crinkle-Crinkle”), and the fabric surface looks even (no ripples).
  • If it still fails: Re-hoop and confirm the stabilizer is properly captured with the fabric (no floating or shifting).
• Q: What safety checks are required when testing a magnetic embroidery hoop or any hoop on a BERNINA-style embroidery machine to prevent needle strikes and injuries?
  A: Verify hoop/design clearance and treat magnets as pinch hazards—needle-to-hoop contact at embroidery speeds is dangerous.
  • Confirm the hoop size matches the design size in the machine settings so the machine “knows” the safe stitching zone.
  • Manually check clearance: ensure hoop arms will not hit the machine body, table, or walls during travel.
  • Keep fingers out of the magnetic clamping zone; slide magnets apart rather than prying straight up.
  • Success check: The first test run stitches without frame contact, abnormal knocking, or sudden stoppage; hands stay clear during clamping.
  • If it still fails: Stop immediately, re-check size/settings and physical clearance, and consult the specific machine manual for safe operation limits.
