Make Oversized Wreath Designs Fit a 360×200 Hoop: Encore + Split Project Wizard in 5D Embroidery Extra (Without Losing Alignment)

Big designs are exciting—right up until the moment reality hits: your screen shows a magnificent 400mm wreath, but your physical machine only has a 200mm hoop.

If you’ve ever hit that “my hoop is too small” wall, take a breath. You are not failing; you are simply encountering the gap between digital ambition and mechanical reality. This is a rite of passage for every embroiderer. In this comprehensive guide, I will walk you through the exact workflow shown in 5D Embroidery Extra: creating a massive wreath using Encore, surgically editing stitches, and—most importantly—using the Split Project Wizard to slice the design into stitchable sections.

But we will go deeper than the software buttons. I’m going to layer in the production floor reality: how to physically manage fabric drag, why "hoop burn" ruins multi-hoop projects, and the specific tools—like magnetic frames—that professional shops use to guarantee alignment.

Start Calm: 5D Embroidery Extra Is Built for “Too Big for My Hoop” Moments

The video demonstrates a scenario that terrifies beginners: creating a design layout that is physically impossible to stitch in one pass. The software, however, creates a bridge called the Split Project Wizard.

One viewer commented that the original video was blurry and the music distracting. If you struggled to follow the cursor, don’t worry. We are going to slow this down. I will translate the rapid clicks into a Sensory Workflow—what you should see, click, and check before moving forward.

Before we touch the mouse, remember this rule of thumb: Software can split anything, but you have to hoop it. If your re-hooping skills are shaky, the software’s precision won’t save you. We will address that physical skill gap as we go.

The “Hidden” Prep Before You Click Anything: Set Yourself Up for Clean Splits and Clean Stitch-Outs

A split design is not just "one design cut in half." It is a construction project. Whether you are making a pillow, a tablecloth, or a round table cover, the stability of your fabric determines if Section B will line up with Section A.

The stabilizer you choose is your foundation.

• Woven fabrics (Tablecloths): You need a medium-weight tear-away or a crisp fusible to prevent puckering.
• Knits/Stretchy fabrics: Stop. Do not use tear-away alone. You need a cut-away stabilizer (Mesh) to lock the fibers, or your alignment stitches will drift, creating visible gaps.

If you plan to master the art of the multi hooping machine embroidery workflow, you must treat your workspace like a sterile lab. Dirty hoops, lint-filled bobbin cases, or dull needles will cause shifts that no software can fix.

Consumables you need handy:
* Temporary Spray Adhesive (e.g., KK100): Vital for floating fabric between hoopings.
* Water-Soluble Marking Pen: For drawing your crosshair grids.
* Fresh Needles: Install a new 75/11 embroidery needle before starting. A dull needle drags fabric, destroying alignment.

Prep Checklist (Pre-Flight):

• Hoop Inventory: Confirm your target hoop (e.g., 360×200mm) is clean and the screw is functioning smoothly.
• Center Mark: Mark the absolute center of your fabric with a water-soluble pen or chalk.
• Paper Test: Ensure your printer has paper. You must print the templates later; this is non-negotiable for split designs.
• Fabric Ironing: Press your fabric perfectly flat. Any wrinkle is a potential alignment error.

Warning: Multi-hooping requires handling the fabric near the needle while the machine is paused. Always keep fingers at least 2 inches away from the needle bar. If you are using a multi-needle machine, ensure the safety bar functions correctly before reaching in.

Build a Big Workspace Fast: Enter a 400×400mm Virtual Hoop So You Can Design Without Feeling Boxed In

Psychologically, it sets us back to see a small hoop boundary on the screen. The video shows a brilliant trick: lying to the software (temporarily) to get a larger canvas.

The Action Step:

1. Open the hoop selection dialog.
2. Manually enter 400mm × 400mm (approx. 16 inches square).
3. Click OK.
4. Switch to 3D View.

Sensory Check - What to Look For: You should see a vast, empty grid with a massive hoop outline. It should look "too big." This relieves the cognitive pressure of trying to squeeze elements into a small space. You are designing in "Scale Mode" now; we will worry about the "Stitch Mode" constraints later.

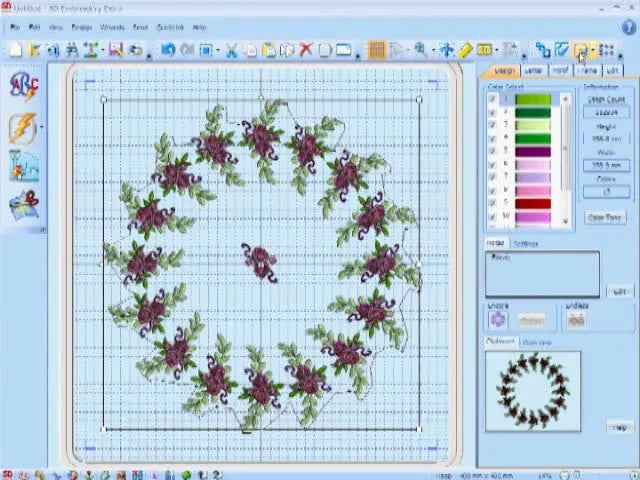

Make a Perfect Wreath in Seconds: Use Encore (Circle) with 16 Repeats and Lock It In

The "Encore" feature is distinct from simple copy-pasting. It calculates the geometry for you.

The Execution:

1. Select your floral motif.
2. Navigate to the Encore tab.
3. Select Circle.
4. Input 16 repeats.
5. Click Preview/OK.
6. The tactile refinement: Drag the bounding box handles inward. Watch the flowers compress. You want them close enough to look cohesive, but not so overlapped that they create "bulletproof" density (which breaks needles).
7. Right-click to Combine/Fix.

Expert Insight: Listen to the rhythm of the design. If the flowers are too sparse, the wreath looks weak. If they are too tight, you create a "thread nest" trap. Aim for a visual spacing where the petals just kiss or overlap by 1-2mm.

The Clipboard Trick That Saves Time: Keep the Single Flower Separate While You Edit

Professional digitizers never destroy their assets. In the video, they use a "Safety Copy" method.

The Logic: Before you commit the wreath to a fixed object, Copy the single flower element to your clipboard. Once the wreath is generated, they actually Cut it to the clipboard to clear the screen, paste the single flower back, edit it, and then bring the wreath back.

It sounds like a shuffle, but it prevents you from accidentally selecting wreath stitches when you only want to edit the center flower. It’s digital hygiene.

Cleanly Isolate the Center Flower in the 5D Embroidery Extra Edit Tab (Hide Colors, Then Delete)

Deleting parts of a design can be dangerous. If you use a generic "eraser" tool, you might nip a stitch you needed. The video shows the verifiable way to edit: Color Filtering.

The Surgical Steps:

1. Select the single flower.
2. Enter the Edit Tab.
3. Look at the Color List on the right.
4. Action: Uncheck (Hide) the pinks, yellows, and any color you want to keep.
5. Visual Check: You should only see the Green leaves on the screen. The flower heads are invisible (safe).
6. Select the visible Green stitches -> Press Delete.
7. Re-check (Unhide) the other colors. The flower heads reappear, magically floating without leaves.

Why this works: You eliminate the risk of human error. You cannot verify what you deleted if you try to drag-select a complex cluster. Hiding colors is your safety net.

Place the Center Motif Like a Pro: Rebuild the Layout, Center It, Then Resize Using Blue Handles

Now we re-assemble the puzzle.

The Sequence:

1. Paste the large Wreath back into the workspace.
2. Use the Center to Hoop button (usually a target icon).
3. Paste your edited (leaf-less) flower.
4. Center the flower.
5. Resizing: Grab the corner handle (Blue). Drag outwards to enlarge.

Expert Caution on Resizing: The video shows a visual resize. In reality, resizing an embroidery file more than 10-20% can change the density.

• Scale Up: Stitches may become sparse (gaps show fabric).
• Scale Down: Stitches pack together, causing stiff, bulletproof embroidery.
• The Fix: If your software has "Stitch Processor" or "Density Recalculation" (most modern versions do), ensure it is checked. If not, stick to a 20% max size change.


The Multi-Hoop Reality Check: When a 400×400 Layout Must Stitch in a 360×200 Hoop

This is the crucible. You have a square design; you have a rectangular hoop.

The traditional method involves manually splitting the design, adding crosshairs, and praying. The Split Project Wizard automates this, but it relies on your ability to re-hoop perfectly.

The Pain Point: Traditional screw-tightened hoops are the enemy of precision here.

1. Hoop Burn: To get fabric tight enough for alignment, you have to crank the screw, which crushes the fibers (permanent rings on velvet or linen).
2. The Shift: As you tighten the screw, the inner ring often "walks," pulling your carefully marked fabric off-center by 3-5mm. This ruins the split connection.

This creates a massive barrier to entry. If you find yourself avoiding large projects because you hate the struggle of hooping, or because you can’t get the fabric square, this is where terminology like magnetic embroidery hoops enters the conversation. Pros use them because they snap straight down—no "walking" inner ring, no hoop burn, and dramatically higher precision for split designs.

Let Split Project Wizard Do the Heavy Lifting: Intelligent Split + Alignment Stitches + Color Sort

We trust the algorithm here.

The Setup:

1. Click Split Project Wizard.
2. Select your actual physical hoop (360mm × 200mm).
3. Crucial Setting: Ensure "Add Alignment Stitches" is checked.
4. Crucial Setting: Ensure "Color Sort" is checked (this reduces needle changes).

What the Software Does: It calculates the "Overlap Zone." It slices the wreath into Top, Middle, and Bottom chunks. It inserts loose, long stitches (bastings) that mark the connection points.

Visual Check: You should see 3 distinct sections. The "split line" should ideally snake around the flowers, not slice straight through a petal. Modern wizards are smart—they look for open space.

Print Templates Like You Mean It: The Paper Is What Saves Your Fabric

Do not skip the printer. The wizard will prompt you to Print Templates. Do it.

Why Paper Matters: The screen is flat; your fabric is fluid. The printed template (printed at 100% scale) allows you to lay the design on your fabric and mark the center points for each of the three hoopings.

Pro Tip: print on "Vellum" or specialized translucent template paper if you have it. It allows you to see the fabric grain through the paper.

Setup That Prevents “Section Drift”: A Simple Decision Tree for Fabric + Stabilizer Strategy

Stabilization is not "one size fits all." Use this decision tree to prevent your wreath from becoming an oval.

Stabilization Decision Tree:

If repeatability is your goal—for example, making 10 of these wreaths—using a standardized machine embroidery hooping station ensures that the placement on the first pillow matches the tenth pillow exactly.

Operation Checklist: Stitching the Three Split Files Without Gaps, Overlaps, or Visible Seams

You are ready to stitch. Save your files as Wreath_Top, Wreath_Mid, Wreath_Bot.

Operation Checklist (The Flight Plan):

• Hooping 1 (Top): Hoop the fabric aligning the center mark.
• Stitch Part 1: Watch the machine. Do not walk away.
• Alignment Stitch: The machine will sew a marker at the bottom of Part 1. Do not remove this thread yet.
• Re-Hooping: This is the critical moment. Remove the hoop. Re-hoop the fabric moving down.
• Alignment Check: Use the machine's needle to hover over the alignment stitch from Part 1. It must match the start point of Part 2 perfecty.
• Validation: If you are using a consistent embroidery hooping system, this alignment is fast. If manually hooping, take your time. If it's off by 1mm, adjust the design position on the screen.

Sensory Anchor: When checking tension in the hoop, tap the fabric. It should sound like a dull thump, not a hollow ping (too tight, puckering risk) and not a rustle (too loose, shifting risk).

Troubleshooting the Scary Part: Symptoms → Likely Cause → Fix

Split designs reveal mechanical weaknesses. Here is how to diagnose them instantly.

Symptom: "There is a 2mm gap between the flowers in the wreath."

• Likely Cause: Fabric slippage or inadequate stabilizer.
• Fix: Use a heavier Cut-Away stabilizer next time. For now, try to massage the fabric towards the needle or lower the tension.

Symptom: "The design does not line up (Vertically)."

• Likely Cause: You pulled the fabric when tightening the hoop screw.
• Fix: Switch to embroidery magnetic hoops which clamp vertically without friction-pulling the fabric.

Symptom: "The outline is off-register (The fill is outside the line)."

• Likely Cause: "Flagging" (fabric bouncing up and down).
• Fix: Your hoop is too loose. Tighten it until the fabric doesn't bounce.


The “Why” Behind the Wizard: Alignment Stitches Are Your Insurance Policy

Why does the software add those weird L-shaped stitches or crosshairs?

They are Registration Marks. In the printing world, CMYK plates must align perfectly. In embroidery, your alignment stitches are the registration plates.

The Physics: Even if you hoop perfectly, fabric fibers relax and contract under the thousands of needle penetrations (the "push-pull" effect). The alignment stitches tell you exactly where the fabric is after distortion, not where it was when you started. Always trust the stitched alignment mark over your chalk mark.

Professionals minimize this distortion by using a rigid hooping station for embroidery which holds both the outer and inner hoop (or magnetic frame) static while the fabric is smoothed out.

The Upgrade Path (When You’re Ready): Faster Re-Hooping, Less Fatigue, More Consistent Alignment

If you successfully stitched this split wreath, congratulations. You have graduated from "novice."

However, if you found the process of re-hooping three times exhausting, or if your wrists hurt from tightening screws, listen to that signal.

• The Hobbyist Limit: Manual screws and printed templates are fine for 1-2 projects a year.
• The Production Signal: If you plan to sell these, or make a set of 8 placemats, the manual method will break you.

The Solution Ladder:

1. Level 1 (Technique): Use better spray adhesive and template paper.
2. Level 2 (Tooling): Upgrade to a Magnetic Hooping Station. This holds the hoop for you and uses heavy-duty magnets to snap the fabric in place without distortion. It is the single biggest "quality of life" upgrade for split designs.
3. Level 3 (Machinery): If a 360x200 hoop is still too small, this is when you look at SEWTECH multi-needle machines or larger commercial frames that reduce the need to split in the first place.

Warning: Magnetic Safety
magnetic hooping station devices and frames contain neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together instantly. Keep fingers clear of the mating surfaces.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on laptops or computerized machine screens.

Setup Checklist: The Exact On-Screen Checkpoints to Confirm Before You Split

Before you hit that final "Save," verify the digital asset.

Setup Checklist (Software Final Check):

• Hoop Size: Virtual hoop is 400x400; Target Split Hoop is correct (e.g., 360x200).
• Encore: Wreath is set (stitches combined), no loose elements.
• Center: The design is mathematically centered (X=0, Y=0).
• Stitch Count: Check the total stitch count. If it’s over 50,000, ensure you have enough bobbin thread to last a full section.
• Split Lines: Preview the split. Does it cut through a critical face or detail? If so, rotate the wreath slightly to move the cut line to a safe spot.


Save Like a Professional: Multiple Files Are Normal—Name Them So You Don’t Stitch the Wrong Section

The wizard will spit out multiple files. Do not keep the default names (e.g., Design1_Split1).

Naming Protocol:

• ProjectName_Part1_TOP.vp3
• ProjectName_Part2_MID.vp3
• ProjectName_Part3_BOT.vp3

This seems trivial until you are standing at the machine, tired, and you accidentally stitch the "Bottom" section in the "Top" position, ruining the fabric. Label clearly.

The Takeaway: Encore Builds the Beauty, Split Project Wizard Makes It Stitchable

You have taken a design that theoretically didn't fit and forced it into reality.

• Encore provided the geometry.
• Edit Tab provided the surgical precision.
• Split Wizard provided the roadmap.
• You provided the physical alignment.

Remember, the difference between a "home-made" look and a professional result usually isn't the machine—it's the stabilization and the hooping precision. Master the physical prep, and the software becomes easy. Happy stitching!

FAQ

• Q: In 5D Embroidery Extra Split Project Wizard, which pre-flight items prevent misalignment when splitting a 400×400mm layout into a 360×200mm hoop?
  A: Use a simple pre-flight checklist before splitting, because split accuracy is often lost from tiny prep mistakes, not from the wizard.
  • Install a fresh 75/11 embroidery needle, clean the hoop, and confirm the hoop screw moves smoothly.
  • Prepare temporary spray adhesive, a water-soluble marking pen, and ensure the printer is ready for 100% templates.
  • Press the fabric perfectly flat and mark the absolute fabric center before any hooping.
  • Success check: the fabric lies wrinkle-free and the hoop grips evenly without “walking” when tightening.
  • If it still fails… upgrade stabilization first (heavier cut-away or fusible strategy for the fabric type) before changing software settings.
• Q: In multi-hooping machine embroidery, what hoop tension standard prevents fabric shifting without causing hoop burn?
  A: Aim for firm, even tension—tight enough to stop bounce, not so tight that the hoop crushes fibers.
  • Tighten to a stable hold, then tap-test the hooped fabric to judge tension before stitching.
  • Avoid over-cranking screw hoops on sensitive fabrics (linen/velvet/high-nap) where hoop burn can become permanent.
  • Re-check tension after the first section stitches, because push-pull distortion can change how the fabric sits.
  • Success check: the fabric gives a dull “thump” when tapped (not a hollow “ping” and not a loose rustle).
  • If it still fails… consider switching from screw hoops to a magnetic hoop/frame to reduce hoop burn and hoop-walk shifts.
• Q: In 5D Embroidery Extra, how should “Add Alignment Stitches” and “Color Sort” be set in Split Project Wizard for a 360×200mm split?
  A: Enable both “Add Alignment Stitches” and “Color Sort” for cleaner registration and fewer needle changes.
  • Select Split Project Wizard, then pick the actual physical hoop size (for example, 360mm × 200mm).
  • Check “Add Alignment Stitches” so each section includes registration marks for re-hooping accuracy.
  • Check “Color Sort” to reduce needle changes across the split sections.
  • Success check: the preview shows distinct sections with alignment marks, and split lines avoid cutting straight through critical petals/details.
  • If it still fails… rotate or slightly reposition the layout before splitting so the split line lands in more open space.
• Q: In 5D Embroidery Extra multi-hooping, why are printed templates non-negotiable, and how should the templates be used during re-hooping?
  A: Print the templates at 100% and use them to transfer exact placement marks for each hooping, because fabric moves but paper stays true.
  • Print templates when prompted and verify the print is full scale (do not “fit to page”).
  • Lay the template on the fabric to mark the center points for each split section before hooping.
  • Use the marked centers to position each re-hoop consistently from Top to Mid to Bottom.
  • Success check: the needle hover test lands precisely on the previously stitched alignment mark when starting the next section.
  • If it still fails… improve fabric control with spray adhesive for floating and use a more rigid stabilization plan for the fabric type.
• Q: During multi-hooping split files, how should the embroidery machine needle be used to verify alignment stitches before stitching Part 2 and Part 3?
  A: Use the machine needle as a pointer: hover the needle over the previous section’s stitched alignment mark before committing to the next run.
  • Stop after Part 1 and keep the alignment stitch thread in place (do not remove it immediately).
  • Re-hoop for Part 2, then move the hoop/design position so the needle hovers exactly over the Part 1 alignment stitch location.
  • Repeat the same alignment hover check between Part 2 and Part 3.
  • Success check: the needle lands on the stitched registration mark cleanly with no visible offset before you press start.
  • If it still fails… adjust the on-screen design position in tiny increments; if repeated offsets happen, suspect hoop-walk from screw tightening and consider a magnetic frame.
• Q: In multi-hooping machine embroidery, what causes a visible 2mm gap between split sections, and what is the fastest fix path?
  A: A 2mm gap usually comes from fabric slippage or inadequate stabilizer, so fix stabilization and holding power first.
  • Upgrade stabilizer for the next attempt (often heavier cut-away for unstable fabrics; avoid tear-away alone on knits).
  • Add better temporary spray adhesive to reduce shifting when floating between hoopings.
  • During stitching, avoid pulling fabric; let the stabilizer do the holding.
  • Success check: the join area closes with no daylight between motifs when the second section finishes.
  • If it still fails… move to a more consistent hooping method (magnetic hoop/frame or a hooping station) to reduce repeatable slip.
• Q: What machine-safety rule reduces needle-injury risk during multi-hooping alignment checks on a multi-needle embroidery machine?
  A: Keep hands at least 2 inches away from the needle bar when the machine is paused, and verify the safety bar works before reaching in.
  • Pause the machine and wait for full stop before touching fabric or hoop.
  • Use tools/controls to position the needle for hover checks rather than guiding near the needle path.
  • Confirm the multi-needle machine safety bar functions correctly before any close alignment work.
  • Success check: alignment is verified without fingers entering the needle strike zone.
  • If it still fails… stop the job and reset the workspace; do not “sneak” fingers closer to correct alignment while the machine is active.
• Q: What are the key safety rules for using a magnetic hooping station or magnetic embroidery frame with neodymium magnets during multi-hooping?
  A: Treat neodymium magnets as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear of mating surfaces; magnets can snap together instantly.
  • Keep magnets at least 6 inches away from pacemakers and similar medical devices.
  • Do not place magnetic frames directly on laptops or computerized machine screens.
  • Success check: the frame seats cleanly without finger pinches and the work area stays clear of electronics.
  • If it still fails… slow down the handling sequence and stage parts on a non-electronic, stable surface before bringing magnets together.
