Make Automatic Bead Embroidery Behave on a MYSEW 15-Needle Machine: Dahao Needle-15 Mapping, Magnetic Frame Setup, and the “No-Surprises” Run

Automatic beading looks like magic—right up until the first time the bead string jams, the machine “eats” a bead, or the frame gets too close for comfort. If you’re staring at a MYSEW 15-needle head with a bead device mounted at Needle 15 and thinking, “One wrong tap and I’ll crash something,” you’re not overreacting. You are exhibiting the healthy caution of a professional.

Bead devices are mechanical precision instruments. Unlike standard thread embroidery, where a mistake usually just means a bird’s nest, a mistake here involves solid objects (beads) moving at high speeds. The margin for error is razor-thin.

This post rebuilds the exact workflow shown in the demo video—pattern selection on the Dahao panel, switching the interface language, mapping the design color to Needle 15, verifying the bead reel and thread, positioning a large magnetic sash frame, and running the job. But we aren't just transcribing steps; we are adding the shop-floor habits, sensory checks, and safety protocols that keep bead runs clean, repeatable, and profitable.

Calm the Panic First: What This MYSEW Bead Device Demo Is (and What It Isn’t)

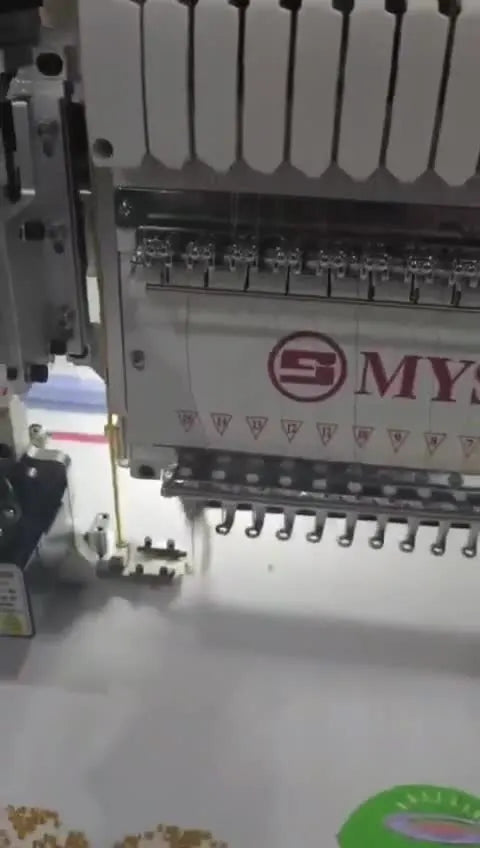

The video is a technical demonstration of a bead embroidery device attachment installed at Needle 15 on a MYSEW single-head commercial embroidery machine (15 needles). The operator shows a finished gold-bead sample first, then runs a bead design by assigning the design’s color to Needle 15 on the Dahao touchscreen, jogging the frame to a clear area, confirming the position, and pressing start.

Before we press buttons, we need to set two critical expectations to manage your anxiety:

1. The Scope: The video proves the workflow and the mechanism (beads feeding and stitching). It does not walk through digitizing (which requires specific software settings for bead spacing), bead size selection, or deep tension tuning.
2. The Reality of Physics: Bead embroidery is significantly less forgiving than normal thread embroidery. A standard satin stitch accommodates fabric flex; a line of beads does not. Small setup mistakes don’t just “look a little off”—they can cause bead feed issues, needle deflection, or a mechanical strike.

When watching the beading action, listen to the rhythm. A healthy machine sounds like a steady metronome—thump-thump-thump. If you hear a grinding noise or a high-pitched click-click, that is your auditory cue to hit the E-Stop immediately.

The “Hidden” Prep Pros Do Before Touching the Dahao Screen: Beads, Thread Path, and Stabilizer Discipline

Before you tap anything on the controller, treat this setup like a pilot’s preflight inspection. The video clearly shows gold beads on a reel, thread cones, and a white stabilizer/backing under the fabric. That’s your visual baseline, but let’s look deeper.

If you’re building this into a repeatable shop process, the goal is simple: the bead string must feed smoothly, the thread must form consistent lock stitches, and the fabric must not shift under the bead line.

Here are the expert realities (general guidance—always defer to your machine and attachment manual):

• Beads Add Drag: The bead string is heavier than thread. Even when the stitch looks “normal,” the feed resistance changes tension behavior. You generally need a slightly tighter top tension to anchor the heavy bead, but too tight will snap the thread.
• Bead Lines Amplify Movement: A tiny fabric shift that would be invisible under satin stitches becomes painfully obvious when beads form a curve. If your fabric "flags" (bounces up and down), the beads will look crooked.
• Stabilizer is Structural: A bead line is essentially a rigid embellishment. If the base fabric flexes, the line will wave. You cannot rely on tearaway alone for heavy bead work.

If you’re using a large sash-style magnetic frame like the one in the video, you’re already halfway to consistency because you can clamp quickly and keep the work area flat. In production, that time savings and grip strength are exactly why shops move toward a magnetic frame for embroidery machine setup. The flatness prevents the bead device foot from snagging on loose fabric ripples.

Hidden Consumables Check

Do not start without these on your table:

• Precision Tweezers: For guiding the bead string during initial threading.
• Fabric Scissors: For trimming the bead string flush (never leave a loose tail hanging near the needle plate).
• Compressed Air: Bead dust can accumulate in the bobbin case faster than thread lint.


Prep Checklist (do this before you select the design)

• Device Verification: Confirm the bead device is installed at Needle 15 (or your machine's designated needle) and the set screw is tight. Shake it gently; there should be zero play.
• Path Clearance: Confirm the bead reel is mounted and the bead string is routed cleanly. Ensure the string is not twisted; a twist in the bead tape causes jams.
• Thread Check: Pull the thread through the needle eye. You should feel smooth resistance, similar to flossing teeth. If it jerks, check the thread path.
• Stabilizer Match: Confirm your fabric is backed with the correct stabilizer (see the Decision Tree below).
• Flatness Check: Confirm the frame is clamped evenly so the fabric is drum-tight (but not stretched). Press your finger on the fabric; it should not depress easily.
• Zone Planning: Clear the stitch area. The operator later jogs to an empty space to avoid overlapping previous tests—visually map that spot now.

Warning: Keep fingers, tweezers, and scissors away from the needle area once you start. A 15-needle head running at speed can injure you instantly. Bead devices add extra moving parts (levers and feet) that create new pinch points not present on standard heads.

Make the Dahao Panel Work for You: Switching Language and Finding the Bead Design File

In the video, the operator begins by selecting the pattern on the Dahao touchscreen, then switches the system language from Chinese to English for the demonstration.

This matters more than convenience. In a commercial environment, cognitive load kills quality. When you are assigning needles and confirming boundary checks, you want zero ambiguity. If your staff is mixed-language, standardize the interface language per shift so the same menu labels appear every time.

What the operator does on-screen:

1. Select Pattern: Tap the design/pattern icon to enter the library.
2. Load File: Choose the design file from internal memory. (Ensure your file is digitized specifically for beads—standard satin stitch files will NOT work).
3. System Language: Enter the system settings and change the language to English to ensure all parameter alerts are readable.




The One Tap That Makes or Breaks the Job: Mapping Design Color 1 to Needle 15 (Bead Device)

Here’s the critical step where 90% of failures happen. On the color setting screen, the operator taps the design’s color block and assigns it to Needle 15 so the machine engages the bead device instead of a standard needle.

If you skip this—or assign the wrong needle number—the machine will attempt to embroider the bead design using a standard needle (like Needle 1). This will result in a needle breaking against the bead path or a complete lack of beads.

In the video:

1. The operator navigates to the Color/Needle Setting menu.
2. The design’s color block (Color 1) is selected.
3. The operator explicitly types or selects “15.”
4. The screen verifies “15” in the color sequence list.

This is the heart of any Dahao control panel tutorial for specialty attachments: the controller doesn’t “guess” you want the bead device. The digitizing software tells the machine where to go, but the panel tells the machine which tool to use. You must explicitly map the design color to the needle position where the device is installed.

Setup Checklist (before you move the frame)

• Digital Verification: On the Dahao color sequence screen, verify the bead design color is assigned to Needle 15.
• Physical Verification: Visually confirm the bead device is physically mounted at Needle 15. Do the numbers match?
• Routing Check: Confirm the bead string and thread are both routed through the guide tubes and are not rubbing on sharp edges of the machine head.
• Speed Limit: Confirm you are ready to run within the demonstrated speed range (500–800 RPM). Do not start at max speed.

Positioning the Large Magnetic Sash Frame Without Regret: Jogging to a Clean Area and Confirming the Boundary

The video shows the operator using the directional arrow keys on the Dahao panel to jog the pantograph and move the fabric/frame to an empty area on the stabilizer. This is a small move that prevents a very common shop mistake: stitching a new bead run on top of an old test area.

Two practical reasons this step is non-negotiable:

1. Beads don’t “blend.” If you overlap a bead design onto existing beads, the needle will strike the glass/plastic bead, shatter it, and likely break the needle. You will likely damage the garment and the device.
2. Large frames invite overconfidence. When you have a big field (like the sash frame shown), it’s easy to forget where the last test landed.

The operator then uses the on-screen position/boundary confirmation (a dialog appears) before proceeding. Watch the presser foot trace the outline. If the foot comes within 10mm of a hoop edge or another design, re-position.

A Quick Decision Tree: Fabric → Stabilizer Strategy for Bead Lines

Bead output is heavy. Use this "Shop-Safe" matrix to choose your backing.

This is where a good stabilizer program pays for itself. If you sell backing/stabilizer, don’t sell “one type for everything”—build a matrix so operators stop guessing.

Running the Job at 500–800 RPM: What to Watch While the Bead Device Is Stitching

In the demo, the operator presses start, and the machine begins stitching. The bead device reciprocates up and down, feeding and placing beads as the stitch cycle runs.

The Sweet Spot: The video mentions 500–800 RPM. For your first run, I recommend setting the speed to 600 RPM. This is the "Sweet Spot" where you have enough momentum for smooth feeding, but slow enough to react if a jam occurs.

This is the moment to stop being “hands-on” and start being “eyes-on.” Do not walk away. Monitor these three sensory inputs:

1. Visual: The Bead Curve
   • The bead string should advance smoothly.
   • You should see beads appearing in a clean curve/line. If they look "gappy" or loose, the stitch integrity is failing.
2. Auditory: The Rhythm
   • Listen for the click-clack of the bead feed mechanism. It should be consistent.
   • An irregular clack... click-click... silence indicates the bead tape has jammed in the feeder.
3. Visual: Thread Tension
   • Watch the thread cone. It should unspool steadily. If it's jumping violently, your tension path is obstructed.

If you’re building a workflow around automatic bead stitching, this monitoring step is the difference between “cool demo” and “reliable product.”

Operation Checklist (during the first 30 seconds of stitching)

• Drop Check: Confirm beads are landing one-by-one. Are they securely attached?
• Feed Check: Confirm the bead string is feeding without jerks. Look at the reel—is it spinning freely?
• Pucker Check: Confirm the stitch line is not pulling the fabric into a wave (hooping issue).
• Sound Check: Listen for the rhythmic "thump-thump." Any metal-on-metal sound = STOP.
• Safety Check: Keep your hand on the E-Stop button for the entire first pass.

The “Why” Behind the Common Failures: Hooping Physics, Feed Drag, and Why Magnetic Frames Help

The video shows a large rectangular magnetic frame with purple/white clips holding the fabric taut. That’s not just a convenience feature—it changes the consistency of your bead results.

Here’s what’s happening in plain shop terms:

• Bead lines behave like a stiff trim. When the machine stitches beads down, the line resists bending. If the fabric shifts even slightly, the bead line can arc or ripple.
• Feed drag changes tension dynamics. The bead string adds resistance. Hooping pressure must be absolutely uniform to counteract this drag.
• Hooping pressure can distort the base fabric. Traditional screw hoops create uneven stress (tight corners, loose sides). When you stitch a heavy bead line on uneven tension, you get "Hoop Burn" and puckering.

A well-designed magnetic embroidery frame reduces two pain points at once:

1. Speed: Faster loading/unloading (especially on large sash frames).
2. Physics: More consistent clamping pressure across the entire work area. This uniform grip prevents the fabric from shifting under the weight of the bead device.

Warning: Magnetic Force Safety
Magnetic frames use industrial-strength magnets (often Neodymium).
* Pinch Hazard: They snap shut instantly. Keep fingers entirely clear of the contact zone.
* Medical Devices: Keep frames at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

“It Looked Fine… Then It Went Wrong”: Practical Troubleshooting for Bead Embroidery Attachments

The video doesn’t include a troubleshooting section, so here are the failure patterns I see most often in real shops. Treat these as “likely causes” and address them in order of "Least Invasive" to "Most Technical."

Symptom: Beads skip (gaps in the line)

• Likely Cause 1: Bead string drag. The reel is too tight or the tape is twisted.
• Likely Cause 2: Speed too high. The feed mechanism can't keep up.
• Likely Cause 3: Fabric flagging (bouncing).
• The Fix: Check the reel path first. Then, slow the machine to 500 RPM. If it persists, use a heavier stabilizer or a magnetic hoop to stop fabric bounce.

Symptom: Beads bunch or “double up” in one spot

• Likely Cause: The feed lever is advancing, but the needle isn't locking the previous bead down securely, causing a pile-up.
• The Fix: Stop immediately. Clear the bead path. Check your top thread tension—it likely needs to be slightly increased to "seat" the bead firmly.

Symptom: Thread breaks during the bead run

• Likely Cause: The thread is rubbing against the sharp edge of the bead or the device guide.
• The Fix: Re-thread. Ensure you are using a strong polyester thread (40wt or stronger). Rayon is often too weak for high-speed beading.

Symptom: The design lands on top of an old test area

• Likely Cause: Skipping the "Jog" step or failing to confirm the boundary.
• The Fix: Always use the "Trace" function before hitting start.

The Upgrade Path That Actually Makes Sense: From One-Off Tests to Production Runs

If you’re doing this once for fun, the demo workflow is enough. But if you are trying to make money with bead embroidery, you need to think in batches. Efficiency is your profit margin.

Here is the production-minded logic I recommend:

• Level 1: The Hooping Bottleneck
  If you are running a single-head machine and spending more time hooping than sewing, look at your tools. If your operators complain about hand strain or "hooping burn" marks on velvet/delicate fabrics, that is the trigger to upgrade to magnetic embroidery hoops. This isn't a luxury; it's a labor-saving device that protects expensive garments.
• Level 2: The Prep Bottleneck
  If the machine is stopped while you hoop the next shirt, you are losing money. Consider a dedicated hooping station. This allows you to prep frame #2 while frame #1 is sewing beads. The machine never stops.
• Level 3: The Volume Bottleneck
  If you are turning away orders because you can't stitch fast enough, or if you need to run beading/sequins alongside 12 colors of thread without constant re-threading, it is time to scale. A single-head is a great starter, but a SEWTECH Multi-Needle platform allows for dedicated setups—keep the bead device on Head 1 permanently and use the rest for standard production.

A Final Reality Check: Documentation

Once you get a clean bead curve like the demo shows, do not trust your memory. Write down:

1. The File: The design file name.
2. The Map: The needle mapping (Design Color X → Needle 15).
3. The Stack: The stabilizer/backing combination used.
4. The Speed: The specific RPM that worked (e.g., 600 RPM).

That’s how you turn a “demo win” into a shop standard. The goal is to make the process so boring and predictable that you can listen to a podcast while the machine prints money.

FAQ

• Q: How do I correctly map a bead embroidery design color to Needle 15 on a Dahao touchscreen when a bead device is mounted on a MYSEW 15-needle embroidery machine?
  A: Always assign the bead design’s active color block to Needle 15 before pressing Start, because the controller will not “auto-detect” the bead device.
  • Open Color/Needle Setting on the Dahao panel and select the bead design color (often Color 1 in the demo).
  • Enter/select 15 and confirm the sequence list shows that color mapped to Needle 15.
  • Physically confirm the bead device is actually mounted on the Needle 15 position (numbers must match).
  • Success check: the color sequence screen clearly displays “15” for the bead color, and the bead device engages when the job starts.
  • If it still fails: stop and re-check that the file is digitized for beads (a normal satin-stitch file will not run beads correctly).
• Q: What preflight checks should be done before starting automatic bead stitching on a MYSEW 15-needle embroidery machine with a bead device at Needle 15?
  A: Treat bead setup like a preflight inspection: verify the device is rigid, the bead string feeds cleanly, and the fabric is structurally supported.
  • Tighten/verify the bead device mounting (set screw tight; no play when gently shaken).
  • Route the bead string from the reel without twists and ensure it is not rubbing sharp edges.
  • Pull the top thread through the needle eye to feel smooth, steady resistance (no jerks).
  • Stage hidden essentials: precision tweezers, fabric scissors (trim bead string flush), and compressed air for bead dust near the bobbin area.
  • Success check: the bead string pulls smoothly by hand and the thread path feels consistent like “flossing,” not catching.
  • If it still fails: re-thread both bead path and thread path, then slow the first run speed to improve control.
• Q: How tight should fabric be hooped in a large magnetic sash frame for bead embroidery so the bead line does not look crooked on a MYSEW bead device?
  A: Aim for drum-tight flatness without stretching, because bead lines magnify even tiny fabric movement (flagging/bounce).
  • Clamp the fabric evenly so the surface is flat and ripple-free across the entire stitch field.
  • Press-test the fabric with a fingertip; it should not depress easily or “bounce” up and down.
  • Back the fabric with an appropriate stabilizer strategy (heavy support for soft/stretch fabrics is often required).
  • Success check: during the first seconds of stitching, the bead curve/line appears smooth with no waviness or visible fabric lift.
  • If it still fails: upgrade support (heavier stabilizer choice) or reduce speed to reduce movement sensitivity.
• Q: How do I prevent a bead embroidery design from crashing into an old test area or hoop edge when using Dahao jog keys with a large magnetic frame?
  A: Always jog to a clean area and run boundary confirmation/trace before stitching, because beads cannot safely overlap beads.
  • Use Dahao directional arrows to move the frame to an empty stabilizer area before starting.
  • Run the position/boundary confirmation (trace) and watch clearance around edges and previous stitches.
  • Re-position if the presser foot comes too close to a hoop edge or any existing bead area.
  • Success check: the traced outline stays safely inside the open fabric zone with visible clearance and no overlap risk.
  • If it still fails: stop immediately and relocate—do not “try anyway,” because needle strikes on beads can break needles and damage the work.
• Q: What is a safe starting speed for automatic bead stitching on a MYSEW single-head embroidery machine with a bead device, and what should an operator monitor?
  A: Use 600 RPM as a safe starting point within the demonstrated 500–800 RPM range, and monitor sight + sound closely for the first pass.
  • Set speed to around 600 RPM for the first run to balance smooth feeding and reaction time.
  • Watch bead placement for gaps, loose beads, or pile-ups, especially in the first 30 seconds.
  • Listen for a steady “metronome” rhythm; any grinding or irregular clicking means stop.
  • Success check: beads land one-by-one in a clean line/curve and the machine sound stays consistent without metal-on-metal noise.
  • If it still fails: slow to 500 RPM and re-check reel drag, bead string twists, and fabric flagging.
• Q: How do I troubleshoot beads skipping (gaps) during bead embroidery on a MYSEW 15-needle machine with the bead device mounted at Needle 15?
  A: Start with the bead feed path and speed, because skipping is most often caused by reel drag/twists or running too fast.
  • Inspect the reel and bead string route; remove twists and ensure the reel spins freely (no binding).
  • Reduce machine speed toward 500 RPM to help the feed mechanism keep up.
  • Stabilize and re-hoop to eliminate fabric flagging (bounce), which can create visible gaps.
  • Success check: the bead tape advances smoothly without jerks and the bead line has no “missing” beads.
  • If it still fails: increase structural support (heavier stabilizer strategy) or improve clamping consistency (magnetic frame can help with uniform pressure).
• Q: What are the key safety rules for running a bead device on a MYSEW 15-needle commercial embroidery machine, and what extra safety rules apply to magnetic embroidery frames?
  A: Keep hands completely away once stitching starts and treat both needles and magnets as serious hazards—this is common shop safety, not overcaution.
  • Keep fingers, tweezers, and scissors away from the needle/foot area during operation; use the E-Stop immediately if sound changes.
  • Stop instantly if any grinding or metal-on-metal sound occurs; do not “let it finish the line.”
  • Keep fingers out of magnetic frame pinch zones; magnets can snap shut unexpectedly.
  • Keep magnetic frames away from pacemakers/insulin pumps (minimum separation is commonly advised) and do not place phones/credit cards directly on magnets.
  • Success check: the operator can keep a hand near the E-Stop for the first pass without needing to reach into the sewing area.
  • If it still fails: slow down, re-plan tool placement on the table, and only resume when the work zone is clear and controlled.
• Q: When bead embroidery production on a MYSEW single-head starts feeling inefficient due to hooping time or fabric shifting, what is a practical upgrade path from technique fixes to magnetic hoops and then to SEWTECH multi-needle machines?
  A: Use a tiered approach: fix process first, then upgrade clamping, then upgrade capacity when orders demand it.
  • Level 1 (technique): standardize preflight checks, stabilizer choices, boundary trace, and run within 500–800 RPM (start at 600 RPM).
  • Level 2 (tooling): move to magnetic hoops/frames if hooping is the bottleneck, operators get hand strain, hoop burn appears, or bead lines shift due to uneven clamping.
  • Level 3 (capacity): move to a SEWTECH multi-needle platform when volume limits output or when dedicated setups (e.g., bead device staying mounted) reduce changeover time.
  • Success check: downtime decreases (less re-hooping and fewer stops), and the bead line quality stays consistent across repeats.
  • If it still fails: document the winning combo (file name, color-to-needle mapping to Needle 15, stabilizer stack, and working RPM) to make results repeatable across operators.
