Make Any Flat Logo Look 3D: Point-and-Counterpoint Satin Angles That Add Depth (and Cut Stitch Count)

If you’ve ever stitched a logo that looked “fine” on your monitor but came out looking flat, lifeless, and cheap on the fabric, you are grappling with the most common frustration in machine embroidery. Most chest logos start as a basic single-direction fill (tatami). While the software renders this perfectly, the physical reality is different: without light hitting the thread at varying angles, the design has no dimension.

This guide rebuilds that exact problem using a horse silhouette as our case study. We will move beyond basic digitizing and use an "architectural" approach: breaking flat fills into satin segments, controlling stitch angles, and designing clean travel paths. The result? A finished embroidery that looks richer, catches the light like a gemstone, and often runs with fewer stitches than the flat version.

The Real Reason a Tatami Fill Logo Looks Flat (and Why Satin Angles Fix It)

Embroidery is a play of light. A single-direction fill (tatami) reflects light uniformly, causing the eye to interpret the design as a single, flat "sheet" of color. No matter how high your thread count is, if the angle doesn't change, the depth doesn't exist.

The fix isn't adding more detail to the artwork—it's smarter stitch direction.

When you break a silhouette into smaller satin segments—tail, mane, legs, torso—and deliberately vary the stitch angles, you create highlights and shadows. This is the Point & Counterpoint approach. It’s similar to how a sculptor uses planes to catch light.

However, precision digitizing demands precision hardware. If you are stitching on a high-end machine and want consistent registration (where your outlines actually line up with your fills), the stability of your hooping is just as critical as your software settings. This is why professionals obsess over using a rock-solid tajima embroidery hoop setup; without repeatable placement, your carefully planned angles will shift and gap.

The “Hidden” Prep Pros Do Before Digitizing: Roadmap, Perspective, and File Safety

Before you touch the mouse, you must create a mental "Road Map." Digitizing is not tracing; it is layering. You need to decide physically what sits "behind" and what sits "in front" to minimize bulk and thread breaks.

For our horse example:

• Background Layer: The tail and mane hang behind the body.
• Foreground Layer: The face, torso, and front legs sit in front.
• The Rule: Stitch the background first, the foreground last.

The "Invisible" Consumables

Pros don't just rely on the machine. Eliminate friction by having these close by:

• Sharp Needles (75/11): A fresh needle prevents the tugging that distorts satin columns.
• High-Contrast Bobbin: Ensure your bobbin tension is calibrated so the white thread shows 1/3 in the center channel on the back.
• Tweezers: For guiding stubborn threads during color changes.

Prep Checklist (Do this before you digitize)

• Check Dimensions: Confirm the final size (this chest logo is approx. 2 inches).
• Load Backdrop: Import your artwork image.
• Contrast Mode: Choose a high-contrast working color (Use Red thread on screen instead of Black to see your pathing clearly against the artwork).
• Tool Selection Strategy: Decide plan of attack—use 'Classic Satin' for thin limbs/tail, and 'Complex Satin' for the large torso.
• Smart Joint: Enable this feature to reduce trims and jumps between touching segments.
• Safety Zone: Clear your workspace.

Warning: Mechanical Safety. Digitizing is repetitive, hypnotic work. When moving to the machine for test sew-outs, keep your non-dominant hand clearly away from the needle bar. Never reach under a running head to clear a thread nest—pause the machine first. A 75/11 needle moving at 800 SPM penetrates flesh instantly.

Backdrop Setup in EL Digitizing Software: Size It Once, Save Hours Later

The video demonstrates starting a new design and loading the flat silhouette. This step contains a trap for beginners: Scale.

Key Actions:

1. Click Backdrop to load the visual.
2. Right-click the image → Properties.
3. Hard-set the size: Set width/height to 2.5 in x 2.5 in (The final stitch-out will shrink slightly due to "pull compensation," ending up around 2 inches).
4. Disable grid view for clarity.

Why this matters: If you digitize a design at 6 inches and then shrink it to 2 inches later, your satin columns will become too narrow (causing needle breaks) and your density will skyrocket (causing bulletproof embroidery). Always digitize at the target size.

Point & Counterpoint with Classic Satin (Shortcut 2): Build Angles While You Build Shapes

For the expressive, thin elements like the tail strands and leg edges, we use the Classic Satin tool. This tool allows you to define the shape and the stitch angle simultaneously.

The Rhythm of The Tool:

• Press 2 to select Classic Satin.
• Left-Click: Creates a "Hard Point" (Straight line/Corner).
• Right-Click: Creates a "Soft Point" (Curve).
• The Technique: Work in pairs. Place a point on one side of the column, then a Counterpoint on the opposite side.

The "Zebra Crossing" Visualization: Imagine you are drawing the white stripes of a crosswalk. each pair of clicks defines one stripe. The angle of that stripe determines the angle of the thread.

Crucial Data Constraint: Watch the width readout near your cursor. You must keep your satin columns 1.5mm to 1mm wide.

• Danger Zone: Anything under 0.8mm will cause thread breaks and look "boney."
• Sweet Spot: 1.2mm - 4mm is the golden range for glorious satin sheen.


The “Subway System” Travel Runs (Shortcut 1): Hide Movement Under Future Satin

This is the secret that separates amateurs from pros. Amateurs let the machine trim the thread between every object (Jump → Trim → Tie-in → Start). This adds minutes to run time and leaves a messy backside.

Pros use Travel Runs.

Once you finish the tail, you need to get to the leg. Do not trim.

1. Press 1 for the Run Tool.
2. Click a path of single running stitches that travels from the end of the tail to the start of the leg.
3. The Rule: Ensure this path goes through the center of the horse's body area.

Why? Because the huge satin stitches of the torso will cover these travel runs later. Think of it like a subway system—the trains (travel stitches) run underground, invisible beneath the city (the satin fill) above.

Clean pathing reduces machine wear and prevents "Bird Nests" (thread tangles) caused by excessive trimming.

Digitizing Legs and Mane: Respect Perspective So the Design “Reads” in 3D

Continue building the front elements using the Point & Counterpoint method.

Sensory Check: As you plot the points for the mane, visualize the hair flowing.

• Top of curve: Stitch angle should be perpendicular to the flow.
• Ends of strands: Taper the width, but don't go to zero. Stop at 0.8mm or 1mm.

The "Thread Physics" Reality: The video instructor exaggerates tiny strands slightly. This is smart. Thread has volume. If you digitize a hairline exactly as it looks in print, the thread will sink into the fabric grain and vanish. You must "bold" your fine details to make them readable.

When to Stop Using Classic Satin: The Satin Tool Is Better for the Big Torso Shape

For the main body, clicking side-to-side (Classic Satin) is inefficient and hard to control. We switch to the Complex Satin (or just Satin) tool.

The Workflow:

1. Trace: Outline the entire shape of the torso. Right-click for curves, Left-click for corners.
2. Close: Press Enter to close the shape.
3. Sculpt: The software now asks for direction. Click and drag lines across the body to tell the thread which way to flow.

Overlap Strategy: The instructor purposefully overlaps the torso shape slightly over the top of the leg connection points. This prevents gaps. Fabric pulls tight when stitched; without overlap, you will see the white fabric peeking through between black body parts (The dreaded "Gaposis").

Manual Inclination Lines: The Fastest Way to “Sculpt” Light Across Satin

Inclination lines are your chisel. By changing the angle of stitch across the large torso, you control the light reflection.

• Vertical Stitches: Will look darker as they sink into the weave.
• Horizontal Stitches: Will sit on top and catch the overhead light, appearing lighter/shinier.

Digitizing Judgment:

• Too Few Angles: The design looks flat and blocky.
• Too Many Angles: The thread twists aggressively, creating a "choppy" surface that looks messy.
• The Goal: Smooth, organic transitions. Follow the anatomy of the muscle.


Setup Choices That Prevent Regret: Auto Split, Underlay, and Color for Visibility

Now that the shape is built, we must apply the engineering rules that keep the embroidery safe. Select All (Ctrl + A) and adjust Properties.

1. Auto Split (The Snag Preventer) Satin stitches effectively float over the fabric.

• The Limit: Most machines cannot stitch a satin bar wider than 7mm-9mm without slowing down or risking the loop snagging on a washer/dryer.
• The Fix: Enable Auto Split for satins larger than 7mm. This forces the machine to drop a needle point in the middle of long stitches, anchoring them down while maintaining the satin look.

2. Underlay (The Foundation) Never stitch satin on bare fabric. It will pucker.

• Action: Select the large body object. Set Underlay to Parallel (or Edge Run + Zigzag for softer fabrics).
• Why: Underlay attaches the fabric to the stabilizer before the heavy top stitching happens. It is the rebar in your concrete.

3. Color Management Change your working color back to Black to check the final aesthetic, but keep your "working view" in high contrast colors if you need to edit further.

Setup Checklist (Before Export)

• Gap Check: Zoom in to 300%. Are the legs overlapping the torso by at least 1-2mm?
• Width Safety: Scan thin columns. Are any under 1mm? If yes, widen them.
• Long Stitch Safety: Is Auto-Split ON for widths >7mm?
• Structure: Is Parallel Underlay on for the main body?
• Connector Check: Are travel runs hidden?
• Visual Verify: Duplicate the design, put it side-by-side with original capability to ensure no elements were deleted.


Save Like a Pro: JDX First, Then DST (and Why EMB vs JDX Isn’t a Fight)

The Golden Rule of File Management:

1. Save as Native (.JDX / .EMB): This preserves your object data. You can still edit "Satin Width" or "Underlay Type."
2. Export as Machine Format (.DST / .PES): This freezes the design into XYZ coordinates. It is dumb data—it only knows "move here, drop needle." It does not know what a "Satin Column" is.

Commercial Wisdom: Always keep the Native file. Clients will ask for changes. Editing a DST file is painful and degrades quality; editing a Native file is effortless.

The Stitch-Out Reality Check on a Tajima: More Depth, Fewer Stitches

The video reveals a startling metric when comparing the Flat Fill version vs. the Satin Sculpted version:

• Flat Fill: ~3246 stitches.
• Satin Sculpted: ~2508 stitches.

The Irony: The design that looks more expensive, has more dimension, and feels thicker... actually uses 22% less thread and runs faster. This is efficiency by design.

The Stability Factor: Because satin stitches rely on long, unbroken threads to catch light, alignment is everything. If your fabric shifts 1mm, the light reflection breaks. For production runs, using magnetic hoops for tajima embroidery machines provides distinct advantages. Unlike screw-tension hoops which can stretch fabric unevenly (creating "hoop burn"), magnetic systems clamp straight down, preserving the grain line and ensuring those long satin stitches lay perfectly flat.

Fabric-to-Stabilizer Decision Tree: Don’t Let Great Digitizing Get Ruined at the Hoop

You have a perfect file. Now, don't ruin it with the wrong consumables. The sample in the video uses a firm felt with cutaway stabilizer.

Use this decision tree to navigate your choices. Note: "Backing" is industry speak for Stabilizer.

Decision Tree: What goes underneath?

1. Is the fabric Stretchy? (Polos, T-shirts, Performance Wear)
   • YES: Use Cutaway Stabilizer (2.5oz or 3.0oz).
     • Why: Knits stretch. Satin stitches pull. Without permanent support (Cutaway), the shirt will distort and pucker.
   • NO: Go to step 2.
2. Is the fabric Unstable or Textured? (Terry Cloth, Fleece, Pique)
   • YES: Use Cutaway + Soluble Topper (Solvy).
     • Why: Topper prevents stitches from sinking into the pile.
   • NO: Go to Step 3.
3. Is the fabric Stable and Woven? (Canvas, Denim, Caps)
   • YES: You can use Tearaway Stabilizer.
     • Why: These fabrics support themselves. The backing just reduces flagging.

The Hooping Variable: If you are struggling to hoop thick items (like Carhartt jackets) or delicate items that bruise easily, this is a hardware limitation, not a skill issue. A magnetic embroidery hoop allows you to float these items or clamp them without the "tug-and-screw" wrestling match, drastically reducing operator fatigue and rejection rates due to hoop burn.

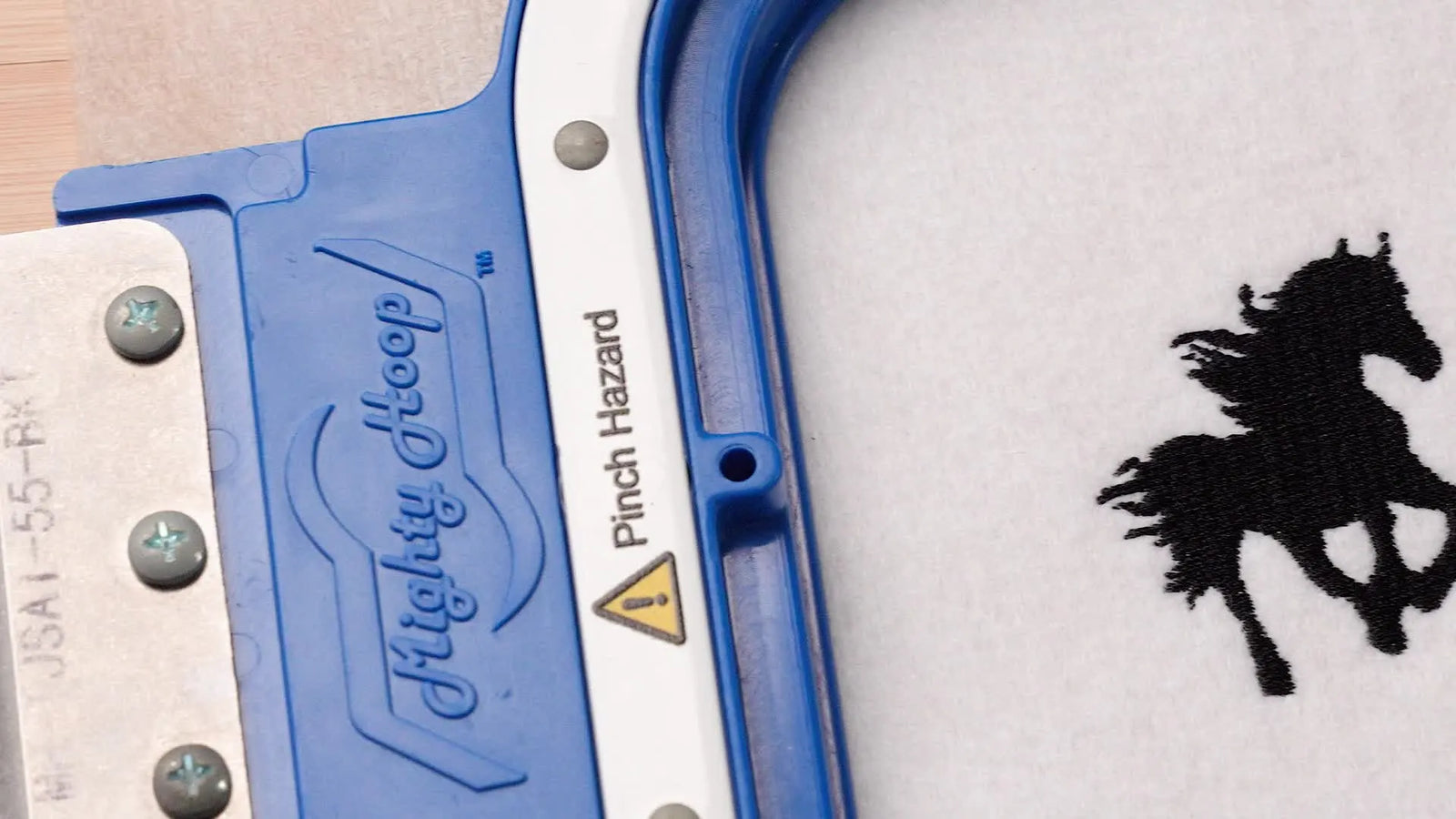

Warning: Magnetic Safety. Modern magnetic hoops use industrial-strength neodymium magnets. They snap together with immense force.
* Pinch Hazard: Keep fingers clear of the clamping zone.
* Medical Device Safety: Keep these magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Store away from credit cards and hard drives.

Troubleshooting the Three Most Common “Why Does This Look Wrong?” Moments

Even with a good plan, things go wrong. Here is your quick-fix guide based on symptoms.

The Upgrade Path When You Start Producing: Hooping Stations, Magnetic Frames, and Time Math

Once you master the digital art of depth, your bottleneck will shift from designing to producing.

If you are stitching one gift for a friend, a standard plastic hoop is fine. Even if it takes 5 minutes to struggle with the screws, it is part of the hobby.

However, if you are fulfilling an order for 50 shirts:

• 5 minutes x 50 shirts = 4+ Hours of just hooping.
• This is where profit dies.

The Professional Upgrade Logic:

1. Standardize Placement: If logos are crooked, you lose customers. A hooping station for embroidery ensures every logo lands exactly 7 inches down from the shoulder seam, every time.
2. Speed & Ergonomics: To cut hooping time to 15 seconds, shops upgrade to magnetic systems. You might see professionals using mighty hoop magnetic embroidery hoops or similar high-end magnetic frames. These tools use magnetic force to self-align and clamp, saving your wrists and your schedule.
3. Industrial Throughput: If you are running multi-head equipment, searchable terms like tajima magnetic embroidery hoops lead you to the specific large-format frames needed for jacket backs and full-front production runs.

As you move from "making art" to "running a business," your toolkit must evolve from plastic rings to magnetic precision.

Operation Checklist (The Final Flight Check)

• Test Stitch: Run the design on a scrap fabric of the same type as the final garment.
• Sound Check: Listen to the machine. A rhythmic "thump-thump" is good. A harsh "clack-clack" means tension is too tight or the hoop is flagging (bouncing).
• Travel Check: Inspect the finished test. Are any travel runs visible? If so, move them in software.
• Gap Check: Pull the fabric gently. Do gaps open up between the leg and torso? If yes, increase overlap.
• Light Check: Hold the embroidery under a lamp and tilt it. Do the leg satins shine differently than the body satins? If yes, you have successfully created depth.

Refining your digitizing is a journey of "less is more." Use fewer stitches, placed with better intention, supported by solid stabilization, and you will produce embroidery that looks professionally sculpted rather than digitally printed.

FAQ

• Q: Why does a single-direction tatami fill chest logo look flat in Wilcom EmbroideryStudio even when stitch count is high?
  A: A single-direction tatami reflects light uniformly, so the embroidery reads like a flat “sheet” of color; switch key areas to segmented satin with varied angles.
  • Break: Split the silhouette into satin-friendly parts (tail, mane, legs, torso) instead of one large fill.
  • Vary: Change stitch angles between adjacent satin segments by a noticeable amount (often ~30–45° is used in practice).
  • Plan: Stitch background parts first (tail/mane behind), foreground parts last (face/torso/front legs).
  • Success check: Tilt the garment under a lamp; separate parts should catch light differently and look more dimensional.
  • If it still fails: Re-check hoop stability and registration; shifting fabric will ruin the light effect even with good angles.
• Q: How do I set the backdrop size correctly in EL Digitizing Software so a 2-inch chest logo does not become “bulletproof” after resizing?
  A: Digitize at the final target size from the start; do not digitize large and shrink later.
  • Load: Click Backdrop, import the artwork, then right-click the image → Properties.
  • Hard-set: Set the backdrop to 2.5 in x 2.5 in so the stitched result lands around ~2 inches after pull compensation.
  • Avoid: Do not shrink a 6-inch design down to 2 inches after digitizing because satin widths become too narrow and density spikes.
  • Success check: Satin columns remain in a safe width range (not hair-thin), and the sample sew-out feels flexible rather than stiff.
  • If it still fails: Scan the thinnest satin segments and widen any that are approaching the break-prone zone.
• Q: What satin column width is safe when using EL Digitizing Software Classic Satin (Shortcut 2) for thin legs, mane, and tail details?
  A: Keep satin columns generally in the 1.2–4.0 mm “sweet spot” and avoid going under 0.8 mm.
  • Watch: Monitor the width readout near the cursor while plotting Classic Satin points.
  • Stop: Do not taper to zero; end thin strands at about 0.8–1.0 mm instead of needle-thin tips.
  • Balance: Aim for readable detail, because thread volume can make ultra-fine lines disappear into fabric grain.
  • Success check: Stitching runs without frequent thread breaks and thin details still look present (not “boney” or missing).
  • If it still fails: Reduce extreme narrowing and simplify micro-details; some artwork detail must be bolded for thread physics.
• Q: How do I hide travel stitches in EL Digitizing Software to reduce trims and prevent bird nests on machine embroidery logos?
  A: Use intentional travel runs (Run Tool) and route them through areas that will be covered by later satin stitches.
  • Switch: Press 1 for the Run Tool after finishing one segment (for example, tail) instead of trimming.
  • Route: Draw a path from the end point to the next start point through the center of the torso area that will be stitched later.
  • Cover: Ensure future large satin areas will fully overlay the travel path so it becomes invisible.
  • Success check: The back of the sew-out is cleaner with fewer trim points, and no travel lines show on the front.
  • If it still fails: Re-route travel runs deeper under the widest satin area or accept a trim where coverage cannot hide the path.
• Q: What EL Digitizing Software settings prevent long satin stitches from snagging on wide torso areas (Auto Split + Underlay)?
  A: Turn on Auto Split for wide satins and use proper underlay on large satin objects to prevent snagging and puckering.
  • Enable: Set Auto Split for satin widths larger than about 7 mm so long floats get anchored.
  • Add: Apply underlay to the main body (Parallel is a common choice; Edge Run + Zigzag is often used for softer fabrics).
  • Check: Confirm overlap between connecting parts (legs into torso) to prevent gaps from pull.
  • Success check: The torso satin lays flat, does not form loose long loops, and the fabric does not cup or pucker.
  • If it still fails: Verify hooping tension/stability and reduce excessive density; underlay should support coverage, not over-tight top stitching.
• Q: What bobbin tension “success check” should I use before stitching a satin-heavy chest logo to avoid distortion and breaks?
  A: Use a high-contrast bobbin and confirm the bobbin thread shows about 1/3 in the center channel on the back as a practical visual check.
  • Install: Load a high-contrast bobbin thread so tension balance is easy to see.
  • Inspect: Stitch a small test and look at the back; the bobbin should appear centered rather than fully pulled to one side.
  • Refresh: Replace the needle (75/11 is commonly used in this workflow) to reduce tugging that distorts satin.
  • Success check: Satin columns look smooth (not rippled), and the machine runs without frequent snaps.
  • If it still fails: Re-check top/bobbin balance per the machine manual and confirm the hoop is not bouncing/flagging.
• Q: What are the key safety rules when test stitching a design on a multi-needle embroidery machine, especially while clearing thread nests?
  A: Pause the machine before touching anything near the needle area and keep the non-dominant hand away from the needle bar during operation.
  • Pause: Stop the machine before attempting to clear a bird nest or grab thread near the needle plate.
  • Position: Keep hands clear of the needle bar path during test sew-outs; do not reach under a running head.
  • Prepare: Keep tweezers nearby for controlled thread handling during color changes.
  • Success check: Thread issues are cleared without rushing, and hands never enter the strike zone while the head is moving.
  • If it still fails: Slow down the process—run another test on scrap and address pathing/tension rather than trying to “fix it live” under motion.
• Q: What are the magnetic hoop safety risks when using SEWTECH-style magnetic embroidery hoops on industrial or home machines?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep: Fingers out of the clamp zone; magnets can snap together with high force.
  • Separate: Maintain at least 6 inches of distance from pacemakers or insulin pumps.
  • Store: Keep magnetic hoops away from credit cards and hard drives.
  • Success check: Hooping is fast and consistent without finger pinches or bruised fabric from over-tight screw hoops.
  • If it still fails: Use a slower, controlled clamping motion and consider operator training for safe handling routines.
