Make a Quilt Block That Actually Stitches Clean: Embrilliance Scatter + Motif Fills in an 8x8 Hoop

Mastering Quilt Blocks: From Digitizing to Flawless Stitch-Out

An Expert Guide to Embrilliance & Pro-Grade Production Techniques

If you’ve ever digitized a “cute” quilt block on screen and then watched it stitch out like a stiff, puckered coaster—take a breath. Nothing is “wrong with you.” Quilt blocks are unforgiving because you are stitching through a dynamic "fabric sandwich" (Top + Batting + Backing). Every extra stitch, unnecessary jump, and overly dense background manifests instantly as distortion.

In this deep dive, based on Sue from OML Embroidery’s methodology, we will build a Christmas-tree quilt square in Embrilliance using only built-in tools. But we will go further: we will overlay 20 years of production experience to ensure that when you press "Start," your machine delivers a soft, square, and professional block.

The 8x8 Hoop Sweet Spot: Why Physics Favors This Size

Sue chooses an 8x8 hoop, and from an engineering perspective, she is spot on. The 8x8 inch (200x200mm) field is the "Sweet Spot" for quilting because:

1. Fabric Tension: It is small enough to maintain "drum-tight" tension without the center sagging.
2. Standardization: It squares up perfectly for 8.5" or 9" finished quilt blocks.
3. Batching: It is a manageable size for assembly-line cutting.

However, if you are stitching quilt blocks regularly, this is where hooping for embroidery machine technique becomes the critical variable. Digitizing is only 40% of the battle; the physical stability of your sandwich decides whether the block stays square or turns into a rhombus.

The "Hidden" Prep: The Fabric Sandwich & Stabilization

Before we touch the software, we must address the physics of the hoop. A quilt block is thick. Traditional inner/outer ring hoops rely on friction and friction requires pressure.

• The Risk: To hold batting and two layers of cotton secure, you have to tighten the hoop screw significantly. This often causes "Hoop Burn"—a permanent crushing of the batting fibers or a shiny ring on the cotton that no amount of steam will remove.
• The "Pillow" Test: Press your thumb into your hooped batting. If it springs back instantly, it’s healthy. If it stays depressed or feels rock hard, you have over-tightened/compressed the fibers.

The Solution: If you struggle with hoop burn or uneven clamping on thick sandwiches, upgrading to an embroidery magnetic hoop is a legitimate workflow transformation. Magnetic hoops use vertical force rather than friction. They hold the sandwich firmly without crushing the fiber bloom, ensuring your quilt block remains soft and lofty.

Warning: Pinch Hazard. Professional magnetic hoops (like those from SEWTECH) use industrial-grade neodymium magnets. They snap together with immense force. Keep fingers clear of the edge, and never place them near pacemakers or sensitive electronics.

Pre-Digitizing Checklist (The "Pre-Flight")

• Needle Check: Install a fresh Topstitch 90/14 or Quilting 75/11 needle. Standard universals struggle to penetrate three layers cleanly.
• Bobbin Audit: Ensure you have enough bobbin thread for the entire block. Changing a bobbin mid-stipple is a nightmare.
• Clearance: Check your machine’s throat space. Quilt blocks are bulky; ensure the excess fabric won't drag against the machine arm.
• Hoop Size: Confirm your design is at least 1 inch smaller than your hoop's max field (e.g., 7x7 design in an 8x8 hoop) to allow for the presser foot clearance.


Digitizing Step 1: Shape Selection & The "Comfort Zone"

In the software, navigate to the Embroidery Library > Shapes > Tree #5. Sue resizes the tree fits comfortably—not just to fit the hoop, but to fit the quilt.

Expert Rule of Thumb: Always leave a 1/2 inch (12mm) margin of unstitched fabric around the perimeter of your block. This is your "Seam Allowance Safety Zone." If you stitch to the edge, your sewing machine foot will struggle when you try to piece the blocks together later.

Digitizing Step 2: Motif Fills & The "Stitch Physics" of Density

Sue converts the shape to a Motif Fill using Decorative 30. She makes a crucial decision here: she decides not to curve the motif lines.

Why? Curving = Compression. On small objects (under 3 inches), applying curves to a motif fill tightens the stitch spacing at the inner radius of the curve.

• The Result: You get a hard "bulletproof" knot of thread that breaks needles.
• The Fix: Keep motifs linear on small objects to maintain consistent needle penetration.

If you are new to this, start with Sue’s approach: ONE motif, standard density. Don't layer complexity until you've verified the drape of the fabric.

Digitizing Step 3: The Outline Trick (Edge Definition)

A motif fill without a border looks like a "fuzzy" shape because the needle penetrations end irregularly. Sue’s fix is a mandatory habit for professional digitizers:

1. Copy the motif-filled tree (Ctrl+C).
2. Paste it (Ctrl+V).
3. Select the Duplicate.
4. Change it to a Running Stitch.
5. Layer it after the fill.

Why this works: The running stitch acts as a "containment fence," trapping the loose ends of the motif fill and sharpening the visual edge of the tree.

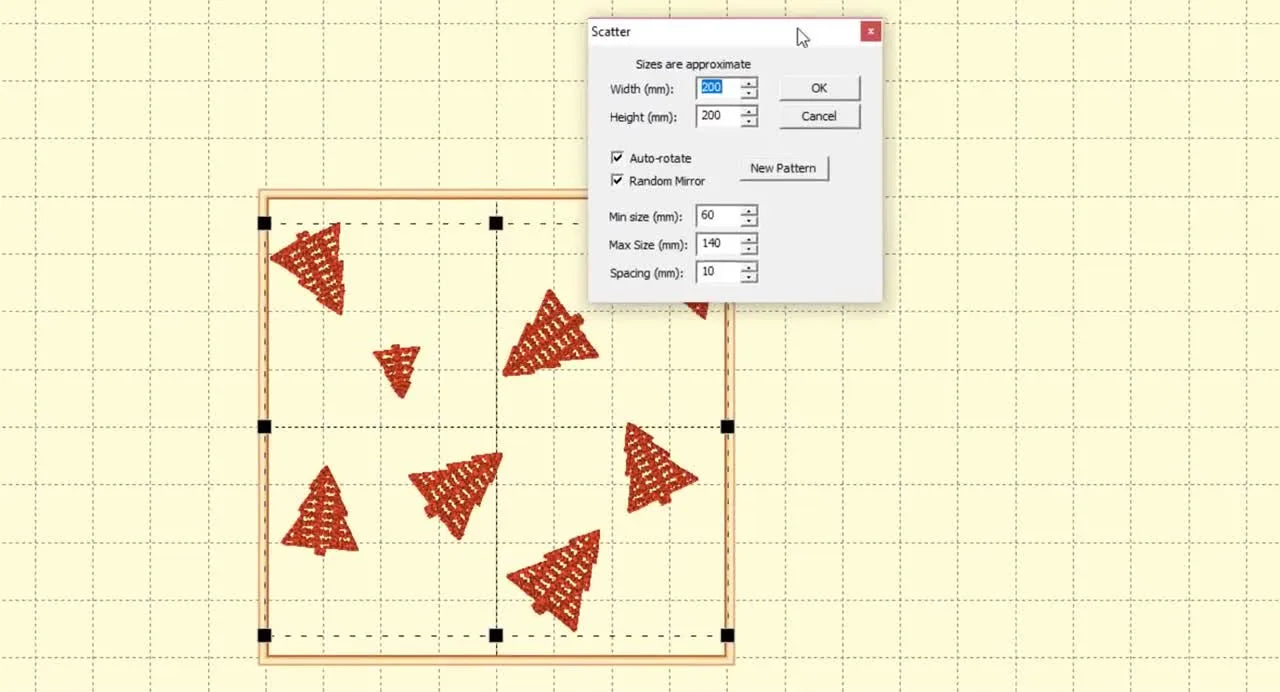

Digitizing Step 4: Mastering the Scatter Tool (Controlled Chaos)

Sue uses the Scatter tool to create a random forest pattern.

• Mirror x4 or Carousel tools = Structured, geometric patterns. Good for tablecloths, bad for "organic" quilt blocks.
• Scatter = Organic, random distribution.

The Golden Ratio for Scatter Settings:

• Area: 200 mm x 200 mm (Matches hoop).
• Auto Rotate: ON (Crucial for natural look).
• Random Mirror: ON.
• Spacing: 10mm - 15mm.

Sensory Check: Look at the negative space (the white gaps) between trees. The gaps should feel roughly equal in visual weight to the trees themselves. If the trees are clumped, hit "New Pattern" again. Reliability comes from iteration.

Setup Checklist (Software Side)

• Verify Margins: Is everything at least 1/2 inch away from the physical hoop edge?
• Trap Check: Are any trees overlapping? Overlapping motif fills create "thread mountains" that snap needles. Move them apart.
• Stitch Order: Ensure the software hasn't randomized the order. It should generally stitch from the center out, or top to bottom.

Phase 2: Refinement & Production Logic

The "Hero" Tree: Visual Hierarchy

Sue isolates the center tree and changes it to a Standard Fill with Embossing (Star 7). This creates a focal point.

• Theory: If every tree is special, no tree is special.
• Practice: Use a dense, fancy fill for the "Hero" object, and lighter, faster-stitching motifs for the background elements. This reduces overall stitch count and prevents board-stiffness.


Batch Color & Thread Strategy

Sue selects all objects (Ctrl+A) and changes them to "Avocado" Green. Pro Tip: If you are using a single-needle machine, color stops are your biggest enemy. Minimizing thread changes is the key to finishing a quilt.

However, if you are scaling up to stitch 20, 30, or 50 blocks for a king-sized quilt, a SEWTECH Multi-needle Machine becomes a massive asset. With a multi-needle, you can assign 4 different shades of green and 2 accent colors without pausing. The machine manages the swaps, allowing you to prep the next hoop while it stitches.

Texture Without Bulk: Motif Runs

Sue changes some outlines to Motif Runs (jagged edges) and uses Stem Stitches.

• Satin Stich: High bulk, high stitch count.
• Motif Run: Low bulk, decorative, lies flat.

Verdict: For quilting, always prefer Motif Runs over Satin Stitches. They glide under the quilting foot better during assembly.

The "Weird Color" Strategy (Functional vs. Visual)

Sue assigns colors like Pink or Orange to specific steps, even though the tree is green. This is not an error. This is a Stop Command.

• Machines read color changes as "Stop and Cut."
• By using a "Weird Color" (e.g., Pink for the placement line, Orange for the tack-down), you force the machine to pause, allowing you to trim fabric or double-check placement.

Production Flow: If you encounter hooping station for embroidery machine issues—where your design isn't centered on the block—use a functional "Placement Stitch" (a simple running stitch box the size of your fabric) as the very first color. Stitch it directly onto the stabilizer before you put your fabric down. This gives you a perfect target to align your fabric.

The Critical Stippling Step: Avoid the "Carpet" Effect

Sue adds a Stipple fill (Drunkard style) to the background. Crucial Move: She drastically INCREASES the scale.

The Density Trap: Default stippling is often set to 3-5mm density. This creates a stiff, embroidered "patch" that feels like cardboard. The Sweet Spot: Increase stippling length/scale to 15mm - 20mm.

• Visual Check: It should look like "meandering," not "scribbling."
• Tactile Goal: The block must remain drapeable. If it stands up on its own, your background is too dense.


Operation Checklist (Ready to Stitch)

• Stitch Type Audit: Are all "vector lines" converted to stitches? (Unconverted lines won't sew).
• Color Stop Check: Do you have Placement -> Tackdown -> Design -> Background in the correct order?
• Speed Setting: Set your machine to 500 - 600 SPM (Stitches Per Minute). Layers shift at high speeds. Slow and steady wins the quilt.
• Consumables: Have your ODIF 505 Temporary Spray ready. Lightly mist the stabilizer, stick the batting/fabric down. This "floats" the material and prevents shifting better than pins.

Decision Tree: Choosing Your Stabilizer

Do not just grab tearaway. Quilting requires structure.

• Scenario A: Standard Cotton Quilt Block (Cotton + Batting + Cotton)
  • Choice: PolyMesh (Cutaway) Stabilizer.
  • Why: The stitches will perforate the batting. Mesh holds the structure together for the life of the quilt.
• Scenario B: Decorative Wall Hanging (Stiff is okay)
  • Choice: Medium Weight Tearaway.
  • Why: Faster cleanup, stiffness acts as a frame.
• Scenario C: "Quilt-as-you-go" aka QAYG
  • Choice: No Stabilizer (Batt only).
  • Warning: Only for experts with Magnetic Hoops. You hoop the batting directly. The magnet holds it firm. If you use a screw hoop, you will tear or crush the batting.

Troubleshooting: The "Big Three" Failures

Commercial Application: Scaling Up

Sue’s tutorial is perfect for the hobbyist. But if you plan to sell these blocks or make a King Size quilt (which requires 40+ blocks), you need to think about ergonomics and throughput.

1. The Wrist-Saver: Magnetic Hoops

Repetitive hooping with screw-based frames allows "Hoop Burn" on your fabric and Carpal Tunnel in your wrists.

• Trigger: If you dread the hooping process or have sore hands.
• Solution: Search for how to use magnetic embroidery hoop videos. You will see how the "imitation" of a top frame instantly snaps onto the bottom frame.
• Benefit: Zero hand strain, zero fabric burn, 5x faster reloading.

2. The Time-Saver: Multi-Needle Machines

Efficient quilting often involves 3-5 thread colors (Placement, Tackdown, Design, Background).

• Trigger: You spend more time threading the needle than the machine spends sewing.
• Solution: A SEWTECH multi-needle machine.
• Benefit: load all 5 colors at once. Press start. Walk away to cut fabric for the next block.

3. The Consistency-Saver: Specific Hoops

If you own a brother 8x8 embroidery hoop, use it exclusively for blocks. Don't try to squeeze an 8-inch block into a 5x7 hoop by splitting the design. The realignment will never be perfect. Invest in the correct size frame to match your quilt ruler.

Final Thoughts

A great quilt block is a marriage of Digitizing Intent (leaving space, reducing density) and Physical Execution (proper stabilization, magnetic hooping). Don't fear the "pucker." Respect the layers, slow down the machine, and let the physics of the hoop work for you.

Hidden Consumables List (Don't start without these)

• Curved Appliqué Scissors: For trimming threads close to the fabric surface without snipping the quilt top.
• DK5 Adhesive Remover: If you use spray glue, your needle will get sticky. Clean it every 5 blocks.
• Painter's Tape: Use it to tape the excess backing fabric out of the way so it doesn't get stitched underneath the hoop.

FAQ

• Q: How can embroidery beginners prevent hoop burn when hooping a thick quilt sandwich in a standard screw embroidery hoop (inner/outer ring hoop)?
  A: Reduce clamping pressure and switch to magnetic-style clamping if hoop burn keeps showing up—this is common on batting.
  • Loosen the screw and re-hoop so the sandwich is held securely without crushing the loft.
  • Press-test the hooped batting before stitching: push a thumb into the batting area.
  • Prefer a magnetic hoop for thick quilt sandwiches because it clamps with vertical force instead of friction.
  • Success check: the batting “springs back” after the thumb press and the fabric does not show a shiny or crushed ring.
  • If it still fails: slow down stitching (about 500–600 SPM) and add light temporary spray adhesive to reduce shifting without over-tightening.
• Q: What needle type should be installed for quilt block embroidery on a cotton + batting + cotton sandwich to avoid skipped stitches and rough penetration?
  A: Start with a fresh Topstitch 90/14 or Quilting 75/11 needle before running the block.
  • Install a brand-new needle right before the project (thick layers dull needles fast).
  • Choose Topstitch 90/14 for stronger penetration or Quilting 75/11 as a lighter option.
  • Stitch a small test segment first if the sandwich feels extra bulky.
  • Success check: the machine pierces cleanly with a steady sound and the stitches look consistent without skipped sections.
  • If it still fails: reduce speed to 500–600 SPM and re-check hooping stability so the layers are not shifting under the needle.
• Q: How can a single-needle embroidery machine user avoid running out of bobbin thread during a full quilt block stipple background?
  A: Load enough bobbin thread to finish the entire block before starting, because mid-stipple changes are where problems snowball.
  • Audit the bobbin before the first stitch and refill if there is any doubt.
  • Plan the stitch order as Placement → Tackdown → Design → Background so the long background run is last.
  • Keep the project at a moderate speed (about 500–600 SPM) to reduce shifting while the long background runs.
  • Success check: the background stippling completes without an emergency stop or visible “restart” marks where a bobbin change happened.
  • If it still fails: simplify color stops (fewer pauses) and verify the design is not overdense, which can extend run time and increase bobbin risk.
• Q: What are the most reliable settings to prevent a “bulletproof” stiff quilt block when using a stipple fill background (Drunkard style) in Embrilliance?
  A: Increase the stipple scale/length dramatically—default tight stippling is the usual cause of cardboard stiffness.
  • Increase stipple length/scale to about 15–20 mm as a safe quilting-focused target.
  • Keep the goal “meandering” rather than tight “scribbling.”
  • Avoid stacking extra dense fills under the stipple in the same background area.
  • Success check: the finished block stays drapeable and does not make a heavy “thud” or stand up like a patch.
  • If it still fails: reduce overall stitch density by using lighter motif elements for the background and reserving dense fills only for a single focal (“hero”) element.
• Q: What causes puckering (“bacon ripples”) around embroidery on quilt blocks, and what is the fastest fix for puckering during stitch-out?
  A: Puckering usually comes from weak stabilization or uneven hoop tension—stabilize first, then improve clamping.
  • Switch to PolyMesh (cutaway) for standard cotton + batting + cotton blocks to keep structure over time.
  • Lightly mist temporary spray adhesive onto stabilizer and bond the layers to prevent shifting.
  • Use magnetic hooping for more even tension if the fabric keeps rippling after re-hooping.
  • Success check: the fabric stays flat around the stitching with no rippled “bacon” look as the design progresses.
  • If it still fails: slow the machine to about 500–600 SPM and confirm the sandwich is not being pulled or stretched after tightening.
• Q: How can embroidery operators prevent a quilt block stitching out crooked like a diamond/rhombus when using an 8x8 hoop?
  A: Do not pull the fabric after tightening, and align the fabric grain before clamping to keep the block square.
  • Align the quilt block on-grain before hooping (a hooping station can help with repeatability).
  • Clamp the sandwich, then stop—do not “tug to straighten” after the hoop is tight.
  • Leave a 1/2 inch unstitched margin around the block perimeter to protect squareness and piecing accuracy.
  • Success check: the stitched block measures square and the design sits straight rather than leaning into a rhombus.
  • If it still fails: reduce stitch density in large areas and verify the design stays at least 1 inch inside the hoop’s maximum field for safer clearance and stability.
• Q: What magnetic embroidery hoop safety rules should quilting and production users follow to avoid finger injuries and magnetic hazards?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear and keep magnets away from sensitive medical devices.
  • Keep fingertips away from the hoop edge when the top and bottom frames snap together (pinch hazard).
  • Do not place magnetic hoops near pacemakers or sensitive electronics.
  • Set the hoop down on a stable surface before separating or re-attaching the frame to avoid sudden snapping.
  • Success check: the hoop closes with controlled contact (no finger pinches) and the fabric is held evenly without crushing.
  • If it still fails: pause and re-train the motion—closing the hoop slowly and deliberately is safer than “letting it snap.”
• Q: When quilt block production becomes slow on a single-needle embroidery machine due to frequent color stops and re-hooping, what is a practical upgrade path from technique to tools to capacity?
  A: Start by optimizing settings, then upgrade to magnetic hooping for faster, safer loading, and consider a multi-needle machine when thread changes become the main bottleneck.
  • Level 1 (Technique): reduce unnecessary color changes, keep stitch order organized, and run 500–600 SPM for stability on thick layers.
  • Level 2 (Tool): move to magnetic hoops if hooping causes hand strain or hoop burn, and if re-hooping time dominates the workflow.
  • Level 3 (Capacity): move to a multi-needle machine when multiple colors are required and the operator spends more time re-threading than stitching.
  • Success check: cycle time per block drops (less hooping effort, fewer stops) while blocks stay soft, square, and low-pucker.
  • If it still fails: simplify the design (lighter background motifs, one “hero” dense element) to cut stitch count before investing further.
