MaggieFrames on the Brother PR670E: The Magnetic Hoop Setup That Stops Hoop Burn (and Speeds Up Hooping)

Mastering Magnetic Hoops: A Field Guide to Eliminating Hoop Burn and Distortion

If you’ve ever fought a traditional screw-tension hoop until your fingers ached—only to pull the garment off the machine and find hoop burn (that shiny, crushed ring) or a chest logo slanted 10 degrees to the left—you know the specific frustration of embroidery mechanics. It’s the feeling of your tools fighting against your precision.

Magnetic hoops often enter the conversation as a "luxury upgrade," but for stiff fabrics like Carhartt jackets or lofty materials like hoodies, they are a mechanical necessity. They transform the physics of embroidery from "stretching and forcing" to "placing and securing."

In this comprehensive guide, we analyze a setup using MaggieFrames on a Brother Entrepreneur 6-Plus PR670E, assisted by a HoopTalent station. Whether you are scaling a home business or optimizing a production floor, we will strip away the marketing fluff and focus on the tactile, auditory, and operational details that result in a perfect stitch-out.

1. Unboxing: The "Hidden" Prep That Prevents First-Day Failure

The shipment arrives packed under high compression—foam, bubble wrap, and layers of tape. This is your first test of patience. The creator uses scissors/box cutting tools to open the box.

Warning: Physical Safety
Box cutters and embroidery scissors are dangerous when combined with excitement. Cut away from your body. Never "stab and pry" blindly into bubble wrap—magnetic hoop components have strong attraction forces and can snap together or pinch fingers instantly if they shift during unpacking.

As you unpack, you are looking for specific components:

• The Green Magnetic Frames: Check for hairline cracks (rare, but possible during shipping).
• Metal Interface Brackets: These connect the hoop to your specific machine.
• Hardware Pack: Screws and washers.
• The Manual: Do not discard this.


The "Hidden" Consumables Check

Before you assemble a single screw, verify you have the supporting cast. New operators often unbox the fancy hoop but forget the essentials that make it work:

• Stabilizer (Backing): Do you have pre-cut sheets or a roll? (Cutaway is preferred for knits).
• Temporary Spray Adhesive (Optional but recommended): Helps float backing on magnetic frames.
• Precision Screwdriver: A standard Phillips head often strips tiny hoop screws. Use a size #1 or #2 with a good grip.

Pre-Flight Inspection (The "Dry Fit")

Before torqueing any screws, do two quick checks that prevent 80% of frustration:

1. Lay out left/right bracket pieces and compare them side-by-side to ensure you have a matched set.
2. Dry-fit the bracket orientation against your machine’s pantograph (hoop arm) before tightening.

If you skip this, you risk mounting the brackets upside down. Magnetic hoops do not "forgive" misalignment; if the interface is wrong, the hoop will mount awkwardly, sit off-level, or potentially damage your machine's pantograph drive.

Prep Checklist (Complete Before Assembly):

• Green frame, metal brackets, and screws verified.
• Flat assembly table cleared of loose metal objects (needles, pins).
• Proper screwdriver selected (snug fit to avoid stripping).
• Bracket orientation dry-fit against the machine arms.


2. Assembly: avoiding the "Torque Trap"

The creator admits she assembled the brackets wrong at first because she bypassed the instructions—a classic "Unboxing Day" error. She had to disassemble and reattach them.

Here is the Experience-Corrected assembly sequence:

1. Position the metal machine-interface brackets on the green plastic frame. Align the holes visually.
2. Insert screws fingers-tight first. Start them by hand for 2-3 threads to ensure you aren't cross-threading.
3. Tighten in an "X" pattern. Don't fully tighten one screw then the next. Tighten them evenly to distribute pressure.
4. The "Tactile Stop": Stop turning when you feel firm resistance. Do not over-torque; cracking the plastic frame renders the hoop useless.


Sensory Check: What "Correct" Feels Like

• Visual: The bracket sits flush against the plastic with no daylight gap.
• Tactile: The hoop feels balanced in your hands, not top-heavy or twisted.
• Mechanical: When you slide it onto the machine arms later, it should click in significantly easier than a traditional hoop.

If you’re using magnetic hoops for brother, treat this alignment as a calibration step. Misalignment leads to "flagging" (hoop bouncing), which is a primary cause of needle breaks.

Setup Checklist (Assembly & Readiness):

• Brackets installed in correct left/right orientation.
• Screws tightened evenly (no stripped heads).
• Magnetic surface wiped clean of packing dust or foam bits.
• Machine arm area cleared of obstructions.
• Warning: Pacemaker users should consult their doctor before handling high-strength magnetic hoops.

3. The HoopTalent Station: Speed via Mechanics

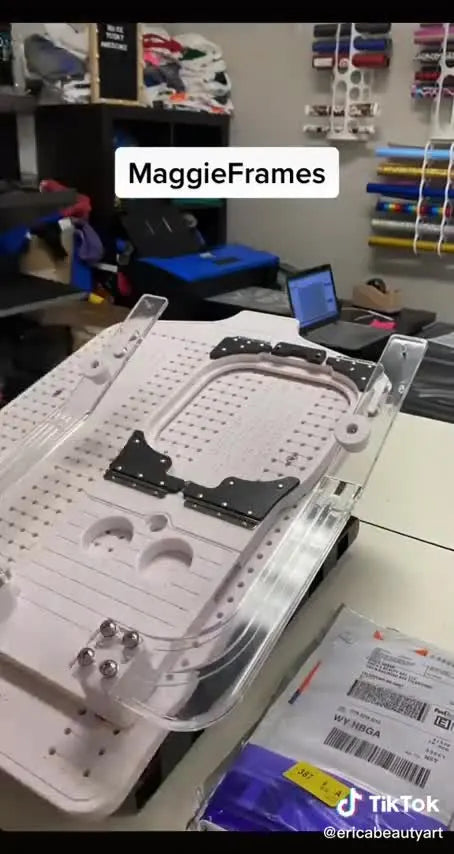

The creator uses a HoopTalent station with acrylic guides. The bottom magnet ring is already seated in the fixture. She places the stabilizer, then the garment, smooths it, and drops the top magnetic frame.

This workflow solves the biggest variable in embroidery: Human Inconsistency. Instead of fighting an inner and outer ring while the shirt stretches, you are simply placing materials and clamping them.

Hooping the T-shirt (The "Neutral State" Technique)

1. Set the bottom ring in the fixture.
2. Place Stabilization: Lay your stabilizer (backing) over the ring.
3. Drape the Garment: Pull the beige T-shirt over the station board.


4. The "Neutral" Smooth: Smooth the fabric so there are no wrinkles, but do not stretch it.
5. The Drop: Lower the top magnetic frame. Let the magnets snap it into place.
6. Inspection: The creator shows the underside to confirm it is taut.


Expert Insight: The Physics of "Drum-Tight"

With knit fabrics (T-shirts), the goal is Flat, Not Stretched.

• The Mistake: Pulling the fabric until it sounds like a high-pitched drum.
• The Consequence: When you un-hoop, the fabric relaxes, and your perfect circle becomes an oval, or your text puckers.
• The Fix: Smooth the fabric to its natural resting state. Let the magnet hold that state. If you need more stability, add stabilizer, don't add tension.

If you’re building a workflow around hoop talent hooping station, remember that the station guarantees placement, but you allow the fabric to relax. The real ROI here is repeatability across 50 shirts, not just speed on one.

Operation Checklist (End of Hooping):

• Stabilizer covers the entire sewing field (no edges creeping in).
• Fabric grain is straight (vertical ribs run north-south).
• Top frame is fully seated (check all 4 corners).
• Excess fabric (sleeves/back) is folded out of the way.

4. The Stitch-Out: The "First 30 Seconds" Rule

The demo moves to the Brother PR670E to stitch a text design ("LASH slayer").

The creator notes, "I can watch my stitching all day." This visibility is a massive advantage of magnetic hoops—there is less "hoop shadow" blocking your view.

Why You Must Watch the First 30 Seconds

Expert operators diagnose quality issues by sound and sight in the first half-minute.

• Listen for: A rhythmic thump-thump-thump.
  • Bad Sound: A sharp "slap" or "crunching" noise suggests the hoop is flagging (bouncing) or the needle is hitting a dense spot.
• Look for: Fabric movement. The fabric inside the hoop should be motionless.
  • Bad Sign: If you see a "wave" of fabric moving in front of the presser foot, your hooping is too loose. Stop immediately (Emergency Stop), remove, and re-hoop.

If you’re running a brother pr670e embroidery machine for profit, catching a slip in the first 30 seconds saves you the cost of the garment.

5. Removing the Hoop: Managing "Strong Strong" Force

After the design finishes, the creator removes the hoop and struggles to separate the magnetic frame. She has to use significant controlled force.

Warning: The Pinch Hazzard
Magnetic frames of this size have industrial clamping force. They can pinch skin hard enough to cause blood blisters.
* Never place fingers between the rings when closing.
* Never leave magnets near sensitive electronics or credit cards.
* Always store them with the provided foam spacer if possible.

The Safe Separation Technique

Do not try to pull them straight apart like a sandwich.

1. Slide: Slide the top frame slightly off-center if the design allows (be careful of the embroidery).
2. Corner Break: Lift one corner first to break the magnetic seal.
3. Leverage: Use the heel of your hand, keeping fingertips clear of the seam line.

If you’re considering magnetic embroidery hoops, accept that the difficulty in opening them is the assurance that your fabric won't slip. It is a feature, not a bug.

6. The Heavyweight Challenge: Hooping a Hoodie

The creator switches to a thick brown sweatshirt. She centers the chest area over the bottom hoop.

This is where traditional hoops fail. Thick fleece fights screw-tension hoops, resulting in "hoop burn" (crushed pile that never quite fluffs back up). The magnetic hoop clamps vertically, avoiding the friction burn of inner-ring rotation.

The Physics of Thick Fabric

• The Problem: Sweatshirt fleece is lofty. Compressing it unevenly causes the needle to deflect.
• The Magnetic Solution: The magnets apply vertical downward pressure. This provides a uniform hold without the "wring-out" effect of twisting a screw hoop thumb-nut.

If you’re using magnetic embroidery frame systems for heavy fleece, you generally can lower your machine speed slightly (Try 600-800 SPM instead of 1000) to account for the extra drag and weight on the pantograph.

7. Stitching the Hoodie: Text Clarity Test

The machine stitches white text ("it is what it is…" and "BUSINESS") on the brown fabric.

Text is the ultimate lie detector. If your fabric shifted, the outlines won't match the fill. The result here is crisp, proving the hold was sufficient.

Decision Tree: Stabilizer Selection Logic

Stop guessing. Use this logic flow to choose your consumables.

• Scenario A: The T-Shirt (Knit/Stretchy)
  • Rule: Knits need permanent support.
  • Choice: Cutaway Stabilizer (2.0 - 2.5 oz). One layer is usually sufficient. Use adhesive spray to prevent floating.
  • Why: Tearaway will eventually disintegrate in the wash, leaving the stretchy knit to distort your beautiful embroidery.
• Scenario B: The Hoodie (Thick Fleece)
  • Rule: Fleece is stable but lofty.
  • Choice 1 (Performance): Cutaway. Keeps the design flat forever.
  • Choice 2 (Comfort): Heavy Tearaway. Acceptable if the stitch count is low (<8,000 stitches).
  • Why: The sweatshirt itself provides stability, but Cutaway is always the "Safety First" option for business orders.
• Troubleshooting:
  • Gap in letters? -> Switch to Cutaway.
  • Design sinking into fabric? -> Add a Water Soluble Topping (Solvy) to keep stitches on top of the pile.

8. Troubleshooting: Structured Solutions

Even with the best tools, things go wrong. Here is your checklist for common failures.

9. The Business Case: When to Upgrade

The creator’s enthusiasm highlights a key business truth: Repeatability is Profit.

• Hobbyist: Adjusts alignment by eye. Redoes the shirt if it's crooked. Cost = Time.
• Professional: Uses a station + magnetic hoop. Hits the exact same chest placement on 20 hoodies in a row. Cost = Investment in tools.

If you are struggling with "Hoop Burn" damage returns or wrist fatigue from screw hoops, a magnetic system is the logical Level 2 upgrade.

Business Scale Logic:

1. Level 1 (Fixing Basics): Better stabilizers (Cutaway), better needles (Organ/Schmetz), and slowing down the machine.
2. Level 2 (Tool Upgrade): Magnetic Hoops to prevent hoop burn and increase speed.
3. Level 3 (Capacity Upgrade): Moving to reliable multi-needle machines like SEWTECH models to handle the higher throughput that faster hooping allows.

If you are comparison shopping for magnetic embroidery hoops for brother p670e, ensure you verify the sewing field size matches your design needs. The investment pays off in reduced "seconds" (ruined garments).

The Finished Standard

The creator reveals the final hoodie, holding it up to show the layout.

Before you ship this to a customer, perform the Quality Finish Check:

1. Backing Trim: Trim cutaway stabilizer to 1/2 inch from the design. Round the corners so they don't itch.
2. Thread Tails: Snip all jump stitches flush.
3. Topping Removal: If you used soluble topping, tear it away or dab with water.
4. Hoop Marks: Steam away any residual pressure marks (though magnetic hoops leave far fewer).

Final Takeaway

This demo proves that combining MaggieFrames with a hooping station isn't just about "cool gear." It's about removing the variable of human error. By respecting the bracket assembly, watching your "First 30 Seconds," and choosing the correct stabilizer, you turn a frustrating chore into a repeatable manufacturing process.

If you’re ready to stop fighting your tools and start producing, consistent placement via hooping station for machine embroidery is your next best step.

FAQ

• Q: What prep items must be checked before assembling MaggieFrames magnetic hoops to avoid first-day failure on a Brother PR670E?
  A: Verify the hoop parts and the “hidden consumables” before touching a screw, because missing basics causes most first-day problems.
  • Confirm: green magnetic frames (no hairline cracks), metal interface brackets, screws/washers, and the manual are all present.
  • Prepare: stabilizer (cutaway preferred for knits), optional temporary spray adhesive, and a precision Phillips screwdriver (#1 or #2) that fits snugly.
  • Clear: the table of loose metal (needles, pins) so magnets don’t snap items into the frame.
  • Success check: bracket pieces match left/right as a set and the correct screwdriver seats firmly without wobble.
  • If it still fails: stop and do a dry-fit of bracket orientation on the Brother PR670E hoop arms before tightening anything.
• Q: How do I assemble the metal interface brackets on MaggieFrames magnetic hoops correctly to prevent cracking the plastic frame?
  A: Use a fingers-tight start and even tightening—over-torquing is the fastest way to crack the frame.
  • Start: thread each screw by hand 2–3 turns to avoid cross-threading.
  • Tighten: use an “X” pattern so pressure stays even across the bracket.
  • Stop: follow the “tactile stop”—quit when firm resistance is felt, not when “as tight as possible” happens.
  • Success check: the bracket sits flush with no daylight gap and the frame feels balanced (not twisted or top-heavy).
  • If it still fails: back the screws out and re-seat the bracket—misalignment often shows up later as an awkward mount on the machine arms.
• Q: How can I tell if fabric is hooped correctly in a HoopTalent hooping station using MaggieFrames magnetic hoops for a knit T-shirt?
  A: Hoop the T-shirt flat in a neutral state—smooth, not stretched—then let the magnets do the holding.
  • Lay: stabilizer over the bottom ring first, then drape the T-shirt over the station board.
  • Smooth: remove wrinkles without pulling the knit tight like a drum skin.
  • Seat: drop the top magnetic frame and confirm all corners are fully seated.
  • Success check: the fabric inside the frame looks flat and stays motionless when lightly tapped; the grain/ribs run straight.
  • If it still fails: add stabilizer (instead of adding tension) and re-hoop to the fabric’s natural resting position.
• Q: Why should Brother PR670E operators watch the first 30 seconds when stitching with magnetic hoops, and what exactly should be checked?
  A: The first 30 seconds reveal hoop flagging or fabric slip early—stopping fast prevents ruined garments.
  • Listen: for a steady rhythmic thump; stop if there is a sharp slap or crunching sound.
  • Look: for any “wave” of fabric moving in front of the presser foot; motion means the hold is not secure.
  • Stop: hit Emergency Stop immediately if movement starts, then remove and re-hoop.
  • Success check: the fabric inside the hoop remains visually still and the machine sound stays consistent.
  • If it still fails: re-check bracket alignment and confirm the magnetic frame is fully seated on all four corners.
• Q: How do I safely separate strong magnetic embroidery hoops after stitching to avoid finger pinch injuries?
  A: Break the magnetic seal at one corner—do not pull the rings straight apart with fingers near the seam line.
  • Slide: shift the top frame slightly off-center (only if the embroidery area allows) to weaken the seal.
  • Lift: pop up one corner first to “break” the hold.
  • Leverage: use the heel of the hand and keep fingertips out of the closing gap.
  • Success check: the frame releases with controlled movement, without sudden snapping or finger contact between rings.
  • If it still fails: pause and reposition for better leverage—forcing a straight pull increases pinch risk.
• Q: What magnetic hoop safety precautions are required for electronics and medical devices like pacemakers?
  A: Treat magnetic hoops as industrial-strength magnets and keep them away from sensitive devices.
  • Avoid: placing magnetic hoops near credit cards and sensitive electronics.
  • Store: with a foam spacer when possible so the rings don’t snap together unexpectedly.
  • Consult: a doctor before handling high-strength magnetic hoops if a pacemaker is involved.
  • Success check: hoops are stored separated/spaced and not kept on or near electronics work surfaces.
  • If it still fails: move storage to a dedicated non-electronics area and remove loose metal items that magnets can grab.
• Q: How do I troubleshoot MaggieFrames magnetic hoops when the hoop will not click into the Brother PR670E hoop arms?
  A: The most common cause is backwards or misoriented brackets—correct the interface before forcing the mount.
  • Remove: the hoop and compare bracket left/right orientation to the manual.
  • Dry-fit: the bracket orientation against the Brother PR670E hoop arms before re-tightening.
  • Re-seat: screws evenly (X pattern) so the bracket sits flush.
  • Success check: the hoop slides on and clicks in noticeably easier than a traditional screw hoop, without rocking off-level.
  • If it still fails: stop using force and re-check for obstruction around the machine arm area; forcing can damage the pantograph drive.
