Letterman Jacket Appliqué on a Ricoma MT-1501: Faux Chenille, Clean Placement, and Magnetic Hooping Without the Fight

Letterman jackets are the heavyweight champions of the custom apparel world. They are high-ticket items that can make you feel like a hero when delivered perfectly—or make you question every life choice you’ve ever made if you ruin one. The stakes are high: the garment is expensive (often $25–$60 wholesale), the materials are unforgiving (thick wool, slippery nylon lining), and the margin for error is zero.

If you’re staring at a thick wool body, bulky snap buttons, and a lining that seems to move independently of the shell, take a breath. The process in this guide is absolutely repeatable on a commercial multi-needle setup. The “secret sauce” isn’t magic—it’s a blend of disciplined preparation, clean placement mechanics, and the right strategic tooling.

The “Don’t Panic” Primer: Why a Letterman Jacket Feels Harder Than It Is

A letterman jacket fights you on three specific fronts: thickness, structure, and independent layers. Unlike a t-shirt or hoodie, where the fabric is generally one cohesive piece, a varsity jacket is a sandwich of conflict. The wool body resists compression. The inner lining (often nylon or quilted) wants to slide around creates friction against the needleplate. Finally, the seams and pockets create "high spots" that can physically tilt a standard hoop, causing needle deflection or distorted geometric shapes.

That’s why this workflow leans heavily on magnetic embroidery hoops—not merely as a convenience, but as a quality control necessity. Traditional tubular hoops require you to muscle the rings together, which drags the fabric and leaves "hoop burn" (crushed wool fibers) that is often permanent. Magnetic systems clamp vertically, securing the thick sandwich without dragging the grain or crushing the pile.

The workflow below utilizes a Ricoma MT-1501 commercial machine with a three-hoop strategy to conquer three distinct challenges: a left chest appliqué, a right chest logo, and a massive full-back design.

Supplies for a Letterman Jacket Appliqué Job (What Matters, What’s Optional)

Success starts with your "mise en place." You cannot stop mid-stitch to hunt for items when working with appliqué. Here is the verified loadout:

Core Equipment & Garment:

• Blank letterman jacket (Wool body, synthetic sleeves).
• magnetic embroidery hoops: Specifically 8×13" (Chest), 13×16" (Back), and 5.5" (Logo).
• Machine: Ricoma MT-1501 (or similar multi-needle commercial machine).

Fabrics & Thread:

• Black terry cloth (for the "Faux Chenille" front texture).
• Black fleece (for the back appliqué letters/wolf).
• Embroidery Thread (Madeira or similar high-tensile poly/rayon).

The Critical Consumables:

• Stabilizer: 3.5 oz Cutaway Stabilizer (Sheets, not rolls, for easier handling).
• Needles: 75/11 Sharp points. Note: While ballpoints are for knits, heavy wool + multiple appliqué layers usually require the penetrating power of a sharp point to prevent needle deflection.
• Hidden Consumables (Don't skip these):
  • Temporary Spray Adhesive (e.g., 505 Spray) to tack stabilizer to the slippery lining.
  • Fabric chalk or water-soluble pen for marking centers.
  • New Bobbins (Start fresh for large backs).

Tools:

• Curved appliqué scissors (Duckbill) for precision trimming.
• Standard dressmaker shears for rough cuts.


The “hidden” prep most shops skip (and then pay for later)

Before you stitch anything, do two quick "Sensory Checks" that prevent the most common varsity-jacket disasters:

1) Bulk Mapping (Tactile Check): Close your eyes and run your fingers around the specific placement area (Left Chest). Feel for the hidden pocket bag, the seam ridge where the sleeve meets the body, and the snap hardware. If your hoop's plastic edge lands on a seam ridge, the hoop will sit at a 5-degree angle. This causes the foot to hit the hoop or the satin stitches to gap. You must hoop between the obstacles.

2) Lining Control: The lining is the enemy of registration. It floats. When hooping, you generally want the stabilizer "floating" (not hooped) or hooped very securely depending on method. Ideally, spray a light mist of adhesive on your cutaway stabilizer and smooth it inside the jacket against the lining. This unifies the lining and the wool shell into a single, stable material.

Note on Stabilizer Density: Viewers often ask about layers. For heavy wool jackets with dense satin borders, the channel recommends using two layers of 3.5 oz cutaway. One layer often isn't enough to support the "cookie cutter" effect of a satin stitch on heavy wool.

Prep Checklist (finish this before you touch the control panel)

• Tool Audit: Confirm you have both scissors within arm's reach (Curved for tight curves, Standard for rough cuts).
• Staging: Cut your stabilizer sheets to size. Don't pull them from a roll while the machine is idling.
• Needle Inspection (Tactile): Run your fingernail down the front and sides of your active needles. If you feel a "tick" or catch, the needle has a burr. Replace it. A burred needle will shred thread instantly on thick wool.
• Hoop Strategy: Pre-assign: 8×13 (Left Chest), 5.5-inch (Right Chest), 13×16 (Back).
• Lining Check: slide your hand inside the jacket. Ensure the pocket bag is pushed away from the sewing field.
• Time Budget: Acknowledge the reality. The channel confirmed this is a 5–6 hour project. Do not rush.


Ricoma MT-1501 Control Panel Setup: Rotation, Color Order, and a Setting That Saves Headaches

Software setup on the machine is where physical errors become digital disasters. On the Ricoma MT-1501 interface (or your specific panel), Andrew selects the design file (“LETTERMAN”) and performs the critical "Digital Pre-Check":

• Rotation: 270° (or 90° depending on loading orientation).
  • The Trap: Most jackets are loaded "bottom up" (waistband towards the machine body) to utilize the open space of the back. This typically requires an inverted rotation. If you skip this, you will embroider upside down.
• Color Sequence: Placement stitch → Tackdown → Satin stitch.
• Stop Commands: Ensure the machine is set to "Stop" or "Frame Out" after the placement and tackdown steps.
• Color Change Mode: Set to Automatic Manual.

This is one of those moments where a small setup mistake becomes a big waste of time and money. If the rotation is wrong, you can hoop perfectly... and stitch the design directly into the armpit seam.

If you’re running a ricoma mt-1501 embroidery machine, build the habit of strictly verifying rotation and color order before the garment is even in the room. Hooping is the expensive part (labor)—don't waste it on a software error.

Faux Chenille Without a Chenille Machine: Terry Cloth Appliqué That Looks “Championship-Worthy”

True Chenille requires a dedicated looping machine (or a specialized attachment). However, you can achieve 90% of the aesthetic for 10% of the cost using the "Faux Chenille" technique demonstrated here. The secret? Terry Cloth. The loop pile of terry cloth mimics the fuzzy texture of chenille perfectly from a distance.

What the video does (Front Letter "R")

1. Hoop the Material: Hoop raw terry cloth directly in the 8×13 magnetic hoop.
2. Trace Stitch: Run a running stitch outline (Trace) of the letter "R" on the terry cloth.
3. Removal: Taking the hoop off the machine.
4. Manual Cutting: Cut the "R" shape out along the stitched line using shears.


Pro tip from the comment section: “Any terry cloth?”

Ricoma replied that it can be any terry cloth—even a high-quality bath towel from Amazon or Joann’s works.

• Experience Note: Beware of "stretch" terry. If the backing is stretchy, it will distort when you pull it off the hoop. Ideally, use a non-stretch terry or iron a fusible backing (like HeatnBond) onto the back of the terry cloth before cutting your shapes. This stiffens the fabric and makes the edges crisp.

Laser vs scissors (the real trade-off)

A commenter suggested a laser cutter would be better.

• The Verdict: In a high-volume production house, yes, a laser seals the edges and is faster.
• The Reality: For most shops, the video’s method is the practical "floor approach": stitch outline, cut by hand, keep moving. The key is Consistency. If you cut too far outside the line, tufts of terry cloth will poke out from under the satin stitch. If you cut too close (inside the line), the satin stitch will have nothing to grab, and the appliqué will fray and fall off.
• Target: Aim to cut exactly on the thread line or 1mm outside it.

Warning: Physical Safety
Never "needle-dodge." Some operators try to hold the appliqué in place with their fingers while the machine does the tackdown stitch. Do not do this. If the fabric is curling, use painter's tape or a stick—never your fingers. A size 75 needle moving at 800 stitches per minute can shatter bone and leave fragments inside the finger.

The Magnetic Hooping Move for Thick Jackets: Inside Ring, Flat Stabilizer, Zero Wrestling

For the left chest, Andrew demonstrates the "Slide and Snap" technique. He slides the bottom magnetic ring inside the jacket, places the stabilizer, aligns the top ring, and lets the magnets engage.

This is where learning how to use magnetic embroidery hoop systems transforms from a luxury to a necessity.

• Why it works: The bottom frame inside the jacket creates a hard deck between the lining and the shell.
• The Snap: The magnetic closure clamps vertically. Traditional hoops rely on friction (sideways tension). Thick wool fights sideways tension, creating "hoop burn" (shiny, crushed circles). Magnets eliminate this.

Physics Check: Thick garments punish uneven tension. If one side of an inner hoop sits on a pocket seam, the sewing plane tilts. Magnetic hoops have deeper walls/flanges that accommodate these variances better than plastic hoops.

Front Left Chest Appliqué: Placement Stitch, Perfect Alignment, Then Tackdown + Satin

Once the jacket is hooped and loaded, gravity is your enemy. The weight of the jacket drags down. Ensure the arms are supported (use a table extension or another table).

The Sequence:

1. Placement Stitch: The machine sews an outline on the wool jacket to tell you where the "R" goes.
2. Stop & Position: Spray the back of your pre-cut terry cloth "R" with a tiny amount of adhesive. Place it inside the stitched outline.
3. Tackdown Stitch: The machine runs a zigzag or double run to lock the "R" to the jacket.
4. Satin Border: The machine finishes the edge with a dense column stitch.


Watch out: why “pre-cut then place” is both smart and risky

There are two schools of thought here:

• Method A (Video): Pre-cut the shape, then place it. Risk: If you place it 1mm off, the border misses.
• Method B (Traditional): Place a square of fabric, tack it down, then trim the excess with scissors while it is on the jacket.
• The Verdict for Wool: Trimming in the hoop (Method B) on a thick wool jacket is difficult because the jacket bulk fights your scissors. The video's method (Pre-cut) is cleaner IF your placement is steady.

Right Chest Logo with a 5.5-Inch Magnetic Hoop: Small Area, Big Payoff

For the right chest logo, Andrew switches to the 5.5-inch hoop. The logic remains: bottom bracket goes inside.

Why switch hoops? Why not use the 8x13? Flagging. If you use a huge hoop for a tiny 3-inch logo, the fabric in the center bounces up and down (flagging) because it isn't held tight near the needle. Flagging causes birdnesting and skipped stitches. Always use the smallest hoop that fits the design.

For this specific task, the mighty hoop 5.5 is the industry standard. It fits perfectly between the placket (buttons) and the sleeve seam, providing rigid tension right where the needle strikes.

Setup Checklist (Right before you run the logo)

• Orientation Check: Is the jacket twisted around the pantograph arm? (Common rookie mistake).
• Smoothness: Run your hand over the hoop. Is there a fold of lining trapped underneath?
• Centering: Double-check the design center. On a Size L Jacket, this is typically 7-8 inches down from the shoulder seam and 4 inches over from the center placket.
• Clearance: Ensure the heavy sleeves aren't dragging the hoop down. Support the garment weight!


Back Appliqué Prep on Fleece: Trace Stitch Letters First, Then Cut Cleanly

For the back, the design shifts to "RICOMA" letters and a wolf. Andrew uses black fleece. Fleece is cheaper than wool felts but stretches more.

Process:

1. Hoop the fleece securely.
2. Run the trace stitch for all elements.
3. Unhoop and cut.


Comment-driven reality check: “Did you use stabilizer under the fleece trace?”

The video shows raw fleece. However, if your trace stitch is distorting (making ovals instead of circles), the fleece is stretching.

• Expert Fix: If cutting shapes from stretchy fleece, hoop a layer of tearaway stabilizer with the fleece before tracing. This guarantees your pre-cut shapes are geometrically perfect.

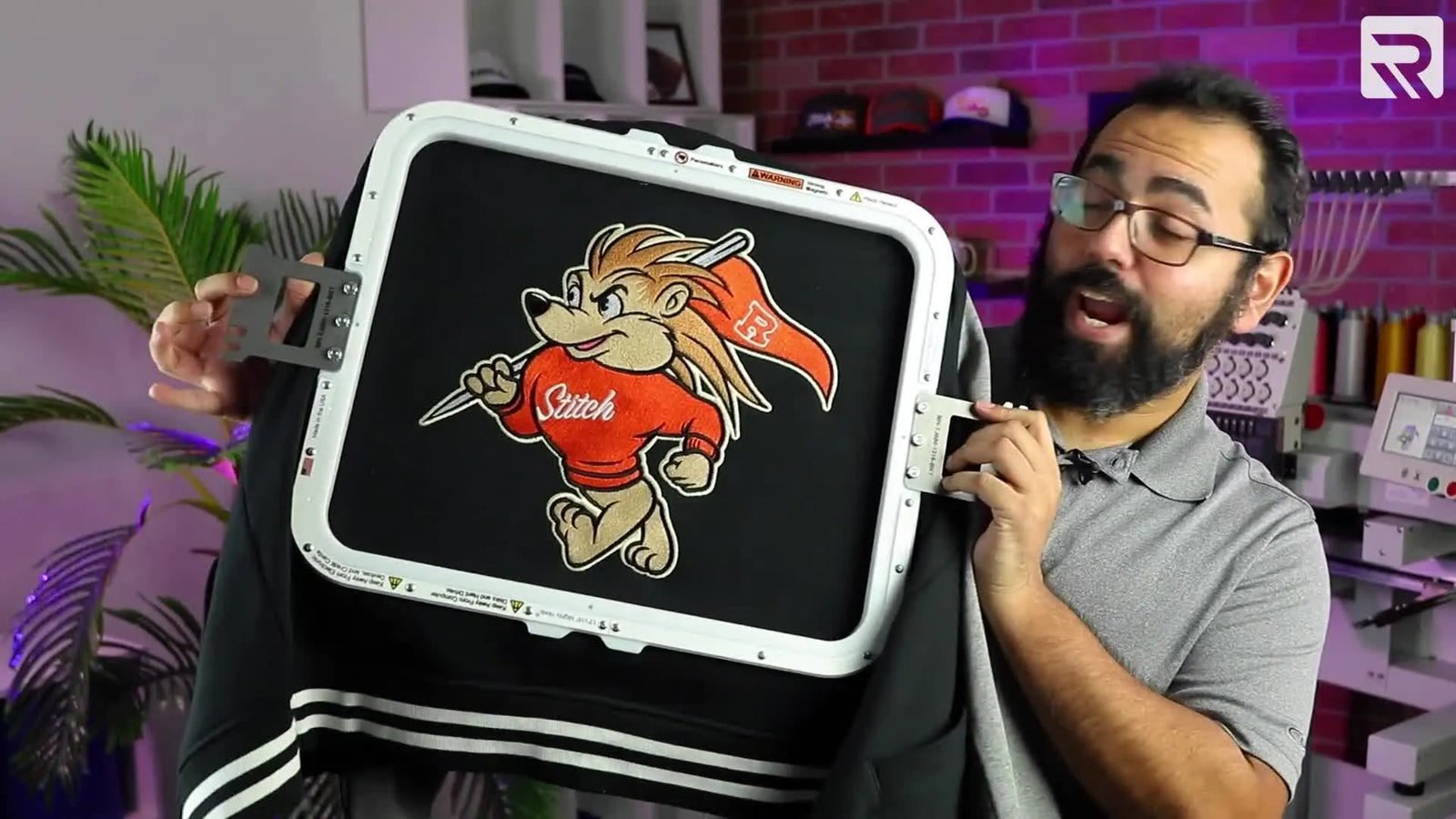

Full Back Hooping with a 13×16 Magnetic Hoop: When You Must Go Big (and Stay Flat)

The back of a jacket is the most lucrative real estate. Andrew upgrades to the large 13×16 hoop. He unhoops the smaller frame and prepares the jacket "open" (unzipped/unsnapped).

This is the "Production Moment." Large stitch fields on thick garments create drag. If the hoop loses grip mid-design, the registration fails, and you ruin a $50 jacket. Magnetic hoops provide consistent clamping force that doesn't loosen over the hour-long run time.

If you are using an 8x13 mighty hoop for chests, stepping up to the 13×16 for the back requires planning. Batching is key. Don't swap hoops for every jacket. Do all Left Chests (50 jackets), then all Right Chests, then setup for all Backs.

Stabilizer Decision Tree for Letterman Jackets (Cutaway, Layers, and When to Add More)

No two jackets are the same. A cheap promo jacket is thin; a varsity award jacket is armor-plated. Use this logic flow to decide your consumable loadout.

Decision Tree: Fabric + Design → Stabilizer Plan

1. Is the design Appliqué with a satin border?
   • Yes: YOU MUST USE CUTAWAY. (Video uses 3.5 oz).
   • Reason: Satin stitches cut holes in fabric like a postage stamp. Tearaway will disintegrate, and the border will fall off.
2. Is the placement area stable (melton wool) or loose (mixed knit)?
   • Stable Wool: 1 Layer of heavy 3.5oz Cutaway might suffice, but...
   • Safe Bet: Use 2 Layers of Cutaway. The channel confirms this ensures the best column definition.
3. Is the lining loose or quilted?
   • Yes: Use 505 Temporary Spray. Spray the stabilizer, smooth the lining onto it. This creates a "plywood effect" (laminating layers together) so they don't shift.
4. Is the inside finish critical?
   • Yes: Trim the cutaway with roughly 0.5" margin. Do not cut flush to the stitches (you risk cutting the bobbin thread).

Time, Bobbins, and the Real Cost of “Profit, Profit, Profit”

The video calls letterman jackets highly profitable. Let's audit the math to see if that's true for you.

• Gross Margin: Jacket ($23) + Materials ($12) vs. Sale Price ($100+).
• The Hidden Cost: Time. The channel admits this jacket took 5–6 hours to complete.
• Bobbin Alert: This design consumes roughly 4 full bobbins.

If you change a bobbin every 30 minutes, or you run out of thread mid-satin stitch, your profit stops.

• Pro Tip: For full backs, always start with a fresh bobbin. Listen to your machine. A low bobbin often sounds "rattly" or looser before it runs out.

The Upgrade Path That Actually Makes Sense: When Tools Pay for Themselves

There is a "Production Valley of Death" where you have too many orders to do by hand, but not enough cash for a new machine. Here is how to navigate it using the "Pain Diagnoser":

• Pain Point 1: Hand/Wrist Fatigue & Hoop Burn.
  • Symptom: Your hands hurt from cranking hoop screws tight enough for wool. You see rings on the fabric.
  • Prescription: Magnetic Hoops. This is a Level 1 Upgrade. It increases hoop speed by 30% and eliminates garment damage.
• Pain Point 2: Throughput Bottleneck.
  • Symptom: It takes 6 hours to do one jacket. You have an order for 20. That is 120 hours (3 weeks of labor).
  • Prescription: Multi-Needle Machine. A ricoma embroidery machines setup (or similar) allows you to preset 15 colors. You hit start and walk away to do other work. On a single needle, you are shackled to the machine for color changes.
• Pain Point 3: Limitation of Scope.
  • Symptom: You turn down hat orders or bag orders because your single-needle machine can't hoop them.
  • Prescription: Commercial tubular machines have free-arms that allow embroidery on bags, heavy jackets, and caps.

Warning: Magnet Safety
Magnetic hoops (like Mighty Hoops) use neodymium industrial magnets. They snap together with over 10 lbs of force instantly.
1. Pinch Hazard: Keep fingers on the handles, strictly away from the seam between rings.
2. Electronics: Keep them way from sewing machine screens, pacemakers, and credit cards.

Operation Checklist (the last 60 seconds before you hit Start)

This is your "Pilot's Pre-Flight." Do not skip.

• Hoop Check: Is the correct hoop size selected in the screen? (e.g., trying to sew a 13x16 design while the machine thinks it has a 5.5 hoop attached will cause a frame collision).
• Rotation Confirmation: Is the Left Chest set to 270°?
• Stitch Order: Placement → Tackdown → Satin.
• Lining Clearance: Reach under the hoop. Is the lining flat? Is the pocket bag clear?
• Bobbin Status: Is there enough bobbin thread for at least the placement and tackdown?
• Emergency Stop: Do you know where the E-Stop button is? (For when/if the needle hits a snap button).


Final Reveal Standards: What “Good” Looks Like on a Letterman Jacket (So You Can Repeat It)

You have finished the 5-hour marathon. How do you know if it's sellable? Inspect these three areas:

1. The Satin Edge: Does the satin stitch fully cover the raw edge of the appliqué fabric? If you see "whiskers" of terry cloth poking out, your cutting was too messy or your satin was too narrow.
2. Registration: Did the tackdown stitch hit the center of the placement line? If the outline looks like it "drifted," your stabilizer wasn't tight enough or the lining slipped.
3. Flatness (The Touch Test): Run your hand over the design. It should feel flexible, effectively becoming part of the jacket. If it feels like a stiff piece of plywood glued to the front, you used too much stabilizer or adhesive.


If you can hit these standards, you aren't just decorating clothes; you are manufacturing a premium product. Treat your hooping strategy and stabilizer choices as engineering decisions, not guesses. That precision is what allows you to scale from one custom jacket to a fleet of fifty without burning out.

FAQ

• Q: How do I prevent permanent hoop burn on thick wool letterman jackets when using magnetic embroidery hoops?
  A: Use magnetic hoops with a vertical “slide-and-snap” clamp instead of forcing a traditional hoop, because dragging wool fibers is what creates permanent rings.
  • Place the bottom ring inside the jacket so the hoop clamps straight down, not sideways.
  • Hoop between seam ridges, pocket bags, and snap hardware so the hoop sits flat instead of tilted.
  • Mist adhesive on cutaway stabilizer and smooth it to the lining to stop layers from shifting during hooping.
  • Success check: After unhooping, the wool pile should not look shiny/crushed in a hard circle, and the stitch plane should stay level during sewing.
  • If it still fails: Re-map the area by touch and move the hoop away from any “high spot” (seam/pocket edge) that is tipping the frame.
• Q: What stabilizer setup should be used for letterman jacket appliqué with dense satin borders on a Ricoma MT-1501 multi-needle embroidery machine?
  A: Use cutaway stabilizer (not tearaway), and for heavy wool with dense satin borders a safe approach is two layers of 3.5 oz cutaway.
  • Attach stabilizer to the lining with a light mist of temporary spray adhesive so the lining and shell act like one layer.
  • Choose sheets (not rolls) if handling inside the jacket is fighting you.
  • Trim stabilizer after stitching, leaving about a 0.5" margin—do not trim flush to the stitches.
  • Success check: The satin edge stays supported (no “cookie-cutter” cutting effect), and the appliqué border does not tunnel or pucker.
  • If it still fails: Add lining control (more careful smoothing) and confirm the hoop is not sitting on a seam ridge that reduces clamping force.
• Q: What Ricoma MT-1501 control panel settings prevent stitching a letterman jacket design upside down or in the wrong location?
  A: Confirm rotation and stitch order before hooping, because the jacket is often loaded “bottom up” and may require a 270° (or 90°) rotation depending on orientation.
  • Verify rotation on the control panel before the garment goes on the machine.
  • Confirm color/stitch sequence is Placement stitch → Tackdown → Satin stitch.
  • Enable “Stop” or “Frame Out” after placement and tackdown so placement and appliqué steps can be done cleanly.
  • Success check: The placement line lands exactly where expected on the jacket panel (not drifting toward seams/armpit areas).
  • If it still fails: Stop immediately after placement, re-check garment loading orientation, and only resume once the preview and physical placement agree.
• Q: How do I stop birdnesting and flagging when stitching a small right-chest logo on a letterman jacket using a 5.5-inch magnetic hoop?
  A: Use the smallest hoop that fits the design (commonly a 5.5-inch magnetic hoop) to hold fabric tight near the needle and reduce bouncing.
  • Hoop with the bottom bracket inside the jacket, and keep lining flat so nothing bunches under the needle area.
  • Support the jacket’s weight so sleeves and body do not drag the hoop down during stitching.
  • Check the jacket is not twisted around the pantograph arm before starting.
  • Success check: The fabric does not visibly bounce (“flag”) at stitch impact, and the underside stays clean without thread tangles building up.
  • If it still fails: Re-hoop closer to the logo area (smaller hoop strategy) and re-check that no fold of lining is trapped in the hoop.
• Q: How can I prevent instant thread shredding on thick wool letterman jackets when using a 75/11 sharp needle on a commercial multi-needle embroidery machine?
  A: Replace any needle that has a burr, because a slightly damaged needle will shred thread quickly on thick wool and appliqué layers.
  • Run a fingernail down the front and sides of the active needles and feel for a “tick” or catch.
  • Swap in a fresh 75/11 sharp needle if any roughness is detected.
  • Stage scissors and materials ahead of time so the machine is not restarted repeatedly during appliqué steps.
  • Success check: Thread runs smoothly through placement and tackdown without fuzzing, snapping, or fraying at the needle.
  • If it still fails: Slow down and inspect the sewing path for contact risks (hoop edge tilt from seams can cause deflection and abnormal abrasion).
• Q: What is the safest way to handle appliqué placement on a letterman jacket so fingers are not near the needle during tackdown stitching?
  A: Never hold the appliqué in place with fingers during stitching—secure the piece before tackdown using adhesive or non-hand tools.
  • Spray a tiny amount of temporary adhesive on the back of the pre-cut appliqué piece, then place it inside the placement outline.
  • Use tape or a stick if the fabric tries to curl—keep hands away from the needle path.
  • Use the machine’s planned stops (after placement and tackdown) so adjustments happen while the needle is not running.
  • Success check: The appliqué stays flat and does not shift during tackdown without any hand “needle-dodging.”
  • If it still fails: Stop the machine, re-position the piece, and confirm the jacket weight is supported so gravity is not pulling the fabric out of place.
• Q: What magnetic hoop safety rules prevent pinch injuries and equipment damage when using neodymium magnetic embroidery hoops on heavy jackets?
  A: Handle magnetic hoops only by the handles and keep fingers away from the seam where rings snap together, because the magnets can close with strong force instantly.
  • Align the rings carefully before letting them engage; do not “catch” the hoop with fingertips between rings.
  • Keep magnetic hoops away from sensitive electronics, pacemakers, and credit cards.
  • Confirm the correct hoop size is selected on the machine screen to prevent frame collisions (wrong hoop selection can cause a crash).
  • Success check: The hoop closes without finger contact near the snap line, and the machine runs without clearance alarms or frame strikes.
  • If it still fails: Pause and re-seat the hoop slowly—rushing alignment is what causes most pinches and mis-mounts.
• Q: When letterman jacket orders take 5–6 hours each, how should a shop decide between technique optimization, magnetic hoop upgrades, and upgrading to a multi-needle embroidery machine?
  A: Use a tiered approach: optimize setup first, then upgrade hooping, then upgrade production capacity when time becomes the limiting cost.
  • Level 1 (Technique): Standardize pre-flight checks (rotation, stitch order, lining clearance, fresh bobbin for full backs) so labor is not wasted on preventable resets.
  • Level 2 (Tooling): Switch to magnetic hoops if hoop burn, wrist fatigue, or slow hooping is hurting quality or speed on thick wool.
  • Level 3 (Capacity): Move to a multi-needle commercial setup when order volume makes single-needle color changes and long runtimes unprofitable.
  • Success check: Rework drops (fewer ruined jackets), hooping time decreases, and long back runs hold registration without loosening.
  • If it still fails: Batch production by hoop size (all left chests, then right chests, then backs) to reduce repeated setup changes and control total labor hours.
