Laser Bridge + Tajima Appliqué on Hoodies: The Fast, Repeatable Workflow (and the Alignment Mistakes That Ruin It)

Here is the comprehensive, industry-grade guide, restructured and refined for maximum clarity, safety, and operational efficiency.

If you’ve ever watched a beautiful retail hoodie come off a multi-head machine and thought, “That looks expensive… but I know the stitch count would normally be brutal,” you’re exactly the audience for this workflow.

In this shop visit, Envision Tees in Dubuque, Iowa demonstrates a mixed-media decoration method on a JERZEES 50/50 NuBlend hoodie: tone-on-tone laser etching in the background, followed by a two-layer laser-cut appliqué. This is run as a single production flow with a Seit Laser Bridge system integrated over Tajima embroidery heads.

Here’s the calm truth: the “magic” isn’t just the laser. The real win is repeatability—marking, alignment discipline, hooping stability, and a file strategy that replaces stitches with fabric. This allows you to move product fast without sacrificing the tight corners and clean edges customers pay premium rates for.

Don’t Panic: Laser Bridge + Tajima Multi-Head Embroidery Is Just a Workflow (Not a Mystery Machine)

A lot of decorators see a laser bridge and assume it’s either (1) only for huge factories or (2) so complex it’ll be fragile in production. In reality, as Tom R. Allen explains, the laser simply rides on a bridge above the embroidery machines. It allows you to laser-cut appliqué shapes (and do etching) while the garment is still hooped and registered.

The practical reason shops invest is speed. They describe taking a design that would range between 150,000 to 200,000 stitches and reducing it to roughly 40,000–50,000 stitches by replacing large filled areas with fabric layers.

That’s not a small optimization—that’s the difference between running a machine for 3 hours per run versus 45 minutes.

The Lesson for Every Shop: Even if you don't have a laser, the principle holds true. If you’re running a tajima embroidery machine (or any commercial multi-needle), your goal is to reduce "machine dwell time." Stitches are time, and time is money. Replacing dense tatami fills with fabric (appliqué) is the single fastest way to increase your profit margin per hour.

The Hidden Prep That Keeps Hoodies Straight: Chalk Crosshairs, Flat Lay, and No-Skip Alignment Discipline

The most expensive mistake in embroidery is a crooked logo. Not because it’s hard to fix—but because you often don’t notice until you’ve already etched or stitched a batch. On a hoodie, this is compounded because the pocket and hood weight pull the fabric in different directions.

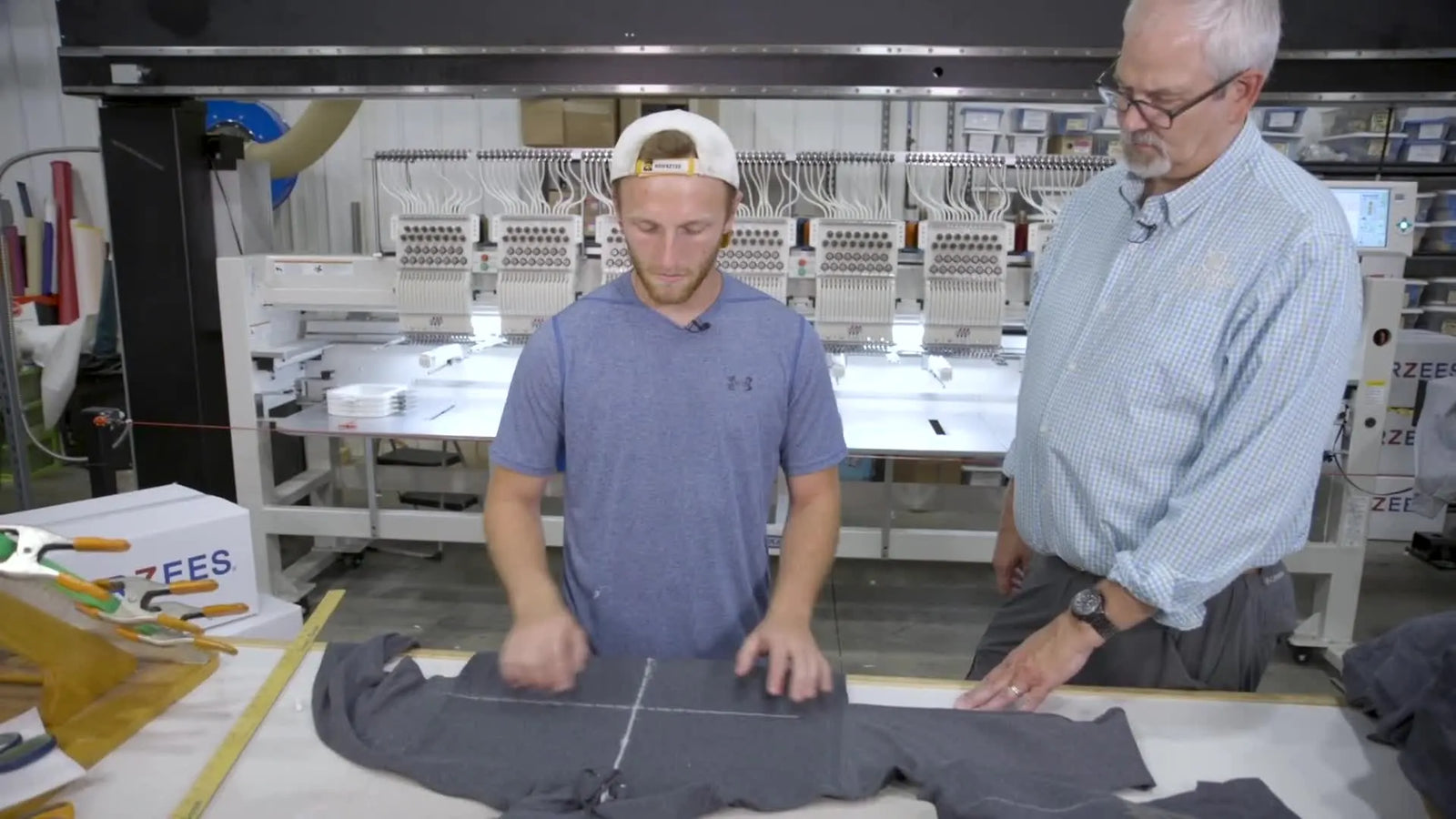

In the video, the technician (Quinton) performs a manual marking routine that looks “old school,” but it is the bedrock of precision:

1. He identifies the center by measuring from the side seams or armpits.
2. He marks three vertical points along the hoodie’s center to ensure the line isn't angled.
3. He connects them into a straight centerline using a straight edge.
4. He draws a perpendicular horizontal line to create a crosshair at the desired height.
5. That crosshair becomes the undeniable reference for the machine's red laser dot alignment.

Expert Insight (The "Soft Distortion" Factor): Thick garments like hoodies don’t behave like flat twill. The knit fleece has "give." If you only mark one dot, the fabric can skew by 5-10 degrees during hooping without you realizing it. A full crosshair allows your eye to catch that skew instantly.

Hidden Consumables You Need:

• Tailor’s Chalk / Water Soluble Pen: Ensure it contrasts with the fabric (e.g., white chalk on dark hoodies).
• Acrylic Ruler: For connecting the dots.
• Lint Roller: To clear the marking area of debris before marking.


Prep Checklist (Do this before hoop assembly)

• Garment Verification: Confirm style and blend (JERZEES 50/50 NuBlend in this case).
• Surface Prep: Clear a flat, clean marking surface. If the hood creates a lump, let it hang off the table edge.
• The 3-Point Rule: Mark three centered vertical points, then connect them. Never rely on a single dot.
• Crosshair Creation: Add the perpendicular horizontal line.
• Visual Logic Check: Look at the crosshair relative to the pocket and drawstrings. Does it look straight? (Trust your eye; pockets are often sewn crookedly).
• Backing Staged: Select a sturdy Tearaway or Cutaway (depending on density).
• Appliqué Materials Staged: Pre-cut your rough squares of white fleece (Layer 1) and dark felt (Layer 2).


Tone-on-Tone Laser Etching on Heather Hoodies: Why Two Passes Often Makes It “Pop”

After marking, the hoodie is laid un-hooped on the laser bed for the etching phase. The technician aligns the laser’s red crosshair to the chalk crosshair.

A key detail mentioned is the reaction of the fabric. On this specific heather material, a single pass of the laser “doesn’t do it enough justice.” It’s too faint. They have calibrated the system to run a second pass to achieve the desired contrast.

This is a critical chemistry lesson for all decorators:

• Cotton (Cellulose): Burns/chars. Usually turns lighter or yellowish-brown.
• Polyester (Synthetics): Melts. Usually turns darker and harder.
• 50/50 Blends: You get a mix of both reactions.

The "Zombie" Risk: If your artwork depends on dark lines (like eyes on a character) and you switch to a cotton-heavy dark garment, the laser might etch lighter than the fabric, turning black pupils into ghostly white spots. Always test your settings on a scrap garment of the exact same color and SKU.

Warning: Physical Safety
Laser processes create heat, smoke, and toxic fumes (especially when burning dyes or synthetic fibers).
* Ventilation: Ensure your exhaust system is active and filters are clean.
* PVC Ban: Never laser PVC-based faux leathers or vinyls; they release chlorine gas which damages lungs and corrupts machine metal.
* Fire Watch: Fleece is flammable. Never leave a laser running unattended on fuzzy fabrics.

Hooping Thick Hoodies Without Distortion: Tearaway Backing, Stable Stations, and Hoop Pressure Control

Once etched, the hoodie moves to the hooping station. This is the stage where most novices fail with heavy garments.

The Process shown:

1. Apply tearaway backing.
2. Align the green outer hoop so the etched design is perfectly centered.
3. Press the inner ring into place.
4. Critical: They use mechanical clamps to lock the hooping station board, preventing it from shifting during the force of hooping.

The Pain Point: Hoop Burn and "Pop-Out" Thick garments fight standard round hoops. The seams (kangaroo pocket, side seams) create uneven thickness.

• The Problem: To hold a thick hoodie, you have to tighten the screw excessively. This requires immense hand strength and often leaves a permanent white ring ("hoop burn") on the fabric.
• The Solution: If you struggle with this, this is the precise scenario where magnetic hoops for tajima embroidery machines become a production savior. Magnetic hoops clamp automatically based on thickness, eliminating the need to adjust screws and saving your wrists from repetitive strain injury.

Sensory Check: When using a standard hoop, tap the fabric in the center. It should sound like a dull thud (secure), not a high-pitched "ping" (too tight/distorted), and definitely not loose.

Setup Checklist (Right before loading onto the machine)

• Backing Coverage: Ensure backing extends at least 1 inch past the design limits on all sides.
• Centering: Is the etched design mathematically centered in the hoop?
• Seam Clearance: Ensure no thick seams are trapped strictly in the corner of the hoop (common cause of hoop popping).
• Stability Test: Push on the inner ring. Does it move? If yes, it's too loose. Retighten and re-hoop.
• Machine Clearance: Check that the hood and drawstrings are tucked away and won't snag on the pantograph arm.
• Thread Path: Quick glance at the thread tree—no tangles before you hit "Start."


The Appliqué Sequence on Tajima: Trace, Place Layer 1, Tack-Down, Laser Cut, Repeat for Layer 2

Now the machine takes over. The mixed-media build follows a strict logical order.

1. Trace (Placement Stitch):
   • Action: The machine runs a running stitch outline.
   • Purpose: This shows you exactly where to place your fabric.
2. Placement of Layer 1 (White Sweatshirt Fleece Scrap):
   • Action: Place the fabric over the outline.
   • Tip: Use a light mist of temporary spray adhesive (like KK100) on the back of the appliqué fabric to prevent it from bubbling during the stitch.
3. Tack-Down Stitch:
   • Action: The machine stitches a Zig-Zag or E-Stitch to lock the fabric down.
   • Speed: Slow down. If you normally run at 900 SPM, drop to 600-700 SPM for tack-downs to prevent the foot from pushing a wave of fabric.
4. Laser Cut (or Manual Trim):
   • The laser bridge cuts the shape. (If you are manual, this is where you stop and trim with appliqué scissors).
5. Repeat for Layer 2 (Dark Felt).

The goal is a completion time of under 10 minutes for a design that looks high-value.

Operation Checklist (What to monitor during the run)

• Trace Accuracy: Does the trace line up with your etching (if applicable)?
• Fabric Smoothness: Is the appliqué fabric laying flat? (Watch for bubbling).
• Presser Foot Height: Crucial for felt. If the foot is too low, it will drag the felt. If too high, you'll get flagging/birdnesting. Adjust until it just barely kisses the fabric.
• Trim Cleanliness: Remove all loose threads or fabric scraps after the cut. A wayward scrap can get sewn into the final satin border.
• Bobbin Monitor: Do you have enough bobbin thread to finish the satin border? Changing a bobbin mid-satin stitch leaves a visible seam.
• The "Sound": Listen for a rhythmic thump-thump. A sharp clack-clack usually means a needle is hitting something hard (like a hoop edge or thick seam).


Warning: Physical Safety
Do not put your hands inside the hoop area while the machine is enabled.
When placing appliqué fabric, always keep fingers away from the needle bar. If you need to trim manually, ensure the machine is in a "Stop" state, not just paused between color changes. Needles can break and fly at high velocity.

Why This Cuts Production Time: Stitch Count Reduction, Texture Value, and Fewer Failure Points

Reducing a 200,000-stitch design to 50,000 stitches changes the economics of your shop.

• Throughput: You can run 3x or 4x the volume per shift.
• Reliability: Every stitch is a potential thread break. Fewer stitches = fewer stops.
• Heat Management: 200k stitches in one spot creates friction heat that can snap thread or melt synthetic backing. Appliqué runs cooler.

The ROI Logic: Even without a laser bridge, using pre-cut appliqué shapes allows you to charge "Premium Hoodie" prices while incurring "Left Chest" production times. You are selling texture, not just ink or thread.

The Fabric Science Behind “Invisible Etching” (and How to Avoid the Zombie Look)

We touched on this earlier, but let's codify the troubleshooting. The video notes that cotton etches lighter and polyester etches darker.

How to standardize this in your shop:

1. The "Scrap Yard" Rule: Never throw away damaged garments. Keep them as "test slabs." Before running a new job on a heather 50/50 hoodie, find a scrap of that same material and run a 1-inch test square.
2. Reaction Library: Keep a logbook. "Jerzees NuBlend 50/50 = 2 passes at 70% power." "Carhartt 100% Cotton = 1 pass at 40% power."
3. Visual Contrast: If the etch is too subtle (tone-on-tone), you lose the "retail" effect. Don't be afraid to double-pass or increase power, provided you don't burn through the fabric.

Laser Alignment Drift on Thick Garments: The Caliper Trick That Saves Your Cut Depth

A hidden gem in the video is the solution to Variable Z-Axis. Hoodies are not perfectly flat plates; they have fluff, seams, and variations in manufacturer production.

The Problem: If the laser is focused for a 2mm thick fabric, but the hoodie is 4mm thick in one spot, the laser focal point is wrong. You might cut too deep (slicing the hoodie) or too shallow (leaving the appliqué attached).

The Solution: Use digital calipers to measure the actual garment thickness in the hoop. Input this offset into your laser (or machine) settings. This transforms "guessing" into "engineering."

Decision Tree: Choosing Backing + Hooping Strategy for Hoodies

Use this logic flow to determine the right setup for bulkier garments to ensure clean edges.

START: Analyze Garment & Design

1. Is the design primarily Appliqué (low stitch density, mostly fabric)?
   • YES: Strong Tearaway (2.5oz+) is usually sufficient.
   • NO (Full Stitch Density): Use Cutaway backing (2.5oz or 3.0oz) to prevent the knit from distorting over time.
2. Is the garment a heavy hoodie (10oz+) or Carhartt style jacket?
   • YES: Go to Step 3.
   • NO: Standard T-shirt/Polo? Standard hoops are fine.
3. Does hoop burns or "Hoop Popping" occur frequently?
   • YES: You have a mechanical mismatch.
     • Option A: Use "Sticky" stabilizer to float the garment (risky for registration).
     • Option B (Recommended): Switch to magnetic embroidery hoop or tajima hoop with magnetic clips. The magnets accommodate the seam thickness without forcing the ring open.
4. Is production speed the bottleneck?
   • YES: Invest in better hooping stations. Stability = Speed.
   • NO: Focus on technique and marking.

The “Hooping Station” Reality: Speed Comes From Repeatability, Not Heroic Hand Strength

In the video, Quinton clamps down the hooping board. This is a subtle but professional move.

If you are hooping on a loose table, the board slides away from you as you push. Your shoulders tense up, your wrists twist, and your alignment drifts.

The Upgrade: A proper hooping station for embroidery anchor system allows you to use your body weight efficiently.

• Consistency: Every size S, M, L is hooped at the exact same vertical position.
• Ergonomics: It prevents the "Friday Afternoon Slump" where quality drops because the operator is physically tired.
• Systemization: Devices like the hoop master embroidery hooping station make training new employees significantly faster because the hardware enforces the alignment, not the human eye.

Pricing the Retail Hoodie (Without Guessing)

A viewer asked: “What can you sell that for?”

While we can't give a universal price, here is the formula for High-Perceived Value items:

$$ \text{Retail Price} = (\text{Garment Cost} + \text{Material Cost}) \times \text{Markup} + (\text{Machine Time} \times \text{Shop Rate}) + \text{Risk Premium} $$

Why the "Risk Premium"? Complex mixed-media work has a higher chance of failure (misalignment, laser burn). You must bake a buffer into the price to cover the occasional spoiled garment. Because the customer sees "Laser Etched + Appliqué," they perceive it as a $60-$80 item, whereas a standard screen print might be a $30 item.

The Upgrade Path I’d Recommend After Watching This Workflow

The video shows a high-end system, but you can achieve 90% of the result with smarter tools, not just bigger machines.

1. Level 1: The Process Upgrade (Free)
   • Adopt the "Crosshair" marking system immediately.
   • Switch to Appliqué for large fill areas to save time.
2. Level 2: The Tool Upgrade (Low Cost)
   • If you are fighting thick seams, stop struggling. Upgrade to efficient magnetic hoops for tajima embroidery machines. They allow you to hoop over zippers, seams, and thick fleece without "hoop burn" or wrist pain. This is the highest ROI accessory you can buy.
3. Level 3: The Production Upgrade (High Cost)
   • If you have volume, look at laser bridges or dedicated multi-head machines to separate your "simple work" from your "complex work."

Warning: Magnetic Shielding
Magnetic Hoops are incredibly strong.
* Pinch Hazard: Keep fingers clear of the "snap zone" where the top and bottom frames meet. They can pinch skin severely.
* Medical Devices: Operators with pacemakers or ICDs should maintain a safe distance (usually 6-12 inches) from high-power magnetic hoops. Consult your device manufacturer.
* Electronics: Do not place credit cards or phones directly on the magnets.

The Quality Standard to Aim For: Tight Corners, Clean Edges, and a Background That Looks Intentional

At the end of the video, look closely at the finished product. The corners are sharp. The felt is tacked down securely. The background etch is visible but not burnt.

That is your benchmark.

If your corners look rounded, your edges are lifting, or your background etch disappears under shop lighting, don’t blame the concept—tighten the process. Mark better, stabilize better, and control your variables.

FAQ

• Q: What marking tools and consumables are required to align a laser-etched background and appliqué on a JERZEES 50/50 NuBlend hoodie before hooping?
  A: Use a full chalk crosshair system and stage the basic prep consumables before any laser or stitching starts—this prevents batch-wide crooked placement.
  • Mark: Measure from side seams/armpits, mark three vertical center points, connect with a straight edge, then add a perpendicular horizontal line to form a crosshair.
  • Prep: Lint-roll the marking area, then use tailor’s chalk or a water-soluble pen that contrasts the fabric; use an acrylic ruler to keep lines true.
  • Stage: Pre-cut rough appliqué squares (Layer 1 fleece + Layer 2 felt) and have backing ready at the hooping station.
  • Success check: The crosshair looks visually straight relative to the garment (even if the pocket is slightly crooked) and is easy to hit with the laser red dot.
  • If it still fails… Re-do the mark using the three-point rule—single-dot marking is a common cause of 5–10° skew during hooping.
• Q: How can a Tajima-style embroidery hooping workflow prevent crooked designs on thick hoodies using the “3-point centerline + crosshair” method?
  A: Build the centerline first, then lock orientation with a crosshair—this catches soft fabric distortion before it becomes a ruined run.
  • Measure: Find center from seams/armpits, then place three vertical center marks (top/middle/bottom) and connect them into one straight line.
  • Square: Draw one horizontal line at the design height to create a clear crosshair reference for alignment.
  • Align: Match the machine/laser alignment dot to the crosshair, not to a pocket edge or drawstrings.
  • Success check: During hooping, the vertical line stays visually vertical (no “lean”) and the crosshair remains centered where the design should land.
  • If it still fails… Treat the garment as “soft distortion”: re-lay it flat with the hood hanging off the table edge and remark—hood weight can bias the lay.
• Q: How do you reduce hoop burn and hoop pop-out when hooping a thick hoodie for appliqué embroidery with a standard round hoop?
  A: Control hoop pressure and avoid trapping extreme thickness in one corner—most hoop burn and pop-outs come from uneven seam stacks and overtightening.
  • Position: Keep bulky seams (kangaroo pocket edges/side seams) from sitting hard in the hoop corner where the ring can’t compress evenly.
  • Stabilize: Use a firm tearaway backing and ensure the hooping board/station is mechanically stable so it cannot shift during hoop insertion.
  • Tighten: Tighten only enough to hold—do not “hero-tighten” the screw to fight thickness.
  • Success check: Tap the hooped fabric—aim for a dull thud (secure) rather than a high-pitched ping (over-tight/distorted) or a loose flutter.
  • If it still fails… This is a common mechanical mismatch on heavy garments; upgrading to a magnetic embroidery hoop often eliminates excessive screw pressure and reduces hoop burn.
• Q: What is the correct appliqué stitch sequence on a Tajima multi-head embroidery workflow (trace, place, tack-down, cut, repeat) to avoid bubbling and misplacement?
  A: Follow the strict order—trace first, then place fabric, then tack-down, then cut—because skipping or swapping steps causes registration errors.
  • Trace: Run the placement stitch and use it as the only “truth” for where the fabric must land.
  • Place: Apply the appliqué fabric over the outline; use a light mist of temporary spray adhesive to prevent bubbling.
  • Tack: Slow the machine down for tack-downs (commonly from 900 SPM to around 600–700 SPM) to reduce fabric wave/push.
  • Cut: Laser-cut (or stop and manually trim) after tack-down, then repeat the same cycle for Layer 2.
  • Success check: The appliqué fabric stays flat during tack-down (no visible bubbles/waves) and the cut edge is clean with no scraps sewn into the satin border.
  • If it still fails… Inspect presser-foot behavior and fabric smoothness first—flagging/birdnesting during felt work usually means the foot height is not dialed in.
• Q: How should presser foot height be adjusted for felt appliqué on a Tajima multi-needle embroidery setup to prevent flagging and birdnesting?
  A: Adjust presser foot height until it just barely “kisses” the felt—too low drags felt, too high increases flagging and can trigger nesting.
  • Observe: Watch the felt as it feeds; dragging or shifting indicates the foot is too low.
  • Adjust: Raise or lower incrementally and re-check during the tack-down and border phases.
  • Clean: Remove all loose threads and fabric scraps after cutting so nothing gets caught under the foot.
  • Success check: The run sounds rhythmic (steady thump-thump) and the felt edge stays controlled with no loops forming underneath.
  • If it still fails… Stop and check for hard contact (sharp clack-clack) that can indicate a needle striking a thick seam or hoop edge.
• Q: What safety steps should be followed when placing appliqué fabric or trimming near the needle area on a Tajima-style multi-head embroidery machine?
  A: Keep hands out of the enabled needle zone—only place fabric when the machine is in a true Stop state, not merely paused.
  • Stop: Put the machine into a full stop before reaching into the hoop area.
  • Place: Keep fingers away from the needle bar path; position fabric using edges, not fingertips near the needle.
  • Trim: If manual trimming is required, confirm the machine cannot move unexpectedly between color changes.
  • Success check: Hands never enter the hoop area while the machine is enabled, and there is no “surprise motion” when resuming.
  • If it still fails… Re-train the sequence: treat every placement as a lockout step—needle breaks can eject fragments at high velocity.
• Q: What magnetic hoop safety precautions should operators follow when using strong magnetic embroidery hoops on thick garments like hoodies?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and sensitive items—most injuries happen in the “snap zone.”
  • Clear: Keep fingers out of the closing gap when the top and bottom frames meet.
  • Separate: Keep phones, credit cards, and similar items off the magnets.
  • Protect: Maintain a safe distance for pacemakers/ICDs (commonly 6–12 inches) and follow the device manufacturer’s guidance.
  • Success check: The hoop closes without finger contact in the snap zone, and operators handle magnets deliberately (no “slap together” motion).
  • If it still fails… Slow the handling down and assign one trained operator for hooping—magnet strength is not forgiving, especially during high-volume runs.
• Q: How can a shop reduce production time on a Tajima multi-head embroidery workflow for retail-style hoodies by replacing dense fills with appliqué, and when should magnetic hoops or a machine upgrade be considered?
  A: Replace large filled stitch areas with appliqué to cut stitch count dramatically, then upgrade tools only if stability or speed remains the bottleneck.
  • Level 1 (Process): Convert dense tatami areas into fabric layers and enforce crosshair marking/alignment discipline to protect repeatability.
  • Level 2 (Tool): If thick seams cause hoop burn, wrist strain, or frequent hoop popping, move to magnetic hoops to clamp across variable thickness without extreme screw torque.
  • Level 3 (Production): If machine dwell time is still limiting throughput after process/tool fixes, consider higher-capacity production equipment to separate simple work from complex work.
  • Success check: The job completes faster with fewer thread-break stops, cleaner edges, and consistent placement across the batch.
  • If it still fails… Audit the failure point: if problems concentrate at hooping, fix hooping stability first; if problems concentrate during long dense runs, reduce stitch density with appliqué.
