Knit Stocking Names That Don’t Sink or Skew: Ricoma + Fast Frames Workflow (Digitizing, Hooping, Finishing)

The Definitive Guide to Embroidering Cable-Knit Stockings: Zero Distortion, Max Profit

Cable-knit stockings are the ultimate "looks easy, stitches hard" project. They are deceptively soft, but mechanically hostile. The thick cuff wants to crush under a standard hoop, the knit loops are waiting to swallow your satin stitches, and the elasticity of the fabric fights your machine's movement every step of the way.

If you have ever finished a stocking and thought, "Why does the name look like it’s sinking into a waffle?" or "Why is the letter 'P' crooked?"—you are not alone. These failures usually happen because operators treat a knit stocking like a t-shirt. It is not a t-shirt; it is a three-dimensional structure that requires a specific engineering approach.

This guide deconstructs Delonda’s proven workflow (utilizing Ricoma, Fast Frames, and specific digitization logic) into a repeatable industrial standard. Whether you are crafting for family or running a seasonal production line, this is your blueprint for perfect results.

The Physics of Failure: Why Knits Reject Stitches

Before we press a single button, you must understand the enemy. Knit stockings fail for three predictable physical reasons:

1. Metric Instability: The knit stretches as the needle penetrates. When it relaxes, the letters wave, lean, or distort (the "flagging" effect).
2. Topography: The surface is a series of peaks and valleys. Without intervention, stitches fall into the "valleys" between loops, making the text look thin or broken.
3. Pathing Errors: Auto-digitizing often creates stitch paths that drag thread across the open texture, or start stitching in the middle of a word, pushing the loose fabric in the wrong direction.

The solution requires a triad of control: Reduced Density Stitching + Structural Stabilization + Low-Compression Hooping.

If you are graduating to a multi-needle setup like the ricoma mt 1501 embroidery machine, adopting this "production mindset" allows you to lock in variables so the 50th stocking looks exactly as crisp as the first.

Warning: Machine Safety First. Keep fingers, snips, and loose sleeves (especially bulky sweaters) away from the needle bar area during operation. When trimming topping near the needle, ensure the machine is in a complete "Stop" state, not just paused.

The "Hidden" Prep: Fonts, Realities, and The Consumables You Forgot

Professional embroidery is 80% preparation and 20% execution. Before opening your software, you need to gather the right tools to protect two things: the knit's shape and the stitch's definition.

The Font Strategy

Delonda recommends a script font like Master Baker. Why script? Because a connected script allows you to weld letters into a single object, reducing the number of trims and jumps. Every trim is a potential snag on a knit sweater.

The "Hidden" Consumables

You likely have thread and backing. But for high-pile knits, you need:

• Water-Soluble Topping (Solvy): This acts as a suspended floor for your stitches, preventing them from sinking into the knit.
• Sticky Tear-Away Stabilizer: This eliminates the need for spray adhesives (which can gum up needles) and provides a "grip" that holds the knit's grain straight without hoop tension.
• Precision Tweezers: Essential for picking out topping from inside loop letters like 'e' and 'a'.


Prep Checklist (Do not proceed until checked)

• Stockings: Chunky cable-knit (verify they fit your hoop area).
• Stabilizer (Base): Self-adhesive sticky tear-away (peel-and-stick).
• Stabilizer (Top): Water-soluble topping (clear film type).
• Hooping System: Fast Frames or magnetic frames (to avoid hoop burn).
• Tools: Fine-tip curved embroidery scissors + tweezers.
• Data Hygiene: Name list spell-checked (holiday re-dos are expensive).
• Measurement: Target name width established (Standard is often 3.75 - 4.00 inches for cuffs).
• Contrast Check: Thread colors compared against the stocking in good lighting.

Step 1: Structural Digitizing in Silhouette Studio

We don't just "type and save." We build a structure. Delonda uses Silhouette Studio Business Edition to prepare the vector before the embroidery software touches it.

1. Type & Font: Select the text tool, type the name (e.g., "Peter"), and apply Master Baker.
2. Weld (The Critical Step): Right-click and select Weld.
   • The Why: Script fonts are often individual overlapping letters. If you digitize them unwelded, the machine will stitch the tail of the 'P' on top of the 'e', creating a hard lump and potentially breaking the needle. Welding fuses them into one continuous outline.
3. Group & Export: Right-click to Group, fill with color for visibility, and save as an SVG.

Note on Cricut: A viewer asked if Cricut Design Space works here. The answer is No. Cricut software is a "walled garden" and does not export true SVGs usable in professional embroidery software like Chroma.

Step 2: The Chroma Luxe Recipe (Density & Stitch Types)

Importing the SVG into Chroma Luxe (or your preferred digitizing software) requires specific adjustments for knitwear. Standard settings will fail here.

The Logic of "Brick" vs. "Satin"

• Brick Stitch (for Fills): Delonda converts the fill to a "Brick" pattern with a density of 0.30mm.
  • Expert Insight: 0.30mm is technically a higher density (lines are closer together) than the standard 0.40mm. However, Brick stitch offsets the needle penetrations so they don't form a "trench." This provides solid coverage over the red knit without cutting the fabric.
  • Warning: Do not use 0.30mm density on a standard Tatami fill without testing; it can be bulletproof stiff.
• Satin Stitch (for Columns): For the name "Madison," she converts to Satin Stitch with a density of 0.32mm.
  • Sensory Check: You want the column to look "plump" on the screen. If you see gaps in the 3D preview, the knit texture will definitely show through in real life.


Step 3: Controlling the Machine's Path (Start/Stop Points)

Auto-digitizing logic is often flawed. It might start stitching the name "Peter" at the letter 'r' and travel backward, dragging a long thread tail across the textured knit.

The Fix:

1. Reorder: Go to the layers panel. Ensure the first letter (P) is at the top of the list (Order -> Send to Back if necessary to prioritize it).
2. Move Entry/Exit Points: Manually drag the green (Start) dot to the far left of the 'P', and the red (Stop) dot to the far right of the 'r'.
3. Force Trims: Set End Command to Trim (not Jump). This tells the machine to cut the thread cleanly between disconnected segments, rather than leaving a jump stitch you have to trim by hand (risking cutting the knit).


Step 4: The "Save Twice" Protocol

Never rely on a single file type.

1. Save as RDE (or your software's native editable format). This is your "source code" in case you need to resize later.
2. Save as DST (Machine File). This is the coordinate data the machine reads.
3. Transfer the DST to the machine via USB or network.

Step 5: The Orientation Trap (Don't stitching it upside down!)

This is the most common and painful mistake in stocking embroidery. A stocking is a cylinder, and "up" changes depending on how you hang it.

The "Tag & Loop" Identification Method:

1. Turn the stocking Inside Out.
2. Locate the Tag (usually Left) and the Hanging Loop (usually Right).
3. Visualize the cuff folding down.
4. The Rule: When using Fast Frames or similar arm-style hoops, the name must usually be stitched Upside Down relative to the operator so that when the cuff is folded back up, the name reads correctly.

Expert Tip: Mark the "Top" of the cuff with a piece of painter's tape before you even approach the machine.

Step 6: The "No-Choke" Hooping Strategy

Traditional inner/outer ring hoops are dangerous for thick knits. They compress the cables (Hoop Burn) and are incredibly difficult to close.

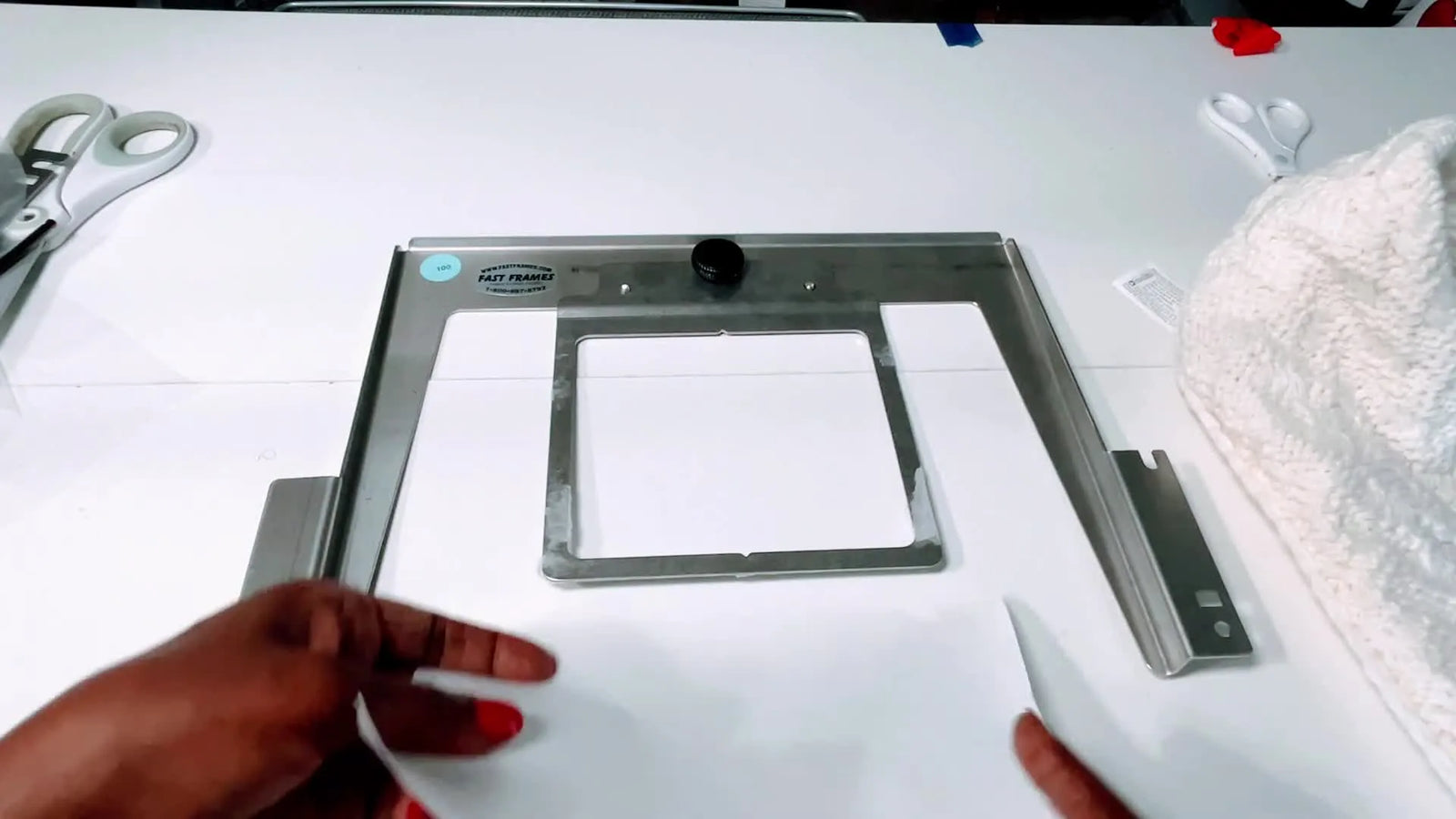

The Solution: Floating on Sticky Stabilizer Delonda uses Fast Frames, but this logic applies to any open window frame or magnetic system.

1. Stick: Apply sticky tear-away stabilizer to the bottom of the frame. Score the paper with a pin and peel it back to reveal the adhesive.
2. Float: Slide the stocking cuff over the frame arm.
3. Press (The Sensory Anchor): Press the knit onto the adhesive. Do not stretch it!
   • Sensory Check: The fabric should feel secure but relaxed. If you pull it taut like a drum skin, the name will pucker when you un-hoop it.
4. Top: Lay a sheet of water-soluble topping over the stitch area.

If you are scaling up, fighting with manual clamps is a bottleneck. Upgrading to fast frames embroidery hoops optimizes the workflow for tubular items. Alternatively, many production shops rely on magnetic embroidery hoops, which use powerful magnets to automatically clamp thick fabrics without the physical strain of tightening screws.

Warning: Magnetic Hazard. High-end magnetic hoops are extremely powerful. They can pinch skin severely. Keep them away from pacemakers, credit cards, and computerized machine screens. Never let two magnets snap together without a separator.

Setup Checklist (The "Pre-Flight" Check)

• Orientation: Stocking is inside out; "Tag/Loop" logic confirms name will be right-side up.
• Adhesion: Sticky stabilizer is fully stuck to the frame; no air bubbles.
• Tension: Fabric is pressed flat but not stretched horizontally.
• Topping: Water-soluble film covers the entire stitch field.
• Clearance: Cuff is pulled back so it won't get sewn shut (check under the arm!).
• Machine: Design loaded, correct colors assigned to needles.
• Trace: Run a contour trace to ensure the needle won't hit the frame.


Step 7: The Stitch-Out (Monitor Mode)

Press start. Watch the first 100 stitches.

• What to watch: Is the fabric "walking" (shifting) as the needle moves? If yes, your adhesive isn't holding. Stop immediately.
• What to listen for: The sound should be rhythmic. A loud "slapping" sound usually means the hoop is bouncing because the item is too heavy. Support the dangling part of the stocking with your hand or a table extension.

If you are running batches, fatigue leads to errors. Using a dedicated hooping station for embroidery machine ensures that every stocking is placed at the exact same angle and height, removing the guesswork from the equation.

Step 8: Professional Finishing

Do not just rip it off the machine.

1. Remove: Slide the frame off the arm.
2. Tear: Gently tear the stocking away from the sticky backing. It should release with a sound like Velcro separating.
3. Clean: Tear away the large pieces of water-soluble topping.
4. Detail: For the tiny bits of topping trapped inside letters, use tweezers or a light mist of water (or a wet Q-tip) to dissolve them instantly. Do not soak the whole stocking.




Troubleshooting Matrix: Symptom → Cure

If you lack Fast Frames, a 5x5 Mighty Hoop is a viable alternative for commercial machines. Many users search for mighty hoops for ricoma specifically because they bridge the gap between heavy clamping power and fabric safety.

Decision Tree: Choosing Your Stabilizer Stack

Scenario A: High Texture/Deep Cables (The "Gap" Risk)

• Solution: Sticky Tear-Away (Bottom) + Heavy Water Soluble Topping (Top).
• Why: You need maximum levitation for the stitches to sit on top of the texture.

Scenario B: Slippery/Stretchy Synthetic Knit (The "Distortion" Risk)

• Solution: Sticky Tear-Away (Bottom) + Use a Basting Box.
• Why: The basting box (a loose running stitch around the design) locks the slippery fabric to the stabilizer before the dense stitching begins.

Scenario C: Batch Production (The "Speed" Need)

• Solution: sticky hoop for embroidery machine setup.
• Why: Stick-and-go is 3x faster than hoop-and-screw.

The Upgrade Path: From Hobby to Profit

If you are doing one stocking for your nephew, manual hooping is fine. If you are doing 50 stockings for a corporate holiday party, manual hooping is a liability.

• Level 1 (Technique): Use the sticky stabilizer method described above. Cost: Low.
• Level 2 (Tooling): Upgrade to Magnetic Hoops. This solves 90% of hoop burn and re-hooping fatigue issues.
• Level 3 (Scale): If you are consistently turning away orders because you can't stitch fast enough, it’s time to look at multi-needle solutions like SEWTECH. The ability to set up the next hoop while the machine is running—and change colors automatically—is the only way to break the "hobby income" ceiling.


Final Operation Checklist (Run Every Time)

• Orientation: Double-checked against the "hanging" test.
• Pathing: Start/Stop points verified on first/last letters.
• Trim Command: Active.
• Surface: Floating correctly on sticky backing; Topping is secure.
• Adhesion: Fabric pressed firmly (drum-tight pressing, not drum-tight stretching).
• First 30 Seconds: Watch for shifting or bird-nesting.

Embroidering on knits is not about force; it is about control. Control the file structure, control the fabric stability, and control the hooping pressure. Master this, and you turn a "nightmare" project into your most profitable seasonal service.

FAQ

• Q: How do I prevent satin-stitch names on chunky cable-knit stockings from sinking into the knit texture when using Chroma Luxe digitizing settings?
  A: Use water-soluble topping and knit-friendly stitch settings so the stitches sit “on top” of the cables instead of falling into valleys.
  • Add: Lay a full sheet of clear water-soluble topping over the stitch area before stitching.
  • Set: For fills, use a Brick pattern with 0.30 mm density; for satin columns (names), use about 0.32 mm density as shown in the workflow.
  • Watch: Re-check the 3D preview—if it looks gappy on-screen, the knit will show through in real life.
  • Success check: Letter strokes look solid and “plump,” not broken or thin between cable ridges.
  • If it still fails: Stop and add a second layer of topping, then re-test the same design area before running a full batch.
• Q: How do I stop an embroidery design on a cable-knit stocking from stitching upside down when using Fast Frames-style arm hoops?
  A: Identify the stocking orientation first, then intentionally stitch “upside down” relative to the operator so the cuff reads correctly when folded.
  • Turn: Flip the stocking inside out before hooping.
  • Verify: Use the Tag (usually left) + Hanging Loop (usually right) to confirm how the cuff will fold down.
  • Mark: Tape the “TOP” of the cuff before going to the machine to remove guesswork.
  • Success check: Do a quick “hanging test” in your hands—when the cuff folds as worn, the name reads correctly.
  • If it still fails: Re-hoop and re-run a trace/check boundary before stitching; do not “guess and stitch.”
• Q: How do I fix an auto-digitized name that starts stitching in the middle of the word on a knit stocking (wrong start/stop points in embroidery software like Chroma Luxe)?
  A: Manually set the entry (start) and exit (stop) points so the machine begins at the first letter and finishes at the last letter.
  • Reorder: In the layers panel, make sure the first letter is prioritized so stitching begins where you expect.
  • Move: Drag the green Start point to the far left of the first letter and the red Stop point to the far right of the last letter.
  • Set: Change End Command to Trim (not Jump) to avoid long travel threads across textured knit.
  • Success check: The first stitches land cleanly on the first letter (no long drag line across the cuff).
  • If it still fails: Stop the machine immediately, trim the loose thread, and reload the corrected file before restarting.
• Q: How do I avoid hoop burn and crushed cable texture when hooping thick cable-knit stocking cuffs in a standard inner/outer ring hoop?
  A: Switch to a low-compression method by floating the cuff onto sticky tear-away stabilizer instead of clamping the knit tightly.
  • Stick: Apply self-adhesive sticky tear-away to the frame base (peel backing after scoring).
  • Float: Slide the cuff over the arm and press the knit onto the adhesive—do not stretch.
  • Top: Add water-soluble topping over the stitch field to prevent sinking.
  • Success check: Fabric feels secure but relaxed (not drum-tight), and cables are not flattened into ring marks.
  • If it still fails: Move to a magnetic frame/open window-style frame system to reduce compression and improve repeatability.
• Q: What are the machine-safety rules for trimming water-soluble topping near the needle area on a multi-needle embroidery machine during cable-knit stocking production?
  A: Only trim when the machine is in a complete Stop state and keep hands/tools/clothing away from the needle bar area.
  • Stop: Confirm the machine is fully stopped (not just paused) before bringing scissors or tweezers near the needles.
  • Clear: Keep fingers, snips, and loose sleeves away from the needle bar and moving parts.
  • Plan: Do most topping cleanup after removing the frame, then use tweezers or a light mist of water for tiny trapped pieces.
  • Success check: No contact with moving components, and trimming feels controlled with the needle area completely motionless.
  • If it still fails: Move the cleanup step to after un-hooping to reduce risk and improve visibility.
• Q: What are the magnetic-hoop safety precautions when using powerful magnetic embroidery hoops on thick knit stockings?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive items and medical devices.
  • Handle: Keep fingers out of pinch zones and never let magnets snap together without a separator.
  • Separate: Store magnets with spacers and control the closing motion with both hands.
  • Protect: Keep magnetic hoops away from pacemakers, credit cards, and computerized machine screens.
  • Success check: Magnets close smoothly without “snapping,” and no pinching occurs during placement/removal.
  • If it still fails: Slow the handling process and use a safer workflow (set one side first, then lower the other side in a controlled way).
• Q: What is a practical upgrade path when cable-knit stocking orders cause re-hooping fatigue, hoop burn, and inconsistent results in batch production?
  A: Use a step-up approach: improve technique first, then reduce hooping strain with better frames, then scale with multi-needle production when volume demands it.
  • Level 1 (Technique): Float the cuff on sticky tear-away + add water-soluble topping; avoid stretching and monitor the first 100 stitches.
  • Level 2 (Tooling): Move to magnetic or arm-style/open frame systems to reduce hoop burn and speed up consistent placement.
  • Level 3 (Scale): Use a multi-needle workflow so color changes are automatic and the next item can be prepped while the machine runs.
  • Success check: The 10th–50th stocking matches the first for orientation, stitch definition, and placement without operator strain.
  • If it still fails: Add a repeatable placement aid (such as a hooping station approach) and run a trace on every setup to prevent frame strikes.
