Kimberbell Quilting Files in Embrilliance Essentials: The BBB vs CBT Shortcut—and the Orange vs Blue Rule That Saves Your Blocks

You’re not alone if Kimberbell’s quilting folders make you feel like you’re staring at the same design twice and somehow still picking the wrong one. In my 20 years of running embroidery floors and teaching novices, I’ve seen this specific confusion cause more wasted stabilizers and ruined batting than almost any other software issue. I’ve watched experienced stitchers lose an entire afternoon because they chose the “right-looking” file—then wondered why the machine stopped five times, or why a second hooping stitched right over the first.

This isn’t just about file extensions; it’s about understanding the architectural logic of the design. This post gives you a clean mental model you can reuse every time:

• BBB vs CBT is about what steps are included (full quilt-as-you-go build vs quilting-only).
• Blue vs Orange is about where the quilting line travels (contained inside the block vs intentionally running into the seam allowance).

And yes—this is exactly the kind of detail that separates “it stitched” from “it stitched like a pro.”

Calm the Panic: When Kimberbell CBT vs BBB Looks Identical, Trust the Objects Pane (Not Your Eyes)

In Embrilliance Essentials, a BBB file and a CBT file can look visually identical on the grid—same quilting motif, same block size, same name (for example, “Weather 3”). That’s why people get tripped up. The cognitive trap here is relying on visual processing when you need to be using "digital forensics."

Here’s the steadying truth: the difference is structural, not visual. You don’t diagnose it by staring at the stitches on-screen—you diagnose it by reading the Objects/steps list.

Think of the Objects pane as the X-ray of your design. It reveals the bone structure that surface-level viewing hides. If you’re organizing a quilting bundle and you’re also thinking about your physical workflow—your table space, trimming area, and how often you re-hoop—this is where a machine embroidery hooping station starts paying for itself. By stabilizing your physical movements, you clear mental bandwidth to focus on these software structures. The software choice and the hooping workflow are tied together more than most people realize.

The “Five-Stop Reality” of Kimberbell Block-by-Block (BBB) Files—And Why It’s Worth the Extra Pauses

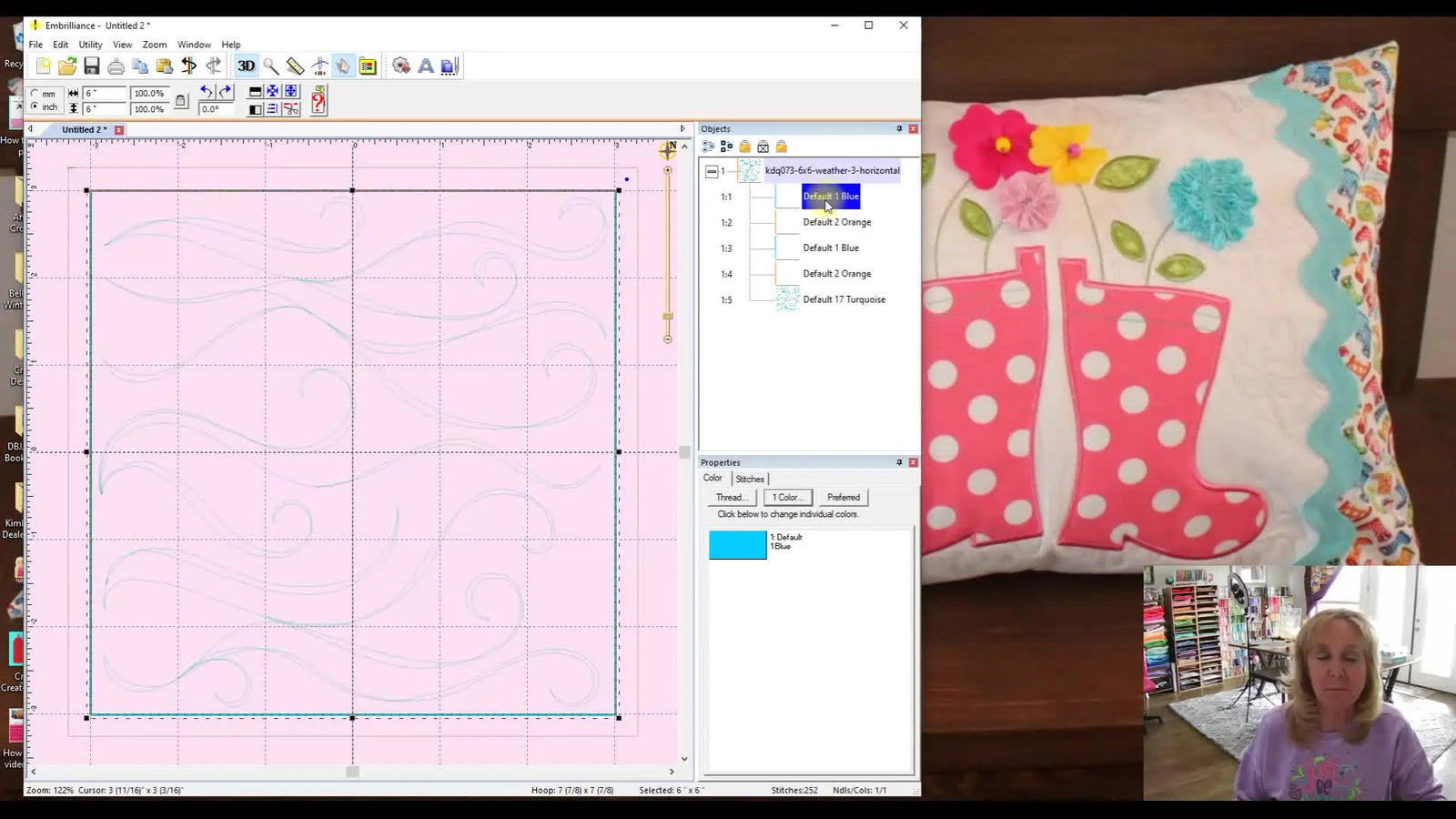

In the video, the host opens the Block by Block version of the design (inside the unzipped design pack’s BBB subfolder), chooses the PES format for a Brother machine, and selects the 6x6 horizontal file. Then she changes the display hoop in Preferences to 200mm x 200mm (8x8) so the workspace matches the design size.

Once loaded, the BBB file reveals five distinct steps in the Objects pane. As an operator, you shouldn't just read these; you should anticipate the rhythm of the machine.

1. Batting placement stitch (Machine stops. You place batting.)
2. Batting tack-down stitch (Machine sews a perimeter. You trim.)
3. Fabric placement stitch (Machine stops. You place fabric.)
4. Fabric tack-down stitch (Machine sews a perimeter. You trim.)
5. Quilting design (The final decorative pass.)

That five-step structure is the whole point of BBB: it’s built for quilt-as-you-go block construction, where you place and secure batting and fabric as part of the stitchout.

What the host quietly saves you from

BBB is also designed so that after you stitch and then trim as intended, you end up with a ¼" seam allowance around the block. That seam allowance is not “magic”—it’s the result of the placement/tack-down geometry and your trimming discipline.

Warning: Physical Safety Alert. Keep fingers clear and drop your machine speed when positioning your hands near the needle bar. More importantly, slow down when trimming around tack-down lines—rotary cutters and snips slip fast on batting, and a rushed trim is how people cut the block top (or themselves). Always cut away from your body.

Prep Checklist (BBB vs CBT sanity check before you touch fabric)

• Verify Folder Path: Confirm you are in the Block by Block folder, NOT Clear Blue Tiles.
• Format Match: Check the file extension matches your machine (e.g., .PES for Brother).
• Size Confirmation: Ensure the block size (e.g., 6x6) fits your calculated quilt math.
• The "Steps" Audit: Open the Objects pane in Embrilliance.
  • Look for: 5 Steps (BBB)
  • Look for: 1 Step (CBT)
• Speed Limit Set: For multi-layer quilting, set your machine speed to a "Sweet Spot" of 600-700 SPM. Do not run at max speed; thickness causes needle deflection.
• Consumables Check: Ensure you have temporary spray adhesive (like Odif 505) and sharp Appliqué Scissors (duckbill) for the trim steps.


Clear Blue Tiles (CBT) Files: The One-Step “Quilting-Only” Version That Assumes Your Batting Is Already There

Next, the host opens the same design from the Clear Blue Tiles folder. Same visual motif—different structure.

In the CBT version, the Objects pane shows only one step: the quilting design (the equivalent of “Step 5” from BBB). No batting placement, no batting tack-down, no fabric placement, no fabric tack-down.

Why? Because CBT assumes you’ve already prepared your quilt sandwich (or at least already have batting attached across the project). In the video, she references a Clear Blue Tiles table runner scenario: batting is already on the entire runner, so you only need the quilting stitch to run through.

Expert Insight: Stitching through a pre-basted sandwich requires higher hoop tension than single-layer fabric. If the sandwich is loose, you will hear a "thump-thump" sound—that is the hoop bouncing against the needle plate (flagging).

If you’re doing background quilting across a larger piece and you’re planning your hooping strategy, this is where hooping for embroidery machine becomes less about “getting it in the hoop” and more about “getting repeatable registration without distortion.” CBT is forgiving in some ways (fewer stops), but it’s more demanding on your hooping technique because you don't get those built-in placement lines to save you if the fabric is crooked.

The Orange vs Blue Test: Read the Block Edge Like a Road Map (Standalone vs Traveling Line)

Now we move to the second confusion point: Orange vs Blue. This is the difference between a "closed loop" and an "open road."

The host shows a “Blue” design first and explains the key behavior:

• Blue designs are contained inside the block.
• Nothing travels into the seam allowance.
• She calls them “standalone” designs.

Then she opens an “Orange” design (she demonstrates “Weather 1” / Rain) and zooms in to show the defining feature:

• Orange designs intentionally travel all the way to the edge of the selection box and into the seam allowance.
• The traveling line is meant to be hidden when the block is sewn into a quilt.

A practical clue from the video: when she opens the Orange design, she notes she doesn’t see the CBT vs BBB subfolder options for that design—because it’s not intended for the CBT workflow.

When would you choose an Orange design?

A viewer asked exactly the right question in the comments: When would someone want an orange design?

The creator’s answer is the one you should remember: Orange designs are great any time you don’t need to double hoop. If you have a large enough hoop, you may rarely need to multi-hoop—except for something truly large (she mentions a bench pillow).

That’s the real decision: Orange is not “bad.” Orange is “edge-traveling by design.” It mimics continuous long-arm quilting where the design flows off the edge.

The Double-Hooping Trap: Why Orange Designs Stitch Over Your Neighboring Block

Here’s the moment that saves projects.

The host simulates a double-hooping layout by combining two Orange design sizes:

• 4x6 and 2x6

To visualize only the quilting behavior, she deletes steps 3 and 4 (fabric placement and fabric tack-down) from each piece so the quilting geometry is easier to see. Then she drags the two parts side-by-side.

What happens is exactly what you’d fear: the Orange design’s traveling line extends into the seam allowance area and overlaps into the neighboring block space. In a real stitchout, that means the second hooping can stitch right over the first hooping’s finished quilting.

Warning: Quality Critical. If you’re doing multi-hooping, never “test your luck” with an Orange design on a real quilt top. Overlap generates excessive thread buildup (bullet-proof embroidery). This causes needle deflection, which can snap your needle, burr your hook, or ruin the timing of your machine.

Why this happens (the principle, not the panic)

Orange designs use traveling lines so the quilting looks continuous once the seam is sewn. That’s smart—when the seam allowance is truly going to be hidden and you’re stitching the block in one hooping.

But in double-hooping, the seam allowance area becomes a “shared border” between hoopings. A traveling line that was meant to disappear into a seam becomes a line that invades the neighbor’s territory.

This is also where hooping physics matters: fabric under hoop tension can shift slightly when you re-hoop. Even a small shift of 1-2mm can turn “barely touching” into “definitely overlapping.” In production settings, whether using a single needle or a commercial multi-needle machine, I treat multi-hooping as a precision operation: stable layers, consistent hoop tension, and repeatable alignment references.

The Blue Design Win: How to Combine 4x6 + 2x6 Without Overlap (and What to Align)

Then the host repeats the same simulation using a Blue design (“Weather 2” / Clouds).

She again merges:

• 4x6 horizontal
• 2x6 horizontal

She deletes steps 3 and 4 again to keep the view clean, and then she aligns the two pieces.

Her alignment method is the practical gem: she likes to match the batting with the batting—using the batting lines as the registration reference—so the two halves meet cleanly.

Result: the two Blue designs sit adjacent with no quilting lines crossing into the neighboring block space.

If you’re regularly doing multi hooping machine embroidery for quilts, runners, or bench pillows, this “Blue-only for multi-hooping” rule is one of those habits that quietly prevents hours of ripping out stitches. Learn to trust the "Blue" zone.

The “Hidden” Prep Pros Do Before Embrilliance Essentials Merge Stitch File (So Alignment Doesn’t Drift)

The video demonstrates the software actions clearly; what often gets skipped is the prep that makes those actions succeed on fabric. Software perfection means nothing if your physical hooping is loose.

Here are the behind-the-scenes checks I recommend (general best practice—always defer to your machine manual and the specific Kimberbell instructions for your project):

1. Control bulk before you hoop. Batting thickness and seam intersections can create uneven hoop pressure. Uneven pressure leads to micro-shifts when you re-hoop.
2. Keep your layers consistent across hoopings. If the first hooping has slightly different layer tension than the second, the seam won’t “kiss” cleanly. Use a Poly-mesh or No-Show Mesh stabilizer to minimize added bulk while maximizing stability.
3. Use a repeatable hooping surface. A flat, consistent surface reduces skew. If you’re doing volume work, a hooping station for embroidery can reduce re-hoop variability and speed up setup by giving you a grid to square up against.
4. Plan your trimming workflow. BBB relies on trimming to achieve that clean seam allowance. If you trim inconsistently to 1/8" instead of 1/4", your assembly accuracy suffers.

Setup Checklist (before you merge and align)

• Dimension Check: Confirm your intended finished block size and which split sizes you’ll use (the video demonstrates 4x6 + 2x6).
• Visual Cleanup: Decide whether you will delete steps 3 and 4 for visualization/alignment in software (as shown).
• Reference Lock: Choose your alignment reference (the host aligns batting lines to batting lines).
• Scale Verification: Verify your hoop display matches the design scale (the video changes Preferences to 8x8 / 200mm x 200mm).
• Physical Mark: If re-hooping, mark a consistent reference edge on your fabric using a water-soluble pen or air-erase marker. Test the pen on a scrap first to ensure it vanishes!

Decision Tree: BBB vs CBT, Then Blue vs Orange (Pick the File That Matches Your Real-World Workflow)

Use this decision tree every time you unzip a Kimberbell quilting bundle and feel that “wait… which one?” moment.

1) Are you building each block with batting/fabric placement and tack-down as part of the stitchout?

• Yes → Choose BBB (you want the 5-step structure).
• No, my batting is already on the whole project (sandwich) and I only need quilting stitches → Choose CBT (quilting-only, 1 step).

2) Will this block be stitched in ONE hooping?

• Yes, and the edge is hidden in a seam? → Orange is ideal (travels to edge).
• Yes, but I want the design contained? → Blue works fine.

3) Must you split the block across MULTIPLE hoopings (e.g., combining 4x6 + 2x6)?

• Yes → Choose Blue (MANDATORY). Orange will cause overlap and ruin the block.

Troubleshooting the Two Most Expensive Mistakes (Symptoms → Cause → Fix)

The Upgrade Path (Without the Hard Sell): When Better Hooping Tools Pay for Themselves

If you’re stitching one quilt for fun, you can muscle through a lot of friction. If you’re stitching multiple quilts, runners, or bench pillows—or you’re taking customer work—repeatability becomes the real product.

Pain is a great teacher, but it shouldn't be a permanent state. Here is how to diagnose when you've outgrown your current setup:

• Scenario trigger: You’re re-hooping often, your alignment is “almost perfect” (but annoying), and you’re struggling to close the hoop over thick batting layers. You might feel soreness in your wrists from tightening hoop screws.
• Judgment standard: If you’re losing even 10–15 minutes per block to re-hooping, re-aligning, or fixing drift, that time compounds fast. If you are producing runs of 50+ items, hobby tools become a liability.
• Options for Growth:
  1. Level 1: Workflow Tool: A stable hooping surface and measuring routine. Many stitchers move toward a dedicated station as volume grows.
  2. Level 2: Hoop Choice: If you’re working on a Brother and you can stitch more in one hooping, a larger hoop like a brother 8x8 embroidery hoop can reduce how often you need to split designs. Less splitting = fewer alignment errors.
  3. Level 3: Magnetic Efficiency: For thick quilting sandwiches, Magnetic Hoops (MaggieFrame) are a game changer. They clamp shut automatically (saving your wrists) and hold thick layers without the "hoop burn" caused by friction hoops. They are available for both home single-needle and commercial machines.

Warning: Magnetic Hazard Alert. Magnetic hoops contain powerful industrial magnets. Pinch Hazard: They snap shut instantly; keep fingers away from the contact zone. Medical Safety: Keep them at least 6 inches away from pacemakers or ICDs.

For production-minded shops, this is also where multi-needle capacity becomes a logical next step. If you’re stitching the same block set repeatedly, a SEWTECH Multi-Needle Machine allows you to stage the next hoop while the current one runs (Production Mode), turning “weekend project time” into “order fulfillment time.”

Operation Checklist (the repeatable routine that prevents rework)

• File Diagnosis: Open the design and identify BBB (5 steps) vs CBT (1 step) in the Objects pane.
• Color Logic: Decide Blue vs Orange based strictly on whether you will double hoop.
• Merge & Align: If double hooping, merge the split sizes (video uses 4x6 + 2x6) and align using a consistent reference.
• Hoop Selection: Before stitching, confirm your hoop choice matches the job; if you can avoid splitting, consider using a larger hoop such as a brother embroidery hoops option that fits your machine to do it in one pass.
• Test Run: Stitch a test block when trying a new file type or workflow—software previews don’t reveal every real-world shift.
• Listen: Once you hit start, listen to your machine. A rhythmic, soft hum is good. A loud clanking means your hoop height or tension is wrong.

If you take only one rule from this: BBB vs CBT is a step-count decision, and Orange vs Blue is a border-behavior decision. Once you train your eye to read the Objects pane and the block edge, the folder names stop being confusing—and your quilt blocks start behaving like professionals made them.

FAQ

• Q: In Embrilliance Essentials, how can Kimberbell Block-by-Block (BBB) files be identified when Kimberbell Clear Blue Tiles (CBT) files look identical on-screen?
  A: Use the Embrilliance Essentials Objects pane step count, not the preview: BBB shows 5 steps and CBT shows 1 step.
  • Open the design and click the Objects/steps list.
  • Count the stitch objects: BBB = batting placement + batting tack-down + fabric placement + fabric tack-down + quilting (5 total).
  • Success check: The Objects pane clearly lists five separate stops/sections before the final quilting pass.
  • If it still fails: Confirm the design was opened from the correct unzipped subfolder (BBB folder vs Clear Blue Tiles folder) and reload the file.
• Q: Why does a Kimberbell BBB quilting file stop the embroidery machine five times, and how can the machine stops be reduced for a quilting-only stitchout?
  A: The five stops are normal for Kimberbell BBB because BBB includes batting/fabric placement and tack-down steps; choose Kimberbell CBT to get a single quilting-only step.
  • Verify the file type in the Objects pane: BBB = 5 steps; CBT = 1 step.
  • Switch to the Clear Blue Tiles (CBT) file when batting is already attached to the full project and only quilting stitches are needed.
  • Success check: The quilting-only file shows one continuous quilting step in the Objects pane and runs without placement/tack-down pauses.
  • If it still fails: Recheck the folder path and file format selection (example given: PES for Brother) before transferring to the machine.
• Q: When should Kimberbell Orange quilting designs be avoided in multi-hooping, and what should be used instead to prevent stitching overlap between blocks?
  A: Avoid Kimberbell Orange designs for multi-hooping because the traveling line runs into seam allowance and can overlap the neighboring hooping; use Kimberbell Blue designs for split/merged hoopings.
  • Choose Blue designs when combining split sizes (example shown: 4x6 + 2x6) or any time re-hooping is required.
  • Align merged pieces using a consistent reference (the video method: match batting lines to batting lines).
  • Success check: On-screen, no quilting lines cross into the adjacent block space after alignment.
  • If it still fails: Stop the stitchout early and re-plan as Blue-only for multi-hooping before wasting stabilizer and thread.
• Q: In Embrilliance Essentials, how can Kimberbell split blocks (example: 4x6 + 2x6) be aligned without drift when merging files for multi-hooping?
  A: Reduce alignment errors by locking one repeatable reference and controlling physical layer consistency before re-hooping.
  • Set the display hoop so the workspace matches the design scale (example shown: 200mm x 200mm / 8x8).
  • Use the same layer stack and tension for every hooping; control bulk so hoop pressure stays even.
  • Mark a consistent fabric reference edge with a water-soluble or air-erase marker (test on scrap first).
  • Success check: After the second hooping, the seam between the two quilted halves “kisses” cleanly with no visible offset at the join.
  • If it still fails: Re-hoop on a flatter, repeatable surface and re-check that both halves are the intended sizes before stitching.
• Q: What machine speed should be used as a safe starting point for Kimberbell quilting through thick layers, and what sound indicates incorrect hoop tension or flagging?
  A: A safe starting point for multi-layer quilting is 600–700 SPM, and a “thump-thump” sound often indicates a loose sandwich causing hoop bounce (flagging).
  • Set speed to the 600–700 SPM range rather than max speed when stitching thick batting layers (thickness can cause needle deflection).
  • Increase hoop stability by ensuring the sandwich is firmly secured before starting the quilting-only pass.
  • Success check: The machine runs with a steady, soft hum instead of loud clanking or rhythmic thumping.
  • If it still fails: Stop and re-check hoop tension and layer support before continuing to prevent deflection, needle issues, or poor stitch quality.
• Q: What consumables should be prepared before stitching Kimberbell BBB files to avoid trimming mistakes and wasted materials?
  A: Prep temporary spray adhesive and sharp appliqué scissors before starting, because BBB depends on clean placement and consistent trimming for the seam allowance outcome.
  • Stage temporary spray adhesive (example given: Odif 505) to hold layers during placement.
  • Use sharp duckbill/appliqué scissors to trim accurately after tack-down stitches.
  • Success check: After trimming, the block edges are clean and consistent, supporting the intended seam allowance geometry described for BBB.
  • If it still fails: Slow down the trim step and verify you are following the BBB sequence (batting steps first, then fabric steps, then quilting).
• Q: What needle-and-trimming safety steps should be followed during Kimberbell BBB placement and tack-down stops to prevent injury and fabric damage?
  A: Slow down and keep hands clear of the needle bar during placement, and trim deliberately away from the body to avoid cutting the block top or yourself.
  • Reduce machine speed when hands are near the needle area for batting/fabric placement stops.
  • Keep fingers out of the needle path and never “reach in” while the machine could move.
  • Trim slowly around tack-down lines; cut away from your body because batting can make cutters slip.
  • Success check: No nicks in the quilt top around tack-down lines, and hands stay safely clear during every stop.
  • If it still fails: Pause the workflow, improve lighting and hand position, and resume only when the trimming path is fully visible.
• Q: When thick quilting sandwiches cause hoop burn, hard hoop closure, or repeated re-hooping delays, what is a practical upgrade path including magnetic hoops and production options?
  A: Start with workflow discipline, then upgrade hooping tools, and only then consider capacity—because time loss and repeatability problems usually show up in that order.
  • Level 1 (Technique): Standardize a flat hooping surface, consistent layer tension, and a repeatable marking/alignment routine.
  • Level 2 (Tool): Use magnetic hoops/frames to clamp thick layers without friction-ring hoop burn and to reduce wrist strain from tightening screws.
  • Level 3 (Capacity): If repeated blocks and high volume make setup time the bottleneck, consider a multi-needle machine for staging the next hoop while one runs.
  • Success check: Re-hooping time drops noticeably and alignment becomes repeatable without “almost perfect” drift.
  • If it still fails: Reassess whether the project should be stitched in one hooping (larger hoop option) to reduce splitting and alignment risk.
