Kimberbell Freedom Block on a Brother PR1055X: The Color-Sort Trap, Clean Appliqué Stops, and a No-Panic Bobbin Recovery

If you have ever watched a beautiful Kimberbell block stitch out and thought, “I can do that… until the machine doesn’t stop where it’s supposed to,” you are not alone. The Freedom Block (Block #5) from Kimberbell’s Red, White & Bloom series is a perfect example: it looks friendly, but it quietly demands disciplined software prep, clean hooping, and confident intervention points for batting, fabric, and glitter vinyl.

Machine embroidery is an experience-based science. It is not just about pressing "Start"; it is about understanding the variables of tension, friction, and stabilization. This post rebuilds the full workflow shown on the Brother Enterprise Pro X PR1055X (nicknamed “Spanky”)—and adds the veteran-level guardrails that keep you from wasting glitter vinyl, sensitive metallic thread, and your valuable time.

Beat the Floriani Total Control U “Color Sort” Trap Before It Deletes Your Appliqué Stop

The video starts where most stitch-outs are won or lost: software sequencing. The design includes background quilting (6" x 6") plus the main motif, and the file initially shows 16 color stops (5 for quilting + 11 for the design). The temptation is to hit "Color Sort" to group identical colors and celebrate fewer thread changes.

Here is the trap: Auto Color Sort is a logic function, not a creative one. It merges steps based on color code, ignoring functionality. In raw-edge appliqué, you need a "Placement Stitch" (Stop 1) followed by a "Tack-down Stitch" (Stop 2). If both are assigned "Black," Color Sort merges them. You lose the machine stop, meaning you have zero opportunity to place your fabric.

The fix shown is simple but non-negotiable: manually assign distinct on-screen colors to adjacent functional steps (placement vs. tack-down vs. later details) before you Color Sort. The on-screen color acts as a digital barrier. It doesn't matter if the screen shows "Pink" and "Green"—if you thread "White" for both, the machine won't know.

The "Traffic Light" Protocol:

1. Identify Functional Stops: Look for placement lines and tack-down lines in your software.
2. Force Separation: Assign a distinct color to the Placement line (e.g., Blue).
3. Assign Next Color: Assign a different color to the Tack-down line (e.g., Red).
4. Result: The machine reads "Color Change" and forces a stop, giving you safe access to the hoop.

One of the fastest ways to keep your appliqué logic intact is to treat the file like a production checklist, not a picture—especially when you’re running a brother pr1055x and you want the machine to stop exactly when your hands need to enter the hoop.

Pro tip from the comments (clarifying single-needle vs multi-needle)

A viewer asked whether Color Sort is required on a single-needle machine. The creator’s reply is the right mindset: it’s never necessary—always optional. On a single-needle machine, extra color stops are an annoyance. On a multi-needle machine, Color Sort is a productivity tool, but only if you protect your appliqué steps first.

The “Hidden” Prep That Makes the 9x14 Hoop Behave (Stabilizer Centering + No-Pen Fabric Marks)

This block uses an 8.5" x 8.5" background fabric and a quilting field that’s 6" x 6", so a standard 5x7 hoop is physically too small. The video uses the 9x14 hoop and takes time to do something many people skip: marking center on the stabilizer in the hoop.

Even when instructions say center marks aren’t required for quilting, establishing a "Zero Point" is critical. From a physics standpoint, this is about controlling cumulative error: quilting stitches cover a wide area, and a 2mm misalignment early on becomes a visible 5mm slant by the time you reach the border.

For fabric centering, she avoids pens entirely to prevent "ghosting" (ink reappearing later due to temperature changes):

1. Fold: Fold the background fabric in quarters to find the absolute center.
2. Snip: Make tiny snips (1-2mm) at the fold edges to create physical registration marks.
3. Align: Match those manual snips to the drawn center marks on your stabilizer.


That “fold snips” trick is a favorite among production embroiderers because it is permanent, chemical-free, and tactile—you can feel the alignment even if lighting is poor.

What about the woven interfacing on the back?

A commenter asked what woven was used and why. In the video, the creator adds fusible woven interfacing (like Shape-Flex) to the back of the background fabric. Why add cost?

• Fiber Integrity: It prevents the needle from pushing fabric fibers apart (puckering).
• Opacity: It prevents the stabilizer from showing through light cottons.
• Crisis Management: If you have to rip out stitches, interfacing keeps the fabric from developing holes.

Prep Checklist (Do this before you touch the touchscreen)

• Verify Field Size: Confirm the quilting field is 6" x 6" and selects a hoop that offers at least 1" clearance on all sides (video uses 9x14).
• Mark the Stabilizer: Hoop the stabilizer drum-tight (listen for a deep "thud" when tapped), then draw your crosshairs.
• Prepare Fabric: Cut to 8.5" x 8.5", fuse woven interfacing to the back, and create "snip marks" at the centers.
• Stage Hidden Consumables: Have temporary spray adhesive (like Odif 505) and fresh masking tape ready.
• Needle Check: Install a fresh needle (Size 75/11 is standard, but use 90/14 Topstitch if using thick glitter vinyl).
• Bobbin Check: Ensure you have enough bobbin thread for a dense quilting run.

Program the Brother PR1055X Needle Assignments and “Stop Anchors” Like a Pro (So You Don’t Miss a Placement)

On the PR1055X, the creator loads the file from USB and inputs the spool/needle assignment. The key move here is adding stops (anchors/hand icons) at the specific moments where you need to intervene:

• Place batting.
• Trim batting.
• Place fabric.
• Place glitter vinyl.
• Trim glitter vinyl.


This is where multi-needle machines shine: you can keep multiple colors threaded and ready, avoiding the "unthread, rethread" dance of single-needle machines. However, the machine is a robot—it will merrily stitch the next color over your bare stabilizer if you don't program the stop.

A viewer in the comments admired the 10-needle capability but noted budget constraints. If you run a hobby workflow, the logic remains valid: Stop = Safety. If you are doing volume production, upgrading to a multi-needle platform becomes a math equation: how much is your time worth per thread change?

If you are comparing brother pr1055x hoops for different projects, remember: hoop size isn’t just about "will it fit," it’s about "will it stay stable." Larger hoops suffer from more vibration. Ensure your table is solid and your hoop clips are engaged fully.

Stitch the Freedom Block in the Hoop: Batting Placement, Fabric Alignment, and Tape That Actually Helps

Once stitching begins, the video follows a clean appliqué layering order. Mastering this sequence is what separates "homemade" from "handmade."

1. Placement Stitch: The machine draws a roadmap on the stabilizer.
2. Float Batting: Spray the back of your batting lightly with adhesive and float it over the placement line.
3. Tack-down: The machine stitches the batting in place.
4. Trim: Use curved scissors to cut the batting close to the stitch.
5. Fabric Placement: Run the outline for where the fabric goes.

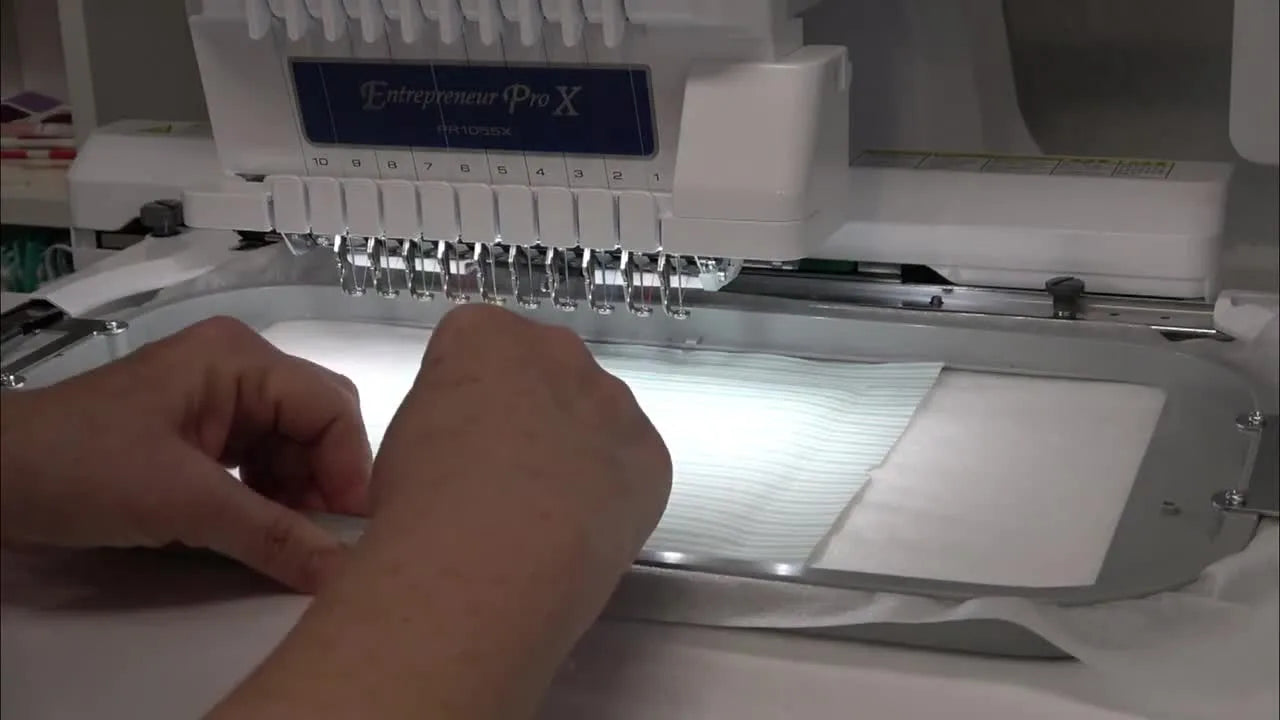

6. Align & Tape: Match your "snip marks" to the hoop centers and tape the corners.




Why Tape Matters: Ideally, we want the fabric held by friction. But when "floating" (placing fabric on top rather than hooping it), the only things fighting the needle's drag are the spray adhesive and the tape.

• Tape Strategy: Tape the corners diagonally. It creates tension across the bias, preventing the fabric from rippling as the foot travels over it.

Warning: Mechanical Hazard. Keep scissors, snips, and fingers clear of the needle area and moving carriage. Always stop the machine fully before trimming batting or vinyl. A multi-needle machine carriage moves fast and can trap fingers against the frame.

Setup Checklist (Right before you press Start)

• File Verification: Is this the version with the manual stops programmed?
• Physical Lock: Pull on the hoop gently. It should not wiggle.
• Obstruction Check: Ensure the wall or thread stand is not blocking the carriage's full range of motion (especially with a large 9x14 hoop).
• Tool Staging: Place curved appliqué scissors and a trash bin (for vinyl scraps) within arm's reach.

Recover From a Bobbin Run-Out Mid-Design Without Ruining the Block (Fil-Tec Magnetic Bobbin + Stitch Backup)

Mid-stitch, the bobbin runs out. On a quilt block with dense background stitching, this leaves a gap that is painfully visible.

The video’s recovery is textbook:

1. Identify: The machine detects the break/empty spool.
2. Replace: She inserts a Fil-Tec magnetic bobbin. Note: Insert magnet side into the case to prevent backlash (over-spinning).
3. Reverse: Use the interface to back up 20–30 stitches.
4. Rescue: Resume stitching.




The Science of "Backing Up": Why 30 stitches? You need to overlap the old thread with the new thread to lock it in.

• Too few stitches (1-5): The threads may unravel, creating a hole.
• Too many stitches (50+): You create a dark, thick ridge of thread.
• The Sweet Spot: 20-30 stitches creates a secure lock that usually blends into the texture of the quilting.

Trim Raw-Edge Glitter Vinyl Like You Mean It (Because There’s No Satin Stitch to Hide Mistakes)

The Freedom Block uses raw-edge appliqué for the glitter vinyl. Unlike satin stitch appliqué, where a thick border hides jagged cuts, raw edge leaves your cutting skills exposed.

The video’s rule is blunt and correct: trim very close to the stitching line (1mm or less).

This is where your choice of hoop impacts your cutting. Standard hoops have high sidewalls that block your scissors angle. High-lift magnetic embroidery hoops often have lower profiles or allow you to pop the top frame off easily without disturbing the stabilizer, giving you 360-degree access to trim precisely.

A commenter asked why not cut glitter fabric on a ScanNCut. While possible, "In-the-Hoop" trimming is usually more accurate because it accounts for the microscopic pull/shrinkage of the fabric during stitching. Pre-cut shapes often end up 1mm too small or off-center.

Press in Place With a Cricut Mini Press + Press Cloth (Clean Finish Without Melting Vinyl)

Before the final stitching finishes, the creator uses a Cricut Mini Press to fuse appliqué materials.

Why press mid-project? It activates the fusible backing on the vinyl, locking it to the fabric before the intricate details are stitched. This prevents the vinyl from bubbling up in the middle.

• Critical Tool: Silk Organza Pressing Cloth. Glitter vinyl is essentially plastic. Touching it directly with an iron will melt the texture instantly. The cloth protects the vinyl while letting heat pass through.

Warning: Magnet Safety. If you upgrade to magnetic hoops to Speed up your workflow, be aware they use high-power Neodymium magnets. They can pinch skin severely and affect pacemakers. Keep them at least 6 inches away from medical devices, credit cards, and computerized machine screens.

A Decision Tree for Stabilizer + Hooping Choices (So Your Next Block Is Faster, Not Harder)

The video uses stabilizer in the hoop, batting floated, and fabric aligned with snips. This is a robust method, but is it right for your scale?

Decision Tree: Fabric + Project Goal → Stabilizer + Hooping Approach

1. Is your background quilting dense (standard quilting)?
   • YES: Use Medium Weight Cutaway stabilizer. Tearaway is too weak and will result in gaps.
   • NO: You might get away with Polymesh, but Cutaway is safer for blocks.
2. Are you fighting "Hoop Burn" (shiny ring marks on fabric)?
   • YES: The fabric is delicate (velvet, dark cotton).
     • Option A: Float the fabric (don't hoop it).
     • Option B (Upgrade): Switch to a magnetic hoop for brother pr1055x. Magnetic frames clamp downward without the friction-burn of standard rings.
3. Is this a one-off or a production run of 50 blocks?
   • One-off: Manual marking and taping is fine.
   • Production: Aligning 50 blocks with snips is slow. Consider an external alignment tool. A machine embroidery hooping station allows you to pre-measure and hoop identically every time, reducing physical strain and setup time by 50%.

The “Why” Behind the Workflow: Hooping Physics, Metallic Thread Load, and Multi-Needle Efficiency

A few expert-level principles are quietly at work here:

1. Hooping Physics: Taut, Not Stretched. Novices pull fabric until it wraps. Experts hoop until it is "neutral taut." If you stretch fabric in the hoop, it will snap back when released, causing puckers around your embroidery.

2. Metallic Thread & Speed Limits. The creator runs at 1000 SPM (Stitches Per Minute) with metallic Kingstar thread.

• Reality Check: While Kingstar is excellent, 1000 SPM is the "Danger Zone" for beginners. Friction builds up heat, heat melts the metallic coating, and the thread shreds.
• Recommendation: Start between 600-800 SPM. Listen to your machine. A rhythmic machine purr is good; a harsh "clacking" means slow down.

3. Multi-Needle Throughput. The creator’s relief at not having to change threads 16 times is real. In business terms, "Needle Downtime" kills profit. If you are constantly rethreading, you aren't stitching.

The Upgrade Path That Actually Makes Sense (When to Change Tools, Not Just Buy Them)

If this project felt "doable but stressful," your skills aren't the problem—limitations in your toolkit might be. Here is the logical progression:

• Pain Point: Wrist strain / Hoop markings.
  • Solution: Magnetic Hoops. Many users switch to a magnetic hoop for brother because the "snap-and-go" mechanism eliminates the need to unscrew and muscle tight hoops, saving your hands and your fabric.
• Pain Point: Crooked designs / Slow startup.
  • Solution: Hooping Stations. Tools like the hoopmaster hooping station standardize placement. If you can't afford a crooked logo, you need a station.
• Pain Point: Changing thread every 2 minutes.
  • Solution: Multi-Needle Machines. Moving to a platform like SEWTECH provides the designated needle bars needed for complex runs like this Freedom Block suitable for business scaling.

Operation Checklist (The “Don’t Ruin It at the Finish Line” List)

• Stop Confirmation: After every stop, verify you have completed the physical action (cut batting/place vinyl) before hitting the flashing green button.
• Trimming Depth: Trim raw-edge vinyl to <1mm. If you leave 2mm, it will look jagged.
• Restart Backup: If thread breaks, back up 20 stitches minimum.
• Heat Safety: Never touch the Cricut press directly to vinyl. Look for the pressing cloth before you pick up the iron.
• Final Scan: Before un-hooping, check for any missed jump stitches or loose loops while the fabric is still held taut.

When you follow the software logic, protect your stops, and treat hooping like a precision step—not a chore—the Freedom Block stitches out exactly like it looks in the reveal: crisp quilting, clean vinyl edges, and metallic shine that reads from across the room.

FAQ

• Q: How do I stop Floriani Total Control U “Color Sort” from deleting the appliqué placement stop in a raw-edge appliqué design?
  A: Do not Color Sort until placement and tack-down steps have different on-screen colors, so the machine is forced to stop.
  • Identify the Placement stitch line and the Tack-down stitch line in the software sequence.
  • Assign a different on-screen color to each functional step (placement vs tack-down vs details), then run Color Sort.
  • Re-check the final stop list to confirm a color change occurs between placement and tack-down.
  • Success check: The embroidery machine pauses for a color change right after stitching the placement line, giving time to place fabric/vinyl.
  • If it still fails: Undo Color Sort and manually re-color only the adjacent functional steps before sorting again.
• Q: How do I hoop stabilizer correctly in a Brother PR1055X 9x14 hoop for a 6" x 6" quilting field so the block does not drift?
  A: Hoop the stabilizer drum-tight first and establish a clear center crosshair “zero point” before aligning fabric.
  • Hoop stabilizer until it is taut (not stretched) and tap it to confirm a deep “thud,” not a loose rattle.
  • Draw center crosshairs directly on the hooped stabilizer to lock in alignment.
  • Choose a hoop that gives at least about 1" clearance around the 6" x 6" quilting field (the workflow uses a 9x14 hoop).
  • Success check: The first quilting lines land square and stay evenly spaced without a creeping tilt toward the border.
  • If it still fails: Reduce vibration sources (unstable table/loose clips) and re-check that the hoop is fully locked with no wiggle.
• Q: How do I center an 8.5" x 8.5" quilt block fabric without pen marks when stitching a Kimberbell-style block on a Brother PR1055X?
  A: Use the “fold-and-snip” registration method so alignment is physical, not ink-based.
  • Fold the fabric into quarters to find the true center.
  • Snip tiny 1–2 mm notches at the fold edges to create permanent center marks.
  • Match the snips to the stabilizer crosshairs already drawn in the hoop, then secure as needed.
  • Success check: The placement outline stitches land centered with even margins on all sides of the block.
  • If it still fails: Confirm the stabilizer crosshair is truly centered in the hoop and that the fabric was cut to the intended 8.5" x 8.5" size before fusing interfacing.
• Q: How do I program “Stop” anchors (hand icons) on a Brother PR1055X so batting, fabric, and glitter vinyl are not stitched down at the wrong time?
  A: Add a stop at every intervention step so the machine cannot run past a placement moment unattended.
  • Insert stops for: place batting, trim batting, place fabric, place glitter vinyl, trim glitter vinyl.
  • Verify the file version on the touchscreen is the one that includes the stops before pressing Start.
  • Pause fully before hands enter the hoop area for trimming or pressing.
  • Success check: The machine pauses exactly before each material placement/trim step, with no stitching over bare stabilizer.
  • If it still fails: Re-open the file sequence and confirm stops were saved into the design version you loaded from USB.
• Q: How do I recover from a bobbin run-out mid-design on a Brother PR1055X using stitch backup without leaving a visible gap?
  A: Replace the bobbin, then back up about 20–30 stitches to overlap and lock the new thread into the old stitching.
  • Replace the bobbin (for Fil-Tec magnetic bobbins, insert the magnet side into the case as noted in the workflow).
  • Use the machine interface to reverse 20–30 stitches, then resume stitching.
  • Avoid backing up too little (risk unraveling) or too much (creates a dark ridge).
  • Success check: The restart area blends into the quilting texture with no open gap and no thick “bar” of thread.
  • If it still fails: Back up a few more stitches and re-run, then inspect for missed tension/looping before continuing.
• Q: How do I trim raw-edge glitter vinyl in-the-hoop so jagged edges do not show when there is no satin stitch border?
  A: Trim extremely close—about 1 mm or less from the stitching line—because raw-edge appliqué does not hide cutting errors.
  • Stop the machine completely and move the hoop to a safe access position before trimming.
  • Use sharp curved appliqué scissors and work in small bites, following the stitch line tightly.
  • Keep tape and floated layers secured so the vinyl does not shift while trimming.
  • Success check: No visible halo of vinyl outside the stitch line when viewed from normal standing distance.
  • If it still fails: Improve access by ensuring the hoop allows a safe scissor angle; if the sidewalls block you, consider a lower-profile hooping method (often magnetic-style frames help by improving access).
• Q: What safety steps prevent finger injuries when trimming batting or vinyl on a Brother PR1055X multi-needle embroidery machine?
  A: Treat every trim as a mechanical hazard—stop the machine fully and keep hands/tools out of the needle and carriage path.
  • Press stop and confirm the needle and carriage are fully stationary before reaching into the hoop area.
  • Keep scissors, snips, and fingers clear of the moving carriage range, especially with a large 9x14 hoop.
  • Stage tools within arm’s reach so you do not lean into the machine while it could move.
  • Success check: Trimming is done with the machine fully still, and the carriage never contacts hands or tools.
  • If it still fails: Slow the workflow down and add programmed stops so there is no temptation to “sneak” a quick trim while the machine is active.
• Q: When hoop burn, slow thread changes, and high rework rates keep happening, what is a practical upgrade path from technique fixes to magnetic hoops to a multi-needle machine?
  A: Start with process control, then upgrade clamping, then upgrade throughput if the time math demands it.
  • Level 1 (Technique): Protect appliqué stops in software, hoop stabilizer drum-tight, and use centering snips + corner taping for floated fabric.
  • Level 2 (Tool): If hoop burn or wrist strain persists, switch to magnetic-style clamping to reduce friction marks and speed hooping (use magnet safety practices and keep strong magnets away from medical devices and sensitive items).
  • Level 3 (Capacity): If frequent color changes are the main bottleneck, move to a multi-needle platform to reduce needle downtime on complex files.
  • Success check: Fewer ruined blocks (missed placement stops), fewer visible marks, and less time lost to rethreading per block.
  • If it still fails: Track where time and defects occur (hooping, trimming access, thread changes, bobbin run-outs) and upgrade only the step that is repeatedly costing the most.
