Kimberbell “First Prize Pie” Dimensional Badge on a Brother Luminaire 2 XP2: Clean Appliqué, Zero Panic, and a Finish You’ll Be Proud Of

The "Sweet as Pie" Badge Blueprint: A Master Class in Dimensional Appliqué

If you’ve ever reached the “final stitch-out” of an In-The-Hoop (ITH) project and felt your stomach drop—because one wrong trim or a slipped backing layer can ruin an hour of work—you are not alone. This dimensional badge from Kimberbell’s Sweet as Pie collection is absolutely doable, but it rewards calm, methodical handling over raw speed.

I am rebuilding the workflow for the "First Prize Pie" badge on a Brother Luminaire 2 Innov-is XP2 (using a 5x7 hoop). However, I am adding the invisible layer of expertise: the sensory checks, the safety margins, and the production logic that keeps your badge flat, your edges crisp, and your sanity intact.

The “Don’t Panic” Primer: Deconstructing the Badge

This is a standard floating appliqué build. You aren't hooping the fabric; you are hooping the stabilizer and "floating" materials on top.

Why beginners struggle:

1. Raw-Edge Anxiety: You are cutting millimeters away from permanent stitches.
2. Hoop Physics: The stabilizer is soft (dissolve-away), meaning the tension balance is delicate.
3. Bobbin Peek: Small lettering on top of felt often pulls bobbin thread up if tensions aren't dialed in.

The Solution: We will slow down the machine, use tactile checks for adhesion, and create a safety buffer for every cut.

Phase 1: The "Hidden" Prep (Shape Flex & Heat Discipline)

The video starts with two cotton fabrics (lavender and white-with-dots). The host applies fusible woven interfacing (Shape Flex) to the back. Do not skip this. Without it, your satin stitches will tunnel, and your raw edges will fray.

Expert Tip: Always press from the Shape Flex side (the textured side facing the fabric, iron on the smooth backing). This protects your iron plate from residue.

Hidden Consumables List (What you need on the table)

• Shape Flex (SF101): Fused to the back of both cotton fabrics.
• Stabilizer: Heavy-weight Water Soluble (Fibrous type, not the clear plastic film type).
• Adhesive: Temporary Spray (Gunold KK100 or Odif 505).
• Tape: Painter’s tape or specialized embroidery tape (washi style).
• Tools: Double-Curve Appliqué Scissors (Duckbill) + Precision Straight Snips.

Prep Checklist: The "Go/No-Go" Test

• Interfacing Check: Run your fingernail over the fabric edge. It should feel stiff like cardstock, not limp like a handkerchief.
• Hooping Tension: Hoop the fibrous water-soluble stabilizer. Tap it. It should sound like a dull drum (thump-thump), not a high-pitched ping, and definitely not loose.
• Scissor Audit: Test your appliqué scissors on a scrap of felt. If they "chew" the felt rather than slicing it, change scissors now.


Warning: Blade Safety
Appliqué trimming is a fine-motor task. Keep fingers clear of the cutting path. Never "snip blind" near the needle bar—one slip can cut your main thread or, worse, nick the stabilizer, causing the entire design to distort.

Phase 2: Machine Setup & Intelligent Calibration

On the Brother Luminaire, select the "First Prize Pie" file. The machine will default to the 5x7 hoop settings.

The Speed Trap: The video shows a max speed of 1050 spm. My Adjustment: For detailed ITH badges with satin lettering, dial this down to 600-700 spm. High speed adds vibration, which introduces "hoop creep" on water-soluble stabilizers. Precision beats speed here.

• Setting: Tension 0.00 (Standard).
• Setting: Foot Height (Auto or 0.08"). Note: If you hear the foot dragging on the felt (a scratching sound), raise the foot height by 1-2mm.


Setup Checklist (Pre-Flight)

• Design: Verified "First Prize Pie" (Dimensional version).
• Hoop: 5x7 hoop locked in.
• Bobbin: Check visually. The bobbin thread should be cross-wound evenly. If the bobbin case has lint, blow it out now; lint changes tension.
• Needle: New 75/11 Embroidery needle recommended. A burred needle will wreck satin stitches.

Phase 3: The Build (Floating & Trimming)

Step 1: Base Placement & The "Float"

The machine stitches the placement line on the stabilizer. Action: Spray the back of the granite felt with a light mist of adhesive. Sensory Check: Touch the felt. It should feel tacky (like a Post-it note), not wet or gummy. Too much glue gums up your needle. Placement: Float the felt over the lines. Smooth it gently from the center out. Do not push hard—you don't want to stretch the stabilizer designated underneath.

Step 2: Ribbon Appliqué & The Stability Test

The machine stitches the ribbon placement. Place the prepped Lavender fabric (sprayed lightly) over the box. Tactile Check: Rub the fabric down. If it slides easily, you need a tiny bit more spray or tape. It must stay put during the tack-down stitch.

Step 3: The Critical Trim (Ribbon)

After tack-down, remove the hoop (or slide firmly forward). Technique: Use double-curve scissors. Rest the "bill" of the scissors flat against the felt. This prevents you from digging into the base layer. The Standard: Trim to within 1-2mm of the stitch. If you leave too much, the satin stitch won't cover it (you'll see "whiskers"). If you cut the stitch, the badge unravels.

Creating a dedicated trimming surface is key. This is where a hooping station for machine embroidery or simply a clear, flat table separate from the machine bed helps you maintain stability while cutting angles.

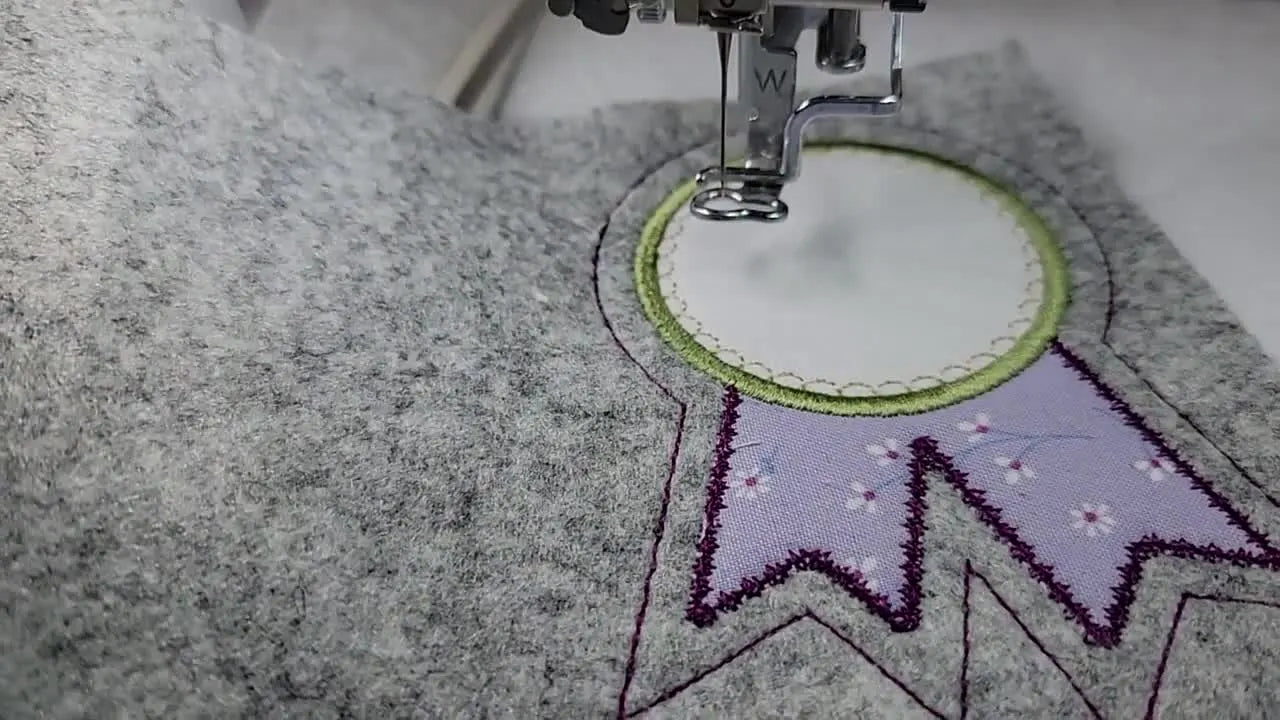

Step 4: Center Circle & Curve Control

Repeat for the white-with-dots fabric. Circles are harder to trim than squares. Tip: Rotate the hoop, not your hand. Keep your scissor hand in a comfortable, ergonomic position and spin the hoop like a steering wheel.

Phase 4: The Decoration (Satin & Text)

The "Bobbin Peek" Danger Zone

The machine creates the Willow green satin ring and the text ("1st Prize" / "PIE"). Listen: The machine should hum rhythmically. A "clunk-clunk" sound usually means the thread is catching on the spool cap. Watch: If you see white dots (bobbin thread) on top of the skinny "1st Prize" letters, stop immediately.

• Quick Fix: Rethread the top thread. Ensure it seats deeply in the tension discs (floss it in).
• Physics: Felt creates friction. If the top tension is too loose, the bobbin pulls up.






Jump Stitch Management

Use curved snips (often called "Side Hoppers") to clip jump stitches flush. Do this before the next color stitches over them, or they will be trapped forever. If you struggle with maintaining hoop stability while snipping these tiny threads, looking into better hooping for embroidery machine setups can improve your ergonomics.

Phase 5: The Backing & Final Outline

The "Blind" Placement

Remove the hoop. Flip it over. Tape the granite backing felt to the underside. The Risk: If this felt sags, it will get caught in the machine arm. The Fix: Use tape on all four corners. Sensory Check: "Drum" the back felt. It should be taut against the stabilizer.

Warning: Magnet Awareness
If you upgrade your workflow to use magnetic hoops, treat them with respect. They are powerful industrial magnets. Keep them away from pacemakers, and never place fingers between the snapping magnets—pinch force is high.

Final Cutout

After the final outline stitches, unhoop everything. Action: Use sharp straight scissors. Cut on the stitching line through all layers. Finish: Dip a Q-tip in water to dissolve the stabilizer edges, or soak the whole badge for 20 seconds.

Operation Checklist (The Final 10%)

• Backing Verification: Peek underneath before the final stitch to ensure the backing felt hasn't curled.
• Release: Unhoop gently. Do not rip the stabilizer; cut it to release tension.
• Edging: After cutting, if you see fuzzy felt fibers, a quick pass with a lighter (very quickly!) or a heat gun can seal synthetic felt edges.

Decision Tree: Fabric vs. Stabilizer Strategy

When applying this workflow to other badges, use this logic flow:

1. Is the Base Fabric Stable?
   • Yes (Felt/Denim): Use Water Soluble or Tearaway (as done here).
   • No (T-shirt Knit/Thin Cotton): You MUST use Cutaway Mesh. The floating method will distort stretchy fabrics.
2. What is the Stitch Density?
   • High (Solid fill/Complex Satin): Add a layer of floating heavy stabilizer under the float.
   • Low (Outlines/Running Stitch): Standard setup applies.
3. What is your Production Volume?
   • Hobby (1-2 units): Standard hoop is fine.
   • Production (20+ units): The repetitive hooping and unhooping of stabilizer causes "hoop burn" and wrist fatigue.

The Upgrade Path: From Hobby to Production

If you are just making one badge for a pillow, the method above is perfect. However, if you plan to sell these or make team sets, the "standard hoop" workflow becomes a bottleneck.

1. The Stability Upgrade

If you find yourself constantly re-tightening screws or dealing with "hoop burn" marks on delicate fabrics, the industry standard solution is magnetic embroidery hoops. They clamp fabric instantly without the "unscrew-push-pull-screw" dance.

2. The Compatibility Check

For Brother Luminaire users, the search volume for brother luminaire magnetic hoop is high for a reason: the large embroidery field invites large projects, and magnets hold heavy stabilizers better.

• Small Projects: Look for a brother 5x7 magnetic hoop to speed up badge work.
• General Search: When sourcing, ensure you specific terms like magnetic hoop for brother or magnetic hoops for brother to ensure the brackets fit your XP2's specific arm attachment width.

3. The Capacity Upgrade

If your volume exceeds 50 badges a week, a single-needle machine (requiring 5+ manual thread changes per badge) kills your profit margin. This is the trigger point to look at multi-needle machines (like SEWTECH models), where you set up 15 colors once and let the machine run the entire badge non-stop.

Troubleshooting: The "Badge Killer" Quick-Fix Table

Mastering the variable of friction and tension is what separates a homemade look from a professional badge. Take your time on the prep, and the machine will reward you with a perfect First Prize Pie.

FAQ

• Q: How do I stop a Brother Luminaire 2 Innov-is XP2 ITH dimensional appliqué badge from shifting when using heavy-weight fibrous water-soluble stabilizer in a 5x7 hoop?
  A: Hoop the fibrous water-soluble stabilizer drum-tight and avoid stretching it after tightening the hoop.
  • Tap-test the hooped stabilizer and rehoop until it sounds like a dull drum (thump-thump), not loose or pingy.
  • Spray adhesive lightly (felt/fabric should feel tacky, not wet) and smooth from center outward without pushing hard.
  • Add painter’s tape where needed to prevent sliding during tack-down stitches.
  • Success check: placement fabric stays aligned with the stitched placement line after the first tack-down, with no creep at corners/edges.
  • If it still fails: slow the stitch speed to reduce vibration-related hoop creep and re-check that the hoop is fully locked in.
• Q: What stitch speed should a Brother Luminaire 2 Innov-is XP2 use for detailed ITH badges with satin lettering to reduce vibration and “hoop creep”?
  A: A safe, proven approach is to reduce speed to about 600–700 spm for precision on water-soluble stabilizers.
  • Dial down from high-speed defaults when stitching satin text and small details.
  • Listen for smoother, steadier running and less “shake” during direction changes.
  • Re-check fabric adhesion before each tack-down step if the project is handled repeatedly.
  • Success check: satin text edges look crisp and the placement layers stay aligned through color changes.
  • If it still fails: verify a new 75/11 embroidery needle is installed and confirm the presser foot is not dragging on felt.
• Q: How do I prevent bobbin thread showing on top (“bobbin peek”) on skinny satin letters when stitching felt appliqué on a Brother Luminaire 2 Innov-is XP2?
  A: Stop immediately and correct the top thread path first, because felt friction often exposes bobbin if the top thread is not seated correctly.
  • Rethread the top thread completely and “floss” it firmly into the tension discs.
  • Check for adhesive residue on the needle and clean the needle if it feels gummy.
  • Watch the stitch-out closely on small text before letting the machine run unattended.
  • Success check: the top surface shows solid top-thread coverage on the narrow letters with no white dots.
  • If it still fails: adjust top tension slightly (follow the machine manual) and re-test on the same felt + stabilizer stack.
• Q: How do I trim a floating ribbon appliqué on an ITH badge without cutting stitches or leaving fuzzy “whiskers” that satin stitching won’t cover?
  A: Trim to within 1–2 mm of the tack-down stitch using double-curve appliqué scissors, keeping the duckbill flat on the base layer.
  • Remove the hoop (or slide it forward firmly) to create a stable cutting position.
  • Rest the scissor “bill” flat against the felt so the blades ride safely over the base layer.
  • Rotate the hoop for curves instead of twisting your wrist or cutting at awkward angles.
  • Success check: the fabric edge sits evenly 1–2 mm from the stitch line all the way around, with no cut threads and no long fibers.
  • If it still fails: replace scissors that “chew” felt and slow down—precision matters more than speed during trimming.
• Q: How do I stop the backing felt from sagging and getting caught under the arm during the final outline stitch on an ITH badge (Brother Luminaire 2 Innov-is XP2 workflow)?
  A: Tape the backing felt on all four corners and confirm it is taut before stitching the final outline.
  • Flip the hoop over and secure the granite backing felt with tape at all corners so nothing droops.
  • “Drum” the backing felt with your fingers to confirm tension before putting the hoop back on the machine.
  • Peek underneath right before the final outline to confirm the felt has not curled inward.
  • Success check: the backing felt stays flat and clear of the machine arm for the full final run, with no dragging or catching sounds.
  • If it still fails: use more tape coverage and re-seat the felt so the edges cannot lift while the hoop moves.
• Q: What safety steps should I follow when trimming appliqué in-the-hoop to avoid cutting the main thread or nicking the stabilizer near the needle bar?
  A: Keep hands out of the cutting path and never trim “blind” near the needle area.
  • Move the hoop to a clear trimming position before cutting, instead of working cramped under the needle bar.
  • Cut with controlled, short snips and keep the duckbill side against the base layer to prevent digging.
  • Pause and reposition often—rushing is what causes accidental stabilizer nicks.
  • Success check: stabilizer remains intact (no accidental slices) and the stitch line remains unbroken after trimming.
  • If it still fails: switch to sharper, more precise snips and create a dedicated flat trimming surface away from the machine bed.
• Q: What are the magnet safety rules when using industrial magnetic embroidery hoops for ITH badge production upgrades?
  A: Treat magnetic hoops as pinch-hazard industrial magnets and keep them away from medical implants.
  • Keep fingers clear of the closing gap—magnets can snap together with high pinch force.
  • Keep magnetic hoops away from pacemakers and similar devices.
  • Set magnets down deliberately on a stable surface to avoid sudden snaps.
  • Success check: magnets close in a controlled way with no finger pinch incidents and no unexpected snapping.
  • If it still fails: stop using the magnetic hoop until a safer handling routine (two-hand placement, clear work area) is established.
• Q: When should an ITH badge maker upgrade from a standard hoop workflow to magnetic hoops or a multi-needle embroidery machine for higher weekly badge volume?
  A: Upgrade when hooping/unhooping causes repeated shifting, hoop burn, or fatigue, and when frequent manual thread changes become the production bottleneck.
  • Level 1: Slow stitch speed, improve adhesion and tap-test hooping tension to stabilize water-soluble setups.
  • Level 2: Move to magnetic hoops when constant re-tightening, hoop burn marks, or wrist fatigue shows up during repetitive hooping.
  • Level 3: Consider a multi-needle machine when weekly output is high and thread changes per badge are cutting deeply into run time.
  • Success check: setup time per badge drops and repeatability improves without increased defects (shifts, gaps, or tension issues).
  • If it still fails: track where time is actually lost (hooping vs trimming vs thread changes) and upgrade the step that is the true bottleneck first.
