Kill the Surprise Basting Box: Clean Embrilliance Multi-Position Hoop Files for the Brother SC1900 (and Stop Wasting Thread)

The "Ghost Box" Strategy: Mastering Embrilliance Multi-Position Hoops on the Brother SC1900 without the Panic

If you have ever loaded a multi-position hoop file onto your Brother SC1900 or similar machine and suddenly saw an extra, unexplainable "red square" stitch appear on your screen, you are not alone. I have watched experienced embroiderers lose an entire evening to this phenomenon. It induces a specific type of anxiety: the fear that the file is corrupted, or that you have somehow broken the machine's logic.

Here is the truth based on 20 years of digital embroidery workflow: It is not a glitch. It is an automatic basting step that Embrilliance adds for registration. However, on the Brother interface, it looks alarmingly like a design error.

In this deep-dive guide, we are going to move beyond simple troubleshooting. I will teach you the "Clean File" Protocol—how to strip this ghost stitch out before it ever touches your USB drive—and the "Hot Fix" Bypass for when you are already at the machine. More importantly, we will address the physics of multi-position hooping to prevent the dreaded alignment gap.

The Psychology of the "Red Box": Why Embrilliance Adds It (And Why You Can safely Remove It)

Embrilliance generates an automatic basting stitch when you save files for a multi-position hoop (like the 5x12" / 130x300mm). This is intended to help you align the top and bottom sections of your fabric. However, on the Brother SC1900, this basting file interprets as a distinct, heavy outline—often appearing as a red square on the thumbnail preview.

When your machine reads this, it sees it as Step 1: Color 1. Many users freeze here because they see a two-step design when they only digitized a one-step name.

The Mindset Shift: Treat this basting box exactly like a "travel stitch" in a run. It is an object. Objects can be selected, deleted, or skipped. It is not permanent data.

Phase 1: The Setup (The Hidden Prep Pros Do First)

Before you touch a single pixel of your design, we must calibrate your software environment. If your preferences are wrong, Embrilliance will split the files erratically, leading to alignment issues that no amount of stabilizer can fix.

In Embrilliance (Mac version shown, PC is identical in function), navigate to Preferences > Hoops.

Critical Settings:

• Hoop Style: Multi-Position.
• Hoop Selection: 130 x 300 Jumbo Hoop (This is the industry standard mapping for the 5" x 12" hoop).

SENSORY CHECK: When set correctly, look at your virtual canvas. You should see a yellow hoop boundary. Inside, look for a dashed line area where the top and bottom overlap. This is your "Safety Zone."

Warning: Mechanical Safety Alert. When working with multi-position hoops, the embroidery arm travels significantly further than usual. Ensure your machine has at least 12 inches of clearance to the left and rear. Hitting a wall or object during a rapid traverse can knock the carriage out of alignment, requiring a service technician to recalibrate the X/Y axis.

Prep Checklist: The "Pre-Flight" Inspection

• Software Config: Confirmed Hoop Style = Multi-Position and Hoop = 130 x 300.
• Consumables Check: Do you have temporary spray adhesive (Odif 505) or masking tape? (Essential for holding stabilizer in the overlap zone).
• Goal Definition: Are you removing the basting for a clean file (Software method), or just trying to finish a job quickly (Machine method)?
• Connection Hygiene: If you swap USB drives frequently, inspect the machine's port for lint. A 2-inch USB extension cable is a cheap "port saver" to prevent wear on the machine's main board.


Phase 2: Structural Integrity (Building the File)

In our example, we are creating a text design ("JEANETTE") with a font size of 1.5 inches. To fit the 5x12 vertical orientation, the text must be rotated 90 degrees.

Expert Tip on Rotation: Don't free-hand rotate with the mouse handle. You will never hit exactly 90.0 degrees, and even a 1-degree tilt will cause the text to look "italicized" relative to the fabric grain.

• Action: Click the 90° Rotate button in the toolbar.
• Visual Check: The text should run perfectly parallel to the long side of the hoop grid.

This precision is non-negotiable in multi-position hooping. If the design is crooked in the file, it will be crooked on the shirt, no matter how perfectly you hoop the fabric.

Phase 3: The "Clean File" Protocol (Deleting the Ghost Stitch)

This is the preferred method for professionals. We are going to surgically remove the basting stitch from the generated split files.

The Logic of Split Files

When you Save As with a Multi-Position hoop selected, the software does not save one file. It spits out two (typically labeled Top and Bottom). You must edit these specific files, not your original working file (.BE working file).

Step-by-Step Surgical Removal (The 1:1 Rule)

1. Locate the Files: Go to your USB or hard drive. Find the generated "Top" file.
2. Open in Embrilliance: Yes, open the stitch file you just created back up in the software.

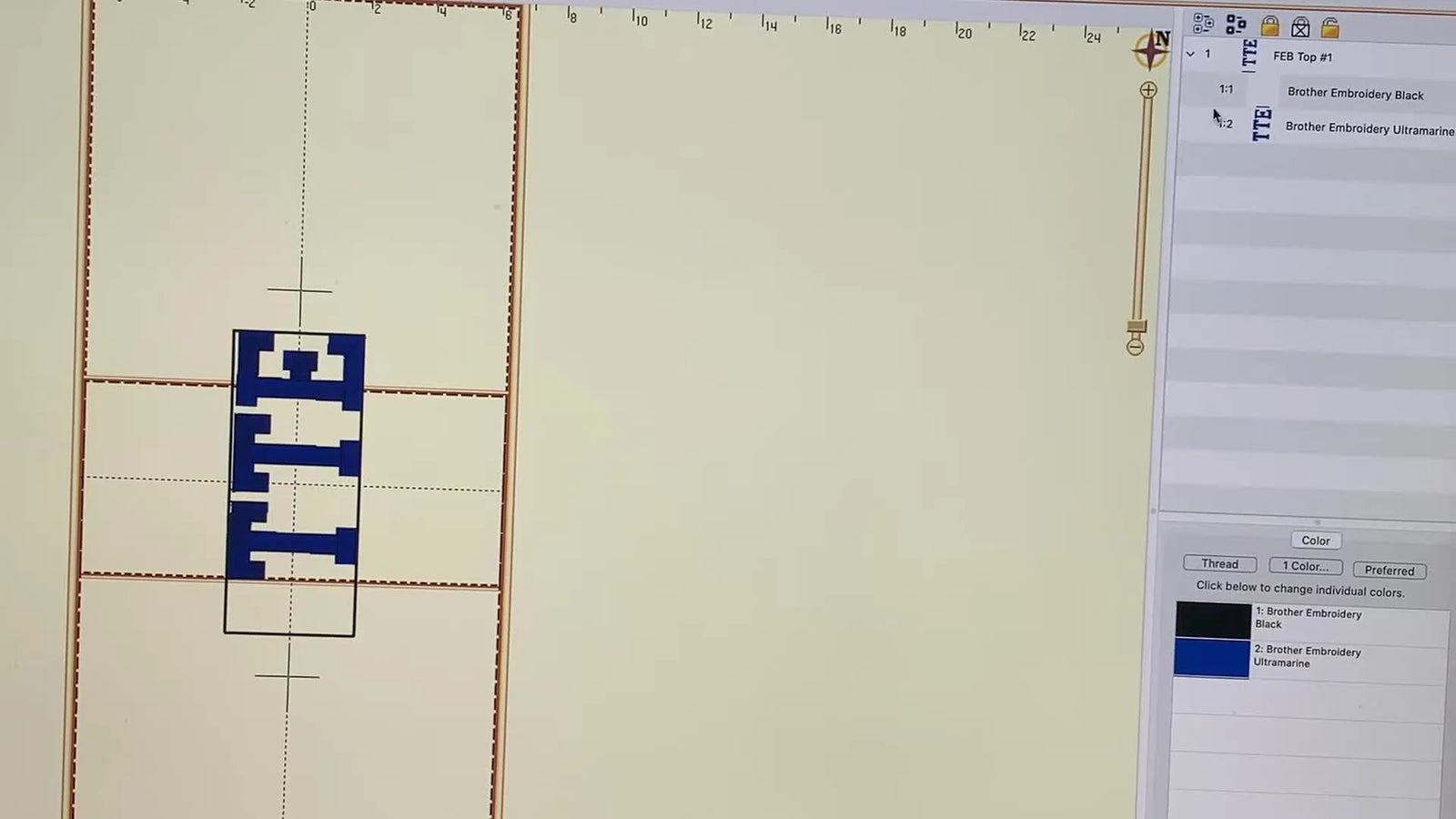

3. Inspect the Object Pane: Look at the right-hand panel where your color steps are listed.
   • Click the Expansion Arrow (▶) next to the design name.
4. Identify the Intruder: You will see two distinct objects:
   • 1:1 = The Basting Stitch (The Ghost Box).
   • 1:2 = The Actual Design (Your lettering).
5. The Excision: Click on 1:1. Verify the basting box on screen turns selected (blue dashed styling). Press Delete on your keyboard.
6. Save: Re-save this file. I recommend appending _CLEAN to the filename (e.g., Jeanette_Top_CLEAN.pes).

Repeat this exact process for the Bottom file.

Visual Confirmation (Success Metrics)

• Before: You see 1:1 and 1:2. The preview shows a box around the text.
• After: The Object Pane collapses. You only see the design. The box is gone.


Setup Checklist: File Hygiene

• Verification: Opened Top file > Confirmed presence of 1:1 > Deleted 1:1.
• Verification: Opened Bottom file > Deleted 1:1.
• Formatting: Saved as .PES (for Brother machines).
• Naming: Filenames are distinct (e.g., Job_Top.pes and Job_Btm.pes). Do not rely on machine thumbnails to tell them apart!

Phase 4: Machine Verification (Spotting the Difference on the Screen)

Once you plug your USB into the Brother SC1900, you need to be able to identify your files instantly. The machine's LCD screen is small, so we look for visual cues.

• The "Dirty" File: Shows a distinct red outline/square around the text in the thumbnail.
• The "Clean" File: Shows only the text. White/Grey background.


Data Check - Time Estimates: Select the Clean Top File. Look at the stitch time.

• Clean: ~7 minutes.
• Dirty: ~8 minutes (The extra minute is the machine tracing that basting box).


Select the Clean Bottom File.

• Clean: ~13 minutes.


Phase 5: The "Hot Fix" (Bypassing on the Machine)

Sometimes you are in a rush. The client is waiting, or the computer is in another room. You don't need to re-edit the file. You can outsmart the machine logic.

Since the basting stitch is Color Stop 1, we can simply skip it using the machine's navigation tools.

The Bypass Sequence

1. Load the Design: Select the file with the red box.
2. Enter Embroidery Mode: The screen where you see the "Lower the Presser Foot" prompt.
3. Locate Navigation: Find the Needle / +/- icon on the screen.
4. Execute Jump: Tap the Forward Color button (Spool icon + Arrow) ONE time.
   • Auditory Anchor: Listen for the machine's beep acknowledging the command.
   • Visual Anchor: Watch the step counter change from 1/2 to 2/2. The hoop may move slightly as it re-centers for the actual design.






Why this works: You aren't deleting data; you are just fast-forwarding the "movie" to the good part.

The Physics of Overlap: Why Multi-Position Hooping Fails

The most common failure in this workflow is not the software; it is Overlap or Gapping. "I stitched the top, moved the hoop to the bottom slots, stitched the bottom, and now the letters are crashing into each other."

The Root Cause: Fabric Drift & Hoop Physics

Standard plastic hoops rely on friction (inner ring vs. outer ring) and a single screw to hold fabric tension. When you physically detach the hoop from the carriage to move it to the lower pegs (the "multi-position" move), the fabric is subjected to gravity and drag.

If your fabric slips 1mm inside the hoop, your design will be off by 1mm. If your stabilizer is too loose ("trampolining"), the fabric will pull inward under the tension of the stitches, causing the bottom lines of text to creep up towards the top lines.

Empirical Rule of Thumb: Speed Control

For multi-position setups, slow your machine down.

• Standard Speed: 850 SPM (Stitches Per Minute).
• Multi-Position Safe Speed: 600-650 SPM.

Why? Less vibration reduces the chance of the heavy 5x12 hoop shifting on the embroidery arm during the job.

The Decision Tree: When to Keep the Basting Stitch

Do not delete the basting stitch blindly. It exists for a reason.

START: Are you using "Float" techniques or Toppers?

• YES (Towel/Blanket): KEEP THE BASTING.
  • Why? You need the machine to stitch a "tack down" box to hold the water-soluble topper in place before the letters start.
  • Action: Run Color 1 (Basting) -> Pause -> Trim jump threads -> Run Design.
• NO (Standard Shirt/Flat Fabric):
  • Question: Is your file already on the USB?
    • YES: Use the "Hot Fix" (Skip Color 1 on screen).
    • NO: Use the "Clean File" protocol in Embrilliance.
• CRITICAL: Are you struggling with fabric slipping?
  • YES: Upgrade your hooping hardware (See below).

Tool Evolution: Solving the Friction Problem

If you are fighting with multi-position hooping, your struggle often isn't skill—it's physics. Standard hoops are difficult to master because tightening the screw often distorts the fabric grain. This distortion is magnified in large 5x12 fields.

Level 1: Consumable Fix

Use a Fusible Poly Mesh Stabilizer or Odif 505 Spray to bond your fabric to the stabilizer. This turns two flexible layers into one solid unit, reducing shift.

Level 2: Hardware Upgrade (Magnetic Hoops)

Users often search for a magnetic embroidery hoop when they are tired of "hoop burn" (the shiny ring left by tight plastic hoops) or wrist strain.

• The Physics: Instead of friction/screws, magnets clamp straight down. This secures the fabric without pulling the grain.
• The Benefit: For multi-position work, if you need to re-hoop, a brother se1900 magnetic hoop allows you to release and re-clamp in seconds without losing your center line.

Warning: Magnetic Field Safety.
Magnetic hoops use industrial-grade neodymium magnets.
1. Pinch Hazard: These magnets snap together with immense force. Keep fingers clear of the gap.
2. Medical Devices: Maintain a 6-inch safe distance from pacemakers or insulin pumps.
3. Electronics: Do not place the magnets directly on top of your machine's LCD screen or USB drives.

Level 3: Production Upgrade (The Multi-Needle Leap)

The 5x12 multi-position hoop is a "hack" to allow a small machine to do big work. It requires splitting files (Top/Bottom). If you find yourself searching for multi hooping machine embroidery tips weekly, or if you have an order for 20+ names, the "split file" workflow will throttle your profit.

• The Pivot: A multi-needle machine (like the SEWTECH models) typically offers a true large sewing field (e.g., 8x12 or larger) in a single pass. No splitting. No "Top/Bottom" files. No alignment risks.
• The Math: If a split file takes 20 mins + 5 mins re-hooping = 25 mins. A single-pass machine takes 15 mins. On 50 shirts, that saves you 8.3 hours of labor.

Troubleshooting the "Scary Stuff" (Structured Diagnostics)

Use this table to diagnose issues based on what you see or hear.

Final Thoughts: The Clean Output

Removing the "Ghost Box" is a rite of passage for Brother/Embrilliance users. Once you understand that the file is just a collection of objects—basting, letters, underlay—you gain control.

But remember: Digital hygiene (cleaning your files) is only half the battle. Physical stability is the rest. Whether you upgrade to a hoop for brother embroidery machine that uses magnets to stabilize your fabric, or you simply slow your machine down, the goal is consistency.

Operation Checklist (The Final "Go" Check)

• File ID: Does the screen show the clean icon (Text only) or the dirty icon (Red Box)?
• Step Count: If using the bypass method, does the screen read 2/2 (or next color)?
• Hoop Lock: Did you hear the audible CLICK when attaching the standard or magnetic hoop for brother se1900 to the carriage?
• Clearance: Is the area behind the machine clear for the full throw of the hoop?

Stop guessing. Trust the numbers, respect the physics, and let the ghost stitches go.

FAQ

• Q: Why does a Brother SC1900 show an extra red square/red box when loading an Embrilliance multi-position hoop PES file?
  A: This is common—Embrilliance adds an automatic basting/registration box, and the Brother SC1900 displays it like a separate “Color 1” step.
  • Open the same stitch file on the Brother SC1900 and check the step count (often 1/2 then 2/2).
  • Decide whether to keep it (useful for holding toppers) or remove/skip it (common for flat shirts).
  • Success check: The Brother SC1900 thumbnail shows a visible red outline when the basting box is included.
  • If it still fails: Confirm the hoop style and hoop size were set to Multi-Position with the 130 x 300 mapping before saving.
• Q: How do I delete the “ghost box” basting object from Embrilliance multi-position split files for a Brother SC1900 (Top/Bottom PES)?
  A: Re-open each generated split file and delete object “1:1” (the basting box) before transferring to USB.
  • Locate the generated Top file, open it in Embrilliance, and expand the object list on the right panel.
  • Select “1:1” (basting box) and press Delete, then save the file with a clearly different name (for example adding “_CLEAN”).
  • Repeat the same removal on the generated Bottom file (edit the split outputs, not only the working file).
  • Success check: The object list no longer shows both “1:1” and “1:2”, and the on-screen preview no longer shows a box around the design.
  • If it still fails: Make sure the USB contains the edited “_CLEAN” files, not the original versions.
• Q: How do I skip the Embrilliance basting box directly on a Brother SC1900 screen when the red box file is already on the USB?
  A: Use the Brother SC1900 color navigation to jump past Color Stop 1 (the basting step) and start the real design.
  • Load the design and enter the embroidery screen where the machine prompts about the presser foot.
  • Tap the Forward Color control (spool icon with an arrow) one time to move from step 1/2 to step 2/2.
  • Start stitching normally after the step advances.
  • Success check: The step counter changes from 1/2 to 2/2 and the machine beeps to confirm the command.
  • If it still fails: If the machine stops after about a minute, press Start again to continue the next step, or skip Color 1 before starting next time.
• Q: What Embrilliance Preferences settings prevent mis-splitting for a Brother SC1900 5x12 (130x300) multi-position hoop workflow?
  A: Set Embrilliance to Multi-Position hooping and select the 130 x 300 Jumbo mapping before saving split files.
  • Open Embrilliance and go to Preferences > Hoops.
  • Set Hoop Style to Multi-Position and choose the 130 x 300 Jumbo Hoop (the standard mapping for 5" x 12").
  • Visually confirm the yellow hoop boundary and the dashed overlap “safety zone” area on the virtual canvas.
  • Success check: The dashed overlap zone is clearly visible, indicating the Top/Bottom overlap region is defined.
  • If it still fails: Re-save the design after correcting Preferences; incorrect settings can cause erratic splitting and alignment issues.
• Q: How do I avoid crooked lettering after rotating text 90 degrees in Embrilliance for a Brother SC1900 multi-position hoop?
  A: Use the exact 90° rotate button instead of free-hand rotation so the design stays perfectly square to the hoop grid.
  • Select the text object and click the 90° Rotate button in the toolbar (do not drag-rotate by mouse).
  • Confirm the lettering runs parallel to the long side of the hoop grid before saving the split files.
  • Save and re-check both the Top and Bottom stitch files if needed.
  • Success check: The text looks straight (not “italicized”) relative to the hoop grid lines on screen.
  • If it still fails: Rebuild the rotation in the working file and re-generate the Top/Bottom outputs.
• Q: Why does the Bottom section overlap or gap into the Top section on a Brother SC1900 multi-position hoop, and what is the safest fix sequence?
  A: The usual cause is fabric/stabilizer drift during re-positioning—stabilize the layers, slow down, and confirm the hoop is fully locked each time.
  • Bond fabric to stabilizer using temporary spray adhesive (or secure the overlap zone with tape) to reduce shifting.
  • Reduce speed to a safer multi-position range (about 600–650 SPM) to cut vibration and hoop movement.
  • Re-attach the hoop firmly and verify it is fully engaged before running the second position.
  • Success check: After stitching the second pass, the join area in the overlap zone aligns without letters crashing into each other.
  • If it still fails: Re-check hoop placement on the multi-position pegs and confirm the stabilizer is not “trampolining” (too loose).
• Q: What safety checks prevent carriage hits and hoop accidents on a Brother SC1900 when running a 5x12 (130x300) multi-position hoop, and what magnetic hoop safety rules matter?
  A: Give the Brother SC1900 enough physical clearance and handle magnetic hoops carefully—both issues are common and preventable.
  • Clear at least 12 inches to the left and rear so the embroidery arm cannot strike a wall or object during long traverses.
  • Attach the hoop to the carriage with a firm push and listen/feel for the locking engagement before starting.
  • Keep fingers out of the gap when handling magnetic hoops; magnets can snap together with high force.
  • Success check: The machine completes its full travel without contacting anything, and the hoop remains seated with no loud clunk/pop-off.
  • If it still fails: Stop immediately, re-check clearance and hoop attachment, and keep magnets away from sensitive medical devices and avoid placing them directly on electronics like the LCD or USB drives.
