Janome Memory Craft 9700 Embroidery: The Calm, Repeatable Workflow for Built-In Designs, Monograms, and On-Screen Editing

If you’re staring at your Janome Memory Craft 9700 screen thinking, “I know this machine can do more—I just don’t want to waste fabric finding the right buttons,” you’re in the right place.

Embroidery is a game of variables: tension, stabilization, and hooping physics. The MC9700 is a machine that rewards a calm, consistent routine. Below, I’m going to rebuild the standard manual instructions into a shop-tested workflow you can repeat without second-guessing—plus the empirical "old hand" checks that prevent crooked layouts, bird’s nests, and costly hoop strikes.

Read the Janome MC9700 Embroidery Mode Menu Like a Pro

On the MC9700, embroidery starts with five clear doors. Think of these not just as menus, but as "Layout Environments"—each limits what you can do to keep you safe.

• Built-In designs: The machine’s native library (safest for beginners).
• Monogramming: Dedicated text engine (fonts, sizing, orientation).
• ATA PC Card: The slot for CompactFlash adapters (your bridge to PC designs).
• Card Reader 10000: Legacy support for older memory cards via RS-232C.
• Editing: The "Canvas" where you combine, rotate, and resize multiple elements.

Here’s the mindset that keeps you out of trouble: Select Source → Select Hoop → Confirm Boundary.

If you are researching a janome embroidery machine, understand that this specific order prevents the most common error: designing a layout that is physically too large for the frame you just clipped in.

Start Clean: Pattern #6 Setup on Hoop A

The video demonstrates selecting pattern #6. Do not just hit "Start." You need to perform two specific safety checks that professional operators use on every single run.

1. Use the Jog Keys: Move the hoop until the needle is exactly over your marked center point.
2. Use the Tracing Key: This moves the hoop outline without stitching.

Sensory Check: As the machine traces, watch the gap between the presser foot and the plastic hoop frame. You should see "daylight" between them. If the foot looks like it enters the "danger zone" near the plastic edge, stop. Re-center or size down. This is how you avoid breaking a $5 needle or, worse, knocking the machine out of timing.

The “Hidden” Prep that saves fabric (and your nerves)

Before you touch the screen, you must stabilize the physics of your setup. A machine can only sew as well as the fabric is held.

Prep Checklist (Do this before selecting a design):

• Hooping Tension: Hooping is not just "clamping." The fabric should feel tight like a drum skin. If you tap it, it should make a dull thud.
• Consumables: Confirm you have the right needle (Ballpoint for knits, Sharp for wovens) and it is fresh. A dull needle makes a "popping" sound as it penetrates.
• Thread Check: Ensure you have the correct standard embroidery thread weights (usually 40wt).
• Stabilizer Match: Cut a test swatch. Never guess on the final garment.
• Hoop Verification: Ensure the physical hoop matches the screen prompt (e.g., Hoop A 126×110 mm).

If you are doing hooping for embroidery machine work daily, create a "staging area" with your stabilizers (Cutaway, Tearaway, Water Soluble) and adhesives (spray or glue stick) to ensure you never skip a layer out of laziness.

The “Trace Before You Stitch” Habit on Janome Hoop A

After jogging to center, the machine will ask for confirmation. Watch the Trace outline.

What to look for:

• Visual: The traced rectangle stays comfortably inside the inner hoop ring.
• Auditory: Listen for any straining sounds from the pantograph arm—this implies the hoop is hitting an obstruction.
• Tactile: Place a finger lightly on the hoop edge (keep away from the needle). If you feel the fabric "bunching" or sliding during the trace, your hooping is too loose. Stop and re-hoop.

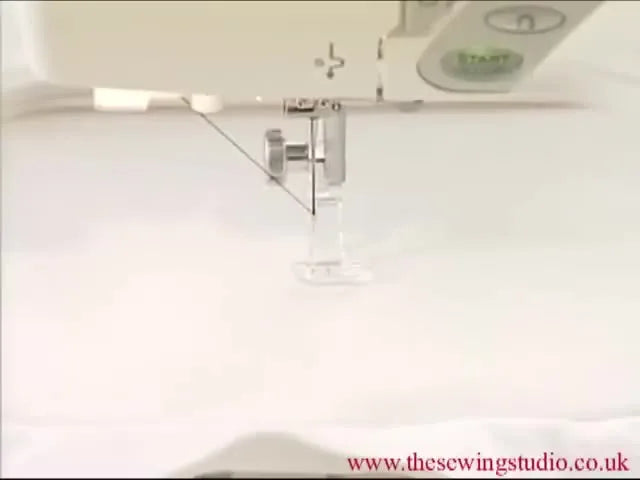

Clean Starts: Presser Foot Down, Start, Trim, Resume

The difference between an amateur finish and a pro finish is often the "bird's nest" underneath. The video shows the correct sequence to prevent this.

1. Lower the presser foot manually.
2. Press Start.
3. Allow 3 to 5 stitches to form, then press Stop.
4. Trim the thread tail close to the fabric.
5. Press Start to resume.

Why? If you don't trim that tail, the machine will stitch over it, creating a lump that can snap the needle or ruin the texture of the design.

Warning: Needle Safety. Keep fingers, long hair, and drawstrings away from the needle bar. When trimming the thread tail, ensure the machine is completely stopped. Do not use full-size shears; use small, curved embroidery snips (double-curved scissors are best) to avoid accidentally snipping the fabric or hitting the needle.

Setup Checklist (The "Pre-Flight" Check)

Executes these checks 10 seconds before hitting start.

• Presser foot is DOWN (Red light turns Green).
• Bobbin thread is visible and pulled through the throat plate slit.
• Fabric is drum-tight and free of wrinkles.
• No loose garments/sleeves are near the moving pantograph arm.
• You have performed a Trace.

If you find yourself constantly fighting with the hoop screw or getting "hoop burn" (shiny marks) on sensitive fabrics, this is usually when users investigate a hooping station for embroidery. These devices hold the outer ring static, allowing you to press the inner ring down for consistent tension without wrist strain.

Thread Changes and Auto Stops

The MC9700 will stop automatically for color changes.

The "Drift" Risk: When changing threads, be gentle. If you lean heavily on the hoop or the pantograph arm while re-threading, you can slightly shift the alignment.

• Expert Tip: Support the hoop lightly with one hand while pulling the thread through the needle eye to prevent torque on the carriage.

Fix a Thread Break: The "Stitch Back" Technique

Don't panic if the thread snaps. The MC9700 has a recovery mode. The video shows using the ST/NO (Stitch Number) screen.

• - Key: Moves backward 10 stitches per press.
• + Key: Moves forward 10 stitches per press.


The Recovery Protocol:

1. Re-thread the machine.
2. Press - (Minus) until the hoop moves back to before the break occurred (overlap by about 5-10 stitches).
3. Press Start.
4. Crucial: These overlapping stitches lock the new thread end so it doesn't unravel.

Monogramming: Orientation & Font Constraints

In Monogramming mode, you control Font (Gothic/Script), Size (L/M/S), and Orientation.

The Vertical Trap: The video demonstrates toggling Horizontal vs. Vertical orientation. Physical Reality: Standard hoops like Hoop A constitute a "portrait" rectangle (taller than wide layout).

• If you type a long name horizontally, the machine may reject it or shrink it.
• Switching to Vertical allows you to utilize the longer axis of the hoop.


When buying additional janome embroidery machine hoops, always check the maximum sewing field, not just the physical hoop size. A massive hoop won't help if the machine's pantograph limit is smaller.

ATA PC Card & Card Reader 10000

Legacy machines rely on physical media. The video details:

• ATA PC Card: Used with CompactFlash. (Note: Modern CF cards >2GB often don't work. Stick to small capacity cards).
• Card Reader 10000: Connects via RS-232C. Be extremely careful with the pins on this connector; they bend easily.






Editing Mode: Building the "Memory Craft" Layout

Editing mode is for combining designs. The video builds a specific layout using Hoop B (140×200 mm).

Why Hoop B? Hoop B is larger. For complex layouts with corner elements and text, you need the real estate.

The Hidden Cost of Standard Hoops: Standard hoops require loosening and tightening screws for every garment. This friction leads to hand fatigue and "hoop burn." In production environments, this point—the constant mechanical screwing—is why shops switch to magnetic embroidery hoops. These frames snap together using magnets, eliminating the screw adjustment entirely, which is faster and safer for the fabric.

Drag, Don't Scratch: Screen Safety

The MC9700 uses a resistive touchscreen (pressure-sensitive).

• Rule: Use a stylus or the pad of your finger.
• Never: Use a pen tip, needle, or fingernail. A scratch here can disable your ability to select buttons.


Resize & Rotate: The "Safe Zone"

The video shows resizing (90%–120%) in 10% steps and 45° rotation. Expert Note:

• Scaling Down (90%): Generally safe. Increase density slightly if lines look thin.
• Scaling Up (120%): Risk of low density (gaps in satin stitches). Always test stitch a resized design on scrap fabric first.


Layout Rebuild: Step-by-Step

Here is the exact operation shown in the video to recreate the "Memory Craft" floral design. Follow this to practice your positioning skills.

1. Enter Editing Mode and select Hoop B.
2. Import Pattern #42 (Flower). Drag to Upper-Left.
3. Import Pattern #42 again.
4. Press Horizontal Flip.
5. Press Rotate (45°) twice (Total 90°).
6. Drag this flipped flower to Lower-Right.
7. Monogram: Type "Memory" (Script Font). Rotate 90°. Place on Left.
8. Monogram: Type "Craft" (Script Font). Rotate 90°. Place below "Memory".




Operation Checklist (Final Confirmation)

Before pressing Save or Sew:

• Visual Grid Check: Are the words parallel? (Use the grid lines as a ruler).
• Boundary Check: Are any elements touching the grey "Do Not Sew" zone?
• Density Check: Did you overlap the text on top of the flowers? (Avoid this unless intentional; it creates thick lumps).

The Physics of Success: Stabilizer & Hooping

Your design looked perfect on screen but came out puckered? That is not a software error; it is a stabilization failure.

A consistent result requires a "sandwich" of Fabric + Stabilizer.

Stabilizer Decision Tree

Use this quick guide to choose the right backing:

1. Is the fabric Stretchy (T-shirt, Polo, Knit)?
   • YES: You MUST use Cutaway Stabilizer. (Tearaway will eventually break, causing the design to distort).
   • NO: Go to Step 2.
2. Is the fabric Stable (Denim, Canvas, Towel)?
   • YES: You can use Tearaway Stabilizer.
3. Is the fabric "Fluffy" (Fleece, Towel, Velvet)?
   • YES: Add a Water Soluble Topping on top to stop stitches sinking in.

Troubleshooting the MC9700

Don't guess. Use this symptom-solution table.

The Upgrade Path: When to Switch Tools

If you master the MC9700, you might eventually hit a "productivity ceiling." Here is how to diagnose if you need better tools:

The Pain Point: You are embroidering 20 shirts. Your wrists hurt from tightening screws, and you are getting ring marks on the fabric. The Solution: This is the trigger to look at Magnetic Hoops.

• Level 1: Some search for "embroidery hooping station" systems to aid standardized placement.
• Level 2: A more direct upgrade for the MC9700 user is looking into janome magnetic embroidery hoops. This upgrades your existing machine's productivity without buying a new machine.

Warning: Magnet Safety. Magnetic hoops use extremely strong industrial magnets (Neodymium).
1. Pinch Hazard: They snap together instantly. Keep fingers clear.
2. Medical: Keep away from pacemakers.
3. Electronics: Do not place magnetic hoops directly on the MC9700 screen or near credit cards/hard drives.

Final Reality Check

Embroidery is 20% machine, 40% digitization, and 40% physical prep. The MC9700 is a capable workhorse if you respect the physics.

1. Always Trace.
2. Always Trim Tails.
3. Stabilize for the Fabric (not the cost).

Master these, and the screen becomes a playground, not a source of stress.

FAQ

• Q: How do I prevent a Janome Memory Craft 9700 embroidery needle strike on Hoop A (126×110 mm) before stitching starts?
  A: Use the Janome MC9700 Jog + Trace routine every time so the presser foot never enters the hoop’s “danger zone.”
  • Jog the hoop until the needle is exactly over the marked center point.
  • Run Trace (outline movement without stitching) and watch the presser foot-to-hoop clearance.
  • Stop immediately and re-center or choose a smaller layout if the foot approaches the inner hoop edge.
  • Success check: During tracing, you can clearly see “daylight” between the presser foot and the plastic hoop frame.
  • If it still fails: Reconfirm the on-screen hoop selection matches the physical hoop (e.g., Hoop A 126×110 mm) before you restart.
• Q: What is the correct Janome Memory Craft 9700 start sequence to stop bird’s nests on the underside at the beginning of embroidery?
  A: Start with presser foot down, stitch 3–5 stitches, stop, trim the tail, then resume to prevent the machine from stitching over a loose tail.
  • Lower the presser foot manually before pressing Start.
  • Stitch 3–5 stitches, press Stop, and trim the thread tail close to the fabric using small curved embroidery snips.
  • Press Start to continue after the tail is removed.
  • Success check: The underside shows a clean start with no thread wad/lump forming under the first stitches.
  • If it still fails: Rethread the top path completely, because underside nesting usually means the top thread jumped out of the tension disks.
• Q: How tight should fabric be in a Janome Memory Craft 9700 standard embroidery hoop to prevent shifting and gaps in outlines?
  A: Hoop the fabric drum-tight and verify it stays stable during Trace, because outline gaps often come from hoop slip.
  • Hoop the fabric so it feels tight like a drum skin (a dull “thud” when tapped).
  • Trace the design area and watch for any fabric slide or bunching as the hoop moves.
  • Re-hoop if the fabric wrinkles, relaxes, or shifts during tracing.
  • Success check: With a light finger on the hoop edge (away from the needle area), the fabric stays flat and does not creep during Trace.
  • If it still fails: Check whether the standard hoop screw is tightened consistently, or consider a magnetic hoop to reduce slip and handling torque (test on scrap first).
• Q: How do I choose stabilizer for Janome Memory Craft 9700 embroidery to stop puckering on T-shirts, towels, and fleece?
  A: Match stabilizer to fabric behavior—most “perfect on screen, puckered on fabric” results are stabilization failures, not software issues.
  • Use cutaway stabilizer for stretchy knits (T-shirts, polos) because tearaway can break and distort later.
  • Use tearaway stabilizer for stable fabrics like denim or canvas.
  • Add a water-soluble topping on fluffy fabrics (towel, fleece, velvet) so stitches do not sink in.
  • Success check: After stitching, the design lies flat without ripples around the edges and satin columns look supported (not wavy).
  • If it still fails: Cut a test swatch and adjust the fabric–stabilizer “sandwich” before stitching on the final garment.
• Q: How do I fix Janome Memory Craft 9700 bobbin bird’s nest when the thread tangles underneath the fabric?
  A: Rethread the TOP thread path first, because underside bird’s nests on the Janome MC9700 almost always come from top tension loss.
  • Stop the machine and remove the tangled thread carefully without forcing the hoop.
  • Completely rethread the top thread, ensuring it seats in the tension disks.
  • Run a short test start using the “3–5 stitches, stop, trim tail, resume” method.
  • Success check: The bobbin side forms neat, consistent stitches instead of a growing thread bundle.
  • If it still fails: Inspect needle condition (a burred/dull needle can shred thread and cascade into tangles) and replace the needle if your fingernail catches on the tip.
• Q: How do I recover after a thread break on a Janome Memory Craft 9700 using the ST/NO (Stitch Number) screen?
  A: Use the Janome MC9700 ST/NO minus key to stitch back and overlap 5–10 stitches so the new thread end locks in.
  • Rethread the machine after the break.
  • On the ST/NO screen, press “-” to move back in 10-stitch steps until the needle position is before the break (overlap about 5–10 stitches).
  • Press Start and let the overlap secure the new thread.
  • Success check: The repaired area shows no open gap and the new thread does not unravel when the design continues.
  • If it still fails: Check for thread shredding causes (old thread or a burred needle) before attempting another recovery.
• Q: When should a Janome Memory Craft 9700 owner upgrade from standard screw hoops to magnetic embroidery hoops for productivity and less hoop burn?
  A: Upgrade when repetitive screw-tightening causes wrist fatigue or shiny hoop marks, because magnetic hoops eliminate constant screw adjustment and reduce handling friction.
  • Diagnose the trigger: frequent hooping (e.g., batches of shirts), sore wrists, inconsistent tension, or visible ring marks on sensitive fabric.
  • Try Level 1: Standardize placement and routine (stage stabilizers/adhesives, trace every time, keep hooping consistent).
  • Try Level 2: Switch to magnetic hoops to speed hooping and reduce hoop burn risk from over-tightening.
  • Success check: Hooping becomes faster and more repeatable, and garments show fewer ring marks while the fabric remains firmly held.
  • If it still fails: Follow magnet safety strictly—keep fingers clear (pinch hazard), keep away from pacemakers, and do not place magnetic hoops on or near the Janome MC9700 screen or sensitive electronics.
