Janome Memory Craft 550E USB Setup That Actually Works: Stop the Lag, Save Your Port, and Get Stitching Faster

You bought (or are about to pick up) a Janome Memory Craft 550E, you plug in a brand-new USB stick… and the machine either lags, freezes on the "hourglass" screen, or simply refuses to acknowledge the drive exists.

Take a deep breath. In my 20 years of embroidery troubleshooting, I have seen this panic moment a thousand times. It is rarely a broken machine. It is almost always a digital handshake failure.

Embroidery machines are not laptops; they are industrial computers that demand a very specific file architecture. If that architecture is missing, the machine stops to protect itself.

In this guide, I will walk you through the absolute definitive method to initialize your USB drive using the machine itself to create the critical Embf folder structure. We are going to move beyond basic "formatting" and into Shop-Floor Standard Operating Procedures (SOPs)—the kind of habits that prevent file corruption and keep your production timeline safe.

The Calm-Down Truth About Janome Memory Craft 550E USB “Bugs”: It’s Usually the Drive, Not the Machine

When a student tells me, "My 550E is glitching," I usually ask them to show me their USB stick. 90% of the time, the issue is not mechanical; it is a communication error. The machine is struggling to index the drive because the "map" (the folder structure) is missing or corrupted.

In the video, Elizabeth demonstrates a vital workaround: instead of trying to format the stick on a PC and hoping the Janome recognizes it, we force the Janome to write to the stick first.

This action forces the machine to create its own directory. It eliminates the guesswork. This is the foundation of a stable workflow for your janome embroidery machine. We are going to set this up so you never have to fear the "unrecognized file" error again.

Choose a USB Drive Size the Janome 550E Can Load Without Lag (Yes, Smaller Can Be Better)

There is a misconception that "More Gigabytes = Better." In the world of embroidery machines, the opposite is true.

Elizabeth recommends an 8GB drive, and she is dead right. Here is the engineering reason: When you plug in a USB, the Janome 550E’s processor must index (read) the allocation table.

• A 64GB drive takes a massive amount of processing power to scan, leading to screen lag and freezing.
• An 8GB drive (formatted to FAT32) is the "Sweet Spot." It loads instantly.

The Pro Standard:

• Capacity: 2GB to 8GB is the Goldilocks zone. Avoid 32GB+ unless absolutely necessary.
• Dedication: This drive is for embroidery files only. Do not store family photos, PDFs, or SVGs on it. Every non-embroidery file is an obstacle the machine must step over.

If you are running a small business, a slow-loading USB is a hidden tax on your profit margins. Waiting 30 seconds for a menu to load ten times a day costs you 5 minutes of production—that’s one small monogram.

The $5 Port-Saver: Leave a Short USB Extension Cable Plugged Into the Janome 550E

If you take only one piece of advice from this white paper, let it be this.

The USB port on embroidery machines is soldered directly to a motherboard. Every time you insert or remove a stick, you apply friction and leverage to that solder joint. Eventually, after hundreds of swaps, that connection will fatigue and fail. Replacing a motherboard costs hundreds of dollars; replacing a cable costs $5.

The "Sacrificial Anode" Strategy: Plug a short (6-inch) USB extension cable into the machine and leave it there permanently.

• Visual Check: The cable hangs loosely from the side.
• Tactile Check: When you swap drives, you are holding the cable, not pushing against the machine chassis.

Warning: Mechanical Safety Protocol. Never force a USB plug into the Janome 550E port. If you feel resistance greater than sliding a key into a lock, STOP. Check the orientation. Forcing the plug can crack the internal PCB mounting, turning your machine into an expensive paperweight.

The “Hidden” Prep Before You Touch the Screen: Set Up Your USB Like a Pro (So You Don’t Re-Do It Later)

Before we touch the screen, we must ensure our physical and digital environment is clean. This prep phase prevents the "File Corrupted" errors that happen mid-stitch.

Prep Checklist: The "Clean Slate" Protocol

• Drive Selection: Visually confirm the drive is 8GB or smaller (check the printing on the metal connector).
• Format Check: Insert the drive into your PC. Right-click > Format. Ensure "File System" is set to FAT32. (NTFS or exFAT will likely fail).
• Physical Connection: Install your "Port Saver" extension cable into the machine.
• Hidden Consumable Check: Have you removed the factory grease/dust from the USB connector? A quick puff of compressed air ensures a clean contact.
• Naming Strategy: Decide on a simple filename for your test file (e.g., "TEST01"). Avoid special characters like & or # which can confuse older processors.


On the Janome 550E Screen: Navigate to a Built-In Design You Can Use as a “Test Save”

Now, we perform the "Handshake." We need to take a file inside the machine and push it out to the stick.

Elizabeth’s method is precise:

1. Home Screen: Start fresh.
2. Flower Icon: Select the built-in designs database.
3. Selection: Choose any small, simple design (a leaf or flower). We aren't going to stitch this; we are using it as a data packet.
4. Edit Mode: Tap the design to open it on the editing canvas.
5. Folder Icon: Locate the "File Management" icon (usually a folder opening up).

Sensory Anchor: When you tap the icons, listen for the machine's distinct "beep." Do not tap rapidly; let the machine acknowledge each command before moving to the next.

Rename the Design on the Janome 550E (So Your USB Doesn’t Fill Up With Mystery Files)

File hygiene separates hobbyists from professionals. Elizabeth taps the Pencil Icon to rename the file LEAF.

Why rename?

1. Verification: Later, if see a file named 001_A, you won't know if that's your test file. If you see LEAF, you know the transfer worked.
2. Safety: Standard filenames often get overwritten. A unique name ensures a clean write operation.

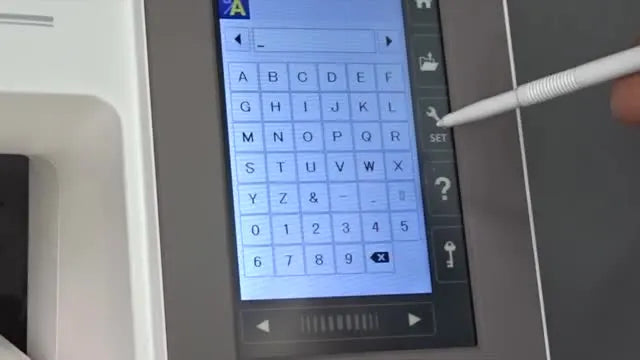

Type LEAF or SETUP via the on-screen keyboard. Press OK.

The Moment That “Formats” the USB for Janome 550E: Save to the USB Stick Icon (Not Machine Memory)

This is the critical step where the magic happens.

You will see two icons for storage destinations:

1. A Machine Icon (Internal Memory).
2. A USB Stick Icon (External Memory).

The Action: Select the USB Stick Icon. At this precise moment, the Janome 550E looks at the USB drive. It realizes the required folder structure is missing. Instead of giving up, it creates the folder named Embf (Embroidery Folder) and writes the LEAF.JEF file inside it.

Success Metric: You should see a progress bar for a brief second, followed by a confirmation. If the screen freezes here, your drive may be incompatible or too large (refer back to the 8GB rule).

Verify the Transfer on the Janome 550E: Open the USB and Confirm the LEAF Design Appears

Trust, but verify. We need to confirm the loop is closed.

1. Navigate back to the file open screen.
2. Select the USB input tab.
3. Tap the folder titled Embf.
4. Visual Confirmation: You should see the LEAF design thumbnail.

If you see the folder and the file, congratulations. Your USB stick is now officially "Janome Certified." The machine has built the roads it needs to travel.

Setup Checklist: The Exact Janome 550E USB Initialization Routine (Fast, Repeatable, No Guessing)

Use this checklist whenever you introduce a new USB stick to your workflow.

Setup Checklist (The "Handshake" Protocol)

• Port Safety: Plug the USB stick into your extension cable, not the machine directly.
• Source: Select a built-in design (Flower Icon).
• Rename: Use the Pencil tool to rename the file (e.g., "INIT_TEST").
• Target: Select the USB Icon as the save destination.
• Execution: Open the Embf folder and press OK to save using the built-in file manager.
• Verification: Navigate to the USB tab -> Embf folder. Confirm the file is visible.
• Sensory Check: Did the menus load within 1-2 seconds? If it took >5 seconds, the drive is too slow/large.


“How Do I Get Files From Online Onto the USB?” Do This After Embf Exists

Now that the Embf folder exists, your computer knows where to put purchased designs.

1. Remove the USB from the machine.
2. Insert it into your PC/Mac.
3. Open the drive. You will see the Embf folder.
4. Drag and Drop: Move your .JEF files inside the Embf folder.

Pro Tip: Do not dump files in the "root" directory (outside the folder). The Janome 550E often wears blinders; it only looks inside Embf. If files are outside, the machine may report the stick as empty.

Why the Janome 550E Prefers a Clean USB: File Count, Menu Lag, and a Production Mindset

Elizabeth warns against clutter, and from a production standpoint, this is vital. A stick with 500 designs is a nightmare to scroll through on a small LCD screen.

The "Job Ticket" System: Treat your USB stick like a daily job ticket.

1. Load only the 2-3 designs you need for today.
2. Stitch the project.
3. Delete the files from the stick (keep the master on your PC).

This keeps the machine interface snappy and reduces the risk of selecting the wrong file version.

Speaking of efficiency, the way you manage digital files mirrors the way you manage physical hooping. If you are meticulous about USB speed but still struggling with slow, awkward hooping mechanisms, you are optimizing one part of the chain while the other breaks. Many users searching for a magnetic hoop for janome 550e are doing so because they realize that physically trapping fabric in a screw-tightened hoop is the slowest part of their day.

Troubleshooting Janome 550E USB Problems: Symptoms → Likely Cause → Fix

When things go wrong, use this matrix to diagnose the issue quickly without emotional stress.

1) Symptom: Machine freezes or takes 10+ seconds to open the USB tab.

• Likely Cause: USB drive is too large (32GB+) or formatted to exFAT/NTFS.
• Quick Fix: Switch to an 8GB stick formatted to FAT32.
• Prevention: Dedicate small sticks strictly for embroidery.

2) Symptom: "The machine says the folder is empty, but I verified files are there."

• Likely Cause: Files are in the root directory, not the Embf folder, or are in the wrong format (e.g., .PES instead of .JEF).
• Quick Fix: Move files inside Embf. Verify file extension is .JEF.

3) Symptom: Design appears but colors are wrong/weird on screen.

• Likely Cause: This is normal. The .JEF file tells the machine coordinates, not specific thread brands.
• Quick Fix: Ignore the screen colors; follow your physical thread worksheet.

4) Symptom: Intermittent connection (drive disconnects if bumped).

• Likely Cause: Port wear or loose connection.
• Quick Fix: Test with a new extension cable. If the issue persists with the cable removed, the machine port may require service.


Decision Tree: When Your Next Upgrade Should Be Storage, Workflow… or Hooping Hardware

Struggling with your process? Trace your pain point to the correct solution.

A) Is the bottleneck DIGITAL? (Lag, crashes, lost files)

• YES: Adopt the 8GB FAT32 standard and the "Job Ticket" file method.
• NO: Go to B.

B) Is the bottleneck PHYSICAL? (Hoop burn, wrist pain, misaligned designs)

• YES: Your challenge is mechanical holding. Standard hoops rely on friction and distortion.
  • Level 1 Solution: Use smoother backing and loosen the screw slightly.
  • Level 2 Solution: Upgrade to a janome 550e magnetic hoop. Magnets clamp fabric flat without distortion, eliminating "hoop burn" circles on delicate garments and saving your wrists from screw-tightening fatigue.
• NO: Go to C.

C) Is the bottleneck VOLUME? (Turning away orders, sewing takes too long)

• YES: You have outgrown single-needle limitations.
  • Solution: Look into multi-needle platforms like SEWTECH. When you can stitch 4 colors without manually changing threads, your throughput triples.
  • Interim Solution: Optimize hooping for embroidery machine setups by using a station to prep the next garment while the machine runs.


Operation Checklist: The “Every Time” Habits That Keep Your Janome 550E Running Smooth

Consistency is the secret to quality. Print this out and tape it near your machine.

Operation Checklist (Daily Pilot Check)

• Clean Start: Is the USB stick free of "clutter" files from yesterday's job?
• Connection: Is the extension cable firmly seated? (Tactile push).
• File Logic: Are today's files inside the Embf folder?
• Needle Check: Is the needle straight and sharp? (Run a fingernail down the shaft; if you feel a catch, replace it).
• Backing Match: Are you using the correct stabilizer? (Rule of thumb: Cutaway for knits, Tearaway for wovens).
• Test Load: Does the design load onto the screen within 3 seconds? (If not, re-format the stick).


The Upgrade Path (Without the Hard Sell): When Tools Start Paying You Back

Once your USB workflow is invisible—meaning it works so well you stop thinking about it—you will notice other frictions.

The most common frustration for 550E users is the "Hooping Battle." Fighting layers of stabilizer, slippery fabrics, and the outer ring of the hoop often leads to fabric shifting or ugly ring marks.

If you are doing production runs (e.g., 50 polo shirts), the time spent screwing and unscrewing hoops is massive. This is where hoops for janome 550e upgrades make business sense. Magnetic frames allow you to "slap and click" the fabric in seconds. It is safer for the garment and faster for the operator.

Warning: Magnetic Field Safety. Magnetic hoops use industrial-grade neodymium magnets.
* Pinch Hazard: They snap together with immense force—keep fingers clear of the mating surfaces.
* Medical Devices: Keep them at least 6 inches away from pacemakers.
* Electronics: Do not place them directly on top of your phone or the Janome's LCD screen.

If you are expanding your studio, consider how a hooping station for machine embroidery can standardize your placement, ensuring every logo lands in the exact same spot on every shirt. Precision is what allows you to charge premium prices.

And finally, if you find yourself changing thread colors more often than you are pressing "Start," remember that the 550E is a brilliant machine, but it is a single-needle engine. When volume scales up, moving to a multi-needle machine (like the SEWTECH series) changes the game from "babysitting the machine" to "managing production."

Final Reality Check: What You Should See When the Janome 550E USB Setup Is Done Right

Embroidery is a game of variables. We control the ones we can—needle, thread, stabilizer, and data.

When you have successfully initialized your USB using this on-machine method, you should experience:

1. Zero Panic: You plug it in, and the folder opens.
2. Zero Lag: File names appear instantly.
3. Zero Loss: Your design is inside the Embf folder, exactly where you left it.

You are no longer guessing. You are operating with a standard procedure. Now, go create something beautiful.

FAQ

• Q: How do I initialize a USB stick for the Janome Memory Craft 550E so the Embf folder is created automatically?
  A: Save a built-in design from the Janome Memory Craft 550E to the USB stick icon so the machine writes the Embf folder itself.
  • Select: Open a built-in design (Flower icon) and place it on the edit screen.
  • Rename: Tap the Pencil icon and rename the test design (e.g., LEAF or INIT_TEST).
  • Save: Choose the USB stick icon (not internal memory) and confirm the save.
  • Success check: The Janome Memory Craft 550E shows a brief progress/confirmation, and the USB tab displays an Embf folder with the saved design thumbnail.
  • If it still fails: Switch to a smaller FAT32 USB (2–8GB) and try the same on-machine save again.
• Q: What USB size and file system works best to prevent Janome Memory Craft 550E USB lag or freezing on the hourglass screen?
  A: Use a small 2–8GB USB drive formatted to FAT32 to reduce indexing lag on the Janome Memory Craft 550E.
  • Choose: Pick a dedicated embroidery-only stick (avoid 32GB+ unless necessary).
  • Format: Set the drive to FAT32 (avoid NTFS/exFAT for best compatibility).
  • Limit: Keep only today’s few designs on the stick to keep menus fast.
  • Success check: The USB menu opens in about 1–2 seconds and thumbnails populate quickly.
  • If it still fails: Try a different brand/model of 8GB stick and repeat the on-machine Embf initialization save.
• Q: Why does the Janome Memory Craft 550E say the USB is empty even though .JEF files are on the drive?
  A: Put the .JEF files inside the Embf folder because the Janome Memory Craft 550E often only reads designs from Embf.
  • Confirm: Check the file extension is .JEF (not .PES or other formats).
  • Move: Drag-and-drop designs into the Embf folder (not the root of the USB).
  • Recheck: Reinsert the USB and open the USB tab, then open Embf.
  • Success check: The design thumbnails appear inside Embf on the machine screen.
  • If it still fails: Recreate Embf by saving a built-in design to the USB stick icon from the machine.
• Q: How do I protect the Janome Memory Craft 550E USB port from wear when swapping USB sticks every day?
  A: Leave a short USB extension cable plugged into the Janome Memory Craft 550E permanently and plug USB sticks into the cable instead.
  • Install: Plug in a 6-inch extension cable and keep it in place as a “port saver.”
  • Swap: Insert/remove USB sticks from the extension end, not the machine’s port.
  • Stop: Never force a USB connector; if it doesn’t slide in smoothly, check orientation and try again.
  • Success check: The extension cable feels firmly seated, and the machine recognizes USBs without needing pressure or “wiggling.”
  • If it still fails: Test with a different extension cable; if disconnects continue without the cable, the machine port may need service.
• Q: What filename rules help prevent Janome Memory Craft 550E USB confusion or failed reads when saving designs?
  A: Use short, simple names on the Janome Memory Craft 550E (like LEAF or TEST01) and avoid special characters that can confuse older processors.
  • Rename: Use the Pencil icon to give the test file a clear name before saving to USB.
  • Avoid: Skip symbols like & or # and keep names simple.
  • Verify: Look for that exact filename after saving to confirm the write worked.
  • Success check: The exact renamed file appears as a thumbnail in Embf on the USB tab.
  • If it still fails: Rename again using only letters/numbers and repeat the save-to-USB step.
• Q: What should I do if the Janome Memory Craft 550E USB connection is intermittent and disconnects when bumped?
  A: Treat intermittent USB on the Janome Memory Craft 550E as a connection-wear issue and test with a fresh extension cable first.
  • Replace: Swap in a new short extension cable to rule out a loose cable end.
  • Seat: Push the extension cable fully into the machine port (firm, gentle, straight in).
  • Stabilize: Avoid pulling on the stick; let the cable hang with slack.
  • Success check: The USB stays recognized even if the cable is lightly touched and menus remain stable.
  • If it still fails: Remove the extension and test the USB directly once; if it still disconnects, the machine USB port may require service.
• Q: When should Janome Memory Craft 550E users move from basic workflow fixes to a magnetic hoop or a multi-needle machine for productivity?
  A: If Janome Memory Craft 550E problems are physical (hoop marks, wrist pain, shifting) or volume-related (too many thread changes), escalate from technique to hardware in levels.
  • Diagnose: If the issue is digital lag/freezes, standardize on 2–8GB FAT32 and a “job ticket” USB with only today’s files.
  • Upgrade (Level 2): If hoop burn or slow screw-tightening is the bottleneck, a magnetic hoop can reduce fabric distortion and speed hooping.
  • Upgrade (Level 3): If production volume is the bottleneck, a multi-needle machine reduces manual thread-change time.
  • Success check: The real bottleneck improves—USB loads fast for digital issues, hooping time drops for physical issues, or throughput increases for volume issues.
  • If it still fails: Track where time is lost (USB loading vs hooping vs thread changes) for one day and upgrade only the step that is truly limiting output.
