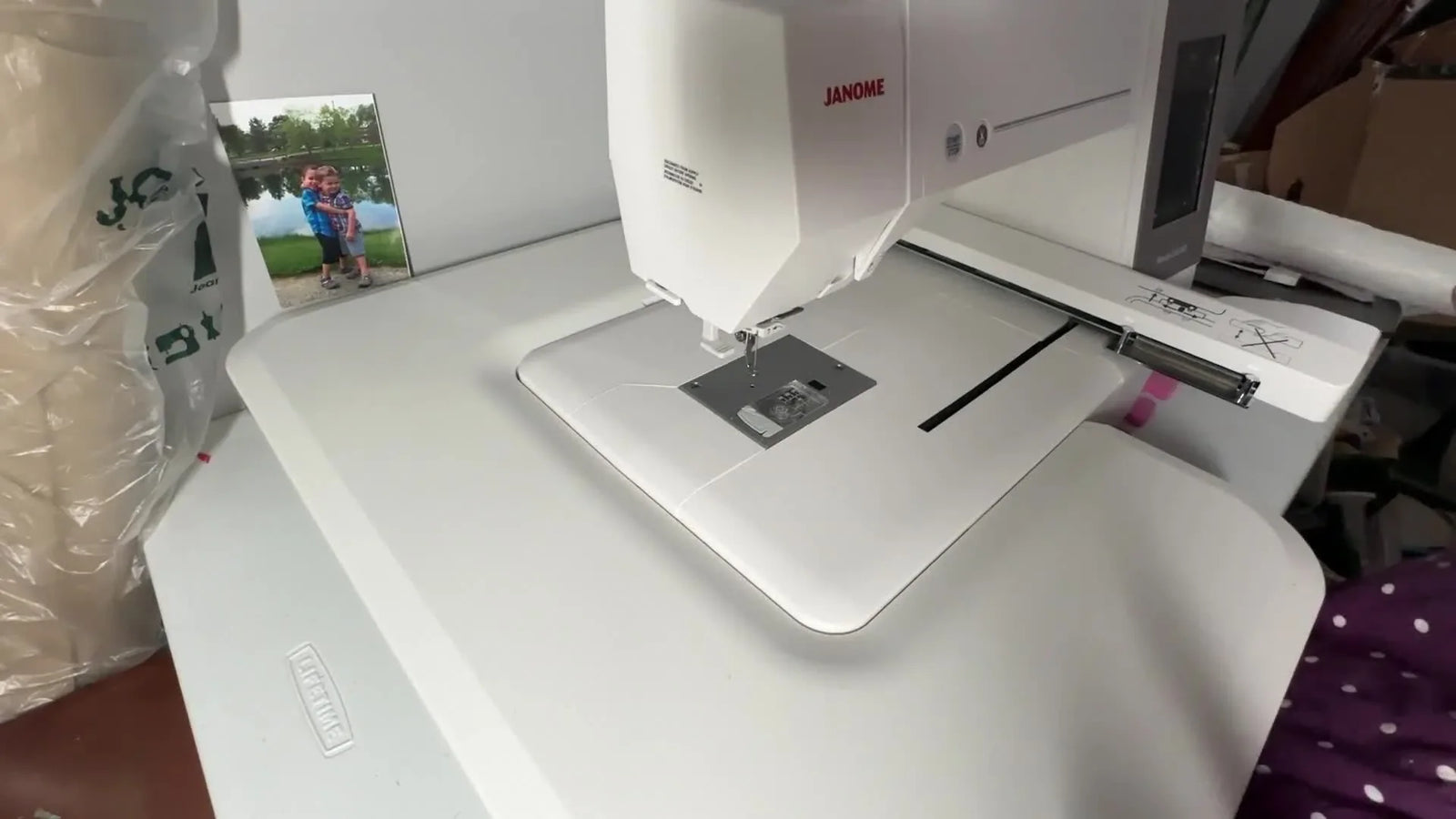

Janome Memory Craft 550E USB Files Not Showing? Fix the “Invisible Design” Problem (and Stop Killing Your USB Port)

You are not crazy, and your machine is not broken.

There is a specific, sinking feeling that every machine embroiderer knows: You see the file on your computer. You copy it to the USB drive. You walk the ten feet to your machine, plug it in, and… empty screen. The Janome Memory Craft 550E acts like the file simply doesn’t exist.

As someone who has trained thousands of operators—from home hobbyists to industrial production managers—I call this the "Digital Ghost Effect." It creates a massive amount of cognitive friction. You start doubting your hardware, your software, and eventually, your own competence.

Here is the calm, empirical truth: The Janome 550E is an incredible workhorse, but its operating system is rigid. It adheres to a strict set of logic rules regarding (1) File Hierarchy, (2) Geometric Orientation, and (3) Cache Memory. If you violate these rules, the machine protects itself by ignoring the file.

This guide is your "Instruction Manual B-Side." We will not just fix the invisible file; we will build a professional-grade workflow that prevents this from ever surprising you again.

The "Invisible File" Phenomenon: Distinguishing User Error from System Logic

When a design fails to appear on the Janome 550E LCD screen, 90% of beginners assume the USB drive is corrupted. They throw it away and buy a new one. This is usually unnecessary.

In my experience diagnosing hundreds of these cases, the reality is almost always one of three non-hardware issues:

1. The "Alien" Structure: The USB was formatted by a PC/Mac, not the machine, so the 550E cannot see the "handshake" folders.
2. The Geometry Trap: The design is saved in landscape (horizontal) mode and exceeds the 7.9-inch (200mm) Y-axis read limit.
3. The Ghost Cache: The machine is loading a stale memory file (.JBF) rather than your new edit.

If you are transitioning from a casual hobby to a semi-pro setup, managing these digital "handshakes" is critical. Whether you are dealing with obscure Mac adapters or cloud synching, these invisible barriers are the primary reason users search for help with their janome embroidery machine.

Warning: Mechanical Safety. Before troubleshooting the screen or reaching for USB ports, ensure your workspace is clear. Keep fingers, hair, and loose clothing away from the needle bar and the moving carriage arm. When you are distracted by a frustrating screen, it is easy to lean comfortably into the danger zone of a machine that may suddenly initialize.

Phase 1: The "Hidden" Prep – Physical Media hygiene

The video analysis suggests using a brand-new 1GB USB drive. This is excellent advice, but let's explain why so you can replicate success.

Older machine operating systems (and the 550E is based on stable, older architecture) struggle with massive storage partitions. A 64GB USB 3.0 drive formatted in ExFAT is often unreadable to an embroidery machine.

The Veteran’s Protocol for Data Transfer:

1. The "Shuttle" Concept: Never use your USB drive for storage. It is a shuttle. It should carry files from PC to Machine, get stitched, and then be wiped.
2. Capacity limit: Stick to drives 2GB to 8GB if possible. They format faster and mount quicker on the machine’s OS.
3. Port Protection (Hidden Consumable): I mandate the use of a USB extension cable (a "dongle" or short cord) for all my students.
   • Why? You will plug and unplug this drive 1,000 times. If you wear out the port soldered to the machine's motherboard, it is a $400+ repair. If you wear out a $5 cable, you replace the cable.

If you use a modern MacBook (USB-C only), you are already using an adapter. Ensure that adapter is tight. When connecting, listen for the audible "click" on your computer side, and watch for the drive light to blink. No blink often means no power.

Prep Checklist: The Physical Baseline

• Drive Check: USB Stick confirms to USB 2.0 standards (ideally 2GB–8GB).
• Port Saver: A short USB extension cable is plugged into the machine (highly recommended).
• No Hubs: The drive is plugged directly into the computer/adapter, not a multi-port hub which can drop voltage.
• The "Shuttle" Rule: The drive is empty of old files before you begin today's batch.


Phase 2: The Digital Handshake – Formatting on the Machine

This is the step most beginners skip because they think "Formatting" just means "Deleting files." It does not.

To the Janome 550E, formatting means "Building the House." You must let the machine construct the directory walls where it expects to find the furniture (your designs).

The Correct Procedure (Sensory & Action)

1. Insert: Place the USB drive into the machine’s side port (or your extension cable). Feel for the resistance; it should seat firmly.
2. Boot Up: Turn the machine on. Wait for the initial calibration sounds (the rhythmic thump-thump of the carriage finding zero).
3. Navigate: Tap the USB Icon on the screen (usually the third tab).
4. Format: Select the format option in the settings menu.

What just happened? The machine didn't just wipe the drive. It wrote a proprietary index file and created a specific folder tree. If you skip this, you are effectively trying to put files in a house that hasn't been built yet.

Warning: Formatting permanently erases everything on that USB drive. If you have "the only copy" of a wedding embroidery file on that stick, back it up to your cloud or hard drive before you touch the machine.

Phase 3: The Syntax – Case Sensitivity & The "Embf" Folder

Remove the USB from the machine and plug it back into your computer. Open your file explorer (Finder on Mac / Explorer on Windows).

You will now see a folder named Emb. Inside that, a folder named Embf.

The Iron Rule of Syntax: The Janome operating system is often Case Sensitive.

• It looks for Embf.
• It might not recognize embf or EMBF created manually.

This is why we let the machine format the drive—it eliminates human typing errors. You must place your .JEF (or supported) design files inside the Embf folder. Not in the root directory. Not in the Emb folder. Deep inside the Embf folder.

Setup Checklist: The Folder Verification

• Mount Check: Computer recognizes the drive (often labeled "NO NAME" or "JANOME").
• Parent Folder: Emb folder exists.
• Child Folder: Embf folder exists inside Emb.
• File Placement: Your embroidery file is located inside the Embf folder.
• Cleanliness: No loose files are floating outside these folders.

If you are running a business where efficiency is money, this is where you standardize. High-volume shops using a hooping station for embroidery will often have color-coded USB drives (Red for formatting, Blue for transfer) to prevent these mix-ups during a rush.

Phase 4: The Geometry Trap (The 7.9-Inch Ceiling)

This is the "Aha!" moment for 80% of my students. The machine is technically capable of stitching large designs, but its File Reading Logic has a hard limit based on the Y-Axis (width).

The Physics of the Limit: The standard reading width for the 550E is 7.9 inches (approx. 200mm). The machine does not have an "Auto-Rotate" sensor for file browsing.

The Scenario: You have a design that is 8 inches tall x 5 inches wide.

• If saved as a Portrait (5" wide), the machine sees it: "Width is 5. Safe."
• If saved as a Landscape (8" wide), the machine sees it: "Width is 8. Error. Do not display."

The machine assumes anything wider than 7.9 inches physically cannot fit through the throat or on the carriage arm in that orientation, so it hides the file to prevent a crash. It does not know that you intend to rotate it later.

The Fix: Software Rotation

1. Open your digitizing or editing software on your PC.
2. Measure the X (width) axis.
3. Action: If X > 7.9" (200mm), select the design and Rotate 90 degrees.
4. Save the file to the USB (Emb/Embf) in this "tall and skinny" portrait orientation.

You are essentially "spoon-feeding" the design to the machine in a bite size it can swallow. Once the design is on the machine's screen, you can rotate it back if needed (hoop permitting), but to get it on the screen, it must arguably be narrower than 7.9 inches.

Many novices struggle here because they confuse hoop size with reading capacity. When I consult on hooping for embroidery machine workflows, I always emphasize that "Hooping is physical, but Orientation is digital." You must solve the digital orientation before you clamp the physical fabric.

Phase 5: Verification – The Screen Check

The video demonstration proves this explicitly.

• File A (Landscape, 10" wide): Invisible.
• File B (Same design, Rotated to Portrait): Visible.

Success Metric: You know you have succeeded not just when the file name appears, but when the thumbnail renders. A generic icon often means the machine sees the file name but cannot process the data inside (corruption). A clear visual thumbnail is your green light.

Phase 6: The "Ghost" Cache – Understanding .JBF Files

Sometimes, the machine sees the file, but it refuses to see your changes. You moved a logo one inch to the left on your PC, saved it, plugged it in... and the machine still stitches it in the old spot.

The Culprit: The .JBF File. The Janome 550E creates a "shadow file" with a .jbf extension for every design it loads. This is a cache file. It allows the machine to recover the design if power is lost (power-fail recovery).

However, the machine prioritizes reading the .JBF over the .JEF if both exist.

• You updated the .JEF (Source).
• The Machine reads the .JBF (Memory).

The Fix: When you put the USB back into your computer to edit a design, delete the .JBF file associated with that design. This forces the Janome 550E to re-read your new source file and generate a fresh cache.

Troubleshooting Logic: The hierarchy of Repairs

1. Software Layer: Delete .JBF files.
2. Geometry Layer: Rotate file to Portrait (<7.9" width).
3. Physical Layer: Re-format USB on machine.

Phase 7: Professional Maintenance & Workflow Upgrades

The use of a USB Extension Cable (Port Saver) mentioned in the video is a small detail that separates pros from amateurs. We call this "Preventative Engineering."

Why this matters for your growth

If you are doing this as a hobby, a failed USB port is an annoyance. If you are doing this for profit, a failed USB port is downtime. Professional embroidery is entirely about managing bottlenecks.

Identifying Your Next Bottleneck (The Commercial Transition) Once you master the USB workflow, your next frustration will likely be physical:

• Does hooping take longer than the actual stitching?
• Are you getting "Hoop Burn" (shiny rings) on delicate garments?
• Are your wrists hurting from tightening screws 50 times a day?

This is the natural graduation point.

The Toolkit Upgrade Path:

1. Level 1: Stability. Use the right stabilizer. If the fabric stretches, use Cut-Away. If it's unstable, use a fusible backing.
2. Level 2: Speed & Quality. Move to Magnetic Hoops.
   • Unlike screw-hoops, janome magnetic embroidery hoops snap the fabric in place without friction burns. They are faster, hold thicker garments (like towels or quilt sandwiches) securely, and drastically reduce wrist strain.
3. Level 3: Scale. If you are doing runs of 20+ shirts, a single-needle machine like the 550E becomes the bottleneck because of thread changes. This is when professionals look at SEWTECH Multi-Needle solutions, where 15 colors are loaded at once.

Warning: Magnetic Hazard. Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Watch your fingers; they snap shut instantly.
* Medical Safety: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.

The Troubleshooting Decision Tree

Use this logic flow before you panic.

START: Design is on USB, but screen is empty.

1. Is the USB drive larger than 8GB?
   • Yes -> Efficiency Risk. Switch to a smaller (2GB-4GB) drive.
   • No -> Continue.
2. Did you Format on the Machine?
   • No -> Stop. Back up data. Format on Janome 550E. Retransfer.
   • Yes -> Continue.
3. Is the file inside the Embf folder?
   • No -> Move file into Emb/Embf.
   • Yes -> Continue.
4. Is the Design Width (in landscape) > 7.9 inches?
   • Yes -> CRITICAL FAIL. Rotate to Portrait in software. Save.
   • No -> Continue.
5. Is an old .JBF file present?
   • Yes -> Delete .JBF. Machine is reading old memory.
   • No -> Continue.
6. Are you using a Mac using a hub?
   • Yes -> Try a direct adapter or a Windows PC. Mac hidden files sometimes clog the directory.

Operation Checklist: The "No-Panic" Routine

• Clean Start: USB formatted and clear of "digital trash."
• Path Verify: Files reside deep in Emb/Embf.
• Geometry Check: All wide designs rotated to Portrait (<7.9").
• Cache Clear: No .JBF files from previous edit sessions.
• Port Safe: Extension cable used to protect machine port.
• Hoop Ready: Using the appropriate hoop (Standard or magnetic hoop for janome 550e for difficult fabrics) to match the validated design.

By adhering to these protocols, you stop fighting the machine and start communicating with it. The 550E is a precise instrument; when you speak its language—correct folders, correct orientation, cache hygiene—it performs flawlessly.

FAQ

• Q: Why does a Janome Memory Craft 550E embroidery design show on the computer USB drive but not appear on the Janome 550E screen?
  A: This is usually a Janome 550E file-logic issue (format/folders/orientation/cache), not a broken machine.
  • Format the USB on the Janome 550E (machine creates the required directory structure).
  • Confirm the design file is placed in Emb/Embf (not the root and not just Emb).
  • Rotate the design in software so the design width (X) is under 7.9 in / 200 mm before saving.
  • Success check: The file name appears and the thumbnail renders (not just a generic icon).
  • If it still fails: Delete any matching .JBF cache file and reinsert the USB.
• Q: What is the correct folder path for .JEF files on a Janome Memory Craft 550E USB drive after formatting on the machine?
  A: Save Janome 550E designs inside the exact machine-created path Emb/Embf using the same capitalization.
  • Format the USB on the Janome 550E first so the machine creates Emb and Embf.
  • Copy .JEF (or other supported) files into Emb/Embf only.
  • Avoid manually renaming folders like embf or EMBF because the Janome 550E may be case sensitive.
  • Success check: After inserting the USB, the Janome 550E shows the design with a visible thumbnail.
  • If it still fails: Re-format on the machine and re-transfer only a few test files.
• Q: How do you fix a Janome Memory Craft 550E “invisible file” caused by the 7.9-inch (200 mm) width limit and landscape orientation?
  A: Rotate the design 90° in software so the Janome 550E reads it as under 7.9 in / 200 mm wide during browsing.
  • Open the design in editing/digitizing software and measure the X (width).
  • If X is over 7.9 in (200 mm), rotate 90° to a “portrait” orientation and re-save to Emb/Embf.
  • Reinsert the USB and browse again; rotate on-screen later only after the design is visible (if needed).
  • Success check: The previously missing design now appears and renders a thumbnail on the Janome 550E.
  • If it still fails: Re-check that the file is actually saved in the rotated orientation, not just displayed rotated in software.
• Q: Why does a Janome Memory Craft 550E keep showing an old version of a design after editing the .JEF file on the computer?
  A: Delete the matching .JBF file because the Janome 550E may prioritize the cached .JBF over the updated .JEF.
  • Plug the USB into the computer and locate the design inside Emb/Embf.
  • Delete the .JBF file associated with the design you edited (leave the updated .JEF).
  • Reinsert the USB into the Janome 550E so it generates a fresh cache.
  • Success check: The Janome 550E preview/placement reflects the latest edit (not the old layout).
  • If it still fails: Save the edited design under a new file name and transfer again.
• Q: What USB drive size and connection method is most reliable for a Janome Memory Craft 550E to prevent blank or missing USB files?
  A: Use a small USB 2.0 drive (often 2–8 GB) and avoid hubs to reduce mount/read issues on the Janome 550E.
  • Switch to a 2–8 GB USB drive if the current drive is very large or modern-format focused.
  • Plug the drive directly into the computer/adapter (not a multi-port hub) and ensure the adapter connection is tight.
  • Use a short USB extension cable at the machine to protect the Janome 550E USB port from wear.
  • Success check: The computer shows drive activity (light blink) and the Janome 550E reads the USB quickly without an empty screen.
  • If it still fails: Format the USB on the Janome 550E again and keep the drive as a “shuttle” (empty except current files).
• Q: What mechanical safety steps should be followed before troubleshooting a Janome Memory Craft 550E USB screen issue at the machine?
  A: Treat the Janome 550E like it can initialize suddenly and keep hands/hair/clothing away from the needle area while troubleshooting.
  • Clear the workspace around the needle bar and moving carriage arm before powering on or navigating menus.
  • Avoid leaning into the stitch area while focused on the LCD/USB steps.
  • Power on and wait for the carriage calibration sounds before touching near moving parts.
  • Success check: The machine completes its initialization without anything obstructing the carriage path.
  • If it still fails: Pause troubleshooting, re-check the area is clear, then restart the machine and try again.
• Q: When Janome Memory Craft 550E production becomes slow or hooping causes hoop burn and wrist strain, what is a practical upgrade path from technique to magnetic hoops to multi-needle?
  A: Start with workflow stability, then reduce hooping friction with magnetic hoops, and only scale to multi-needle when thread-change downtime becomes the bottleneck.
  • Level 1 (Technique): Match stabilizer to fabric (cut-away for stretch; consider fusible support when stability is the issue).
  • Level 2 (Tool): Use magnetic hoops to speed hooping, reduce screw-tightening fatigue, and often reduce hoop-burn on delicate items.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent color changes on a single-needle (like the Janome 550E) limits throughput on runs (often 20+ items).
  • Success check: Hooping time drops and fewer garments show shiny hoop marks, while stitch output stays consistent.
  • If it still fails: Re-check hooping workflow first (digital orientation and file prep), because faster hardware cannot fix incorrect file setup.
• Q: What magnetic hoop safety rules should be followed when using strong magnetic embroidery hoops for Janome-style hooping workflows?
  A: Handle magnetic hoops as pinch hazards and keep them away from sensitive medical devices.
  • Keep fingers clear when closing magnets because they snap shut quickly.
  • Store and handle magnets deliberately to avoid sudden attraction to metal objects.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop closes without finger pinches and fabric is secured evenly without forcing the magnets.
  • If it still fails: Stop and reposition fabric—do not fight the magnets; open, realign, and close again under control.
