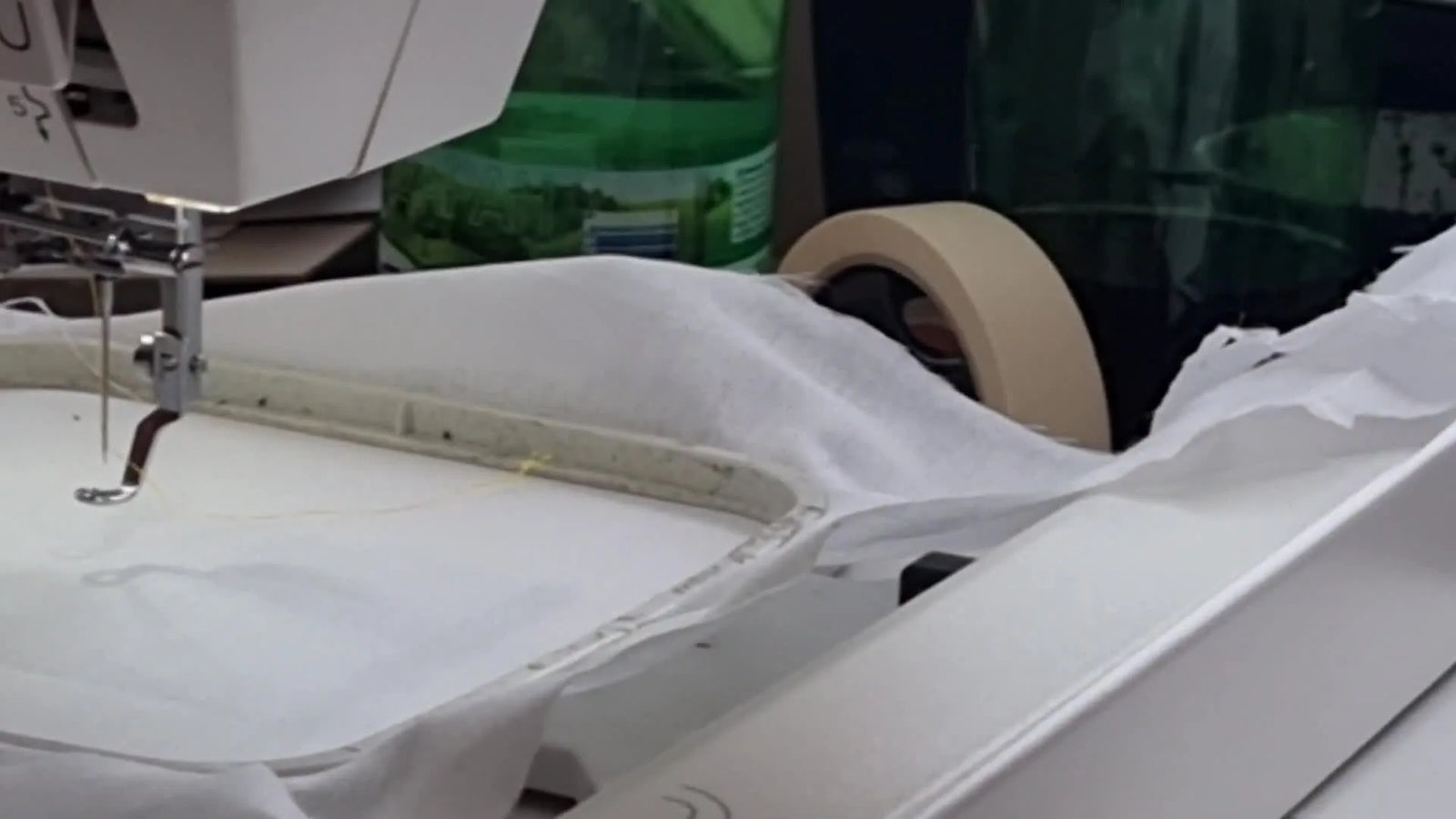

Janome Memory Craft 500E Setup That Actually Stitches Clean: Bobbin, Threading, USB Designs, and the 1.8 Tension Trick

If you’ve ever powered on your Janome Memory Craft 500E and immediately felt that little spike of panic—pop-ups, menus, threading paths, hoops, USB files—you’re not alone. The sheer number of variables in machine embroidery can feel overwhelming. The good news: this machine is very forgiving when you follow a clean, repeatable routine “pilot’s checklist.”

This post rebuilds the video’s full workflow into a “do it the same way every time” setup. We will cover everything from the maintenance prompt to the final stitch, ensuring you have the confidence to press "Start."

Calm the Janome Memory Craft 500E Maintenance Pop-Up Before It Becomes a Thread-Nest Problem

When the screen tells you to wipe around the bobbin area and hook race, it’s not being dramatic—it’s trying to prevent the exact issues beginners blame on “bad thread” later.

In the video, the machine displays a maintenance message instructing you to use a soft cloth with a small amount of suitable cleaning liquid and gently wipe around the bobbin area holder and the hook race. Do that first. Lint in the hook area changes how smoothly the bobbin thread feeds, and that can show up as inconsistent stitches, sudden looping, or the dreaded “bird’s nest.”

Hidden Consumables You Need NOW

Before you start any project, ensure you have these "invisible" tools on hand. New embroiderers often forget them until a crisis hits:

• The "Lint-Free" Cloth: Never use paper towels (they leave dust behind).
• Machine Oil: Only if specified by your manual—but keep it handy.
• Fresh Needles: A needle lasts about 8 hours of stitching. If you hear a "thump-thump" sound, change it.


Warning: Mechanical Hazard. Power off the machine before putting fingers near the needle area or bobbin/hook zone, and keep hair, sleeves, and tools clear of moving parts. A single accidental press of the Start button can cause severe needle injury.

Pro habit (worth adopting early): After any “fuzzy” project (like fleece or towels), do a quick bobbin-area wipe before your next clean white test stitch-out. It’s the cheapest quality upgrade you’ll ever make.

The Bobbin Drop-In on Janome 500E: The Counter-Clockwise Detail That Makes or Breaks Tension

The video shows a classic Janome drop-in bobbin install, and it’s one of those steps that looks simple—until it isn’t. If you get this wrong, no amount of top tension adjustment will save your design.

Here’s the exact sequence demonstrated:

1. Slide the latch to remove the clear plastic cover plate.
2. The "P" Shape Rule: Drop the bobbin in so the thread comes off the top to the left, forming the letter "P" (Counter-Clockwise).
3. Guide the thread through the slit.
4. The Sensory Check: Pull the thread around the tension spring until it seats into the cutter groove. You must feel a slight bit of resistance, like flossing teeth.
5. Replace the clear cover plate until you hear a sharp click.


Why experienced operators care about that “feel”: If the thread isn't actually under the tension spring, the bobbin will "free-wheel." The result? Massive looping on the underside of your fabric.

Prep Checklist (do this before you thread anything)

• Cleaning: Soft cloth used on bobbin/hook race (as prompted).
• Bobbin Orientation: Inserted counter-clockwise ("P" shape).
• Tension Engagement: You felt the "drag" as thread passed the tension spring.
• Safety: Clear cover plate fully clicked back in.
• Materials: Fabric is pre-hooped with backing (video assumption).
• File: A simple test design selected (low stitch count for testing).

Upper Threading the Janome 500E: Follow the 1–5 Path Like a Technician, Not Like a Guess

The video threads the top using the machine’s numbered guides and the solid-line path. Don’t freestyle this. Top threading is a physics system, not a suggestion.

Critical Pre-Check: Ensure your presser foot is UP before threading. This opens the tension discs to accept the thread. If the foot is down, the thread floats on top of the discs, resulting in zero tension.

What the video does:

1. Follow the solid line numbered guides (1–5).
2. Go under the pre-tension guide.
3. Down the right channel.
4. Up the left channel to catch the Take-Up Lever. Visual Check: Look inside the slot to ensure the thread is actually inside the metal eyelet.
5. Down to the needle bar guide.


One practical note from the transcript: the creator mentions using “Mo threads” and that they “work nice.” While brand loyalty is fine, consistency is key. Whatever thread you choose, keep it feeding smoothly off the spool.

If you’re building a home workflow around a janome embroidery machine, treat threading like a pre-flight checklist: the machine cannot mechanically compensate for a missed guide.

The Built-In Needle Threader on Janome Memory Craft 500E: The Tiny Alignment Trick That Stops the Rage

The automatic needle threader is a gift—until it misses the eye, bends the tiny internal hook, and you start questioning your life choices.

The video’s method:

1. If needed, lower the presser foot partially to help alignment.
2. Pull the automatic threader lever (left side) down fully so the hook rotates through the needle eye.
3. Hook the thread under the guide and across the hooks.
4. The Release: Release the lever gently. Do not let it snap back.

Visual cue: A small loop of thread appears behind the needle eye. Pull this loop to finish.

If it doesn’t work, the video’s fix is simple and correct: move the needle up to the highest point using the needle Up/Down button. The threader only aligns at the top of the needle stroke.

Watch out: Forcing the threader lever when the needle isn’t at the correct height is the #1 cause of broken threaders. Precision beats strength here.

Loading a .JEF Design via USB on the Janome 500E: The “Give It a Minute” Reality Check

Design loading is relatively straightforward, but beginners often panic when the screen takes longer than expected, fearing a crash.

The video workflow:

1. Insert the USB stick into the side port.
2. On the touchscreen, select the USB icon (middle tab).
3. Navigate the folder structure (shown as “Embf/EMF” in the video).
4. Select the desired .JEF file.
5. Wait.




The creator explicitly notes it can take longer than usual—up to about a minute in their example—because there are plenty of files on the drive. This is normal behavior for the processor.

Pro tip: Keep a “TEST” folder on your USB with 3–5 known-good designs. When something looks off with a new file, you can quickly run a test file to confirm whether the issue is the new design or the machine itself.

Locking in the SQ14b 140×140 Hoop on Janome 500E: Secure the Pins, Then Trust the Popup

In the video, the fabric is already hooped with stabilizer/backing. The on-camera step is attaching the hoop to the embroidery arm.

The Hooping Bottleneck: Hooping is often the most frustrating part of the process. If you struggle with "hoop burn" (permanent marks on fabric) or wrist pain from tightening screws, this is where you start looking for better tools. Many users eventually switch to magnetic options (discussed later) to solve this, but for now, let's master the standard hoop.

What the video shows:

1. Slide the prepared hoop under the presser foot.
2. Align the hoop connector pins with the carriage slots.
3. Rotate the locking lever to secure it.

Sensory Check: The hoop should feel rigid. Give it a tiny wiggle—it should move the whole carriage arm, not wiggle on the arm.

Then the machine confirms the detected hoop size: SQ14b (140×140mm).

If you’re shopping or organizing janome memory craft 500e hoops, this popup is your electronic sanity check: it confirms the machine recognizes the boundary limits before you stitch.

Warning: Magnet Safety Hazard. If you choose to upgrade to Magnetic Hoops later, be aware they are incredibly powerful. Keep them away from pacemakers and medical implants. Do not let fingers get pinched between the magnets and the metal frame—it can cause blood blisters or crushing injuries.

The Janome 500E Screen Adjustments That Matter: Tension 1.8, Thread Cut “2,” and Speed 600 spm

Once the design is selected, the video enters the adjustment menu. This is where empirical data meets personal preference.

Thread tension: Lowering to 1.8

The creator taps the Adjust area and lowers the thread tension to 1.8. Context: The standard default is usually around 2.2 to 2.6. Lowering it to 1.8 relaxes the top thread, allowing the bobbin thread to pull the top thread slightly to the back. This is excellent for ensuring no white bobbin thread shows on top, but be careful going too low, or your stitches will loop on top.

Thread cutting setting

In the same adjustment area, the video shows a thread cutting value of 2. This controls the tail length left after a trim.

Speed and design info

The video shows:

• Speed set to 600 spm (Stitches Per Minute).
• Expert Insight: While the machine can go faster, 600 SPM is the "Sweet Spot" for minimizing thread breaks and ensuring high sheen on satin stitches.
• Design size 55×60 mm.
• Stitch count 1535.


If you’re comparing janome 500e hoops options for small logos, these numbers remind us that even small designs require stable speed.

Setup Checklist (Right before you press Start)

• Visual Preview: Design fits inside the hoop boundary on screen.
• Hoop Detection: Popup confirmed SQ14b 140×140mm.
• Tension: Adjusted to 1.8 (or your preferred test setting).
• Speed: Confirmed at 600 spm (safe entry speed).
• Thread Path: Rechecked. Thread is in the take-up lever eyelet?
• Presser Foot: Ready to be lowered.

Starting the Stitch-Out on Janome Memory Craft 500E: The Presser Foot Lever Rule You Can’t Skip

The video is crystal clear here: You generally cannot start until the foot is down.

1. Lower the presser foot using the lever on the back/right.
2. The Start/Stop button will turn Green (Illuminated).
3. Press and hold until the machine begins stitching.


Ergonomics tip: Position your machine so you can reach the presser foot lever and Start/Stop without twisting your spine or hyper-extending your wrist. Repetitive strain injury is real in the embroidery business.

Operation Checklist (While it’s stitching)

• The First 30 Stitches: Watch like a hawk. Is the thread catching? Is the fabric bunching?
• Sound Check: Listen for a rhythmic hum. A sharp clack-clack or grinding sound means PAUSE immediately.
• Safety: Hands off the hoop path.
• Recall: If you stop mid-design, note the stitch number on the screen.

Fabric + Stabilizer Decision Tree for Janome 500E: Stop Guessing, Start Matching Materials

The video uses a white woven fabric with backing already applied. Woven cotton is the "gold standard" for testing because it is stable. However, real life involves stretchy t-shirts and thick towels.

Use this decision logic to prevent ruined garments:

Decision Tree: What stabilizer should I start with?

• Scenario A: The fabric stretches (T-shirts, Polos, Knits).
  • Rule: If it stretches, the backing must NOT stretch.
  • Solution: Use Cut-Away stabilizer.
  • Why? Tear-away will disintegrate efficiently, but then the stretchy fabric will distort the design into a ball.
• Scenario B: The fabric is stable (Denim, Canvas, Twill).
  • Rule: The backing just needs to support the needle penetration.
  • Solution: Tear-Away is usually fine.
• Scenario C: The fabric has a "pile" or fluff (Towels, Fleece, Velvet).
  • Rule: Prevent stitches from sinking into the mud.
  • Solution: Use a Water Soluble Topper on top + Cut-Away/Tear-Away on the bottom.

When you’re practicing hooping for embroidery machine mastery, remember: Hoop tension provides the canvas, but stabilizer provides the foundation.

Quick Fixes for the “It Won’t Thread” Moment: Needle Threader Failure on Janome 500E

The video includes one key troubleshooting item that frustrates beginners most.

Symptom: The automatic needle threader lever goes down but doesn't pull the thread through.

• Likely Cause (Video): Needle is not at the supreme highest position.
• The Fix: Press the Needle Up/Down button twice to cycle the needle to its true "home" position.

Advanced Troubleshooting (If that fails):

1. Check bent hook: Look closely at the threader. Is the tiny metal hook bent? (Requires part replacement).
2. Wrong Needle: Are you using a size 60/8 needle? The eye might be too small for the hook. Use size 75/11 or 90/14.
3. Burr Check: Run your fingernail down the needle tip. If it catches, throw the needle away.

The Finished Stitch-Out Standard: What to Look for Before You Call It “Good”

At the end, the video shows the completed gold signature-style design still in the hoop.

Use this moment to train your eye. On a clean test stitch-out, you want:

• Smooth Satin Edges: No fuzzy “hair” or jagged lines.
• Tension Balance: No white bobbin thread showing on top (the 1.8 tension setting helped here).
• Flatness: Minimal puckering around the dense areas.

If you are running a business, "it looks okay" isn't enough. It must look crisp.

When Your Workflow Outgrows the Standard Hoop: Faster Hooping, Less Hoop Burn, and a Real Upgrade Path

Home embroidery is often limited by setup time, not stitch time. If you find yourself spending 5 minutes hooping for a 2-minute stitch-out, you have a workflow bottleneck.

Level 1: Tool Upgrades (The Magnetic Solution) If you struggle with hoop burn on delicate items or can't get thick towels into the standard SQ14b hoop, consider upgrading to Magnetic Hoops.

• Many professionals search for magnetic embroidery hoops for janome 500e because they snap the fabric into place instantly without the "screw-tightening" struggle.
• They reduce wrist strain and virtually eliminate hoop marks, making them a favorite for boutique owners.

Level 2: Process Upgrades If you are doing repeated placements (e.g., left chest logos on 20 shirts), a hooping station for embroidery helps ensure every logo is in the exact same spot, reducing waste.

Level 3: Machine Upgrades (The Scale-Up) Finally, if you start taking orders for 50+ items, the single-needle 500E will become your limiting factor due to manual thread changes. This is the "Decision Criteria" moment: simply adding better hoops for embroidery machines might not be enough. This is when upgrading to a SEWTECH Multi-Needle Machine becomes a business decision—saving you hours of thread-change time and increasing your daily profit margin.

Master the 500E first, but know that better tools exist when you are ready to grow.

FAQ

• Q: What should the Janome Memory Craft 500E owner do when the Janome Memory Craft 500E maintenance pop-up says to wipe the bobbin area and hook race?
  A: Do the wipe first—Janome Memory Craft 500E maintenance prompts often prevent thread nests and looping that beginners blame on “bad thread.”
  • Power off the Janome Memory Craft 500E before putting fingers near the needle/bobbin area.
  • Use a lint-free cloth with a small amount of suitable cleaning liquid and gently wipe around the bobbin area holder and hook race.
  • Reinstall parts and restart, then run a small test design to confirm stable stitching.
  • Success check: the stitch-out sounds smooth and the underside shows no sudden “bird’s nest” looping.
  • If it still fails: remove the bobbin cover and re-check bobbin installation and upper threading path before changing tension.
• Q: How do you install the drop-in bobbin on the Janome Memory Craft 500E to avoid underside looping and “free-wheel” bobbin tension?
  A: Insert the bobbin counter-clockwise in the Janome “P shape,” and make sure the thread is truly under the bobbin tension spring.
  • Drop the bobbin so the thread comes off the top to the left (counter-clockwise “P” orientation).
  • Guide thread through the slit, then pull it around the tension spring into the cutter groove.
  • Feel for slight resistance while pulling (the “flossing teeth” drag).
  • Success check: you feel a consistent light drag and the clear cover plate clicks in firmly.
  • If it still fails: re-seat the thread under the spring—if the thread is not engaged, top tension changes will not fix the looping.
• Q: What is the correct upper threading method on the Janome Memory Craft 500E when the Janome Memory Craft 500E keeps stitching with no tension or sudden looping?
  A: Thread the Janome Memory Craft 500E with the presser foot UP and follow the numbered 1–5 path exactly—don’t freestyle.
  • Lift the presser foot to open the tension discs before threading.
  • Follow the solid-line numbered guides (1–5) and go under the pre-tension guide.
  • Confirm the thread is actually inside the take-up lever eyelet by looking into the slot.
  • Success check: the thread path is fully seated in every guide and the machine forms balanced stitches without top-thread “floating” loops.
  • If it still fails: fully rethread from the spool (not from mid-path) and re-check the bobbin “P shape” install.
• Q: How do you fix the Janome Memory Craft 500E automatic needle threader when the Janome Memory Craft 500E needle threader lever goes down but does not pull thread through the needle eye?
  A: Move the needle to the highest position first—Janome Memory Craft 500E needle threaders only align at the top of the needle stroke.
  • Press the Needle Up/Down button until the needle is at the true highest point (often pressing twice helps).
  • Pull the threader lever down fully so the hook rotates through the needle eye, then guide thread correctly on the hooks.
  • Release the lever gently (do not let it snap back).
  • Success check: a small loop appears behind the needle eye and pulls through smoothly.
  • If it still fails: inspect for a bent threader hook or change from an extra-small needle size (for example, avoid 60/8 if the hook cannot catch reliably).
• Q: How long should a Janome Memory Craft 500E owner wait when loading a .JEF design via USB on the Janome Memory Craft 500E and the screen feels “stuck”?
  A: Waiting up to about a minute can be normal on the Janome Memory Craft 500E when the USB drive has many files.
  • Leave the USB inserted and avoid tapping repeatedly while the Janome Memory Craft 500E is reading the file list.
  • Keep a small “TEST” folder with 3–5 known-good .JEF files to verify the machine quickly.
  • Try loading a known-good test file if a new file behaves oddly.
  • Success check: the design preview loads and you can proceed to the stitch screen without freezing.
  • If it still fails: reduce the number of files on the USB drive and retry with a single known-good design.
• Q: How do you confirm the SQ14b 140×140 hoop is correctly locked on the Janome Memory Craft 500E before stitching starts?
  A: Seat the connector pins, lock the lever, then use the Janome Memory Craft 500E hoop-size popup as confirmation.
  • Slide the hooped fabric under the presser foot and align the hoop connector pins with the carriage slots.
  • Rotate the locking lever fully to secure the hoop.
  • Give a tiny wiggle test to confirm rigidity.
  • Success check: the hoop moves the whole carriage arm (not wobbling on the arm) and the screen detects SQ14b (140×140mm).
  • If it still fails: remove and reattach the hoop—do not start stitching until the hoop is rigid and detected correctly.
• Q: What are the key safety rules for operating the Janome Memory Craft 500E needle and for handling magnetic embroidery hoops during an upgrade?
  A: Power off for any hands-near-needle work on the Janome Memory Craft 500E, and treat magnetic embroidery hoops as pinch/crush hazards and implant hazards.
  • Turn off the Janome Memory Craft 500E before cleaning near the needle area or bobbin/hook zone to prevent accidental Start-button injury.
  • Keep hair, sleeves, and tools clear of moving parts during stitch-out; keep hands off the hoop path.
  • Keep magnetic embroidery hoops away from pacemakers/medical implants and never let fingers sit between magnets and the metal frame.
  • Success check: no hand enters the needle/hoop path while the machine is powered, and magnetic frames are joined without finger pinches.
  • If it still fails: pause and reposition the setup—do not “work through” unsafe access or awkward reach.
