Janome Memory Craft 500e ITH Fabric Coaster: The Flip-and-Stitch Method That Actually Lines Up (and Doesn’t Pucker)

If you have ever watched an In-The-Hoop (ITH) coaster stitch out perfectly in a YouTube video—only to face puckering fabric, shifting layers, or a crooked envelope back in your own studio—you are not alone. Embroidery is an experience science, and videos often edit out the tactile reality of managing fabric tension.

The good news: this Janome Memory Craft 500e coaster project is indeed a beginner-friendly win, if and only if you treat hoop engineering and layer control as the main event. Consider the stitching merely the applause at the end.

This project is a functional ITH coaster: you hoop batting directly, let the design stitch a blueprint, use a "flip-and-stitch" technique to piece triangles, add decorative quilting, and attach a hemmed envelope backing. Finally, you trim, clip, and turn.

Gather the Exact Supplies for a Janome Memory Craft 500e ITH Coaster (and Avoid the “Why Is Mine Shifting?” Moment)

From the video, the core materials seem simple. However, after 20 years in the industry, I know that the difference between a "homemade" look and a professional finish usually hides in the unlisted consumables.

You will be handling the hoop repeatedly—inserting it, removing it to trim, putting it back in. This physical handling is where 80% of beginners introduce distortion.

The "Hidden" Consumables List:
* Needle: Organ or Schmetz 75/11 Embroidery or Topstitch needles (Sharp points are better than ballpoint for piercing batting cleanly).
* Adhesive: Temporary spray adhesive (like Odif 505) or paper tape (medical tape works well) to hold fabric wings down.
* Bobbin: 60wt or 90wt bobbin thread (white, as it won't be seen).

If you are still getting familiar with how standard embroidery machine hoops mechanically grip fabric, think of this coaster as a "tension control" exercise. Standard screw-tightened hoops rely on friction; if that friction gives way, your square coaster becomes a parallelogram.

What the video uses (and what you should prep):

• Janome Memory Craft 500e (or equivalent 5x7+ field machine).
• Standard SQ14b or RE20b Hoop (The video shows the standard grey plastic hoop).
• Natural Cotton Batting (cut 2 inches larger than the hoop on all sides).
• Charm Pack Squares (5-inch pre-cuts are ideal).
• Rotary cutter + clear ruler (Accuracy here prevents bulky seams later).
• Curved Embroidery Scissors (Essential for trimming inside the hoop without snipping the batting).
• Standard sewing machine (Solely for the straight hem on the back).


The “Hidden” Prep Pros Do Before the First Stitch

Professional digitizers and operators don't just "start." We condition our materials.

1. De-compress your batting: Batting from a roll has "memory." Unfurl it and lightly steam it (hovering the iron, not pressing hard) to relax the fibers. If you hoop it while it's compressed, it will expand later, causing wrinkles under your fabric.
2. Starch your fabric strips: A quick spray of starch on your charm squares makes them stiff like paper. This prevents them from curling up when the embroidery foot travels over them.
3. Plan your failure points: The most common failure is the fabric "wing" flipping up and getting stitched down in the wrong place. Have your tape ready.

Prep Checklist (End-of-prep / Pre-Flight):

• Batting is cut at least 2 inches wider than the hoop frame on all sides.
• One 5-inch charm square is cut diagonally (corner-to-corner) into two perfect triangles.
• One 5-inch charm square is cut in half (2.5" x 5") for the backing.
• Physical Check: Run your fingernail over your scissor blades; if they catch, they are too dull for precision trimming.
• Machine Check: Bobbin area is cleaned of lint (use the little brush, never canned air).


Hooping Natural Batting on the Janome 500e: Get It Smooth, Not Stretched

In the video, the natural batting is hooped directly. This is the foundation of your house. If the foundation moves, the house creates cracks.

Here’s the nuance: "Taut" does not mean "Stretched."

The Sensory Check:

• Wrong: If you tap the hooped batting and it pings like a high-pitched snare drum, you have over-stretched it. When you unhoop, it will snap back, and your coaster will shrink.
• Wrong: If it sags or you can push a wave of material around, it's too loose.
• Right: It should feel like a firm trampoline. You want "neutral tension"—flat, held firmly, but with the fibers in their natural state.

If you are currently comparing janome memory craft 500e hoops, distinct differences exist in how they grip thickness. Standard hoops require you to loosen the screw significantly for batting, which can cause "hoop burn" (crushed fibers) or uneven tension if the inner ring pops out.

Setup Checklist (Right before you press Start)

• Hoop Check: The inner ring protrudes slightly (1-2mm) past the outer ring on the bottom (preventing pop-out).
• Clearance: Nothing is behind the machine arm that could obstruct the quilt block movement.
• Needle: A fresh 75/11 needle is inserted (dull needles push batting down into the bobbin case).
• Speed Control: Lower your Janome 500e speed to 600 SPM (Stitches Per Minute). Default speed (860 SPM) is often too aggressive for multi-layer ITH projects.

Let the Placement Stitch Do the Measuring: The Janome 500e Tack-Down Line Is Your Map

The machine first stitches a "dieline" or placement line directly onto the batting. This includes the square perimeter and a critical diagonal center line.

The Empirical Goal: You need a geometric reference. Checkpoint: Look at the stitch quality.

• Visual: Is the thread laying flat on top of the batting?
• Correction: If the thread is burying itself deep into the batting (disappearing), your top tension might be too high. For batting, you might need to lower tension slightly (e.g., from 3.0 to 2.6 or "Auto-minus") so the thread sits on top and remains visible for alignment.

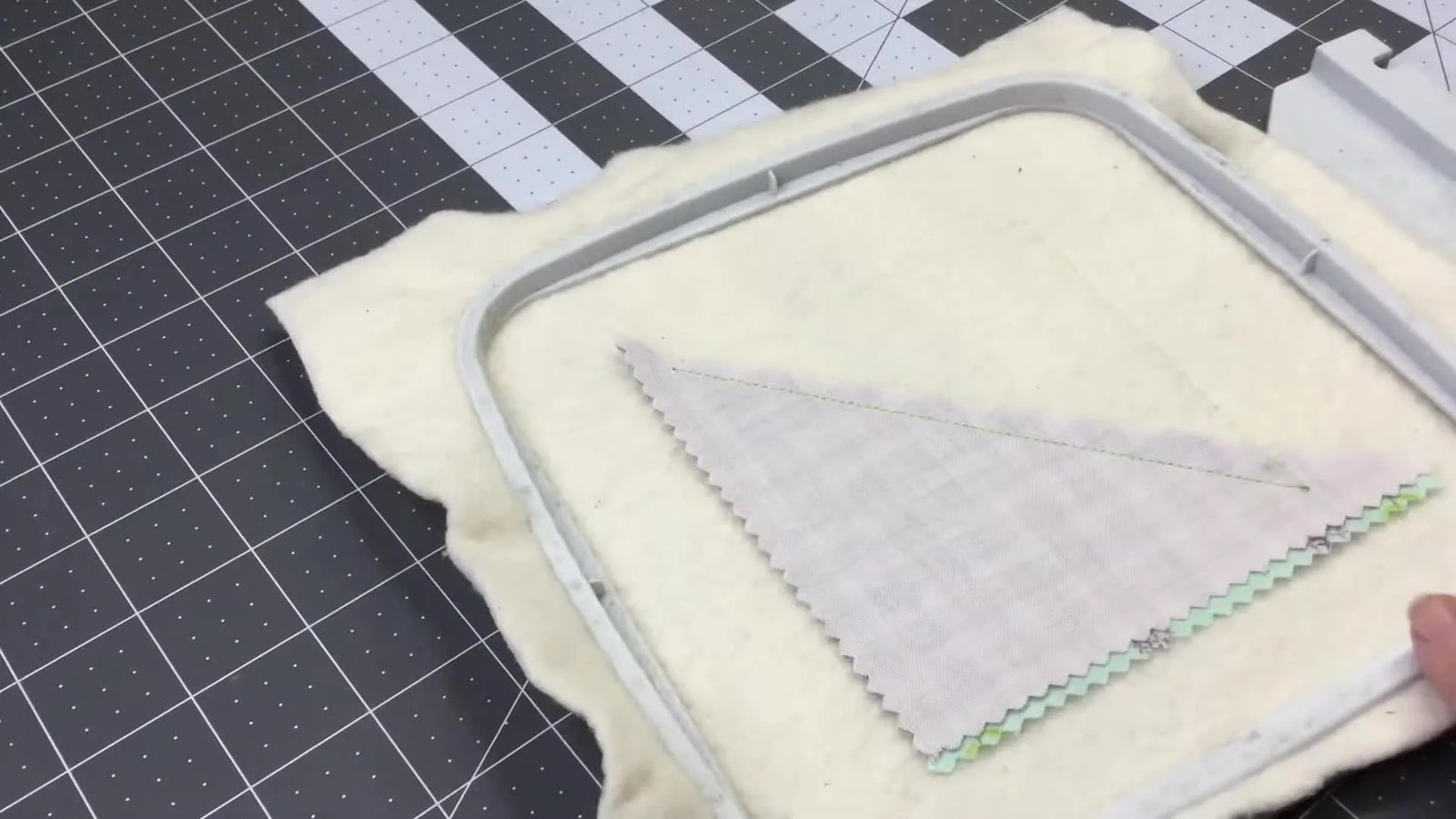

The Flip-and-Stitch Seam on a Janome 500e: How to Place the Two Triangles So the Diagonal Actually Matches

The video cuts a 5-inch charm square diagonally. The physics here are tricky: you are placing fabric against the direction it will eventually lay.

The Expert Method:

1. Take your two triangles. Stack them right-sides pointing up, then flip one over so they are Right Sides Together (RST).
2. Align the long cut edge exactly with the diagonal placement stitch on the batting.
3. Crucial Step: Center them. Ensure the points of the triangles extend past the square's corners equally.

Why Beginners Fail Here: The embroidery foot lifts slightly when it moves. If your fabric is loose, the foot will shove the fabric out of alignment just before the needle drops. The Fix: Use a strip of painter's tape or paper tape on the corners of the triangles to tape them to the batting far outside the stitch path.

Why this works (and why it sometimes doesn’t)

This technique relies on the "hinge" concept. The seam creates a hinge. If the hinge is crooked (even by 1mm), the door (your fabric) won't close squarely. In embroidery, we don't have feed dogs to guide the fabric straight; we rely entirely on your manual placement.

Finger-Pressing in the Hoop: Flatten the Seam Without Distorting the Batting

After stitching the diagonal seam, you must flip the triangles open so they cover the square.

Sensory Instruction: Do not "rub" the fabric open. Rubbing stretches the bias (the diagonal cut) which is very stretchy. Instead, use a "Roll and Press" motion with your fingernail or a specialized seam creaser tool. Press firmly down, not sideways.

If you are doing production runs and find that re-tightening the screw hoop between steps is hurting your hands, this is a workflow where a magnetic hoop for janome 500e shines. Magnetic hoops allow you to adjust tension by simply lifting a magnet rather than unscrewing the entire frame, which preserves your wrist health during repetitive tasks.

Warning: Physical Safety
Never place your fingers inside the hoop while the machine is active. Keep your hands on the outer frame. If you need to hold fabric down, use the eraser end of a pencil or a chopstick—never your finger. A 75/11 needle moving at 600 SPM stitches faster than your reflex arc can react.

Decorative Quilting Lines: Let the Janome 500e Stitch the Texture, but Don’t Let Bulk Build Up

Now the machine will tack down the perimeter and run the decorative quilting (stippling or wavy lines).

The Threat: Fabric Bubbling. As the machine adds stitches, it pushes a microscopic wave of fabric in front of the foot. By the time it reaches the end of the coaster, that wave becomes a visible pucker. The Counter-Measure:

1. Float method: Before this step, lightly spray the back of your flipped triangles with temporary adhesive spray (spray the fabric, not the machine!) before smoothing them down onto the batting.
2. Slow Down: Reduce speed to 400-500 SPM. This gives the fabric time to relax between needle penetrations.

Envelope Backing on an ITH Coaster: Cut the 2.5-Inch Strips and Hem Them Cleanly First

Switch to your sewing machine. Take your remaining 5-inch square, cut it into two 2.5" x 5" strips. Fold one long edge over by 1/4 inch (6mm) and stitch a straight hem.

Production Tip: Chain-piece these. If making 4 coasters, cut all strips and sew all hems in one continuous run on your sewing machine to save thread and time.

Comment-based note: While the design source is likely "Parker on the Porch," the principles apply to any "Mug Rug" or Coaster ITH file. Always verify the file extends past the placement line to catch the raw edges.

Place the Backing Strips Right-Sides Together: Overlap in the Center So It Turns Like a Real Closure

Return to the embroidery machine. Place the strips Face Down (Right Sides Together with the coaster front).

The Logic of the Overlap: Place the first strip so the raw edges align with the top/sides of the square placement line. Place the second strip aligning with the bottom/sides. Even though the video shows a simple overlap, ensure the hemmed edges overlap in the center by at least 0.75 inches.

• Too little overlap: The coaster gapes open.
• Too much overlap: The center becomes a thick lump that wobbles your coffee mug.


A quick decision tree: Stabilizer/backing strategy for ITH coasters

The video shows Batting Only. Is that right for you? Use this logic:

• Scenario A: Standard Cotton + High Loft Batting.
  • Recommendation: Batting Only. The loft provides structure. (Video Method).
• Scenario B: Thin/Dense Batting (Warm & Natural) + Slippery Fabric.
  • Recommendation: Add Tearaway Stabilizer under the batting. It adds firmness for the hoop to grip, preventing the "hourglass" distortion effect.
• Scenario C: Knit/Stretchy Fabric (T-shirt material).
  • Recommendation: Add Fusible No-Show Mesh (Cutaway). Iron it to the back of the knit fabric before you even start. The coaster will warp without it.

The Final Perimeter Double Stitch: Lock Every Layer Before You Trim Anything

The machine runs the final "Bean Stitch" or triple stitch perimeter. This cuts through: Top Fabric + Batting + Backing Strip 1 + Backing Strip 2. That is 4 layers plus thread.

Critical Action: Watch the foot! As the foot crosses the "hump" where the backing strips overlap, it can get stuck or push the fabric. Fix: If you hear the machine thumping hard, slow it down to minimum speed for just that crossing interaction.

Trim, Clip Corners, Turn: The Finishing Moves That Separate “Cute” from “Clean”

Remove the hoop. Unhoop the material. Now you are a sculptor.

The "Quarter-Inch" Rule (Modified):

1. Sides: Trim 1/4 inch from the stitch line.
2. Corners: This is the secret. Trim across the corner at a 45-degree angle, getting close (2mm) to the stitch without cutting it. Then, trim slightly up the sides near the corner to reduce bulk. Ideally, it should look like a blunt arrowhead.

Turning: Turn the coaster right side out. Use a "point turner" or a chopstick to poke the corners.

• Sensory Check: Push gently. If you hear a "pop," you pushed too hard and broke the stitches. If the corner is round, you didn't trim enough bulk.


Warning: Magnetic Hoop Safety
If you decide to upgrade to high-end tools, be aware that industrial-grade magnets are powerful. They can pinch skin severely (blood blister territory). Always slide magnets off the frame rather than pulling them straight up, and keep them far away from pacemakers and computerized machine screens.

Operation Checklist (Post-Production QC)

• Squareness: Is the coaster actually square, or skewed? (Skewing means hoop tension was uneven).
• Seam Security: Pull gently on the envelope back. Do stitches show? (If so, stitch length was too long or tension too loose).
• Tactile Feel: Run your hand over the surface. It should be flat. If it feels "puffy" in the center but tight on the edges, the fabric wasn't smoothed properly.

The “Why” Behind the Common Failures: Puckers, Crooked Diagonals, and Bulky Corners

Troubleshooting is about logic, not luck.

When This “Simple Coaster” Turns Into a Production Job: Smart Upgrades That Save Time

Making one coaster is a hobby. Making 50 for a craft fair is manufacturing. When you cross that line, manual friction points (hooping, trimming, color changes) eat your profit margin.

Here is the professional upgrade path based on production bottlenecks:

1. The "Hoop Burn" Bottleneck:
   If you spend 3 minutes wrestling a screw hoop to get thick batting secured, you are wasting time.
   • The Upgrade: Magnetic Hoops. Industrial-style magnetic frames clamp straight down. They don't distort the fabric because there is no "inner ring friction." If you search for magnetic embroidery hoops for janome 500e, prioritize models that use high-gauss magnets to hold thick quilting sandwiches without slipping.
2. The "Crooked Alignment" Bottleneck:
   If every third coaster is slightly crooked because you can't see straight on the table:
   • The Upgrade: A hooping station for embroidery. These provide a grid and a jig to hold the hoop while you align fabrics, guaranteeing consistency across a batch of 50 units.
3. The "Volume" Bottleneck:
   If you are turning away orders because you can't stitch fast enough on a single-needle machine:
   • The Upgrade: Multi-Needle Machines (e.g., SEWTECH). Moving to a 10-needle or 15-needle machine allows you to set up the next hoop while the current one runs. It transforms embroidery from "waiting" to "working."
4. The "Standardization" Strategy:
   Regardless of your machine, standardizing your hoop system is key. Many professionals adopt third-party compatible janome 500e hoops or magnetic equivalents to ensure that every frame they own behaves identically, reducing the variable of "that one loose hoop."

Quick Reference: The Video’s Key Measurements

• Charm Pack Square: 5.0" x 5.0"
• Triangle Cut: Diagonal (Corner to Corner)
• Backing Strips: 2.5" x 5.0" (Two pieces)
• Hem Fold: approx. 1/4" (6mm)

Embroidery is a discipline of precision. The Janome 500e provides the mechanical accuracy; your job is to provide the material stability. Master the hoop, and the stitch will follow.

FAQ

• Q: What needle, bobbin thread, and “hidden consumables” should be prepared for a Janome Memory Craft 500e ITH coaster to prevent fabric shifting?
  A: Use a fresh 75/11 embroidery or topstitch needle, fine bobbin thread, and a simple hold-down method (temporary spray adhesive or tape) before starting—this prevents most shifting issues.
  • Install: Organ or Schmetz 75/11 embroidery/topstitch needle (go sharp for clean batting penetration).
  • Load: 60wt or 90wt white bobbin thread so the underside stays clean and low-bulk.
  • Secure: Keep Odif 505-style temporary adhesive or paper/medical tape ready to stop fabric “wings” from flipping.
  • Success check: Fabric corners stay flat during the first tack-down/placement stitches without creeping under the presser foot.
  • If it still fails: Reduce machine speed and add a light adhesive “float” before quilting lines.
• Q: How should natural cotton batting be hooped in a Janome Memory Craft 500e hoop so the ITH coaster stays square without puckers?
  A: Hoop the batting smooth at “neutral tension”—flat and firm, but never stretched—because over-tight hooping rebounds after unhooping and distorts the coaster.
  • Cut: Batting at least 2 inches larger than the hoop on all sides before hooping.
  • Hoop: Tighten until the batting feels like a firm trampoline, not a high-pitched drum.
  • Verify: Ensure the inner ring protrudes about 1–2 mm past the outer ring on the bottom to reduce pop-out risk.
  • Success check: Batting surface looks evenly flat with no waves, and tapping gives a dull, firm feel (not a sharp “ping”).
  • If it still fails: Add tearaway stabilizer under the batting for a firmer grip when batting/fabric is slippery or thin.
• Q: What Janome Memory Craft 500e speed and tension adjustments help prevent thread burying and puckering on batting-only ITH coasters?
  A: Slow the Janome Memory Craft 500e down and keep the placement line visible on batting; speed and overly high top tension are common causes of distortion.
  • Set: Run the project around 600 SPM for general stitching; slow to 400–500 SPM for decorative quilting lines.
  • Observe: If the placement stitch disappears into the batting, lower top tension slightly (for example from 3.0 to 2.6 or an auto-minus adjustment, depending on the machine).
  • Clean: Brush lint from the bobbin area before starting to reduce drag and tension inconsistency.
  • Success check: Placement stitches sit on top of the batting and remain clearly visible as an alignment map.
  • If it still fails: Re-thread the upper path with the presser foot up and confirm the bobbin is seated correctly.
• Q: How can the flip-and-stitch triangles shift on a Janome Memory Craft 500e ITH coaster, and what is the fastest way to keep the diagonal perfectly aligned?
  A: Tape the triangle corners outside the stitch path before stitching, because the presser foot lift-and-travel can shove loose fabric just before needle drop.
  • Align: Match the long cut edge of the Right-Sides-Together triangles exactly to the diagonal placement stitch line.
  • Center: Extend triangle points past the square corners evenly so the opened piece covers the full square.
  • Secure: Tape triangle corners down on the batting well away from the seam line.
  • Success check: After stitching and flipping open, the diagonal seam lands straight and centered with equal coverage at all four corners.
  • If it still fails: Use a light temporary adhesive “float” on the fabric back before smoothing it onto the batting.
• Q: What causes a wavy top or puckers on a Janome Memory Craft 500e ITH coaster during decorative quilting, and how do you stop fabric bubbling?
  A: Don’t over-smooth or stretch the fabric; use a light adhesive float and slow down so the fabric doesn’t build a wave ahead of the presser foot.
  • Spray: Lightly apply temporary adhesive to the back of the flipped-open fabric (spray fabric away from the machine), then smooth into place.
  • Slow: Drop speed to about 400–500 SPM during quilting/stippling to reduce push and heat buildup.
  • Place: Tap fabric into position instead of rubbing it sideways (rubbing stretches bias cuts).
  • Success check: Quilting lines stay flat with no “bubbles” forming toward the end of the stitch field.
  • If it still fails: Add tearaway stabilizer under batting for more rigidity and re-check hoop tension evenness.
• Q: What should be watched during the Janome Memory Craft 500e final perimeter bean stitch on an ITH coaster to avoid thumping, shifting, or needle stress at the envelope-back overlap?
  A: Slow down at the overlap “hump” and watch presser-foot behavior closely, because the stacked backing strips can momentarily stop the foot or push fabric.
  • Overlap: Ensure the hemmed backing edges overlap in the center by at least 0.75 inches to close properly without excessive bulk.
  • Monitor: Listen and feel for thumping when crossing the overlapped center section.
  • Adjust: Reduce to minimum speed just for that crossing if the machine sounds like it’s hitting a bump.
  • Success check: The perimeter stitch remains evenly formed through all layers without audible hammering or visible stitch skipping at the overlap.
  • If it still fails: Check needle condition/size and confirm the design is centered using the machine’s trace function.
• Q: What needle and magnetic-hoop safety rules should be followed when running a Janome Memory Craft 500e ITH coaster at 600 SPM?
  A: Keep hands out of the hoop area during stitching and handle strong magnets by sliding them off—both needle strikes and magnet pinches are common, preventable injuries.
  • Keep clear: Never place fingers inside the hoop while the Janome Memory Craft 500e is running; use a chopstick or pencil eraser to press fabric if needed.
  • Control speed: Run slower for multi-layer steps so there is less aggressive fabric movement under the foot.
  • Handle magnets: Slide magnets off the frame rather than pulling straight up to reduce pinch risk; keep magnets away from pacemakers and sensitive screens.
  • Success check: Hands stay on the outer frame only, and magnets can be removed without skin pinching or snapping together unexpectedly.
  • If it still fails: Pause the machine, re-position using tools (not fingers), and consider a workflow change that reduces in-hoop handling.
