Janome MC550E Towel Embroidery Without Hoop Burn: A Clean “Floating” Wolf Stitch-Out (and When a Magnetic Hoop Is the Smarter Move)

Towels are the classic "trojan horse" of the embroidery world. They look soft and inviting, but structurally, they are a chaotic terrain of loops designed to lift, wiggle, and swallow your beautiful satin stitches. If you are reading this, you likely know the frustration of watching a terry cloth loop poke through a wolf’s eye, or seeing a design warp into an oval because the fabric shifted mid-stitch.

The good news: the project analysis below proves you can achieve a commercial-grade, crisp stitch-out on a towel with a customized Janome Memory Craft 550E (MC550E). The secret lies in a specific trinity: a floating method, water-soluble topping, and strict friction management.

Below is a reconstructed, "factory-floor" standard operating procedure (SOP). We will analyze how Mary K. executes a multicolor wolf design from Zdigitizing on a grey textured towel, running at a conservative 600 spm. More importantly, we will break down the sensory cues and safety checks you need to replicate this success without ruining expensive blanks.

The “Don’t Panic” Moment: Why Towels Misbehave on the Janome MC550E (and Why This Method Works)

To master towels, you must first understand the physics fighting against you. Terry cloth has "loft" (height) and "nap" (direction). When you try to force a thick folded towel into a standard plastic hoop, two things happen:

1. Hoop Burn: The intense pressure crushes the loops permanently, leaving a ring mark that no amount of steaming will remove.
2. Physics Distortion: You are essentially forcing a 3D object into a 2D clamp. The fabric tends to "trampoline" or stretch unevenly.

Mary’s approach in the video is a classic commercial workaround adapter for a home machine: she hoops the stabilizer firmly, then floats the towel on top. She then adds a water-soluble topping to act as a shield, compressing the loops so stitches sit on the fabric rather than in it.

For those researching floating embroidery hoop techniques, understand that this is the gold standard for textured fabrics. It works because it eliminates the "hoop burn" variable entirely. The towel is not being crushed; it is being anchored.

The Sensory Anchor: When executed correctly, the floating method should feel stable but not strangled. If you run your hand over the hooped stabilizer (before adding the towel), it should sound like a tight drum skin—a sharp thrum. The towel on top, however, should keep its natural fluffiness, held down only by friction and tape (or spray).

Buying the Wolf File on Zdigitizing: Size Choices, Formats, and the Coupon That Drops the Price

In the case study, Mary navigates the Zdigitizing platform to select the wolf design. Note that digital assets are not one-size-fits-all. She reviews the listing, which offers sizes including 3x3, 4x4.75, and 6x7.82 inches.

She applies the coupon code “maryoff” for 50% off the first order. While discounts are helpful, the critical lesson here is digitizing density.

A design meant for a flat shirt often fails on a towel because the "underlay" (the foundation stitches) isn't thick enough. When browsing designs for towels, look for "solid fills" like this wolf.

• Good for Towels: Solid tatami fills, satin columns wider than 2mm.
• Bad for Towels: Single running stitching, airy sketches, tiny text under 5mm.

Commercial Reality Check: Users in the comments praise the "crisp" quality and "fast turnaround." If you are building a business, track your vendors. A cheap design becomes expensive if it causes a thread break every 5 minutes. You want a vendor whose files have "pathing" that minimizes jump stitches—this reduces the risk of the foot catching a loop on the towel during travel moves.

The “Hidden” Prep Before You Touch the Hoop: Thread, Towel Texture, and a Reality Check on Detail

Embroidery is 80% preparation and 20% execution. Before the machine is even turned on, Mary makes critical material choices. She stitches on a grey textured towel using a three-tone green palette (light, sage, teal). She identifies her thread choice as brothread from Amazon.

Hidden Consumables List (What you need but might forget):

• 75/11 Ballpoint Nail: Crucial. Sharp needles can slice terry loops, damaging the towel. Ballpoints slide between them.
• Temporary Spray Adhesive (e.g., 505): While Mary uses tape, a light mist of spray on the stabilizer helps prevent the "center bubble" effect on large towels.
• Fresh Bobbin: Never start a density-heavy project like a full wolf with a half-empty bobbin.
• Tweezers: For plucking loops that might poke through.

The Visibility Test: Perform a physical contrast check. Lay your thread spools on the towel in the room lighting you use. If the thread color melts into the grey towel at arm's length, it will disappear in the finished stitch. You need high contrast (like the light green against grey) to define the edges.

Prep Checklist (do this before hooping):

• Needle Check: Is the needle fresh? Rub the tip specifically on your fingernail; if it scratches, it has a burr. Replace it.
• Design Scale: Does the 6-inch wolf fit the flat band of the towel, or will it hit the thick hem? (Avoid hems at all costs).
• Consumable Staging: Top thread sequence is laid out left-to-right to prevent confusion.
• Topping Cut: Is the water-soluble film cut 1 inch larger than the design on all sides?
• Tape Prep: Pre-cut 4-6 strips of masking tape so you aren't struggling with the dispenser one-handed.


Setting Up the Janome MC550E with the RE28b Hoop: Floating the Towel Without Distortion

Mary configures her Janome MC550E with the RE28b (200 x 280 mm) hoop. Precision in terminology matters—searching for the re28b hoop ensures you are referencing the correct field size for large projects.

The Physics of the Float:

1. Hoop the Stabilizer Only: Place a medium-weight tearaway (or cutaway for stretch towels) in the hoop. Tighten the screw until the stabilizer is taut. Auditory Check: Tap it. It should sound distinct and sharp.
2. Position the Towel: Lay the towel over the hoop. Align the center of the design area with the center markings on the hoop.
3. The Friction Factor: The goal is to maximize friction between the towel and the stabilizer without glue. If the towel slides, the design fails.

Expert Insight: Why float? Because the "inner ring" of a standard hoop creates a "moat" where the towel is pinched. This leads to needle deflection (breaking needles) when stitching near the edge. Floating creates a perfectly flat plane, safe for the machine.

The Towel “Sandwich” That Prevents Loops and Wiggle: Water-Soluble Topping + Four-Corner Tape

Mary constructs the final defense layer: a clear water-soluble stabilizer (film type) placed on top of the towel, secured with four pieces of masking tape at the corners.

This sandwich (Stabilizer + Towel + Topping) is the industry standard for terry cloth. The topping acts like a snowshoe—it distributes the force of the thread so it stays on the surface rather than sinking into the pile.

Tactile "Drum" Warning: Beginners often tape the topping so tightly that it creates tension, like a drum head over the towel. Do not do this. The topping should be flat but relaxed. If it is under tension, as the needle perforates it, the film will rip open prematurely, exposing the loops underneath.

Warning: Mechanical Safety
Ensure your masking tape strips are firmly pressed down and located well outside the embroidery foot's travel path. If the foot catches a loose tape edge, it can drag the entire towel, snapping the needle and potentially throwing the machine's timing out of alignment.

The Stabilizer Decision Tree for Terry Cloth Towels (So You Don’t Guess and Waste a Towel)

Guesswork destroys inventory. Use this logic flow to determine your exact stack.

Decision Tree: Towel + Design → Stabilizer Plan

1. What is the Towel Base?
   • Stretchy/Knit Terry: MUST use Cutaway stabilizer (hooped) to prevent distortion. High risk of warping.
   • Woven/Standard Terry: Can use Tearaway (hooped) for a cleaner back, but use a heavy weight (2.5oz+).
2. How High is the Loop (Pile)?
   • High Pile (Plush Bath Towel): Heavy-weight Water-Soluble Topping required. Float method mandatory to avoid hoop burn.
   • Low Pile (Hand Towel/Velour): Light-weight Topping is sufficient. Standard hooping might work, but floating is safer.
3. What is the Design Density?
   • Solid Fill (Like the Wolf): requires solid support. Ensure hooped stabilizer is tight.
   • Running Stitch/Line Art: High risk of sinking. Use a double layer of topping if the lines are thin.
4. Production Volume?
   • Single Gift: Tape floating is acceptable.
   • Production Run (10+): Tape is too slow and inconsistent. Upgrade to magnetic frames (see Upgrade section).


The “Before You Press Start” Screen Check on the Janome MC550E (This Saves More Projects Than You Think)

Mary validates her screen before committing. The wolf is registered at 9516 stitches.

The "Trace" Ritual: Before stitching, you must run the Trace function (an icon usually showing a square or outline). This moves the hoop around the design's perimeter.

• Visual Check: Does the foot come dangerously close to the plastic hoop edge?
• Tape Check: Does the foot satisfy the clearance over your masking tape?
• Towel Check: Does the needle align with the center mark you placed on the towel?

Setup Checklist (end this section with a real go/no-go):

• Bobbin: Is the bobbin case free of lint? (Terry cloth generates massive dust).
• Topping: Is the film covering the entire trace area?
• Clearance: Is the bulk of the rolled-up towel clear of the machine arm? (It must move freely).
• Thread Path: Is the thread seated deeply in the tension discs? (Pull thread near the needle; you should feel "dental floss" resistance).


Running the Wolf Stitch-Out at 600 SPM: The Speed Choice That Protects Thick Projects

Mary constrains the machine to 600 stitches per minute (SPM). While the Janome MC550E can run faster, she wisely dials it back.

The Physics of Speed vs. Texture: Thick towels create "flagging"—the fabric bounces up and down with the needle. At high speeds (800+ SPM), this bouncing causes skipped stitches and thread shredding. Slowing to 600 SPM (or even 400-500 SPM for beginners) stabilizes the fabric interaction.

Sensory Monitoring:

• Listen: You want a rhythmic, low hum. A sharp chaotic clatter means the needle is struggling to penetrate or hitting the throat plate.
• Watch: Observe the topping. If it starts to shred and "open up" large holes early in the fill, pause and add a second layer of topping over the damaged area.


Color 1: Laying the Light Green Base Without Letting the Towel Texture Show Through

Mary begins with the light green base. This is the foundation layer. It tamps down the loops permanently for the subsequent layers.

Operational Tip: Do not walk away during Color 1. If the towel is going to shift (unstick from the stabilizer), it will happen now due to the drag of the initial fill. Watch the border. If you see the design becoming an oval, stop immediately—your hoop tension or floating adhesion has failed.

Color 2 and Color 3: Thread Changes, Gradient Cleanliness, and Keeping the “Forest” Details Sharp

The machine pauses for the sage green and dark teal changes. The wolf design relies on "blending"—stitches of different colors overlapping to create depth.

The Danger of Downtime: On a single-needle machine like the MC550E, every thread change is a risk. When you handle the hoop to trim jump stitches, you risk bumping the floated towel.

• Technique: Use curved embroidery scissors (snips) to trim tails.
• Action: Press the fabric down gently with your hand (away from needle) when restarting to ensure it hasn't bubbled up.

Mary notes that the stabilizer keeps the loops compressed. This compression is vital for the "forest" silhouette at the bottom of the wolf. Without topping, those fine tree branches would look like broken dotted lines as loops poked through them.

Removing the Water-Soluble Topping: Tear First, Dissolve Later (and Don’t Disturb the Stitches)

Once finished, Mary removes the topping. Her technique is standard:

1. Bulk Removal: Gently tear away the large excess film. Ideally, punch the film near the stitching to create a weak point, then pull away from the stitches, not up.
2. Detail Removal: Use tweezers for small islands of film.
3. Final Polish: Do not soak the whole towel if you don't have to. You can use a wet Q-tip or a damp cloth to dab the remaining film bits. They will dissolve into a clear gel and disappear.

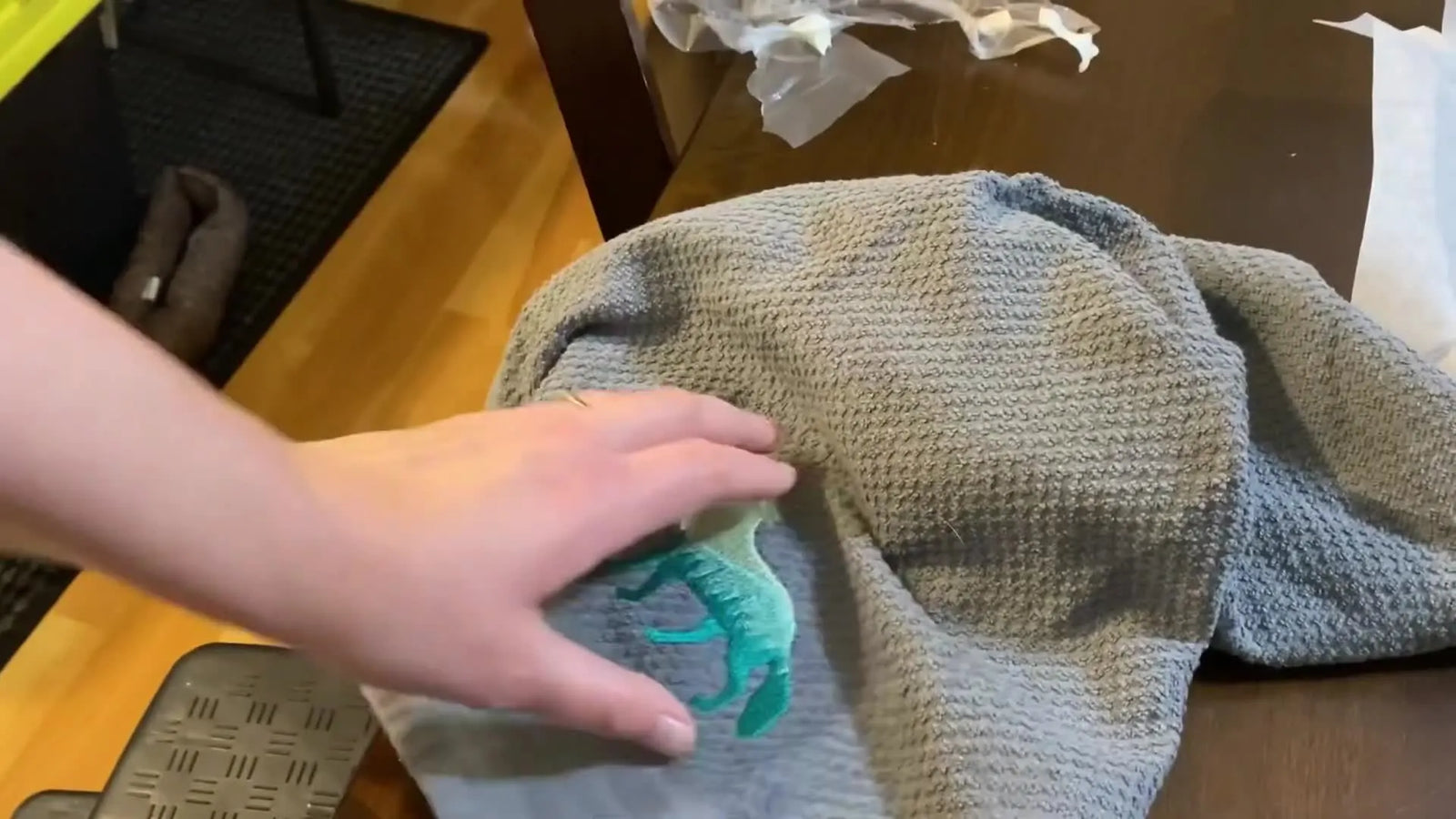

The Finished Wolf on a Grey Towel: What “Crisp” Really Means (and How to Repeat It)

Mary presents the final result. The comments validate the success: precise edges, zero loop interference, and a solid gradient.

Quality Control Metrics:

• Registration: The dark teal outline sits perfectly on the light green fill (no gaps).
• Texture: Rub your thumb over the wolf. It should feel smooth, almost like a patch. If it feels rough or snaggy, the underlay was too thin or the topping failed.
• Shape: The circle/wolf shape is geometrically accurate, proving the towel didn't stretch.


Troubleshooting the Towel Floating Method on the Janome MC550E: Symptoms → Causes → Fixes

Even with perfect prep, variables exist. Use this diagnostic table to save a failing project.

1) Symptom: White "flecks" or loops poking through the design.

• Likely Cause: Topping tore too early or towel pile is aggressive.
• Quick Fix: Stop machine. Place a scrap piece of topping over the area. Continue stitching.
• Prevention: Use heavy-weight topping next time.

2) Symptom: Design outline is "off" (gaps between color and outline).

• Likely Cause: "Flagging" (fabric bouncing) or shifting.
• Quick Fix: None for current piece.
• Prevention: Slow speed to 400 SPM; use more adhesive spray/tape; switch to Cutaway stabilizer.

3) Symptom: Needle breaks with a loud "bang".

• Likely Cause: Needle deflection (hit a thick hem or pulled fabric).
• Quick Fix: Check throat plate for damage. Replace needle.
• Prevention: Use floating method (reduced tension); Avoid stitching near hems.

4) Symptom: Thread bunching on the underside (Birdnesting).

• Likely Cause: Top thread came out of tension discs or bobbin not seated.
• Quick Fix: Cut the nest carefully. Re-thread COMPLETELY (presser foot UP while threading).
• Prevention: "Floss" check on thread path before starting.

5) Symptom: Hoop Burn (Shiny ring on towel).

• Likely Cause: Hooped the towel directly.
• Quick Fix: Steam and brush (rarely works 100%).
• Prevention: Magnetic Hoops (see below).


The Upgrade Path: When Tape Floating Is Fine—and When a Magnetic Hoop Pays You Back

Tape floating is effective, but it is slow. It relies on adhesive, which gums up needles, and tape, which costs money and time. If you find yourself stitching towels frequently, the "pain" of preparation will eventually outweigh the joy of the result.

This is the commercial pivot point where professionals look for hooping for embroidery machine alternatives that rely on physics, not sticky tape.

Level 1: The Efficiency Upgrade (Magnetic Hoops)

If you are tired of hoop burn and sticky residue, a magnetic hoop is the direct solution. Unlike the "inner ring vs. outer ring" mechanism of plastic hoops, magnetic hoops simply clamp the fabric between two flat frames using powerful magnets.

• Benefit: Zero hoop burn (no crushing).
• Benefit: Adjusting a towel takes 3 seconds, not 3 minutes of re-taping.
• Compatibility: When sourcing tools, verifying magnetic hoop for janome 550e compatibility is essential to ensure the brackets fit your machine arm.

Warning: Magnetic Field Safety
Magnetic hoops use industrial-strength magnets (often N52 Neodymium). They create a pinch hazard—fingers can be severely pinched if caught between frames. Keep away from pacemakers, ICDs, and magnetic storage media.

Level 2: The Volume Upgrade (Multi-Needle Machines)

Mary manually changed threads three times. For one towel, that’s fine. For 20 towels, that is hours of lost productivity. If you are scaling a business, the leap from a single-needle Janome to a multi-needle machine (like the SEWTECH series) changes the math.

• Auto Color Change: The machine swaps from Green to Teal automatically.
• Tubular Arm: You can slide a tote bag or towel leg onto the arm without the rest of the fabric bunching up behind the needle.

Ergonomics Check: Repetitive strain from tightening hoop screws and tearing tape is real. Techniques involving a floating embroidery hoop strategy ease this, but a magnetic hooping station solves it by holding the frame steady while you load.

Making the Choice

If you are doing this for fun: Stick to the Mary K. method (Float + Tape). It is cheap and effective. If you are selling your work: Invest in Magnetic Hoops. The time saved on "hooping" pays for the hoop in about 50 towels, and you eliminate the cost of "seconds" (ruined towels).

Operation Checklist (End-of-Project Quality Control):

• Residue: Is all tape adhesive removed? (Check back of towel too).
• Topping: Are all plastic bits removed from tiny crevices? (Use tape to lift them out).
• Trim: Are jump stitches trimmed flush so they don't snag?
• Backing: Is the stabilizer trimmed neatly (leave 1/2 inch margin)?
• Final Presentation: Fold the towel; does the center of the design align with the fold?

By following this disciplined "float and protect" protocol, you turn a chaotic material like terry cloth into a predictable canvas. Slow down, use the right consumables, and let the physics of the stabilizer do the heavy lifting.

FAQ

• Q: How do I prevent hoop burn when embroidering a terry towel on a Janome Memory Craft 550E (MC550E) with the RE28b hoop?
  A: Do not hoop the towel directly—hoop the stabilizer tightly and float the towel on top to eliminate crushing pressure.
  • Hoop only a medium-weight tearaway (or cutaway for stretch towels) until it is taut.
  • Lay the towel flat on top, align to the hoop center marks, and secure with tape or a light mist of temporary spray adhesive.
  • Add water-soluble topping on top of the towel and tape only the corners outside the foot travel area.
  • Success check: the hooped stabilizer taps like a tight drum, while the towel itself still feels naturally fluffy (not strangled).
  • If it still fails… switch to a magnetic hoop to avoid pressure rings and speed up consistent placement.
• Q: How do I know the floating method is stable enough before starting a towel design on a Janome MC550E?
  A: Run the Janome MC550E Trace function and confirm clearance and zero shifting before the first stitch.
  • Tap-test the hooped stabilizer for a sharp, distinct sound before placing the towel.
  • Trace the design perimeter and watch for three risks: hoop edge contact, tape contact, and bulky towel dragging the machine arm.
  • Press the towel down gently (away from the needle area) right before starting to remove any “bubble.”
  • Success check: during Trace, the foot clears tape and hoop edges comfortably and the towel does not creep when the hoop changes direction.
  • If it still fails… add more friction control (extra tape or a light spray adhesive) and slow the machine speed.
• Q: What needle, bobbin, and small tools are most important for embroidering a dense fill design on a terry towel with a Janome MC550E?
  A: Use a fresh 75/11 ballpoint needle, start with a fresh bobbin, and stage trimming tools so the floated towel is not bumped mid-run.
  • Install a 75/11 ballpoint needle to reduce loop damage (sharp needles may slice terry loops).
  • Clean lint from the bobbin area and begin with a fresh bobbin before a dense design.
  • Pre-cut masking tape strips and keep tweezers plus curved snips ready to avoid tugging the towel during thread changes.
  • Success check: the top thread feels like “dental floss” resistance when pulled near the needle (properly seated in tension discs).
  • If it still fails… fully re-thread with the presser foot UP and re-check the bobbin is seated correctly.
• Q: Why does water-soluble topping tear early on terry towels, and how do I fix loops poking through during a Janome MC550E stitch-out?
  A: Stop and patch the area with an extra piece of water-soluble topping, then continue stitching.
  • Pause the machine as soon as “white flecks” or loops start showing through the fill.
  • Lay a scrap of topping over the damaged zone (do not stretch it tight) and secure outside the stitch field if needed.
  • Continue stitching and remove topping later by tearing excess first, then dissolving small bits with a damp cloth or Q-tip.
  • Success check: the fill surface looks smooth and the fine details stop turning into dotted, loopy lines.
  • If it still fails… use a heavier-weight topping next time (or add a second layer earlier for thin line details).
• Q: How do I prevent birdnesting (thread bunching on the underside) when embroidering towels on a Janome Memory Craft 550E (MC550E)?
  A: Cut the nest, then re-thread completely with the presser foot UP and re-seat the bobbin before restarting.
  • Stop immediately and trim the underside nest carefully so fabric and needle area are not forced.
  • Re-thread the top path from spool to needle with the presser foot UP so thread drops into the tension discs.
  • Remove lint around the bobbin area (towels shed heavily) and confirm the bobbin is correctly seated.
  • Success check: after restarting, the stitch-out underside shows clean, even bobbin lines instead of a tangled mass.
  • If it still fails… do the “floss check” again and slow down, because thick towel flagging can amplify tension issues.
• Q: What causes needle breaks on thick towels on a Janome MC550E, and what is the safest immediate response?
  A: Needle breaks usually come from needle deflection (thick hems, shifting fabric, or the foot catching tape), so stop, inspect, and reset safely.
  • Stop the machine immediately and remove any loose tape pieces that could be dragged by the embroidery foot.
  • Inspect the throat plate area for nicks and replace the needle before resuming.
  • Re-check placement so the design avoids thick hems and confirm the rolled towel bulk clears the machine arm during movement.
  • Success check: the machine runs with a steady low hum (not a sharp clatter) and the needle penetrates without “punching” resistance spikes.
  • If it still fails… re-do the float setup and Trace again to confirm nothing is being hit during travel.
• Q: When should towel hooping upgrade from tape-floating on a Janome MC550E to a magnetic hoop or to a multi-needle machine?
  A: Upgrade when preparation time, inconsistency, or repeated defects cost more than the tool—optimize technique first, then move up in levels.
  • Level 1 (technique): keep floating, add topping correctly, slow to 600 SPM or even 400–500 SPM if shifting/flagging appears.
  • Level 2 (tool): choose a magnetic hoop when hoop burn, re-taping time, or residue becomes a repeat problem in frequent towel work.
  • Level 3 (capacity): move to a multi-needle machine when manual thread changes (like 3+ colors per towel) are slowing production runs.
  • Success check: hooping becomes repeatable (same placement and tension feel every time) and rework/ruined towels drop noticeably.
  • If it still fails… review stabilizer choice (tearaway vs cutaway) and confirm Trace clearance and towel bulk management every run.
• Q: What magnetic hoop safety rules should be followed when using a magnetic hoop for towel embroidery (including Janome MC550E compatibility setups)?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical implants and magnetic-sensitive items.
  • Keep fingers clear when lowering the top frame—magnets can snap together forcefully and pinch skin.
  • Keep magnetic hoops away from pacemakers/ICDs and away from magnetic storage media.
  • Verify the hoop and bracket fit the machine before powering on, then run Trace to confirm safe clearance.
  • Success check: the frame closes evenly without a sudden twist, and Trace runs without the foot approaching the frame or tape edges.
  • If it still fails… stop and re-mount the bracket/frame—never “force” a magnetic hoop into position on the machine.
