Janome MBX Digitizer 5.0: Clone a JEF Design in One Hoop, Build a Clean Appliqué Border, and Stop Fighting Overlaps

If you’ve ever imported a JEF file, duplicated it in the same hoop, and then thought, “Great… now how do I turn this into an appliqué without making a mess?”—you’re not alone. The panic usually hits right after the software gives you a broken outline, or the overlap tool is grayed out, or your computer starts lagging like it’s about to take off.

In my twenty years of running embroidery production floors and teaching digitizing, I have seen this scenario crush enthusiasm faster than a thread break. The workflow typically attempted (import → clone → appliqué border → manage overlaps) is absolutely doable in Janome MBX Digitizer 5.0, but only if you respect one hard truth: A stitch file is not the same thing as a clean object file.

Relying on the software’s "best guess" to convert loose stitches into solid shapes is a gamble that often costs you more time in cleanup than it saves in creation. This guide is your "whitepaper" for navigating the transition from a messy stitch file to a professional, production-ready appliqué cluster.

The "Baked Cake" Theory: Stitch Files (JEF) vs. Object Files

To master Janome MBX Digitizer 5.0, you must first understand what the software sees.

When you open a native design file (like .EMB), it is like a recipe. The software knows the ingredients: "This circle is an object using a Tatami fill." You can change the flour (stitch type) or the sugar (density) easily.

However, when you open a stitch file (like JEF, DST, or PES), the software sees a baked cake. The ingredients are already mixed and cooked. MBX sees raw needle penetrations—coordinate X and coordinate Y. It doesn't know that this group of stitches is a "tree" or that group is a "star."

Why The Outline Tool Betrays You

When you ask the software to "convert stitches into objects," it performs a reverse-engineering miracle in the background. It tries to rebuild shapes based on where the needle poked holes.

This reconstruction is often fragmented. If you look at your sequence bar after conversion, you will likely see hundreds of tiny chunks and "open objects" (indicated by node-like icons). This is exactly why automatic outline tools fail. The software cannot reliably weld a clean, continuous perimeter around a shape that it perceives as 50 separate, disconnected shards of geometry.

If you are coming from a production mindset, this matters immensely. Messy outlines don't just look ugly on-screen; they translate into micro-jumps and erratic needle movements. This creates unnecessary density at the edges, leading to:

• Thread breaks (due to friction).
• Puckering (fabric distortion).
• Stiff edges (the "bulletproof patch" effect).


The “Hidden” Import Setting: Recognition in Embroidery Settings

In MBX Digitizer 5.0, you have a choice in how the program handles that "baked cake" upon import.

The Procedure:

1. Go to Software Settings → Embroidery Settings.
2. Under the Design tab, locate Recognition.
3. The video demonstrates switching to “Convert stitches into object shapes” to see what the software can infer.

The EXPERT Reality Check

While enabling conversion is a useful experiment, do not confuse "objects exist" with "objects are clean." As seen in the source video, the conversion breaks a simple Christmas tree into many small pieces and open lines.

My advice: Use this feature for diagnostics, but do not build your final production file on this foundation without heavy cleanup. A machine runs smoothest on clean vectors, not patched-together fragments.

Prep Checklist: The "Pre-Flight" Safety Check

Before you touch a single digitizing tool, perform this audit to prevent frustration.

• File Audit: Is your source a Stitch File (JEF/PES/DST) or a native Object File? (If JEF, expect fragmentation).
• Goal Definition: Are you making individual appliqué pieces per motif, or one single appliqué border around a grouped cluster?
• Detail Inspection: Zoom in to 400%. Look for tiny details (stars, thin lettering) that might vanish or cause needle jams if an appliqué border is slapped on top of them.
• Consumable Check: Do you have sharp appliqué scissors (duckbill style) and temporary spray adhesive ready? Messy files require precise trimming.

The Auto-Outline Trap: “Create Outlines and Offsets”

The video demonstrates the most common temptation for beginners:

1. Select the converted objects.
2. Go to Advanced Digitize → Create Outlines and Offsets.
3. Choose Single Run.
4. Attempt to use overlap options like welding.

The Result: The outline appears as disconnected little segments rather than a clean border.

The Lesson: That is not you doing it wrong—that is the software working with broken inputs. If the outline tool cannot produce a single continuous perimeter in one clean pass, stop forcing it. Every "fix" you attempt on top of a bad conversion adds more nodes and compensation artifacts.

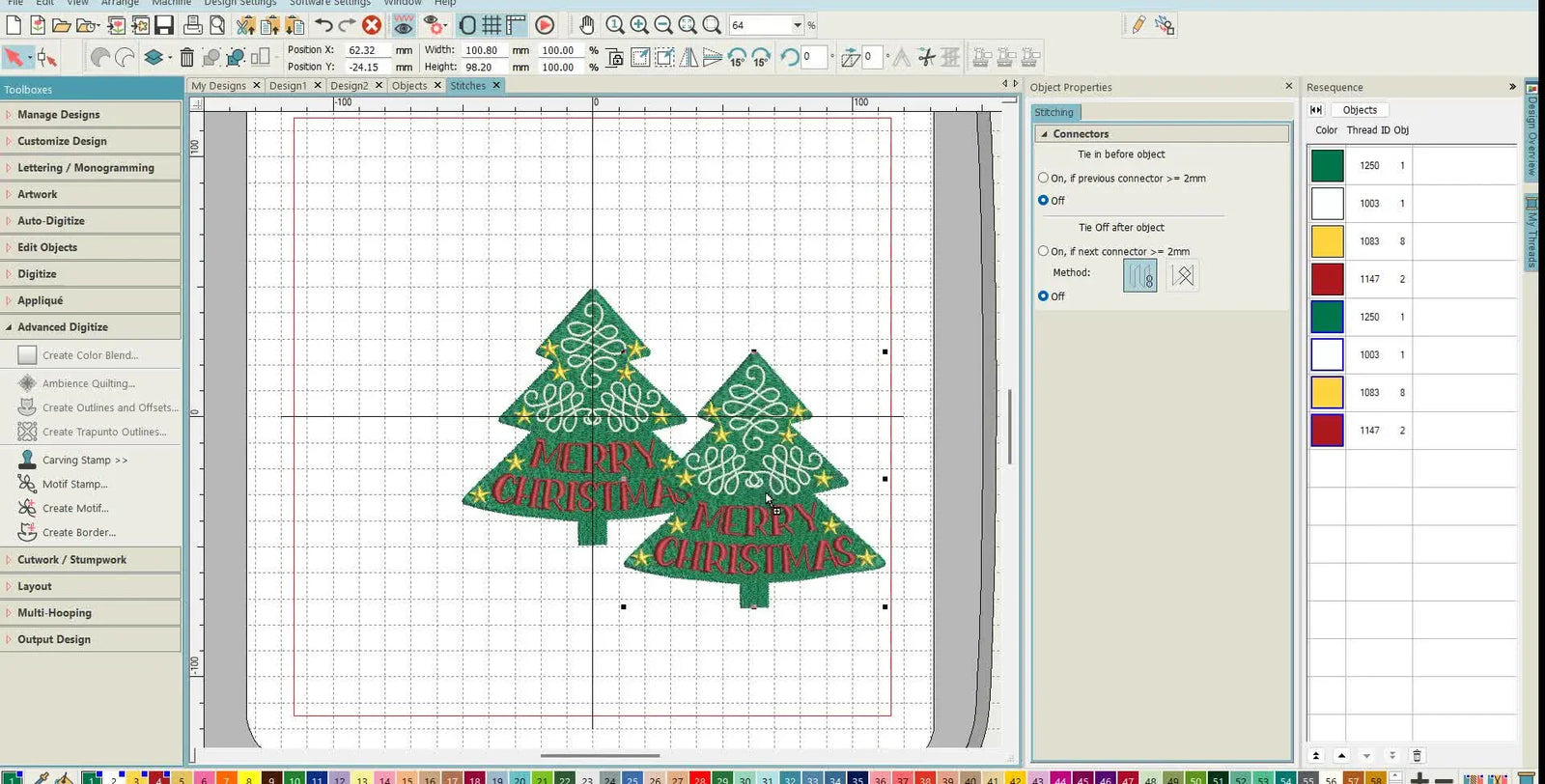

The Fastest Way to Duplicate: Right-Click "Cloning"

Once you abandon the messy converted objects and return to the original stitch file view, duplication is straightforward.

The Action:

1. Select the grouped design.
2. Hold the Right Mouse Button.
3. Drag the design to a new location.
4. Release to create a duplicate (Cloning).

Production Implication: The Hoop Real Estate Crisis

This is where layout discipline becomes critical. If you place motifs too close, you are creating overlap decisions you will pay for later.

Furthermore, packing a hoop creates physical tension. As you fill a 5x7 or 8x12 hoop with dense appliqué designs, the fabric distortion increases. Standard plastic hoops rely on friction and thumbscrews, and as the embroidery creates a "pull" effect, the fabric can slip, causing your perfectly aligned trees to stitch out crooked.

If you are building a workflow that involves filling the hoop to capacity, this is the moment where professionals often switch to janome embroidery machine hoops that utilize magnetic clamping. The even pressure helps counteract the "pull" of multiple dense designs.

Setup That Saves Your Stitchout: Layout First

Before you digitize any appliqué border, you must lock in your layout.

The Key Question:

• Do I want overlaps because they add visual dimension?
• Or do overlaps create unnecessary density that causes needle deflection?

The Density Danger: Removing overlaps is not always the answer. Sometimes, "removing overlaps" causes the software to add compensation stitches, actually increasing the stitch count at the intersection.

Commercial Context: If you are stitching one gift for a grandchild, inefficiency is acceptable. If you are producing 50 shirts for a client, every extra minute and thread break is lost profit.

• Level 1 Fix: Space designs further apart to avoid overlaps entirely.
• Level 2 Fix: Use Partial Appliqué (detailed below).
• Level 3 Upgrade: If you are fighting to fit multiple items in a standard hoop, verify that your layout truly fits the usable boundary. Many users search for how to use magnetic embroidery hoop videos after realizing their standard hoop's inner corners cut off the design. Check your safe area now.

Setup Checklist: Locking the Plan

• Hoop Verification: Confirm the design cluster fits the actual stitchable area, not just the plastic frame size.
• Strategy Choice: One appliqué per motif vs. One global border.
• Restitch Audit: Identify areas (like stars hidden under another tree) that are safe to delete to save thread.
• Visibility: Turn TrueView on/off to ensure you are selecting the correct layers.

The Reliable Appliqué Method: Manual Digitizing

In MBX Digitizer 5.0, the "Pro" move is not to convert stitches, but to digitize over them. It sounds slower, but it is faster than cleaning up a mess.

The Workflow:

1. Open the Appliqué Toolbox.
2. Choose Digitize Appliqué.
3. Sensory Anchor: Click points around the perimeter. Think of it like "tracing" the tree. Use left clicks for sharp corners and right clicks for curves.
4. Decide on the offset (do you want the border on the edge, or slightly outside?).
5. Press Enter.

Why this is better: You are creating a clean vector object. The machine receives a smooth path commands (Go from A to B) rather than a jittery path derived from a bitmap. This results in a satin stitch that looks like liquid—smooth and consistent—rather than jagged.

Warning: Mechanical Safety
Digitizing and stitching appliqué involves frequent stops, manual trimming with sharp scissors, and hands near the needle bar.
* Never trim while your foot is on the pedal (if applicable).
* Always wait for the machine to come to a complete stop and the green button to turn red/off.
* Keep fingers clear of the needle path when resuming. Appliqué fabric can lift the presser foot—ensure it clears before hitting "Start."

When “Remove Overlaps” Is Grayed Out

If you see Edit Objects → Remove Overlaps grayed out, it typically means one of two things:

1. You are selecting raw stitches (the "baked cake" problem).
2. You have grouped items that the specific tool cannot process simultaneously.

The Workaround: Don't fight the gray button. Create your manual appliqué objects first (as described above). Once you have created clean objects, the overlap tools will waken up and become active, because they now have valid geometry to calculate.

Partial Appliqué: The "Cleaner" Fix

When multiple trees overlap, you risk creating a "bulletproof" stiff patch on the shirt. The solution is Partial Appliqué.

The Process:

1. Select the overlapping appliqué objects.
2. Use the Partial Appliqué tool.

This tool trims the hidden sections underneath so the overlap area doesn't stack three layers of satin stitches and two layers of fabric.

Sensory Check: If you don't do this, listen to your machine. You will hear a rhythmic, heavy thump-thump-thump as the needle struggles to penetrate multiple layers. That sound is the sound of a looming thread break or needle deflection.

If you are using magnetic embroidery hoops, managing this density is vital. While magnetic hoops hold fabric securely, excessive density can still cause the fabric inside the hoop to "flag" (bounce up and down), leading to skipped stitches.

Appliqué Object Properties: Pre-Cut vs. Trim-in-Place

MBX allows you to choose your strategy in Object Properties → Appliqué.

• Pre-cut: Generates 3 steps (Placement → Tack-down → Cover).
• Trim-in-place: Adds a stop after tack-down so you can trim the fabric.

Decision Guide:

• Choose Pre-Cut: If you represent a high-volume shop using a laser cutter to cut your fabric shapes beforehand.
• Choose Trim-in-Place: If you are a home user or boutique studio. It is more forgiving. The extra stop allows you to trim the fabric precisely along the tack line, ensuring no "whiskers" poke out after the satin stitch covers it.


Decision Tree: Stabilizer & Hooping Strategy

Use this logic flow to ensure your physical setup matches your digital file.

1. Is the base fabric stable (Canvas, Denim, Twill)?

• YES: A standard Tear-away or Cut-away is sufficient.
• NO (T-shirt, Jersey, Knit): You MUST use a Cut-away stabilizer (e.g., 2.5oz). Appliqué adds weight; without cut-away, the shirt will sag and the outline will distort.

2. Is the appliqué overlap dense?

• YES: Upgrade your needle to a Topstitch 90/14 or Embroidery 90/14. The larger eye reduces friction on the thread.

3. Are you struggling to hoop thick items (Hoodies/Towels)?

• Pain Point: Wrist strain, "hoop burn" (shiny marks), or inability to close the massive plastic clamp.
• Tool Upgrade: This is the primary trigger to investigate magnetic embroidery hoop solutions. They bypass the friction-fit mechanism, using vertical magnetic force to hold thick items without crushing the fibers.

Warning: Magnetic Field Safety
Magnetic hoops use high-powered industrial magnets (Neodymium).
* Pinch Hazard: They snap together with enough force to pinch skin severely. Handle by the edges.
* Medical Device Safety: Keep magnets at least 6-12 inches away from pacemakers and insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

The "One Border" Trick: Commercial Efficiency

The video mentions a simplified alternative that seasoned pros love: One single appliqué border around the entire group.

Instead of three overlapping trees, visualize the trees as one "forest" shape. You digitize one perimeter around the whole group.

• Pro: Only one piece of fabric to trim. Only one stop. Faster production.
• Con: Less detail between the trees.

The Upgrade Path: If you find yourself doing this purely to save time because your single-needle machine takes too long to change colors, you are hitting the "Capacity Ceiling."

• Symptom: You dread multi-color appliqués.
• Solution: This is when a SEWTECH Multi-needle Machine becomes a viable ROI. It handles the color swaps automatically, allowing you to focus on the trimming and hooping, effectively doubling your output.

Operation Checklist: The Final "Don't Regret It" Pass

• Placement: Clone inside the hoop boundaries only after checking spacing.
• Method: If auto-outline creates fragments, abandon it immediately for Manual Digitize Appliqué.
• Style: Select Trim-in-place property unless you have laser-cut fabric.
• Constraint: If overlap tools lag, simplify the geometry or use the "One Border" trick.
• Hooping: If you are running a batch, ensure your hooping tension is identical on every shirt. (Consider a machine embroidery hooping station or alignment jig if placements are drifting).

If your pain point is simply the struggle of getting the fabric into the machine, remind yourself that terms like janome magnetic embroidery hoops exist for a reason—they are the industry's answer to the physical struggle of traditional hooping.

FAQ

• Q: In Janome MBX Digitizer 5.0, why does a JEF import convert into hundreds of tiny pieces and “open objects” when Recognition is set to “Convert stitches into object shapes”?
  A: This is common—Janome MBX Digitizer 5.0 is reverse-engineering a stitch file, so the “objects” are often fragmented and not clean enough for reliable editing.
  • Open Software Settings → Embroidery Settings → Design → Recognition and toggle Convert stitches into object shapes only as a diagnostic.
  • Inspect the sequence bar for many small chunks and open-line icons after conversion.
  • Decide early to digitize over the stitches instead of rebuilding from fragments if the design breaks apart.
  • Success check: Zoom in and confirm the converted result is not a single clean perimeter but many shards (a sign to stop using auto-conversion for final work).
  • If it still fails: Reopen the design as stitches and create fresh appliqué objects with Appliqué Toolbox → Digitize Appliqué.
• Q: In Janome MBX Digitizer 5.0, why does “Advanced Digitize → Create Outlines and Offsets” produce disconnected outline segments instead of one clean appliqué border?
  A: If the input geometry is fragmented from stitch-to-object conversion, the outline tool will often generate broken segments—don’t force it.
  • Stop using Create Outlines and Offsets the moment the first outline appears as little disconnected pieces.
  • Return to the stitch view and manually digitize the appliqué border using Appliqué Toolbox → Digitize Appliqué.
  • Click points around the perimeter (left-click corners, right-click curves) and press Enter to finish a clean object.
  • Success check: The new appliqué outline previews as one continuous, smooth path (not chopped into many segments).
  • If it still fails: Simplify the perimeter (fewer points) and re-digitize rather than stacking fixes on top of broken outlines.
• Q: In Janome MBX Digitizer 5.0, why is “Edit Objects → Remove Overlaps” grayed out when editing a duplicated JEF design?
  A: “Remove Overlaps” is typically disabled because the selection is raw stitches (or an incompatible grouped selection), not clean objects.
  • Confirm whether the selection is stitches versus objects before expecting overlap tools to work.
  • Create new appliqué objects first with Digitize Appliqué so MBX has valid geometry to calculate.
  • Re-select the newly created objects and then revisit overlap tools.
  • Success check: The “Remove Overlaps” command becomes selectable after clean objects exist.
  • If it still fails: Ungroup the selection and test on a smaller subset—some grouped combinations may not process together.
• Q: In Janome MBX Digitizer 5.0, what is the fastest correct way to duplicate (clone) a grouped stitch design inside the same hoop layout?
  A: Use right-click drag cloning—it’s the quickest and most reliable way to duplicate a grouped stitch design.
  • Select the grouped design.
  • Hold the Right Mouse Button, drag to the new location, then release to create a duplicate.
  • Lock layout decisions (spacing and hoop boundary) before adding any appliqué borders.
  • Success check: The duplicate appears instantly and remains aligned as a single grouped unit (not broken into partial selections).
  • If it still fails: Verify the design is selected as one group before dragging, and confirm the target position stays inside the stitchable hoop area.
• Q: In Janome MBX Digitizer 5.0, should appliqué be set to “Pre-cut” or “Trim-in-place” in Object Properties → Appliqué for most home and boutique workflows?
  A: Choose Trim-in-place unless fabric is being pre-cut by a production method (like a laser cutter); it’s more forgiving for manual trimming.
  • Open Object Properties → Appliqué and select Trim-in-place to insert a stop after tack-down.
  • Prepare duckbill appliqué scissors and temporary spray adhesive so fabric stays stable during trimming.
  • Trim along the tack-down line before the cover stitch runs.
  • Success check: After the satin/cover stitch, no fabric “whiskers” peek out beyond the edge.
  • If it still fails: Re-check the digitized border placement/offset and confirm the trim stop is actually enabled in the appliqué properties.
• Q: When overlapping appliqué shapes in Janome MBX Digitizer 5.0, how does “Partial Appliqué” prevent a stiff “bulletproof patch” and reduce thread-break risk?
  A: Use Partial Appliqué on overlapping appliqué objects to remove hidden sections so layers don’t stack excessively.
  • Select the overlapping appliqué objects.
  • Apply the Partial Appliqué tool to trim covered areas underneath.
  • Listen during stitchout—heavy rhythmic “thump-thump-thump” can indicate too many layers/density in overlap zones.
  • Success check: The overlap area feels less bulky and the machine sound is smoother (less heavy punching) through intersections.
  • If it still fails: Consider spacing motifs farther apart or switching to a single combined border around the whole group to avoid stacked overlaps.
• Q: What needle- and hooping-safety steps should be followed during appliqué stitchouts to avoid hand injuries on an embroidery machine?
  A: Treat appliqué as a stop-and-trim operation—keep hands away from the needle path and only trim when the machine is fully stopped.
  • Wait for a complete stop before trimming (do not trim while the machine can move).
  • Keep fingers clear of the needle travel area when resuming.
  • Confirm the appliqué fabric is not lifting in a way that interferes with the presser foot before pressing start.
  • Success check: Trimming happens with zero machine motion, and restart occurs without fabric catching or foot interference.
  • If it still fails: Pause the job, re-secure the appliqué fabric (often with temporary spray adhesive), and only then continue.
