Janome MB4 Hoop Size Guide: Dimensions, Compatibility & Expert Tips

1. Introduction to Janome MB4 Hoop Selection

Right hoop, right result. On the Janome MB4, choosing the correct hoop determines how big you can stitch, how accurately you place a design, and how smooth your sew‑out runs. This guide covers what most users ask for: exact M1/M2/M3 dimensions and part info, optional hat and monogram hoops, how to match hoop size to projects and machine limits, installation and alignment tips, compatible third‑party options, plus common troubleshooting. Whether you’re new to multi‑needle or running a busy shop, you’ll find clear, practical answers here.

Table of Contents

• 1. Introduction to Janome MB4 Hoop Selection
• 2. Standard Janome MB4 Hoop Specifications
• 3. Choosing the Right Hoop for Your Project
• 4. Installation and Alignment Techniques
• 5. Third-Party Hoop Compatibility Guide
• 6. Troubleshooting Common Hoop Issues
• 7. Conclusion: Optimizing Your MB4 Workflow
• 8. Frequently Asked Questions

2. Standard Janome MB4 Hoop Specifications

2.1 Core Hoop Dimensions: M1, M2 & M3 Explained

The MB4 recognizes three core Janome hoop sizes. Knowing their true stitch fields helps you choose confidently—and avoid avoidable collisions.

• MB4 maximum embroidery area: 238 mm × 230 mm
• Note: The M1 hoop’s width slightly exceeds the MB4’s max width (240 mm vs. 238 mm), so precise design alignment matters.

• Standard hoops
• M1: 240 mm × 200 mm (large-format work)
• M2: 126 mm × 110 mm (the everyday “medium”)
• M3: 50 mm × 50 mm (small, precision placements)

Quick reference table

Retail listings also show approximate inch equivalents for the three hoops—M1 around 9.5" × 8", M2 5" × 4.3", M3 2" × 2"—and current pricing such as M1 ($209.99), M2 ($136.99), and M3 ($115.99). These figures help when budgeting or verifying accessories.

Pro tip for accuracy

• Use the MB4’s trace to verify boundaries before stitching. On MB4, the trace outlines the pattern box—not every stitch path—so keep clearances generous, especially on large designs and near hoop edges (as shown in the “Centering hoops for MB4” walkthrough).

2.2 Specialized Hoops: Hat & Monogram Options

Hat embroidery (flat hat hoop)

• Janome MB4S Hat Hoop (HATHOOPMB4): 110 mm × 60 mm
• Designed for cap embroidery with a flat, front hold‑down that secures the bill during stitching.
• Compatibility: MB‑4, MB‑4N, MB‑4S, MB‑7 (also used with Elna eXpressive 940/970).
• Software note: MB4 firmware V1.10+ adds the H1 hoop option and auto‑rotates designs 90° for proper cap orientation.
• Retail listing example: Janome Flat Hat Hoop (MB) around $419.99.

Monogram (J‑series) hoops and holder

• Hoop Holder for Monogram Hoops (MB): often listed around $83.99.
• Common J‑series sizes (great for sleeves, cuffs, close placements):
• J1 center‑style: 1.2" × 1.2" (also a side‑style variant listed)
• J2: 0.9" × 2.1"
• J3: 2.5" × 1.1"
• J4: 1.7" × 2.6"
• J5: 1.8" × 1.8"
• J6 No.2: 2.6" × 2.6"
• J6 No.9: 1.2" × 1.2"
• J7 No.1: 4.3" × 3.75"
• J8 No.7: 4.7" × 4.7"
• Example pricing at a glance: J7 around $62.99; J8 around $73.99 (more sizes and listings available).

Workflow tips from video tutorials

• If you use the Janome hat hoop, the MB4 (with newer software) will automatically rotate the design 90°. Confirm hoop selection on the RCS before loading the pattern.
• With J‑series hoops, set the exact hoop in the machine menu so the MB4 respects safe boundaries and places the design where you expect.

3. Choosing the Right Hoop for Your Project

3.1 Matching Hoop Size to Design Requirements

Start with the design, then pick the hoop.

• Respect the machine limit. The MB4’s maximum embroidery area is 238 mm × 230 mm. If your design approaches that, consider whether you truly need the M1, or if a design reduction/splitting strategy makes more sense.
• Use the smallest hoop that comfortably fits the design. Per MB4 best practices, smaller hoops (e.g., M3) tend to give better stability and registration for fine details. M2 often hits the sweet spot for everyday work.
• Verify placement before stitching:
• Templates and grids: As Janome’s instructional video shows, align fabric center lines with the hoop template before tightening.
• Tracing: The MB4 trace outlines the design’s bounding box (not every contour). Run the trace with the selected hoop to confirm clearances on all sides—especially at corners and near hardware.
• Centering: When using non‑standard frames, set the MB4 to the closest built‑in hoop and adjust the carriage to the actual center mark on your frame, as demonstrated in the “Centering hoops for MB4” video.
• When the design exceeds a single hoop
• Plan for multi‑hooping or design splitting. If you use extended third‑party frames, you’ll still need design splitting because the MB4 won’t stitch beyond its 238 × 230 mm area, regardless of physical frame size.

3.2 Fabric Considerations and Stability Solutions

Fabric drives hoop choice.

• Lightweight/unstable fabrics (e.g., performance knits, silks)
• Favor smaller hoops (M2/M3) for tighter control.
• Use the appropriate stabilizer and confirm tension with a short test sew‑out before committing.
• Heavier/stiffer fabrics (e.g., denim, jackets)
• The M1 can fit larger art, but watch for edge clearance and ensure stabilizer coverage equals the stitch field.
• Reduce speed on dense segments if you see vibration or puckering.
• Magnetic embroidery hooping for garments

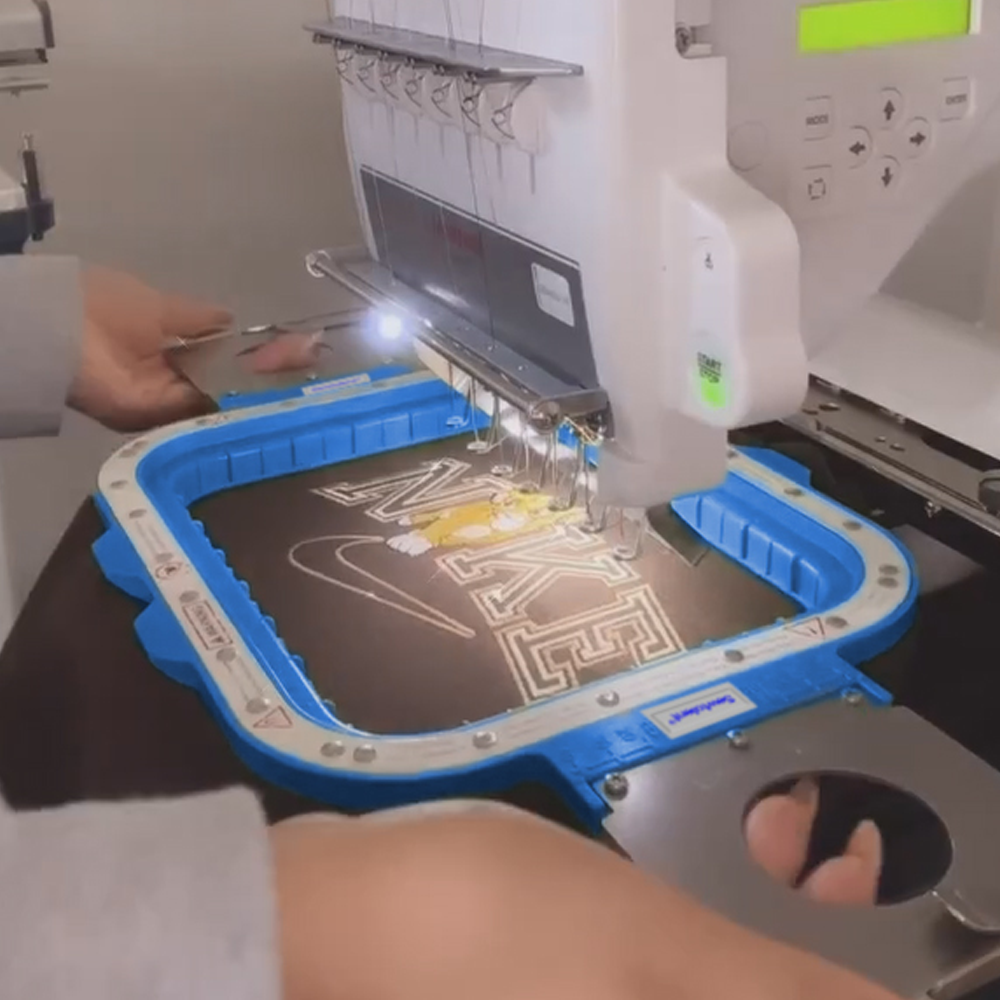

• Magnetic hoops for Janome embroidery machines help maintain even tension across variable fabric thicknesses and can reduce hoop marks on garments. They also streamline hooping—especially for bulkier layers or hard‑to‑hoop placements.
• Sewtalent magnetic hoops (garment embroidery only; not for caps)
• Faster, simpler hooping: Using a magnetic system can cut garment hooping time from about 3 minutes to roughly 30 seconds—a 90% time savings in repetitive work.
• Consistent tension and fewer marks: Powerful magnets and textured contact surfaces keep fabric flatter through the entire sew‑out.
• Industrial‑grade durability: Sewtalent emphasizes high‑end materials and robust construction; in durability testing, its hoops have demonstrated a service life many times greater than common alternatives.
• Broad size and machine coverage: Multiple sizes fit typical garment placements; brackets are available for a wide range of commercial machines.

If you often fight hoop burn, fabric slippage, or time‑consuming setups on MB4 garment jobs, trialing a magnetic embroidery hoop can be the difference between fiddly setup and smooth, repeatable production.

4. Installation and Alignment Techniques

4.1 Step-by-Step Hoop Installation Guide

Follow this exact sequence to install, select, and center hoops on the Janome MB-4S for reliable placement and safe clearances. - Prepare and center the carriage - Power on, then press the carriage centering button to move the carriage to the machine’s center. This becomes your reference point for all hoop alignment (Centering hoops for MB4 video; MB4 Instructional Video). - Install the hoop supporter correctly - Loosen the two thumbscrews on the hoop supporter. - With both hands, place the supporter under the carriage plate and insert the necks of both thumbscrews into the slots/notches in the carriage plate. - Tighten the thumbscrews clockwise firmly (MB4 Instructional Video; Perplexity). - Configure supporter arms if you use specialty/third-party frames - Remove the setscrews on both supporter arms, reposition to Position B or C as required by the hoop, then reattach the setscrews to lock (Perplexity). - Mount the hoop and seat it on the pins - Hold the setting plates with both hands, insert under the holder clips, then slide the hoop on the supporter until the holes catch the positioning pins. Do not set the hoop front side back or upside down (MB4 Instructional Video). - Select the correct hoop in software - On the RCS, choose the exact hoop (e.g., M1/M2/M3, J7, H1). Firmware V1.10+ adds the H1 hat hoop with automatic 90° rotation for caps; manual rotation remains available (Perplexity; “Different hoops…” video). - Center to the hoop you actually mounted - MB4 centers to the machine, not always to the physical hoop’s midpoint. Some frames (e.g., certain Durkee/EZ frames) must be inserted in the “second hole,” which offsets the hoop’s center relative to the machine. Use the jog keys to move the needle to the hoop’s true center mark before tracing (Centering hoops for MB4; Different hoops video). - Pro tip: Place a ruler against the needle at machine center and mark the hoop arms—this becomes the hoop’s “MB4 center” reference for future setups (Centering hoops for MB4). - Always trace for clearance—know what the trace shows - The MB4’s trace outlines the bounding box of the design, not the exact stitch path. On large or offset frames, an unverified trace can lead to needle strikes on the hoop. Keep clearances generous and run a full outline trace before sewing (Centering hoops for MB4; MB4 Instructional Video). - Final checks before you stitch - Ensure Needle #1 is aligned to your intended design center (verify on RCS). - Confirm the design fits the hoop selected in the menu. - Visually verify that presser foot and needle clear all hardware during movement (Perplexity; MB4 Instructional Video).

4.2 Advanced Centering and Stabilization Methods

- Crosshair marking and template alignment - Mark fabric centerlines, apply stabilizer to the back, place the hoop template on the inner hoop, then align template lines to fabric lines before tightening. Stretch fabric drum-tight, then fully tighten (MB4 Instructional Video). - Adhesive stabilizer for extra holding power - For square/rectangular openings, place 1" × 4" strips of adhesive stabilizer around the hoop window (sticky side up) to prevent shifting while you sew. For hats, pull excess fabric away from the sew area and secure it to the hoop edges with tape for clearance (Perplexity). - Boost multi-project efficiency - A single 8.5" × 12" adhesive sheet can support up to four hat projects by replacing perimeter strips between runs. This keeps setup fast in batch work (Perplexity). - Center offset—how to correct it fast - With frames that can’t slide fully forward (e.g., Durkee/EZ frames in the second hole), the hoop’s physical center will not match the MB4’s center. Move the carriage to the hoop’s printed or hand-marked center point, then trace. If needed, print a 1:1 paper template of your design and place it on the garment to verify final placement (Centering hoops for MB4; Different hoops video). - Clearance verification on 3D substrates - For hats or bulky items, run a slow, careful trace and visually confirm that the needle and presser foot clear the brim, crown, and frame throughout the entire bounding box (Perplexity). - Safe area reality check - Even if a third-party hoop looks larger (e.g., 9×9 layouts), the MB4’s stitchable area is still governed by machine limits and the selected hoop in software. Plan within the MB4’s boundaries and your selected hoop’s recognized safe field (Centering hoops for MB4; Perplexity).

5. Third-Party Hoop Compatibility Guide

Your janome embroidery machine can use third-party hoops for expanded capabilities.

5.1 Compatible Brands: Durkee, Tajima & Fast Frames

- Durkee hoops for MB4 - Compatibility checkpoint: Measure your existing hoop’s bracket-to-bracket overall length. For Durkee MB4 frames, this must be exactly 18.25 inches (Perplexity). - Options and sample pricing (Perplexity): - Round: 9 cm (3.5"), 12 cm (4.5"), 15 cm (5.5") at $42.00; 18 cm (7") at $48.00. - Square: 15 × 15 cm (6" × 6") at $42.00. - Rectangular option also noted: 30 × 10 cm (11-7/8" × 4"). - Practical setup tips (videos): - Some Durkee frames slide only to the second hole on the MB4 arms. Expect the hoop’s center to be offset; jog the carriage to your hoop’s center mark, then trace (Centering hoops for MB4; Different hoops video). - Tajima-style hoops with MB4 - The MB4 is compatible with industry-standard Tajima hoops (Janome MB-4S page). On the RCS, you’ll see T-marked choices in the hoop menu (Different hoops video). Select the correct Tajima hoop so the MB4 enforces proper boundaries. - Fast Frames 10" × 12" (MB4-specific) - Designed specifically for MB4; not compatible with Brother PR series (Perplexity). - Price reference: $189.00 (Perplexity). - Requires design splitting software because the physical frame exceeds the MB4’s native stitch field. Operators typically embroider one section, flip/reposition, then complete the rest (Perplexity). - Efficiency benefit: Fast setup and repeatability for high-volume work are frequently cited advantages (Perplexity). - User practice note: With “EZ Frames”-type systems on MB4, users commonly insert in the second hole and hand-mark the new center lines on the frame for reliable alignment (Different hoops video).

5.2 Performance Comparison: OEM vs Third-Party

- Ease and reliability with genuine Janome hoops - M1/M2/M3 are plug-and-play and fully recognized by the MB4/MB-4S. Editing functions like resize (in 1% increments), rotate (1°/90°), flip, and on-screen trace make OEM workflows straightforward. Replacement parts (templates, screws, round nuts, snap rings) are documented and available, supporting long-term use (Perplexity; Janome MB-4S page). - Third-party value and trade-offs - Durkee frames are affordable starting options (from $42.00) and provide a variety of shapes. Fast Frames’ 10" × 12" system improves repeatability and can reduce hooping to seconds in repetitive workflows. However, these often require: - Precise mechanical checks (e.g., Durkee 18.25" bracket length). - Software knowledge (design splitting for oversize frames). - Operator skill to manage center offsets and clearances (Perplexity; videos). - Materials and durability signals - Fast Frames utilize stainless steel and aluminum for stability (Perplexity). - Genuine Janome hoops and parts support reflect robust, serviceable construction (Perplexity). - For garment embroidery: a magnetic alternative - If your MB4 work centers on garments (not caps), magnetic embroidery hooping can be a strong efficiency play. Sewtalent offers magnetic embroidery hoops designed for garment hooping that: - Reduce hooping time dramatically—going from about 3 minutes to roughly 30 seconds per garment in repetitive work (about 90% time saved). - Maintain even fabric tension, helping reduce hoop marks and slippage. - Emphasize durability; in published durability testing, Sewtalent has demonstrated a service life up to 40× longer than common alternatives. - Use high-grade materials and strong magnet arrays to keep fabrics stable through the sew-out. - Are available in multiple sizes with brackets for broad machine coverage, including Janome setups for garment embroidery. - Important note: Sewtalent magnetic hoops are for garment embroidery hooping only, not for caps/hats. - Cost lens - Examples from research: Durkee rounds from $42.00; Fast Frames jumbo at $189.00 (Perplexity). Genuine Janome hoops are widely available with established pricing and support. Consider total workflow needs—software, training, stability, speed—when comparing overall value.

6. Troubleshooting Common Hoop Issues

6.1 Solving Recognition Errors and Alignment Problems

• Verify dimensions and machine limits first
• The MB4’s maximum embroidery area is 238 mm × 230 mm. The M1 is 240 mm × 200 mm, so its width slightly exceeds the MB4’s max width—precise alignment and safe margins are essential (Perplexity; earlier sections).
• If you encounter a “7" × 12"” hoop designation that actually measures about 6.69" × 12" stitch field, plan for the real stitchable area—not the label (Perplexity).
• Mechanical fit checks specific to third-party systems
• Durkee: Confirm the overall bracket-to-bracket length is 18.25" for MB4 compatibility (Perplexity).
• Arm spacing: Verify the hoop assembly aligns to the MB4’s arm spacing spec (Perplexity).
• Some frames must mount in the second hole—expect a center offset and correct it by jogging to the hoop’s center mark (Centering hoops for MB4; Different hoops video).
• Software settings and version notes
• On the RCS, select the exact hoop (M1/M2/M3/J-series/Tajima/H1). With firmware V1.10+, hat hoop H1 supports automatic 90° rotation; if orientation looks wrong, confirm the hoop selection rather than forcing a manual workaround (Perplexity; Different hoops video).
• Trace wisely to avoid collisions
• MB4’s trace follows the bounding box, not stitch paths. On larger or offset frames, run a cautious outline trace and keep generous clearance to avoid needle strikes (Centering hoops for MB4; MB4 Instructional Video).
• Center alignment fixes that work
• Press the carriage centering button, then jog to the hoop’s physical center mark. If needed, mark your frame’s “MB4 center” with a ruler so you can quickly repeat the correction (Centering hoops for MB4).
• When in doubt, print a 1:1 template of the design and verify placement on the garment before stitching (Centering hoops for MB4).

6.2 Resolving Tension and Stability Failures

Follow this diagnostic sequence to eliminate puckering, thread breaks, or fabric shift tied to hoop setup.

• Step 1: Re-thread with the presser foot up
• Raise the presser foot to open the tension discs and re-thread the top path completely. Use the MB4’s guided threading path and confirm all guides are engaged (MB4 Instructional Video; Perplexity).
• Step 2: Check bobbin loading and case path
• Use lightweight embroidery bobbin thread in the recommended size range. Insert the wound bobbin so it unwinds as specified, slide under the bobbin case tension blade, and through the pigtail. Verify the bobbin case clicks fully into the hook (MB4 Instructional Video; Perplexity).
• Step 3: Stabilization and hooping tension
• Ensure fabric is drum-tight in the hoop. For tricky materials, add 1" × 4" adhesive stabilizer strips around the hoop window (sticky side up). For hats, tape excess fabric away from the sew area for clearance (Perplexity; MB4 Instructional Video).
• Step 4: Match hoop size to design and fabric
• Oversized frames with small designs can invite movement and variable tension. Use the smallest hoop that comfortably fits the design and re-run a trace after any adjustment (earlier sections; MB4 Instructional Video).
• Step 5: Clean and inspect mechanics
• Clean the bobbin area and mounting surfaces. Confirm the hoop supporter thumbscrews are tight; loose hardware can cause vibration and misregistration (Perplexity).
• Step 6: Run controlled tests
• Reduce complexity: load a simple test pattern in the same hoop and fabric to isolate whether the issue is design-specific or mechanical. Watch the outline trace for any near-miss at the corners or near hardware (Perplexity; MB4 Instructional Video).
• Advanced inspection (when issues persist)
• For deep tension-path checks, remove the tension cover (two screws) to inspect internal threading paths and identify obstructions. Proceed methodically and reassemble carefully (Perplexity).
• Reminder about oversize frames
• Large-format third-party frames (e.g., 10" × 12") require design splitting with the MB4. If you attempt single-pass stitching beyond the MB4’s limits, the machine will prevent operation or you’ll encounter instability (Perplexity).
• Final pre-sew checklist
• Correct hoop in software, carriage centered to the hoop’s actual center, top and bobbin correctly threaded, fabric stabilized, hardware tight, full bounding-box trace passes with safe clearance. Then you’re clear to stitch.

If problems persist, consider visiting janome repair shop near me for professional assistance.

7. Conclusion: Optimizing Your MB4 Workflow

Dial in the right hoop, and the MB4 rewards you with clean placement and smooth stitching—up to its 800 spm capability. Match designs to true stitch fields (M1/M2/M3), respect the MB4’s max area (238 × 230 mm), and always select the exact hoop in the menu before you trace. For third‑party frames, verify bracket length, expect possible center offsets, and jog to the frame’s true center. Practice the centering, tracing, and template tricks from this guide, and your hooping becomes faster, safer, and more accurate.

8. Frequently Asked Questions

8.1 Q: What is the MB4’s maximum embroidery area, and how do I choose between M1, M2, and M3?

A: The MB4’s max area is 238 × 230 mm. The standard Janome embroidery hoops are M1 (240 × 200 mm), M2 (126 × 110 mm), and M3 (50 × 50 mm). Use the smallest hoop that comfortably fits your design for better stability. Note the M1’s width slightly exceeds the MB4’s max width, so precise alignment and a careful trace are essential.

8.2 Q: Can the MB4 use Tajima or other third‑party hoops?

A: Yes. The MB‑4S is compatible with industry‑standard Tajima hoops; on the RCS you’ll find T‑marked choices. For Durkee frames on MB4, confirm the overall bracket‑to‑bracket length is 18.25". Some third‑party frames mount in the “second hole,” which offsets the hoop center—jog the carriage to the frame’s true center before tracing.

8.3 Q: My trace hits the frame on a 9×9 or oversized frame. What’s happening?

A: The MB4 traces the design’s bounding box, not every stitch path. On large or offset frames (often inserted in the second hole), the needle can contact hardware if you rely on the default center. Move the carriage to the frame’s actual center mark, run a slow outline trace, and keep generous clearance.

8.4 Q: Can I stitch the full 8×13 or 10×12 area on an MB4?

A: No. Physical frame size doesn’t expand the machine’s stitchable area. The MB4 remains limited to its max field (and the selected hoop’s safe area). If art exceeds that, use design splitting or multi‑hooping; single‑pass stitching beyond MB4 limits isn’t possible.

8.5 Q: Hats look rotated wrong on screen—how do I fix orientation?

A: With firmware V1.10+, selecting the H1 hat hoop auto‑rotates the design 90° for proper cap orientation. Confirm you’ve selected H1. If you use a non‑Janome cap frame, don’t choose H1; set a standard hoop and rotate the design as shown in the videos.

8.6 Q: The machine throws a hoop‑size/recognition error. What should I check first?

A: Verify the exact hoop is selected on the RCS, confirm third‑party bracket length (e.g., Durkee 18.25"), and ensure arm spacing and seating are correct. Re‑center the carriage, jog to the frame’s true center, and re‑trace. If you still see errors, reload the design and reselect the hoop.

8.7 Q: What’s the safest way to remove EZ Frames or similar from the arms?

A: Don’t loosen the top knobs while the frame is still on the machine. Slide the frame off the arms first, then remove the hoop from the frame. This avoids stressing the carriage and arm screws, as demonstrated in the tutorial.

8.8 Q: How do I quickly center third‑party frames on the MB4?

A: With the carriage centered, place a ruler against the needle and mark that “MB4 center” line across your frame’s arms. In future setups, jog the needle to that line before tracing. This speeds up accurate, repeatable placement.

8.9 Q: Are MB4 hoops interchangeable with MB‑4N/MB‑4S/MB‑7 or Elna models?

A: The Janome Flat Hat Hoop (HATHOOPMB4, 110 × 60 mm) is listed as compatible with MB‑4, MB‑4N, MB‑4S, MB‑7 and is also used with Elna eXpressive 940/970. Always confirm hoop selection in the RCS so the MB4 enforces the correct safe field.

8.10 Q: Any placement tips to avoid edge collisions on large designs?

A: Align with templates/grids, then jog to the hoop’s true center (especially on offset frames). Run a full outline trace, remembering it shows the bounding box only. If in doubt, print a 1:1 paper template to verify final placement before stitching.
