Janome MB-4 Real-World Workflow: Program a Two-Color Monogram, Float Thick Cut-Away, and Keep Tension Clean

If you’ve ever stared at a multi-needle machine and thought, “This is either going to be magic… or it’s going to eat my sweatshirt,” you’re not alone. The Janome MB-4 is one of those machines that can feel surprisingly compact and friendly—right up until you hit the first real-world friction point: hooping thick stabilizer, keeping registration tight at speed, and getting tension that looks professional on stretchy fleece.

As someone who has spent two decades balancing the art of digitizing with the brute force of industrial manufacturing, I can tell you that machine embroidery isn't just about pressing "Start." It is a sensory language. It's about how the machine sounds during a trim, how the fabric feels in the hoop, and the physics of thread traveling at 600 stitches per minute.

This guide rebuilds Toby’s MB-4 demo into a "Master Class" workflow you can repeat on your own bench—especially if you’re running a small home shop making merch, monograms, or short-run apparel.

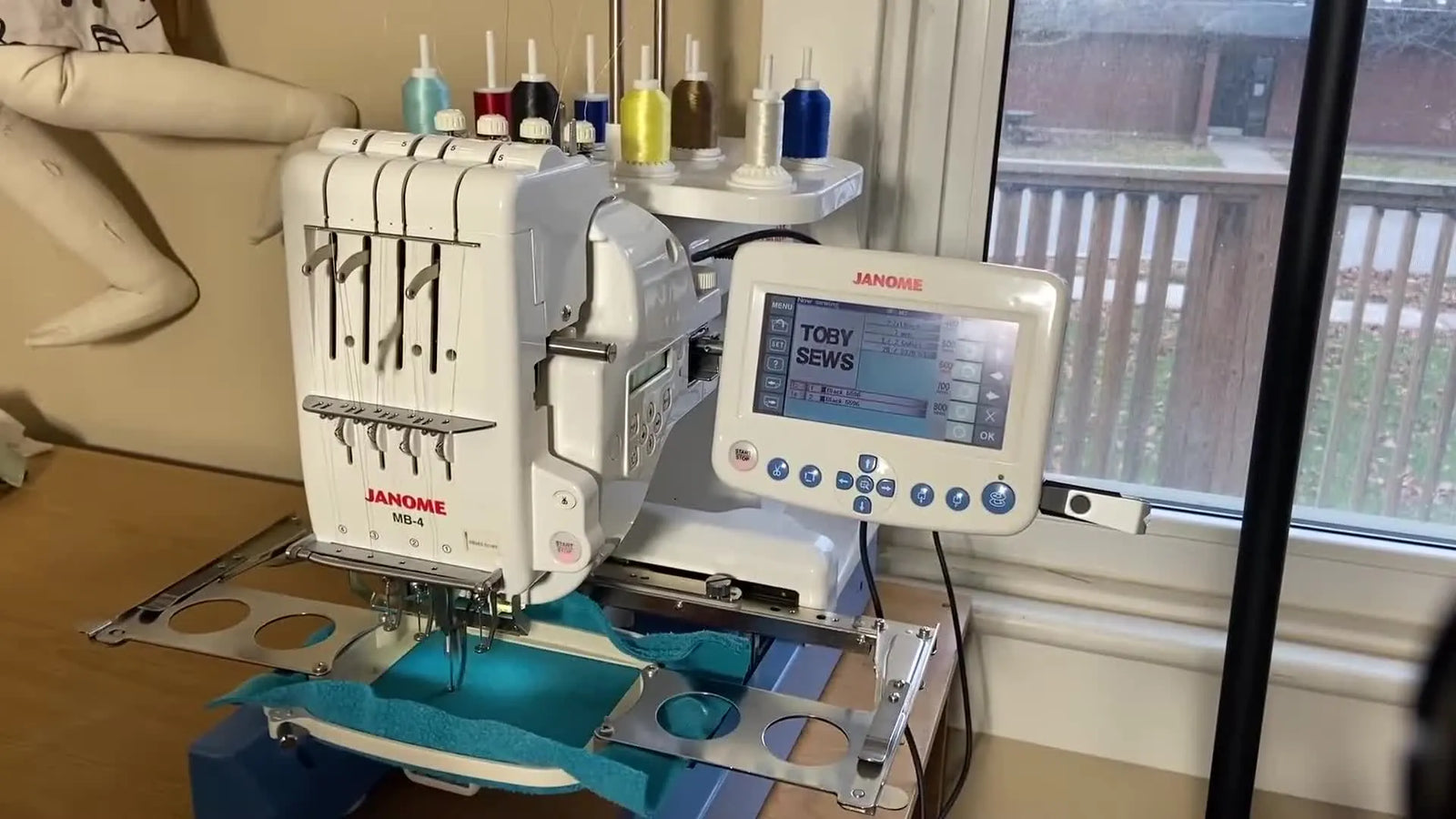

The Janome MB-4 “Desk-Sized Workhorse” Reality Check (and Why the Robotic Arm Matters)

Toby’s first impression describes exactly what I look for when upgrading a home business to a production-capable tier: it fits on a sturdy desk, it calibrates with a confident robotic movement, and it’s designed so hoop changes don’t require re-positioning the attachment arm.

That last point sounds small until you’re swapping hoop sizes all day. Less fiddling means fewer alignment mistakes and less time wasted re-centering.

Pro tip from the field (The "Earthquake Test"): If your machine lives on a desk, treat the desk like part of the machine's chassis. Place a glass of water on the desk while the machine runs at 600 SPM. If the water ripples violently, your table is too weak. A wobbly surface translates directly into "stepped" satin columns and noisy operation. Stabilize the table legs or move to a heavier workbench to instantly improve stitch quality.

The “Don’t Touch Anything Yet” Prep That Saves You From Bad Stitch-Outs on Sweatshirt Fleece

Before you even type a letter, set yourself up so the stitch-out has a fair chance.

You’re embroidering on a teal sweatshirt/fleece with thick cut-away stabilizer and polyester thread. That combination is common for merch and monograms—and it’s also where beginners get tripped up because fleece has give, loft, and recovery (stretchiness).

Here’s the physics: A needle entering knit fabric pushes fibers aside. If the fabric isn't stabilized, it distorts (tunnels), and your perfect circle becomes an oval.

Here’s what I want you to do before you power on:

• Stage your threads: Confirm the path is clear. Toby uses yellow and light blue.
• Pre-cut stabilizer: Don't wrestle a full roll at the machine. Cut it 2 inches larger than your hoop on all sides.
• Hidden Consumable: Use a temporary spray adhesive (like 505) if you plan to "float" the material. This prevents the fabric from sliding over the stabilizer during high-speed movement.
• Tool Check: Keep small, sharp snips nearby for the one thing auto-trimmers still miss: the very first start tail.

If you’re building a repeatable workflow for orders, this is also where you decide whether you’re going to keep fighting standard hoops—or upgrade your hooping method.

One sentence that matters here: if you’re constantly struggling with hooping for embroidery machine, you’re not “bad at hooping”—you’re usually fighting thickness, friction, and uneven clamping pressure. Standard acrylic hoops are not designed well for thick sweatshirts.

Prep Checklist (Pre-Flight Go/No-Go):

• Surface Check: Sweatshirt area is flat; pockets and zippers are pushed far away from the hoop zone.
• Stabilizer Choice: Thick Cut-Away is selected (Tear-away will ruin a sweatshirt design eventually).
• Thread Path: Run your fingers along the thread path. Is it smooth? No knots?
• Needle Check: Run your fingernail down the needle. If you feel a scratch (burr), change it immediately.
• Plan: You have a plan for hooping: standard clamp vs. floating vs. magnetic.


Power-On + Calibration on the Janome MB-4: The 10-Second Moment That Tells You a Lot

Toby powers on the machine and waits for the RCS screen to boot while the carriage arm performs its self-calibration movement.

This is not just “startup theater.” That calibration movement is your first quick health check. Use your ears:

• The Sound: It should be a smooth mechanical whirrr, not a grinding crunch.
• The Motion: It should look confident, not hesitant or jerky.

Generally, unusual sound or vibration during calibration can be an early warning that something is loose, dry, or out of alignment—so don’t ignore it just because the machine still stitches.

Warning: Pinch Hazard. Keep fingers, hair, loose hoodie strings, and scissors away from the hoop arm and needle area during calibration and stitching. Multi-needle machines move fast and with high torque—getting “just a little too close” is how people get poked, pinched, or worse.

Programming “TOBY SEWS” on the RCS Screen Without Getting Lost in the Mixed UI

Toby uses the touchscreen to enter “TOBY,” confirms it, then creates a separate text block for “SEWS.” He selects a built-in Gothic/Block style and keeps the orientation horizontal.

A lot of owners love the MB-4 hardware but complain the interface feels dated—one commenter called out the inconsistent mix of touchscreen, arrow keys, and flex buttons. That’s a fair critique, but let’s reframe it as a workflow advantage.

Here’s how to stay sane (and accurate) with this style of UI:

• Broad Strokes: Use the touchscreen for creation (typing letters, selecting fonts).
• Fine Control: Use the physical arrow keys for precision adjustments (nudging alignment 0.1mm at a time).
• Safety Pauses: Don’t rush the “OK/confirm” moments—most accidental mistakes happen when people tap through screens too fast.

The Alignment Move That Makes Two-Line Lettering Look Professional (Not Homemade)

Toby uses the directional arrow keys to nudge “SEWS” into perfect alignment under “TOBY,” pixel by pixel.

This is one of those small steps that separates “I stitched something” from “I can sell this.” Two-line text is unforgiving: if the second line is even slightly off-center, the human eye catches it instantly.

The "Center-Center" Check: Before attaching the hoop, fold your sweatshirt vertically to find the true center. Mark it with a water-soluble pen or chalk. When you align your text on screen, the machine's red dot laser (or needle drop position) must match that chalk mark exactly.

Watch out (common shop mistake): People align text while the garment is twisted or under uneven tension in the hoop. The screen alignment can be perfect, but if the fabric is skewed, the finished monogram will look crooked.

The Floating Stabilizer Trick: When Thick Cut-Away Won’t Hoop Cleanly

At about the 4-minute mark, Toby hits the pain point most home-business embroiderers eventually meet: thick cut-away stabilizer combined with fleece is a nightmare to force into a standard plastic hoop. His solution is to “float” the stabilizer—he slides the stabilizer underneath the hooped area instead of clamping it inside the hoop.

This is a legitimate technique, and it’s often the fastest way to get stitching done when the stabilizer is too bulky to clamp comfortably.

However, floating requires a warning. You are removing the "drum skin" tension of the stabilizer. You are relying entirely on the fabric properly gripping the stabilizer (usually via adhesive spray) and the hoop holding the fabric tight.

If you are looking for the industry term for this adaptation, it is essentially a floating embroidery hoop technique—useful, but it demands good judgment and lowers your maximum safe speed.

A quick decision tree: clamp it, float it, or upgrade the hooping tool?

Use this logic flow to decide your stabilizing method before you ruin a $30 sweatshirt.

Decision Tree (Sweatshirt/Fleece + Thick Cut-Away):

1. The "Thumb Test": Can you close the standard hoop screws with moderate thumb pressure?
   • YES: Hoop fabric + stabilizer together. (Best control, highest quality).
   • NO (It hurts/feels like the hoop will break): Go to Step 2.
2. Is the design light (simple text) and do you have temporary spray adhesive?
   • YES: Float the stabilizer under the hoop. Constraint: Reduce speed to 500 SPM or less.
   • NO (It’s a dense logo / large fill): Go to Step 3.
3. Are you doing this weekly for orders (Volume Production)?
   • YES: You need a hardware solution. Consider magnetic hoops or a hooping station to reduce hooping time and improve consistency.
   • NO: Float carefully, use extra adhesive spray/basting stitches, but expect more trial-and-error.

The physics (why floating works… and why it sometimes fails)

Embroidery quality is a tug-of-war between needle penetration forces and fabric restraint. When you float, you reduce the stack height inside the hoop closure—making it easier to attach—but you lose the mechanical "sandwich" grip. This causes Micro-shifting, which shows up as:

• Wavy edges on satin stitches.
• Letters that don’t sit on the same baseline.
• White gaps between the outline and the fill.

Needle Assignment on the Janome MB-4: Two Words, Two Needles, No Drama

Toby goes to the needle monitoring screen and assigns:

• Needle 2 for “TOBY” (yellow)
• Needle 4 for “SEWS” (light blue)


This is exactly how multi-needle machines earn their keep. You are buying time. You set it up, walk away to fold laundry or prep the next shirt, and the machine handles the swaps.

A commenter asked about “fast frames” for this machine. In practice, what they’re really asking is: “How do I stop losing time to hooping?” If you’re doing repeated placements (left chest, sleeve, hat front), the hooping method becomes your bottleneck long before the machine’s stitch speed does.

If you’re exploring upgrades, start by researching accessories compatible with your specific model. Many shops invest in janome magnetic embroidery hoops specifically to solve the "sweatshirt struggle"—allowing you to clamp thick stacks instantly without fighting a screw and without leaving "hoop burn" marks on the fabric.

Warning: Magnetic Hazard. Magnetic hoops use industrial-grade neodymium magnets. They can pinch skin severely. Crucially: Keep them away from anyone with a pacemaker or implanted medical device (ICD), as the field can verify interfere with their operation. Store them away from credit cards and phones.

Running at 600 SPM on the Janome MB-4: Speed Is a Setting, Not a Goal

Toby runs the design at 600 stitches per minute (SPM), noting the machine can go up to 800 SPM.

Here’s the veteran truth: Speed is a destructive force. Higher speed = higher vibration + higher thread friction.

For a beginner or when using the "floating" technique:

1. Start Slow: Run the first 200 stitches at 400-500 SPM.
2. Listen: Does it sound rhythmic (like a heartbeat) or chaotic (like rocks in a blender)?
3. Inspect: Look at the fabric. Is it "flagging" (bouncing up and down with the needle)?
4. Ramp Up: Only if stable, increase to 600-700 SPM.

One commenter reported XY registration issues above 400 SPM on their machine. This is almost always a hoop-grip issue, not a machine defect. If the hoop can wiggle even 1mm, at 800 SPM that wiggle becomes a disaster.

What the MB-4 Does Automatically (and What It Still Leaves You to Finish)

Toby presses the physical Start/Stop button, the machine stitches, trims jump threads between letters, and switches needles automatically between words.

Auto-trimming is a real productivity feature, especially for lettering. But Toby still ends up with one small thread tail on the first letter—his troubleshooting note is simple: trim it manually after completion.

That’s normal. The machine hasn't locked the stitch yet when it starts.

Operation Checklist (The "during the run" monitor):

• The Anchor: Watch the first 10-20 stitches. Did they catch the bobbin?
• The Sound Check: Listen for the "snapping" sound of a thread break vs. the smooth rhythm of sewing.
• Hands Off: Let the machine trim and change needles. Do not try to "help" the thread with your fingers (safety!).
• The Stop: When the machine finishes, wait for the arm to fully stop moving before reaching in.


Tension on Sweatshirt Fabric: The Backside Tells the Truth

Toby flips to the back and checks tension, explaining the classic target: you only want to see a little bobbin thread showing, with the top thread pulled down cleanly so the front looks tight and crisp.

This is the "H Test" or "1/3 Rule."

• The Goal: On the back of a satin column (like the letter 'I'), you should see 1/3 Top Thread - 1/3 White Bobbin Thread - 1/3 Top Thread.
• Sensory Check: Run your finger over the back. It should feel smooth, not knotty or lumpy.

Troubleshooting Tension on Fleece:

• Top thread visible on bottom, but loose? Perfect.
• All White (Bobbin) on top? Your top tension is too tight (pulling bobbin up) OR bobbin is too loose.
• Loops on top? Your top tension is zero (thread missed the tension discs). Rethread immediately.

If you don't use the right stabilizer (Cut-Away), no amount of tension adjustment will fix the puckering. The fabric must be immobilized.

The Hooping Bottleneck (and the Upgrade Path That Actually Pays You Back)

Toby’s biggest practical complaint is hooping thick stabilizer with fabric—so he floats it. That works, but if you’re producing band merch or taking orders, you’ll eventually want a method that’s both fast and consistent.

Here’s the upgrade logic I use in real shops when owners complain about wrist pain and slow setup times:

Scenario trigger: “Hooping takes longer than the actual sewing.”

• The Pain: You are fighting the screws. Your wrists hurt. You leave "hoop burn" (shiny rings) on dark fabrics.
• The Bottleneck: An MB-4 can stitch fast, but it sits idle while you struggle to frame the next shirt.

The Solution Hierarchy:

1. Level 1 (Technique): Use pre-cut stabilizer and temporary spray. Mark your placement with templates.
2. Level 2 (Tool Upgrade): Switch to magnetic embroidery hoops. These use magnets to clamp instantly. They accommodate thick seams (like zippers/hoodie pockets) without forcing a screw, and they virtually eliminate hoop burn.
3. Level 3 (Production Flow): If you are doing 50+ shirts, look into a magnetic hooping station. This holds the hoop in the exact same place every time, ensuring every logo is on the exact same spot on the chest.

If you’ve been researching systems, you’ll see industry terms like hoop master embroidery hooping station or compatible alternatives like mighty hoops for janome mb4. The right choice depends on your volume. If you are doing one-offs, standard hoops are fine. If you are doing batches, magnetic systems are the only way to make the math work on your hourly rate.

Quick Answers to the Comment Questions (Without Guessing)

“Caps?” The video demonstrates a flat sweatshirt workflow. Caps are a different beast. They require a specialized "Cap Driver" and usually a specific "Cap Frame." Do not try to squash a cap flat into the hoops shown in this demo; you will break the bill or the hoop.

“Can you do it with leather?” Toby says he’s never tried it, but another MB4 owner reports success. Expert Note: Yes, but use a Leather Needle (size 14/90 or 16/100 titanium) and reduce speed to 400 SPM. Leather grabs the needle; if you go too fast, you risk deflection (breaking the needle).

“UI feels outdated.” That’s a real user experience complaint. Does the screen feel like an old ATM? Yes. Does it work? Yes. The workaround is muscle memory: Use the screen for selection, buttons for movement. Don't fight it.

Setup Checklist (The "Repeatable Routine" Version)

Use this when you want the same result every time on sweatshirt monograms:

• Power On: Watch calibration. No grinding sounds.
• Programming: Enter "TOBY" (Word 1) -> Confirm -> Enter "SEWS" (Word 2).
• Visual Alignment: Use arrow keys to center lines. Verify with "Trace" feature if available.
• Color Assignment: Assign Needle 2 (Yellow) and Needle 4 (Blue).
• Hooping: Secure the sweatshirt with Cut-Away stabilizer (Clamp if possible, Float with spray if necessary).
• Speed: Set to 400-600 SPM for the first test run.
• Watch: Monitor the first 100 stitches for thread catches or fabric flagging.

The Result You’re Chasing: Clean Letters, Minimal Trim Work, and a Workflow You Can Scale

Toby’s finished “TOBY SEWS” sample hits the practical targets: two-color contrast, automatic trims between letters, and tension that looks clean on both sides.

If you’re doing this for fun, "floating" stabilizer is a perfectly reasonable trick to keep moving.

But if you’re doing this for money, look at the process, not just the finished patch. When you eliminate the struggle of hooping—whether through better technique or magnetic tools—the Janome MB-4 transforms. It stops being a scary machine that might eat your clothes and becomes a reliable, profitable engine for your creativity.

FAQ

• Q: How can Janome MB-4 owners hoop sweatshirt fleece with thick cut-away stabilizer without hoop distortion or wrist pain?
  A: If the standard Janome MB-4 hoop will not close with moderate thumb pressure, switch to floating the stabilizer with temporary spray adhesive and slow the machine down.
  • Do: Pre-cut cut-away stabilizer at least 2 inches larger than the hoop on all sides.
  • Do: Hoop only the sweatshirt smoothly, then spray-baste and slide (“float”) the stabilizer underneath the hooped area.
  • Do: Reduce speed to 500 SPM or less when floating to limit micro-shifting.
  • Success check: The fabric feels drum-tight in the hoop and satin edges stay straight (no wavy outlines or baseline drift).
  • If it still fails… Clamp fabric + stabilizer together when possible, or consider upgrading to a magnetic hooping method for thick stacks.
• Q: What is the Janome MB-4 “Earthquake Test,” and how does table vibration affect satin stitch quality at 600 SPM?
  A: If the desk shakes, stitch quality will suffer—stabilize the table before blaming thread tension or digitizing.
  • Do: Place a glass of water on the same desk/workbench and run the Janome MB-4 around 600 SPM.
  • Do: Brace table legs or move the machine to a heavier bench if the water ripples violently.
  • Do: Re-test after changes before adjusting other settings.
  • Success check: The machine sound becomes smoother and satin columns look less “stepped” or jagged.
  • If it still fails… Re-check hoop grip for any wiggle; even 1 mm movement can become visible at higher speeds.
• Q: How can Janome MB-4 users tell during power-on calibration if the machine has a mechanical issue?
  A: Use the first 10 seconds as a health check—calibration should sound and look smooth, not harsh or jerky.
  • Do: Power on and watch the carriage/arm self-calibration movement closely.
  • Do: Listen for a smooth “whirrr” and avoid continuing if there is grinding or crunching noise.
  • Do: Keep fingers, hair, hoodie strings, and tools away from the moving arm (pinch hazard).
  • Success check: Motion is confident and consistent with no hesitation or abnormal vibration.
  • If it still fails… Stop and inspect for anything loose/out of alignment, and follow the machine manual’s service guidance.
• Q: What is the correct embroidery tension check on Janome MB-4 satin letters on sweatshirt fleece (the “H test” / 1⁄3 rule)?
  A: Aim for the classic 1/3–1/3–1/3 balance on the backside: top thread, bobbin thread, top thread.
  • Do: Stitch a sample and flip the sweatshirt to inspect the back of a satin column (like an “I”).
  • Do: Feel the backside with your finger—smooth is good; knotty/lumpy indicates a problem.
  • Do: If white bobbin thread shows on top, ease off top tension (or verify bobbin tension per the manual).
  • Success check: The front looks crisp, and the back shows a clean strip of bobbin thread centered in the satin.
  • If it still fails… Confirm cut-away stabilizer is used; stabilizer choice can cause puckering that tension changes cannot fix.
• Q: What should Janome MB-4 owners do when loops appear on top of the embroidery on fleece (thread not seating correctly)?
  A: Loops on top usually mean the upper thread is not actually in the tension discs—rethread immediately.
  • Do: Raise the presser foot (if applicable on the threading path) and completely rethread the top thread.
  • Do: Run fingers along the thread path to confirm it is smooth and not snagged or knotted.
  • Do: Watch the first 10–20 stitches to confirm the stitch “anchors” correctly.
  • Success check: The machine returns to a steady rhythm and the top surface stops forming loose loops.
  • If it still fails… Inspect the needle for a burr (scratch test with a fingernail) and replace the needle if any roughness is felt.
• Q: What speed should Janome MB-4 users run when floating stabilizer on sweatshirt fleece to avoid registration problems?
  A: Treat speed as a stability tool—start at 400–500 SPM and only increase if the hoop and fabric stay stable.
  • Do: Run the first 200 stitches at 400–500 SPM when using floating or when testing a new setup.
  • Do: Listen for a rhythmic, steady sound; chaotic noise often signals instability or thread issues.
  • Do: Watch for fabric “flagging” (bouncing up and down with the needle).
  • Success check: No visible hoop wiggle and lettering edges remain aligned without gaps or waviness.
  • If it still fails… Revisit hoop grip first; most XY shifts at higher speeds are grip-related, not a machine defect.
• Q: What are the key safety precautions for using magnetic embroidery hoops around a Janome MB-4 setup?
  A: Magnetic hoops clamp fast but can injure hands and can interfere with implanted medical devices—handle them like industrial magnets.
  • Do: Keep fingers clear when the magnets snap together (serious pinch hazard).
  • Do: Keep magnetic hoops away from pacemakers/ICDs and follow medical-device guidance.
  • Do: Store magnetic hoops away from credit cards and phones to reduce magnetic damage risk.
  • Success check: The hoop closes securely without forcing screws and without leaving shiny “hoop burn” rings on fabric.
  • If it still fails… Slow down the handling routine and consider a hooping station to control placement and reduce accidental snaps.
