Janome Continental M17 Freestanding Lace Heart Earrings: The Clean, Fast Method (and the Mistakes That Ruin FSL)

Freestanding lace (FSL) is one of those techniques that looks “impossibly professional” until you do it once—then you realize it’s mostly about clean setup, disciplined thread changes, and not rushing the wash-out. It is an engineering challenge as much as an artistic one: you are creating a fabric where none existed before.

In this project, Janome educator Danielle Amato stitches summery heart earrings using the Janome Continental M17 (CM17) and a built-in freestanding lace design—no downloading, no digitizing, no hunting online. The design has four color changes, and the whole pair stitches in about 8 minutes total (roughly 4 minutes per earring). However, your real success comes down to how well you manage the hoop tension, bobbin swaps, and structural integrity.

The Calm-Down Primer: Why Janome Continental M17 FSL Earrings Fail (and Why Yours Don’t Have To)

If you’ve ever pulled an FSL piece out of the hoop and thought, “Why does mine look flat, stiff, or not lacy at all?”—you’re not alone. One viewer asked why the two hearts stitched differently, with the first not showing a lacy effect.

Here’s the steady truth: with freestanding lace, tiny differences in thread path, bobbin match, stabilizer handling, and stitch sequence show up immediately because there’s no fabric to hide them. The good news is that the Janome CM17 workflow in this video is very repeatable—once you treat it like a mini production run instead of a casual craft moment.

If you’re new to the platform, remember you’re essentially building a “thread structure” that must hold its shape after the stabilizer dissolves. That’s why this is a perfect project to practice disciplined hooping for stabilizer-only work—and why mastering hooping for embroidery machine technique matters more here than on a normal fabric design. If your stabilizer is loose (drum-skin tight is the goal), your needle will push the stabilizer down rather than penetrating it cleanly, leading to loopiness and structural failure.

Supplies for Janome CM17 Freestanding Lace Heart Earrings (What Actually Matters)

Danielle keeps the supply list refreshingly simple. However, as an expert, I need to add a few "hidden consumables" that will save you from frustration. You don’t need special fabric—just the right stabilizer and a clean thread plan.

From the video:

• Janome Continental M17 (CM17)
• SQ10d hoop (small square hoop)
• Water-soluble stabilizer (WSS), hooped (no fabric). Expert Note: Use a fibrous/fabric-type water-soluble stabilizer (like Vilene) rather than the thin plastic film (Solvy) for better structural support.
• Embroidery threads: dark blue, light blue, pink, orange
• Matching bobbin thread for each top color (4 bobbins)
• Scissors
• Bowl of water
• Jewelry pliers
• Jump rings + earring hooks
• Jewelry card (optional, for presentation)

The Hidden Consumables (Don't start without these):

• New Needle: Use a Topstitch 75/11 or Sharp 75/11. Do not use a Ballpoint needle; it struggles to penetrate stabilizer cleanly.
• Fine-Point Tweezers: Essential for grabbing tiny thread tails in the hoop.


The “Hidden” prep that saves your lace

FSL is unforgiving about two things: stability and color cleanliness.

• Stability: Water-soluble stabilizer must be held flat and evenly tensioned in the hoop so the lace forms cleanly. It should sound like a tight drum when tapped.
• Color cleanliness: Because the back of lace is visible, bobbin color matters. If you don’t match bobbin to top thread, you can get a shadowy, “dirty” look on the back—especially on light colors.

That’s why this project is a great test case for embroidery machine hoops that hold stabilizer firmly without distorting it. Standard hoops can sometimes allow slippery stabilizer to "creep" inward; if you struggle with this, consider modern magnetic frames which clamp vertically rather than pulling laterally.

Warning: Mechanical Safety: Keep fingers, hair, jewelry, and loose sleeves away from the needle area while stitching. When using pliers for assembly, wear eye protection as jump rings can snap and fly unexpectedly.

Prep Checklist (do this before you touch the screen)

• Needle Check: Install a fresh size 75/11 Sharp or Topstitch needle.
• Bobbin Prep: Wind four bobbins, each matching one top thread color (dark blue, light blue, pink, orange). Tip: Don't overfill them; consistent tension is key.
• Hooping: Hoop water-soluble stabilizer only in the SQ10d hoop. Tap it; it should sound taut.
• Workspace: Place all four top threads within reach in stitch order.
• Rescue Gear: Set out scissors and a bowl of water for finishing.
• Hardware: Keep jump rings, hooks, and pliers ready (assembly takes practice and can be the slowest part).


Set Up the Built-In Janome CM17 Design: Category 24, Design #5 (Pair in One Hoop)

Danielle uses the Janome native interface to pull a built-in pendant design specifically intended for water-soluble stabilizer.

On-screen path shown in the video:

1. Go to Embroidery Mode.
2. Open Built-in Designs.
3. Choose Category/Section 24 (designs for water-soluble stabilizer).
4. Select Design #5 (heart pendant).
5. Use edit tools to move the first heart to the left.
6. Press Duplicate to create a second heart.
7. Move the duplicate to the right so both fit in the hoop.
8. Press OK.

The display shows both hearts and estimates 8 minutes total stitch time for the pair. Expert Note on Speed: The CM17 is fast, but for FSL, speed kills quality. Dial your speed down to the 600-800 SPM (Stitches Per Minute) "sweet spot." This reduces vibration and ensures the needle exits the stabilizer cleanly before the arm moves.

Why duplicating is more than “saving time”

Doing both earrings in one hooping isn’t just convenient—it reduces variation. Every time you re-hoop stabilizer, you introduce a chance of slight skew or tension change. For lace jewelry, that can be the difference between “matching pair” and “close enough.”

If you’re running a small shop or making multiples for a market table, this is where a workflow upgrade starts to pay off. Many makers eventually move from manual alignment to a true embroidery hooping station setup for repeatability—especially when they’re hooping slippery stabilizer all day.

Setup Checklist (before the first stitch)

• Design verification: Confirm you are in Category 24, Design #5.
• Visual Check: Confirm two hearts are visible on-screen, spaced to avoid hitting the hoop edge (leave at least 10mm margin).
• Hoop Size: Confirm the machine recognizes the hoop size as SQ10d.
• Speed Limit: Manually reduce machine speed to medium (approx 600-700 SPM) for higher precision.
• Bobbin Match: Confirm you have the correct bobbin loaded for the first color.

The Non-Negotiable Rule for FSL: Matching Bobbin Thread on Lace Earrings

Danielle states it plainly: because this is freestanding lace, the back is visible—so you need a matching bobbin for each top color.

This is one of those “sounds optional until you see it” rules. On fabric, bobbin mismatch hides on the inside. On lace, it becomes part of the design. Using white bobbin thread on a dark blue lace earring will result in white "pokies" visible on the edges, ruining the illusion of solid lace.

If you’re stitching lace jewelry for gifts or sales, the back matters as much as the front. That’s also why choosing a reliable janome embroidery machine with consistent tension and clean color changes makes FSL feel easy instead of stressful.

The Stitching Rhythm on the Janome Continental M17: Four Color Changes Without Losing Alignment

The video’s stitch plan is straightforward, but the execution is where most beginners wobble—especially when removing the hoop to access the bobbin.

Color 1: Dark Blue (load bobbin + top thread)

1. Install the dark blue bobbin. Sensory Check: Listen for the bobbin thread to "click" into the tension spring.
2. Thread dark blue top thread.
3. Slide the SQ10d hoop into the embroidery arm.
4. Lock the lever. Action: Give the hoop a gentle wiggle to ensure it is seated.
5. Stitch the first color.

Danielle emphasizes how easy threading is on this machine, and you’ll see the first outline stitch out.

Color 2: Light Blue (remove hoop, swap bobbin + top thread)

1. Remove the hoop to access the bobbin case more easily.
2. Remove both the dark blue bobbin and top thread.
3. Install the light blue bobbin and thread light blue top thread.
4. Re-attach the hoop and lock the lever.
5. Stitch the light blue detail.

Danielle notes a practical advantage: using the small SQ10d hoop makes repeated hoop removal feel less like a chore.

Pro tip from the comments (made practical): A viewer asked if you could combine colors so all of the same color stitches at the same time. Janome replied that combining colors is an option (via software or on-screen editing). If you do strictly combine colors, be careful: jumping between the left and right earring can create long jump stitches that must be trimmed perfectly.

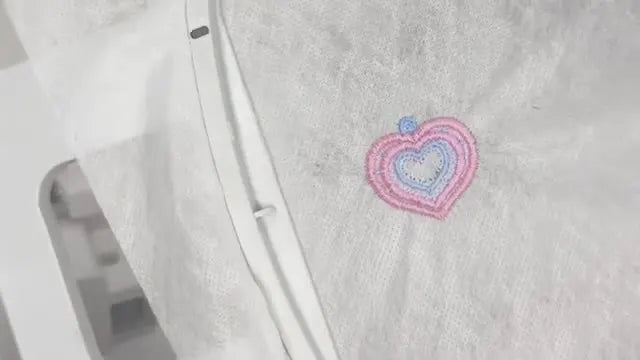

Color 3: Pink (satin border)

1. Swap to pink bobbin and pink top thread.
2. Stitch the pink satin border.

Danielle calls out a real-world moment: sometimes the needle threader doesn’t catch the thread in the eye (“Oops, that didn’t catch”). If that happens, stop and re-thread—don’t try to “power through” a missed thread or manual thread with a frayed end.

Color 4: Orange (center fill)

1. Swap to orange bobbin and orange top thread.
2. Stitch the orange center fill.

After the first earring completes, Danielle repeats the same process for the second heart on the right side of the hoop, starting again with the original blue.

The “why” behind the rhythm (so your two hearts match)

In my experience, the biggest reason two supposedly identical FSL pieces come out looking different is not the design—it’s the handling between color changes.

• When you remove and reattach the hoop repeatedly, you can introduce tiny shifts.
• If the stabilizer relaxes in the hoop, satin borders can look heavier or lighter.
• If the top thread isn’t actually seated in the needle eye (even briefly), you can get sections that look less defined.

That’s why many production-minded embroiderers eventually adopt magnetic embroidery hoops for stabilizer-heavy projects. Because magnetic hoops clamp the stabilizer vertically with immense force, they prevent the "slippage" that often happens with standard thumbscrew hoops during repeated handling. In our shop context, upgrading to magnetic hoops (like those from SEWTECH) is often the “next step” when a hobby workflow starts turning into small-batch orders and hand fatigue sets in.

Operation Checklist (end-of-stitch discipline)

• The "Double Swap": At every color change, did you swap both bobbin and top thread?
• The "Tug Test": Pull the top thread gently near the needle eye—does it feel seated in the tension discs (like flossing a tight tooth)?
• The "Lock Check": When reattaching the hoop, did you lock the lever all the way?
• The "Second Heart": Ensure the second heart follows the exact same sequence.


The Clean Finish: Trimming and Dissolving Water-Soluble Stabilizer Without Sticky Mess

Once both earrings are stitched, Danielle removes the stabilizer from the hoop and trims around each heart.

Her key finishing tip: trimming close reduces the amount of stabilizer that turns tacky and gets everywhere when wet.

Trim first (close, but safe)

• Remove the project from the hoop.
• Use scissors to trim excess stabilizer as close to the stitching as possible without cutting threads. Aim for a 2mm border.


Dissolve in water (bowl or sink)

Danielle uses a bowl of water for filming, but notes you can do this under a sink.

• Submerge the trimmed earrings.
• Rub gently with fingers until the stabilizer dissolves.
• Expert Texture Check: Don't wash all the stabilizer out if you want stiff earrings. Rinse until the piece feels slightly "slimy" but not gritty. Leaving a bit of stabilizer residue acts as a stiffener (like starch) when it dries.






After dissolving, you’re left with the freestanding lace hearts. Dry them on a towel. Critical: Ensure they dry flat. If they curl now, they will stay curled.

Assembly and Presentation: Jump Rings, Hooks, and the “Looks Like a Brand” Upgrade

Danielle mentions the toughest part may be attaching jump rings and earring hooks with pliers—it takes practice.

A simple way to make these feel gift-ready (or retail-ready) is exactly what she shows: mount them on a jewelry card.

From a studio owner’s perspective, finishing is where your perceived value jumps. Clean edges, consistent shape, and tidy presentation are what let you charge more confidently.

If you’re making batches, consider your tool path:

• Baseline: standard hoop + careful trimming and wash-out.
• Speed/consistency upgrade: Using magnetic hoops for janome embroidery machines can reduce hooping strain and help keep stabilizer evenly held during repeated handling, preventing the dreaded "hoop burn" or distortion on delicate lace structures.
• Production mindset: if you’re doing this weekly for sales, pairing a repeatable hooping workflow with a multi-needle setup (like a SEWTECH multi-needle embroidery machine) can turn “cute project” into “reliable product line,” drastically reducing the 8 bobbin changes required for a single pair of earrings.

Warning: Magnet Safety: If you upgrade to magnetic hoops, treat them with respect. Keep strong magnets away from pacemakers and implanted medical devices. Watch for pinch hazards—these magnets can snap together with enough force to injure fingers.

When Your Two Hearts Stitch Differently: The Fast Diagnosis (Based on Real Viewer Questions)

A viewer asked why the hearts stitched out differently, with the first earring not looking lacy. Without changing the design, here are the most common causes you can check—using only what this project involves.

Should You Combine Colors on the Janome CM17? Yes—But Know the Tradeoff

The comment thread confirms combining colors is an option. Practically, combining colors can reduce the number of thread changes, which is attractive if you’re trying to speed up.

However, for lace jewelry, color sequencing can affect the look if you change what stitches when (e.g., stitching the blue base on both hearts, then the pink border on both). It introduces long travel lines across the hoop. if you decide to combine:

• Keep the visual goal first (front/back cleanliness and definition).
• Watch out for the machine automatically trimming; ensure tails don't get trapped under the second heart.

If you find yourself doing lots of color swaps and hoop removals, that’s a strong signal to evaluate workflow tools like a hoop master embroidery hooping station or other alignment aids to ensure your placement never drifts—especially if you’re producing multiples.

Decision Tree: Picking the Right Stabilizer Strategy for Freestanding Lace vs “Lace on Fabric”

Use this quick decision tree to avoid the most expensive beginner mistake: using the wrong foundation.

1. Are you making true freestanding lace (no fabric at all)?
   • Yes: Use fibrous water-soluble stabilizer (like Vilene). Hoop it tightly (drum skin). Match bobbin colors.
   • No: Go to step 2.
2. Are you stitching lace onto fabric (decorative lace effect)?
   • Yes: You may still use water-soluble topping/backing depending on fabric, but the fabric will hide the back. You generally do not need to match bobbin colors here.
   • No: Re-check the design type; Janome Category 24 designs are specifically engineered for water-soluble stabilizer use only.
3. Are you making multiples for sale (repeatability matters)?
   • Yes: Consider a faster, more consistent hooping method (Magnetic Hoops) to save your wrists and standardize tension.
   • No: The SQ10d hoop workflow in the video is perfectly workable—just stay disciplined with your tightening.

The Upgrade Path (No Hard Sell—Just the Reality of Time)

This project is fast on the machine—8 minutes for two earrings—but the human time adds up: winding four bobbins, repeated hoop removal, trimming, wash-out, drying, and hardware assembly.

If you’re staying in hobby mode, enjoy the tactile process. If you’re trying to produce consistently (or sell), your best upgrades usually follow this order:

1. Consumables discipline: Quality thread + reliable fibrous water-soluble stabilizer (the foundation of clean FSL).
2. Hooping efficiency: Magnetic Hoops can reduce handling time and hooping stress, especially when you’re repeatedly removing the hoop to access the bobbin case on a single-needle machine. They solve "hoop slip" instantly.
3. Production capacity: When orders grow, a multi-needle machine (like SEWTECH models) becomes the ultimate time-saver. It holds all 4 colors simultaneously—no re-threading, no bobbin swapping for every color change, and automatic tension adjustment.

Done right, these little hearts aren’t just a cute summer project—they’re a training ground for professional habits: consistent setup, controlled changes, and clean finishing.

FAQ

• Q: What needle type and size should be used for Janome Continental M17 freestanding lace earrings on water-soluble stabilizer?
  A: Use a fresh 75/11 Sharp or 75/11 Topstitch needle; avoid ballpoint needles for stabilizer-only freestanding lace.
  • Install: Replace the needle before starting the project (stabilizer dulls needles faster than fabric, generally).
  • Stitch: Run the first outline and watch for clean penetrations instead of punching/dragging the stabilizer.
  • Success check: The needle pierces crisply and the stabilizer does not visibly “push down” or ripple around the stitch.
  • If it still fails: Re-hoop the water-soluble stabilizer tighter and confirm the top thread is correctly seated in the tension path.
• Q: How tight should water-soluble stabilizer be hooped in the Janome SQ10d hoop for Janome Continental M17 freestanding lace?
  A: Hoop the water-soluble stabilizer “drum-skin tight” so it stays flat and evenly tensioned during stitching.
  • Hoop: Tighten so the stabilizer is flat with no slack; tap the center area.
  • Avoid: Letting slippery stabilizer creep inward while tightening the hoop ring.
  • Success check: A firm tap produces a drum-like sound and the surface looks smooth (no waves).
  • If it still fails: Switch to a fibrous/fabric-type water-soluble stabilizer (often more stable than thin film) and re-hoop.
• Q: Why do Janome Continental M17 freestanding lace earrings look “dirty” or show white “pokies” on the edges?
  A: Match bobbin thread color to each top thread color because the back and edges of freestanding lace are visible.
  • Wind: Prepare four bobbins to match the four top colors used in the design.
  • Swap: Change both top thread and bobbin at every color change (treat it as non-optional for lace).
  • Success check: The back of the lace looks clean and the edges do not show contrasting dots/loops.
  • If it still fails: Clean lint from the bobbin area and re-thread to ensure stable tension.
• Q: Why do two Janome Continental M17 freestanding lace hearts stitch differently in the same hooping?
  A: Small handling differences at color changes (re-attaching the hoop, stabilizer relaxing, or thread not seated) commonly cause one heart to look less lacy or less defined.
  • Re-thread: Fully re-thread if anything looks “off,” and do a gentle tug to confirm the top thread is seated in the tension discs.
  • Re-mount: Lock the hoop lever fully after every bobbin swap and gently wiggle the hoop to confirm it is seated.
  • Success check: Both hearts show similar openness/definition and borders look consistent left-to-right.
  • If it still fails: Re-hoop with tighter stabilizer tension and slow the machine speed to a medium range (about 600–700 SPM is a common sweet spot for FSL).
• Q: How do I dissolve water-soluble stabilizer for freestanding lace earrings without leaving sticky residue everywhere?
  A: Trim close first, then dissolve in water with gentle rubbing; reducing excess stabilizer minimizes sticky mess.
  • Trim: Cut stabilizer to about a 2 mm border around the stitching before wetting.
  • Soak: Submerge in a bowl or rinse under a sink and rub lightly until dissolved.
  • Success check: The lace feels smooth and flexible, and the water is not turning into a heavy sticky gel from excess stabilizer.
  • If it still fails: Trim closer before the next wash-out, and rinse a little longer; if stiffness is desired, leave a slight residue and dry flat.
• Q: What mechanical safety steps should be followed when stitching Janome Continental M17 freestanding lace earrings and assembling jump rings with pliers?
  A: Keep hands and loose items away from the needle area while stitching, and protect eyes when opening jump rings because hardware can snap.
  • Secure: Keep fingers, hair, jewelry, and loose sleeves away from the needle path during embroidery.
  • Pause: Stop the machine before reaching near the needle or hoop to trim or adjust anything.
  • Success check: No need to “chase” thread tails near moving parts, and assembly feels controlled without jump rings springing free.
  • If it still fails: Slow down the workflow—set tools within reach and handle jump rings deliberately with pliers and eye protection.
• Q: When should a Janome Continental M17 freestanding lace workflow upgrade from standard hoops to magnetic hoops or to a multi-needle machine?
  A: Upgrade when repeated hoop removal, stabilizer slippage, or constant color/bobbin swaps become the main source of quality variation or time loss.
  • Level 1 (technique): Tighten hooping to drum-skin tension, slow to medium speed, and enforce “double swap” (top + bobbin) every color.
  • Level 2 (tool): Consider magnetic hoops when stabilizer creeps or hooping strain/fatigue shows up during repeated handling.
  • Level 3 (capacity): Consider a multi-needle machine when producing batches and the repeated re-threading/bobbin swapping is limiting output.
  • Success check: Less variation between pairs and fewer restarts caused by hoop shifts or thread/bobbin mismatch.
  • If it still fails: Re-check stabilizer type (fibrous water-soluble is often more forgiving) and confirm the hoop is locking consistently each time.
