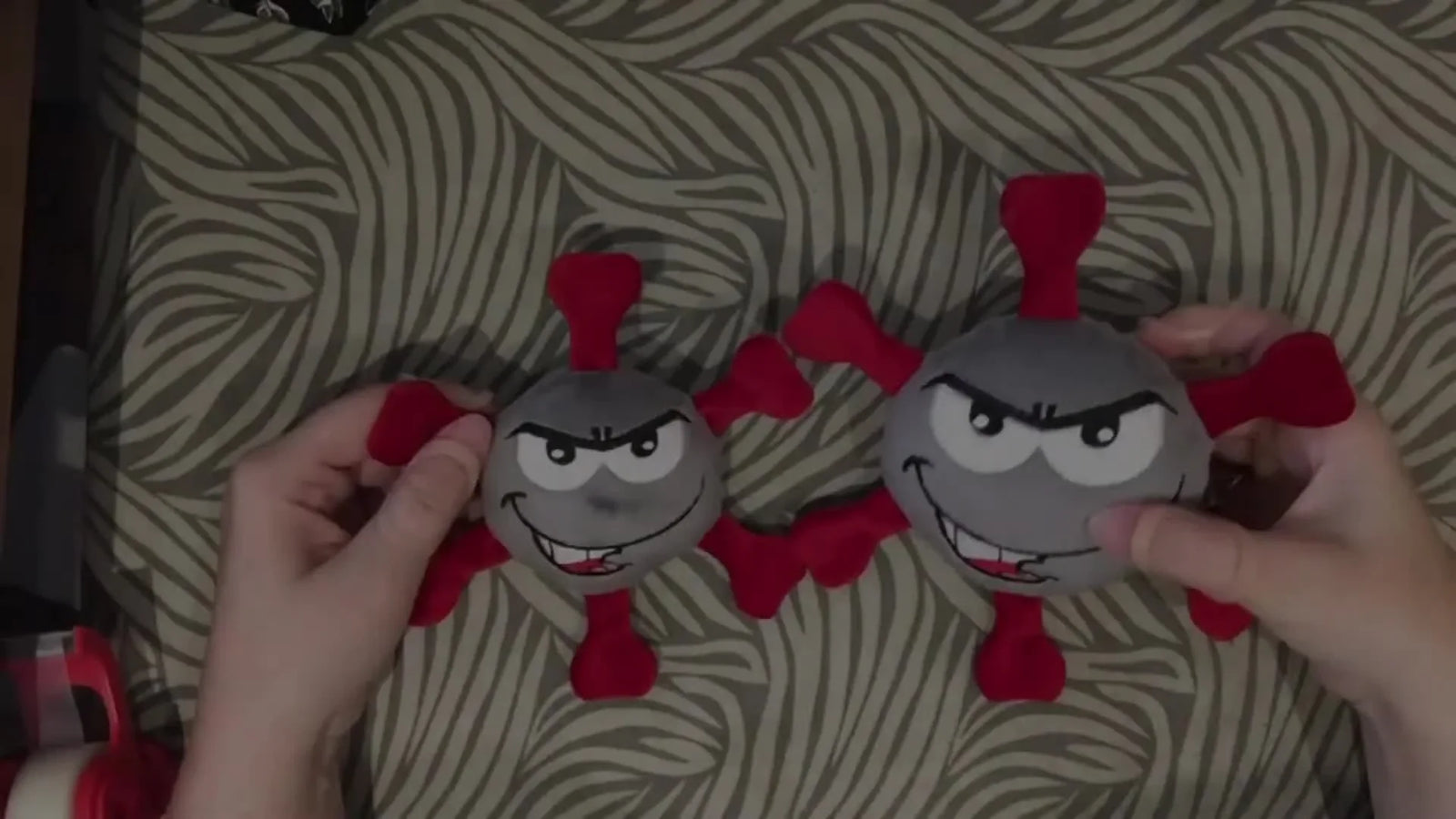

ITH Virus Dog Toy in a 4x4 Embroidery Hoop: Clean Appliqué on Minky, Secure Stems, and a Squeaker That Actually Stays Put

If you have ever executed an In-The-Hoop (ITH) plush project and flinched at the sound of your machine groaning over thick seams, you understand the tension involved. Stitching on pile fabrics like Minky or Cuddle, navigating tiny turning gaps, and managing 3D add-ons (like stems or limbs) can quickly turn a fun project into a thread-snapping, presser-foot-catching ordeal.

This guide effectively reconstructs a ThreadMode Embroidery workflow for creating an ITH "virus" plush in a 4x4 hoop. However, we are going to look at this not just as a "craft," but as a micro-manufacturing process. Success here relies on managing three variables: compression, alignment, and clearance.

The workflow is smart: you build the stems in one hooping, stitch the body/face in a second hooping, and finish by hand. Below is the blueprint for doing it without breaking needles or ruining expensive fabric.

The “Don’t Panic” Primer: Physics of the 4x4 Hoop

While many tutorials showcase larger 5x7 or 6x10 hoops, working within the constraints of a standard brother 4x4 embroidery hoop requires strict discipline. In a small field, seam allowances are compressed, turning holes are tighter, and bulky fabrics behave as if they are twice as thick because there is less surface area to distribute the tension.

Two critical factors will determine your success:

1. Z-Axis Management (Height): Controlling the "puffy" stems so the presser foot stitches over them, not into them.
2. Pile Management (Texture): preventing stitches from vanishing into the fur.

Expert Rule of Thumb: When working with thick ITH assemblies, reduce your machine speed. If your machine runs at 800 SPM (Stitches Per Minute), dial it down to 400–600 SPM during the final assembly steps. Speed creates vibration; vibration creates needle deflection.

The Prep Phase: Material Science & "Hidden" Consumables

The instructor recommends Cuddle/Minky for the body due to its mechanical stretch, which helps the stuffed shape round out smoothly. For the stems, velvet or Minky works well. Importantly, in this specific 4x4 configuration, the stems are not stuffed. This is a strategic choice to avoid exceeding the presser foot clearance height.

The Stabilizer Strategy (The "Why")

This project uses a "Mixed-Media" stabilizer approach. This isn't random; it's engineering.

• For Stems (Structural Components): Use Cutaway stabilizer. Minky is knit and stretchy. If you use tearaway on narrow tubes like stems, they will distort during turning. Cutaway provides a permanent "skeleton."
• For Body (The Skin): Use Tearaway stabilizer. This allows the final plush to stretch and form a sphere when stuffed.
• Topper (The Surface): Use Water-Soluble Stabilizer (WSS). Without this, satin stitches will sink into the Minky pile, looking like a scar rather than a border.

The Hidden Consumables

Novices often fail because they lack the "invisible" tools pros use daily. Ensure you have:

• Spray Adhesive (e.g., 505): Essential for floating fabric without hoop burn.
• New Needle: Use a Sized 90/14 Topstitch or Embroidery needle. The larger eye protects the thread from friction, and the stronger shaft penetrates multiple layers of Minky/Cutaway without bending.
• Painter's Tape or Medical Tape: For securing the 3D stems.

Prep Checklist (Pre-Flight)

• Cut Body Pieces: Two pieces (front/back) of Minky, sized at least 1 inch larger than the hoop area on all sides.
• Cut Stem Pieces: Two pieces of red fabric per stem hooping.
• Stabilizer Inventory: Verify you have Cutaway, Tearaway, and thin WSS.
• Tool Check: Curved appliqué scissors (crucial for face trimming), turning tool (hemostats or chopstick), and tape.
• Machine Clearance: Remove the bobbin case cover and blow out any lint—Minky creates significant "dust" that can clog the hook assembly.
• Squeaker Prep: If making a dog toy, wrap the plastic squeaker in a scrap of fabric first.

Warning (Safety): Curved appliqué scissors are incredibly sharp. When trimming fabric inside the hoop, keep your stabilizing fingers outside the metal rim. Never place fingers under the needle bar, even when the machine is stopped, unless the foot pedal is disconnected or the machine is locked.

Hoop 1: Constructing the Stems (The Structural Skeleton)

The stems are created as "tubes" in the first hooping. This step relies on Cutaway stabilizer to prevent the stems from becoming misshapen noodles.

The Execution

1. Hoop the Cutaway: Hooping must be tight. Tap the stabilizer; it should sound like a dull drum—thump, thump.
2. Placement Stitch: Run the first color straight onto the stabilizer.
3. The Sandwich: Lay the first red fabric Right Side Up. Lay the second piece Right Side Down directly on top.
4. Secure: float the fabric layers with spray adhesive or tape the corners (outside the stitch zone).
5. Stitch & Trim: Run the outline stitch. Remove from the hoop.

The Veteran Move: When cutting out the stems, leave the cutaway stabilizer attached inside the layers. Do not peel it off. This internal layer acts as "memory foam," keeping the stem rounded even without stuffing.

Turning Mechanics

Turning narrow tubes is frustrating.

• Tactile Cue: When turning, you should feel resistance, but the fabric shouldn't tear. If it feels like it's ripping, stop and massage the fabric.
• Tip: Before turning, make small snips in the seam allowance at the curved tip (be careful not to snip the thread). This releases tension and allows the curve to pop out smoothly.


Hoop 2: The Body & Face (Managing Pile)

This section establishes the main structure. We switch to Tearaway stabilizer here because we want the final ball to expand when stuffed.

Hooping Minky without Tears

Hooping delicate or stretchy fabrics like Minky in standard frames often results in "hoop burn"—permanent crushing of the fibers, or worse, stretching the fabric so the face looks distorted later.

• Standard Method: Hoop only the Tearaway stabilizer. Spray it lightly with adhesive. "Float" the grey Minky fabric on top.
• The Topper: Place a layer of WSS over the Minky. This acts as a barrier, keeping the presser foot from snagging the pile loops.




Setup Checklist (Before Pressing Start)

• Tension Check: Gently pull the bobbin thread. It should unspool with smooth, slight resistance (like pulling a hair), not loose and rarely jerky.
• Topper Security: Is the WSS covering the entire design area?
• Flatness Check: Slide your hand over the Minky. There should be no ripples. Ripples become permanent crevasses once stitched.

Note on Tooling: If you find floating fabric difficult or if your hoops are leaving "burn marks" on the Minky, this is where professionals switch to magnetic embroidery hoops. These clamps hold the fabric firmly without the friction-burn of traditional inner/outer rings, making Minky work significantly less stressful.

The Face Appliqué: Precision Trimming

The machine will stitch the eye placement. You place the white felt, and it runs a tack-down/cut line.

1. The Cut: Use curved scissors (Double Curved are best) to trim the excess felt close to the stitching.
2. The Risk: If you leave too much felt, the satin border will look bumpy. If you trim too close, the felt creates a hole.
3. The Result: Only after the face is fully verified should you tear away the WSS topper (from the face area only).






The "Danger Zone": Stem Placement & Taping

This is the single most common point of failure in ITH plush projects: The Presser Foot Collision.

You must place the pre-made stems onto the body, raw edges aligning with the perimeter, and the "puffy" part facing inward toward the center of the face.

The Protocol:

1. Align the raw open end of each stem with the placement marks.
2. The stems must extend about 1/4 inch past the circle edge inward to ensure they are caught in the seam.
3. The Critical Step: You must TAPE the loose ends of the stems flat against the body.




Why is this mandatory? As the hoop moves on the X/Y axis, the stems will bounce. If a stem bounces up as the needle bar descends, the presser foot can catch it, ruining the alignment or stripping the gears of your embroidery unit. Tape them down aggressively.

Expert Insight: For those running production volumes, managing thick sandwiches like this (Stabilizer + Minky + Stems + Tape) is where standard hoops fail to close properly. An industrial-grade magnetic frame for embroidery machine allows for variable thickness without forcing you to loosen a screw, ensuring the sandwich is clamped securely every time.

Final Assembly: The "C-Stitch"

Once stems are taped, place the Back Body piece Right Side Down over the entire assembly.

1. Pinning: If you use pins, pin parallel to the hoop edge and FAR away from the stitch line.
2. The Stitch: The machine will run a final perimeter stitch, leaving a 2-inch gap for turning.
3. Visual Check: Watch the machine. If the fabric starts to "plow" or push in front of the foot, pause and smooth it out.


Warning (Magnet Safety): If you upgrade to embroidery hoops magnetic, be aware they use high-gauss magnets. Keep fingers clear of the "snap zone" to avoid severe pinching. Do not place them on laptops or near pacemakers.

Finishing: Turning, Stuffing, & The Ladder Stitch

Remove the project from the hoop. Tear away the excess stabilizer.

1. Turn: Turn the plush right-side out through the gap. Use a chopstick to push the seams out fully.
2. Stuffing: Do not shove handfuls of poly-fill in at once. Break it into walnut-sized clouds. This prevents the "cellulite" look on your plush.
3. Squeaker: Insert the squeaker into the center of the stuffing nest.
4. Closing: Use a Ladder Stitch (Invisible Stitch) to close the gap. This is the hallmark of a professional finish.






Decision Tree: Stabilizer Selection for ITH Projects

Don't guess. Use this logic flow to determine your materials.

1. Is the component load-bearing or 3D (Arms, Legs, Stems)?

• YES: Use Cutaway. Leave it inside for structure.
• NO: Proceed to Step 2.

2. Does the fabric stretch (Knits, Minky, Jersey)?

• YES: Is it the main body that needs to round out?
  • Yes: Use Tearaway (to allow expansion).
  • No: Use Cutaway (to prevent distortion).
• NO: Tearaway is sufficient.

3. Does the fabric have typical pile/fur?

• YES: WSS Topper is mandatory.
• NO: Topper is optional but recommended for crisp text.

Troubleshooting: Structured Diagnostics

Commercial Logic: When to Upgrade Your Tools

If you are making one plush for a nephew, the methods above with a standard hoop are perfect. However, frustration often sets in when you try to scale.

• The "Hoop Burn" Bottleneck: If you spend 20 minutes steaming ring marks out of Minky, you are losing money. Professional magnetic embroidery hoops eliminate this step entirely by clamping vertically rather than wedging the fabric.
• The "Wrist" Bottleneck: Struggling to tighten screws on thick ITH layers causes strain. Using a hooping station for embroidery ensures your placement is identical every time while saving your joints.
• The "Throughput" Bottleneck: If your single-needle machine requires 5 color changes and a 10-minute setup per toy, your profit margin is slim. Moving to a multi-needle machine (like SEWTECH platforms) allows you to preset colors and simply swap hoops, turning a hobby into a viable production line.

Operation Checklist (Final 60 Seconds)

• Clearance: Stems are taped flat and do not protrude vertically.
• Sandwich: Back fabric covers the entire design area.
• Speed: Machine speed reduced to 600 SPM or lower for the final assembly stitch.
• Bobbin: Verify you have enough bobbin thread to complete the final pass (don't run out mid-seam!).
• Safety: Scissors and spare needles are safely away from the machine bed.

By respecting the limitations of the 4x4 field and applying these structural engineering principles, you turn a high-risk project into a reliable, repeatable success. Happy stitching.

FAQ

• Q: What is the safest needle choice for stitching thick ITH Minky/Cuddle plush seams on a Brother 4x4 embroidery hoop?
  A: Use a fresh Size 90/14 Topstitch or Embroidery needle to reduce deflection and thread friction on thick ITH assemblies.
  • Install: Replace the needle before the final perimeter assembly stitch (don’t “finish the project” on an old needle).
  • Slow down: Reduce speed to 400–600 SPM for the bulky closing steps to limit vibration-related needle bend.
  • Pair: Use the recommended stabilizers for the step (Cutaway for stems, Tearaway for body) to avoid extra drag.
  • Success check: The machine stitches the perimeter without loud “thunks,” needle flex, or repeated thread snaps.
  • If it still fails: Re-check stem taping and clearance—presser-foot collisions often look like “random” needle breaks.
• Q: How do I prevent hoop burn and fabric distortion when embroidering Minky in a Brother 4x4 embroidery hoop for ITH plush faces?
  A: Hoop only the stabilizer and float the Minky on top with light spray adhesive to avoid crushing or stretching the pile.
  • Hoop: Tighten Tearaway stabilizer in the hoop first; then lightly spray and lay the Minky flat on top.
  • Cover: Add a Water-Soluble Stabilizer (WSS) topper over the full design area to keep stitches from sinking into the pile.
  • Smooth: Press the fabric surface by hand before starting so no ripples are trapped under stitching.
  • Success check: After stitching, the face area looks even (no stretched shape) and the pile is not permanently ring-marked.
  • If it still fails: Consider switching to a magnetic embroidery hoop system, which clamps without ring friction and often reduces burn on Minky.
• Q: What is the fastest way to diagnose incorrect bobbin tension feel before starting an ITH plush perimeter stitch on a home embroidery machine?
  A: Do a quick bobbin pull test—bobbin thread should feed with smooth, slight resistance, not loose and not jerky.
  • Pull: Gently draw the bobbin thread by hand before pressing start.
  • Compare: Aim for “hair-like” smooth resistance rather than sudden stops or free-falling thread.
  • Re-thread: If anything feels off, re-thread the machine with the presser foot UP so the thread seats in the tension discs.
  • Success check: The first stitches form cleanly without loops building underneath the stabilizer.
  • If it still fails: Stop and fully re-thread again—most sudden tangles start from a thread not seated in the tension path.
• Q: How do I stop birds nesting (tangles under the hoop) during ITH stitching on a home embroidery machine when using Tearaway stabilizer and floating Minky?
  A: Re-thread the upper thread with the presser foot UP so the thread correctly enters the tension discs.
  • Stop: Pause immediately when nesting starts; continuing usually worsens the jam.
  • Lift: Raise the presser foot, remove the top thread, and re-thread completely from spool to needle.
  • Confirm: Ensure the thread path is seated (especially at the tension area) before restarting.
  • Success check: The underside shows controlled stitches (not a growing “thread wad”) and the machine sound returns to normal.
  • If it still fails: Inspect for lint build-up—Minky sheds heavily and may clog the hook area; clean out lint before restarting.
• Q: How do I prevent presser foot collisions when taping 3D stems onto an ITH plush body in a Brother 4x4 embroidery hoop?
  A: Tape the stems down aggressively so nothing can bounce upward into the presser foot during X/Y movement.
  • Align: Match each stem’s raw open end to the placement marks, with the puffy part facing inward.
  • Extend: Position stems about 1/4 inch past the circle edge inward so the seam catches them reliably.
  • Tape: Secure loose ends flat against the body; don’t rely on “careful watching” alone.
  • Success check: During stitching, stems stay flat and the presser foot never snags or rides up over a lump.
  • If it still fails: Reduce speed to 400–600 SPM and re-check thickness—standard hoops may struggle to close consistently on bulky stacks.
• Q: What scissor safety rule should be followed when trimming felt appliqué inside a home embroidery hoop during an ITH face appliqué step?
  A: Keep stabilizing fingers outside the hoop rim and never place fingers under the needle bar unless the machine is locked or the foot pedal is disconnected.
  • Position: Hold fabric from the outside edge of the hoop while trimming close to the stitch line.
  • Trim: Use curved appliqué scissors for control, but cut slowly—these blades are extremely sharp.
  • Pause safely: Stop the machine and secure power/lockout before placing hands near the needle area.
  • Success check: Felt edges are neatly trimmed without nicked stitches, and hands never enter the needle zone.
  • If it still fails: If visibility is poor, stop and reposition lighting or the hoop—don’t “feel” cut lines near the needle area.
• Q: What magnet safety precautions are required when using magnetic embroidery hoops for thick ITH plush “sandwich” layers?
  A: Treat magnetic hoops as high-force tools—keep fingers out of the snap zone and keep magnets away from sensitive devices and pacemakers.
  • Grip: Place and remove magnetic clamps slowly from the sides to avoid sudden pinch points.
  • Clear: Keep magnets off laptops and away from medical implants (pacemakers) and similar devices.
  • Plan: Organize clamps before hooping so hands are not repositioning near the snap zone repeatedly.
  • Success check: The fabric stack is clamped evenly without finger pinches or sudden “slam” closures.
  • If it still fails: If the stack is uneven, re-seat the layers and clamp again—forcing magnets onto a lopsided stack increases pinch risk and alignment issues.
• Q: When repeated hoop pop-out or hoop burn happens on thick ITH Minky plush projects, how should embroiderers decide between technique changes, magnetic hoops, and upgrading to a multi-needle machine?
  A: Use a three-level approach: optimize technique first, upgrade hooping tools second, and upgrade production hardware only when throughput becomes the bottleneck.
  • Level 1 (Technique): Slow to 400–600 SPM on final assembly, float Minky on hooped stabilizer, use WSS topper, and tape 3D parts flat.
  • Level 2 (Tooling): Switch to magnetic hoops if standard rings slip on thick stacks or leave burn marks and screw-tightening becomes inconsistent.
  • Level 3 (Capacity): Consider a multi-needle platform when frequent color changes and long setup time per plush make volume production unrealistic.
  • Success check: Setup becomes repeatable—less time correcting ring marks, fewer hoop slips, and fewer perimeter failures.
  • If it still fails: Track where time is lost (hooping, re-threading, collision stops, color changes) and address the biggest repeat offender first.
