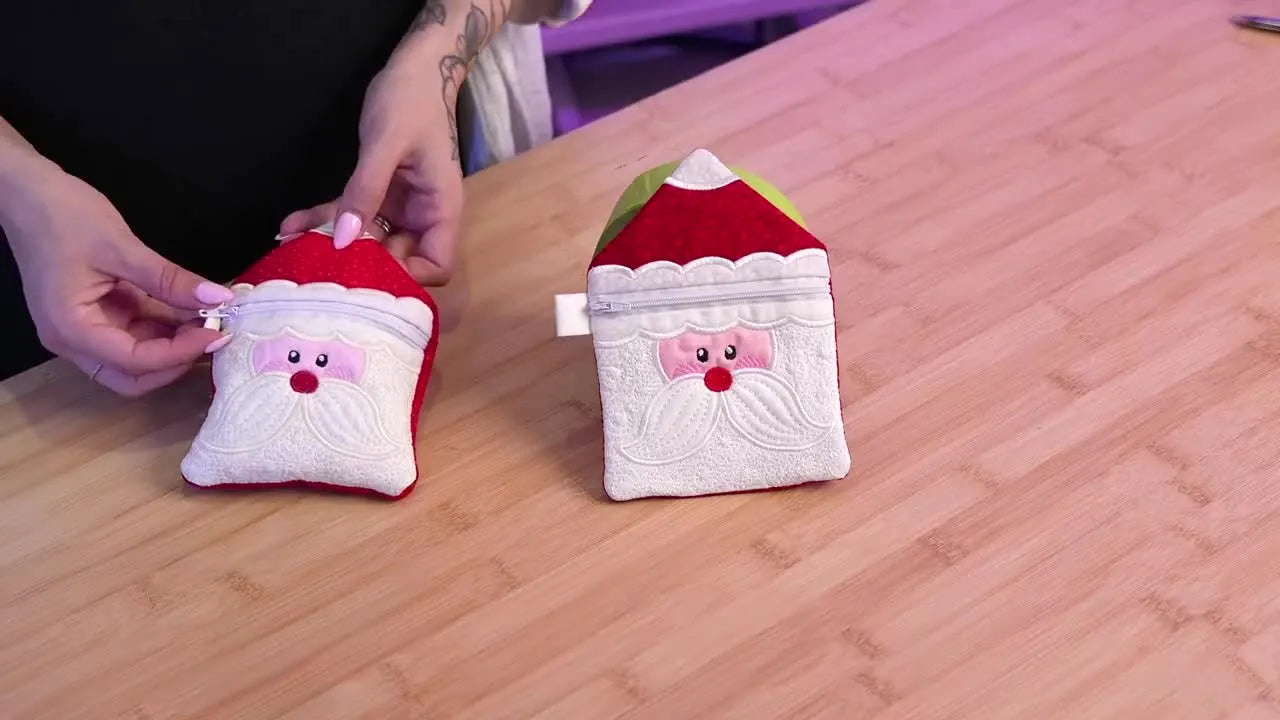

ITH Santa Zipper Bag on a Tajima: The 20-Step Hoop-Only Method That Keeps Zippers Smooth and Seams Clean

If you have ever stared at an In-The-Hoop (ITH) project, finger hovering over the "Start" button, battling the specific fear that efficient production requires—“If the zipper shifts by a millimeter, this entire batch is scrap”—you are operating in the reality of precision manufacturing.

The good news is that the Santa zipper bag is an architectural triumph. It is a forgiving design if you respect the physics of the hoop and the hierarchy of layers.

This white paper reconstructs the workflow demonstrated on a Tajima multi-needle embroidery machine using a 5"x7" magnetic hoop. We are moving beyond "crafting instructions" to "production protocols"—optimizing for flatter seams, smoother zippers, and the safety of your machine.

The “Don’t Panic” Primer: Why an ITH Santa Zipper Bag Works (and Why It Sometimes Doesn’t)

An ITH zipper bag is fundamentally a controlled suspension system. The stabilizer acts as the foundation (the chassis); the tape acts as the clamps; the running stitches act as the rivets. The final perimeter seam traps the raw edges inside, allowing for a clean turn.

Failures in this process are rarely random. They stem from three specific mechanical errors:

1. Hoop drift (The "Trampoline Effect"): If your stabilizer tension is uneven, the needle deflection causes the zipper channel to sew firmly shut or dangerously wide.
2. Bulk Management Failure: Untrimmed batting gets caught in the perimeter seam, creating lumpy corners that refuse to poke out squarely.
3. The "Blind Cut": Opening the zipper channel without tactical awareness, slicing the fabric along with the stabilizer.

If you treat each tack-down not just as a step, but as a QC (Quality Control) Checkpoint, this project shifts from a gamble to a repeatable manufacturing process—whether you are prototyping one or scaling to 50 units.

Materials Needed for the ITH Santa Zipper Bag (Exact Sizes From the Video)

Precision in pre-cutting is your first line of defense against waste. ITH files assume your fabric covers placement stitches with a safety margin (bleed area). Do not skimp here.

Hoop & Base:

• Hoop: 5" x 7" (130mm x 180mm) minimum field.
• Stabilizer: No-show Mesh (Polymesh). Expert Note: Do not use Tear-away. It lacks the tensile strength to hold a zipper straight during the turning process.

Zipper & Notions:

• Zipper: #3 Nylon Coil Zipper, 7 inches or longer.
• Adhesion: Painter’s tape (Low residue) + Optional: Temporary Spray Adhesive.
• Tools:
  • Pointed Tweezers (for picking stabilizer).
  • Double Curved Scissors (Crucial for appliqué trimming).
  • Seam Ripper.
• Closure: Hand sewing needle or fusible web tape (“Steam-A-Seam”).

“Hidden” Consumables (The things pros always have):

• Titanium Needles (75/11 Sharp): Standard needles may dull quickly hitting zipper tape and stabilizer glue.
• Bobbin Thread: 60wt or 90wt white.

Fabric Cut List (W x H):

• Hat: 6" x 4"
• White Hat Detail: 6" x 4"
• Beard: 6" x 5"
• Face: 5" x 3"
• Beard Lining: 6" x 5"
• Bag Back (Exterior): 6" x 8"
• Bag Back (Lining): 6" x 8"
• Pull Tab: 3" x 3"

Batting Pieces:

• Hat Batting: 6" x 3"
• Beard Batting: 6" x 5"
• Mustache Batting: 5" x 3.5"

Pro Tip on Loft: If your batting is high-loft (e.g., standard quilt batting), compress it with steam before cutting, or switch to a dense fusible fleece. Thick batting makes the final turn difficult and puts stress on your machine's presser foot height.

The “Hidden” Prep Before You Stitch: No-Show Mesh + Tape Habits That Prevent Shifting

The video demonstrates using no-show mesh stabilizer in a 5x7 magnetic hoop. The success of this project is determined before the machine takes a single stitch.

The Physics of Stability: Your stabilizer must be the "drum skin." If it is loose, the fabric taped to it will shift as the hoop moves. This is the root cause of "wavy" zippers. When researching hooping for embroidery machine, the goal is consistent radial tension—tight enough to bounce a coin, but not so tight it warps the frame.

Prep Checklist (Execute Before Stitching)

• Zipper Verification: Ensure it is Nylon Coil. Metal teeth will shatter a needle and potentially damage the hook timing.
• Tab Prep: Pre-fold and press the 3"x3" tab into a 0.75" x 3" strip (like bias tape) so it is ready for deployment.
• Tool Station: Place double curved scissors and tape within arm's reach. You cannot leave the machine during the 20-step run.
• Bobbin Check: Ensure you have at least 50% bobbin remaining. Running out of bobbin thread during a zipper tack-down is a critical failure point.


Lock the Foundation: Hooping No-Show Mesh Stabilizer in a 5x7 Magnetic Hoop

Step 1 (Video 01:06–01:25): Secure the Foundation: Lay a single sheet of no-show mesh stabilizer over the bottom frame of the magnetic hoop. Engage Magnets: Place the top magnetic bars. Listen for the distinct snap of engagement. Verify Tension: Run your fingers across the stabilizer. It should feel taut and smooth. Run Placement: Load the design and stitch Color Stop 1 (Placement Line).

Why Magnetic Hoops? This is where a magnetic hoop offers a tangible ROI (Return on Investment). Traditional screw-tightened hoops often leave "hoop burn" or require significant wrist torque to secure. Magnetic systems allow for instant, consistent clamping pressure without distorting the stabilizer geometry—a critical factor when alignment is non-negotiable.

Expected Outcome: A perfectly rectangular stitch line on the stabilizer. No puckering.

The Zipper Moment: Tape a Nylon Zipper Correctly (and Keep the Pull Out of the Stitch Zone)

Step 2 (Video 01:26–01:41): Align: Place the closed zipper directly over the placement line, centering the teeth between the stitched rails. Secure: Tape the top and bottom edges horizontally. Rub the tape firmly to activate the adhesive. Check the Pull: Move the zipper pull to the far top or bottom, completely clear of the stitching area. Stitch: Run the tack-down stitch. Slow your machine down.

Warning: Mechanical Hazard
A needle striking a zipper pull is a violent event. It can shatter the needle, sending shards towards your eyes, and knock the machine's timing out of alignment.
Rule: Eyes on the machine during this stitch. Do not walk away.

Speed Recommendation: If you are using a high-speed tajima embroidery machine, reduce speed to 600 SPM (Stitches Per Minute) for this step. Precision outweighs speed here.

Expected Outcome: Two parallel stitch lines locking the zipper tape to the stabilizer. The teeth should be perfectly centered.

Build the Loft Without the Bulk: Floating and Tacking Down the Three Batting Pieces

Step 3 (Video 01:42–02:03): Float: Place the hat, beard, and mustache batting pieces over their respective zones. Secure: Tape edges lightly. Stitch: Run the tack-down stitches.

Step 4 (Video 02:04–02:32): Trim: Using double curved scissors, trim the batting as close to the stitching as possible (1-2mm).

The "Beveling" Technique: Angle your scissors slightly so you are cutting the batting at a bevel. This reduces the "cliff" effect where the fabric lays over the batting, ensuring a smooth transition rather than a hard ridge.

The Hat Sandwich: Align Hat Fabric + Hat Lining to the Zipper Edge (Then Flip and Tape Flat)

Step 5 (Video 02:33–03:01): Front: Lay hat fabric Right Side Down (facedown), aligning the raw edge with the top zipper tape edge. Tape. Back (Under the Hoop): Flip the hoop. Lay hat lining Right Side Down, aligned to the same zipper edge. Tape securely. Stitch: Run the seam allowing the machine to lock both layers simultaneously.

Step 6 (Video 03:02–03:19): Fold & Tape: Flip the hat fabric up (Right Side Up). Smooth it with your hand to tension it over the batting. Tape the corners down outside the stitch zone. Leaves the back lining as is. Stitch: Run the tack-down for the hat brim.

This technique is known as a floating embroidery hoop method—where the material is not clamped by the hoop itself but floated on the stabilizer. The success depends entirely on your taping discipline.

Clean Applique Edges: Trim Hat Fabric Close, Then Let the Satin Border Do Its Job

Step 7 (Video 03:20–03:43): Trim: Cut the excess hat fabric close to the tack-down line. Stitch: Run the satin stitch borders (Brim and Pom-pom).

Sensory Check: When trimming, you should feel the scissors gliding against the stabilizer without catching it. If you feel a "snag," stop immediately—you are cutting the mesh.

Expected Outcome: The satin stitch is the "eraser." It should fully encapsulate the raw edge. If you see "whiskers" of fabric poking through the satin, your trim wasn't close enough.

The Back-of-Hoop Habit That Makes ITH Look “Store-Bought”: Secure the Hat Lining Properly

Step 8 (Video 03:44–03:55): Flip: Turn the hoop over. Fold: Smooth the hat lining down. Tactile Check: Run your thumb over the lining. If there is slack, it will pleat during stitching. It needs to be taut. Tape: excessive tape is better than insufficient tape here. Stitch: Secure the lining.

Professional shops using magnetic embroidery hoops favor them for ITH work specifically because flipping the hoop doesn't risk popping the inner ring, which can happen with standard friction hoops under the weight of heavy fabrics.

Repeat the Sandwich for the Beard: Front Beard Fabric + Back Beard Lining (But Don’t Fold the Lining Yet)

Step 9 (Video 03:56–04:19): Align: Beard fabric Right Side Down along the bottom zipper edge. Tape. Back: Beard lining Right Side Down along the bottom zipper edge. Tape. Stitch: Tack-down.

Step 10 (Video 04:20–04:35): Fold Front Only: Fold the beard fabric down Right Side Up over the batting. Tape. Critical Pivot: Do NOT fold the back lining down yet. Keep it taped up and out of the way.

The "Why": The lining must remain up so the machine can stitch the intricate face details on the stabilizer/batting assembly without stitching through the lining pocket.

Place the Face Fabric, Tack It, Trim It—Then Let the Machine Draw the Personality

Step 11 (Video 04:36–04:43): Place: Face fabric over the center zone. Tape.

Step 12 (Video 04:44–05:03): Stitch & Trim: Tack down the face fabric and trim close.

Step 13 (Video 05:04–05:51): Detailing: The machine will now stitch eyes, nose, and swirls. Close the Back: After details are done, remove hoop, flip, fold the beard lining down, tape, and run the tack-down.

Optimization Tip: If your machine has a "Trim" function for jump stitches, ensure it is active. Manually trimming jump stitches inside a zippered bag later is a nightmare.

The Critical Zipper Channel Cut: Open the Teeth by Cutting Only Stabilizer (Not Fabric)

Step 14 (Video 05:52–06:15): Position Pull: STOP. Move the zipper pull to the approximate center of the bag. If you leave it at the edge, you will sew it shut, and the bag will be unusable. The Surgical Cut: Flip the hoop to the back. You will see the stabilizer covering the zipper teeth. Action: Use a seam ripper to carefully puncture only the stabilizer between the zipper teeth. Switch to scissors and slice the stabilizer down the center to expose the zipper. Do not cut the fabric tab or lining.

Warning: Project Failure Point
This is a high-risk maneuver. The stabilizer is translucent; the fabric behind it is not.
Technique: Lift the stabilizer up with tweezers away from the zipper tape before cutting. If you cut the zipper tape, the project is trash.

Expected Outcome: You can see the zipper teeth clearly from the back, and the slider is parked in the middle.

Add the Pull Tab and Close the Sandwich: Bag Back + Final Lining Placement

Step 15 (Video 06:16–06:24): Tab Placement: Tape the folded tab loop facing inward over the zipper tape (raw edges aligning with the perimeter).

Step 16 (Video 06:25–06:45): Exterior Close: Place Back Bag Fabric Right Side Down covering the entire front. Tape all four corners. Stitch: Run the tack-down.

Step 17 (Video 06:46–07:03): Interior Close: Flip hoop. Place Back Lining Fabric Right Side Down covering the entire back. Tape securely. Stitch: Final Perimeter Seam.

If using magnetic hoops for tajima, ensure the thick sandwich (now 6+ layers) doesn't push the magnet bars up. If it does, use clamps for extra security.

Setup Checklist (The "Pre-Flight" Check)

• Zipper Pull: Is it in the center? (Check again).
• Zipper Open: Is the zipper slightly open (unzipped) about 2-3 inches? (Essential for turning).
• Fabric Coverage: Does the back fabric cover all previous stitching?
• Clearance: Is the tab loop pointing in?


Trim Like a Pro: 1/4" Seam Allowance Everywhere—Except the Turning Gap

Step 18 (Video 07:04–07:27): Un-hoop: Remove everything from the hoop. Trim: Cut a 1/4" seam allowance around the entire perimeter except the bottom opening. The Turning Gap: Leave a 1" tab of fabric at the bottom opening.

Why the 1" Tab? This extra fabric naturally folds inward when you close the hole, giving you crisp, straight edges to hand-sew or fuse, rather than frayed chaos.

Turning, Closing, and Pressing: The Finishing Moves That Make It Look “Crisp”

Step 19 (Video 07:28–07:53): Turn 1: Turn the bag through the lining gap. Close: Fold the raw edges of the gap in, press, and stitch closed (ladder stitch or fusible tape).

Step 20 (Video 07:54–08:18): Turn 2: Turn the bag right side out through the zipper. Establish Corners: Use a chopstick or point turner to gently push the corners out. Do not pierce the fabric. Press: Iron the bag (avoiding the nylon zipper teeth if using high heat).

When using commercial equipment like a tajima embroidery hoop, the precision of the machine means your corners should be mathematically square—provided you trimmed your batting correctly in Step 4.

Operation Checklist (Final QC)

• Geometry: Are corners square (not rounded/stuffed)?
• Function: Does the zipper glide past the fabric smoothly?
• Finish: No threads trapped in the seal.
• Structure: Bag lays flat, not twisted (indicates good stabilization).


Decision Tree: Choose Stabilizer + Batting for an ITH Zipper Bag Without Guessing

Stop guessing. Use this logic table to determine your consumables based on your material.

The Upgrade Path: When a Magnetic Hoop (and a Multi-Needle Workflow) Pays for Itself

The Santa bag project exposes a production reality: Hooping is the bottleneck.

This design requires multiple removal/flip/tape sequences. If you are a hobbyist making one bag, a standard hoop is fine. If you are fulfilling orders for 20 bags, standard hoops become a liability due to wrist fatigue and "hoop burn" (permanent friction marks on delicate velvet or minky).

The Commercial Criteria:

• Trigger (The Pain): You are spending more time hooping and adjusting fabric than stitching. Your hands hurt from tightening screws.
• Judgment (The Standard): If you produce more than 10 units a week, efficiency is now your profit margin.
• The Solutions:
  1. Level 1 (Process): Use high-quality spray adhesive to speed up floating.
  2. Level 2 (Tooling): Upgrade to Magnetic Hoops. They eliminate the "screw-tighten" step and allow for faster adjustments of thick "sandwiches" like this bag.
  3. Level 3 (Scale): Transition to SEWTECH multi-needle solutions. A multi-needle machine allows you to prep the next hoop while the current one stitches, doubling output.

Warning: Magnetic Safety
High-quality magnetic hoops use industrial-grade magnets. They are strong enough to pinch fingers severely. Keep them away from pacemakers, magnetic media, and small children. Slide the magnets off; do not pry them up.

Remember, the machine provides the precision, but the operator provides the logic. By controlling your variables—hoop tension, batting bulk, and cutting accuracy—you transform a craft project into a professional product.

FAQ

• Q: How do I hoop No-Show Mesh stabilizer correctly in a 5"x7" magnetic embroidery hoop for an ITH Santa zipper bag without getting hoop drift?
  A: Hoop the No-Show Mesh like a drum skin before stitching anything—most zipper waviness starts here, and this is common.
  • Engage the magnetic bars fully and smooth the stabilizer with your fingertips before running the first placement line.
  • Re-check stabilizer tension after flipping the hoop; magnetic bars should stay seated and the mesh should not relax.
  • Success check: The first placement rectangle stitches perfectly rectangular with no puckering and the mesh feels taut and smooth.
  • If it still fails: Replace the stabilizer (mesh can be weakened by prior needle holes) and reduce taping weight so the hoop movement does not “pull” the floated layers.
• Q: Why does a nylon coil zipper still sew wavy or off-center during the tack-down step on a Tajima multi-needle embroidery machine?
  A: Slow down and lock the zipper with tape exactly as shown—high speed and weak taping are the usual causes.
  • Align the closed zipper so the teeth are centered between the stitched rails, then tape the top and bottom edges horizontally and rub tape firmly.
  • Move the zipper pull completely out of the stitch zone before starting the tack-down.
  • Run this step at about 600 SPM on a Tajima multi-needle embroidery machine for control.
  • Success check: Two parallel tack-down lines hold the tape evenly, and the zipper teeth stay centered end-to-end.
  • If it still fails: Re-hoop the stabilizer tighter and re-tape; uneven stabilizer tension can create the “trampoline effect” that shifts the channel width.
• Q: What needle and bobbin setup prevents broken needles or poor stitches when taping and sewing a zipper for an ITH Santa zipper bag?
  A: Use a sharp, durable needle and confirm bobbin capacity before the zipper tack-down—running out mid tack-down is a critical failure point.
  • Install a 75/11 titanium sharp needle as a reliable choice when stitching through zipper tape and adhesive residue.
  • Load 60wt or 90wt white bobbin thread and verify the bobbin is at least 50% full before starting the multi-step run.
  • Keep pointed tweezers nearby to pick stabilizer cleanly instead of tugging and distorting layers.
  • Success check: The zipper tack-down stitches cleanly without needle strikes, and stitch formation stays consistent through the whole zipper sequence.
  • If it still fails: Stop and inspect for a non-nylon zipper component (metal teeth/pull risk) and reduce machine speed further as a safe starting point.
• Q: How do I avoid bulky corners and “lumpy” edges on an ITH Santa zipper bag when using batting pieces (hat, beard, mustache)?
  A: Trim batting aggressively and bevel the edge—most square-corner problems come from untrimmed loft, not the file.
  • Float and tack down the three batting pieces, then trim to within 1–2 mm of the stitch line using double curved scissors.
  • Bevel the batting by angling the scissors slightly to remove the “cliff” edge under the fabric.
  • If batting is high-loft, compress with steam before cutting or switch to a dense fusible fleece to reduce thickness.
  • Success check: After turning, corners push out cleanly and the bag lays flatter without hard ridges at the applique boundaries.
  • If it still fails: Re-check that batting was not caught in the final perimeter seam and confirm the sandwich is not shifting due to insufficient tape.
• Q: How do I cut open the zipper channel on an ITH Santa zipper bag without slicing the fabric or zipper tape during the “critical zipper channel cut” step?
  A: Cut only the stabilizer between the teeth and lift it away before cutting—this is a common failure point, so go slow.
  • Stop and park the zipper pull approximately in the center before any cutting so it cannot be sewn shut later.
  • Flip to the back and use a seam ripper to puncture only the stabilizer between the zipper teeth, then switch to scissors to cut straight down the center.
  • Lift the stabilizer with tweezers away from the zipper tape before each snip to avoid accidental fabric or tape cuts.
  • Success check: Zipper teeth are clearly exposed from the back and the slider moves freely with the pull still centered.
  • If it still fails: If the zipper tape is nicked, replace the zipper for production work; small tape cuts often spread under stress.
• Q: What safety steps prevent needle strikes on the zipper pull during ITH zipper tack-down on a Tajima multi-needle embroidery machine?
  A: Never stitch the zipper tack-down with the pull near the needle path—needle strikes can shatter needles and affect machine timing.
  • Move the zipper pull fully to the far top or bottom, completely clear of the stitch zone, before starting the tack-down.
  • Stay at the machine with eyes on the needle during this stitch and reduce speed for control.
  • Success check: No audible “click”/impact, no broken needle, and the tack-down stitches run uninterrupted along both rails.
  • If it still fails: Stop immediately and inspect needle condition and zipper pull position; do not continue stitching after any impact event—consult the machine manual if timing concerns are suspected.
• Q: When does upgrading to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine make sense for producing ITH Santa zipper bags in batches?
  A: If hooping and adjustment time is dominating production (often at 10+ units per week), follow a stepped upgrade path instead of forcing speed.
  • Level 1 (Process): Use high-quality spray adhesive and disciplined taping to speed floating and reduce shifting.
  • Level 2 (Tooling): Use magnetic embroidery hoops to eliminate screw-tightening fatigue and improve consistency when flipping the hoop with heavy layers.
  • Level 3 (Scale): Use a SEWTECH multi-needle workflow so one hoop can stitch while the next hoop is being prepped.
  • Success check: Total cycle time drops because re-hooping/re-taping events decrease, and alignment issues become rare instead of routine.
  • If it still fails: If thick “sandwich” layers push magnetic bars up, add clamps for extra security and reduce loft before increasing output.
