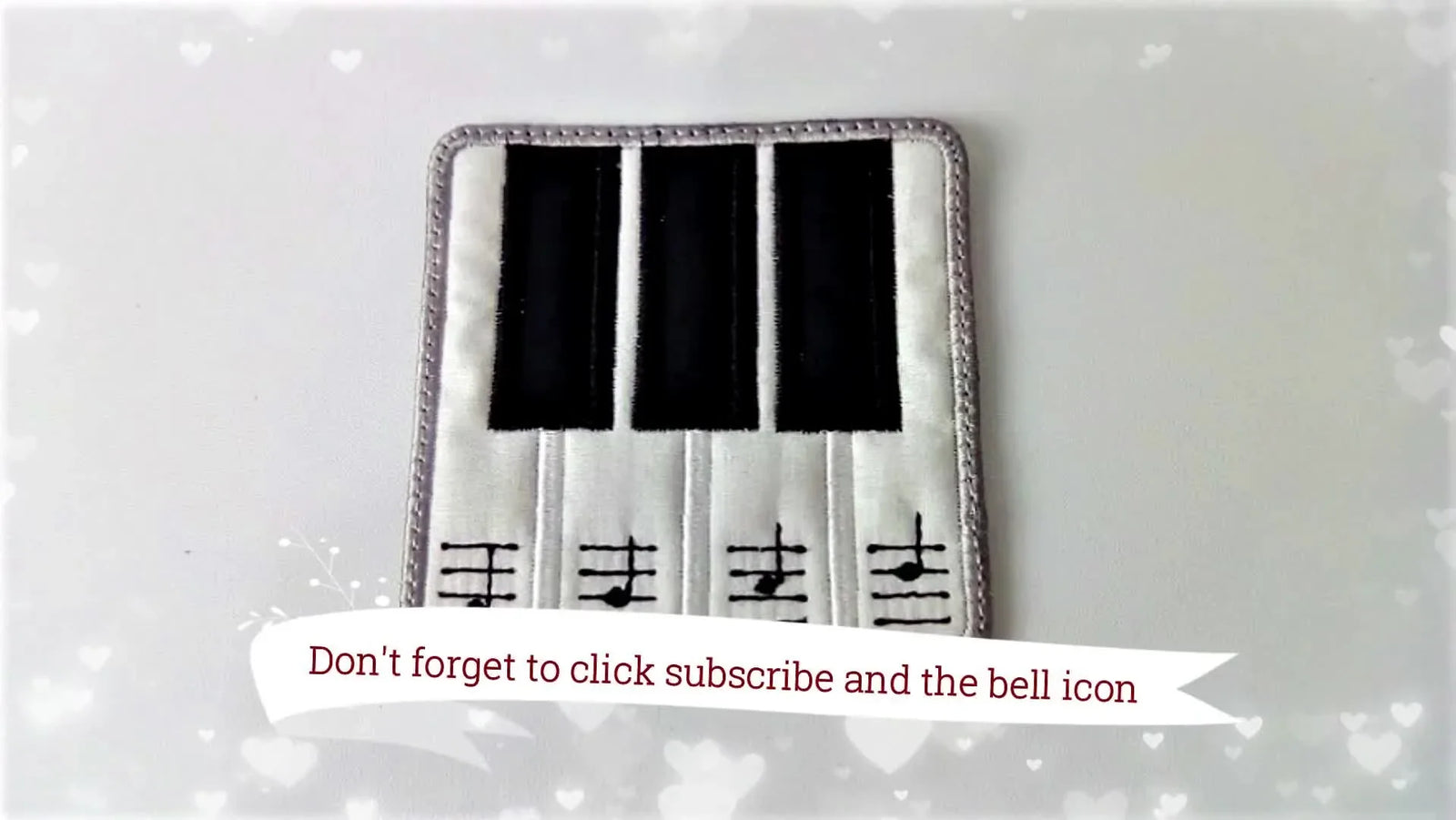

ITH Piano Coaster on a 4x4 Hoop: The Clean Appliqué Workflow That Stops Fraying, Bulk, and “Why Won’t This Stay Put?”

If you’ve ever started an ITH (In-The-Hoop) project and felt that little spike of panic—“Is this going to shift? Will the satin stitch sink? Am I going to stitch my finger?”—you are not alone. Machine embroidery is an experience science; it rewards preparation and punishes shortcuts.

This piano coaster stitch-along is the perfect "lab environment" to master the fundamentals of layering, tension, and sequencing. It looks simple, but it demands disciplined trimming and smart stabilization.

The good news: once you understand the physics of the hoop and the "why" behind the steps, this coaster becomes a reliable, high-margin item for craft fairs, or a heartfelt gift for music lovers.

Gather the Exact Materials (The "No-Fail" Kit)

Before we touch the screen, let's talk about the physical setup. The video demonstrates this on a domestic single-needle machine using a standard 4x4 hoop. The "secret sauce" here isn't the machine; it's the sandwich.

The Essential Consumables:

• Stabilizer: Two layers of fibrous Wash-Away (Water Soluble) stabilizer.
  • Expert Note: We use two layers because heavy satin stitches (the keys) can perforate a single layer, causing the design to pop out of the hoop. It creates a foundation that feels almost like cardstock.
• Fabric: Cotton scraps (White for keys, Black for sharps, Printed for backing).
  • Why Cotton? As the channel notes, cotton is the gold standard for appliqué. It has a weave that snaps cleanly when cut and doesn't stretch under the presser foot like knits.
• Batting: Thin cotton or poly-batting (cut to 4.5" x 4.5").
• Thread: 40wt Polyester Embroidery Thread (White, Black, and Border Color).
  • Hidden Consumable: Matching Bobbin Thread. For the final satin border, you must match the bobbin color to the top thread, or you will see white "pokies" on the backside.

Tools You Need on Deck:

• Curved Appliqué Scissors: (Double-curved or duckbill). Crucial for trimming close without snipping the stabilizer base.
• Masking Tape / Painter’s Tape: To hold fabric without gumming up the needle.
• Cotton Bud + Warm Water: For precise finishing.


The “No-Slip” Start: Hooping Two Layers of Wash-Away

This project relies on the stabilizer being drum-tight. If your stabilizer is loose, your piano keys will be crooked.

The "Pinning" Technique (Video Method):

1. Layer two sheets of fibrous wash-away stabilizer.
2. Loosen the outer hoop screw significantly.
3. Place the stabilizer over the outer hoop and press the inner hoop in.
4. The trick: The video suggests using pins with heads. Push a pin through the corner of the inner hoop, through the stabilizer, and back up. Repeat for all four corners.

This pin method is a "field repair" for standard hoops that have lost their grip or when using slippery stabilizer.

Warning: Mechanical Hazard
Pins near the embroidery field are a high-risk strategy. If a pin shakes loose and hits the needle bar or presser foot, it can shatter the needle and throw shrapnel. Action: If you use pins, ensure they are barely catching the corner and are miles away from the sewing field. Always manually hand-turn the handwheel for the first rotation to ensure clearance.

The Expert Upgrade: Eliminating "Hoop Creep"

Stabilizer naturally wants to "creep" (slide inward) as you tighten the thumb screw. This causes the "trampoline" effect to sag.

If you find yourself constantly wrestling with hooping for embroidery machine accuracy, your tool might be the bottleneck.

Scenario: When to Upgrade

• Trigger: You see gaps between the outline and the satin fill, or your square coaster comes out rhombus-shaped.
• Criteria: If you are spending move than 3 minutes just getting the hoop tight.
• Solution: A Magnetic Embroidery Hoop. These use high-strength magnets to clamp the sandwich instantly downward. There is no screw-tightening friction to pull the stabilizer, so it stays perfectly flat and tensioned automatically.

The “Hidden” Prep Pros Do: Pre-Flight Checks

ITH projects are stop-and-go. The machine will demand your attention every 2 minutes. Prepare your "cockpit" so you don't stall.

Prep Checklist (Complete BEFORE pressing 'Start'):

• Bobbin Check: Is your darker/border color bobbin wound and ready? (Don't run out mid-border!).
• Stabilizer Check: Are the two layers hooped tightly? Tap it—it should sound like a dull drum.
• Needle Check: Use a crisp 75/11 needle. A dull needle will hammer the wash-away stabilizer into a hole rather than piercing it.
• Workspace: Clear a 12-inch radius around the machine arm. You will need to slide the hoop off and flip it later.
• Thread Plan: Line up your cones: White -> Black -> Border Color.

For those running a business, consistency is key. A magnetic hooping station allows you to pre-set the hoop location, ensuring every single coaster is hooped in the exact same spot, saving you from measuring every time.

Round-by-Round: The Foundation (Batting & Base)

We build from the bottom up.

Steps:

1. Placement Line (Round 1): The machine stitches a simple outline on the bare stabilizer.
2. Batting Placement: Cover the line with your batting. Tape the top and bottom edges.
3. Tack Down (Round 2): The machine stitches the batting down.
4. The Trim: Remove the hoop (or slide it forward). Use your curved scissors to trim the batting right up to the stitches.


Expert Tip: The "Zero-Bulk" Cut

Batting creates bulk. If you leave a 2mm allowance here, your final satin border will look lumpy.

• Tactile Check: Run your finger over the trimmed edge. It should feel like a small ridge, not a step.
• Speed Setting: For these structural lines, you can run your machine at 600-700 SPM. No need for speed demons here; accuracy is better.

Build the Ivory Keys: The White Base

Now we lay the cosmetic foundation.

Steps:

1. Fabric Placement: Place your white cotton over the batting. Tape it clear of the needle path.
2. Tack Down (Round 3): Secures the fabric and outlines the keys.
3. Trimming: Trim the white fabric to the shape of the coaster (square/rectangle).
4. Satin Stitch (Round 4): The machine creates the definition of the white ivory keys.


Fabric Note: The creator emphasizes Cotton. Why? Cotton fibers crush nicely under satin stitching, creating that "embossed" look. Polyester or heavy canvas might poke through the satin stitches.

The Black Keys: The Patience Test

This section separates the hobbyist from the pro. The black keys are done via appliqué strips.

Sequence (Left to Right):

1. Place black strip over the key outline.
2. Tape securely (small pieces of tape are better than one long piece).
3. Stitch the tack-down box.
4. Trim immediately and closely.

Repeat this for each black key.

Troubleshooting: "It's Too Fiddly!"

Trimming a tiny rectangle of black fabric inside a 4x4 hoop is physically difficult.

• The Problem: Your hands block the light, and scissors don't fit.
• The Fix: Use tweezers to lift the fabric edge while you cut.
• Efficiency Reality: This is where the "Stop-Start" fatigue sets in. If you are doing this commercially (batches of 50), the constant unclamping of a standard hoop to trim is a wrist-killer.
• The Upgrade: This is where Magnetic Hoops shine. You can pop the top magnet off, trim freely on a flat table, and snap it back on in seconds without losing registration.

Warning: Magnet Safety
Magnetic frames are powerful industrial tools. Do not place your fingers between the magnets when they snap together—they will pinch severely. Keep magnets at least 6 inches away from pacemakers or sensitive electronics.

Also, many high-volume shops utilize tools like a machine embroidery hooping station to keep material flat and ready, reducing the fumble time between color changes.

The Anti-Fray Sequence: Zigzag & Satin Finishes

Before the heavy satin stitching, the machine runs a Zigzag (Round 8). This is your Quality Control Checkpoint.

The "Fuzzy" Check: Look closely at the black keys after the zigzag. Are there white threads or raw fabric whiskers poking out?

• Action: Trim them NOW.
• Why: The satin stitch (Round 9) is dense, but it cannot hide long whiskers. They will poke through like weeds in pavement.


The Underside: Hiding the Evidence

A professional ITH project looks good on both sides.

The "Floating" Backing:

1. Remove the hoop from the machine, but do not un-hoop the stabilizer.
2. Flip the hoop over.
3. Tape your backing fabric (right side facing up) over the area on the back of the hoop.
4. Tactile Check: Press the tape firmly. Ensure the fabric is taut, not sagging.

The Stitch (Round 11): This stitches the coaster sandwich together.

Expert "Why": Hoop Burn & Handling

This step requires flipping and pressing firmly on the hoop. Traditional hoops often grip fabric so tightly they leave "hoop burn" (permanent creases) or whitish stress marks on the wash-away stabilizer.

• Observation: If your stabilizer looks stretched or white at the edges, your hoop tension was too high.
• Upgrade: terms like magnetic embroidery hoop are often searched by users trying to solve this specifically. Because magnets clamp down rather than pull out, they eliminate hoop burn completely.

The Final Finish: Border & Release

Steps:

1. Trim Back & Front: Trim the excess backing fabric (underside) and front fabric close to the tack-down line.
2. Zigzag (Round 12): Seals the raw edges.
3. Satin Border (Round 13): The final heavy stitch. Crank your speed down to 600 SPM for this. High speed on the final border can cause the needle to deflect, hitting the heavy stabilizer and causing a needle break.


Release & Dissolve:

1. Un-hoop.
2. Cut away the bulk of the stabilizer with scissors.
3. The "Cotton Bud" Trick: Don't soak the whole coaster! Dip a Q-tip in warm water and run it along the edge. The stabilizer will melt away like sugar, leaving a clean edge without making the batting soggy.




Troubleshooting: The "Why Did This Happen?" Guide

Decision Tree: Customizing Your Workflow

Start: What is your goal?

• Goal: "I'm making one for a friend."
  • Setup: Standard hoop + 2 layers Wash-Away + Pins (if careful).
  • Focus: Take your time trimming. Enjoy the process.
• Goal: "I'm making 4 sets (16 coasters) for gifts."
  • Setup: Pre-cut all fabric squares. Use masking tape creatively to cover multiple keys if possible.
  • Focus: Efficiency.
  • Upgrade: Consider a magnetic embroidery hoop. It saves your wrists from tightening the screw 16 times x 3 re-hoopings.
• Goal: "I'm selling these on Etsy."
  • Setup: Industrial workflow.
  • Analysis: The "Stop/ Trim" nature of this design kills profit margins on a single needle machine.
  • Upgrade: This is a prime candidate for a Multi-Needle Machine (like SEWTECH). You can assign needles 1, 2, and 3 to White, Black, Border. No manual threading time. Combine with a hoop master embroidery hooping station (or similar fixture) to ensure every coaster is centered without measuring.

Operation Checklist: The Final 60 Seconds

• Bobbin Match: Did you swap the bobbin to match the border color?
• Backing Security: Is the back fabric taped down on all four corners? (A loose corner will fold over and stitch into the design).
• Clearance: Did you check that the hoop can move freely without hitting the wall/table when you taped the back?
• Thread Tails: Did you trim the "jump threads" inside the design before the final glass layer or border?




By respecting the materials and upgrading your holding tools (hoops/stabilizers) when the volume demands it, you transform a fiddly project into a factory-grade product. Happy stitching!

FAQ

• Q: How do I hoop two layers of fibrous wash-away stabilizer for an ITH piano coaster so the stabilizer stays drum-tight and does not shift?
  A: Hoop two wash-away layers drum-tight before stitching, or the piano keys will skew.
  • Loosen the outer hoop screw a lot, lay both stabilizer sheets over the outer hoop, then press the inner hoop in evenly.
  • Tap the hooped stabilizer and re-tighten until the surface is uniformly tight (avoid “trampoline” sag).
  • Use the corner-only pin trick only if the standard hoop is slipping, and keep pins far from the stitch field.
  • Success check: the stabilizer sounds like a dull drum when tapped and does not visibly ripple when you press lightly with a fingertip.
  • If it still fails: switch to a magnetic embroidery hoop to eliminate hoop creep caused by screw tightening friction.
• Q: What is the safest way to use pins on a domestic embroidery hoop when starting an ITH coaster, without risking a needle hit?
  A: Use pins only as a corner clamp, never near the embroidery field, because a loose pin can shatter a needle.
  • Insert each pin through the inner-hoop corner area and back up so it only catches the stabilizer at the hoop edge.
  • Keep all pin heads well outside the sewing area and confirm nothing protrudes upward into the needle path.
  • Hand-turn the handwheel for the first full rotation before running the design.
  • Success check: the needle and presser foot clear the hoop, stabilizer, and pins during the hand-turned rotation.
  • If it still fails: remove pins entirely and re-hoop tighter, or use a magnetic hoop for secure clamping without pins.
• Q: How do I prevent white bobbin thread “pokies” from showing on the back of an ITH coaster satin border when using 40wt polyester embroidery thread?
  A: Match the bobbin thread to the border color for the final satin border to prevent show-through.
  • Wind and install a bobbin in the same color as the final border (or black when the back is black).
  • Stitch the final border at reduced speed as recommended (about 600 SPM) to keep stitches balanced.
  • Check the back after a short section and stop immediately if white dots appear.
  • Success check: the backside of the satin border shows the intended bobbin color with no white specks peeking through.
  • If it still fails: reduce top tension slightly (a safe, gradual adjustment) and re-test; follow the machine manual for tension rules.
• Q: How can I tell if hoop creep is causing an ITH piano coaster to come out not square, and what is the fastest fix?
  A: If outlines and fills don’t line up or the square becomes rhombus-shaped, stabilizer shifted in the hoop.
  • Re-hoop with two layers of fibrous wash-away stabilizer and ensure even, drum-tight tension before Round 1.
  • Avoid over-tightening in a way that drags stabilizer inward while turning the screw.
  • Keep handling gentle during remove/flip steps so the hooped stabilizer is not distorted.
  • Success check: placement lines, tack-down stitches, and satin fills stack cleanly with consistent margins on all sides.
  • If it still fails: upgrade to a magnetic embroidery hoop to clamp straight down and eliminate screw-induced creep.
• Q: What should I do if an ITH coaster has fuzzy fabric whiskers sticking out after the zigzag pass but before the satin stitch?
  A: Trim fuzz immediately after the zigzag “checkpoint,” because satin stitch will not hide long whiskers.
  • Pause after the zigzag and inspect the black keys closely under good light.
  • Trim any white threads or raw fabric whiskers right at the edge before starting the satin pass.
  • Use curved appliqué scissors and lift the fabric edge with tweezers if access is tight.
  • Success check: the edge looks clean and uniform with no visible whiskers before the satin stitch begins.
  • If it still fails: slow down and trim in smaller sections; consider a magnetic hoop so the top clamp can be removed for easier table trimming without losing registration.
• Q: How do I prevent needle breaks on the final satin border of an ITH coaster when stitching multiple layers (wash-away, batting, fabrics)?
  A: Slow down and use a fresh needle, because high speed and heavy layers increase needle deflection.
  • Install a new 75/11 needle (or move up to 80/12 if needed for the stack) before the final border.
  • Reduce machine speed for the final satin border to about 600 SPM.
  • Confirm the hoop can move freely and is not catching on the table or wall (especially after taping the back).
  • Success check: the satin border runs smoothly with consistent stitch density and no needle “popping” sounds or strikes.
  • If it still fails: re-trim bulk to a “zero-bulk” edge and verify the sandwich is not thicker than necessary at corners.
• Q: What magnetic embroidery hoop safety rules should beginners follow when using strong magnetic frames for ITH trimming and re-clamping?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear and keep magnets away from pacemakers and sensitive electronics.
  • Separate and reattach magnets with a controlled grip, keeping fingertips out of the closing gap.
  • Place the hoop on a stable, flat surface when removing the top magnetic piece for trimming.
  • Maintain at least 6 inches distance from pacemakers or sensitive electronics.
  • Success check: magnets seat cleanly without finger pinches and the hoop returns to the exact same registration after re-clamping.
  • If it still fails: stop and reposition slowly—never force magnets together; use a safer hand position and a stable work surface.
• Q: When does an ITH coaster workflow justify upgrading from a standard screw hoop to a magnetic embroidery hoop or to a multi-needle embroidery machine like SEWTECH?
  A: Upgrade when time loss and repeat errors come from clamping, re-hooping, and stop-start trimming—not from the design itself.
  • Level 1 (technique): pre-cut all fabrics, keep a pre-flight checklist (bobbin, needle, stabilizer tightness), and trim immediately after each tack-down.
  • Level 2 (tool): choose a magnetic hoop if hooping takes more than 3 minutes, hoop creep distorts shapes, or repeated unclamping hurts hands/wrists.
  • Level 3 (capacity): choose a multi-needle machine like SEWTECH if production is commercial and repeated re-threading (white/black/border) is killing throughput.
  • Success check: cycle time per coaster drops and registration stays consistent across a batch without constant re-hooping fixes.
  • If it still fails: add a hooping station to standardize placement and reduce handling variation between runs.
