ITH Eyeglass Case in a 5x7 Hoop: The Clean Fabric Satin Edge vs the Fast Vinyl Raw Edge (and the Mistakes That Ruin Both)

The ITH Eyeglass Case Masterclass: From "Project Panic" to Production Precision

If you’ve ever watched an In-The-Hoop (ITH) project stitch out and thought, “This is either going to be adorable… or it’s going to eat my fabric,” you are experiencing a common physiological response to embroidery physics. An ITH eyeglass case looks deceptive simple, but it is a complex layered build: Stabilizer + Main Panel + Applique + Lining + Edge Finish.

In my 20 years of analyzing stitch failures, I have found that 90% of ITH issues stem from registration shift—the microscopic movement of layers that adds up to a ruined border.

Rebecca’s project is beginner-friendly, but the results range from "homemade" to "boutique quality" depending on your mastery of three variables: Friction, Tension, and Trimming. This guide will move you from guessing to knowing.

The ITH Eyeglass Case “Calm-Down Check”: Understanding the Physics of the 5x7 Hoop

This design is guided by placement stitches, but placement stitches cannot fight gravity. The moment your main panel creeps, your applique stars drift, your lining wrinkles, and the final edge (especially the unforgiving satin stitch) will broadcast every mistake.

Here is the operational reality:

• Fabric Version (Woven Cotton): Requires high stability. The final satin edge acts like a "cinch," pulling the fabric in. If your stabilization is weak, you will get "cupping" or gaps.
• Vinyl Version: Forgiving. It uses a raw edge, meaning no heavy satin stitch to distort the material. It is faster but demands perfect cutting skills.

The "Skill Stack" Mindset: If you previously struggled with this, it wasn't a talent failure; it was a setup failure. We will fix the setup.

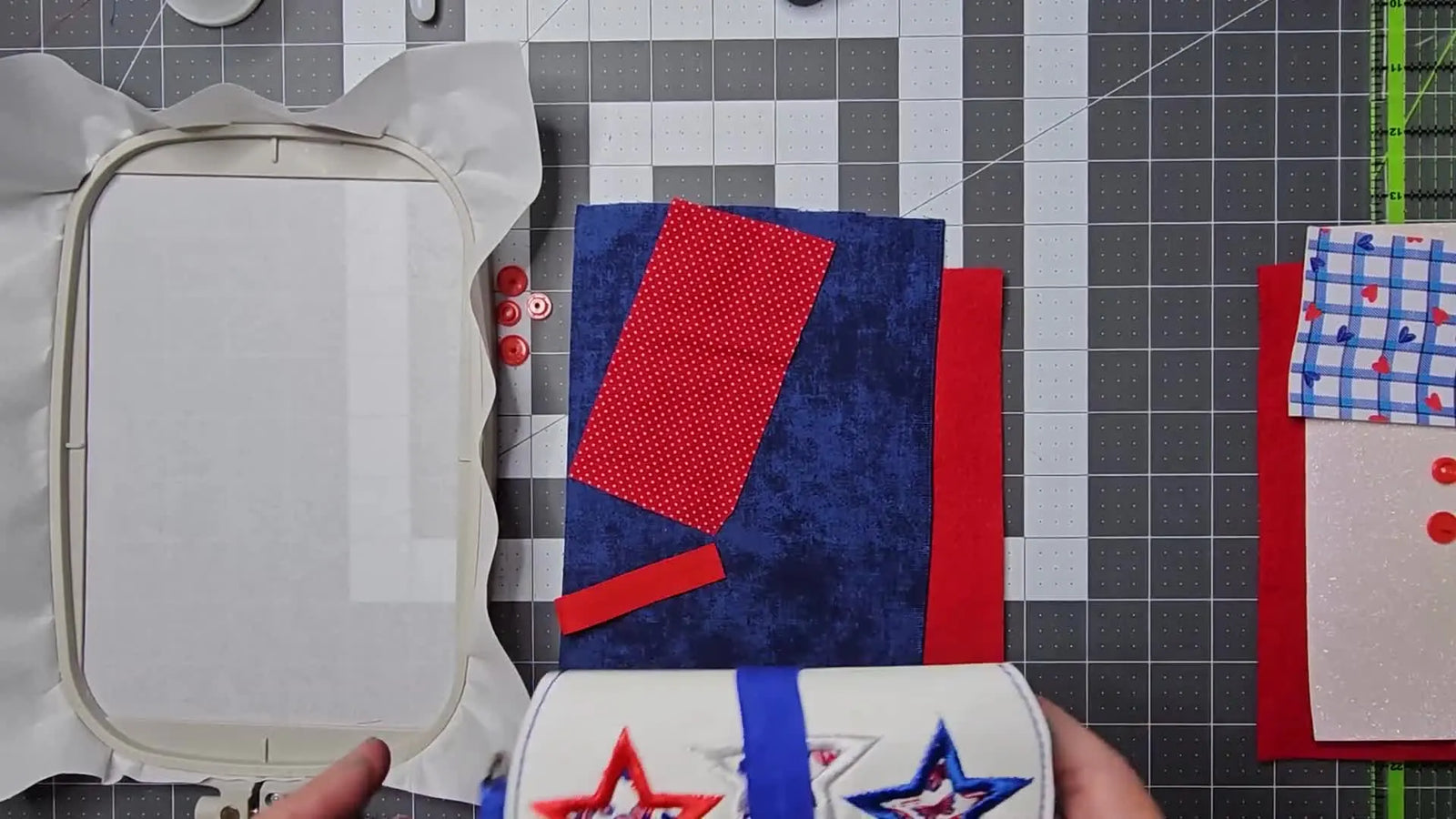

Supplies for the 5x7 ITH Eyeglass Case: The "No-Fail" Kit

Rebecca’s supply list is practical, but we need to add the "Expert Layer"—the consumables that create safety margins.

Hardware & Tools (The Physics Enablers)

• 5x7 Embroidery Hoop: Ensure the screw is tight enough that the inner ring doesn't torque.
• Needles: Use 75/11 Sharps for woven cotton; 75/11 Universals for vinyl.
• Curved Applique Scissors: Double-curved are best to keep your hand away from the needle bar.
• Snap Pliers & KAM Snaps.
• Heat Tool / Lighter: For sealing synthetic edges.

Consumables (The Stability Layer)

• Tear Away Stabilizer: The base. Two layers if using standard weight (1.5oz).
• Cut Away Stabilizer: Highly Recommended as a float/patch for the satin stitch version.
• SF101 Interfacing: Mandatory for woven cotton to prevent puckering.
• Temporary Spray Adhesive (Odif 505): The "hidden" tool for floating fabric without wrinkles.
• Paper Tape / Painters Tape: For securing the back lining.

A Note on "Floating": This project uses a technique often called a floating embroidery hoop approach. This means only the stabilizer is hooped, and the fabric rests on top. This saves fabric but requires you to manage friction manually.

The "Hidden" Prep Pros Do Before Any ITH Stitch: Stabilizer, Fabric Backing, and Trim Strategy

Most ITH failures aren't software glitches; they are mechanical failures where the fabric was too soft to resist the pull of the thread.

The Density-Stability Ratio

Rebecca uses tear away in the hoop. However, when she notices the star applique acting unstable, she adds a patch of cut away underneath.

Experience Check: Dense satin stitches (like the stars and the border) can perforate tear-away stabilizer, causing the design to fall out of the hoop.

• Rule of Thumb: If a design has a heavy satin border, Cut Away is your safest bet. If you must use Tear Away, float a layer of Cut Away under the satin areas for a "hybrid" support system.

SF101 on Woven Cotton: The Structural Skeleton

She backs woven cotton with SF101. Do not skip this.

• The Why: Woven cotton is fluid. SF101 essentially turns fabric into "paper," freezing the grainline so it cannot distort under the aggressive needle penetration of satin stitching.

Prep Checklist: The "Pre-Flight" Protocol

• Machine Speed: Set your machine to 400-600 SPM (Stitches Per Minute). High speed causes fabric flutter in ITH projects.
• Bobbin Check: Ensure you have enough bobbin thread. Running out mid-satin stitch creates a visible "seam."
• Needle Check: Is your needle fresh? A burred needle will snag vinyl or shred cotton.
• Measurement: Cut fabric to 6x8 inches minimum for a 5x7 file.
• Tool Clear Area: Place your curved scissors and tape within the "Triangle of Reach" (left or right of machine) so you don't have to stand up.


Placement Stitch on Tear Away Stabilizer: The One Line You Must Respect

Video Step 1 (02:01–02:06): The machine stitches the placement outline directly onto hooped tear-away stabilizer.

Sensory Check: Listen to the sound of the needle hitting the stabilizer. It should be a crisp thwack-thwack. If it sounds hollow or papery, your hoop tension is too loose.

The "Map" Concept: This outline is your absolute boundary. Complex embroidery hooping system workflows in factories use laser alignment, but here, your eyes are the sensor. If the stabilizer is loose (drum skin test fails), STOP. Re-hoop now, or the final border will be misaligned by 3mm, which is enough to ruin the item.

Floating the Main Panel (Woven Cotton + SF101): Smooth It Like You Mean It

Video Step 2 (02:07–02:18): Place the woven cotton panel (backed with SF101) over the placement lines.

The Friction Factor: Rebecca suggests you can tape it, but you don't have to.

• Expert Correction: If you are a beginner, ALWAYS TAPE. Or better yet, use a light mist of temporary spray adhesive on the back of the fabric.
• The Test: Place your hand on the fabric and gently try to slide it. It should offer resistance. If it slides like hockey pucks on ice, the needle will push it around, and your stars will be crooked.


Applique Star Placement & Tack-Down: How to Avoid Shifting and Ugly Edges

Video Step 3 (02:28–03:22): The machine stitches star placement outlines. Rebecca places fabric scraps and runs the tack-down stitch.

Batching Strategy:

• Same Color: Cover all stars with one large strip of fabric.
• Different Colors: Use individual scraps.

Risk Zone: When using one large strip, ensure the fabric is not "tenting" (floating above the stabilizer) between the stars. Tenting leads to fabric pleats when the foot travels over it. Smooth the fabric flat between the design elements.

Trimming Applique with Curved Scissors: The "Close Enough" Myth

Video Step 4 (03:25–03:50): Trim very close to the stitch line with curved applique scissors.

The Micro-Manuever:

1. Lift: Pull the excess fabric gently up and away from the stitch.
2. Slide: Rest the curve of the scissors flat against the stabilizer.
3. Snip: Cut smoothly.

Success Metric: You should see the tack-down thread clearly, but no more than 1mm of fabric extending beyond it. If you leave 3mm, the satin stitch will fail to cover it, leaving "whiskers" poking out.

Warning: Physical Safety
Curved applique scissors are razor sharp at the tip. When maneuvering inside the hoop, do not place your non-cutting fingers blindly under the fabric layer. You can snip your own skin instantly. Always maintain visual contact with the scissor tips.

Satin Stitching the Stars: When Dense Stitching Exposes Weak Stabilizer

Video Step 5 (04:06–04:18): The machine runs a dense satin stitch around the stars.

The "Tunneling" Symptom: If you see the fabric pulling away from the needle or the stabilizer wrinkling deeply around the star, your stabilization is too weak.

• The Fix: Slide (float) a scrap of Cut Away stabilizer under the hoop before this step starts.

This is a classic example of why professionals rarely trust a single layer of tear-away for satin stitches.

Flipping the Hoop to Add Felt Lining: Tape the Corners Like a Pro

Video Step 6 (04:22–04:54): Remove the hoop, turn it over, and place felt over the back. Secure corners with tape.

The Gravity Problem: This is the number one failure point for ITH projects. As you flip the hoop back over, gravity pulls the felt. If the tape gives way, the felt folds under, and the needle stitches it onto itself.

The Commercial Solution: If you find yourself struggling with "Hoop Wrestling"—trying to tape the back while holding the hoop in mid-air—you are hitting the limit of standard screw hoops. This is where embroidery hoops magnetic become a production asset. They grip the stabilizer with uniform tension and often allow for easier manipulation when flipping for backing placement, reducing the chance of the "lining slip."

Trim Both Sides in the Hoop: The Clean Edge Starts Before the Final Edge Stitch

Video Step 7 (05:07–05:22): Trim excess main fabric (front) and lining (back) close to the perimeter stitch line.

Critical Analysis: You must trim BOTH sides now.

• Why? If you leave bulk on the back, the final satin edge has to try to "swallow" three layers of thick material (Cotton + Stabilizer + Felt). This causes thread breakage and uneven tension.
• Action: Trim as close as possible without cutting the placement stitch. 1-2mm is the safe zone.


The Final Satin Edge on Woven Fabric: Beautiful, But Punishing

Video Step 8 (06:07–06:22): The machine runs the final heavy satin stitch around the perimeter.

The Stabilizer "Fuzzy" Issue: Rebecca correctly notes that satin edges love to grab Tear Away fibers, leaving a messy white fringe.

• Pro Material Choice: For serious production, switch to Wash Away stabilizer (fibrous type, not film) for the final hooping, or understand that you will need to heat-seal the edge.

Operation Checklist (Fabric Version)

1. Clearance: Is the lining taped perfectly flat on the back?
2. Bobbin: Do you have at least 50% bobbin remaining? (Do not start the final edge on a low bobbin).
3. Speed: Reduce speed to 400 SPM. The needle is penetrating multiple layers; high speed causes deflection (needle bending), which breaks needles.
4. Tear Out: Remove tear-away gently. Yanking it distorts the satin stitching.


Burning Off "Fuzzies" with a Heat Tool: The High-Risk Finish

Video Step 9 (06:44–07:05): Rebecca passes a heat tool along the satin edge to singe off loose fibers.

The "Touch and Go" Technique:

• Motion: Keep the flame/heat moving constantly. Never stop.
• Distance: Keep the heat source 1 inch away, moving closer only until you see the fibers curl.

Warning: Fire & Damage Hazard
Heat tools can melt synthetic embroidery thread instantly. If you used Polyester thread, a split-second pause will melt your beautiful satin stitch into a hard, plastic lump. Practice on a scrap piece first.

Snaps, Tabs, and the "Stop Sign" Method

Rebecca admits she often forgets the tab. This is cognitive overload. The project moves fast, and you miss the step.

The "Stop Sign" Protocol: If your pattern includes a Tab Placement Step, physically place a sticky note on your machine screen that says "STOP: TAB" before you start the project. Externalize your memory.

Vinyl Version: The "Raw Edge" Speed Run

The vinyl version skips the final satin stitch. It is structurally simpler but requires cosmetic perfection in cutting.

The Production Advantage: Vinyl doesn't fray. This makes it ideal for high-volume sales. However, vinyl is heavy and "grabby." Standard hoops can leave "hoop burn" (permanent crush marks) on vinyl.

• Refinement: If you do this largely, a magnetic embroidery hoop is superior. It holds vinyl firmly without the "crush" of a tightening screw, preserving the texture of faux leather.


Fold Over Elastic (FOE) Tab: Tape BEFORE The Sandwich

Sensory Check: When taping the FOE tab, pull it slightly. It should have tension. A loose tab looks sloppy.

• Sequence: Tape Tab -> Place Back Lining -> Tape Lining.
• Goal: The tab must be sandwiched between the front vinyl and back felt.


The "Don't Cut the Tab Off" Routine

Video Step 10 (11:47–12:15): Manual cutting of the vinyl version.

The most painful mistake in ITH works is cutting off the tab you just sewed in. The Safe-Cutting Algorithm:

1. Locate: Visually identify the tab.
2. Isolate: Cut the curve around the tab first.
3. Complete: Only then cut the rest of the perimeter.

Terms like magnetic hoops are often searched by users tired of hand strain, but here, the strain comes from scissors. Use high-quality, sharp scissors to glide through the vinyl rather than "chomping" it.

Stabilizer Decision Tree: The Logic of Layers

Stop guessing. Use this logic flow to determine your setup.

START HERE

1. What is your Material?
   • Vinyl: Go to Step 2.
   • Woven Cotton (Fabric): Go to Step 3.
2. Vinyl Setup (Raw Edge)
   • Primary: Tear Away (Medium Weight).
   • Action: Verify hoop tension. Vinyl is heavy; if it slips, the outline won't match.
   • Upgrade: Magnetic Hoop recommended to prevent hoop burn.
3. Woven Cotton Setup (Satin Edge)
   • Primary: Tear Away (2 Layers) OR Wash Away (Fibrous).
   • Structural Support: Iron SF101 to the back of the cotton.
   • Safeguard: If the design has dense stars, FLOAT a layer of Cut Away under the hoop before stitching starts.

Troubleshooting: The "Why Did It Fail?" Matrix

The Upgrade Path: Turning a Hobby into a Revenue Stream

Rebecca mentions she sells these as add-ons. This is the "Gateway Product" model. When you move from making one eyeglass case to making 50 for a craft fair, your equipment becomes the bottleneck.

Level 1: The Friction Fix (Hooping)

If you are spending 5 minutes hooping and 5 minutes stitching, your ratio is poor.

• Trigger: Sore wrists/fingers, or "hoop burn" marks on vinyl.
• Solution: magnetic hoops. They snap shut instantly, self-adjust for thickness, and eliminate the "screw-tightening" fatigue.

Warning: Magnet Safety
Magnetic frames are industrial tools. They snap with extreme force. Keep fingers clear of the contact zone to avoid pinching. Keep magnets away from pacemakers and sensitive electronics.

Level 2: The Volume Fix (Machine)

If you are constantly stopping to change thread colors (the stars are yellow, the edge is blue, the text is black), you are losing money on "downtime."

• Trigger: You have orders for 20 cases, and the single-needle changes are driving you crazy.
• Solution: SEWTECH Multi-Needle Solutions. Moving to a machine that holds 6, 10, or 15 colors allows you to press "Start" and walk away to cut fabric for the next batch. This is how you scale from "Crafter" to "Business Owner."

Setup Checklist (Do this immediately before pressing Start)

• [ ] Bobbin is at least 50% full.
• [ ] Design is centered in the 5x7 hoop.
• [ ] Speed reduced to "Learner Mode" (400-600 SPM).
• [ ] "STOP: TAB" sticky note placed on screen (if applicable).
• [ ] Scissors and Tape are within arm's reach.

You are now ready to stitch not just with hope, but with certainty.

FAQ

• Q: How can a 5x7 screw embroidery hoop be tightened correctly for an ITH eyeglass case placement stitch on tear-away stabilizer?
  A: Re-hoop until the stabilizer passes a drum-tight test before stitching the placement outline.
  • Tighten: Turn the hoop screw until the stabilizer feels like a firm drum skin, not soft or wavy.
  • Stitch: Run the placement stitch and stop immediately if the stabilizer looks loose or ripples.
  • Success check: The needle sound on stabilizer is a crisp “thwack-thwack,” not hollow or papery.
  • If it still fails: Switch to a magnetic embroidery hoop to get more uniform tension and reduce hoop torque during handling.
• Q: How do I stop floating cotton fabric backed with SF101 from sliding during an ITH eyeglass case stitch-out in a 5x7 hoop?
  A: Increase friction—beginners should tape or lightly spray-baste the main panel before stitching.
  • Add grip: Mist temporary spray adhesive on the fabric back (or tape edges outside the stitch path) before placing on the placement lines.
  • Smooth: Press the fabric flat so it cannot “tent” between design areas.
  • Success check: A gentle hand push cannot easily slide the fabric; it should resist movement.
  • If it still fails: Slow the machine to 400–600 SPM and re-check hoop tightness, because flutter can amplify shifting.
• Q: When stitching dense satin stars on an ITH eyeglass case, why does tear-away stabilizer cause tunneling and how do I fix gaps around satin stitches?
  A: Add stronger support—float cut-away under the hoop before dense satin areas to prevent tunneling and gaps.
  • Support: Slide a scrap of cut-away stabilizer underneath the hooped project before the dense satin step starts.
  • Upgrade next run: Choose cut-away as the safer base for heavy satin borders, or use a hybrid (tear-away hooped + cut-away floated under satin zones).
  • Success check: The stabilizer stays flat and the fabric does not pull inward or wrinkle deeply around the stars.
  • If it still fails: Reduce speed toward 400 SPM and confirm SF101 was applied to woven cotton to “freeze” the fabric grain.
• Q: How do I prevent felt lining pleats when flipping a 5x7 hoop for ITH eyeglass case back lining placement?
  A: Tape the felt corners firmly before flipping back, because gravity is the main cause of lining slip.
  • Tape: Secure the felt with tape at multiple corners/edges so it cannot sag when the hoop is inverted.
  • Press: Rub tape down firmly and keep tape out of the needle path.
  • Success check: After flipping, the felt remains flat with no folds or drift from the perimeter area.
  • If it still fails: Consider a magnetic embroidery hoop to reduce “hoop wrestling” and improve control during the flip-and-place step.
• Q: What causes needle breaks during the final satin edge on a woven-fabric ITH eyeglass case, and what settings fix it?
  A: Too many layers plus high speed causes needle deflection—slow down and start with a fresh 75/11 needle.
  • Change needle: Install a fresh 75/11 needle (a safe starting point is titanium-coated if available).
  • Slow down: Drop speed to about 400 SPM for the final perimeter satin stitch.
  • Trim bulk: Trim both front and back close to the perimeter stitch line (about 1–2 mm safe zone) so the satin edge isn’t swallowing excess thickness.
  • Success check: The machine runs the perimeter without “punching” sounds, needle flex, or repeated breaks.
  • If it still fails: Re-check that the lining is taped perfectly flat and confirm the bobbin is at least 50% full before starting the final edge.
• Q: How do I avoid cutting myself when trimming applique fabric inside a 5x7 hoop with curved applique scissors?
  A: Keep scissor tips in view and never place fingers under the fabric while cutting inside the hoop.
  • Lift: Pull excess applique fabric up and away from the stitch line before cutting.
  • Slide: Keep the curved blade flat against the stabilizer to control depth.
  • Watch: Maintain visual contact with the scissor tips the entire time.
  • Success check: Trimming is controlled and close, leaving no more than about 1 mm beyond the tack-down without any blind cutting.
  • If it still fails: Stop, rotate the hoop for a safer angle, and trim in smaller sections rather than forcing the scissors into tight curves.
• Q: What magnetic embroidery hoop safety rules prevent finger pinches when using magnetic frames for ITH projects and vinyl hooping?
  A: Treat magnetic hoops as industrial pinch hazards—close the frame with fingers completely clear of the contact zone.
  • Clear hands: Keep fingertips away from the closing edge and let the magnets “snap” shut without guiding between the plates.
  • Control placement: Set the hoop down on a stable surface before closing, instead of holding it mid-air.
  • Separate from risk: Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Success check: The frame closes without any hand contact near the pinch point and the material is held evenly without over-tightening marks.
  • If it still fails: Use slower, deliberate handling and reposition the fabric/stabilizer before closing rather than trying to “adjust” after magnets engage.
