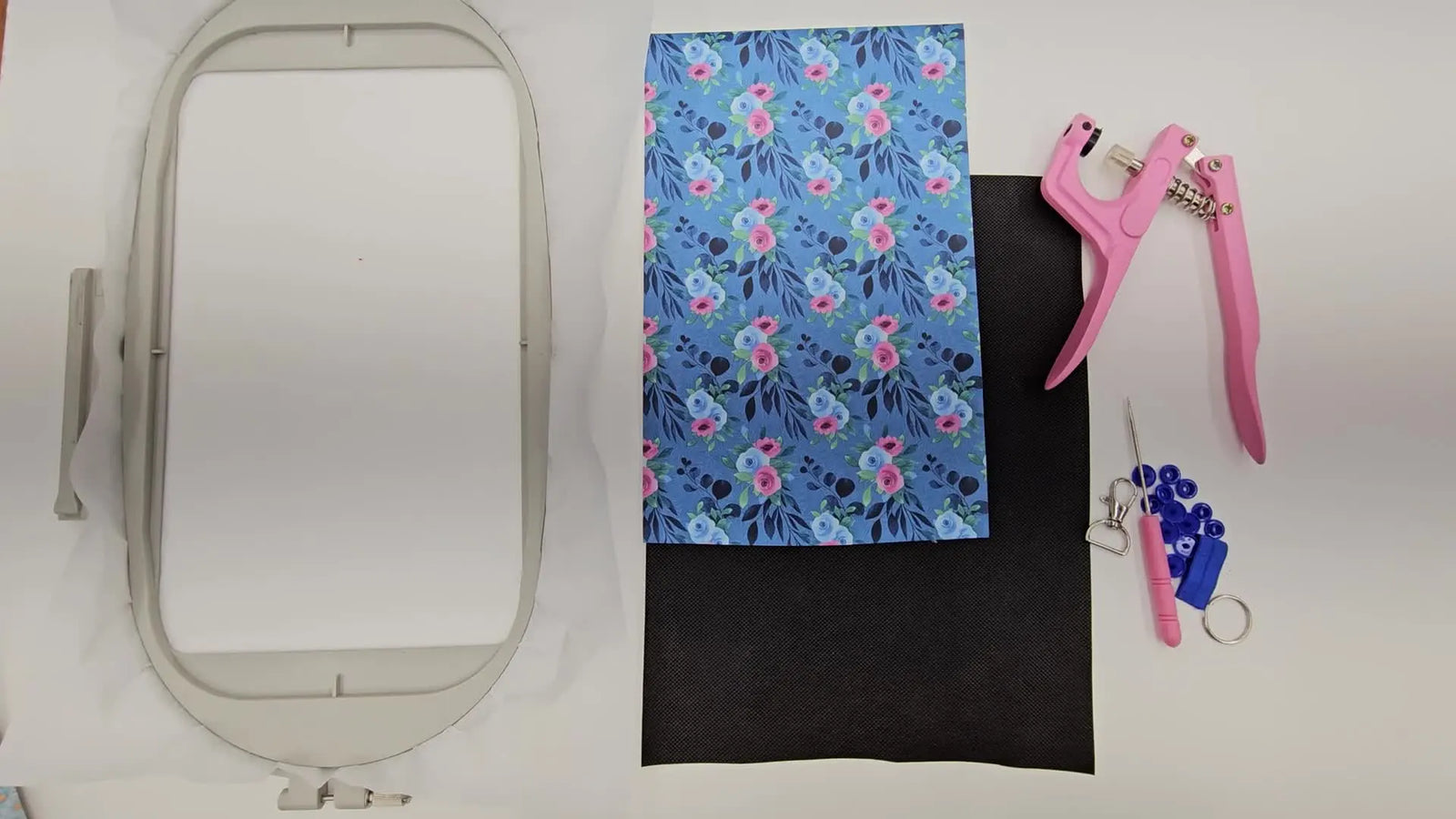

ITH Deck of Cards Holder in a 6x10 Embroidery Hoop: The Clean, No-Crash Way to Stitch Vinyl, Tabs, and Snaps

You’re not alone if ITH (In-The-Hoop) vinyl projects make you a little nervous. Vinyl doesn’t “forgive” like cotton—once a needle pierces it, that hole is permanent. Add metal hardware into the mix, and you have a recipe for a potential presser-foot collision.

However, the "scary" reputation of vinyl often comes from a lack of system, not a lack of skill. This deck-of-cards holder is the perfect intermediate project to graduate from hobbyist guessing to professional certainty. By treating hooping, layering, and hardware clearance as a controlled engineering system, we can eliminate the gamble.

The Calm-Down Check: What This ITH Deck of Cards Holder Actually Requires

Before we touch the machine, let's stabilize our expectations. Rebecca’s project is built around a standard 6x10 design field.

The Non-Negotiables:

• Hoop Size: You need a 6x10 field. If you are working with an embroidery machine 6x10 hoop, you are in the "sweet spot." Smaller hoops won’t fit the fold geometry; larger hoops are fine but require careful centering.
• Needle Choice: Use a 75/11 Sharp or an Embroidery needle. Avoid ballpoint needles on vinyl, as they can drag through the material rather than piercing it cleanly.
• Speed: Dial your machine down. While high-speed production is great for t-shirts, complex ITH layers behave better at 500–600 SPM (Stitches Per Minute).

The Workflow in Plain English:

1. Placement: Machine draws the map directly on the stabilizer.
2. Float Back: You tape lining to the underside (hiding the ugly back).
3. Float Front: You place the main vinyl on top.
4. Structure: Machine stitches the outline and fold guides.
5. Hardware: You add a tab with a metal split ring.
6. Safety Make-Ready: You build a "vinyl bridge" to protect your presser foot.
7. Final Assembly: The "Barn Door" stitch locks it all together.


The “Hidden” Prep Pros Do First: Cuts, Stabilizer, and the "Floating" Strategy

Rushing prep is the #1 cause of ITH failure. Rebecca cuts the main vinyl at 7x11 inches for this 6x10 design. This 1-inch variable margin is your safety net—if you cut it exactly 6x10, a 2mm shift in the hoop could expose the stabilizer at the edge.

1) Stabilizer: Hold the shape, don’t fight the tear

For this project, Rebecca uses tear-away stabilizer. This is the industry standard for vinyl items like key fobs and card holders.

• The Physics: Vinyl is stable; it doesn't stretch like knit jersey. Therefore, the stabilizer’s job is simply to hold the vinyl flat during the embroidery process.
• The Result: Tear-away allows you to remove the excess cleanly from the edges later. Detailed Cutaway would leave a fuzzy, visible edge that is difficult to trim cleanly on a raw-edge project.

2) The "Floating" Technique

Rebecca uses the "floating" method—hooping only the stabilizer and taping the materials on top/bottom. This is a variation of the floating embroidery hoop technique.

• Why it solves problems: Vinyl has high friction ("grip"). If you try to force vinyl into a standard friction hoop, you often create "hoop burn"—permanent concentric circles on your faux leather. Floating eliminates this damage entirely.

Stabilizer & Hooping Decision Tree

Use this logic flow to determine your setup for future ITH projects:

• Is the material prone to "Hoop Burn" (Vinyl, Leather, Velvet)?
  • YES → Float Only. Hoop the stabilizer (Tear-away for rigid items, Cutaway for wearables). Spray adhesive or tape the material on top.
  • NO (Cotton, Twill) → You can hoop the fabric, but floating is still faster.
• Will the finished edge be exposed (Raw Edge)?
  • YES → Tear-away. It rips cleanly from the satin stitch or run stitch.
  • NO (Turned construction) → Cutaway or Tear-away, depending on stiffness required.

Warning: The "Flying Scissors" Hazard
When trimming vinyl or tape near the hoop, engage your machine's "Lock" mode or keep your foot off the pedal. A startled jerk while cutting can result in a snipped finger or a cut tension wire. Always cut away from the center of the hoop.

Prep Phase Checklist (Pass/Fail)

• Material: Main vinyl cut to 7x11 inches? (Yes/No)
• Lining: Lining fabric cut slightly larger than the placement line? (Yes/No)
• Stabilizer: Is the tear-away drum-tight in the hoop? (Tap it—it should sound like a drum, not paper).
• Adhesives: Do you have painter's tape or embroidery tape ready? (Avoid duct tape—it leaves residue on the needle).
• Hardware: Are the snap pliers, awl, and split rings on the table? (Don't hunt for them mid-stitch).
• Hidden Consumable: Do you have a scrap piece of vinyl (~2x2 inches) ready for the "bridge" step?


The Placement Stitch: Your "Map Line"

Load your hoop and run step one. This is the Placement Stitch. It acts exactly like a map drawn in blue ink (or whatever color your thread is).

Sensory Check:

• Visual: Is the line clearly visible on the white stabilizer?
• Spatial: Is there at least a finger-width of clearance between the stitch line and the inner wall of the hoop? If the design is hugging the frame too tightly, your presser foot might rub against the plastic/metal frame later—this causes registration errors.


The Back-of-Hoop Lining: Taping for Shear Force

Remove the hoop (keep the project in it!) and flip it over. Place your lining fabric Right Side Facing Out (away from the stabilizer).

The "Why" Behind the Tape: You aren't just taping it so it doesn't fall off. You are taping against "shear force." As the machine moves optimally at hundreds of stitches per minute, windage and friction pull at the fabric. Secure the corners firmly.

Pro Tip: Rebecca notes she likes to line it up now because "lines can be off." This is experience talking. If your lining is crooked now, it will be permanently crooked later. Fix it before the first stitch penetrates.

Front Vinyl Placement: The "Full Cover"

Flip the hoop back to the front. Place your floral vinyl Right Side UP.

Critical Checkpoint: Can you see any placement stitches sticking out from under the vinyl? If yes, adjust. The placement stitch must be 100% buried. If you stitch near the edge of the vinyl, the needle might perforate the edge, causing it to tear out later like a perforation on a notepad.

The Outline + Fold Lines Pass: Machine "Scoring"

Rebecca runs the next step, creating the perimeter and the internal lines. In papercraft, we call this "scoring."

These lines serve a dual purpose:

1. Aesthetic: They add a decorative border.
2. Structural: They crush the foam/fibers inside the vinyl, creating a natural depression that makes folding the thick material easy and crisp later. Without these lines, vinyl folds like a taco—messy and rounded.


Snap Placement Circles: Alignment Insurance

The machine will now stitch small circles. These are not decorative; they are targets.

The "Drift" Risk: If your stabilizer was loose, these circles might drift. Look closely—are they perfectly round? If they look like ovals, your stabilizer is slipping. You may need to tighten the hoop screw slightly (use a finger-tighten approach, don't crank it with a screwdriver unless you have a heavy-duty hoop).

The Center Tab Square: The "Last Call" for Hardware

The machine stitches the placement box for the tab. This is your "Last Call." If you want a key ring, a lobster clasp, or a D-ring, you must commit now. Once the case is sewn shut, you cannot add a loop without destroying the project.

Hardware Prep: Managing Height and Collision Risks

Rebecca threads the split ring onto the Fold-Over Elastic (FOE) and tapes it to the stitched square.

This is the Danger Zone. Embroidery machines are designed for flat surfaces. Introducing a metal split ring introduces a "mountain" into a flat landscape.

• Tape Strategy: Tape the elastic down aggressively. It must not pivot.
• Clearance: Pull the metal ring as far loop-ward as possible, keeping it away from the needle path.

Many users find that snap hoops provide better clearance for bulky items because the top frame is flat and magnetic rather than a deep recessed inner ring, but regardless of your hoop type, the rule is the same: Immobilize the Metal.

The "No-Crash Hack": The Vinyl Bridge

This is the most valuable tip in the tutorial. Rebecca places a scrap square of vinyl over the hardware tab area.

Why this saves your machine: The presser foot is spring-loaded. If it hits the steep edge of the elastic or the ring, it can get stuck, causing the machine to stall or the needle to deflect and break. The scrap vinyl creates a "ramp" or "bridge," allowing the presser foot to glide smoothly over the bump.

CRITICAL WARNING: Mechanical Safety
A presser foot striking a metal split ring can shatter a needle. Metal shards can fly towards your eyes, and the impact can knock your machine's timing gear out of alignment (a costly repair).
Action: When stitching near hardware, keep your hand near the "Emergency Stop" button. Listen for a rhythmic "thump-thump." If you hear a loud, sharp "CLACK," stop immediately.

Tack-Down Pass: Securing the Buffer

Run the tack-down stitch. This locks the scrap vinyl bridge in place. Do not skip this. If you try to run the final satin stitch without tacking the bridge down, the foot might push the bridge away, exposing the hardware hazard again.

The "Barn Door": Finalizing the Bond

Rebecca runs the final "Barn Door" stitch. This drives through all layers—Front Vinyl, Elastic, Tab, Scrap Bridge, Stabilizer, and Back Lining.

Setup Checklist (Pre-Flight for Final Stitch)

• Clearance: Is the metal ring physically taping down outside the stitch path?
• Tape: Is the tape secure? (If it's peeling, add more).
• Bobbin: Do you have enough bobbin thread to finish? (Running out now is a nightmare to fix).
• Speed: Is the machine speed lowered to ~600 SPM to handle the thickness?


Unhooping & Cleanup: The "Gentle Tear"

Remove the hoop. When removing tear-away stabilizer, support the stitches with your thumb while tearing with your other hand. Vinyl can stretch slightly if yanked hard, which promotes puckering.

Trimming: The "Raw Edge" Art

Trimming vinyl requires confidence.

• The Goal: A smooth, consistent 1/8th to 1/4th inch margin.
• The Trap: Trying to cut too close. If you nick a stitch, the entire card holder will eventually unravel. It is better to have a slightly wider, consistent border than a jagged close one. Use long-bladed scissors for straightaways and small curved snips for corners.


Snap Installation: The Orientation Game

Rebecca uses an awl to open the holes.

Troubleshooting Snap Orientation: This is where 90% of beginners fail. They install two "male" caps or put the cap on the wrong side.

1. Dry Run: Fold the case before installing snaps.
2. Mark It: Use a water-soluble pen or chalk to mark "Top" on the visible side of the cap.
3. The "Click": When pressing, squeeze the pliers firmly. You should feel a distinct compression. If the snap feels loose or spins, re-press it.


Final Assembly

Fold the wings in, snap them shut, and admire your work.

Operation Checklist (Quality Control)

• Symmetry: When folded, do the edges line up?
• Snap Function: Do the snaps click firmly?
• Stitch Quality: Are there any loops on the back (birdnesting)?
• Hardware: Is the split ring secure?

Troubleshooting Guide: When Good Vinyl Goes Bad

The "Why It Works" Physics: Handling Friction & Compression

The secret to this project isn't the file; it's the management of friction.

• Vinyl has high surface friction (it grabs the foot).
• Tear-away has low friction (it slides on the machine bed).
• Tape resists shear force.

If you rely solely on a traditional screw-tightened hoop, you are relying on compression to hold the vinyl. Compression crushes the texture of faux leather. That is why professional shops move to magnetic embroidery hoops for ITH work. The magnets provide vertical downward pressure that holds the sandwich firmly without crushing the fibers laterally.

Magnet Safety Warning
High-quality magnetic frames are powerful industrial tools.
* Pinch Hazard: Keep fingers clear of the contact zone; these magnets snap shut instantly.
* Medical Devices: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place SD cards or USB drives directly on the magnetic bars.

The Upgrade Path: Moving from Hobby to Production

If you make one holder, the standard method is fine. But what if you need to make 50 for a craft fair? The "tape and pray" method becomes a bottleneck. Your wrists will hurt, and your alignment will drift.

Here is how to identify when you need to upgrade your toolset:

Trigger 1: "I'm spending more time hooping than stitching."

• Diagnosis: The friction hoop screw mechanism is slow and requires constant re-adjusting for thick vinyl.
• The Upgrade: A magnetic embroidery hoop. It allows you to "slap and go." You optimize your workflow by removing the manual tightening step entirely.

Trigger 2: "My clear vinyl keeps slipping or getting drag marks."

• Diagnosis: Traditional hoops leave "burn" marks, or you struggle to keep the lining taut while inserting the inner ring.
• The Upgrade: Magnetic frames allow you to float materials with zero distortion. If you are doing volume, a magnetic hooping station ensures that your placement is identical on every single unit, reducing the "reject rate" to zero.

Trigger 3: "I want to start a business."

• Diagnosis: A single-needle machine requires a tool change for every color stop.
• The Upgrade: While tools like a hoop master embroidery hooping station or a generic hooping station for machine embroidery help with alignment, the ultimate leap is to a multi-needle machine (like the Sewtech series). However, before you spend thousands on a new machine, upgrading your hooping technology is the most cost-effective way to double your current output speed.

By respecting the materials and upgrading your workflow logic, you transform ITH vinyl from a "scary experiment" into a reliable, profitable skill.

FAQ

• Q: How do I set the correct needle and speed on a Brother embroidery machine for ITH vinyl projects with metal split rings?
  A: Use a 75/11 Sharp (or Embroidery) needle and slow the Brother embroidery machine down to about 500–600 SPM before stitching vinyl and hardware.
  • Install: Insert a fresh 75/11 Sharp/Embroidery needle; avoid ballpoint needles on vinyl.
  • Reduce: Lower stitch speed to the 500–600 SPM range before the thick “final assembly” steps.
  • Prepare: Keep a spare needle nearby because hardware steps raise breakage risk.
  • Success check: The needle penetrates vinyl cleanly with no dragging, and the stitch sound stays steady (no sharp “clack”).
  • If it still fails… Slow further and re-check that metal hardware is taped away from the stitch path.
• Q: How can a Janome embroidery machine user prevent hoop burn marks on vinyl or faux leather when making ITH projects?
  A: Do not clamp vinyl in a tight friction hoop on a Janome embroidery machine; hoop only tear-away stabilizer and float the vinyl instead.
  • Hoop: Hoop tear-away stabilizer drum-tight, then tap the vinyl on top using painter’s/embroidery tape.
  • Avoid: Do not over-tighten the hoop screw trying to “force-grip” vinyl.
  • Choose: Use floating especially for materials prone to permanent rings (vinyl, leather, velvet).
  • Success check: After unhooping, there are no concentric rings impressed into the vinyl surface.
  • If it still fails… Consider switching to a magnetic embroidery hoop to hold layers without crushing the vinyl.
• Q: What is the fastest way to diagnose and fix birdnesting (thread loops on the bottom) on a Singer embroidery machine during ITH vinyl stitching?
  A: Re-thread the Singer embroidery machine from scratch with the presser foot UP, because birdnesting often comes from mis-threading or the thread missing the take-up lever.
  • Stop: Cut threads and remove the nest carefully before restarting.
  • Re-thread: Raise the presser foot, then completely re-thread the top path to seat the thread correctly.
  • Verify: Ensure the thread is “flossed” into the tension discs, not riding above them.
  • Success check: The underside shows a clean stitch (no loose loops collecting into a wad).
  • If it still fails… Re-check the thread path again and confirm the machine was threaded with the presser foot raised.
• Q: How do I confirm tear-away stabilizer is hooped correctly on a Bernina embroidery machine before running the placement stitch for an ITH 6x10 vinyl project?
  A: Hoop tear-away stabilizer “drum-tight” on the Bernina embroidery machine and verify placement clearance before stitching, because stabilizer slack causes drift and misalignment.
  • Tap: Tap the hooped stabilizer; it should sound like a drum, not crinkle like loose paper.
  • Check: Run the placement stitch and confirm the line is clearly visible on the stabilizer.
  • Measure: Confirm at least a finger-width of clearance between the stitch line and the inner hoop wall.
  • Success check: The placement stitch is fully visible and evenly drawn, with safe space from the hoop edge.
  • If it still fails… Re-hoop tighter and confirm the design is centered so the presser foot does not rub the frame.
• Q: How can a Tajima embroidery machine user prevent a presser-foot collision and needle breakage when stitching an ITH tab with a metal split ring?
  A: Immobilize the split ring with aggressive taping and build a “vinyl bridge” ramp over the hardware area before the final stitches on the Tajima embroidery machine.
  • Tape: Pull the split ring as far away from the needle path as possible and tape the elastic/tab so it cannot pivot.
  • Bridge: Place a scrap square of vinyl over the tab/hardware area to create a smooth ramp for the presser foot.
  • Tack: Run the tack-down pass to lock the bridge in place before the final “all-layers” stitch.
  • Success check: The presser foot glides over the tab area without a loud sharp “CLACK,” and needles stop breaking at that step.
  • If it still fails… Hit Emergency Stop immediately, replace the needle, and inspect the needle plate area for damage before continuing.
• Q: What safety steps should a Brother PR multi-needle embroidery machine operator follow when trimming vinyl and tape near a hooped ITH project?
  A: Lock the Brother PR multi-needle embroidery machine (or keep the foot off the pedal) before trimming, because a sudden movement can cause a cut injury or machine damage.
  • Engage: Use the machine’s lock/stop mode before bringing scissors near the hoop.
  • Cut: Trim away from the hoop center and keep fingers clear of the needle area.
  • Prepare: Use appropriate tape (painters/embroidery tape) to reduce messy rework while trimming.
  • Success check: Trimming is controlled with no surprise machine motion and no snagging of stitches/tape into the needle area.
  • If it still fails… Pause and re-secure loose tape first; do not continue trimming while the machine can move.
• Q: When should a home embroidery machine user upgrade from floating with tape to magnetic embroidery hoops or a multi-needle SEWTECH machine for ITH vinyl production?
  A: Upgrade in layers: first optimize floating and prep, then move to magnetic hoops for repeatability, and only then consider a SEWTECH multi-needle machine if color changes and volume become the bottleneck.
  • Level 1 (Technique): Standardize prep (7x11 vinyl for a 6x10 field, drum-tight stabilizer, correct tape strategy) to reduce rejects.
  • Level 2 (Tool): Switch to magnetic hoops when hooping time, hoop burn, or material shifting keeps happening despite correct floating.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle machine when frequent color changes and batch volume make a single-needle workflow too slow.
  • Success check: Hooping time drops, alignment becomes consistent unit-to-unit, and reject rate decreases noticeably.
  • If it still fails… Add a hooping station for consistent placement and re-check that the project is not being rushed during prep.
