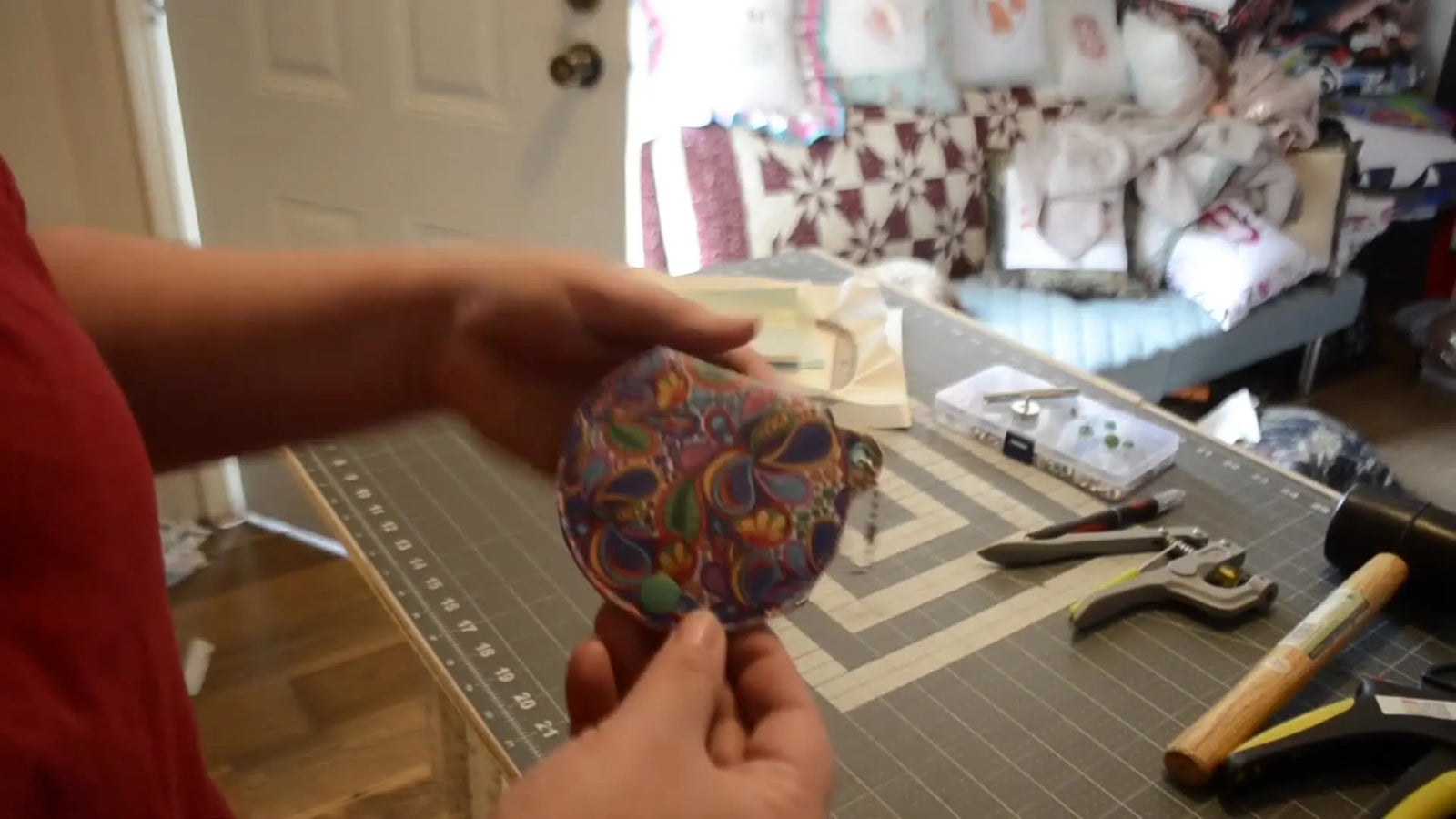

ITH Coin Purse on a Brother Innov-is: The Two-Hooping Method That Keeps Vinyl Flat, Pockets Clean, and Snaps Aligned

If you’ve ever watched an In-The-Hoop (ITH) project stitch out perfectly… and then felt your stomach drop at the "now cut the hole" moment, you are not alone. Vinyl is an unforgiving medium. Unlike woven cotton, which heals small needle punctures, vinyl remembers every mistake. A tiny misalignment in a two-hooping project can turn into a crooked pocket, a wavy edge, or hardware that refuses to close.

This coin purse project (a Thread Mode Embroidery design) is excellent for beginners, but it requires a shift in mindset: from "sewing" to "precision engineering." Below is the exact workflow shown on a Brother Innov-is embroidery machine using a 5x7 hoop, refined with studio-grade safety checks and sensory cues to keep your pocket window crisp and your snaps functional.

The “Don’t Panic” Primer: Why This ITH Coin Purse Feels Tricky (and Why It’s Actually Manageable)

This design is constructed in two hoopings on tearaway stabilizer, after which the pieces are physically aligned and stitched together. Your success hinges on two non-negotiable factors:

1. Coverage (The tolerance game): Every placement line must be fully covered by your material before stitching the tack-down. Gaps here mean exposed stabilizer later.
2. Alignment (The visual lock): When you marry the finished piece from Hooping #1 to the back of Hooping #2, the stitched outlines must sit directly on top of each other—like a solar eclipse.

The "X-Factor" is the Vinyl: Vinyl introduces friction and bulk. It shows pressure marks ("hoop burn") instantly and can shift under the presser foot if not secured evenly. If you are using a standard brother 5x7 hoop, you absolutely can do this project—but you must be deliberate with tape placement and avoid "drum-skin" tightening that warps the frame.

The “Hidden” Prep Pros Do First: Materials, Hardware, and a Clean Cutting Plan

The difference between a "craft project" and a "product" is often the prep work. We are going to stage your station so you aren't scrambling for tools while the machine idles.

From the video, you’ll need:

• Machine: Brother Innov-is (or similar single-needle machine) with a 5x7 hoop.
• Stabilizer: Two sheets of medium-weight Tearaway Stabilizer. Why Tearaway? It provides clean edges when removed. Cutaway is too bulky for this specific wallet profile.
• Vinyl: Front material (Tabitha uses Stardust Avocado vinyl).
• Lining: Oly-Fun fabric (used as a lining in Hooping #1—it’s thin, non-fraying, and water-resistant).
• Backing: Felt (used on the back in Hooping #2 to add structure without bulk).
• Adhesives: Painter's tape or embroidery tape (to float and secure layers).
• Cutting Tools: X-Acto knife (fresh blade essential) and curved appliqué scissors (for trimming close to stitch lines).
• Hardware: KAM snaps (caps, male/female sockets), eyelets (3/16 inch), and a ball chain.
• Setting Tools: KAM snap pliers, hole punch, eyelet setter/anvil, and a hammer.

The "Hidden" Consumables (The Studio Secrets):

• Needles: Use a Size 75/11 Sharp (Topstitch or Microtex). Avoid Ballpoint needles; they struggle to pierce vinyl cleanly.
• Glide: A non-stick needle can prevent adhesive build-up if using sticky spray.


Prep Checklist (do this before you even thread the machine)

• Blade Check: Snap off the old segment of your X-Acto knife. A dull blade drags vinyl rather than cutting it.
• Hardware Sort: Separate your male and female KAM snap pieces into two piles. Mixing them up is the #1 cause of un-closeable purses.
• Force Test: Test your hole punch on a scrap sandwich (Vinyl + Felt). If you have to squeeze with both hands to get through, you need a larger punch size or a rotary punch.
• Tape Prep: Tear 4-6 strips of tape and stick them to the edge of your table. You will need them quickly during the "float" steps.

Warning: X-Acto knives and scissors are not “craft-cute” tools—they’re industrial hazards. Vinyl offers resistance and then suddenly gives way. Always cut away from your body, keep non-dominant fingers out of the cutting path, and never cut while the hoop is still attached to the machine arm as the pressure can damage the pantograph gears.

Brother Innov-is Setup: Load the Design, Then Trust the Placement Stitch

On the Brother Innov-is screen, Tabitha shows the design loaded. Note the stitch counts:

• Hoop 1: 1156 stitches (~2 minutes).
• Hoop 2: 1646 stitches (~3 minutes).

Critical Speed Adjustment: While the machine can stitch fast, vinyl hates heat. Friction from the needle can melt the vinyl coating or gum up the thread.

• Recommended Speed: Lower your machine speed to 400 - 600 SPM (Stitches Per Minute).
• Sensory Check: The machine should sound like a rhythmic heartbeat, not a chaotic buzz.

If you are trying to build a repeatable workflow (especially if you plan to make multiples), a stable hooping surface matters more than raw stitch speed. To ensure that perfect 90-degree alignment every time, seasoned pros often rely on a hooping station for embroidery to eliminate human error and ensure the stabilizer sits square.

Hoop 1 — Step 1: Run the Placement Stitch on Tearaway Stabilizer (03:00–03:07)

The Action:

1. Hoop one sheet of tearaway stabilizer in your standard 5x7 hoop. Ensure it is taut (Listen for a deeper "thump" when tapped, not a hollow ring).
2. Stitch Step 1 (Placement lines) directly onto the naked stabilizer.

Checkpoint: You should see a clean, geometric outline on the stabilizer. This is your "Map."

Hoop 1 — Step 2: Float Oly-Fun and Vinyl, Cover Every Placement Line (03:24–04:23)

This is where most beginners accidentally create future problems. We are using the "Float" technique to avoid hoop burn on the vinyl.

The Action:

1. Remove the hoop from the machine (keep the stabilizer in the hoop).
2. Flip it to the back. Center your Oly-Fun lining over the placement lines. Secure with tape on all four corners.
3. Flip to the front. Place your Vinyl right side up.
4. The "Peek" Test: Lift the corners of the vinyl slightly to ensure the placement stitching underneath is completely covered by the material.
5. Tape the vinyl down securely. Tape perpendicular to the edge (like spokes on a wheel) for better hold.
6. Return the hoop to the machine and stitch Step 2 (Tack-down).

Pro-Level Why: Vinyl and nonwoven layers can "creep" under the drag of the presser foot. Tape isn’t just holding it down—it’s resisting the "push" of the foot. Often, two shorter pieces of tape placed opposite each other hold better than one long strip that can buckle.

If you find floating fiddly and inconsistent, you are already thinking like a production embroiderer. A floating embroidery hoop workflow becomes dramatically easier when the top layer is gripped evenly by magnets rather than tape—many shops switch to magnetic frames for this exact reason.

Setup Checklist (right before you stitch the tack-down)

• Coverage: All placement lines are fully buried under the vinyl.
• Smoothness: Tape is secure but not pulling or wrinkling the vinyl.
• Clearance: Nothing is bulging under the hoop that could lift the presser foot (check the back again!).
• Safety: Your hands are clear and long tape tails are trimmed so they don’t catch on the needle bar.

Hoop 1 — Step 3: Stitch the Pocket Edge and the Cut Line (04:30–04:46)

Tabitha runs the step that creates the pocket opening structure. This creates two distinct lines:

1. A dense Triple Bean Stitch (The structural edge).
2. A separate Inner Single Run (The cutting guide).

Visual Cue: Look for the "channel" between these two lines. It will be narrow (approx. 2-3mm). This is your "Safe Zone."

The Make-or-Break Moment: Cutting the Pocket Window Cleanly with an X-Acto Knife (05:07–05:45)

This requires steady hands. The goal is to remove the vinyl inside the window without severing the structural bean stitch.

The Action:

1. Remove the hoop from the machine. Place it on a flat, hard surface.
2. Insert your X-Acto blade into the center of the "Safe Zone" channel.
3. Apply light, consistent pressure. You don't need to cut through everything in one pass—vinyl cuts better with two light passes than one heavy gouge.
4. Remove the cut vinyl piece to reveal the window.

Expert Habit: Rotate the hoop, not your wrist. Your hand has a natural cutting arc that is most stable in one direction (usually pulling toward you). Rotating the hoop keeps you in that "stability zone."

Tabitha mentions cleaning up "stragglers" (fuzzy threads from the Oly-Fun).

Warning: If you choose to use a lighter to singe frayed edges, do it away from stabilizer scraps and tape. Vinyl releases toxic fumes when burned, and adhesives can flare up. A "Thread Zap" tool is safer than an open flame lighter.

Trim Hoop 1 Close to the Stitch Line (Without Cutting It)

After the pocket window is cut, Tabitha frees the piece from the hoop completely.

The Action:

1. Take your sharp appliqué scissors.
2. Trim around the outer perimeter outline.
3. Distance: Leave about 1mm - 2mm of fabric. If you cut too close, the stitches may unravel. If you leave too much, it will peek out of the final seam.

Expected Outcome: A cleanly trimmed front panel that will sit flat in the assembly phase.

Hoop 2 Starts Clean: Placement Stitch, Then Felt on the Back (08:06–08:15)

Hooping #2 builds the back side and acts as the "chassis" for assembly.

The Action:

1. Hoop a fresh sheet of tearaway stabilizer.
2. Run Step 1 (Placement lines for the back panel).
3. Remove hoop. Flip to the back.
4. Tape your piece of Felt over the placement area. Ensure it is flat. Felt grabs the stabilizer well, so minimal tape is usually fine, but don’t skip it.

Expert Insight: Material thickness dictates stitch quality. Felt is forgiving/squishy. If your felt is very thick, you may need to raise your presser foot height slightly (in machine settings) to prevent the foot from dragging the felt out of position.

The Alignment Trick: Tape Hoop 1 onto Hoop 2 by Matching Stitch Lines (08:58–09:10)

This is the "adult supervision" step. This is where 90% of failures happen.

The Action:

1. After Hooping #2 layers are tacked down, flip the hoop to the back.
2. Take your finished piece from Hooping #1.
3. The "Eclipse" Alignment: Place the Hoop 1 piece onto the back of Hoop 2. You must line up the stitched outline of piece #1 exactly with the stitched outline on piece #2.
4. Tactile Check: Run your finger along the edge. You should feel the ridges of the stitches sitting on top of each other.
5. Tape it securely in place. Use more tape here than you think you need—shifting now ruins the purse.

Checkpoint: When you look at the outline, it should appear as one unified thick line—not two offset "ghost" lines.

Run the Final Stitching in Hoop 2, Then Tear Away Stabilizer Like a Pro

Tabitha runs the final assembly stitches (often a decorative satin stitch or bean stitch).

The Action:

1. Carefully slide the hoop back onto the machine. Ensure the added bulk on the bottom doesn't catch on the throat plate.
2. Stitch the final steps.
3. Remove the project from the hoop.
4. Tearaway Technique: Place your thumb on the stitching to support it, then tear the stabilizer away against your thumb. Do not just yank; you can distort the stitches or rip the vinyl.

Cutting the Final Shape: Keep It Level and Close to the Triple Bean Stitch

The Action: Use long, smooth scissor cuts to trim the final perimeter. Stop and reposition your scissors only at corners. "Choppy" cutting creates a jagged edge that feels cheap in the hand.

KAM Snaps on Vinyl: Orientation Matters More Than Force (12:49–15:13)

Snaps are where handmade items often fail. A misaligned snap makes the flap buckle.

The Action:

1. Pierce: Use the awl to make your pilot hole. Tip: Don't force it. Twist it back and forth to bore the hole cleanly.
2. Order of Operations (First Snap): Tabitha warns: don’t go all the way through the back for the body snap—work between layers (pocket vs back).
3. The Sandwich:
   • Cap (Button): Goes on the "Public" side (visible side).
   • Socket/Stud: Goes on the "Private" side (inside).
4. Pliers Logic: The "Black Cap" of the pliers holds the Snap Cap (smooth side). The "Rubber Cap" of the pliers presses the metal part.
5. The Squeeze: Squeeze firmly until you feel a "pop" or "crunch." That is the center prong flattening out (mushrooming) to lock the snap.
6. The Alignment Mark: Fold the purse closed naturally. DON'T force it flat. Allow the vinyl to roll. Mark the spot where the snap hits with a Frixion pen or chalk. This is your second hole location.

Studio-Grade Habit: Before installing the second snap, "dry fit" the purse. If you install the snap while the purse is smashed flat, it will look twisted when filled with coins.

Eyelet Installation: When the Hole Punch Fights Back

Tabitha sets the eyelet for the ball chain.

The Action:

1. Punch: Use the leather punch on the marked dot.
2. Troubleshooting Resistance: If the punch bounces off the vinyl/felt stack, do NOT just squeeze harder. Rotate the punch slightly and squeeze again. The cutting action helps.
3. Assembly: Eyelet "Tophat" goes in from the front. Washer goes on the back.
4. The Set: Use the hammer and setting tool. Give it 2-3 sharp taps.
   • Sensory Check: Run your finger over the back of the set eyelet. It should feel smooth, not scratchy. If it's sharp, tap it again.


Finishing Touches That Make It Sellable

Tabitha threads a ball chain through the eyelet.

Expert Quality Control (The "Sellable" Standard):

• Thread Tails: Trim them flush. Use a lighter carefully to seal nylon threads.
• Symmetry: Fold the flap. Does it pull to the left or right? (If so, check your snap alignment next time).
• Edges: Are there any white stabilizer bits showing? Tweezers are your friend here.


Operation Checklist (final quality check before you call it “done”)

• Pocket Window: The cut is clean, and the triple bean stitch is 100% intact.
• Perimeter: The edge is smooth, not jagged/choppy.
• Snaps: The snap closes with a crisp "click" and holds firm when pulled gently.
• Eyelet: The metal is seated tightly against the fabric; it does not spin.
• Cleanliness: No visible pen marks or stabilizer fuzz remains.

A Quick Decision Tree: Stabilizer + Material Choices for Cleaner ITH Results

Use this logical flow to choose your consumables based on your material.

Start Here → What is your primary outer material?

1. Stretchy Vinyl / Pleather
   • Risk: Material stretching during stitching = distorted shape.
   • Stabilizer: Use Cutaway (Mesh) for stability, or heavy Tearaway.
   • Fix: Float the material to minimize hoop burn.
2. Rigid Vinyl (Marine Grade / Glitter)
   • Risk: Needle deflection / Hoop burn.
   • Stabilizer: Tearaway is excellent here.
   • Fix: Use a 75/11 Sharp needle to pierce the hard coating. Consider embroidery magnetic hoops to hold the rigid material without bruising it.
3. Felt Stack (Felt Front + Felt Back)
   • Risk: Bulkiness causing skipped stitches.
   • Stabilizer: Tearaway.
   • Fix: Reduce tension slightly. Ensure the presser foot is raised.

The Upgrade Path: When Your Hands Tell You It’s Time

If you loved the result but hated the taping, wrestling, and hoop marks, that is a valid signal. In a hobby workflow, "fiddling" is part of the fun. In a production workflow, "fiddling" is a loss of profit.

Here is a practical criteria for upgrading your tools:

• Scenario A: The Hobbyist (1-5 purses/month)
  • Status: Keep your standard hoop.
  • Upgrade: Focus on better tape and sharp scissors.
• Scenario B: The Side Hustler (Batching 10+ items)
  • Pain Point: Repetitive taping hurts wrists; standard hoops leave marks on sensitive vinyl.
  • Upgrade: A magnetic hooping station ensures consistent placement speed.
  • Tool: Look into magnetic embroidery hoops for brother or a generic brother 5x7 magnetic hoop. These clamp the material flat instantly without the "unscrew-tighten-pray" cycle of traditional hoops.
• Scenario C: The Entrepreneur (50+ items/week)
  • Pain Point: Single-needle color changes take too long; stopping to trim threads kills momentum.
  • Upgrade: This is where multi-needle platforms (like SEWTECH) become necessary assets. The ability to stage the next hoop while one is stitching drives profitability.

Troubleshooting the "Project Killers" (Symptom → Fix)

Warning: Magnetic hoops contain neodymium magnets which are incredibly powerful. Pinch Hazard: Keep fingers clear of the mating surfaces. Medical Safety: Keep magnets away from pacemakers, ICDs, and other implanted medical devices. Do not store near credit cards or mechanical watches.

If you follow the placement lines like they are law, cut only in the safe channel, and treat alignment as the "real skill" in two-hooping ITH, you will get a coin purse that closes cleanly, holds coins without spilling, and looks polished enough to sit on a boutique shelf.

FAQ

• Q: On a Brother Innov-is single-needle embroidery machine, how do I avoid vinyl “hoop burn” when making a two-hooping ITH coin purse in a standard 5x7 hoop?
  A: Don’t clamp vinyl in the hoop—hoop only tearaway stabilizer and float the vinyl with tape so the hoop never bruises the surface.
  • Hoop: Tighten only the tearaway stabilizer until it is taut, not “drum-skin” tight.
  • Float: Tape the vinyl perpendicular to the hoop edge (spoke-style) to resist presser-foot push.
  • Verify: Lift corners to confirm every placement line is fully covered before stitching the tack-down.
  • Success check: The vinyl surface shows no ring marks, and the tack-down stitches land on fully covered material with no exposed stabilizer.
  • If it still fails: Reduce tape length and use two shorter opposing pieces (often holds flatter than one long strip).
• Q: On a Brother Innov-is 5x7 hoop ITH vinyl project, how can I confirm placement-line coverage before the tack-down stitch so stabilizer will not show later?
  A: Do a deliberate “peek test” before sewing—every placement stitch must be completely buried under the vinyl (and lining where used).
  • Lift: Slightly lift each corner of the vinyl to visually check the placement stitching underneath.
  • Reposition: Slide the vinyl until the entire outline is covered with margin, then retape.
  • Secure: Trim long tape tails so nothing can catch the needle bar during tack-down.
  • Success check: No placement stitching is visible anywhere around the outline before you start the tack-down step.
  • If it still fails: Cut the vinyl piece slightly larger next time so coverage isn’t “edge-to-edge” tight.
• Q: On a Brother Innov-is ITH coin purse with vinyl, what stitch speed should be used to reduce heat, friction, and gummed-up thread?
  A: Slow the machine down; a safe working range for vinyl in this workflow is about 400–600 SPM to reduce heat and drag.
  • Set: Lower speed before stitching the vinyl steps, especially dense edge stitches.
  • Listen: Aim for a steady, rhythmic sound rather than a high-pitched buzz.
  • Pause: Stop if you feel heat building or see the vinyl surface start to look disturbed around needle penetrations.
  • Success check: Stitches form cleanly without melted-looking holes or sticky buildup on the needle.
  • If it still fails: Clean the needle with rubbing alcohol and consider a non-stick needle if adhesive is involved.
• Q: For an ITH vinyl pocket window on a Brother Innov-is, how do I cut the opening without slicing the triple bean stitch?
  A: Cut only in the narrow “safe zone” channel between the triple bean stitch and the inner run line, using light passes instead of force.
  • Insert: Start the X-Acto blade in the center of the channel, not near the structural stitch.
  • Cut: Make two light passes rather than one deep gouge.
  • Rotate: Turn the hoop—not your wrist—to keep your cutting angle stable.
  • Success check: The vinyl window piece lifts out cleanly and the triple bean stitch remains 100% intact with no nicks.
  • If it still fails: Replace the blade segment; dull blades drag and jump, which is when stitches get cut.
• Q: In a two-hooping ITH coin purse, how do I align the Hoop 1 front panel onto Hoop 2 so the final seam is not crooked?
  A: Treat alignment like a “solar eclipse”—match the stitched outlines exactly and tape heavily so nothing shifts during final stitching.
  • Place: On the back of Hoop 2, set the finished Hoop 1 piece so the stitched outline sits directly on top of the Hoop 2 outline.
  • Feel: Run a finger along the outline to confirm the stitch ridges stack perfectly.
  • Tape: Use more tape than you think you need for this step; shifting here ruins the shape.
  • Success check: The outline looks like one unified thick line (not two offset ghost lines).
  • If it still fails: Use a more stable hooping surface (often a hooping station) to keep everything square during setup.
• Q: On an ITH coin purse with KAM snaps, why will the snap not close after installation, and what is the fastest fix?
  A: The snap usually won’t close because the female part is deformed or the snap locations were marked while the purse was forced flat—replace or gently reshape, then re-mark naturally.
  • Diagnose: “Dry fit” the purse closed naturally (don’t mash it flat) and confirm the snap points meet without twisting.
  • Fix: If the female snap is crushed, gently squeeze the sides to restore shape, or remove and replace the snap.
  • Install: Stop squeezing the pliers when you feel the “pop/crunch” that indicates the prong mushroomed and locked.
  • Success check: The snap closes with a crisp click and holds when pulled gently without buckling the flap.
  • If it still fails: Re-mark the second snap position with the purse folded naturally and reinstall to correct alignment.
• Q: What safety rules should be followed when using an X-Acto knife and scissors to cut vinyl for an ITH coin purse on a Brother Innov-is hoop?
  A: Cut on a flat surface with the hoop off the machine, cut away from your body, and keep fingers out of the blade path—vinyl can “grab” then release suddenly.
  • Remove: Detach the hoop from the machine arm before any cutting to avoid damaging the machine mechanism.
  • Control: Use a fresh blade and make light passes; don’t force the cut.
  • Position: Keep the non-dominant hand behind the cutting direction and stabilize the hoop on a hard table.
  • Success check: Cuts are smooth with no sudden slips, and the hoop/machine area shows no contact marks from tools.
  • If it still fails: Stop and reset your cutting setup (new blade, better lighting, harder surface) rather than pushing through fatigue.
