ITH Bunting Flags That Turn Cleanly: Polymesh Hooping, Sharp Points, and a Rock-Solid Single-Run Seam in BERNINA DesignerPlus

If you’ve ever pulled an ITH (In-The-Hoop) flag right-side-out and watched the top seam start to unravel—or fought bulky stabilizer that refuses to yield a sharp corner—you’re not alone. The frustration of a "popped" corner is real, but it’s usually mechanical, not personal.

In this post, I’m rebuilding Christy Burcham’s workflow for an in-the-hoop bunting flag, covering both the physical stitch-out and the digitizing logic in BERNINA Embroidery Software DesignerPlus. I will add the "shop-floor" sensory details—how the machine should sound, how the fabric should feel—to prevent wasted materials and ensure safety.

The Calm-Down Moment: Why ITH Bunting Flags Fail (and Why Yours Doesn’t Have to)

Most ITH bunting problems stem from three physical conflicts:

1. Material Resistance: The stabilizer is too stiff (like standard cutaway) or messily torn (tearaway), creating bulk that prevents a sharp point.
2. Structural Weakness: The seam line isn’t secured at the open top, so the mechanical stress of turning snaps the thread.
3. Hooping Instability: The backing fabric shifts microseconds before the final needle penetration, creating a "wonky" outline.

Christy’s method solves all three by (a) choosing Polymesh for flexibility, (b) digitizing a manual lock stitch to handle torque, and (c) forcing a machine stop to ensure perfect backing placement.

The “Hidden” Prep That Makes Polymesh Behave in an Oval Embroidery Hoop

The foundation is simple: one layer of base fabric + one layer of Polymesh stabilizer hooped together.

Why Polymesh? Standard cutaway is too dense for the delicate "turn" of a bunting point. Tearaway leaves jagged remains that ruin the corner's shape. Polymesh (soft cutaway) provides stability during stitching but collapses softly when turned.

The Sensory Hooping Check: When tightening your oval hoop, you are looking for a specific tension "sweet spot."

• Tactile: The fabric should be taut, but not stretched like a drum skin. If you pull it too tight, the fabric will retract when un-hooped, distorting your straight lines into curves.
• Auditory: Tap the hooped fabric. It should make a dull, low thud. If it makes a high-pitched "ping," it is too tight for this specific project.

Consumable Note: For heavier center designs (like dense satin lettering), you may need two layers of Polymesh. However, for standard applique or light fills, one layer ensures the crispest corners.

Prep Checklist (Pre-Flight Protocol):

• Hoop Inspection: Check inner hoop for residue or burrs that could snag delicate fabric.
• Stabilizer: One layer of Polymesh (Soft Cutaway) hooped with the base fabric.
• Tension Check: Fabric is taut but grain lines are not distorted.
• Consumables: Fresh needle (75/11 Sharp is standard) and matching bobbin thread loaded.
• Backing: Cut at least 1/2" larger than the final design area.


Stitching the Placement Line + Appliqué Design: The Sequence That Prevents Rework

Christy’s stitch order governs the structural integrity of the flag:

1. Color 1: Placement line (serves as basting).
2. Colors 2+: The visual center design.
3. Final Color: The structural seam.

The Basting Reality Check: The first placement line is your "Truth Line." If your fabric is buckled here, the whole flag fails.

• Pro Tip: While Christy uses contrasting thread for the demo, you should match the thread to your base fabric. When you turn the flag, tiny microscopic gaps in the seam might show; matching thread makes these invisible.


Backing Fabric Placement: Flat, Smooth, and No Spray Needed

After the center design is finished, the machine stops. This is where you place the backing fabric Right Sides Together (RST) on top of the hoop.

Critical Dimensions:

• Minimum Margin: 1/4 inch past the stitch line.
• Safety Margin: 1/2 inch is safer for beginners to account for slight shifting.

Christy recommends skipping spray adhesive here. Why? Spray residue can build up on the needle during the final pass, causing skipped stitches on the seam line. Just smooth it flat with your hand.

Setup Checklist (The "Point of No Return"):

• Center design is 100% complete.
• Action: Backing fabric placed Right Sides Together (face down).
• Visual Check: Backing covers the entire placement line by at least 1/4 inch.
• Tactile Check: Fabric is smoothed flat with no bubbles or wrinkles.
• Speed Adjustment: Lower your machine speed (e.g., to 600 SPM) for the final outline to ensure corner accuracy.

Warning: Pinch Hazard. Keep fingers clear of the needle bar and presser foot when smoothing fabric. Do not attempt to adjust the fabric once the machine starts moving.

The Trim-and-Turn Ritual: 1/8" Seam Allowance, Corner Clips, and the Inner V-Slit

Once stitched, un-hoop the project. Do not rip it out; release the screw and gently pop it out to strictly avoid distorting the bias grain.

The Cut Protocol:

1. Seam Allowance: Trim to 1/8 inch (3mm). This is scary close, but necessary for a sharp turn.
2. Corner Management: "Dog-ear" trim the bottom corners to reduce bulk.
3. The V-Slit: Cut a slit into the inner V-point, almost touching the stitches but not cutting them. This releases the tension that causes puckering.
4. Top Edge: Use a quilting ruler to cut the top straight.




Warning: Blade Safety. When trimming to 1/8 inch, your fingers are dangerously close to the blade. Use a rotary cutter with a fresh blade (dull blades slip) on a self-healing mat. Keep your non-cutting hand completely out of the "line of fire."

Operation Checklist (Post-Stitch):

• Project removed gently from hoop.
• Seam allowance trimmed to 1/8" (0.125").
• Inner V-notch clipped (stress release).
• Bottom corners clipped (bulk reduction).
• Top edge squared off with ruler.

Digitizing the Bunting Template in BERNINA DesignerPlus: Keep It Open, Keep It Single

Now we move to the digital twin. Christy imports the template into BERNINA Embroidery Software DesignerPlus.

Scale Matters: Ensure your template fits your physical hoop's "safe area." If you hit the red border in the software, scale down slightly (1-2%). Do not force a design to the absolute mechanical limit of the hoop, as this invites needle strikes on the frame.

The Single-Run Seam That Won’t Unravel: Manual Lock Stitch on an Open Object Line

This is the technical highlight. If you just draw a line, the machine stitches once and stops. When you turn the fabric inside out, the stress will pull those loose ends apart.

The Manual Lock Stitch Technique: You must manually digitize the "knot" because automatic tie-offs can sometimes leave a nest that interferes with the seam.

1. Tool: Open Object Digitizing.
2. Stitch Type: Single Run (Straight Stitch).
3. The Path:
   • Start 3-4 stitches down from the top edge.
   • Click up to the top edge.
   • Stitch down the side, around the point, and up the other side.
   • At the end, click down 3-4 stitches (backtracking) to lock it.




Why this works: It distributes the torque of turning the bag (flag) across multiple overlapping stitches rather than a single weak knot.

Placing the Letter Design: Why “Auto-Center” Lies on Flourish Fonts

Christy inserts a letter (e.g., "B") and highlights a flaw in software logic: Mathematical Center vs. Visual Center.

Fonts with flourishes or swashes often have a heavy "left" or "right" weight. If you use "Auto-Center," the letter will look crooked to the human eye.

The Fix: Use your eyes. Nudge the design until it looks balanced in the V-shape.

The Binding Gap: Leave at least 1/4 to 1/2 inch of clear space at the top. If your design hits the top edge, the bias binding tape will cover it later.

Color Film Sequencing: Force a Machine Stop So You Never Forget the Backing Fabric

Your machine doesn't know you need to put fabric on the back. You must force it to pause.

The Logic:

1. Applique/Center Design: (Machine runs normally).
2. Explicit Color Change: Change the final seam line to a different color in the software (e.g., from Blue to Red).

This forces the machine to stop and request a "thread change." This is your trigger to place the backing fabric.

A Simple Decision Tree: Stabilizer + Hooping Choices for ITH Bunting (Without Guesswork)

Use this logic flow to determine your setup.

Decision Tree: Stabilizer & Hooping Strategy

1. Is the project being turned Inside-Out (ITH)?
   • YES: Use Polymesh / Soft Cutaway. (Stiffness = Enemy).
   • NO: Use Standard Cutaway or Tearaway based on stitch density.
2. Is your hooping "slipping" or causing "hoop burn"?
   • YES: Evaluate your Hoop.
     • Standard Frames: Try wrapping the inner ring with bias tape for grip.
     • Upgrade Path: A bernina magnetic embroidery hoop (or compatible equivalent) distributes pressure evenly, eliminating the "burn" marks on delicate fabrics and preventing slippage during the critical outline stitch.
3. Are you stitching 1 flag or 50 flags?
   • 1-5 Flags: Standard hoops are fine.
   • 50+ Flags (Production): Time per hoop becomes money. Switch to a magnetic workflow to reduce hooping time by 50%.

Comment-Style Questions I Hear Every Week (and the Fixes That Actually Work)

I’ve compiled the most common troubleshooting tickets related to ITH projects into this quick-reference guide.

The Upgrade Path (When You’re Making One Flag vs. Fifty)

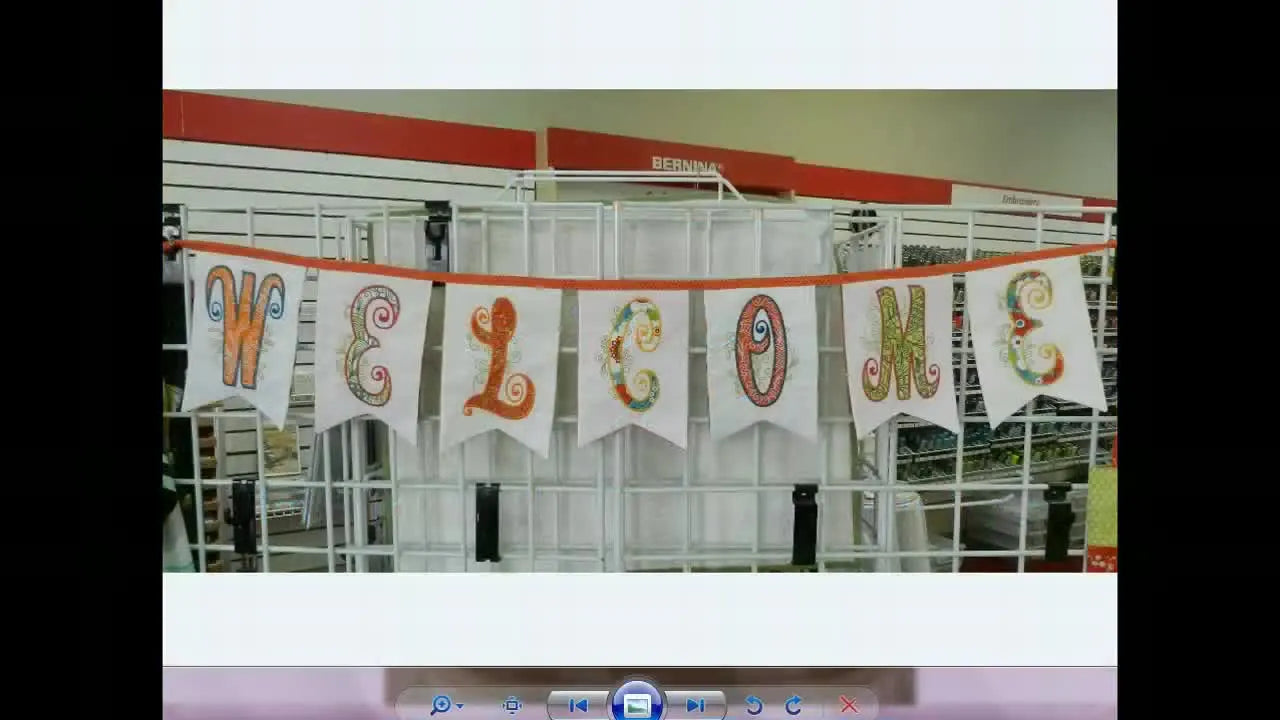

If you are a hobbyist making a "Welcome" banner for your porch, the standard screws-and-plastic hoop works perfectly. However, frustration often sets in when volume increases.

Scenario 1: The "Hoop Burn" Struggle If you are working with velvet, satin, or napped fabrics for your flags, standard hoops crush the fibers ("hoop burn").

• The Solution: magnetic embroidery hoops. The vertical clamping force holds fabric securely without the friction-burn of standard rings.

Scenario 2: The Production Bottleneck If you start selling these flags on Etsy, your wrists will tell you that screw-tightening is unsustainable.

• The Solution: A hooping station for embroidery machine ensures every flag is centered exactly the same way every time, while compatible magnetic hoop for bernina systems speed up the reload time between color changes.

Scenario 3: The Scale-Up When you move from home decor to team orders, single-needle machines hit a limit. This is where SEWTECH Multi-Needle Machines enter the conversation—allowing you to queue colors without manual thread changes, drastically increasing your profit-per-hour.

Warning: Magnetic Field Safety. Magnetic hoops use powerful industrial magnets. Pinch Hazard: They can snap together with crushing force—keep fingers clear. Health Warning: Keep magnets away from pacemakers, ICDs, and other implanted medical devices.

One Last Practical Note on Hooping Efficiency (Because Your Time Is the Real Cost)

Mastering the software logic (the manual lock stitch) ensures the quality of your flag. Mastering your physical workflow (hooping) ensures the enjoyment of your craft.

If you find yourself dreading the "hooping" step, investigate tools like a hoop master embroidery hooping station (standard in the industry) or more accessible magnetic hooping station alternatives. For BERNINA users specifically, ensuring you select the correct bernina magnetic hoop compatibility for your model series (5-series, 7-series, etc.) is the first step toward a friction-free experience.

Stitch smartly, cut carefully, and trust the physics of your stabilizer.

FAQ

• Q: How do I hoop base fabric with Polymesh (soft cutaway) for a BERNINA oval embroidery hoop so ITH bunting flag corners turn sharp?
  A: Hoop one layer of base fabric with one layer of Polymesh, and stop tightening at “taut, not stretched.”
  • Tighten the BERNINA oval hoop until the fabric is firm but the grain lines are not distorted.
  • Tap the hooped fabric and listen: aim for a dull, low “thud,” not a high “ping.”
  • Switch to two layers of Polymesh only if the center design is heavy/dense (often satin lettering).
  • Success check: the placement line stitches smoothly without buckling, and the fabric surface stays flat when you touch it.
  • If it still fails: inspect the inner hoop for residue/burrs and re-hoop; instability at hooping will show up as a wonky outline later.
• Q: How do I prevent an ITH bunting flag seam from unravelling after turning when digitizing in BERNINA Embroidery Software DesignerPlus?
  A: Digitize a manual lock stitch using an Open Object single-run seam instead of relying on a simple start/stop.
  • Use Open Object Digitizing with Single Run (straight stitch).
  • Start 3–4 stitches down from the top edge, stitch up to the top edge, run the seam path, then backtrack down 3–4 stitches at the end.
  • Keep the seam line as an open object so the “lock” is created by your backtracking, not a bulky automatic tie-off.
  • Success check: after turning right-side-out, the top seam ends stay tight and do not separate when you gently pull the layers apart.
  • If it still fails: check that the backtracking is actually stitched (not just nodes placed) and avoid adding extra tie-offs that can create a small nest on the seam.
• Q: How do I force a BERNINA embroidery machine to stop so I never forget to place the backing fabric Right Sides Together for an ITH bunting flag?
  A: Assign the final structural seam to a different color so the BERNINA machine pauses for a “thread change.”
  • Keep the placement line and center design in earlier colors, then set the final seam line to a new, distinct color.
  • When the machine stops, place the backing fabric Right Sides Together and smooth it flat by hand (skip spray adhesive to avoid needle residue).
  • Confirm the backing fabric margin is at least 1/4" past the stitch line (1/2" is safer for beginners).
  • Success check: before resuming, the backing fabric fully covers the placement line area with no bubbles or wrinkles you can feel.
  • If it still fails: increase the backing margin to 1/2" and lower speed for the final outline to reduce shifting.
• Q: How do I stop ITH bunting flag points from looking rounded or bulky after turning when using Polymesh stabilizer?
  A: Trim aggressively and clip correctly: 1/8" seam allowance, dog-ear the corners, and cut a deep inner V-slit close to (not into) the stitches.
  • Trim the stitched seam allowance down to 1/8" (3mm) to remove bulk that prevents a sharp turn.
  • Dog-ear trim the bottom corners to reduce stacked layers at the point.
  • Cut the inner V-notch slit almost to the stitches to release tension that causes puckering.
  • Success check: after turning, the point forms cleanly with minimal poking, and the V area lies flat without a pucker line.
  • If it still fails: re-check that the slit is deep enough and that the stabilizer is Polymesh (stiff cutaway often fights the turn).
• Q: What is the safest way to trim an ITH bunting flag down to a 1/8" seam allowance after stitching on a BERNINA hoop?
  A: Use a rotary cutter with a fresh blade on a self-healing mat, and keep fingers completely out of the cutting path.
  • Release the hoop screw and remove the project gently—do not rip it out—to avoid distorting the fabric.
  • Cut with a ruler-guided rotary cutter; replace dull blades because they can slip instead of cutting cleanly.
  • Keep the non-cutting hand outside the “line of fire,” especially when trimming close to stitches.
  • Success check: the seam allowance is consistently ~1/8" and the stitches remain uncut along the entire outline.
  • If it still fails: slow down and make multiple controlled passes rather than forcing one heavy cut near the seam.
• Q: How do I reduce fabric shifting and improve corner accuracy on the final outline seam of an ITH bunting flag on a BERNINA embroidery machine?
  A: Slow the machine down for the final outline and place the backing fabric flat with adequate margin before stitching resumes.
  • Lower embroidery speed for the final outline (for example, around 600 SPM as a practical target used in this workflow).
  • Smooth the backing fabric by hand and avoid spray adhesive that can contaminate the needle during the seam pass.
  • Ensure backing coverage is at least 1/4" past the stitch line (1/2" provides a safer buffer).
  • Success check: the final outline lands consistently on the intended path, and corners look crisp rather than “wonky.”
  • If it still fails: re-check hoop tension using the “thud vs ping” tap test and inspect the hoop for residue that can allow micro-slips.
• Q: If an ITH bunting flag keeps slipping in the hoop or leaving hoop burn marks on delicate fabrics, when should I switch from standard hoops to magnetic embroidery hoops or a multi-needle machine?
  A: Start with technique fixes, then upgrade tools for consistency; consider production equipment only when volume makes time-per-hoop the real problem.
  • Level 1 (technique): adjust hoop tension (taut, not drum-tight), verify clean hoop surfaces, and confirm stabilizer choice (Polymesh for turn-friendly flexibility).
  • Level 2 (tool): choose magnetic embroidery hoops when standard rings cause hoop burn on velvet/satin/napped fabrics or when repeated slipping ruins outline accuracy.
  • Level 3 (capacity): consider a multi-needle machine when you are producing high quantities and manual thread changes/hooping time becomes the bottleneck.
  • Success check: hooping becomes repeatable (less re-hooping), outlines stay accurate, and fabric surface shows reduced pressure damage after unhooping.
  • If it still fails: add a hooping station for repeatable placement and re-check that the design is not pushed to the hoop’s mechanical limit (avoid the red border safe-area issue in software).
• Q: What magnetic field safety rules should I follow when using magnetic embroidery hoops for ITH projects?
  A: Treat magnetic hoops as pinch hazards and keep them away from implanted medical devices.
  • Keep fingers clear when the magnets snap together; the clamping force can crush skin.
  • Separate and handle magnets with controlled, two-handed movements instead of letting them “jump” closed.
  • Keep magnetic hoops away from pacemakers, ICDs, and other implanted medical devices.
  • Success check: magnets are placed and removed without sudden snapping, and no fingers ever enter the closing gap.
  • If it still fails: slow down the workflow and stage the hoop parts on a stable surface so the magnets cannot slide or slam together unexpectedly.
