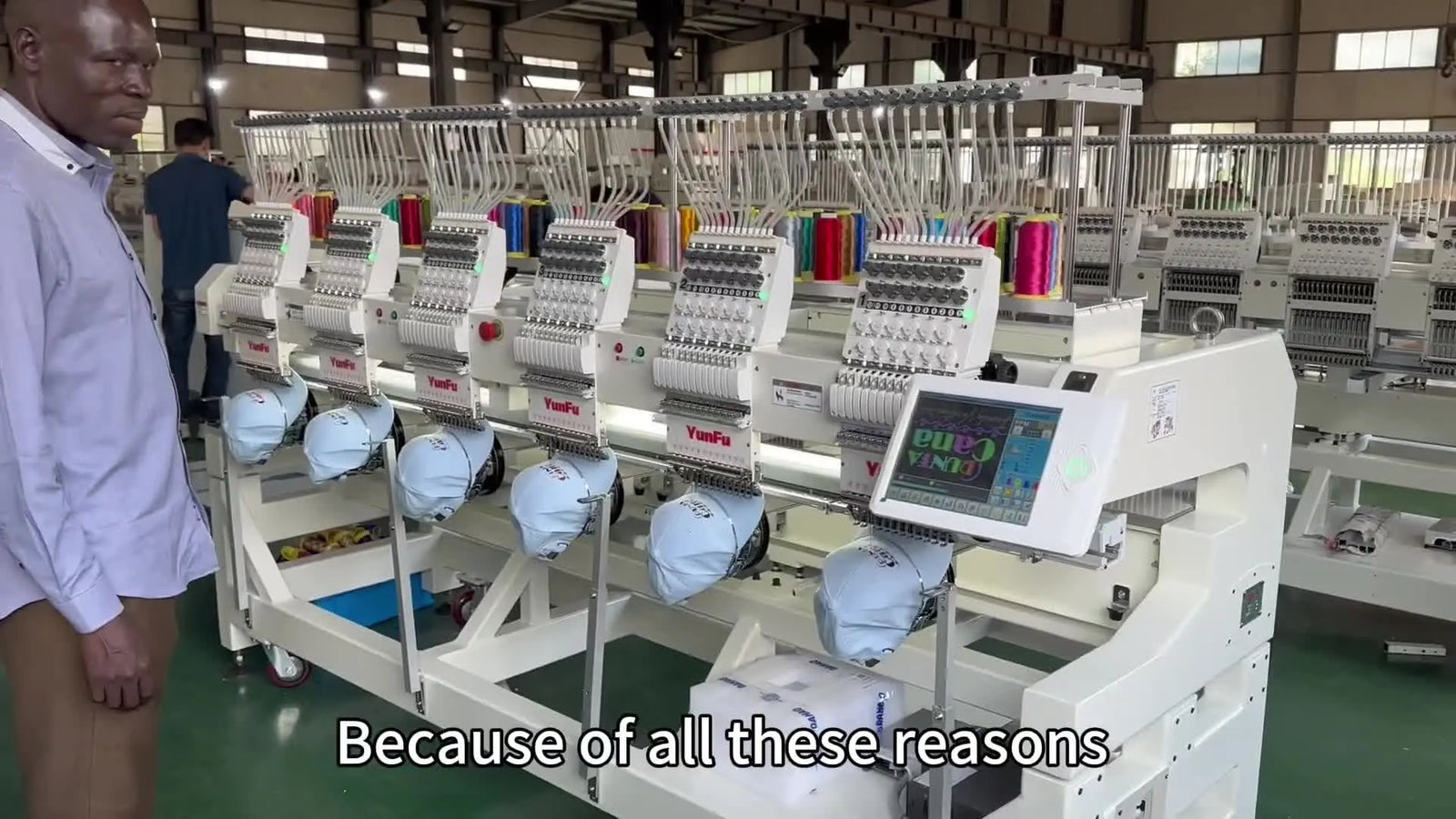

Inside a YunFu 6–8 Head Embroidery Machine: The Build Details That Decide Stitch Accuracy, Thread Breaks, and Real Production Speed

From Home Hobbyist to Factory Floor: The "Zero-Downtime" Guide to Multi-Head Embroidery

Scaling from a single-needle home machine to a 6 or 8-head industrial beast is the dream. It means taking an order for 50 polo shirts and finishing them in two hours instead of two days. But it also introduces a new kind of anxiety: Risk Perception.

When a single-needle machine messes up, you lose one shirt. When a multi-head machine drifts, you lose six shirts simultaneously.

You aren't just buying "more heads." You are buying repeatability. This guide deconstructs the mechanics of a production-grade machine (specifically analyzing the YunFu architecture familiar to SEWTECH users) and provides the "White Paper" standard for operating it safely. We will move beyond the brochure features to the tactile, sensory details that actually keep your business profitable.

1. The Foundation: Why "CNC-Washed" Beats "Shimmed" Frames

The video begins with the chassis—specifically the beam where the heads mount. This is arguably the most critical variable in machine longevity.

In cheaper manufacturing, frames are welded and then "leveled" using copper shims (thin metal sheets) to fill gaps. In high-precision manufacturing (like the process shown for 6-8 head machines), the welded frame goes to a CNC "washing center" to be milled 100% flat.

The "Vibration Test" (Sensory Check)

Why does this matter? Vibration.

• The Shim Risk: Over months of operation at 800+ SPM (Stitches Per Minute), vibration can loosen shims.
• The Symptom: You will hear a rattling sound distinct from the needle bar movement. Suddenly, Head #1 has perfect registration, but Head #6 has a 1mm gap in the outline.
• The Fix: There is no easy fix for a warped chassis. This is why buying a machine with a milled (CNC) surface is a preventative investment.




Warning: Mechanical Jeopardy
Never reach into the needle bar area or pantograph arm space while the machine is powered on, even if it is stopped. Industrial machines have high-torque servo motors that can engage instantly. A "Jog" command or accidental start can result in severe pinch injuries or bone fractures.

2. Head Alignment: The "Marble Table" Standard

The video highlights a crucial assembly detail: heads are assembled on a massive, perfectly flat marble table.

The Physics of Thread Breaks

If a head is assembled on an uneven workbench, the internal drive shafts bind slightly.

• The Sound: A misaligned head makes a grinding or "labored" humming noise at high speeds.
• The Data: A healthy multi-head machine should comfortably run 750–850 SPM on standard flats. If you find yourself forced to slow down to 600 SPM to prevent thread breaks on one specific head, that head is likely misaligned.


Pro Tip for Inspection: You cannot re-align a head easily yourself. However, you can check consistency.

1. Visual: Look at the gap between the needle plate and the rotary hook cover across all heads. They should be identical.
2. Tactile: Turn the main shaft manually (power off). It should have consistent resistance through the full 360-degree rotation, not "tight spots."

3. Clearance Matters: The Tajima Type 47 Advantage

The machine utilizes Tajima Type 47 heads. The critical spec here is that the Type 47 sits 2mm higher than the older Type 45.

Why 2mm Saves Your Profit Margin

In commercial embroidery, "Flagging" is the enemy. This happens when the fabric bounces up and down with the needle because the presser foot can't hold it down or the clearance is too tight.

• Scenario: You are stitching thick Carhartt jackets or 3D Puff foams.
• The Result: If clearance is too low, the fabric drags, distorting the design.
• The Solution: The extra 2mm allows thick seams to pass under the head without snagging.


Operating Rule:

• Standard Flats: Set presser foot height to "Business Card thickness" (slide a card between foot and plate; it should drag slightly).
• Thick/Puff: Raise the foot. The Type 47 gives you the headroom to do this without maxing out the mechanical limit.

4. Convertible Workstations: Table Logic

The large flat table is removable. This isn't just for storage; it's for Mode Switching.

• High Position: For flat embroidery (patches, bed sheets, uncut fabric).
• Low/Removed: For "Tubular" items (T-shirts, hoodies, caps).


The "Table Drag" Trap

Novices often leave the table high when doing T-shirts.

• The Risk: The heavy weight of the hoodie hangs off the hoop, dragging against the table edge. This friction ruins registration.
• The Fix: Drop the table. Let the garment hang freely around the tubular arm.

5. Stability: The 3-Point Support Bar

Rigidity is the currency of accuracy. The video demonstrates installing vertical support bars at three points under the table extension.

Use the "Drum Skin" Standard

When setting up your table for a large run of patches:

1. Install the supports.
2. Press firmly on the center of the table.
3. Check: There should be zero flex. It should feel solid, like leaning on a granite countertop. If it bows, your large designs will warp.

6. Maintenance Access: The Main Axis Port

The machine features a degree sight glass and a sliding access cap for the main axis.

The Maintenance Ritual:

• When: Every morning before the first run.
• Action: Check the degree wheel. It should typically sit at 100 degrees (stop position). If it stops at 98 or 102 consistently, your timing belt may be loose, or the potentiometer needs calibration.
• Safety: keep the access cap closed unless a certified technician is guiding you through a timing adjustment.

7. The Workflow Bottleneck: Keeping Up with 8 Heads

Here is the uncomfortable truth about multi-head machines: The machine is faster than you. An 8-head machine finishes 8 shirts in 15 minutes. Can you hoop 8 shirts in 15 minutes?

If you use standard screw-tightened hoops, your wrists will fail before the machine does. This is the "Hooping Bottleneck."

The Solution: Magnetic Hoops (The Tool Upgrade)

This is where professionals upgrade from "skill" to "tools." Terms like magnetic embroidery hoop are your gateways to understanding efficient production. Unlike mechanical hoops that require force and adjustment for every shirt thickness:

1. Speed: They snap shut automatically.
2. Safety: No "hoop burn" (shiny marks) on delicate fabrics because the pressure is distributed evenly.
3. Volume: For runs of 50+ items, a magnetic system cuts hooping time by ~40%, allowing the operator to keep pace with the machine.

For industrial setups, look for "MaggieFrame" or similar industrial-grade magnetic systems that fit standard 360mm/500mm spacing.

Warning: Magnetic Hazards
Industrial magnetic hoops contain Neodymium magnets with crushing force.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut faster than you can react.
* Medical Safety: Operators with pacemakers or ICDs must maintain a safe distance (usually 6-12 inches) labeled by the manufacturer.

8. Control Interface: Emergency Stops & Button Pairs

On a 6-head machine, you have two pairs of start/stop buttons. On an 8-head, three pairs. Plus one massive Emergency Stop.

The "Walk-By" Strategy: You cannot stand in front of the screen all day. The multiple button pairs allow you to stop the machine from anywhere along the line if you hear a thread break or see a nest forming.

• Drill: Train yourself to hit the nearest Stop button, not run back to the screen. Fractions of a second save garments.

9. The Ultimate Test: "All Needles, All Heads"

The video shows the pre-shipment test: mounting thread holders, threading every needle, and running all heads simultaneously.

Pre-Flight Checklist (The "Or Else" List)

Before running a customer order, perform this sequence. If you skip this, you are gambling.

• Oil Check: One drop on each rotary hook raceway. (Look for a sheen, not a puddle).
• Bobbin Tension: The "Yo-Yo Test." Hold the bobbin case by the thread. It should slide down 1-2 inches with a gentle jerk, but hold still when static.
• Upper Path: Verify the thread is flossing through the tension disks, not riding on top.
• The "Path of Clear": Walk the length of the machine. Ensure no boxes, chairs, or fabric scraps are in the pantograph's range of motion.

10. Electronics: The Dahao A18 Standard

The control system is Dahao A18. This is the industry standard for Chinese-manufactured commercial machines.

Why it matters:

• Repairability: Parts are universal.
• Stability: Less prone to "Ghost Stops" (false thread break sensors).
• User Base: If you have an error code, thousands of users online can help diagnose it instantly.

11. The Cap Game: Drivers and Drilling

Embroidering caps (hats) is high-profit usually $5-$10 profit per unit—but it is the hardest skill to master mechanically.

The "Flagging" Problem on Caps

Caps are structured and curved. If they aren't hooping tightly, the needle bends (deflects) against the buckram.

• The Fix: You need a specialized cap hoop for embroidery machine system (Cap Driver). The video shows the machine fully rigged for this.
• Critical Adjustment: When switching to caps, you must change the needle plate (if applicable) or adjust the active field to prevent the needle from hitting the driver bar.

Most start-up shops fail at caps because they underestimate the setup time. If you plan to do volume hats, invest in a "Cap Hooping Station" to ensure the logo is centered every single time before it touches the machine.

12. Decision Tree: Product vs. Setup

Don't guess. Use this logic flow to configure the machine for the day's job.

Step 1: Identify Material

• T-Shirts/Hoodies: Go to Step 2A.
• Caps/Hats: Go to Step 2B.
• Patches/Badges: Go to Step 2C.

Step 2: Configure Machine

• 2A (Tubular): Remove Table. Install Tubular Arms. Use Cutaway stabilizer (2.5oz). Recommended: Magnetic Hoop for speed.
• 2B (Cylindrical): Remove Table. Install Cap Driver. Critical: Rotate design 180 degrees (usually). Use Cap Backing.
• 2C (Flat): Install Table + Support Bars. Install Flat Sash/Border Frame. Use rigid stabilizer or water-soluble topping for detail.

Step 3: Speed Limit (Safe Zones)

• New Operator: 650 SPM.
• Production Standard: 750-850 SPM.
• Cap Speed: 600-700 SPM (Caps hate high speed).

13. Troubleshooting: The "Low Cost First" Method

When a head stops or thread shreds, follow this specific order. It saves hours of unnecessary mechanic work.

14. Hidden Consumables Checklist

Your machine didn't come with a lifetime supply of these. Stock up now to avoid a Friday night panic.

• Spray Adhesive: Temporary bond for stabilizers (use lightly!).
• Needles: Titanium coated needles last longer on industrial machines. Keep sizes 75/11 and 80/12.
• Bobbin Cases: Buy 5 extra. If you drop one, it's oval now. Throw it away.
• USB Drives: 8GB is plenty. Don't use massive 64GB drives; the A18 system reads smaller drives faster.

15. The Next Step: Scaling Up

If you are reading this because you are overwhelmed by orders, you are in a good place. Moving to a tajima 6 head embroidery machine or a similar SEWTECH multi-head system is about changing your mindset from "Craftsman" to "Factory Manager."

You stop watching the needle. You start watching the workflow.

• Are my tajima hat hoops pre-loaded before the machine stops?
• Is my backing pre-cut?
• Is my tajima embroidery frame surface clean?

The machine shown in the video—with its CNC chassis, marble-verified heads, and rigid table—is built to run all day. The only variable left is you.

By mastering the physical setup and investing in the right ergonomic tools (like magnetic frames), you ensure that your investment pays dividends in the form of perfect, repeatable stitches, thousands of times a day.

Ready to upgrade your production line? Explore the SEWTECH range of multi-needle machines and industrial accessories designed for the modern embroidery business.

FAQ

• Q: How can SEWTECH 6–8 head embroidery machine owners tell the difference between normal needle-bar noise and chassis vibration from a shimmed frame?
  A: A shim-related chassis issue usually sounds like a separate rattling and shows up as registration differences between heads, not general “machine running” noise.
  • Listen: Run at production speed and identify whether the noise is a rattling distinct from the needle-bar rhythm.
  • Compare: Stitch the same outline on Head #1 and the last head; look for a small but repeatable gap/offset on the same area.
  • Inspect: Power off and check for any obvious looseness around the head-mount beam area (do not disassemble unless qualified).
  • Success check: Head-to-head outlines match closely and the “extra rattle” is not present.
  • If it still fails… Stop production and contact a qualified technician; a warped or shifting chassis is not a quick adjustment.
• Q: What is the safest rule for working near the needle bar and pantograph arms on a SEWTECH multi-head embroidery machine with servo motors?
  A: Never put hands in the needle-bar area or pantograph arm space while the SEWTECH multi-head machine is powered on—even if the machine is stopped.
  • Power down: Turn the machine off before reaching into any pinch zone.
  • Wait: Confirm all motion is fully stopped and no “jog” action can be triggered.
  • Clear: Remove hoops/garments only from safe access points, not between moving linkages.
  • Success check: Hands only enter the area when power is OFF and there is zero chance of sudden servo engagement.
  • If it still fails… Treat unexpected motion as a hazard and have the control/start circuitry checked by a certified technician.
• Q: How can operators diagnose a misaligned head on a Tajima Type 47 multi-head embroidery machine when only one head breaks thread above 600 SPM?
  A: If one specific head forces the whole Tajima Type 47 line to slow down to avoid breaks, that head may be misaligned rather than a thread-quality issue.
  • Listen: Run the machine and note any head that makes a grinding or “labored humming” sound at higher speeds.
  • Compare: Visually check the gap between the needle plate and rotary hook cover across all heads; gaps should look identical.
  • Hand-turn: With power off, rotate the main shaft through 360° and feel for “tight spots” versus smooth, consistent resistance.
  • Success check: No head has a unique grinding sound, and the main shaft turns evenly without binding points.
  • If it still fails… Avoid DIY realignment; document which head is affected and schedule a technician inspection.
• Q: How should operators switch the workstation table for tubular items on a SEWTECH 6–8 head embroidery machine to prevent registration drift from “table drag”?
  A: For T-shirts/hoodies on a SEWTECH 6–8 head machine, drop or remove the flat table so the garment hangs freely and does not rub the table edge.
  • Lower/remove: Set the workstation to tubular mode (low/removed table) before stitching garments.
  • Hang-free: Ensure the hoodie/T-shirt weight is not pulling against the table edge during stitching.
  • Re-check: Confirm hoops are not bumping table arms along the full sew field.
  • Success check: The garment clears the table with no rubbing, and outlines stay registered instead of drifting.
  • If it still fails… Check for hoop interference and consider a higher-grip hooping method (including magnetic hoops) to reduce movement.
• Q: What is the correct daily pre-flight checklist for Dahao A18 multi-head embroidery machines to prevent birdnesting and stoppages before a customer run?
  A: Do a short, repeatable morning routine on the Dahao A18 system before the first order; it prevents most “surprise” nests and thread issues.
  • Oil: Apply one drop to each rotary hook raceway (aim for a sheen, not a puddle).
  • Test: Perform the bobbin “yo-yo test” (slide down 1–2 inches with a gentle jerk, hold when static).
  • Verify: Confirm upper thread is flossing between tension disks, not riding on top.
  • Walk: Clear the pantograph travel path of boxes, chairs, and fabric scraps end-to-end.
  • Success check: Bobbin case passes the yo-yo behavior, thread seats correctly in tension, and the machine area is physically clear.
  • If it still fails… Use the Dahao panel and a controlled test design to isolate whether the issue is thread path, needle condition, or bobbin case wear.
• Q: How do SEWTECH multi-head embroidery machine operators stop bobbin birdnesting using the “drum skin” hooping standard before touching hook timing?
  A: Fix fabric stability first—loose hooping is the fastest cause of birdnesting, and it is a free check before any advanced timing work.
  • Re-hoop: Tighten hooping until fabric feels like a drum (firm and flat, not springy).
  • Inspect: Confirm the garment is not dragging on the table or catching on machine parts during pantograph travel.
  • Replace: Swap in a known-good bobbin case if the tension spring is suspect.
  • Success check: Stitches form cleanly on the underside without a thread “nest” building under the needle plate area.
  • If it still fails… Stop and escalate to hook timing inspection with a technician; timing is an advanced adjustment.
• Q: When should a shop upgrade from screw-tightened hoops to magnetic hoops for an 8-head embroidery machine to remove the hooping bottleneck?
  A: Upgrade when hooping speed and consistency cannot keep up with output—especially on 50+ piece runs where manual screw hoops slow the line and cause pressure marks.
  • Diagnose: Time how long it takes to hoop 8 garments; if hooping cannot match the machine cycle, the workflow is bottlenecked at hooping.
  • Optimize (Level 1): Standardize garment loading and pre-cut backing so hooping is consistent and repeatable.
  • Upgrade tools (Level 2): Use magnetic hoops to snap shut faster and distribute pressure more evenly to reduce hoop burn on delicate fabrics.
  • Consider capacity (Level 3): If orders are consistently overwhelming, evaluate moving to a higher-throughput multi-head setup to match demand.
  • Success check: Hooping keeps pace with production runs and registration stays stable without shiny hoop marks.
  • If it still fails… Audit whether table setup, garment drag, or operator flow (pre-loading hoops/backing) is the real limiting factor.
• Q: What safety rules should operators follow when using industrial magnetic embroidery hoops with Neodymium magnets on multi-head machines?
  A: Treat industrial magnetic hoops as a pinch hazard and follow medical-device distance guidance; the magnets can crush fingers when they snap shut.
  • Keep-clear: Never place fingers between mating surfaces while closing the magnetic frame.
  • Stage: Set the hoop on a stable surface and align deliberately before letting the magnets engage.
  • Screen: Keep operators with pacemakers/ICDs at the manufacturer-labeled safe distance (commonly 6–12 inches).
  • Success check: The hoop closes without finger contact in the pinch zone and holds fabric firmly without excessive force marks.
  • If it still fails… Switch to a safer handling routine (two-handed positioning, slow alignment) or assign trained operators only for magnetic hooping.
