Inside a 44-Head Tai Sang Embroidery Machine: The Parts That Let You Run 1000 RPM Without Shaking Your Shop Apart

When you watch an industrial embroidery machine video like this Tai Sang tour, it’s easy to get hypnotized by the blurring speed and the “wow” factor of specialized attachments—and miss the real lesson. As someone who has spent two decades on the shop floor, I can tell you: industrial output is 20% about the machine’s top speed and 80% about stability, repeatability, and downtime control.

If you’re running a shop (or planning to scale up from a single-needle home machine), the question isn’t “Can it stitch?” It is: “Can it stitch at production speed all day without vibration, thread drama, and operator bottlenecks?”

This post rebuilds the video into a practical, shop-ready "White Paper" to help you evaluate what you’re seeing: the chassis, the drive system, the hook capacity, the oiling approach, and the specialty attachments (sequins, cording, taping). I will also add the missing “operator reality” layer—because in real production, your machine can be perfect, but you will still lose money if your hooping process is slow or your fabrics are slipping.

Don’t Panic—A Promo Tour Still Reveals the Truth About an Industrial Embroidery Machine

A short montage can still tell you a lot if you know how to filter the noise. This video is essentially a capability tour: it shows a heavy-duty frame, a double-shaft mechanism for high-speed stability, servo motors for the main drive and X/Y movement, and a Kobest jumbo rotary hook.

Here’s the calm takeaway for beginners: nothing in the video is “magic.” Every feature shown is aimed at one thing—keeping stitch formation consistent while the pantograph is moving fast.

If you are comparing brands—perhaps you have looked at high-end tajima embroidery machine options—use this post as your lens. You aren't just buying a logo; you are buying mechanical stability, uptime, and a workflow your staff can repeat without tears.

The “Hidden Prep” Before You Judge Any Multi-Head Machine: What to Inspect First

Before you get excited about 1000 RPM and fancy attachments, do the "boring" checks. These are the physical audits that prevent the classic production nightmare: “It ran great in the demo, then became a problem child in my shop.”

Prep Checklist: The Physical Audit

Perform these checks before a demo, install, or serious evaluation.

• Define Your "Sweet Spot" Speed: Confirm if the machine can sustain its rated speed on your goods.
  • Metric: A machine claimed at 1200 RPM should run effortlessly at 850-950 RPM (the industry "sweet spot") without "walking" across the floor.
• Frame Mass Test (The "Thump" Test): Look for frame mass (the video highlights a “Strong Body”). Rap your knuckles on the beam.
  • Sensory Check: It should sound solid and dead (a dull thud), not hollow or ringing. Rigidity means less vibration transferring into your satin stitches.
• Motor Type Identification: Confirm the use of servo motors for both main drive and X/Y. Stepper motors are older tech; Servos are smoother and quieter.
• Guide Rail Smoothness: Identify the linear drive system.
  • Action: With the machine off, ask to push the pantograph gently by hand. It should glide like it’s on ice—no grit, no sticky spots.
• Hook Capacity: Verify the hook type (video shows Kobest jumbo).
  • Consumable Note: Ensure you can source M-Style bobbins (larger) rather than standard L-Style.
• Oiling Accessibility: Locate the reservoir. Is the lever easy to reach? If it's hard to reach, your operators won't use it.
• Screen Ergonomics: Confirm the 10-inch LCD is viewable from the "working posture" (standing at the hoops).

Warning: Projectiles & Pinch Points. Never reach near needle bars, rotary hooks, or moving pantograph arms while the machine is powered. Industrial heads have no sensors to stop them if your finger is in the way. A needle breaking at 1000 SPM can send shrapnel flying—always wear eye protection during test runs.

Strong Chassis + Double Shaft: The Real Reason 1000 RPM Doesn’t Turn Into Vibration and Misregistration

The video calls out a “Strong Body” structure and shows a heavy internal beam, then a double-shaft mechanism intended for high-speed stability.

In plain shop terms, here is what that buys you:

• Vibration Damping: Vibration doesn't just make noise; it causes the needle to "wobble" entering the fabric.
  • Sensory Anchor: Place your hand on the table while it runs at 800 SPM. It should feel like a humming fridge, not a shaking washing machine.
• Crisp Corners: When the pantograph snaps from left to right to create a sharp corner, inertia is the enemy. A rigid chassis forces the head to stay “honest” to the design.
• Forgiveness: In real life, operators don’t always hoop perfectly. A stable platform gives you a margin of error.

Expert Reality Check: Even with a tank-like frame, you cannot defy physics. If your fabric isn't tight (think: drum skin tension), the best machine in the world will still produce puckering.

Servo Motors on Main + X/Y: What That Means for Stitch Quality (Not Just Speed)

The video isolates the motor system: a main servo motor for the needle bar drive and separate servo motors for X and Y pantograph movement.

Why experienced operators care:

• Torque at Low Speeds: Servos provide consistent power even when you slow down for heavy seams (like the brim of a cap).
• Micro-Control: They handle acceleration/deceleration curves better. This reduces "flagging" (fabric bouncing) at the corners.
• Decible Level: Servos are significantly quieter. A quieter shop reduces operator fatigue.

This is where “demo speed” can mislead you. A machine can hit a high RPM number, but what you are buying is usable quality speed.

• Beginner Safe Zone: 600-750 SPM.
• Pro Safe Zone: 850-950 SPM.

If you’re shopping across brands (for example, comparing barudan embroidery machines to others), focus on how the drive system behaves during direction changes—listen for a rhythmic, consistent sound, not a strained whining noise.

Aluminum Linear Drive + Guide Rails: The Quiet Upgrade That Prevents Wavy Outlines

The video highlights an aluminum linear drive rail system for pantograph travel.

Linear motion components are "invisible" until they fail. In production, rough travel shows up as:

• Railroading: Satin stitches that look jagged on the edges.
• Gapping: Fills that don't quite touch the outline.

The Tactile Test: Run your finger along the rail (machine off). It should be immaculate. Any grease buildup or grit here will eventually translate into a ruined design.

The Kobest Jumbo Rotary Hook: Why “60% More Bobbin” Is Really an Uptime Feature

The video shows a Kobest jumbo rotary hook and states it holds 60% more than standard.

In a production shop, bobbin capacity is not a convenience—it is a scheduling tool.

• The Math: Standard L-bobbins last 25,000-30,000 stitches. Jumbo M-bobbins can go 40,000+.
• The Multiplier Effect: On a 4-head machine, stopping to change bobbins takes 4x the labor. Fewer stops = higher profit margin.


The Tension Sweet Spot: When checking the bobbin case tension with a Jumbo hook, perform the "Yo-Yo Test." Hold the thread end and let the bobbin case hang. It should not drop. Shake your wrist gently—it should drop 1-2 inches and stop. If it falls to the floor, it's too loose (looping). If it doesn't move, it's too tight (thread breaks).

The Oiling Reservoir + Manual Lever: Treat Lubrication Like a Production KPI

The video shows an automatic oiling system reservoir with a manual lever.

Even if a system is “automatic,” the operator's habit safeguards your investment.

• The Sound of Dryness: Learn the sound of your machine. A well-oiled hook makes a soft whir. A dry hook makes a sharp hiss or metallic clack.
• The Consumable: Use clear white mineral oil (sewing machine oil). Never use 3-in-1 or WD-40, which attract lint and create "abrasive paste."

The 10-Inch LCD Monitor + Emergency Stop: Small Details That Save Big Jobs

The video shows a 10-inch LCD control panel and an emergency stop button.

In production, interface clarity prevents disaster. You need to see the design orientation and color sequence clearly.

Setup Checklist: The Pre-Flight Routine

Do this before pressing "Start" on any run.

• Needle Check: Run your fingernail down the needle tip. If you feel a "catch" or burr, replace it. (Standard: 75/11 BP for knits, 75/11 Sharp for wovens).
• Thread Path: Ensure thread is seated between tension discs. Pull thread at the needle; you should feel resistance similar to flossing your teeth.
• Bobbin Status: Check the bobbin area for lint buildup. Blow it out.
• Design Orientation: Double-check "F" orientation on the screen. Is the design upside down?
• Clearance: Rotate the hand wheel (manually) to ensure the foot doesn't hit the hoop.
• Speed Reset: Reset speed to 600 SPM for the first 100 stitches to catch operational errors early.

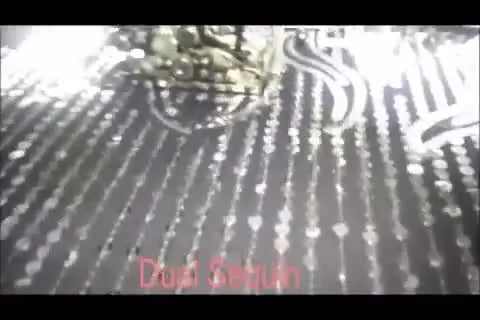

Sequins, Zig-Zag Cording, Dual Sequins, Tufting/Taping: What Changes When You Add Attachments

The video demonstrates multiple specialty modes.

Here is the practical truth: Attachments add weight and failure points.

• Sequins: Require slower speeds (max 600-700 SPM) to prevent misfeeds.
• Cording/Taping: Requires a "Material Handling" mindset. You are laying rope, not just thread. Stabilization must be significantly heavier to support the weight of the cord.

If you are deciding if specialty work is worth it: These jobs command higher prices, but they slow down your line. Do the math on whether the extra $2/shirt is worth cutting your daily output by 30%.

Fabric + Stabilizer Decision Tree for Industrial Runs (So the Whole 44-Head Line Behaves)

The video shows fabrics/backings like non-woven stabilizer. In real production, stabilizer choice is the #1 cause of failure.

Decision Tree: Stop Guessing.

1. Is the fabric unstable? (T-shirts, Polos, Performance wear)
   • Yes: YOU MUST USE CUTAWAY STABILIZER. No exceptions. Tearaway will result in distorted designs and gaps.
   • Action: Use a 2.5oz Cutaway + Soluble Topping (to keep stitches on top).
2. Is the fabric stable? (Denim, Canvas, Twill caps)
   • Yes: You can use Tearaway (2.0oz - 3.0oz).
   • Action: Check if the design is dense (>15,000 stitches). If so, add a layer of Cutaway for insurance.
3. Is the job hard to hoop? (Bags, thick jackets, slippery silks)
   • Yes: Traditional hoops may leave "hoop burn" (crushed fibers) or fail to hold tension.
   • Solution: This is the trigger point to investigate hooping station for embroidery setups or magnetic alternatives.

The Real Bottleneck in Multi-Head Production: Hooping Speed, Operator Fatigue, and Repeatability

The video ends with a 44-head machine running simultaneously. That’s the dream shot—but here’s the shop-floor reality: The bottleneck is human.

• If hooping takes 2 minutes per shirt, your machine sits idle.
• If your operator's wrists hurt from tightening screws, quality drops.
• If hoop tension varies, Head 1 looks great, but Head 4 is puckered.

For many shops, the smartest upgrade isn't a new machine—it's better workholding.

If you are fighting hoop burn on delicate polos or struggling with thick Carhartt jackets, Magnetic Hoops are the professional solution. They snap fabric into place without forcing it into a ring, reducing "hoop burn" to near zero and saving operator wrists. Terms like magnetic embroidery hoops are often searched by shop owners precisely when they realize screw-hoops are costing them money in damaged goods and slow loading times.

Warning: Magnetic Safety. Industrial magnetic hoops use neodymium magnets. They are incredibly powerful.
* Pinch Hazard: They can crush fingers instantly. Handle with intent.
* Medical Device Safety: Keep at least 6 inches away from pacemakers.
* Storage: Always store with the provided spacers. Do not let them snap together directly.

The 1000 RPM Claim: How to Use Speed Without Buying Thread Breaks

The video shows an on-screen speed spec “into 1000rpm.”

Speed is a dial, not a switch.

• Start Slow: First run of a new design? Run at 650 SPM. Watch the registration.
• Listen: A smooth thump-thump-thump is good. A harsh clack-clack means you are pushing the needle bar too hard or tension is too tight.
• Accelerate: Only crank to 900+ SPM if the design has long straight runs (fills) and stable backing.

“Commercial Scalability” Isn’t Just More Heads—It’s Fewer Stops Per 1,000 Pieces

The video’s final message is scalability. But true scalability isn't just buying more heads; it's engineered workflow.

If you are currently on a smaller setup and looking at multi needle embroidery machines for sale, you need to plan your ecosystem:

• Do you have enough hoops to "double hoop" (hoop the next garment while one sews)?
• Do you have a dedicated Hooping Station to ensure logos are straight every time?

Common “Looks Great in the Video” Problems—and How to Avoid Them in Your Shop

Troubleshooting the Reality vs. the Promo.

The Upgrade Path That Actually Pays: From “It Runs” to “It Produces”

If you’re scaling, upgrades should follow bottlenecks—not hype.

Level 1: The Consumables Fix

• Trigger: Thread breaks, dull needles, poor coverage.
• Solution: Upgrade to high-quality Poly thread, Organ/Schmetz needles, and dedicated stabilizers (not just whatever is cheapest). Use temporary spray adhesive for perfect backing alignment.

Level 2: The Tooling Fix (Speed & Safety)

• Trigger: Hoop burn marks, wrist fatigue, crooked logos, slow changeovers.
• Solution: Implement a hooping station for machine embroidery for consistency. Upgrade to Magnetic Hoops for speed and fabric safety. This bridges the gap between amateur and pro output without buying a new machine yet.

Level 3: The Capacity Fix (Scale)

• Trigger: You are turning away orders because you literally lack needle hours.
• Solution: This is when you buy. Whether you are browsing a commercial embroidery machine for sale or adding heads to your line, ensure your support equipment (hoops/stations) scales with the new machine.

Operation Checklist: The Production Run

• Watch the First Color: Don't walk away until color 1 is done.
• Listen for Rhythm: Listen for that "Heartbeat" of the machine.
• Trim Check: Are the automatic trims clean? If tails are long (>5mm), check your picker or knife timing later.
• Bobbin Alert: Watch for the "low bobbin" sensor or count your runs. Change pre-emptively on large complex jackets.
• Log It: Write down the speed and tension settings that worked. Do not rely on memory for next week's re-order.


If you want to discuss your current bottleneck—whether it's "hoop burn" on performance polos or just needing more needles—drop a comment. I can help you map the fastest upgrade path, often starting with the tools you already have.

FAQ

• Q: How can an industrial multi-needle embroidery machine physical audit confirm the machine can hold 850–950 SPM without vibration or misregistration?
  A: Use a short, hands-on audit before trusting any 1000+ RPM claim—stable “sweet spot” speed matters more than peak speed.
  • Define the target: Ask the seller to run your typical fabric/design and confirm it runs smoothly at 850–950 SPM.
  • Thump-test the frame: Rap knuckles on the beam and listen for a dull “thud,” not a hollow ring.
  • Check pantograph travel: With power off, gently push the pantograph—movement should glide smoothly with no grit or sticky spots.
  • Success check: At ~800 SPM, the table should feel like a humming fridge, not a shaking washing machine.
  • If it still fails… Reduce speed and re-check hooping tension/stabilizer first, then suspect rails/drive stability issues.
• Q: How does an industrial embroidery machine bobbin case “Yo-Yo Test” set correct tension for a jumbo rotary hook and M-style bobbins?
  A: Set bobbin case tension so the bobbin case drops only slightly under a gentle shake—this prevents looping and thread breaks.
  • Hold the thread end and let the bobbin case hang freely.
  • Shake the wrist lightly to trigger movement.
  • Adjust tension: If the case falls to the floor, tighten; if it does not move at all, loosen.
  • Success check: The bobbin case should drop about 1–2 inches and stop when shaken gently.
  • If it still fails… Inspect the bobbin case/hook for burrs and lint buildup before changing other settings.
• Q: What is the safest pre-flight setup checklist for an industrial multi-needle embroidery machine to prevent crashes and early-run disasters?
  A: Run a quick “pre-flight” before every job—most production mistakes happen in the first 100 stitches.
  • Inspect the needle: Replace any needle that catches a fingernail (burr) instead of gambling on it.
  • Verify the thread path: Rethread with the presser foot UP so thread seats correctly in tension discs.
  • Confirm clearance: Manually rotate the hand wheel to ensure the presser foot will not strike the hoop.
  • Success check: Start at 600 SPM for the first 100 stitches and confirm clean registration with no unusual clacking sounds.
  • If it still fails… Stop immediately and re-check design orientation and hoop position before increasing speed.
• Q: What industrial embroidery machine safety rules prevent injury around needle bars, rotary hooks, and moving pantograph arms during test runs?
  A: Keep hands out of the sewing zone when powered—industrial heads will not stop for fingers, and needle breaks can throw debris.
  • Keep fingers away: Never reach near needle bars, hooks, or pantograph arms while the machine is powered.
  • Wear eye protection: Treat high-speed test runs as a shrapnel risk if a needle breaks.
  • Use the emergency stop: Hit E-stop first, then troubleshoot—do not “grab and fix” while moving.
  • Success check: All adjustments happen only with motion fully stopped and hands safely clear before restart.
  • If it still fails… Pause production and review the shop’s lockout/safe-stop routine per the machine manual.
• Q: How do industrial magnetic embroidery hoops reduce hoop burn and speed up changeovers, and what magnetic safety rules must operators follow?
  A: Magnetic hoops snap fabric evenly without over-compressing fibers, reducing hoop burn and operator wrist strain—but magnets can crush fingers.
  • Use magnetic clamping: Position fabric and let the magnetic ring clamp instead of forcing fabric into a screw hoop.
  • Standardize loading: Repeat the same placement method to improve multi-head consistency and reduce crooked logos.
  • Store safely: Keep hoops with spacers so magnets do not snap together directly.
  • Success check: Fabric holds firm with consistent tension and shows near-zero crushed-fiber marks after stitching.
  • If it still fails… Add proper stabilizer (especially cutaway on knits) and confirm “drum-skin” fabric tension; do not compensate by over-clamping.
• Q: How can an industrial embroidery machine stabilizer decision tree prevent puckering and registration issues on T-shirts, polos, and performance wear?
  A: For unstable knits, cutaway stabilizer is the default—tearaWay often leads to distortion and gaps.
  • Identify fabric stability: Treat T-shirts/polos/performance wear as unstable fabrics.
  • Choose backing: Use 2.5 oz cutaway plus soluble topping to keep stitches sitting on top.
  • Reinforce dense jobs: If a design is very dense, add support rather than increasing speed or tension.
  • Success check: After stitching, outlines match fills and the fabric does not ripple around the design.
  • If it still fails… Re-evaluate hooping tension (flagging/loose hooping) and slow the first run to observe movement.
• Q: How do industrial embroidery machine troubleshooting steps fix birdnesting under the fabric during production runs?
  A: Birdnesting is commonly caused by missing top tension from an incorrect thread path—rethread correctly before changing parts.
  • Stop and clear: Remove the jam and clean out thread debris near the hook area.
  • Rethread fully: Rethread the machine completely with the presser foot UP so thread seats between tension discs.
  • Inspect contact points: Check the bobbin case or hook area for burrs that can snag thread.
  • Success check: The underside shows controlled, even bobbin thread with no thread “ball” forming after restart.
  • If it still fails… Slow to 600 SPM for diagnosis and inspect the bobbin area for lint buildup before running at higher speed.
